Page 1
X-CREATE BRIDGE SPACE
Assembly Guide
PART # 5616501-B
Page 2
TABLE OF CONTENTS
BRIDGE ASSEMBLY:
1.
MODULE ASSEMBLY
2.
8' UPRIGHT EXTENSION MODULE:
•
STORAGE MODULE:
•
STALL BAR MODULE:
•
BALL & HANGING STORAGE MODULE:
•
BALL TARGET WALL MODULE:
•
BALL TARGET WALL REVERSE SIDE:
•
8' OLYMPIC LIFTING STATION MODULE:
•

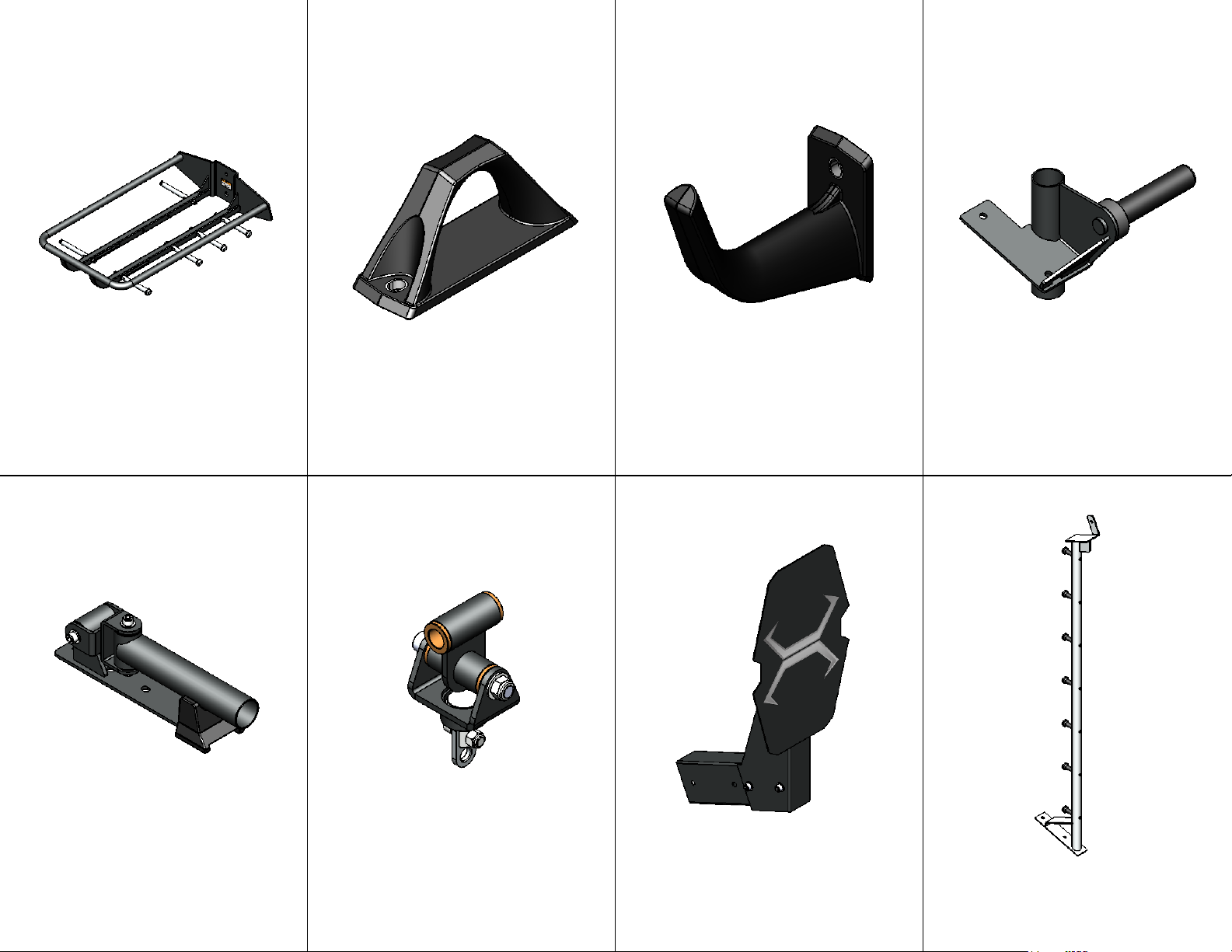

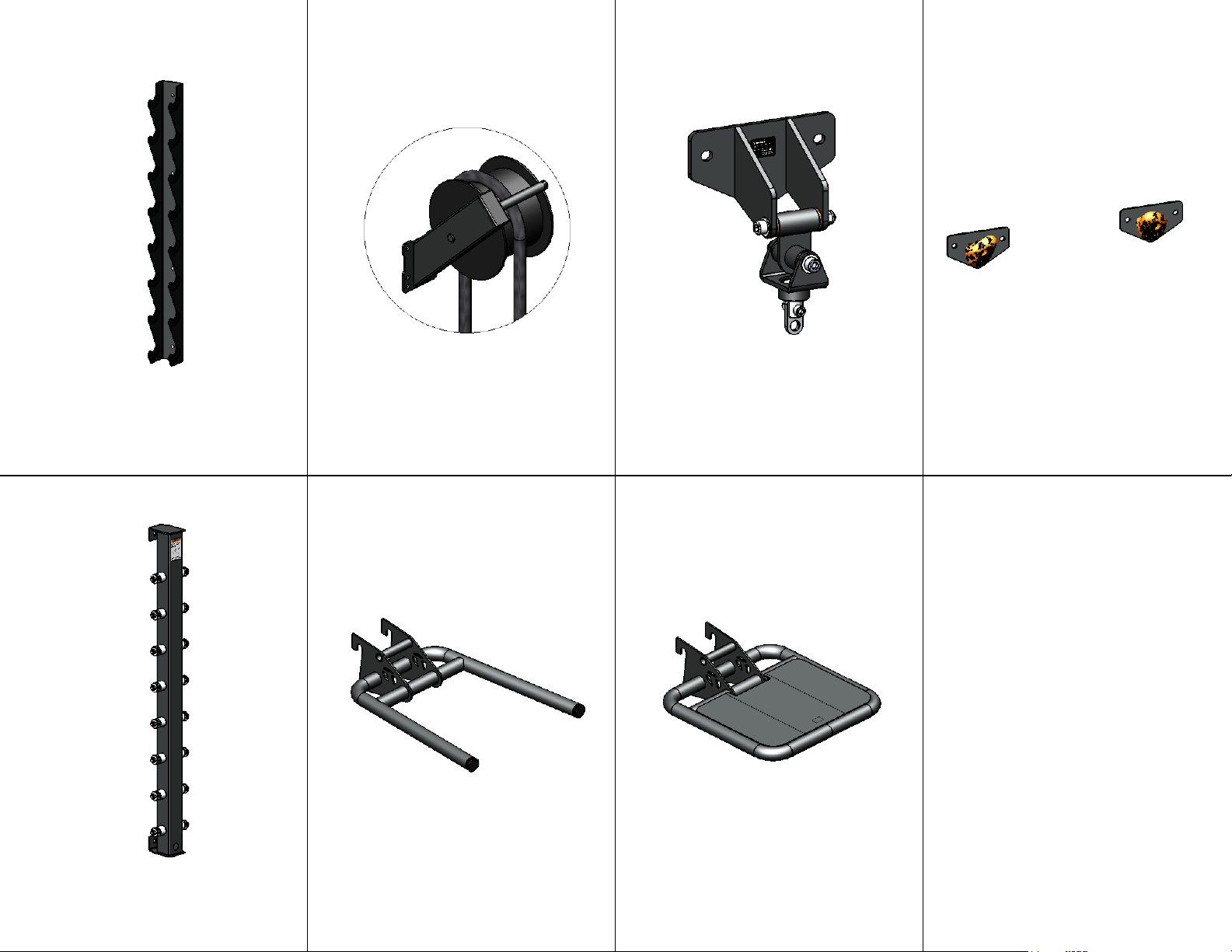

ATTACHMENT ASSEMBLY
3.
BALL & HANGING STORAGE EXTENSION:
•
BATTLE ROPE ANCHOR:
•
HANGING STORAGE HOOK:
•
DOUBLE PLAY:
•
HORIZONTAL MOUNT GROUND ROTATIONAL TRAINER:
•
3-DIMENSIONAL SWIVEL ON UPRIGHT:
•
BALL TARGET:
•
RESISTANCE BAND ANCHOR:
•

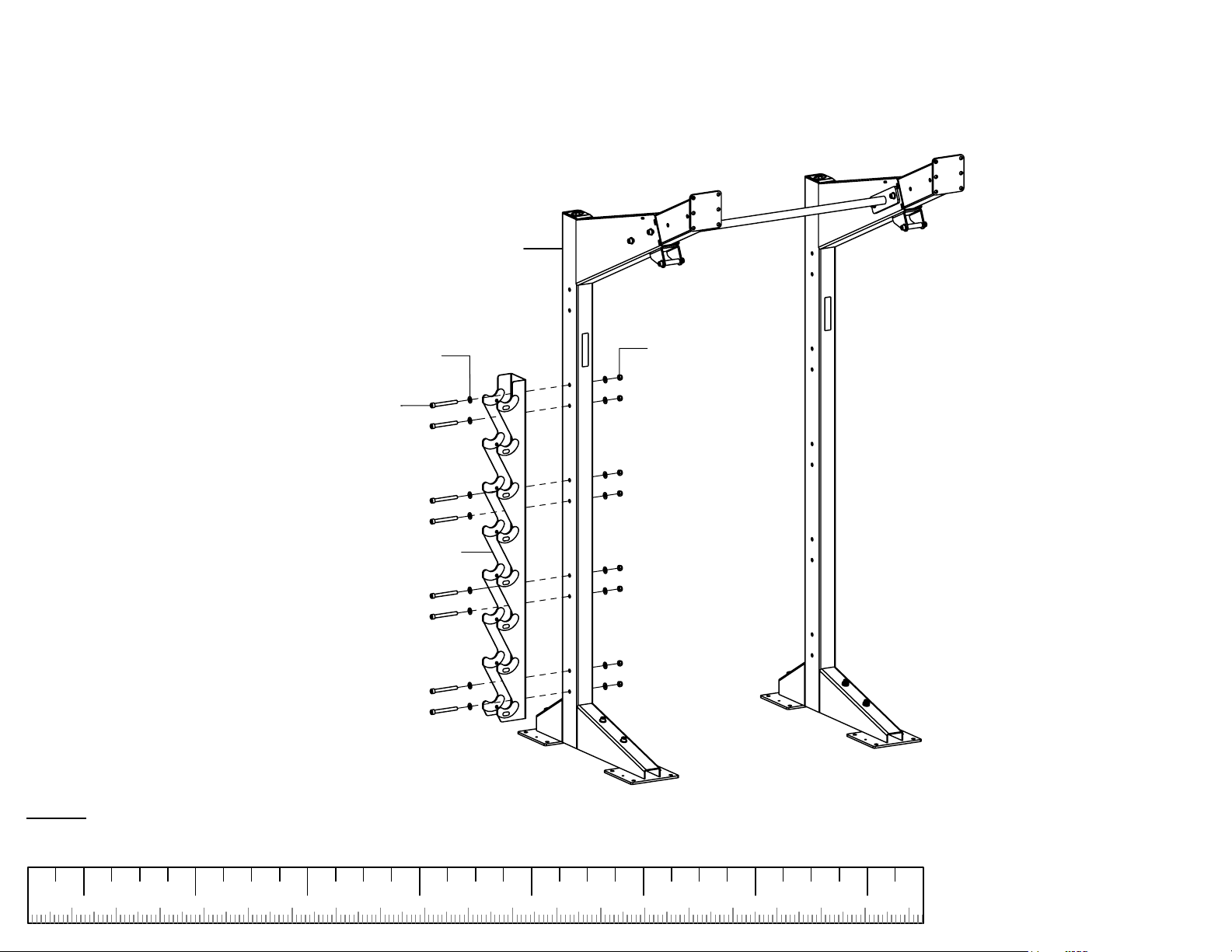

VERTICAL DUMBBELL STORAGE - 4 PAIR:
•

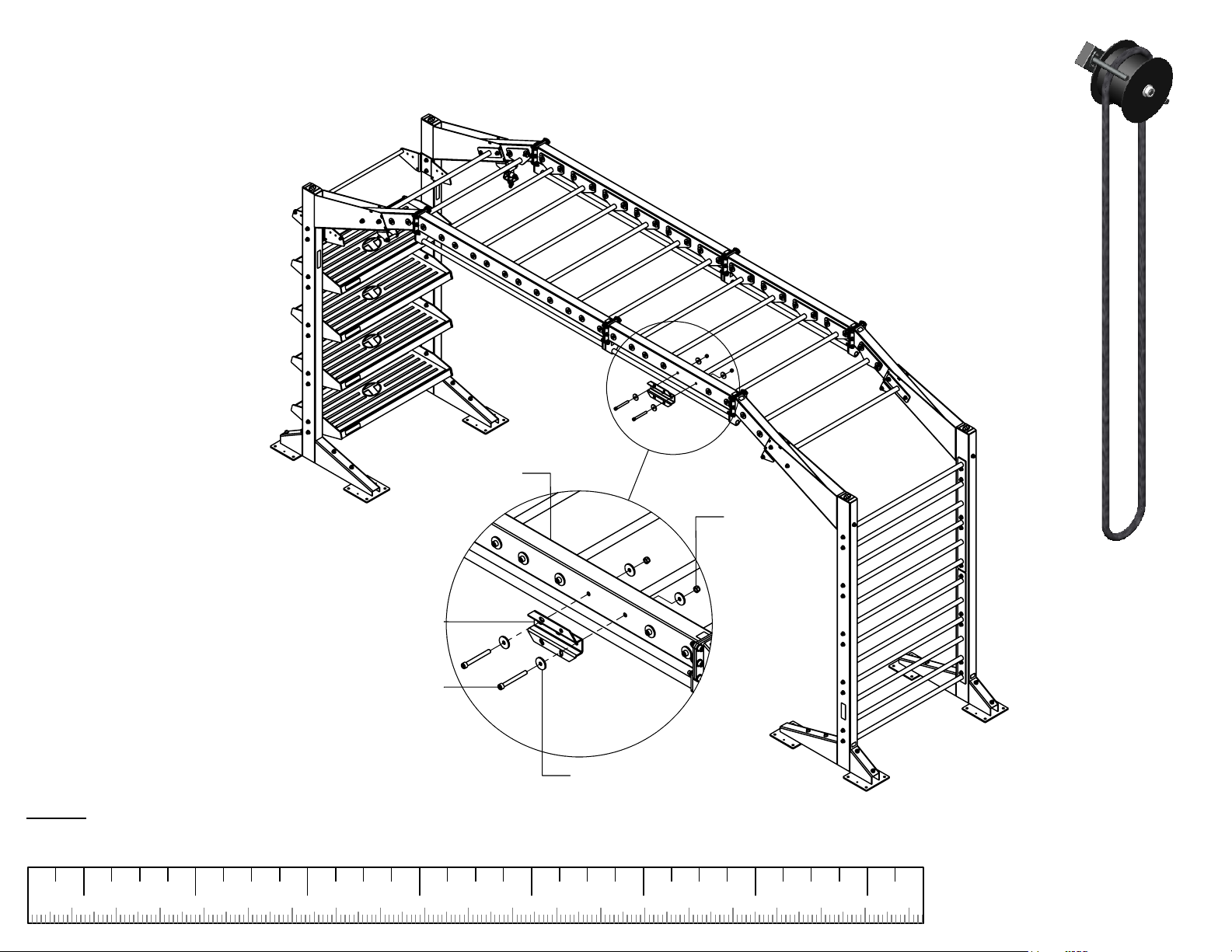

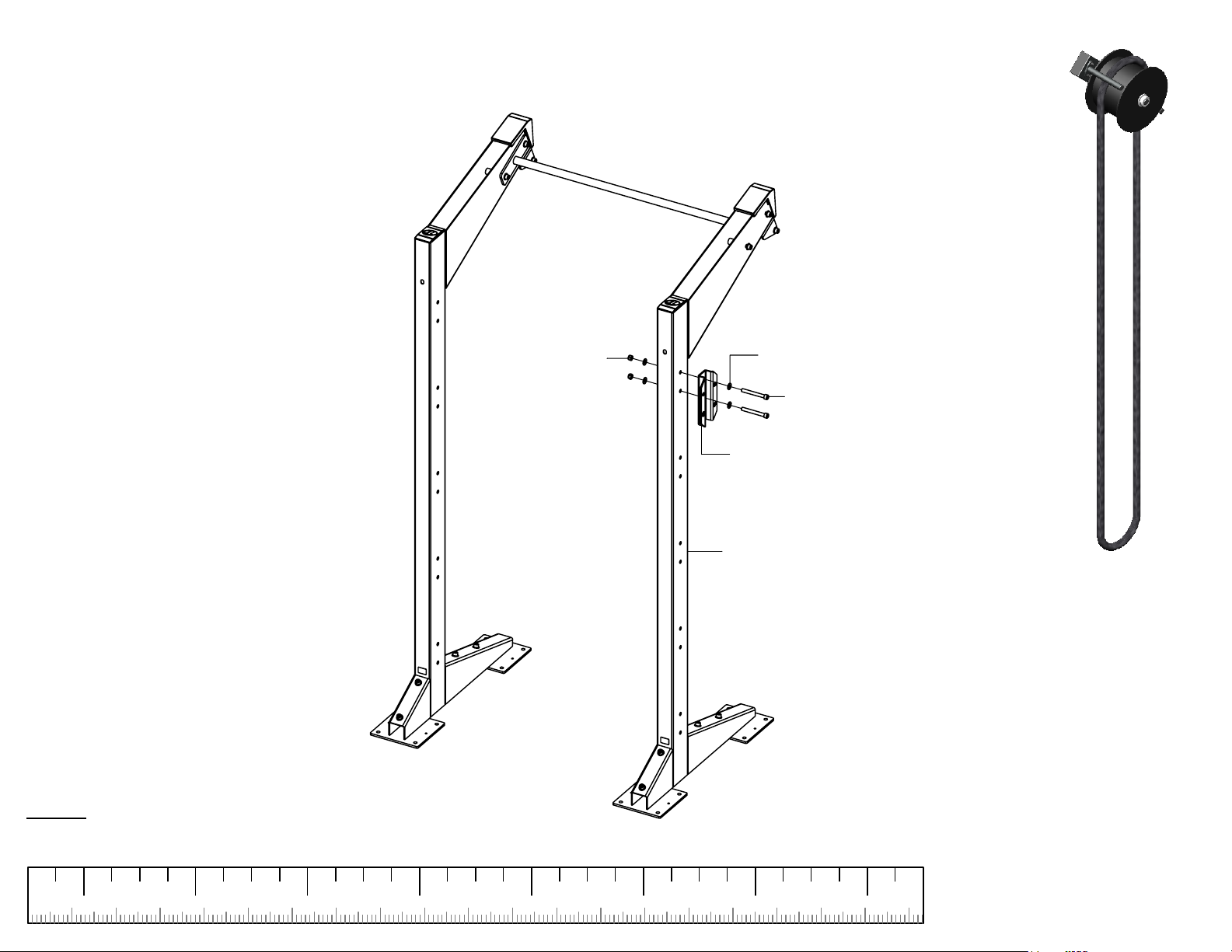

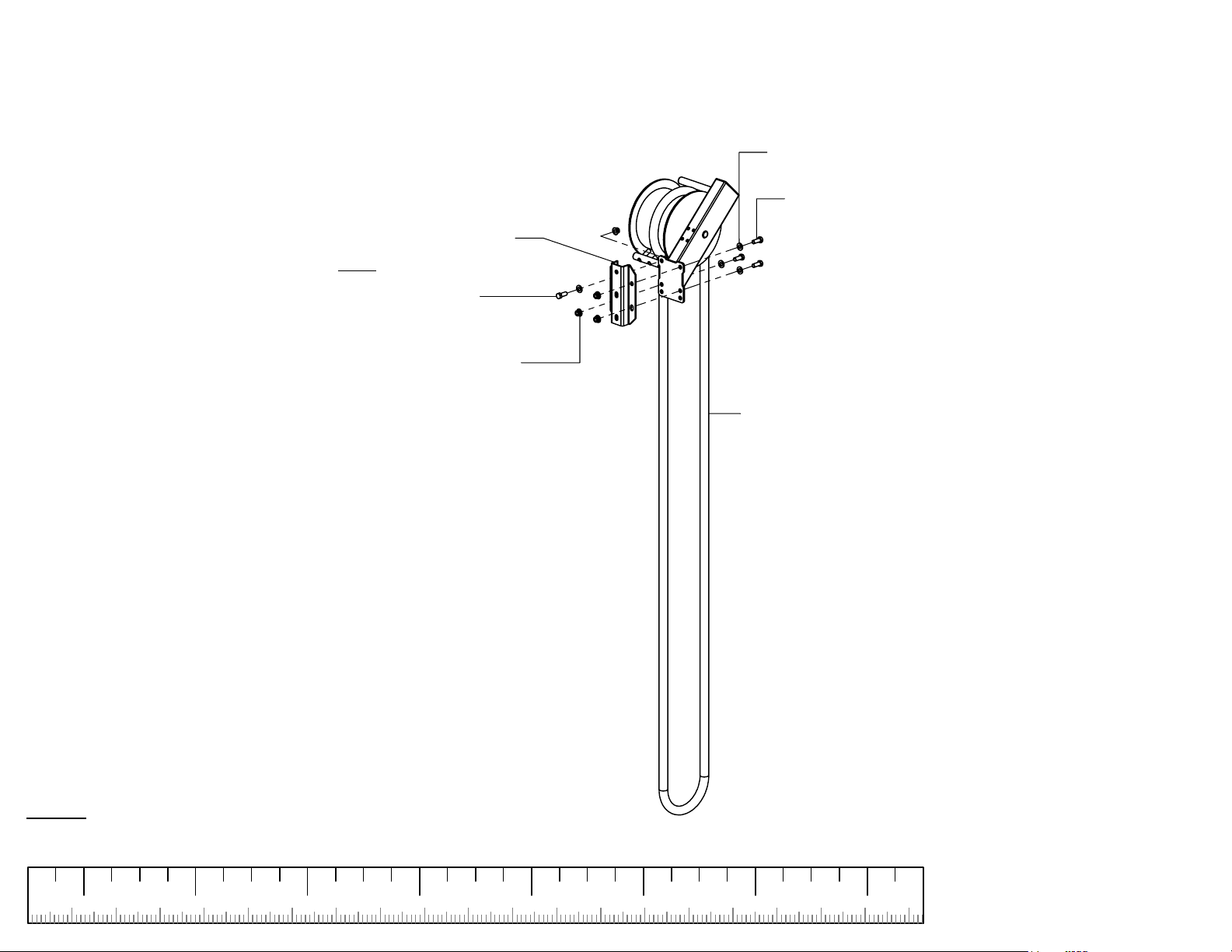

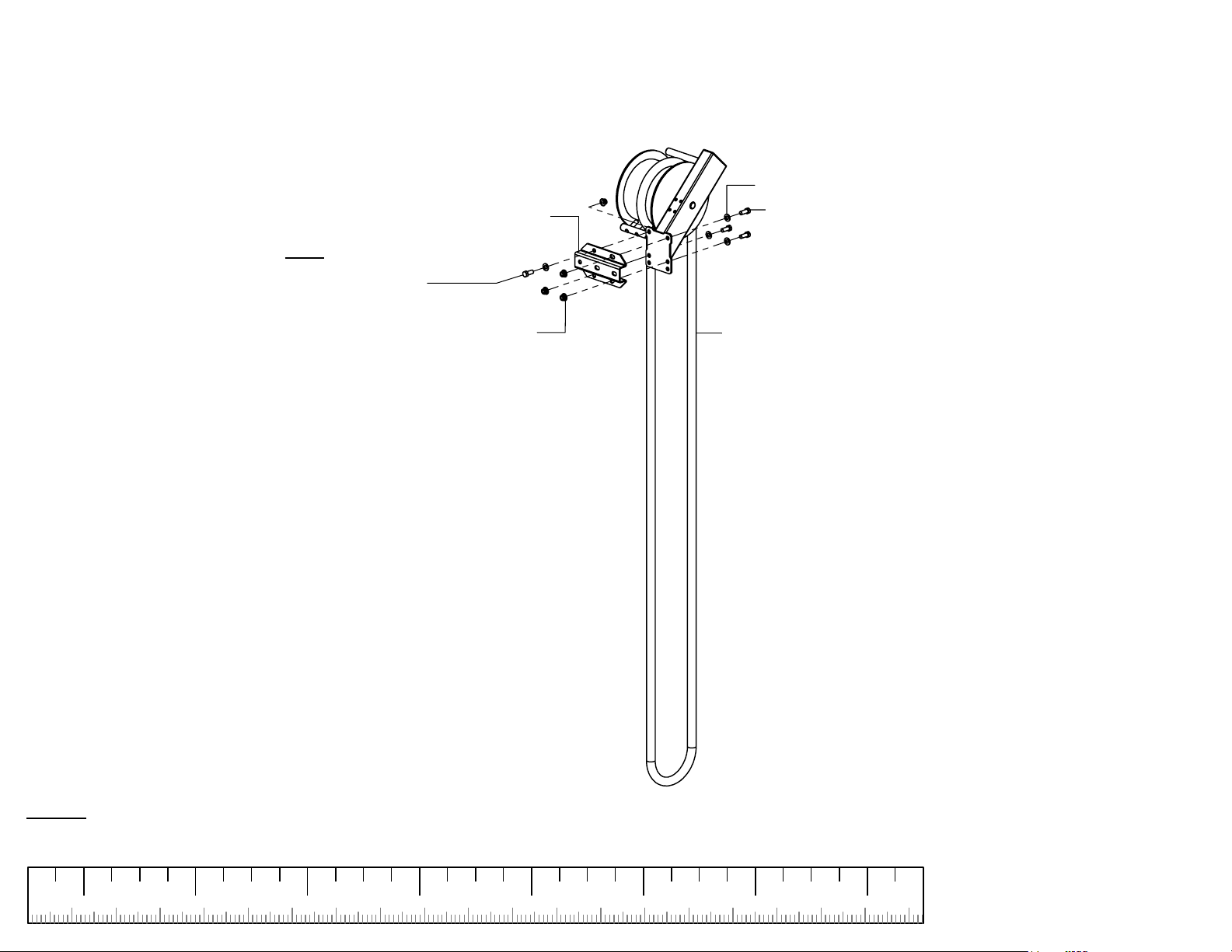

ENDLESS ROPE DRUM (VERTICAL MOUNT):
•
ENDLESS ROPE DRUM (HORIZONTAL MOUNT):
•
3 DIMESIONAL SWIVEL W/ MOUNT:
•
ROCK CLIMBING KIT:
•
ATTACHMENT ANCHOR:
•
DIP ATTACHEMNT:
•

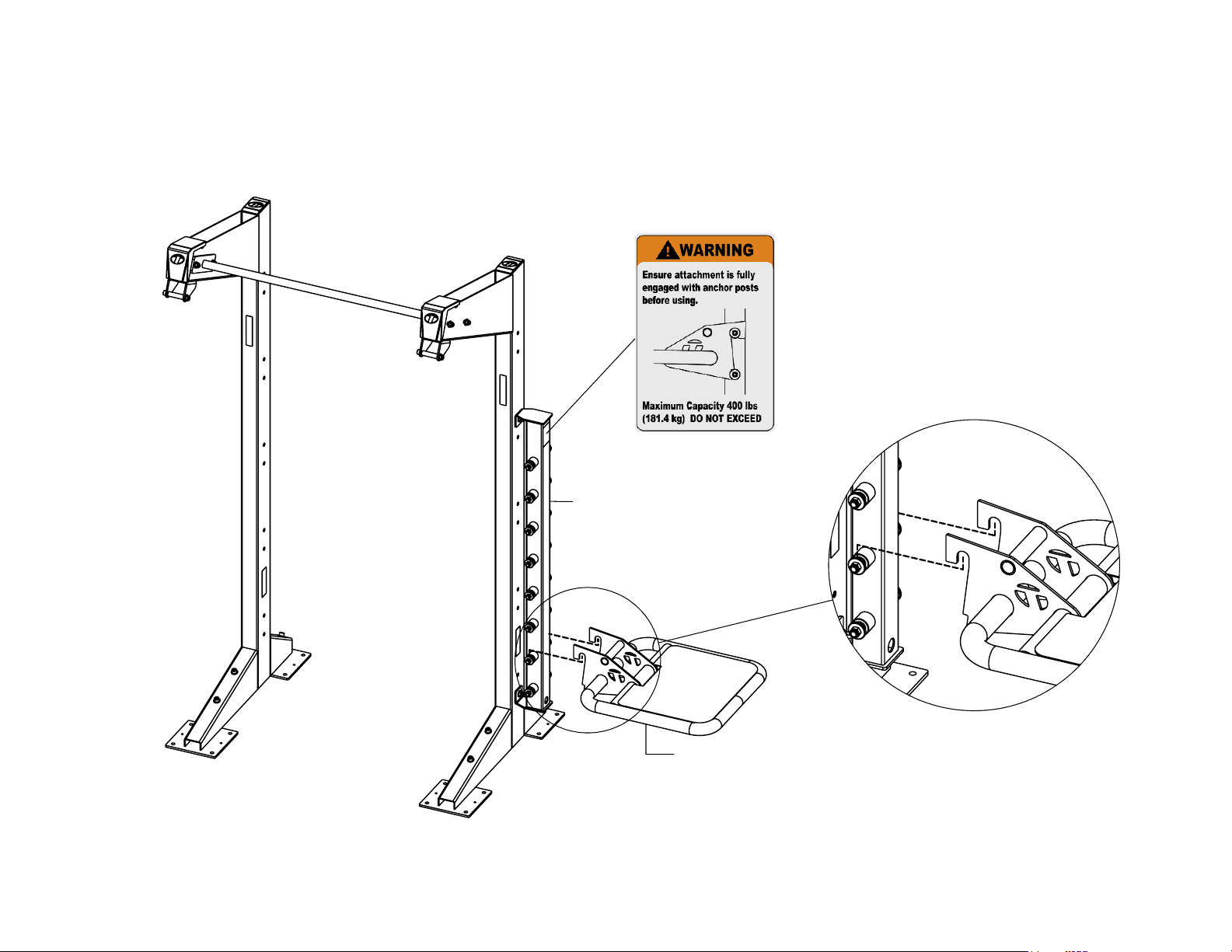

PLYO STEP:
•
ANCHORING:
4.
URETHANE BOOT:
5.
PAGE 57
PAGES 4-9
PAGES 14-17
PAGE 39
PAGES 43-45
PAGE 53
PAGE 55
PAGE 56
PAGE 58
PAGE 19
PAGE 37
PAGE 38
PAGE 54
PAGE 12
PAGE 26
PAGES 27-28
PAGE 46
PAGE 52
PAGES 21-24
PAGES 30-33
PAGE 36
PAGES 41-42
PAGE 47
PAGES 48-49
PAGES 50-51
PAGE 40
NOTE:
X-CREATE Wall Space Systems can be customized in countless ways. This
manual provides instructions for assembling base units, module options and
attachment options. If you worked with Torque X-Team Design during the
purchasing process, please request a Bill of Material Drawing to reference your
exact set-up. For assistance, contact
(763) 754-7533; Toll free in USA (877) 867-7854.
NOTE:
When assembling any X-CREATE System that is longer than one module wide,
the hardware will shared between two side by side modules and pull-up bars.
It is recommended to keep all bolt connections loose until the base system and
all of the module stations have been assembled. Securely tighten all frame
connections at this time, and then proceed to the attachment options.
Attachment options can be securely tightened as they are assembled.
TOOLS FOR ASSEMBLY:
3/8" ALLEN WRENCH
•
5/16" ALLEN WRENCH
•
3/16" ALLEN WRENCH
•
3/4" WRENCH OR SOCKET
•
9/16" WRENCH OR SOCKET
•
1/2" WRENCH OR SOCKET
•
RUBBER MALLET
•
or call
WARNING!
ALL X-CREATE ARE REQUIRED TO BE ANCHORED TO THE
FLOOR TO PREVENT ROCKING OR TIPPING DURING USE.
2
Page 3

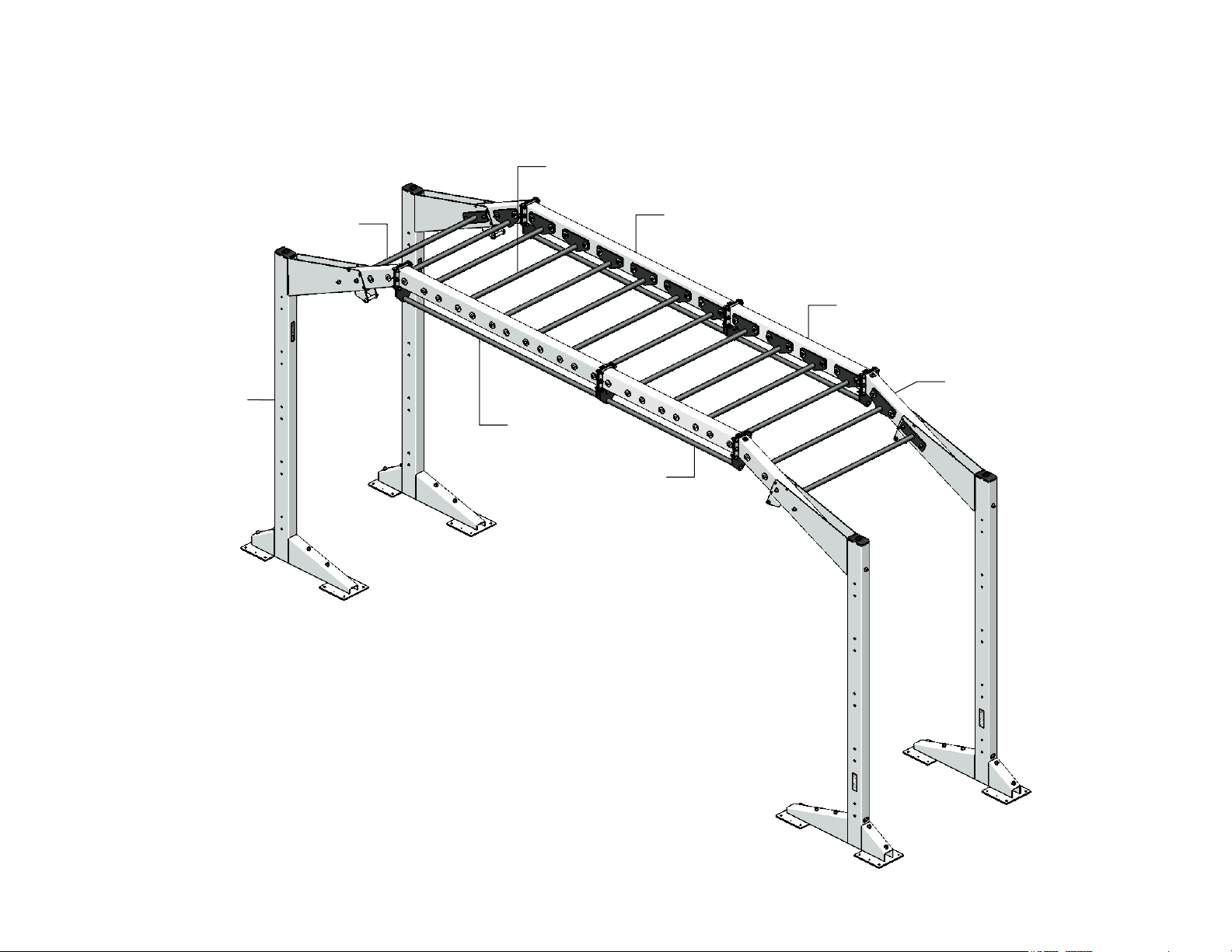

BRIDGE ASSEMBLY
XRACK-4MB (12)
XCREATE-8U (4)
XCREATE-4SX (2)
XCREATE-6MBX (2)
XCREATE-4MBX (2)
XCREATE-MBXE (4)
XCREATE-6FB (2)
XCREATE-4FB (2)
3
Page 4

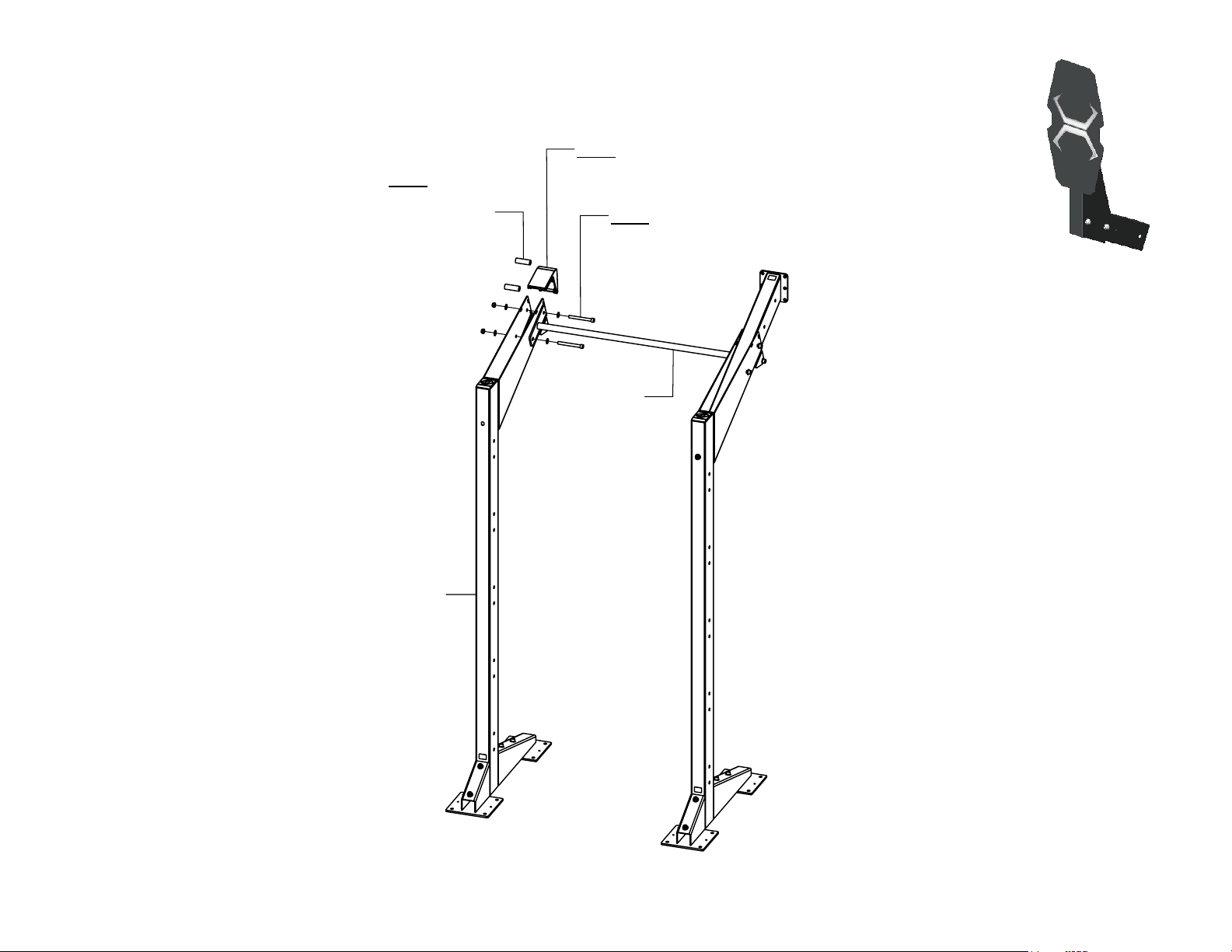

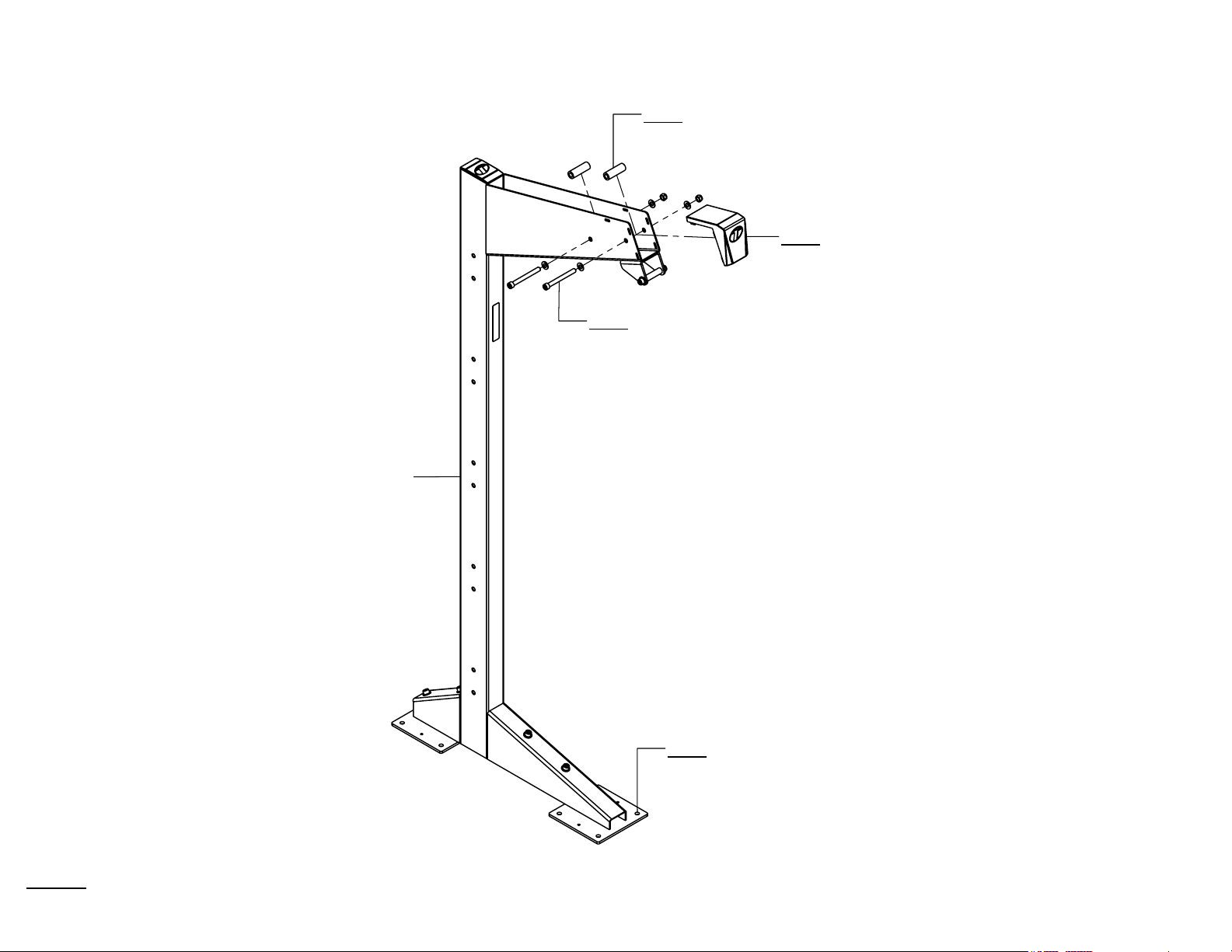

BRIDGE ASSEMBLY
NOTE:
REMOVE SPACERS
(2) AND DISCARD
NOTE:
REMOVE END CAP
AND DISCARD
NOTE:
TEMPORARILY REMOVE
PRE-INSTALLED BOLTS,
WASHERS AND NUTS
XCREATE-8U
NOTE:
Repeat this step for three more uprights.
NOTE:
URETHANE BOOTS
WILL BE ASSEMBLED
IN THE LAST STEP
4

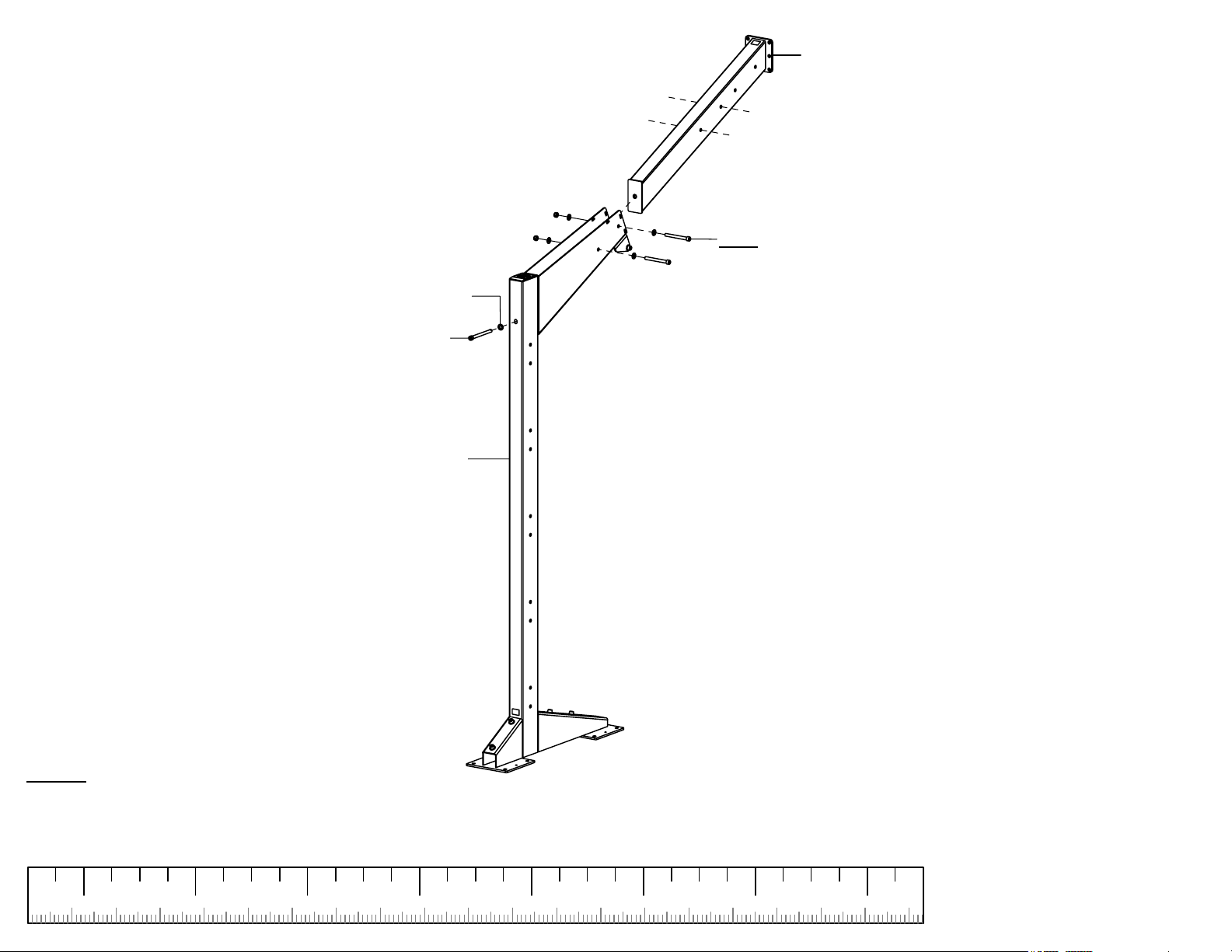

Page 5
BRIDGE ASSEMBLY
XCREATE-MBXE
NOTE:
USE BOLTS, WASHERS AND
NUTS FROM PREVIOUS STEP
1/2" FLAT WASHER
1/2 X 6" BOLT
XCREATE-8U
NOTE:
LOOSELY
assemble bolt connections in this step.
Repeat this step for three more uprights.
1 2 4 5 7
50 1803190150 170160
130 14012090 110100403010 706020 80
6
200
5
Page 6

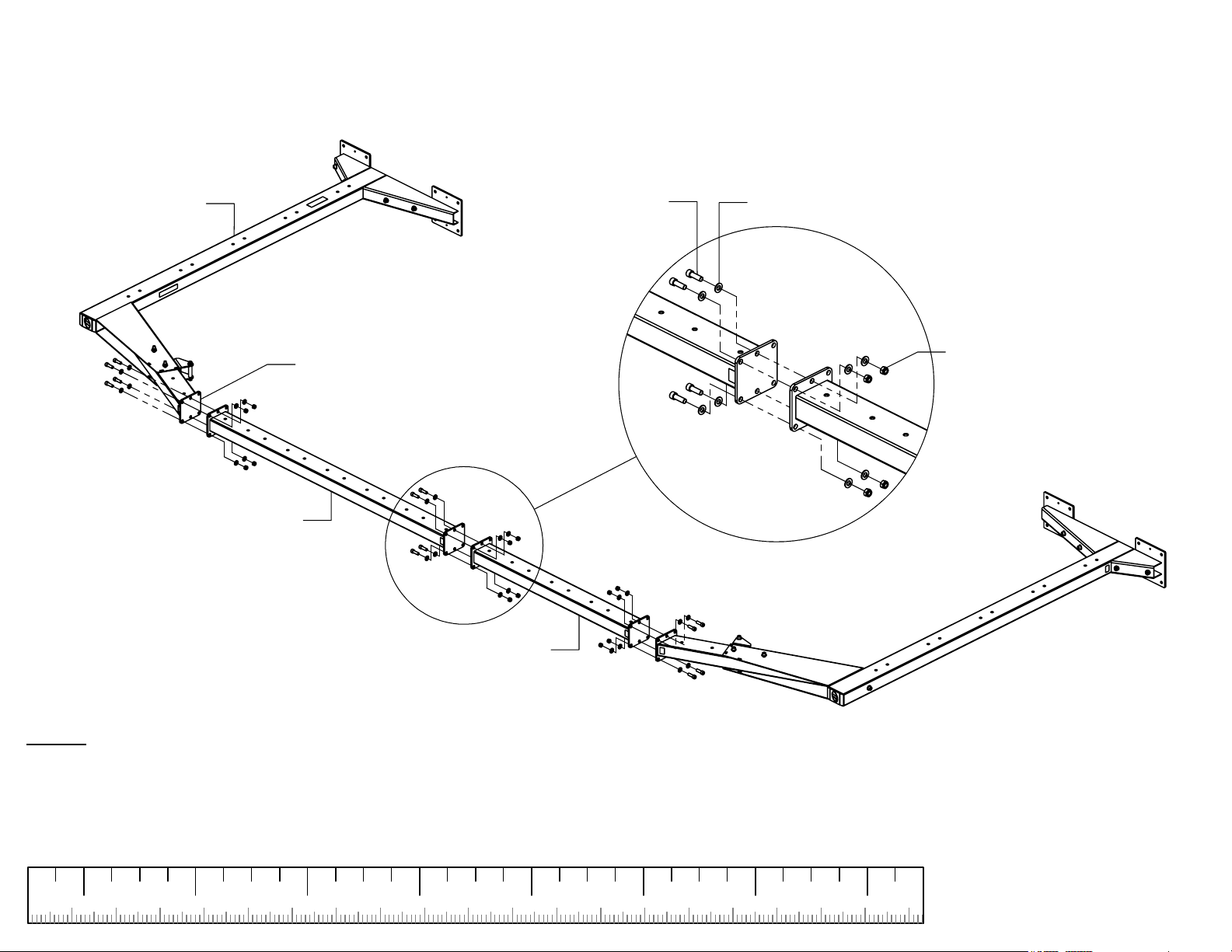

BRIDGE ASSEMBLY
XCREATE-8U (2)
XCREATE-6MBX
XCREATE-MBXE (2)
XCREATE-4MBX
1/2 X 1-1/2" BOLT (12)
1/2" FLAT WASHER (24)
1/2" LOCK NUT (12)
NOTE:
For ease of assembly, assemble this step on the floor.
LOOSELY
assemble bolt connections in this step.
Repeat this step for the opposite side.
1 2 4 5 7
50 1803190150 170160
130 14012090 110100403010 706020 80
6
200
6
Page 7

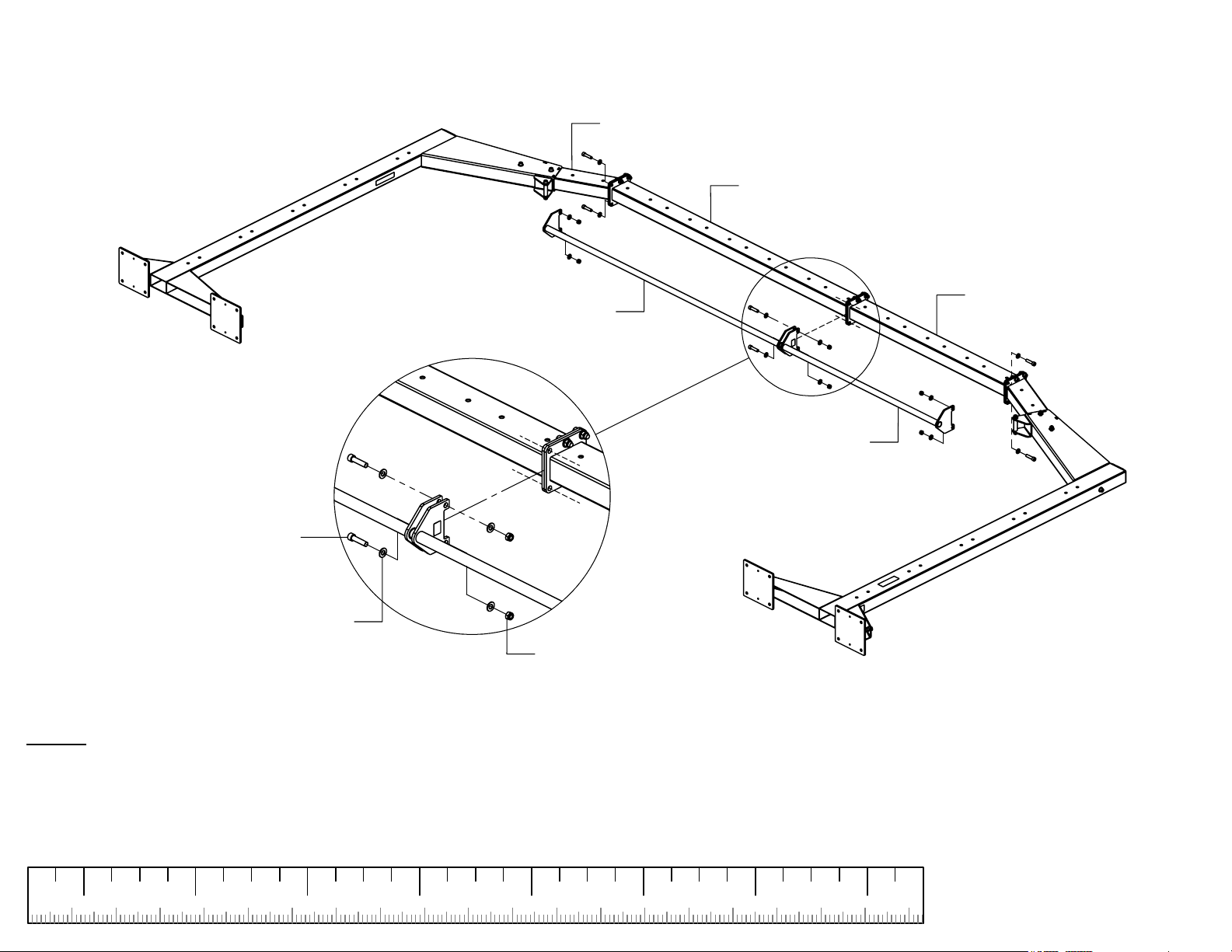

BRIDGE ASSEMBLY
XCREATE-MBXE (2)
XCREATE-6MBX
XCREATE-4MBX
XCREATE-6FB
XCREATE-4FB
1/2 X2" BOLT (6)
1/2" FLAT WASHER (12)
NOTE:
For ease of assembly, assemble this step on the floor.
LOOSELY
assemble bolt connections in this step.
Repeat this step for the opposite side.
1 2 4 5 7
50 1803190150 170160
1/2" LOCK NUT (6)
130 14012090 110100403010 706020 80
6
200
7
Page 8

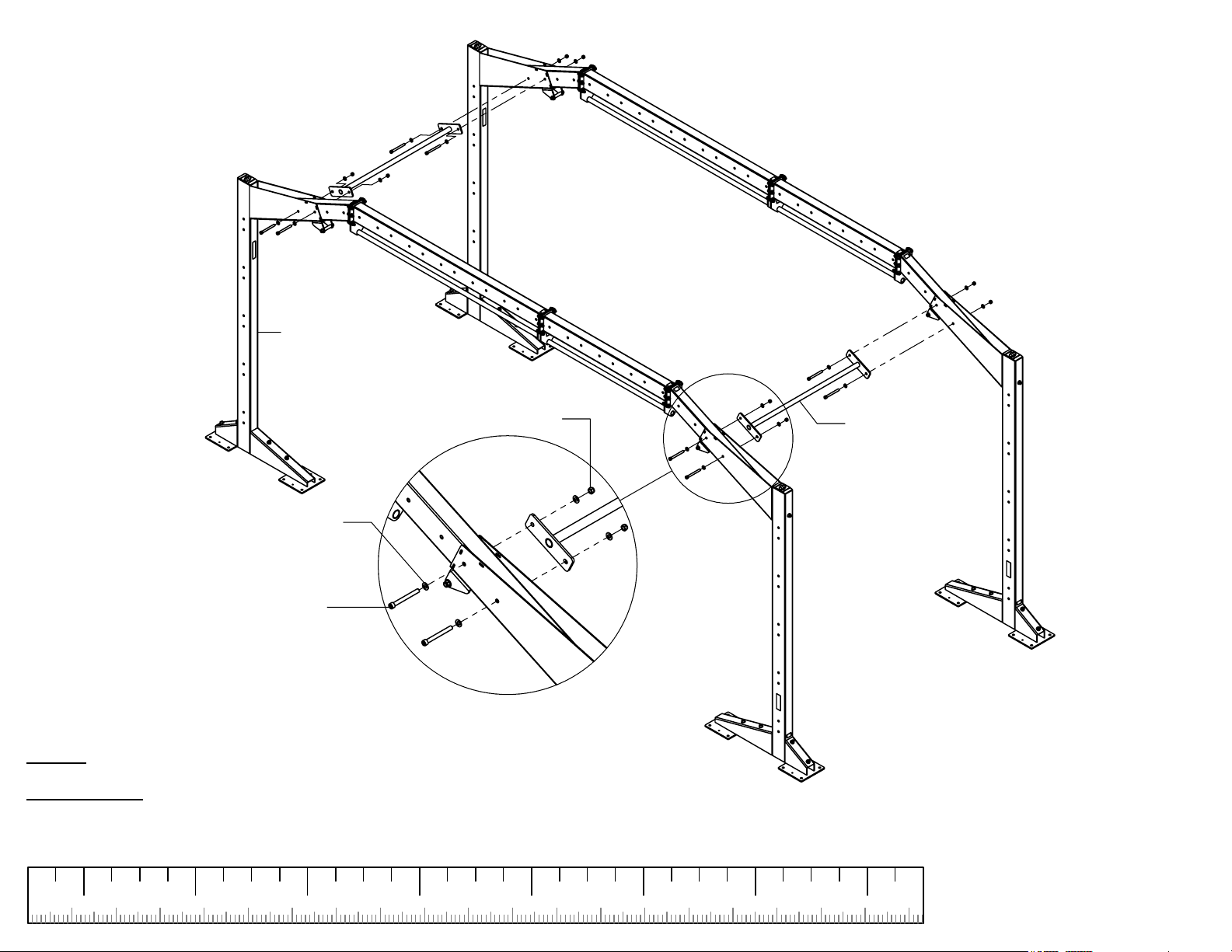

BRIDGE ASSEMBLY
XCREATE-8U (4)
1/2" LOCK NUT (8)
PRE-INSTALLED
XCREATE-4SX (2)
NOTE:
CAREFULLY
stand each side up. Space sides
approximately 4' apart.
LOOSELY
assemble bolt connections in this step.
1 2 4 5 7
1/2" FLAT WASHER (16)
PRE-INSTALLED
1/2 X 4-3/4" BOLT (8)
PRE-INSTALLED
50 1803190150 170160
130 14012090 110100403010 706020 80
6
200
8
Page 9

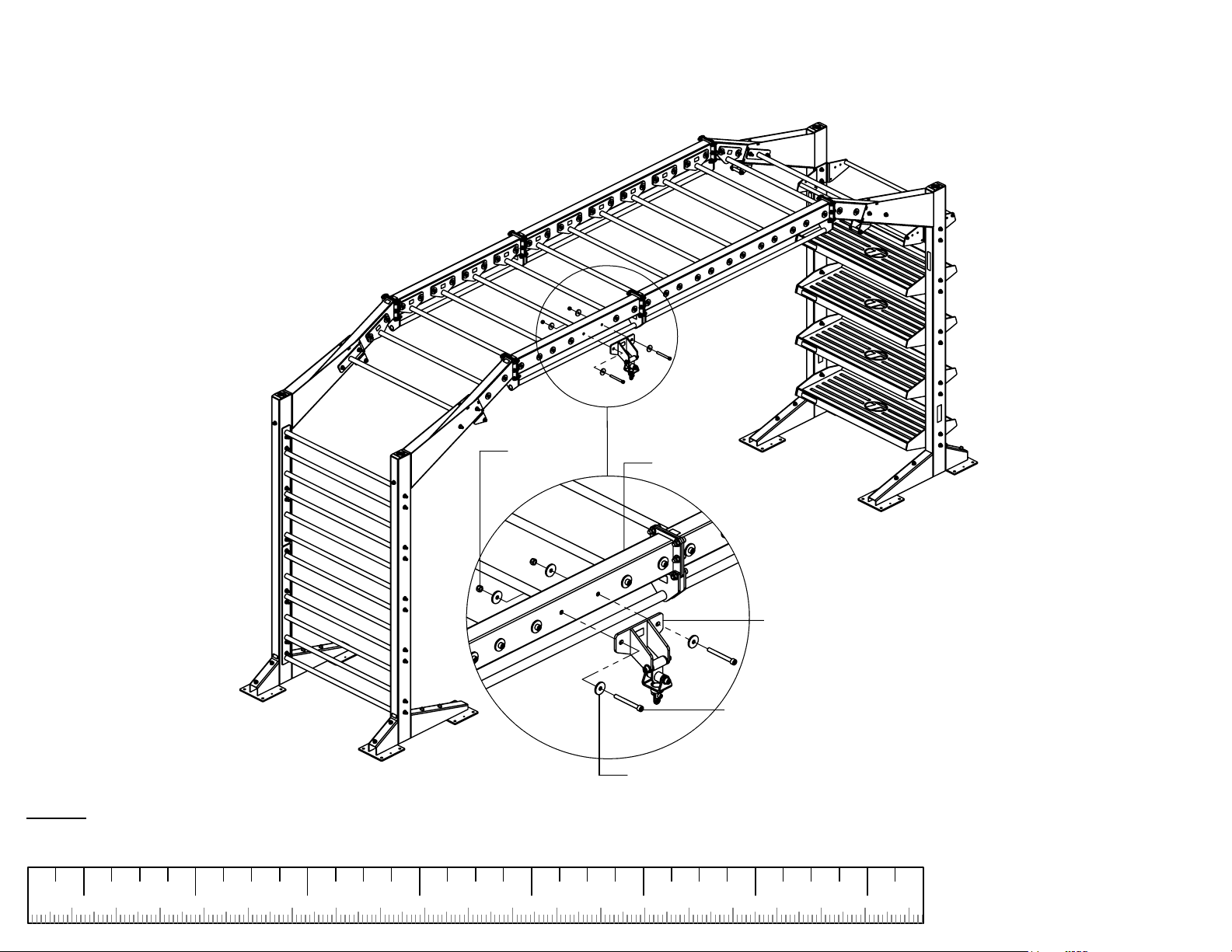

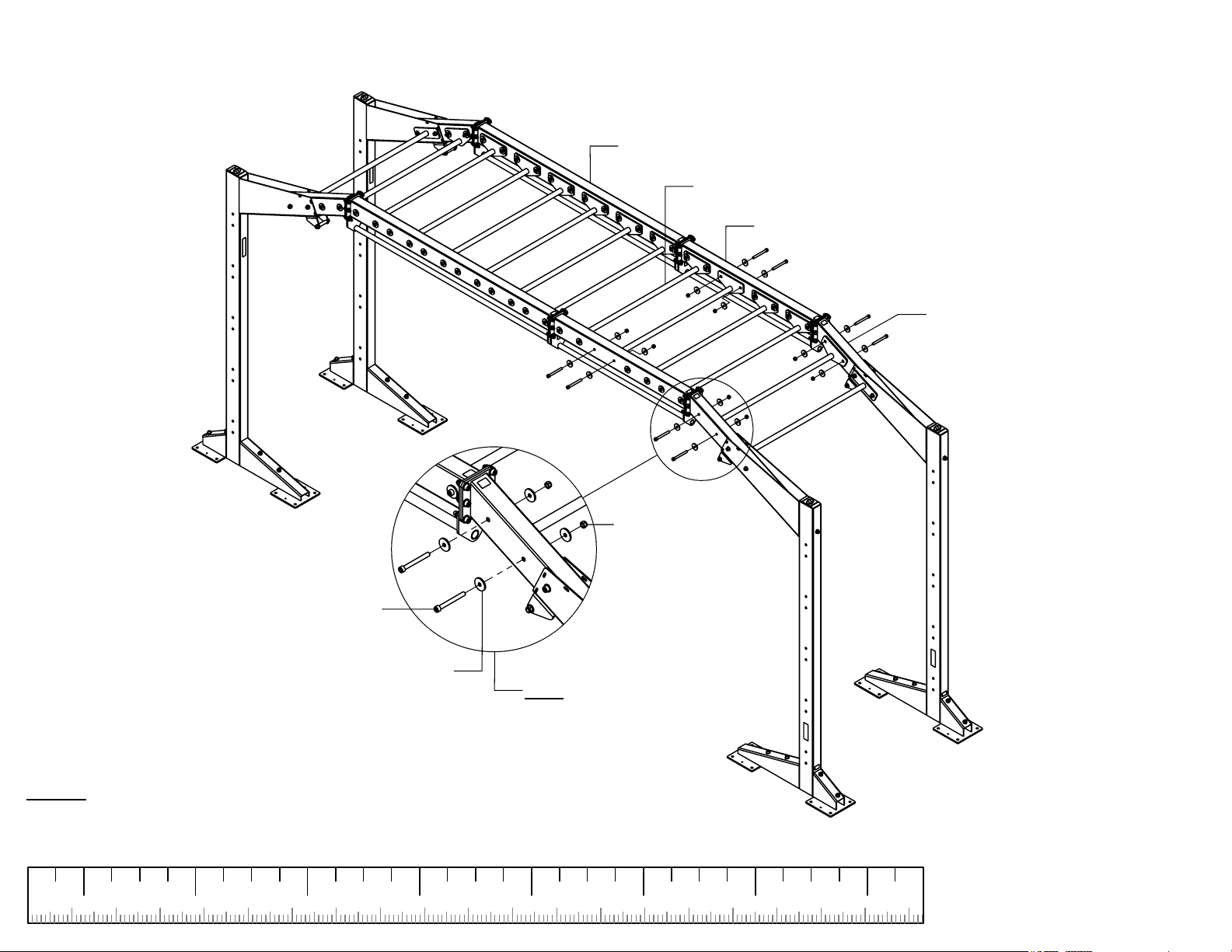

BRIDGE ASSEMBLY
XCREATE-6MBX (2)
XRACK-4MB (12)
XCREATE-4MBX (2)
XCREATE-MBXE (4)
1/2 X 4-1/2" BOLT (4)
1/2" FENDER WASHER (8)
NOTE:
After this step has been completed,
SECURELY
tighten all bolt connections made to this point.
1 2 4 5 7
50 1803190150 170160
1/2" LOCK NUT (4)
NOTE:
REPEAT THIS STEP FOR
AS MANY MONKEY BARS
TO BE ASSEMBLED
130 14012090 110100403010 706020 80
6
200
9
Page 10

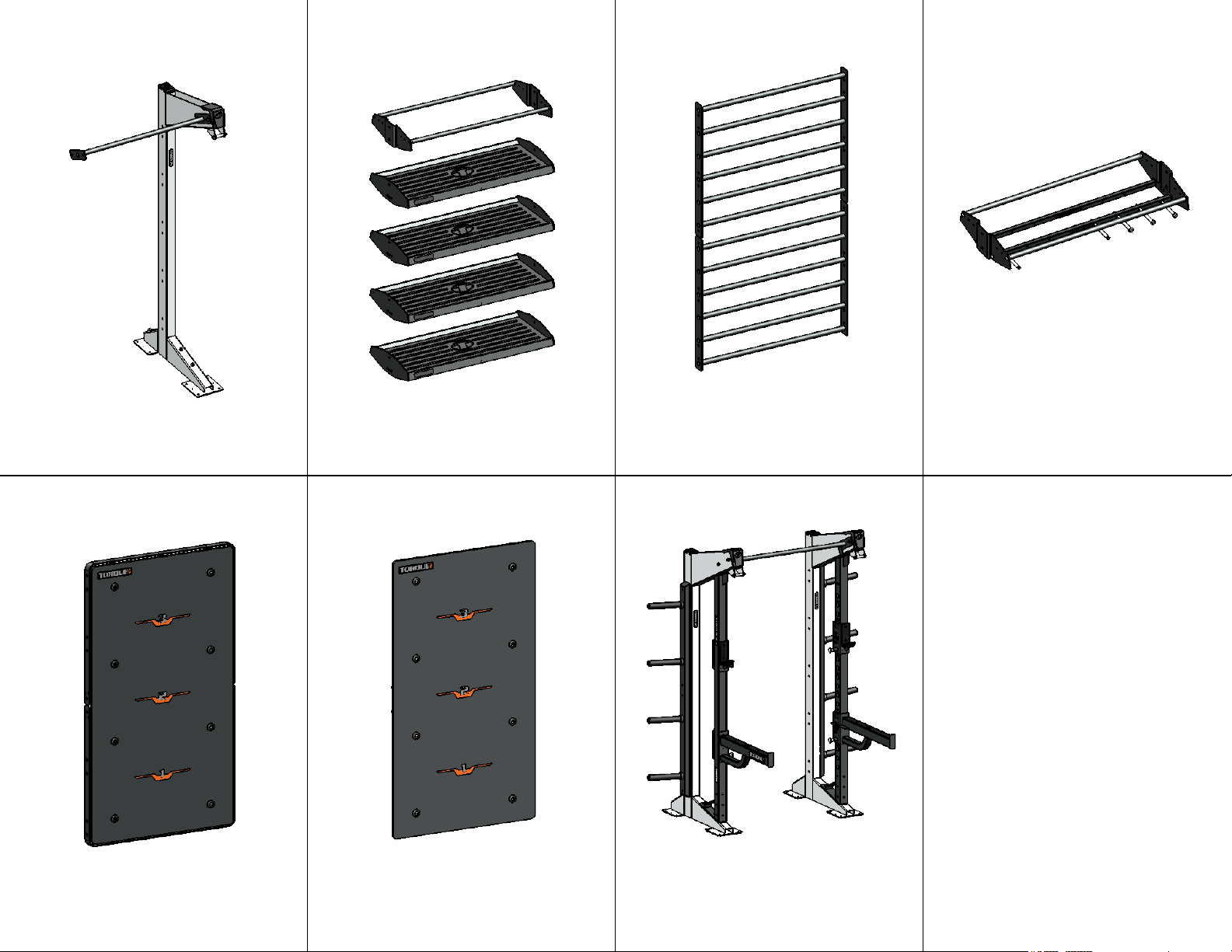

MODULE ASSEMBLY
8' UPRIGHT EXTENSION MODULE
STORAGE MODULE
STALL BAR MODULE
BALL & HANGING
STORAGE MODULE
BALL TARGET WALL MODULE
BALL TARGET WALL
FOR REVERSE SIDE
8' OLYMPIC LIFTING
STATION MODULE
10
Page 11

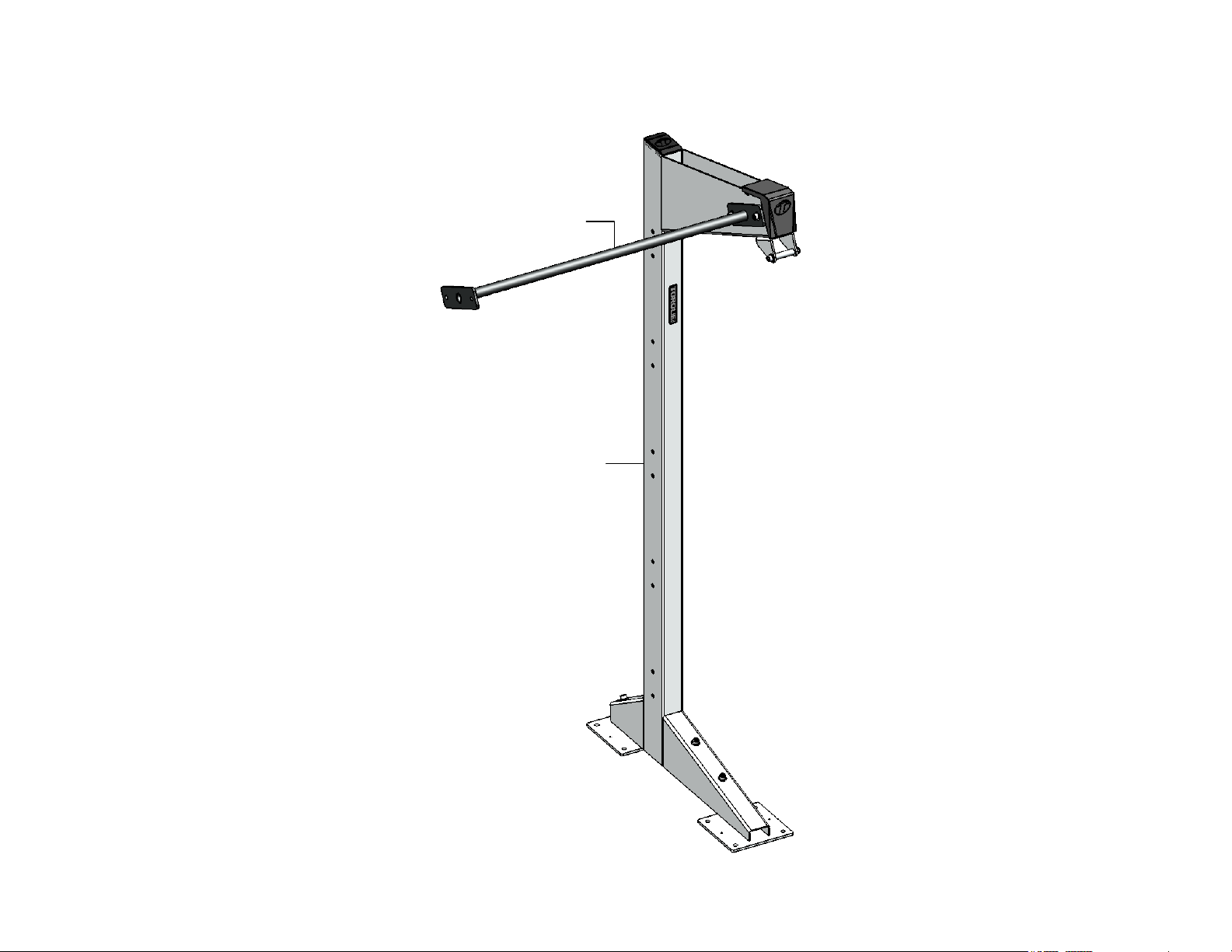

8' UPRIGHT EXTENSION MODULE
XCREATE-4SX
XCREATE-8U
11
Page 12

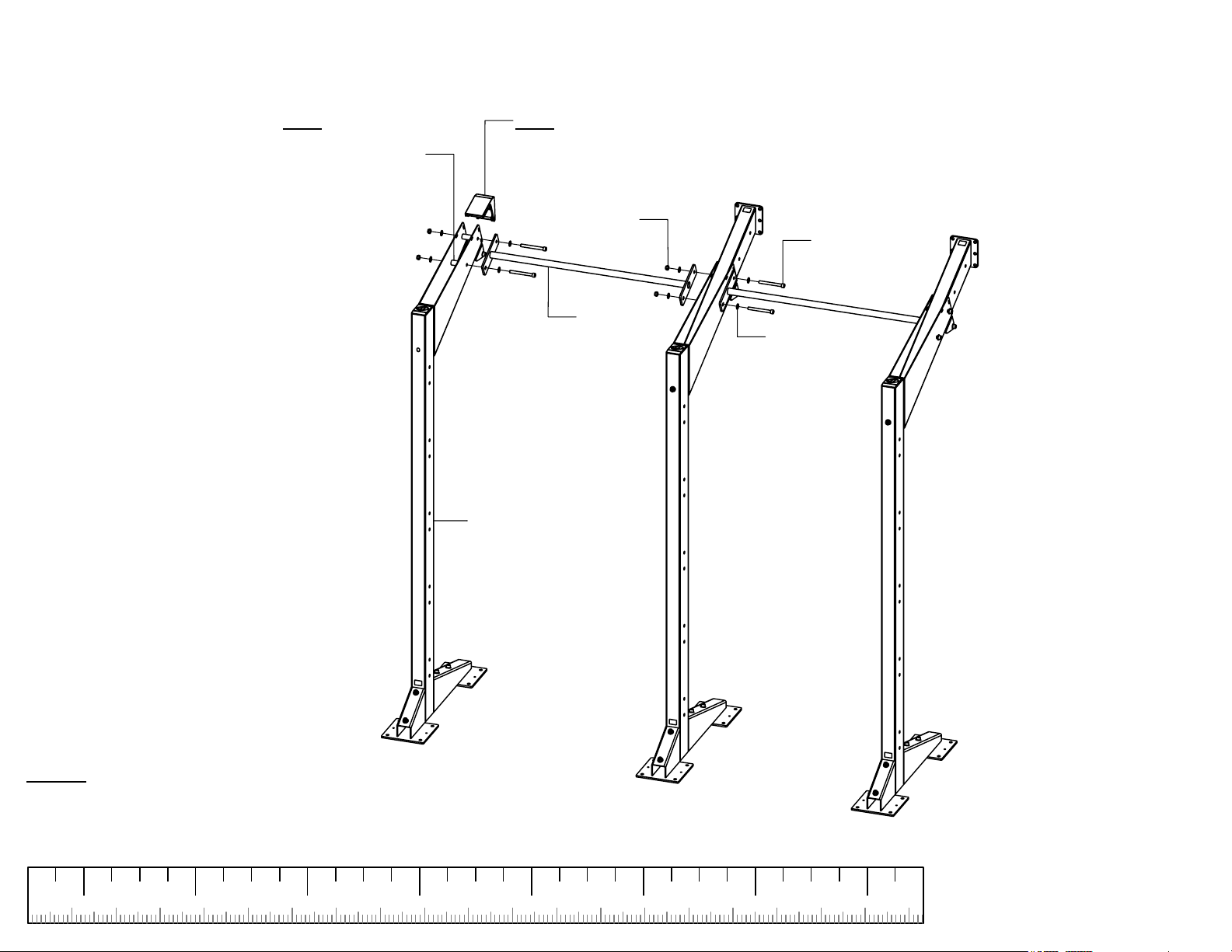

8' UPRIGHT EXTENSION MODULE
NOTE:
MAKE SURE TO USE PREINSTALLED SPACER (2)
NOTE:
REMOVE END CAP PRIOR TO ASSEMBLY.
RE-ATTACH END CAP AFTER ASSEMBLY.
1/2" LOCK NUT (4)
PRE-INSTALLED
1/2 X 4-3/4" BOLT (4)
PRE-INSTALLED
XCREATE-4SX
1/2" FLAT WASHER (8)
PRE-INSTALLED
XCREATE-8U
NOTE:
LOOSELY
assemble all bolt connections in this step.
Repeat this step for as many modules there are to assemble.
1 2 4 5 7
50 1803190150 170160
130 14012090 110100403010 706020 80
6
200
12
Page 13

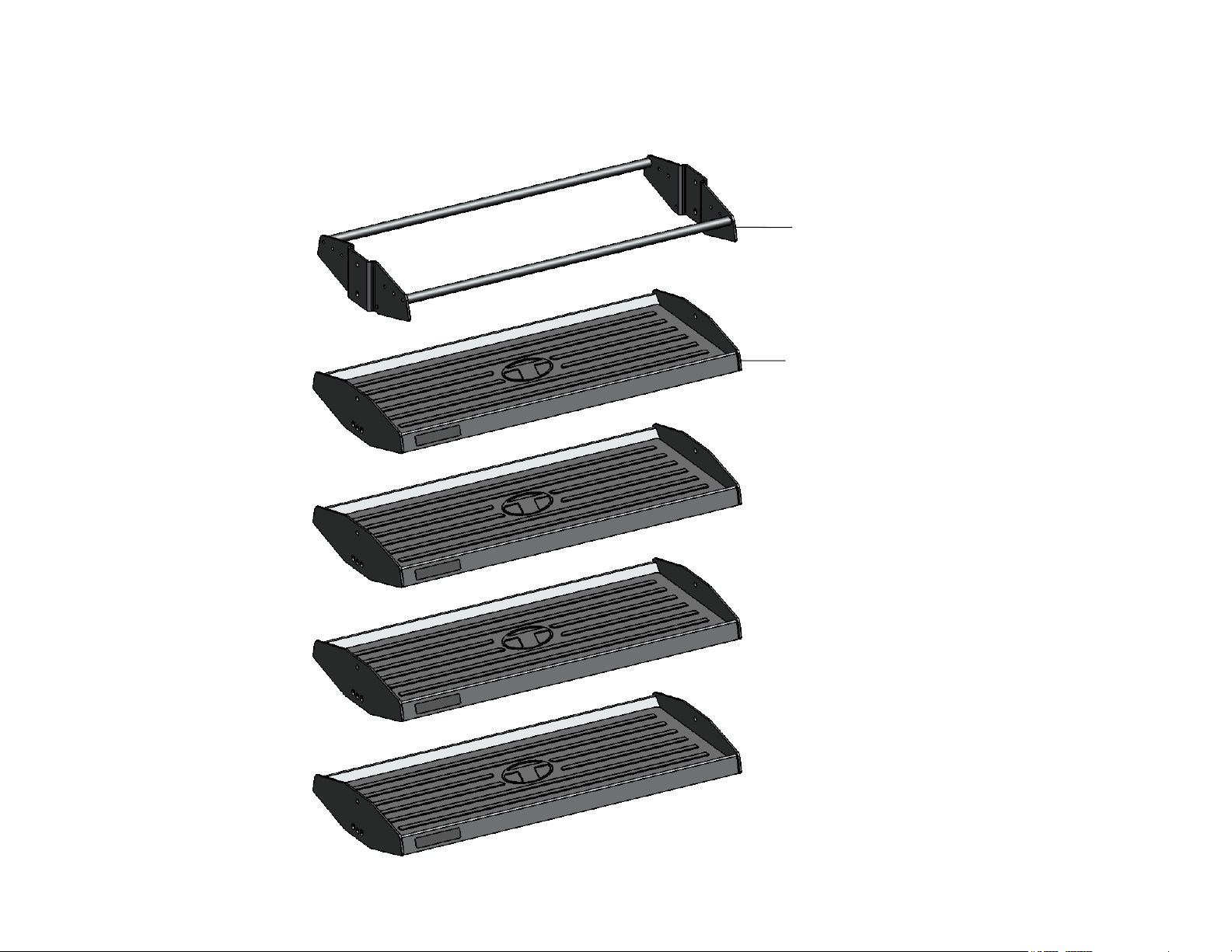

STORAGE MODULE
XCREATE-4BS
XCREATE-4AT (4)
13
Page 14

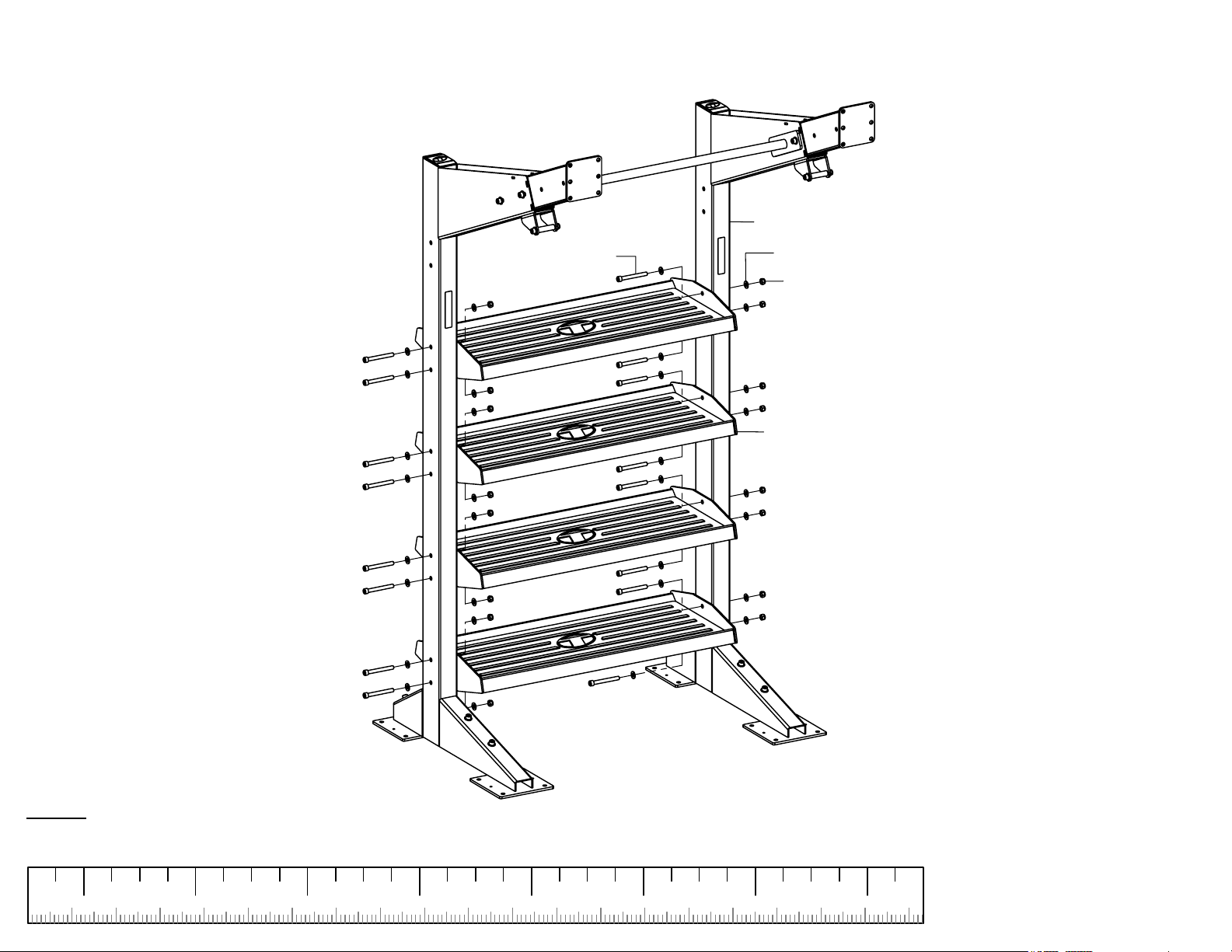

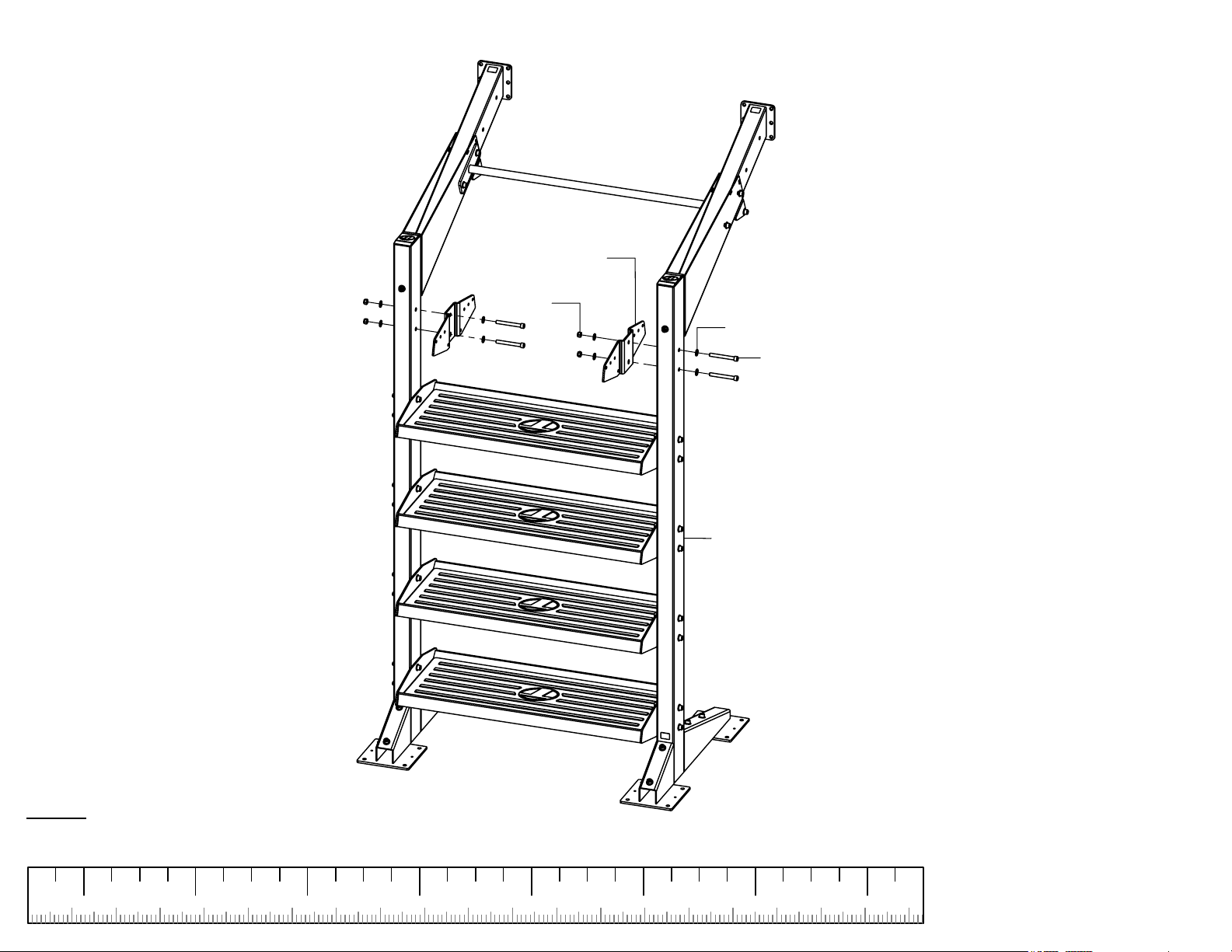

STORAGE MODULE
1/2 X 4-1/4"
BOLT (16)
XCREATE-8U (2)
1/2 FLAT WASHERS (32)
1/2 LOCK NUT (16)
XCREATE-4AT (4)
NOTE:
LOOSELY
assemble all bolt connections in this step.
1 2 4 5 7
50 1803190150 170160
130 14012090 110100403010 706020 80
6
200
14
Page 15

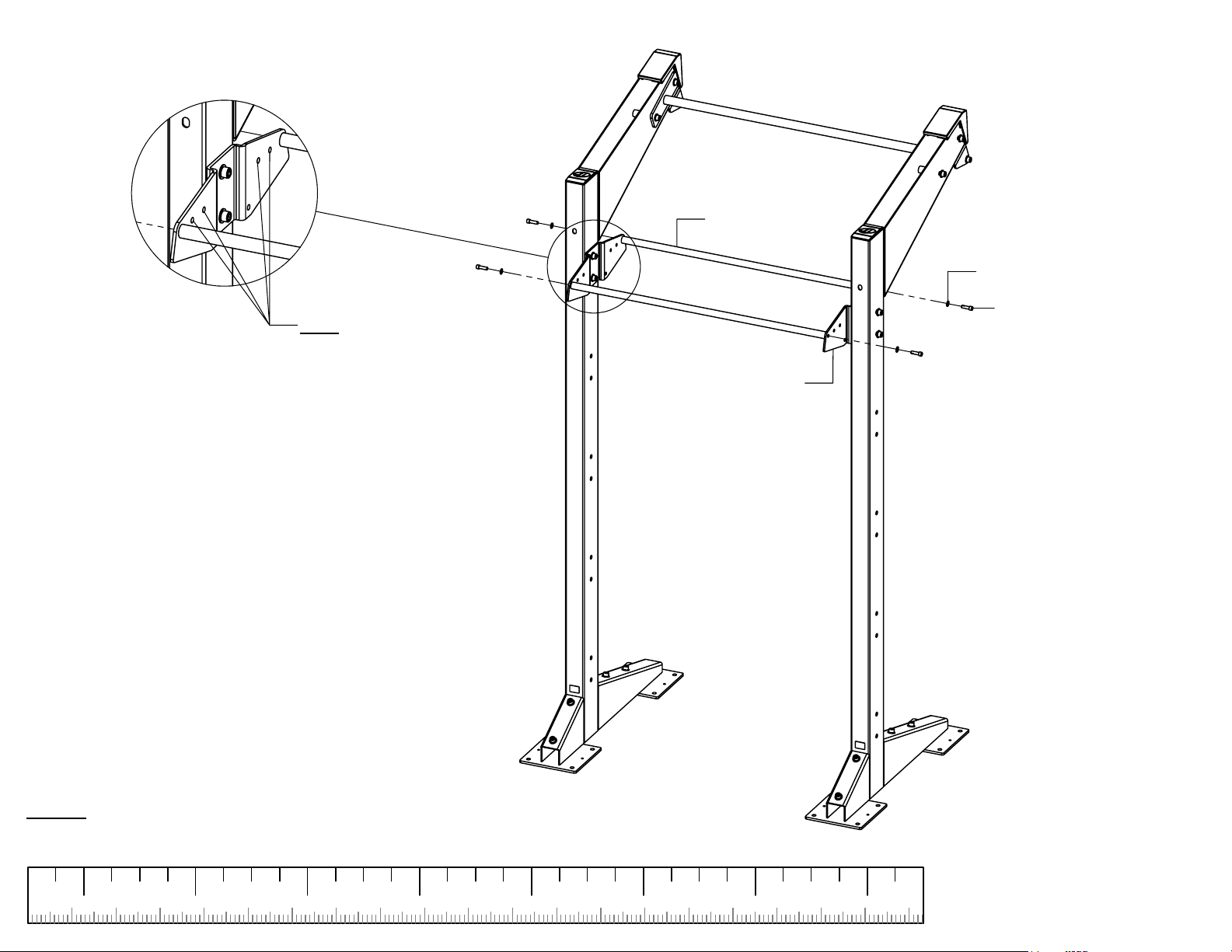

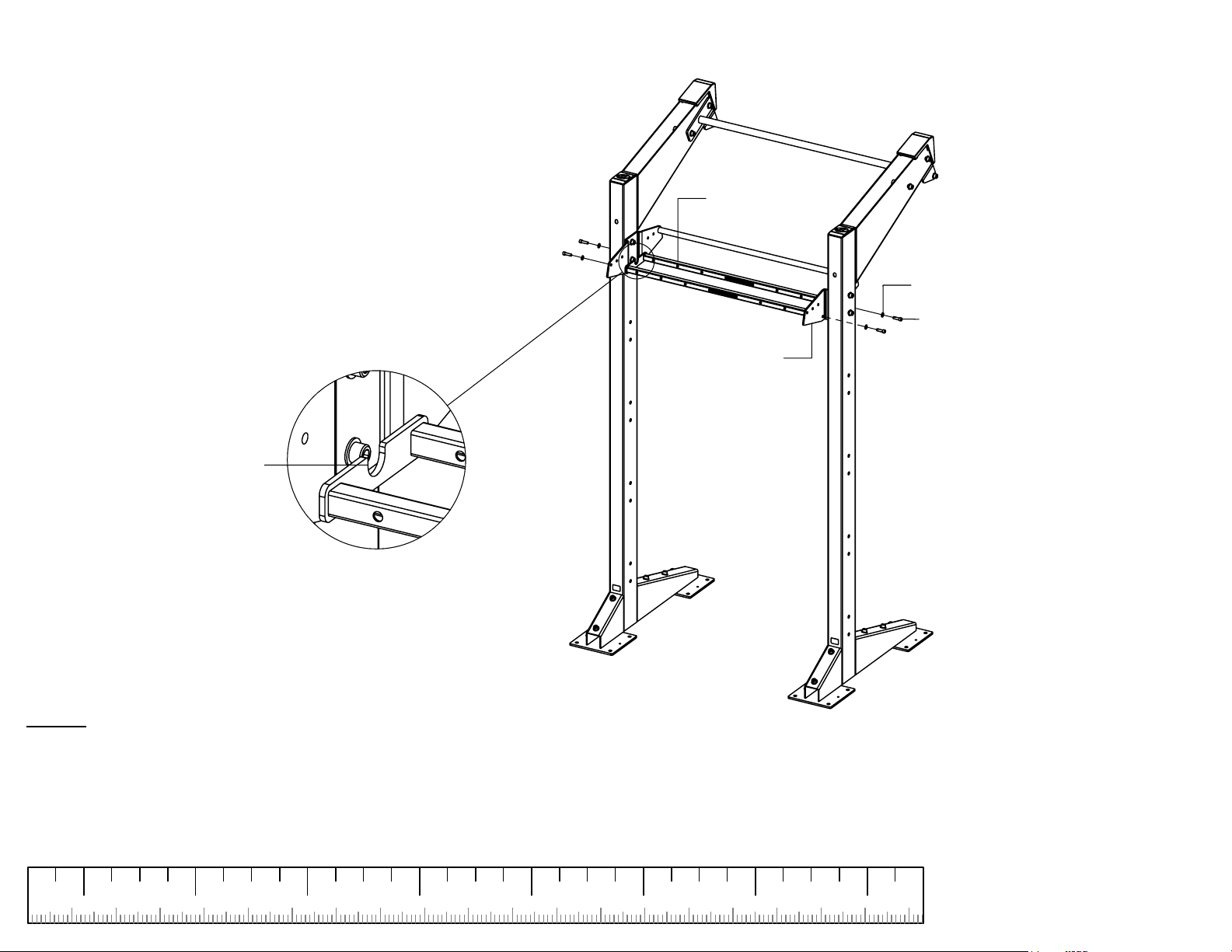

STORAGE MODULE
END BRACKET (2)
1/2" LOCK
NUT (4)
1/2" FLAT WASHER (8)
1/2 X 4-1/4" BOLT (4)
NOTE:
LOOSELY
XCREATE-8U (2)
assemble bolt connections in this step.
1 2 4 5 7
50 1803190150 170160
130 14012090 110100403010 706020 80
6
200
15
Page 16

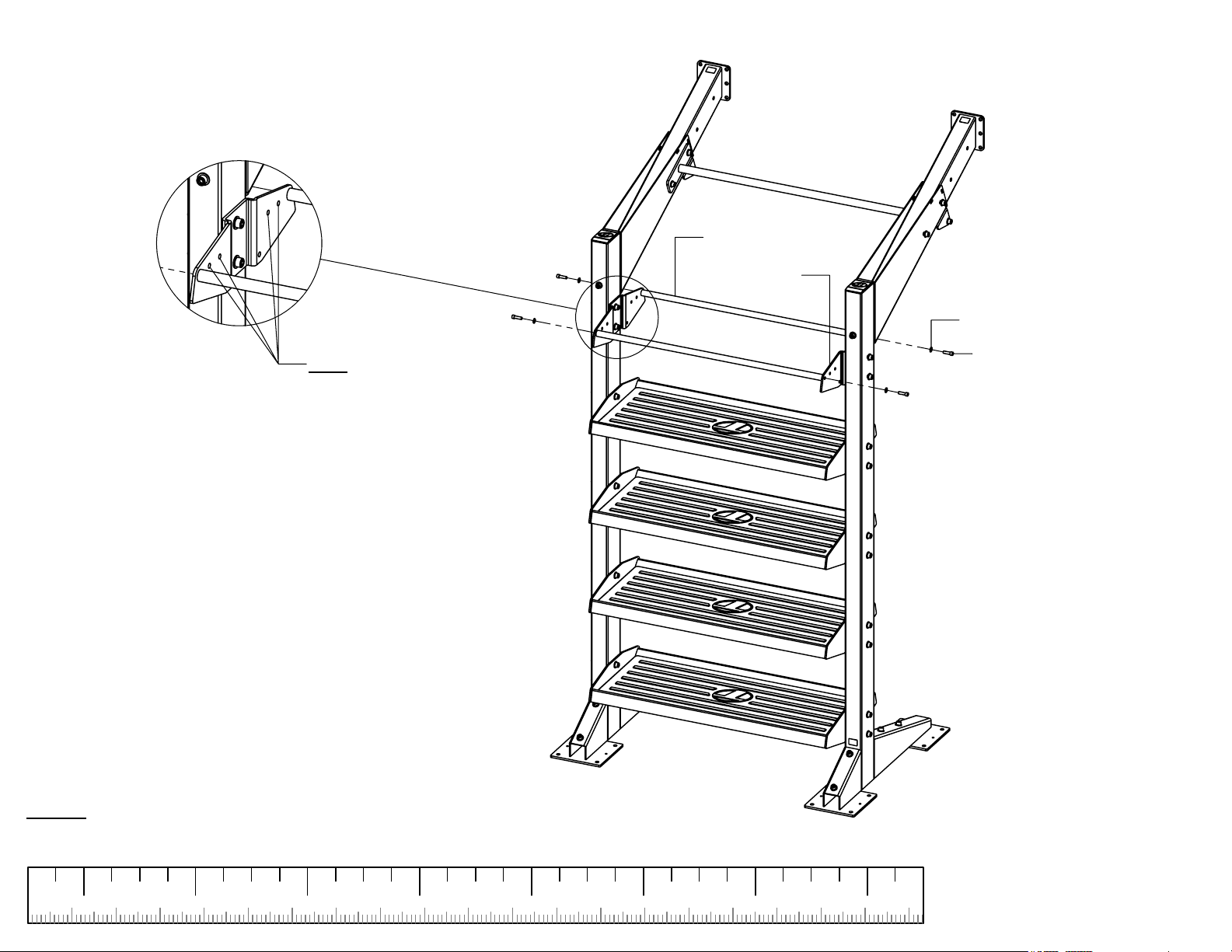

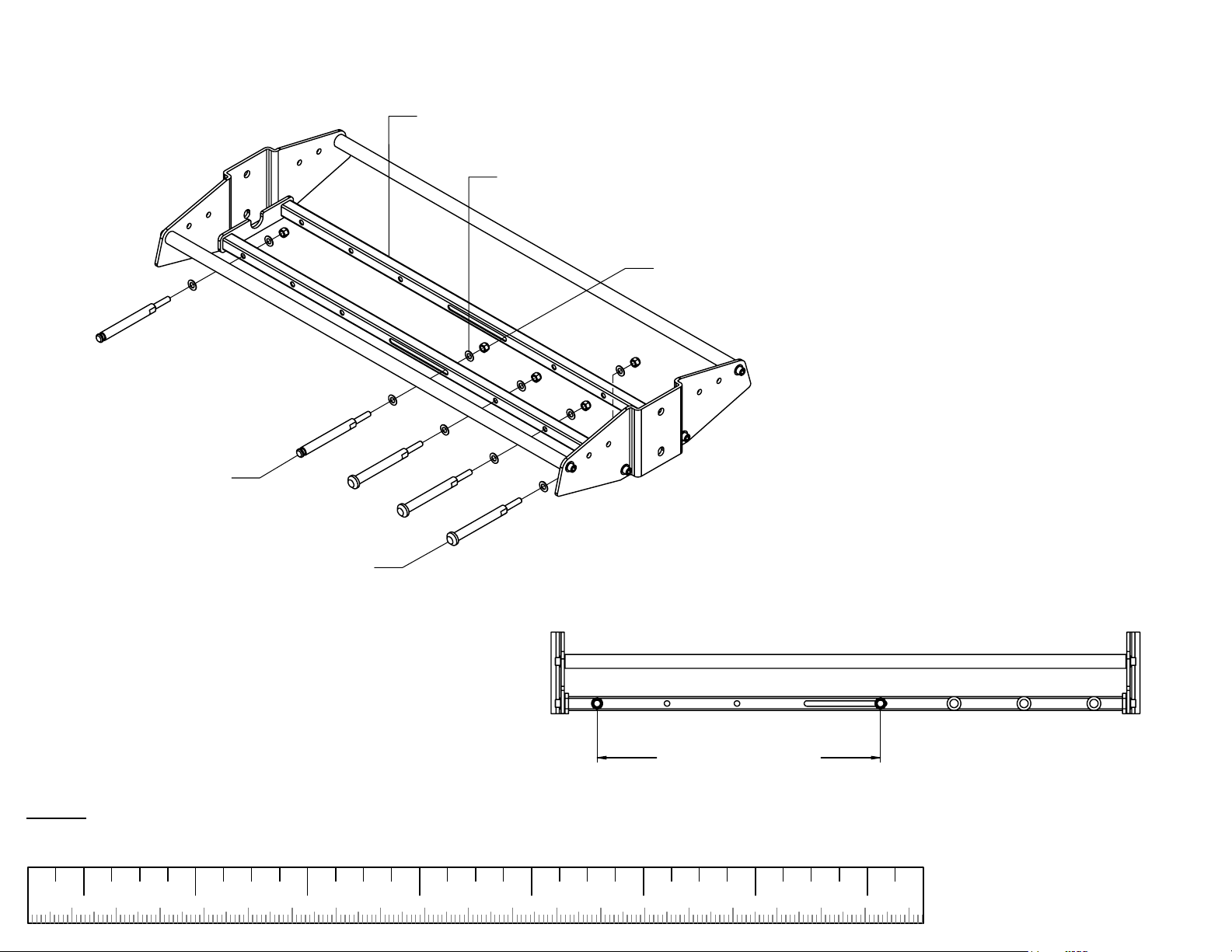

STORAGE MODULE
RAIL (2)
END BRACKET (2)
3/8" FLAT WASHER (4)
NOTE:
RAILS ARE ASSEMBLED
FOR STABILITY BALL WIDTH.
RAILS CAN BE BOLTED TO
NARROWER HOLES FOR
SMALLER ACCESSORIES.
3/8 X 1-1/4" BOLT (4)
NOTE:
If more modules will be assembled, do not tighten bolts at this time.
1 2 4 5 7
50 1803190150 170160
130 14012090 110100403010 706020 80
6
200
16

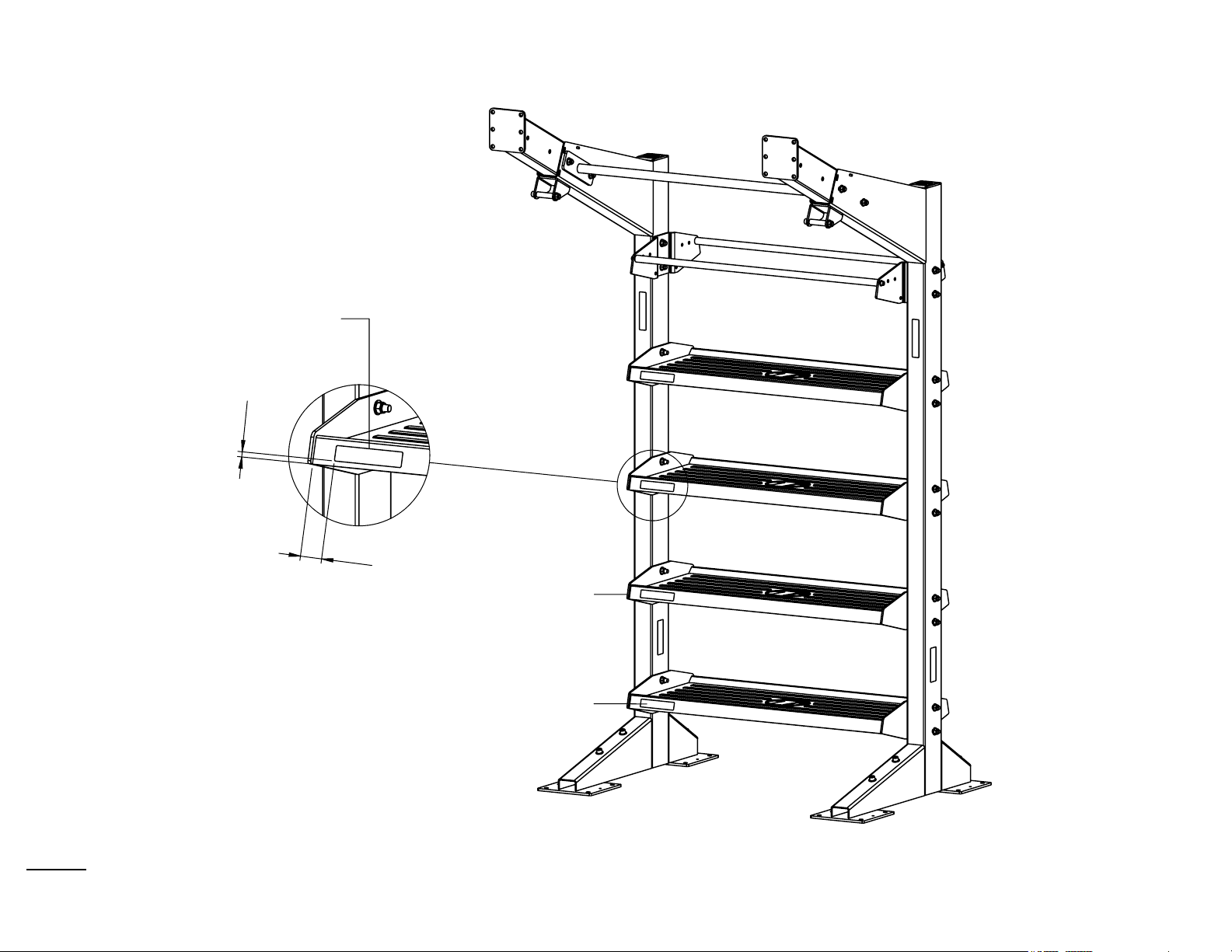

Page 17
STORAGE MODULE
ATTACH DESIRED
LABEL TO EACH
ACCESSORY TRAY
3/8"
1-3/4"
XCREATE-4AT (4)
ACCESSORY LABEL
NOTE:
If you are a professional contractor installing this system for a facility,
leave these labels and instructions with a manager or inquire what
label to attach to each accessory tray.
17

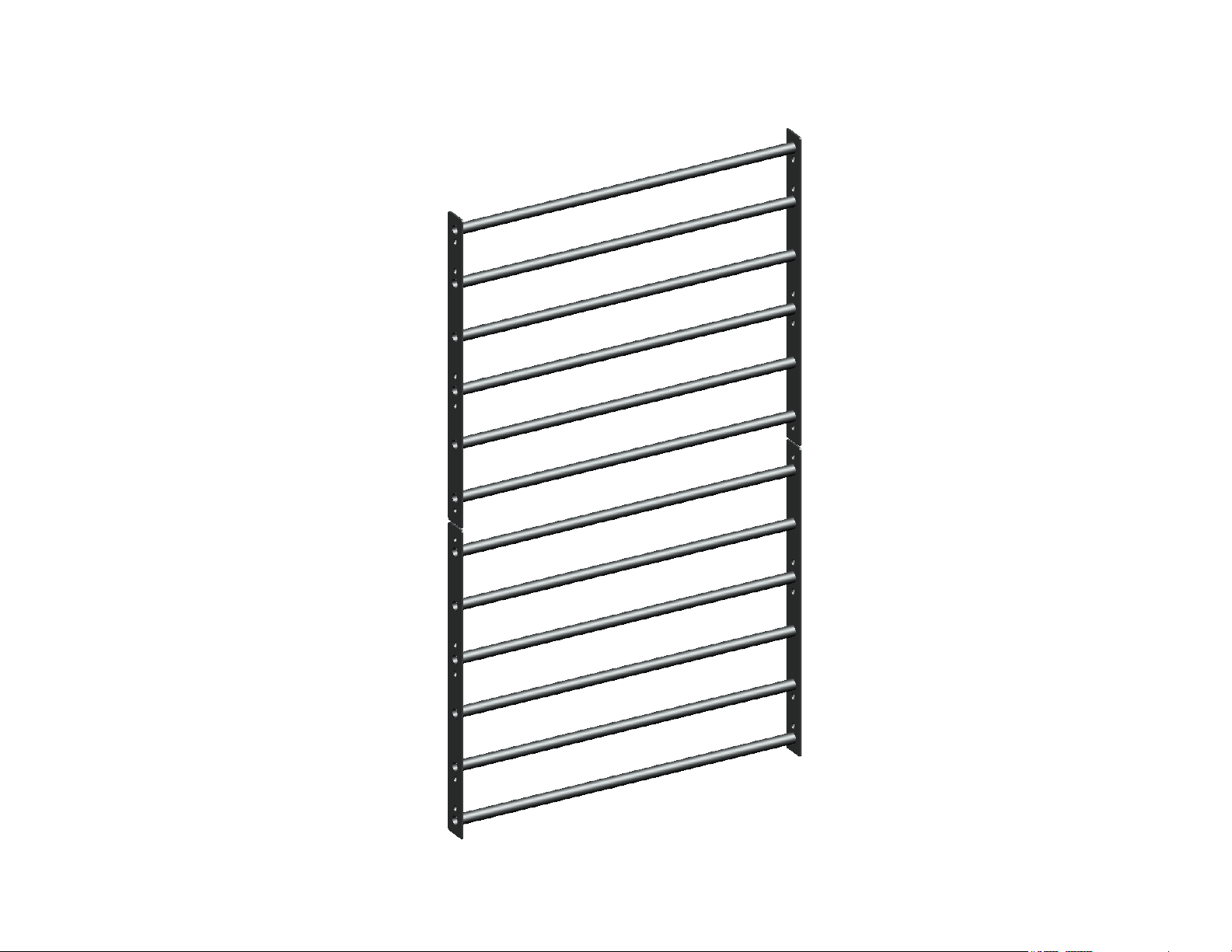

Page 18

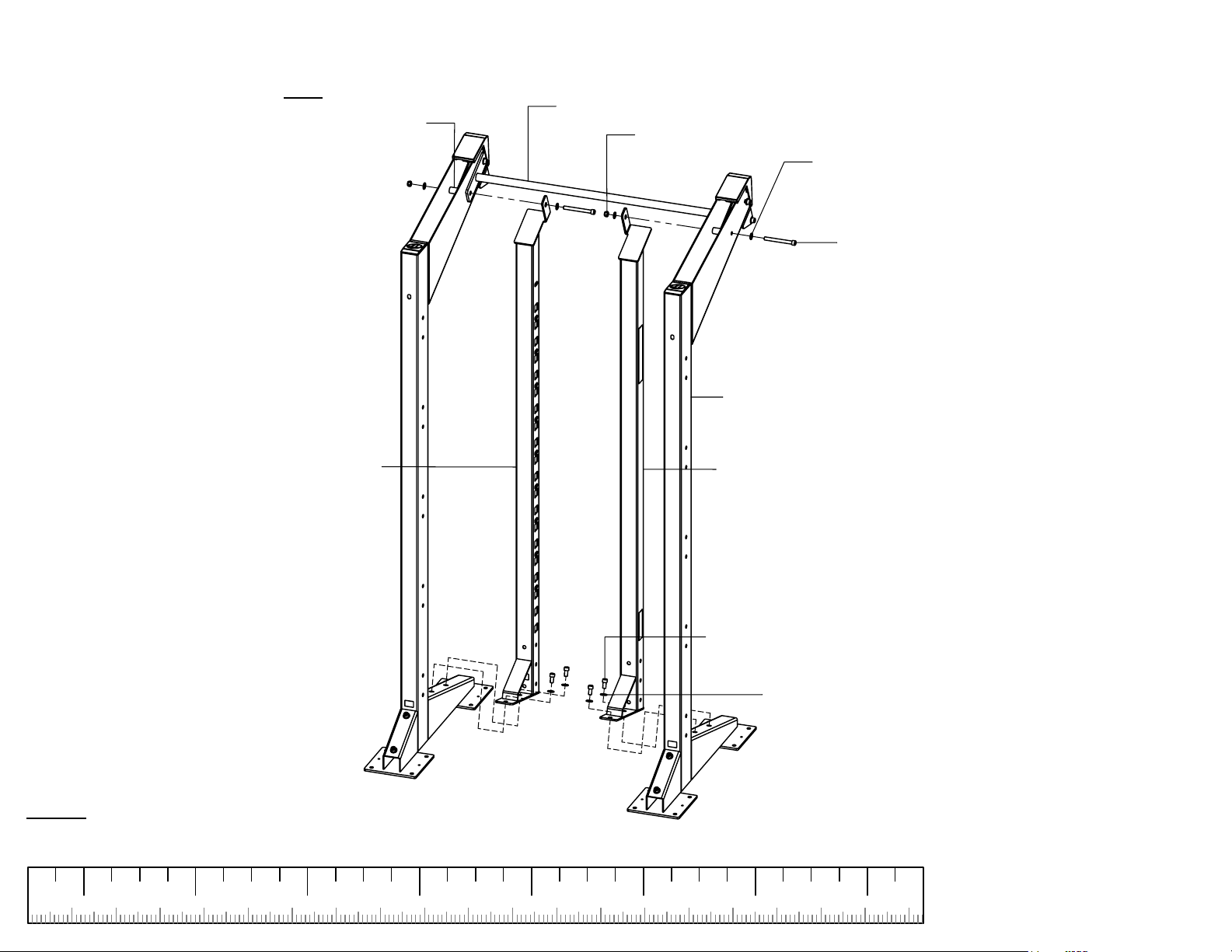

STALL BAR MODULE
18
Page 19

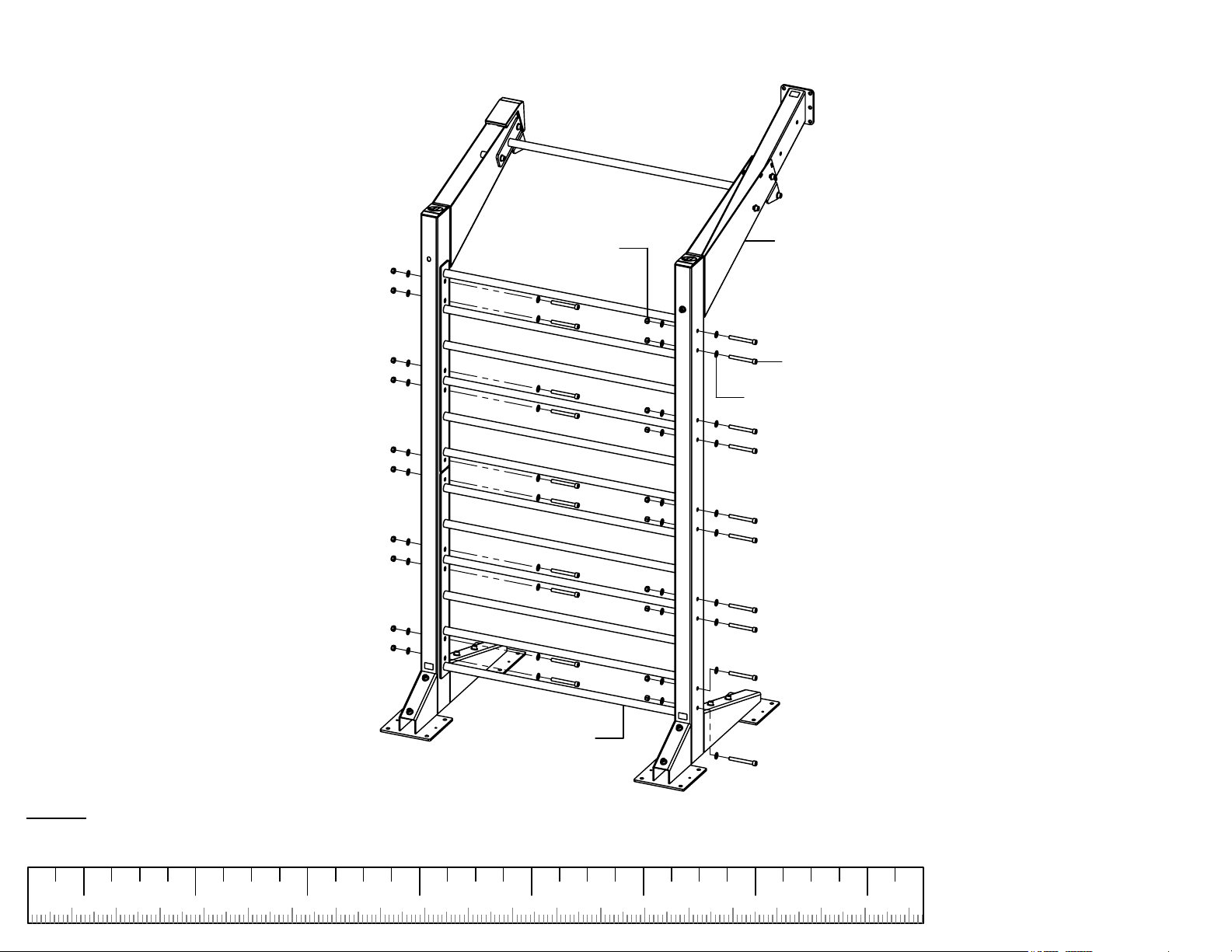

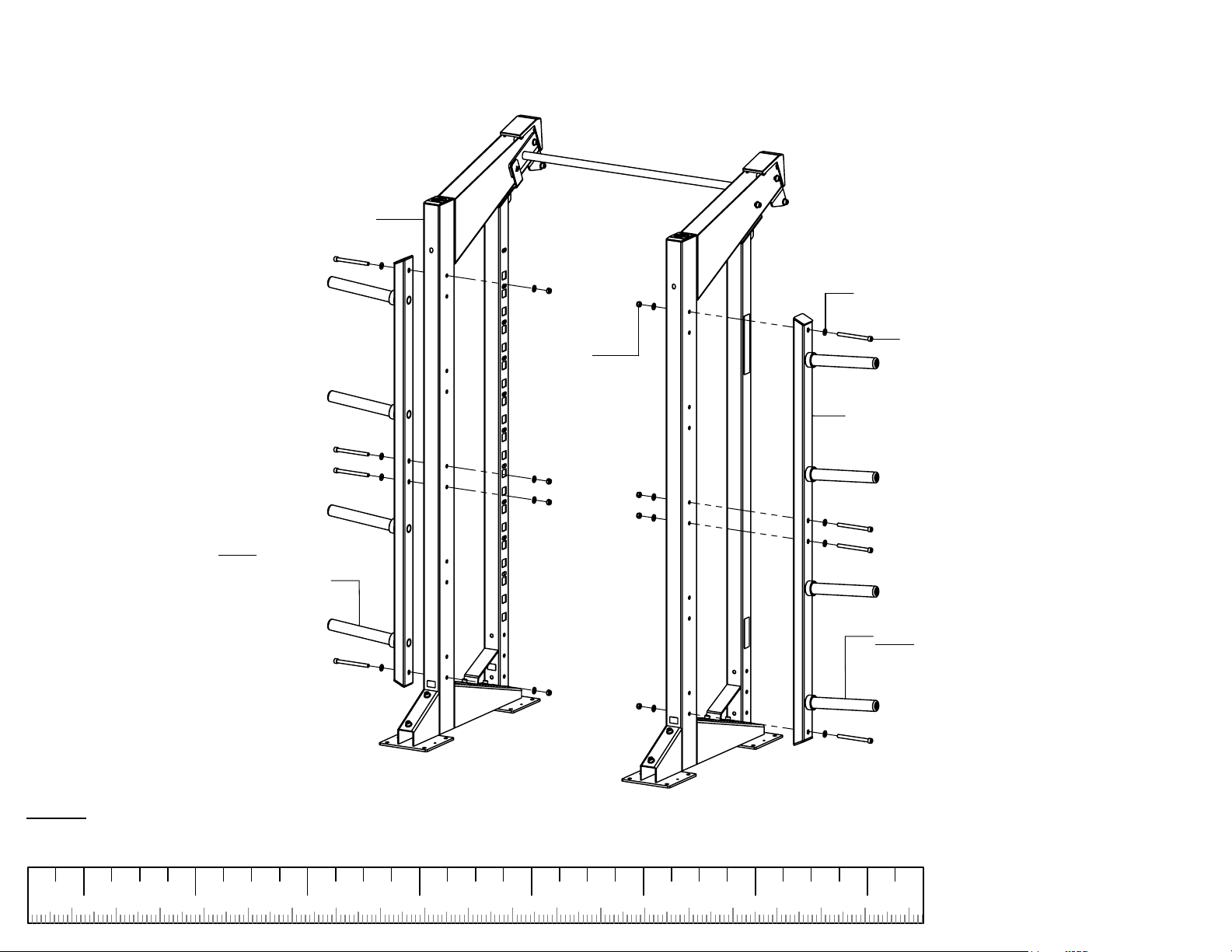

STALL BAR MODULE
1/2" LOCK NUT (20)
XCREATE-8U (2)
1/2 X 4-1/4" BOLT (20)
1/2" FLAT WASHER (40)
XCREATE-4SB (2)
NOTE:
If more modules will be assembled, do not tighten bolts at this time.
1 2 4 5 7
50 1803190150 170160
130 14012090 110100403010 706020 80
6
200
19
Page 20

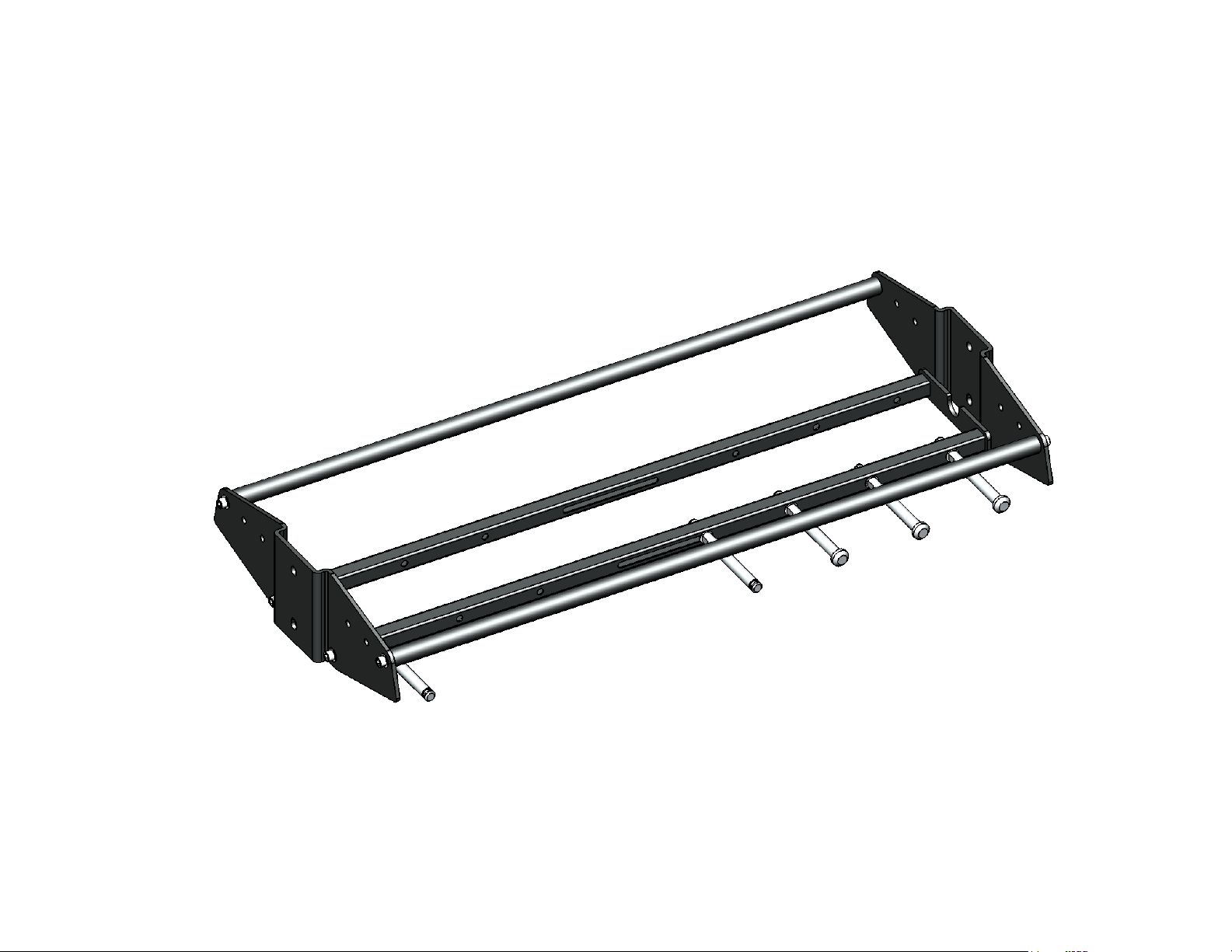

BALL & HANGING STORAGE MODULE
20
Page 21

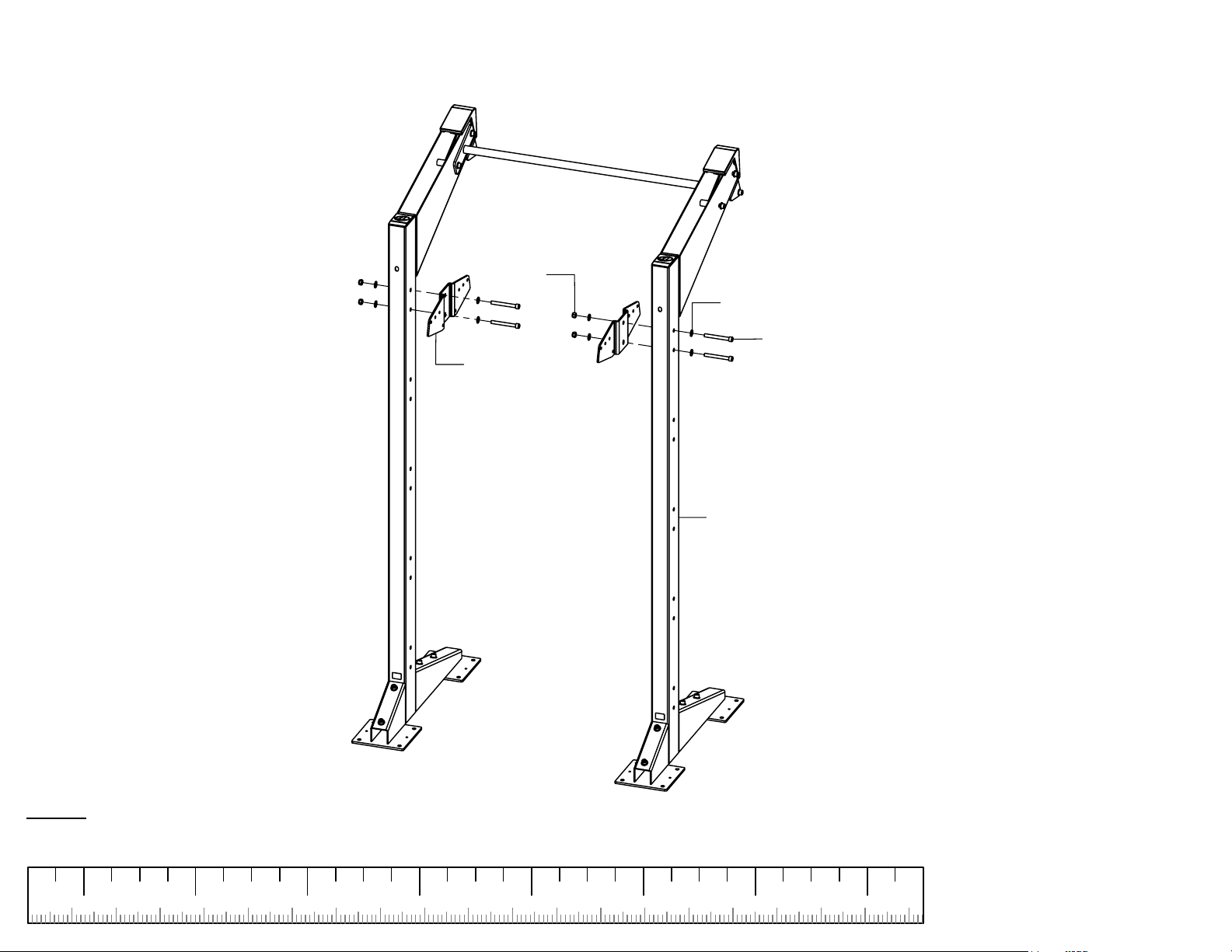

BALL & HANGING STORAGE MODULE
1/2" LOCK
NUT (4)
1/2" FLAT WASHER (8)
1/2 X 4-1/4" BOLT (4)
END BRACKET (2)
NOTE:
LOOSELY
XCREATE-8U (2)
assemble bolt connections in this step.
1 2 4 5 7
50 1803190150 170160
130 14012090 110100403010 706020 80
6
200
21
Page 22
BALL & HANGING STORAGE MODULE
NOTE:
RAILS ARE ASSEMBLED
FOR STABILITY BALL WIDTH.
RAILS CAN BE BOLTED TO
NARROWER HOLES FOR
SMALLER ACCESSORIES.
RAIL (2)
3/8" FLAT WASHER (4)
3/8 X 1-1/4" BOLT (4)
END BRACKET (2)
NOTE:
LOOSELY
assemble all bolt connections in this step.
1 2 4 5 7
50 1803190150 170160
130 14012090 110100403010 706020 80
6
200
22
Page 23
BALL & HANGING STORAGE MODULE
NOTE SLOT
DIRECTION
4' HANGING STORAGE
3/8" FLAT WASHER (4)
3/8 X 1-1/4" BOLT (4)
END BRACKET (2)
NOTE:
After this step has been completed,
SECURELY
tighten all bolt
connections made to this point.
If more modules will be assembled, do not tighten bolts at this time.
Some parts have been hidden for assembly clarity.
1 2 4 5 7
50 1803190150 170160
130 14012090 110100403010 706020 80
6
200
23
Page 24
BALL & HANGING STORAGE MODULE
4' HANGING STORAGE
MAT STORAGE PIN (2)
3/8" FLAT WASHER (10)
3/8" LOCK NUT (5)
NOTE:
SECURELY
ACCESSORY HOLDER PIN (3)
BEFORE TIGHTENING NUT,
ADJUST MAT STORAGE
PIN TO DESIRED POSITION
tighten connections in this step.
1 2 4 5 7
50 1803190150 170160
130 14012090 110100403010 706020 80
6
200
24
Page 25

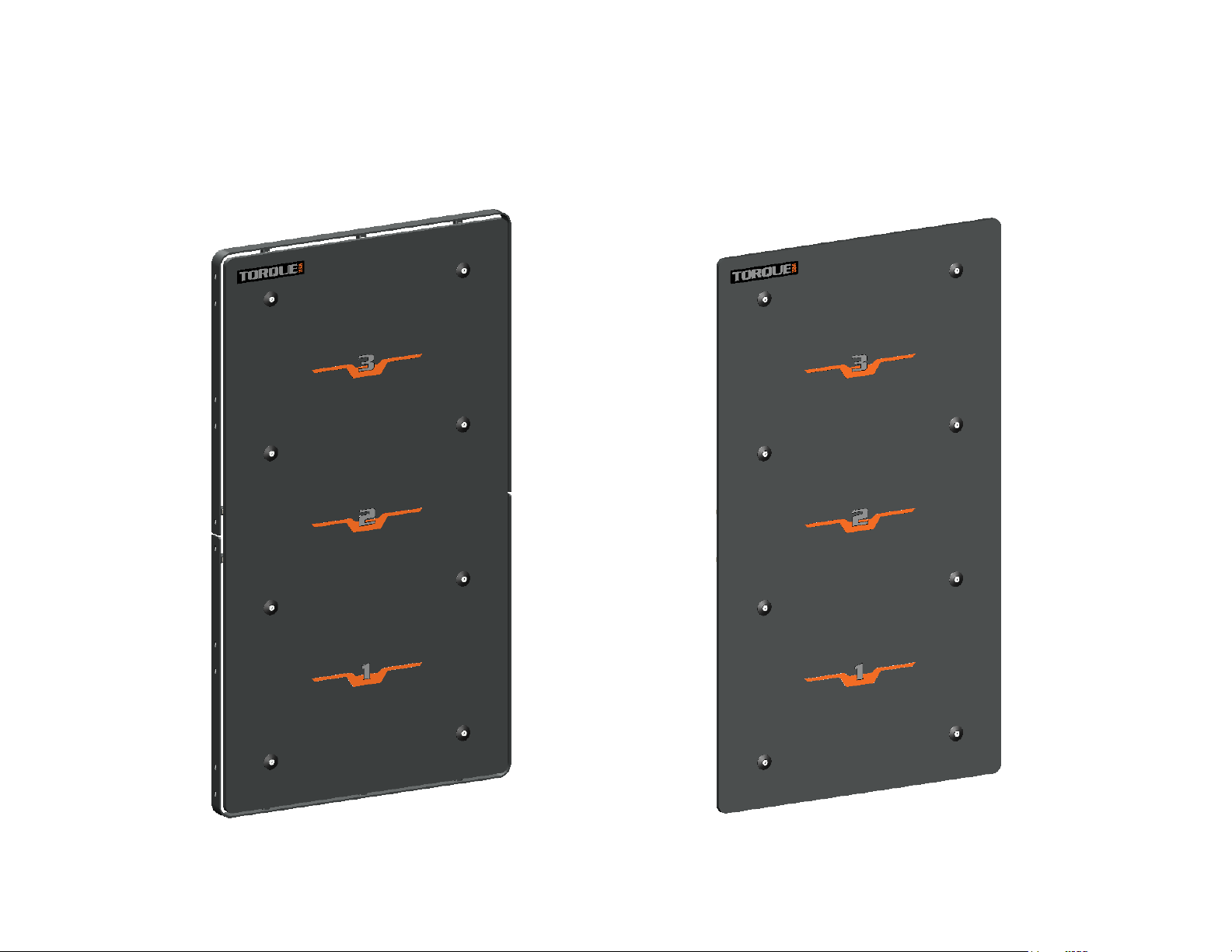

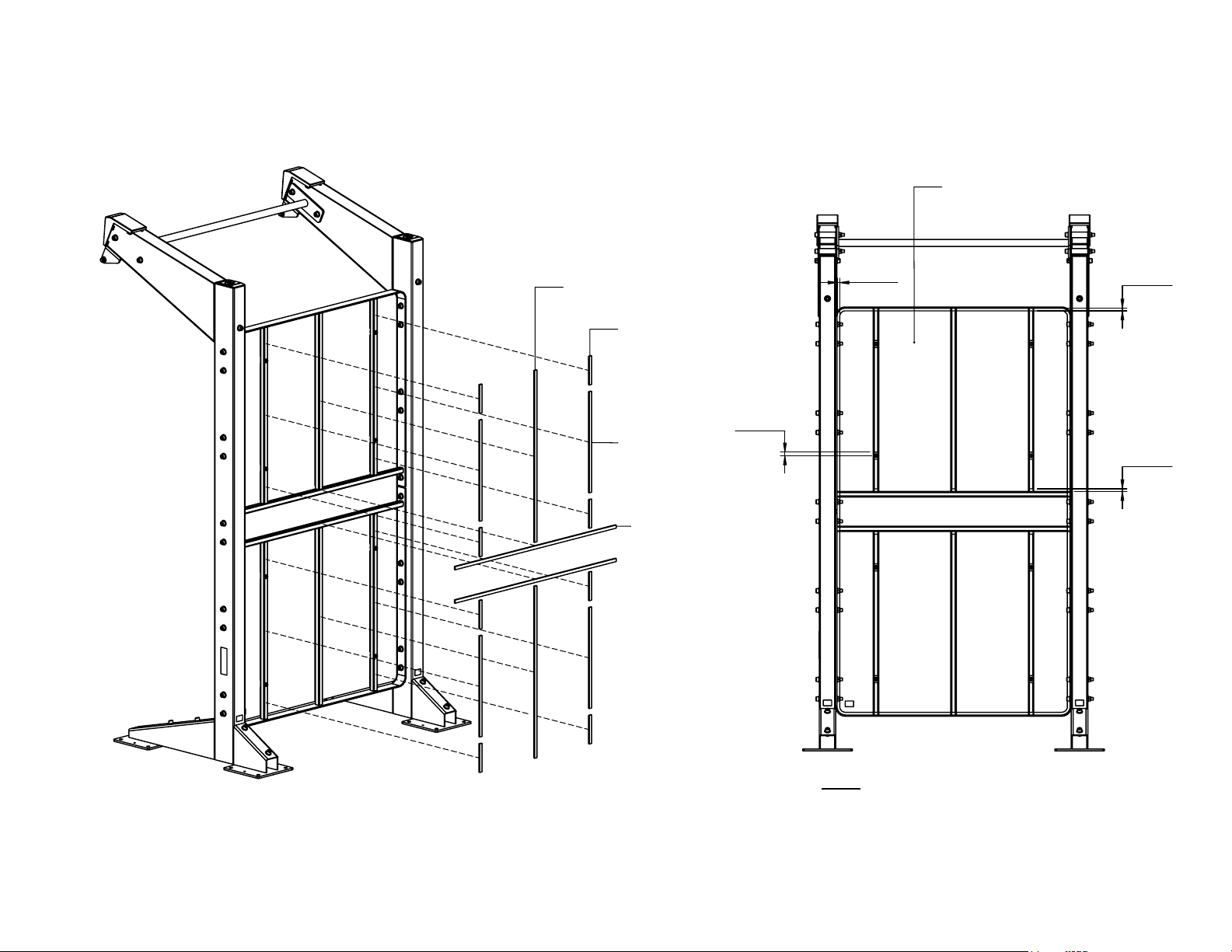

BALL TARGET WALL MODULE &
BALL TARGET WALL REVERSE SIDE
BALL TARGET WALL MODULE
BALL TARGET WALL REVERSE SIDE
25
Page 26

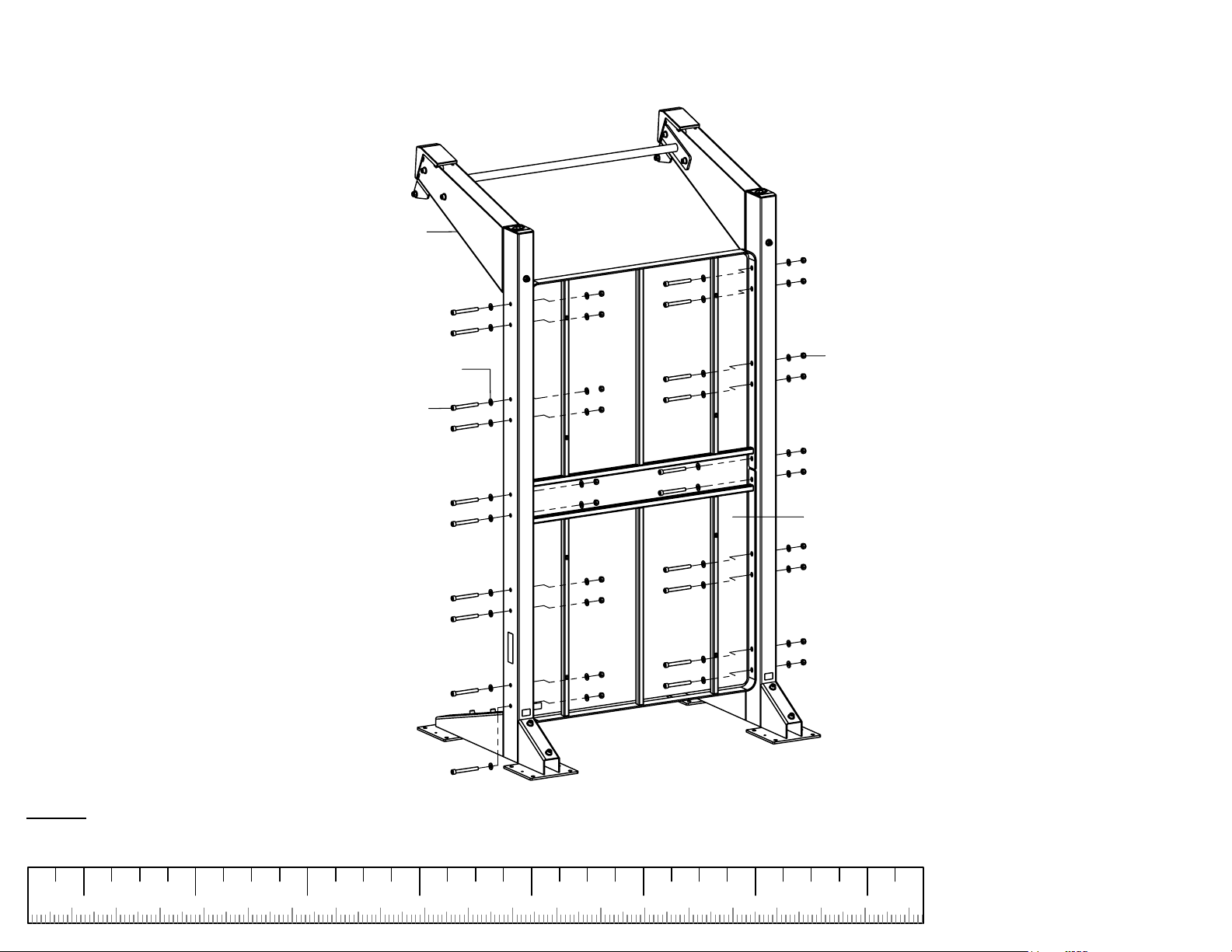

BALL TARGET WALL MODULE
XCREATE-8U (2)
1/2" FLAT WASHER (40)
1/2 X 4-1/4" BOLT (20)
1/2" LOCK NUT (20)
XCREATE-4BTW
NOTE:
If more modules will be assembled, do not tighten bolts at this time.
1 2 4 5 7
50 1803190150 170160
130 14012090 110100403010 706020 80
6
200
26
Page 27
BALL TARGET WALL REVERSE SIDE
XCREATE-4BTW
(BACK SIDE)
5/8 X 31-3/4"
STRIP (2)
5/8 X 5-1/4"
STRIP (8)
5/8 X 18-3/4"
STRIP (4)
5/8 X 40-3/4"
STRIP (2)
0.6 (4)
0.5 (2)
0.5 (6)
0.5 (4)
NOTE:
CUT FOAM STRIPS TO LENGTH AS SHOWN.
PEEL PROTECTIVE FILM OFF THE BACK OF
THE FOAM STRIPS AND ATTACH TO FRAME
OF BALL TARGET WALL AS SHOWN ABOVE.
27
Page 28

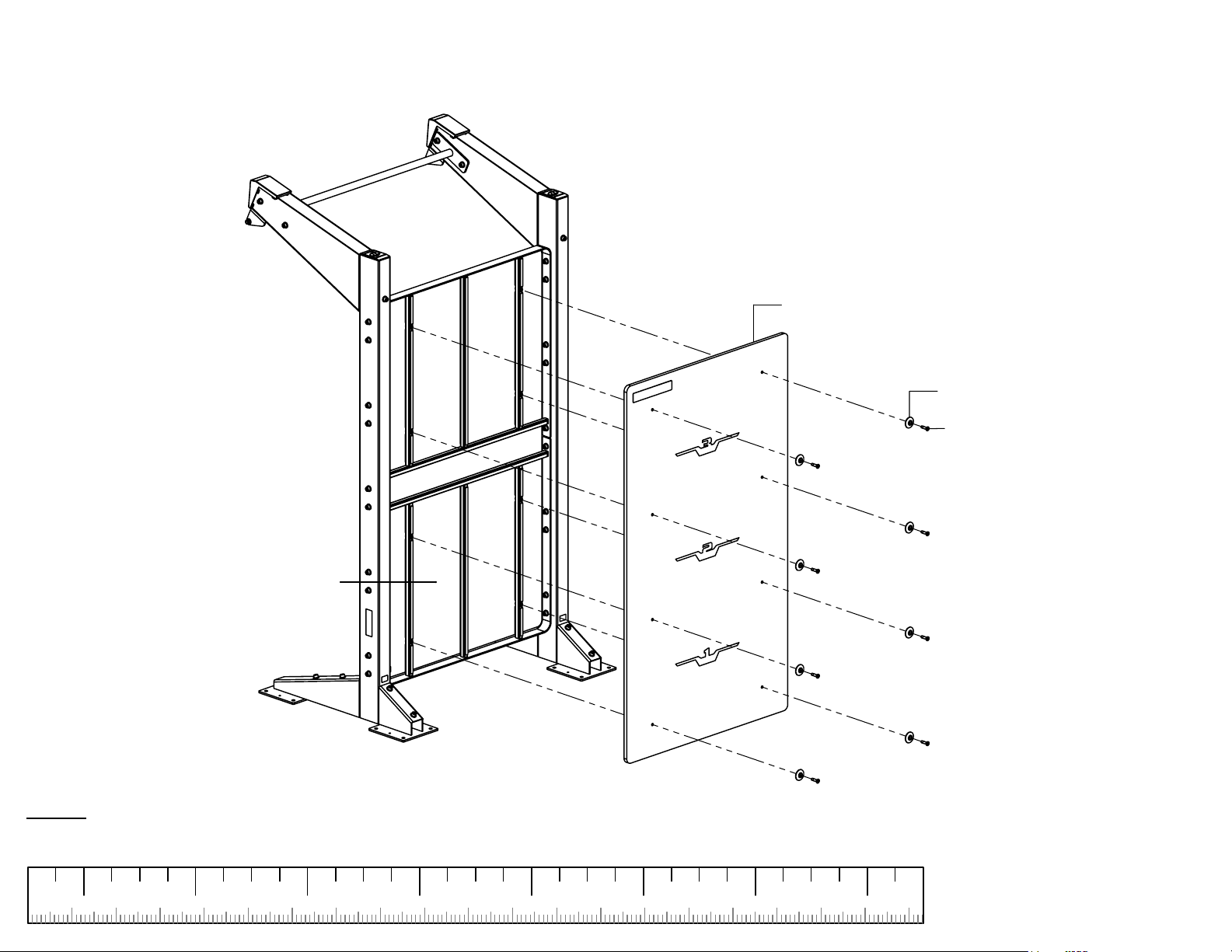

BALL TARGET WALL REVERSE SIDE
XCREATE-4BTWRS
BOLT CAP (8)
3/8 X 1-1/2" FLAT
HEAD BOLT (8)
NOTE:
SECURELY
XCREATE-4BTW
tighten connections in this step.
1 2 4 5 7
50 1803190150 170160
130 14012090 110100403010 706020 80
6
200
28
Page 29

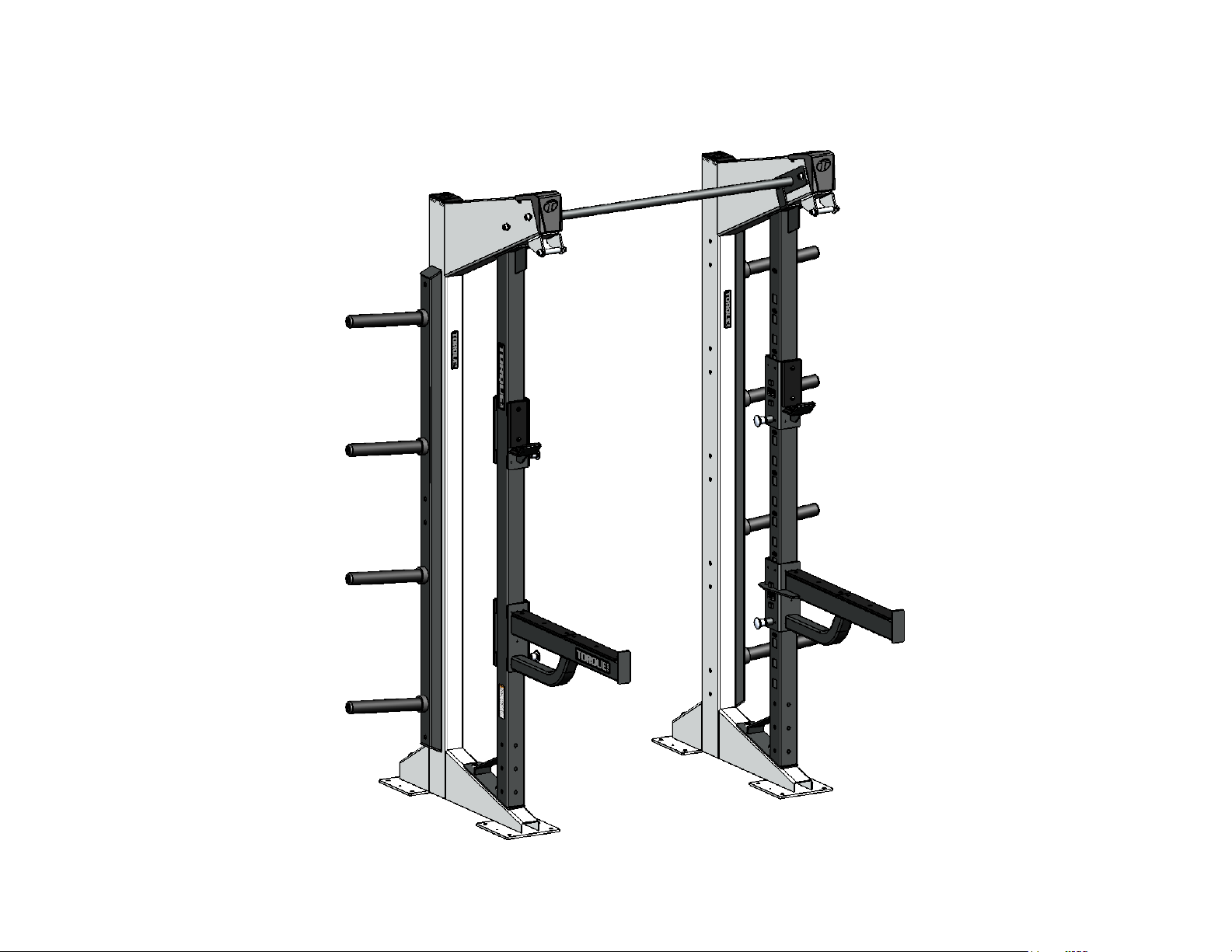

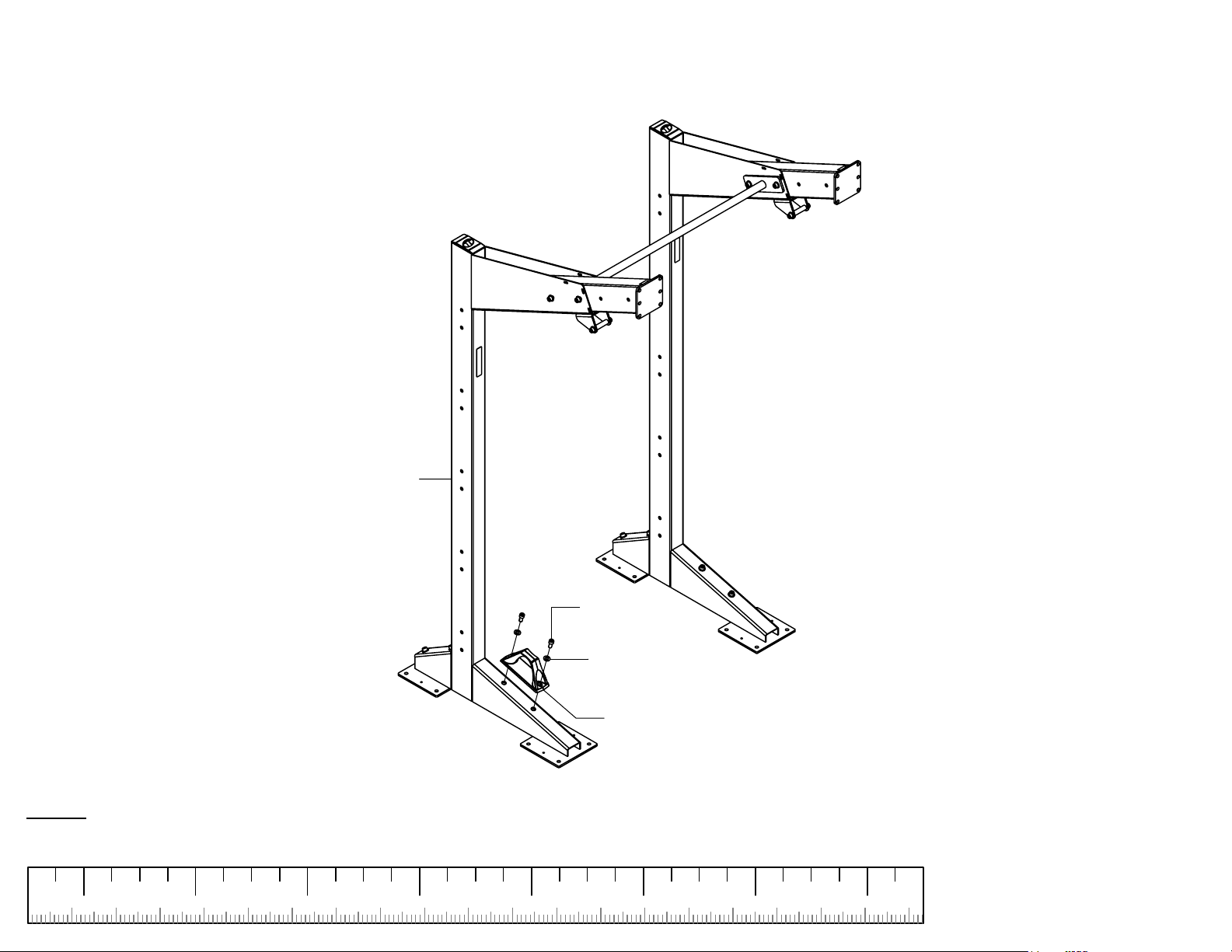

8' OLYMPIC LIFTING STATION MODULE
29
Page 30

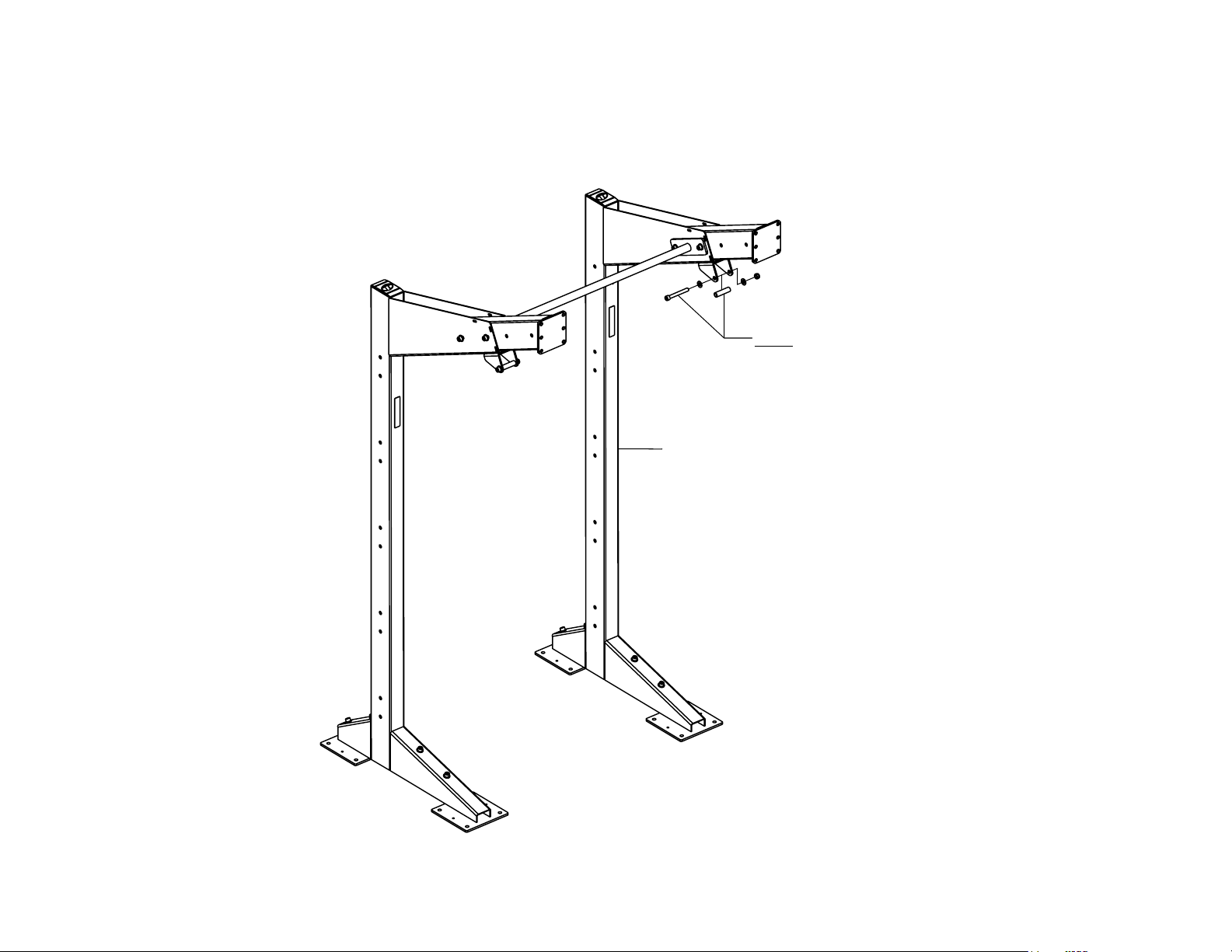

8' OLYMPIC LIFTING STATION MODULE
NOTE:
MAKE SURE TO USE PREINSTALLED SPACER (2)
XCREATE-4SX
1/2" LOCK NUT (2)
PRE-INSTALLED
XCREATE-8U (2)
1/2" FLAT WASHER (4)
PRE-INSTALLED
1/2 X 4-3/4" BOLT (2)
PRE-INSTALLED
NOTE:
SECURELY
RIGHT UPRIGHT
LEFT UPRIGHT
1/2 X 1" BOLT (2)
PRE-INSTALLED
1/2" FLAT WASHER (2)
PRE-INSTALLED
tighten bolt connections in this step.
1 2 4 5 7
50 1803190150 170160
130 14012090 110100403010 706020 80
6
200
30

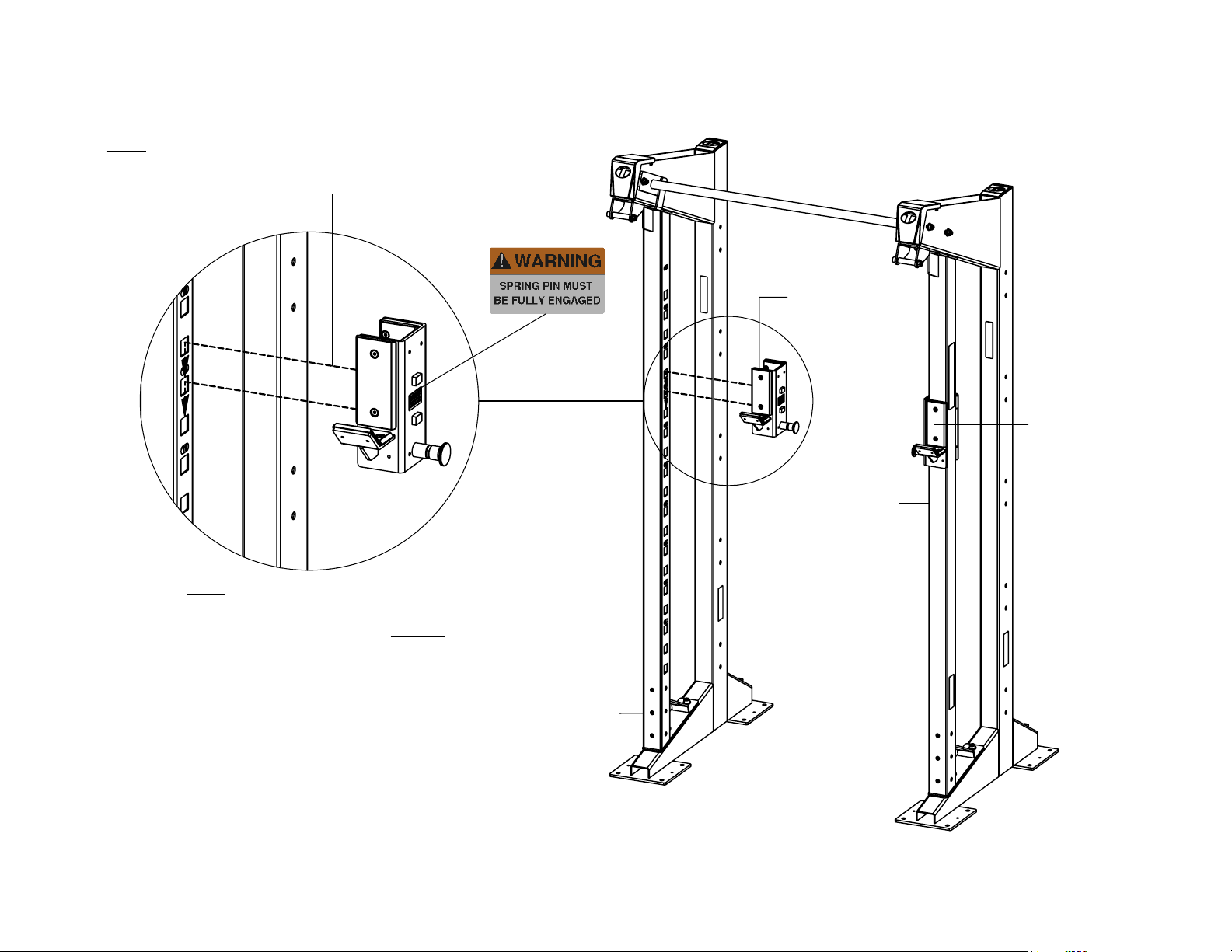

Page 31
8' OLYMPIC LIFTING STATION MODULE
NOTE:
INSERT BAR SUPPORTS INTO
DESIRED SLOTS ON UPRIGHTS.
PUSH DOWN TO LOCK IN PLACE
LEFT BAR
SUPPORT
RIGHT BAR
SUPPORT
NOTE:
TO REMOVE BAR SUPPORTS FROM
UPRIGHTS, PULL SPRING PIN OUT TO
UNLOCK. LIFT UP AND PULL OUT
RIGHT UPRIGHT
LEFT UPRIGHT
31

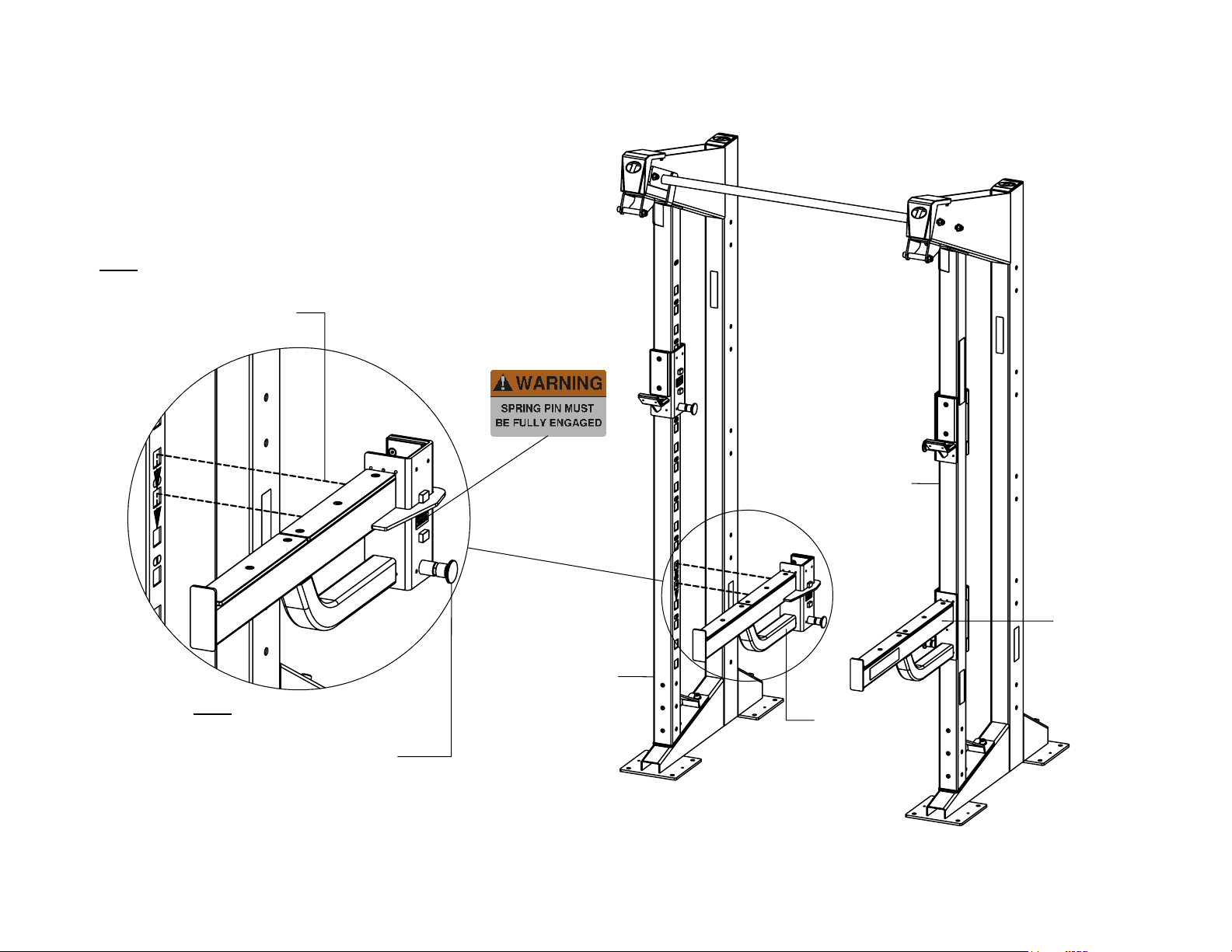

Page 32
8' OLYMPIC LIFTING STATION MODULE
NOTE:
INSERT BAR BAR CATCHES INTO
DESIRED SLOTS ON UPRIGHTS.
PUSH DOWN TO LOCK IN PLACE
RIGHT UPRIGHT
NOTE:
TO REMOVE BAR CATCHES FROM
UPRIGHTS, PULL SPRING PIN OUT TO
UNLOCK. LIFT UP AND PULL OUT
RIGHT BAR
CATCH
LEFT UPRIGHT
LEFT BAR
CATCH
32
Page 33

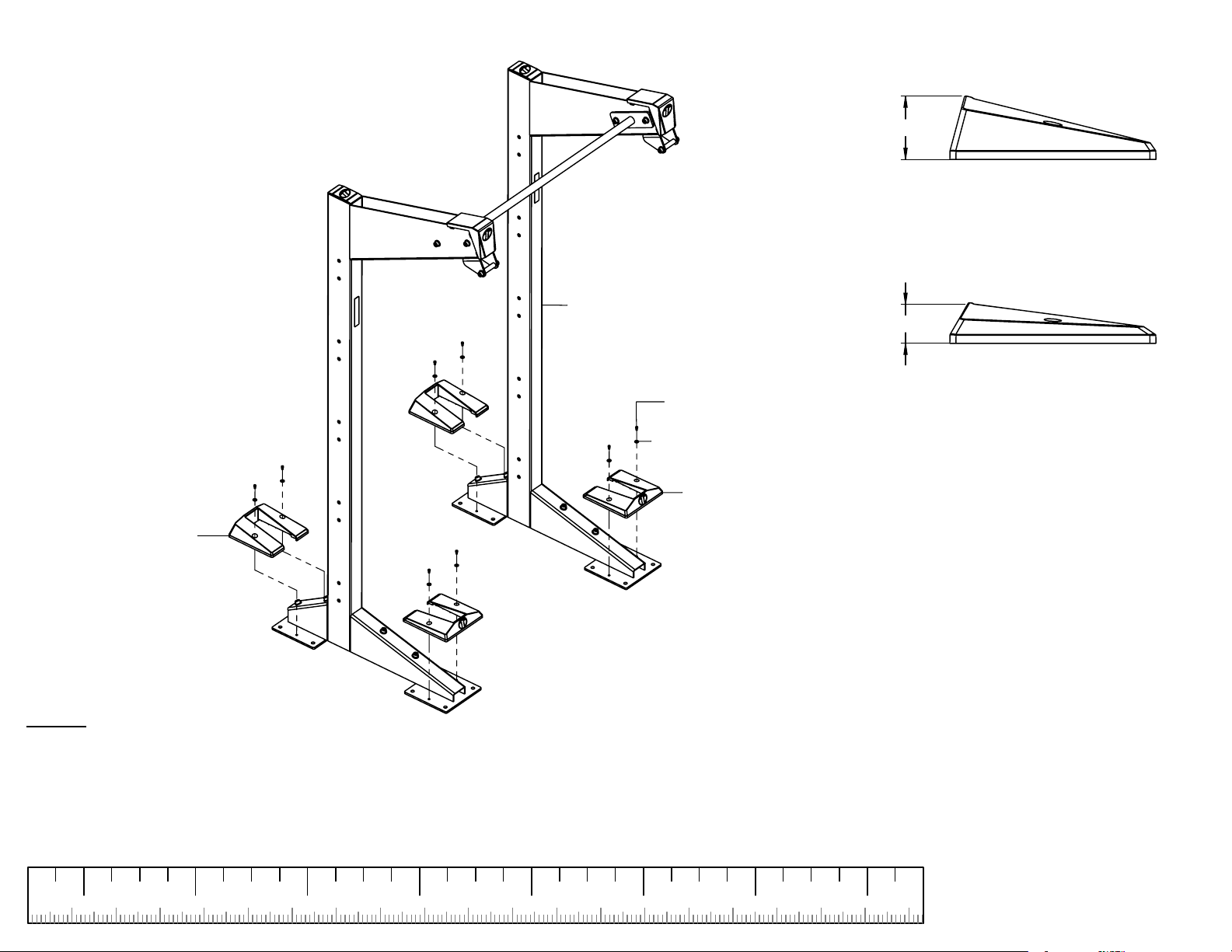

8' OLYMPIC LIFTING STATION MODULE
XCREATE-8U (2)
1/2" FLAT WASHER (16)
NOTE:
MAKE SURE WEIGHT
HORNS ANGLE UP
1/2" LOCK
NUT (8)
1/2 X 5-3/4" BOLT (8)
XCREATE-8UVWS (2)
NOTE:
MAKE SURE WEIGHT
HORNS ANGLE UP
NOTE:
SECURELY
tighten bolt connections in this step.
1 2 4 5 7
50 1803190150 170160
130 14012090 110100403010 706020 80
6
200
33
Page 34
ATTACHMENTS
XCREATE-BHSE
BALL & HANGING
STORAGE EXTENSION
XRACK-BRA
BATTLE ROPE ANCHOR

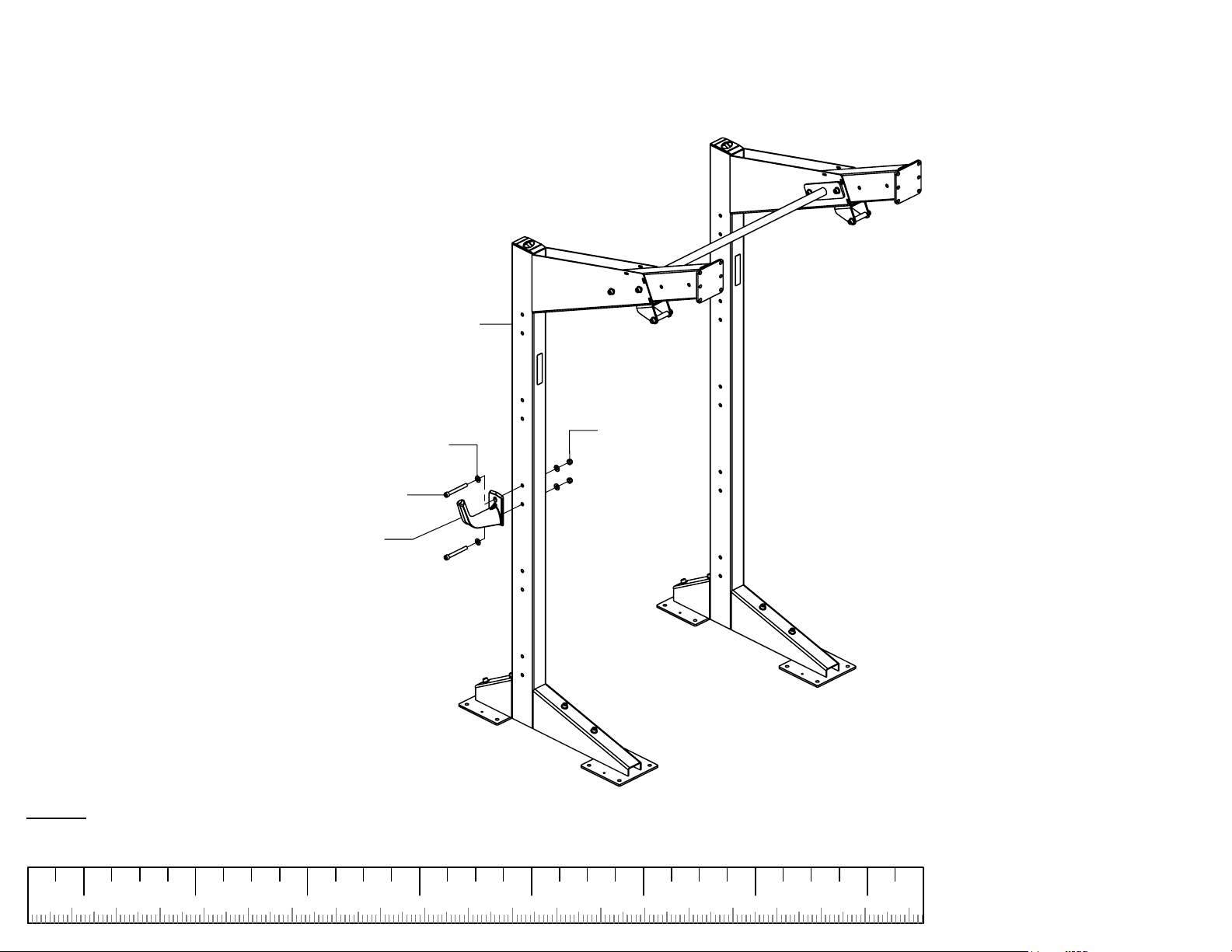

XCREATE-HSH
HANGING STORAGE HOOK
XCREATE-DP
DOUBLE PLAY
34
XHMGRT
HORIZONTAL MOUNT
GROUND ROTATIONAL TRAINER
XCREATE-3DS
3 DIMENSIONAL SWIVEL
XCREATE-BT
BALL TARGET
XCREATE-RBA
RESISTANCE BAND ANCHOR
Page 35
ATTACHMENTS
35
XCREATE-VDS4
VERTICAL DUMBBELL
STORAGE - 4 PAIR
XERD
ENDLESS ROPE DRUM
XCREATE-3DSM
3 DIMENSIONAL
SWIVEL W/ MOUNT

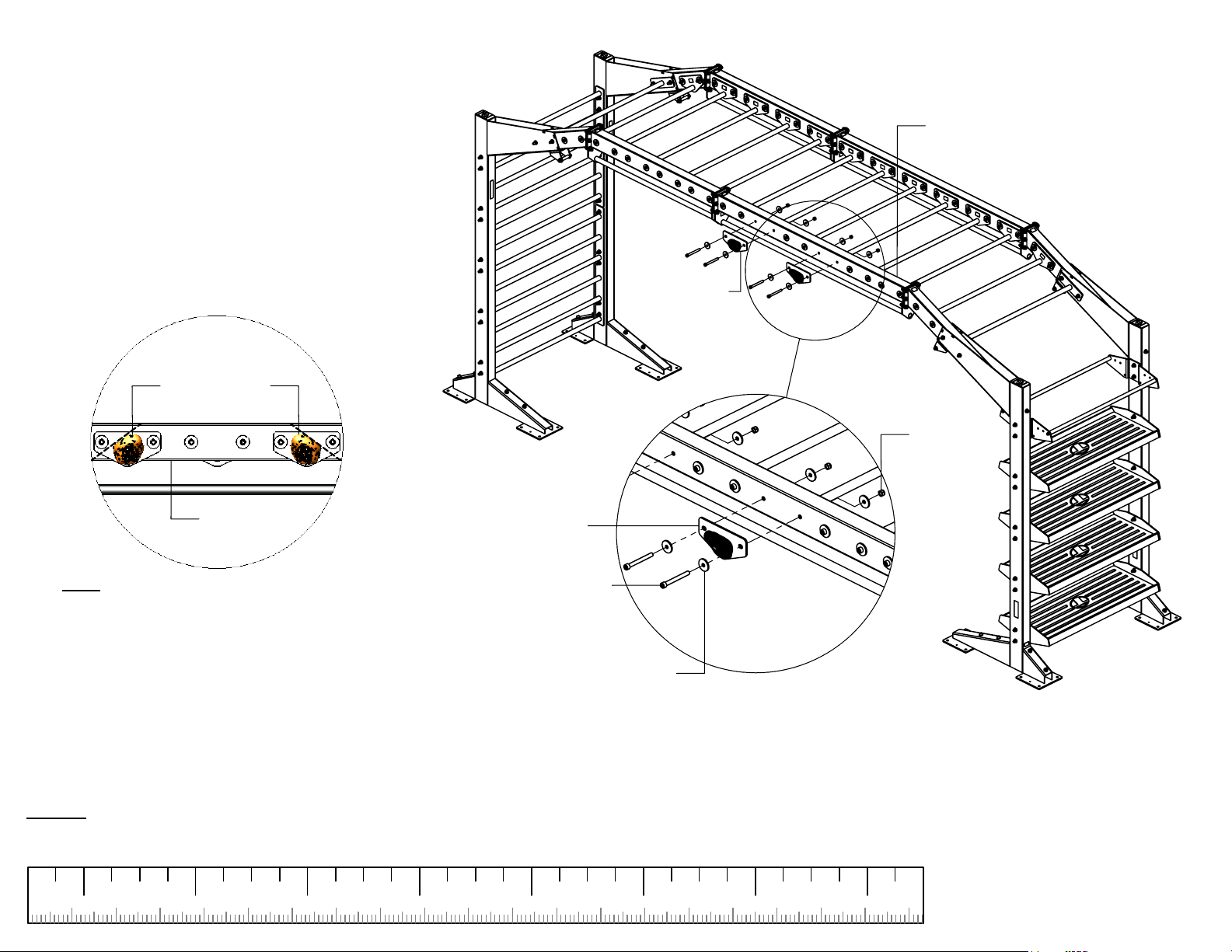

XRACK-RCK
ROCK CLIMBING KIT
XLAB-AA
ATTACHMENT ANCHOR
XLAB-DA
DIP ATTACHMENT
XLAB-PS
PLYO STEP
Page 36
XCREATE-BHSE
BALL & HANGING
STORAGE EXTENSION
1/2" FLAT WASHER (4)
NOTE:
1/2" LOCK NUT (2)
1/2 X 4-1/4" BOLT (2)
XCREATE-BHSE
XCREATE-8U
SECURELY
tighten bolt connections in this step.
1 2 4 5 7
50 1803190150 170160
130 14012090 110100403010 706020 80
6
200
36
Page 37
XRACK-BRA
BATTLE ROPE ANCHOR
XCREATE-8U
NOTE:
SECURELY
1/2 X 1" BOLT (2)
PRE-INSTALLED
1/2" FLAT WASHER (2)
PRE-INSTALLED
XRACK-BRA
tighten bolt connections in this step.
1 2 4 5 7
50 1803190150 170160
130 14012090 110100403010 706020 80
6
200
37
Page 38
XCREATE-HSH
HANGING STORAGE HOOK
XCREATE-8U
NOTE:
SECURELY
1/2" FLAT WASHER (4)
1/2 X 4-1/4" BOLT (2)
XCREATE-HSH
tighten bolt connections in this step.
1/2" LOCK
NUT (2)
1 2 4 5 7
50 1803190150 170160
130 14012090 110100403010 706020 80
6
200
38
Page 39

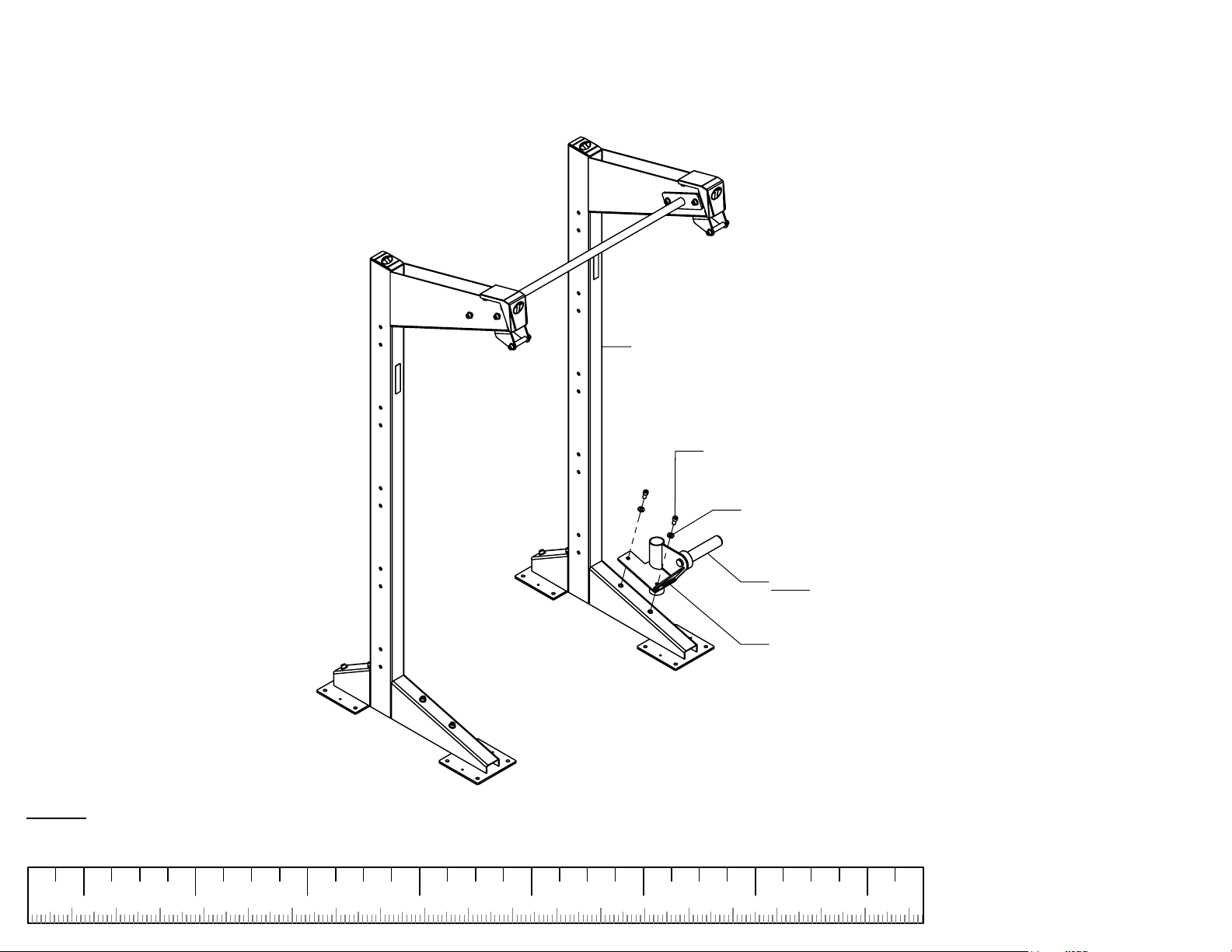

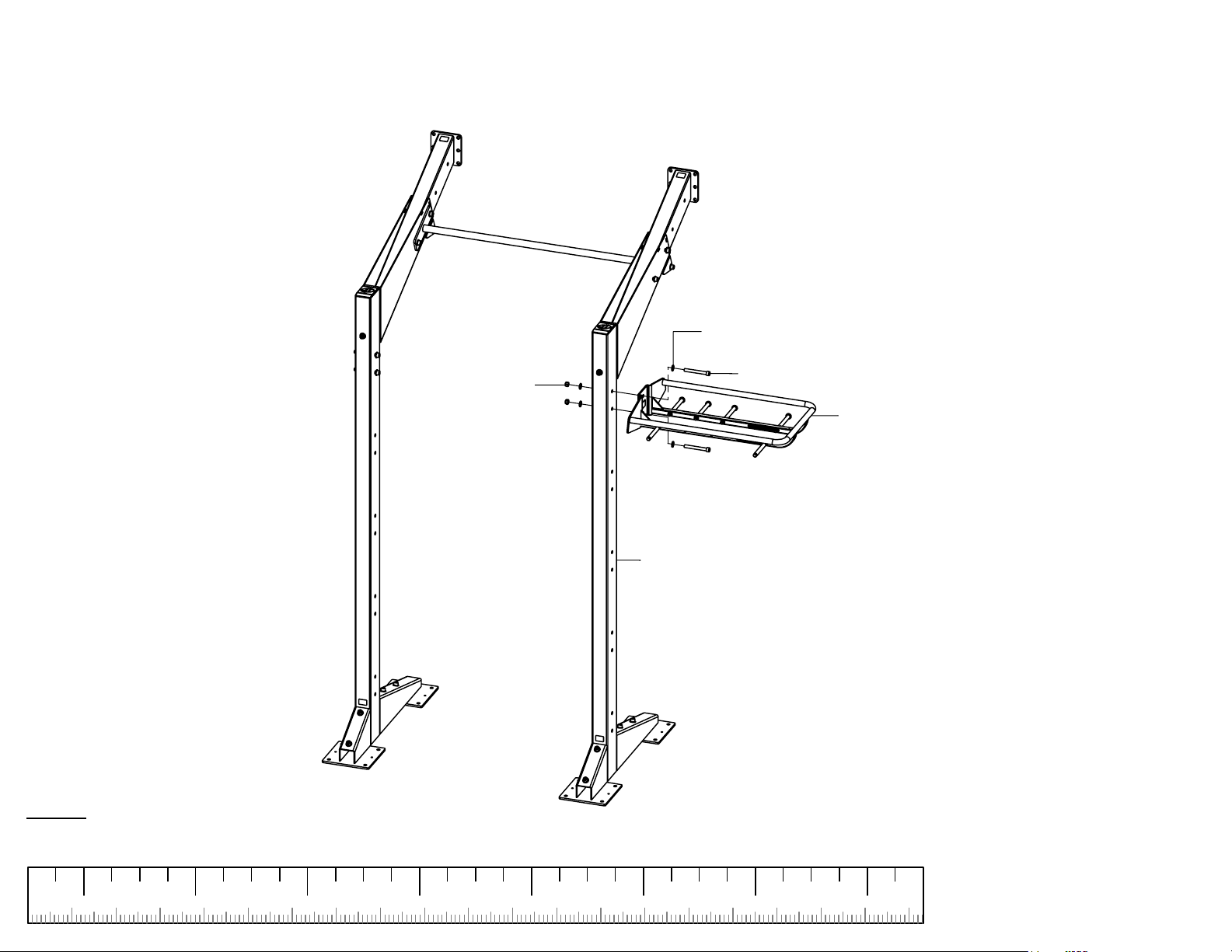

XCREATE-DP
DOUBLE PLAY (BAR & PLATE STORAGE)
XCREATE-8U
1/2 X 1" BOLT (2)
PRE-INSTALLED
NOTE:
SECURELY
1/2" FLAT WASHER (2)
PRE-INSTALLED
NOTE:
MAX WEIGHT PLATE: 25 LBS.
XCREATE-DP
tighten bolt connections in this step.
1 2 4 5 7
50 1803190150 170160
130 14012090 110100403010 706020 80
6
200
39
Page 40

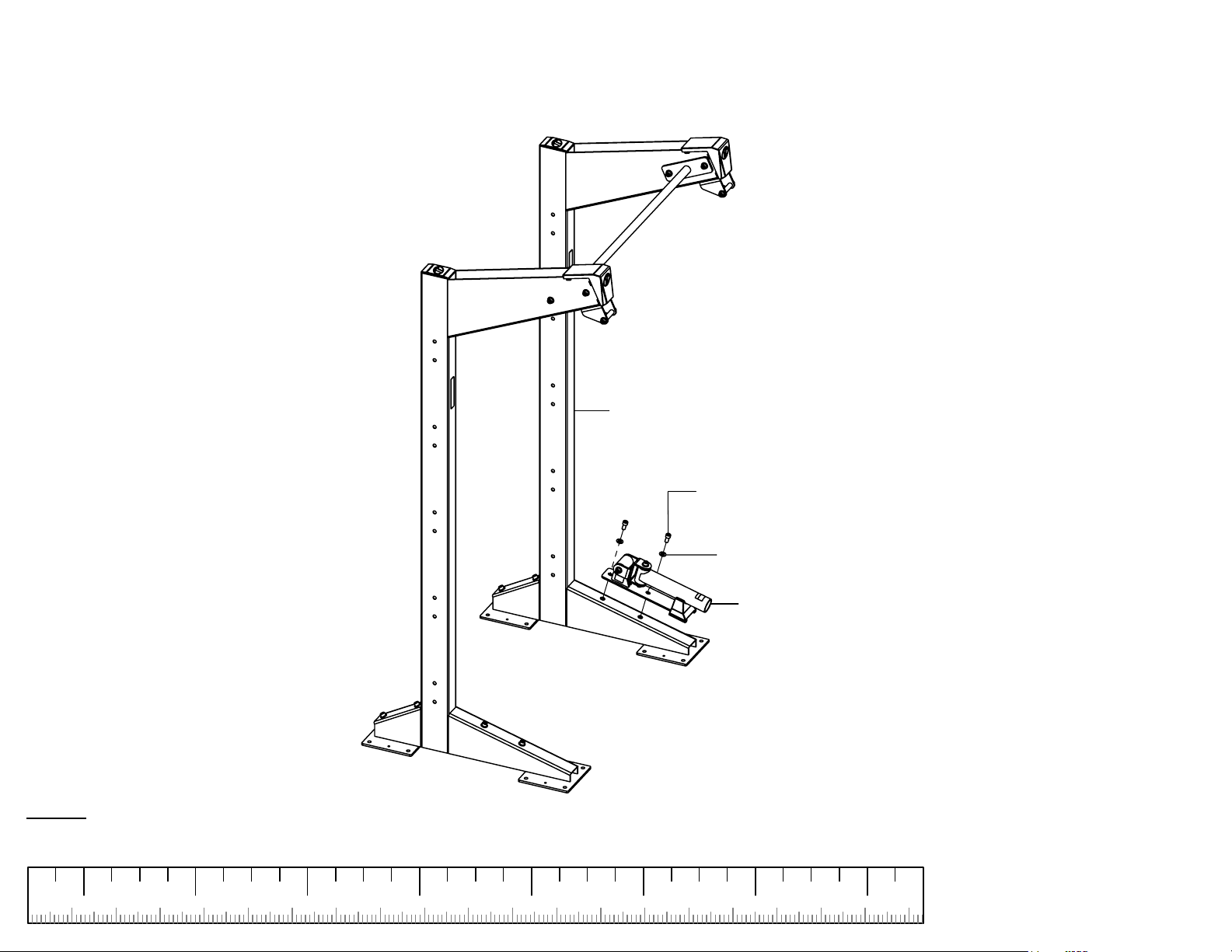

HMGRT
HORIZONTAL MOUNT GROUND
ROTATIONAL TRAINER
XCREATE-8U
NOTE:
SECURELY
1/2 X 1" BOLT (2)
PRE-INSTALLED
1/2" FLAT WASHER (2)
PRE-INSTALLED
HMGRT
tighten bolt connections in this step.
1 2 4 5 7
50 1803190150 170160
130 14012090 110100403010 706020 80
6
200
40
Page 41
XCREATE-3DS
3 DIMESIONAL SWIVEL (UPRIGHT)
NOTE:
TEMPORARILY REMOVE BOLT,
SPACER, WASHERS AND NUT
XCREATE-8U
41
Page 42

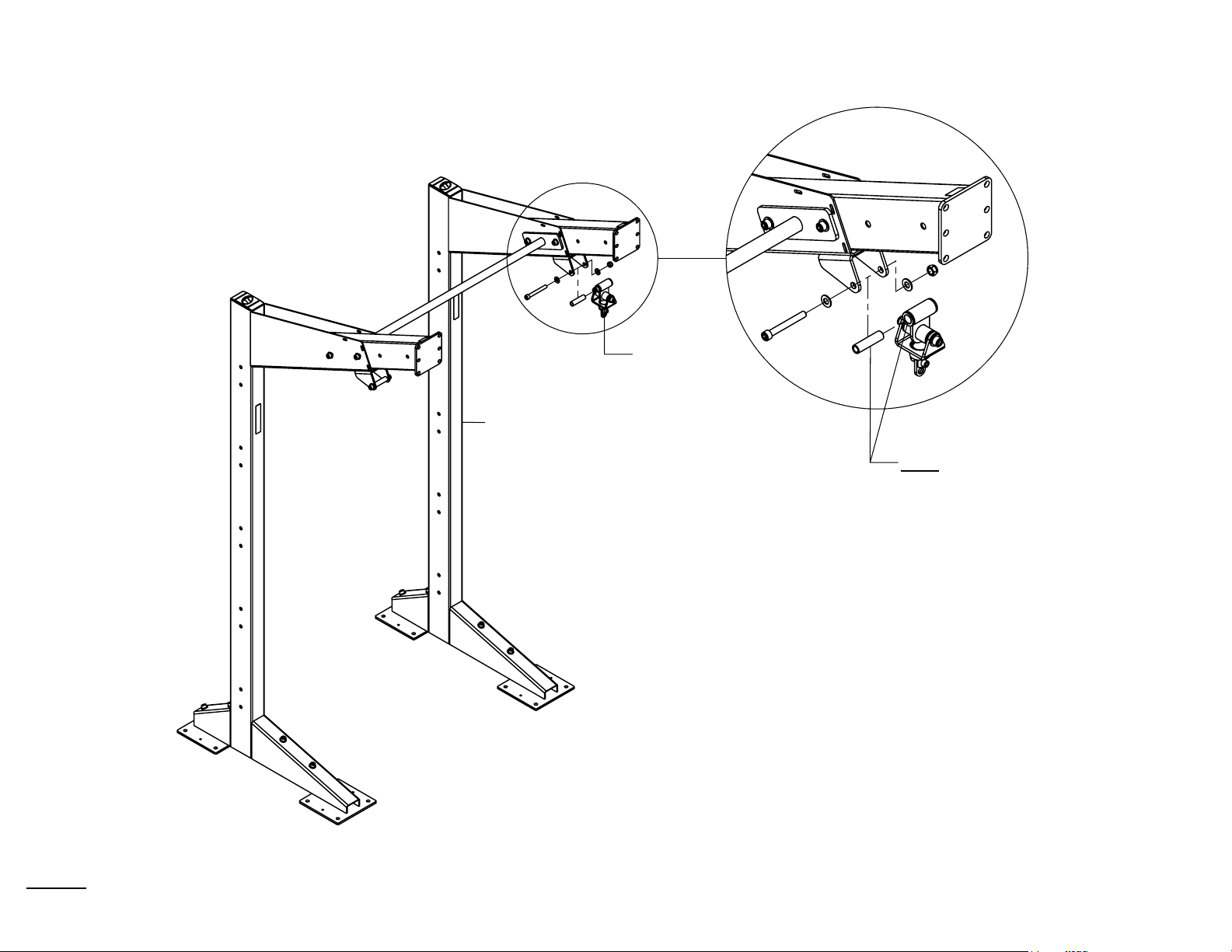

XCREATE-3DS
3-DIMENSION SWIVEL (UPRIGHT)
XCREATE-3DS
XCREATE-8U
NOTE:
INSERT SPACER INTO THE
3-DIMENSIONAL SWIVEL AND
RE-ASSEMBLE TO UPRIGHT
USING HARDWARE FROM
PREVIOUS STEP
NOTE:
SECURELY
tighten bolt connections in this step.
42
Page 43
XCREATE-BT
BALL TARGET
NOTE:
REMOVE SPACERS
(2) AND DISCARD
NOTE:
REMOVE END CAP
AND DISCARD
NOTE:
TEMPORARILY REMOVE
BOLTS, WASHERS AND NUTS
XCREATE-4SX
XCREATE-8U
43
Page 44

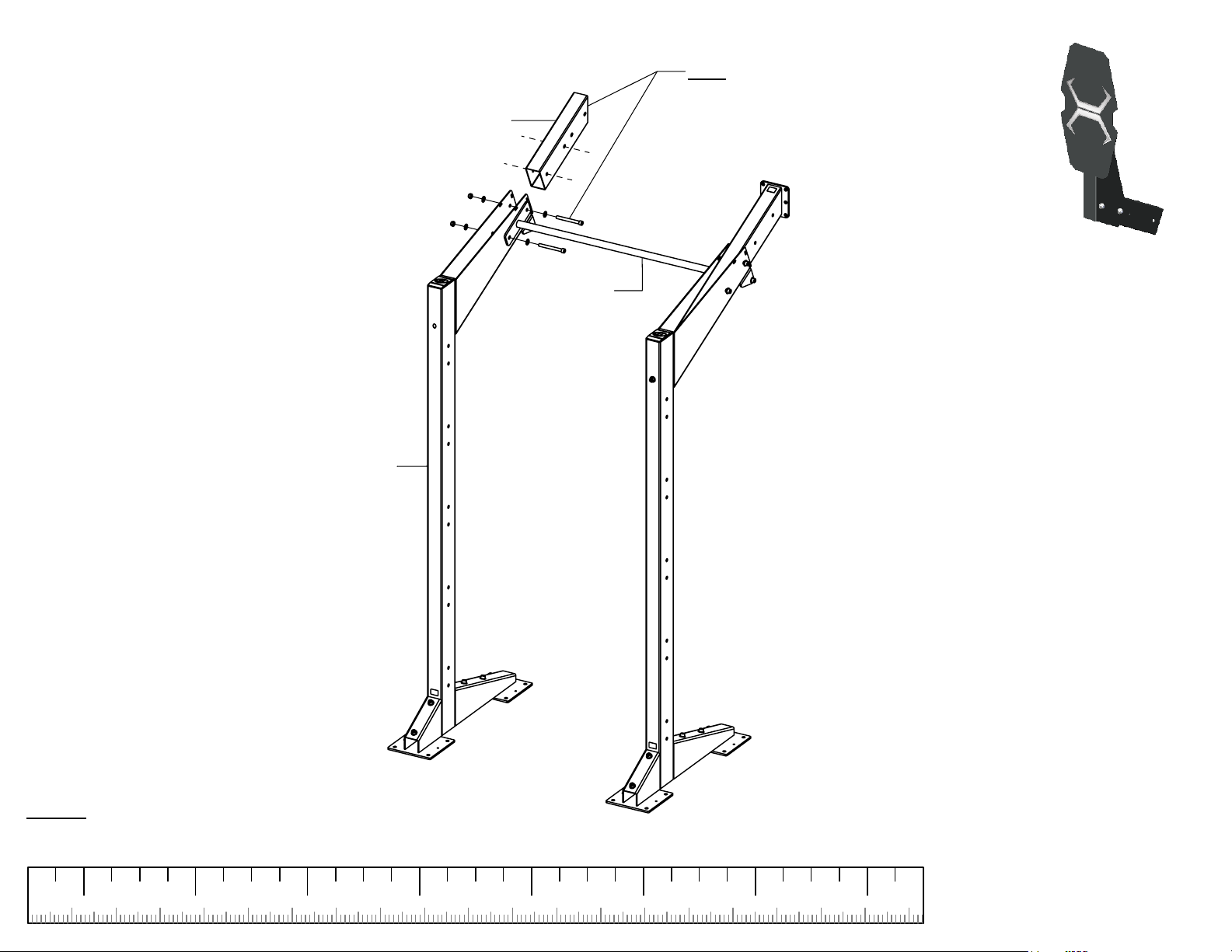

XCREATE-BT
BALL TARGET
BALL TARGET EXTENSION
XCREATE-8U
NOTE:
ASSEMBLE BALL TARGET
EXTENSION TO UPRIGHT
USING BOLTS WASHERS AND
NUTS FROM PREVIOUS STEP
XCREATE-4SX
NOTE:
LOOSELY
assemble bolt connections in this step.
1 2 4 5 7
50 1803190150 170160
130 14012090 110100403010 706020 80
6
200
44
Page 45

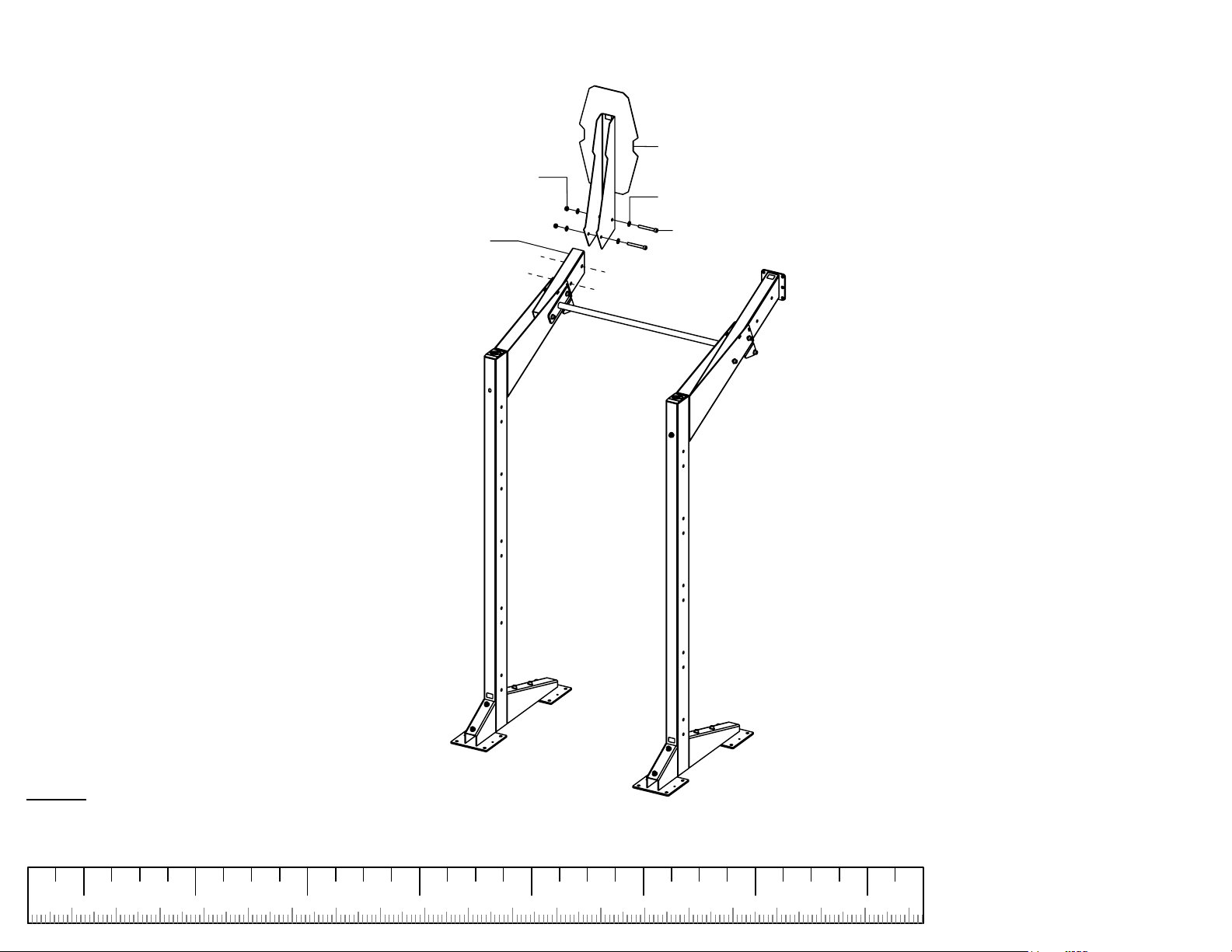

XCREATE-BT
BALL TARGET
XCREATE-BT
1/2" LOCK NUT (2)
1/2" FLAT WASHER (4)
BALL TARGET
EXTENSION
1/2 X 4" BOLT (2)
NOTE:
After this step has been completed,
SECURELY
tighten all bolt connections from the last two steps.
1 2 4 5 7
50 1803190150 170160
130 14012090 110100403010 706020 80
6
200
45
Page 46

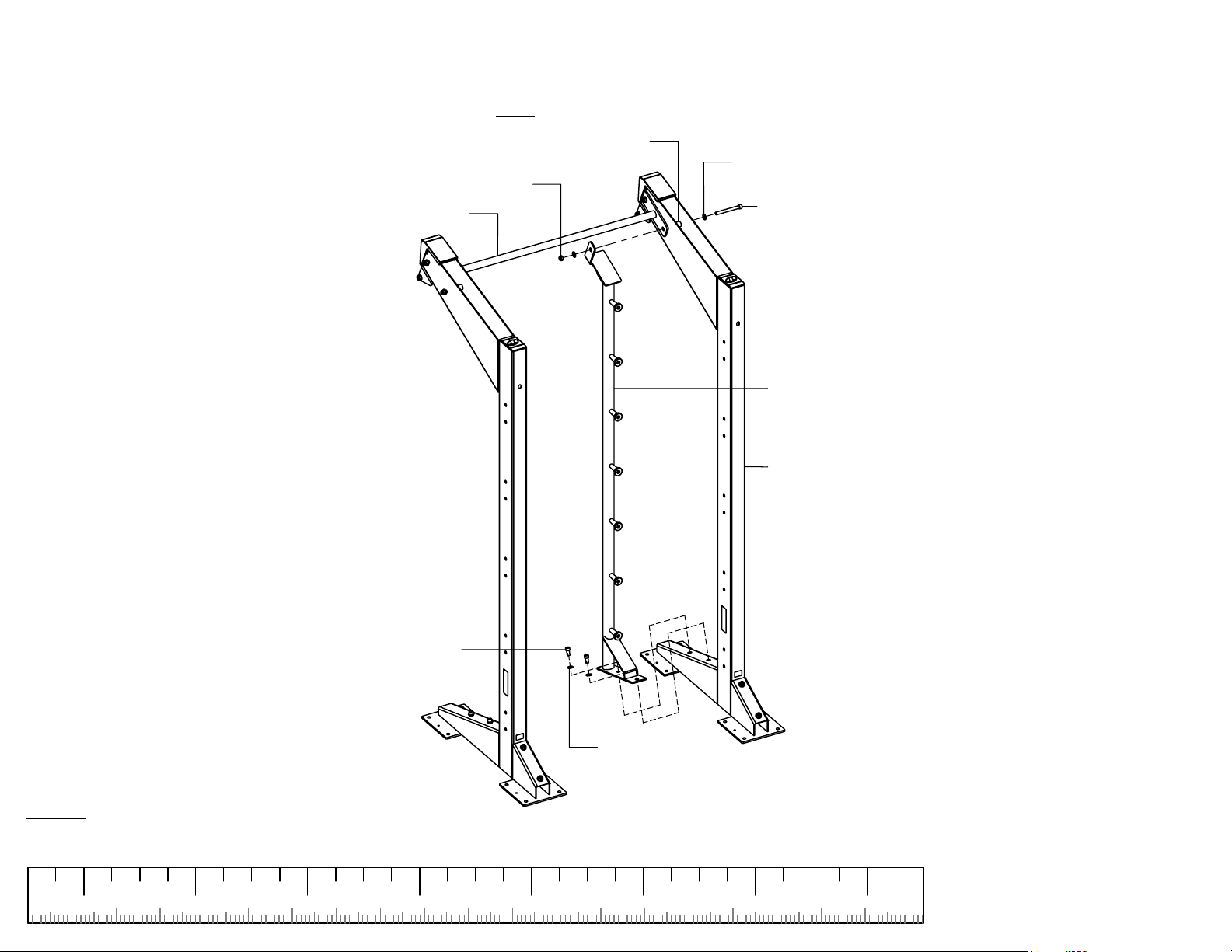

XCREATE-RBA
RESISTANCE BAND ANCHOR
1/2" LOCK NUT
PRE-INSTALLED
XCREATE-4SX
NOTE:
MAKE SURE TO USE
PRE-INSTALLED SPACER
1/2" FLAT WASHER (2)
PRE-INSTALLED
1/2 X 4-3/4" BOLT
PRE-INSTALLED
XCREATE-RBA
XCREATE-8U
NOTE:
SECURELY
1/2 X 1" BOLT (2)
PRE-INSTALLED
1/2" FLAT WASHER (2)
PRE-INSTALLED
tighten bolt connections in this step.
1 2 4 5 7
50 1803190150 170160
130 14012090 110100403010 706020 80
6
200
46
Page 47

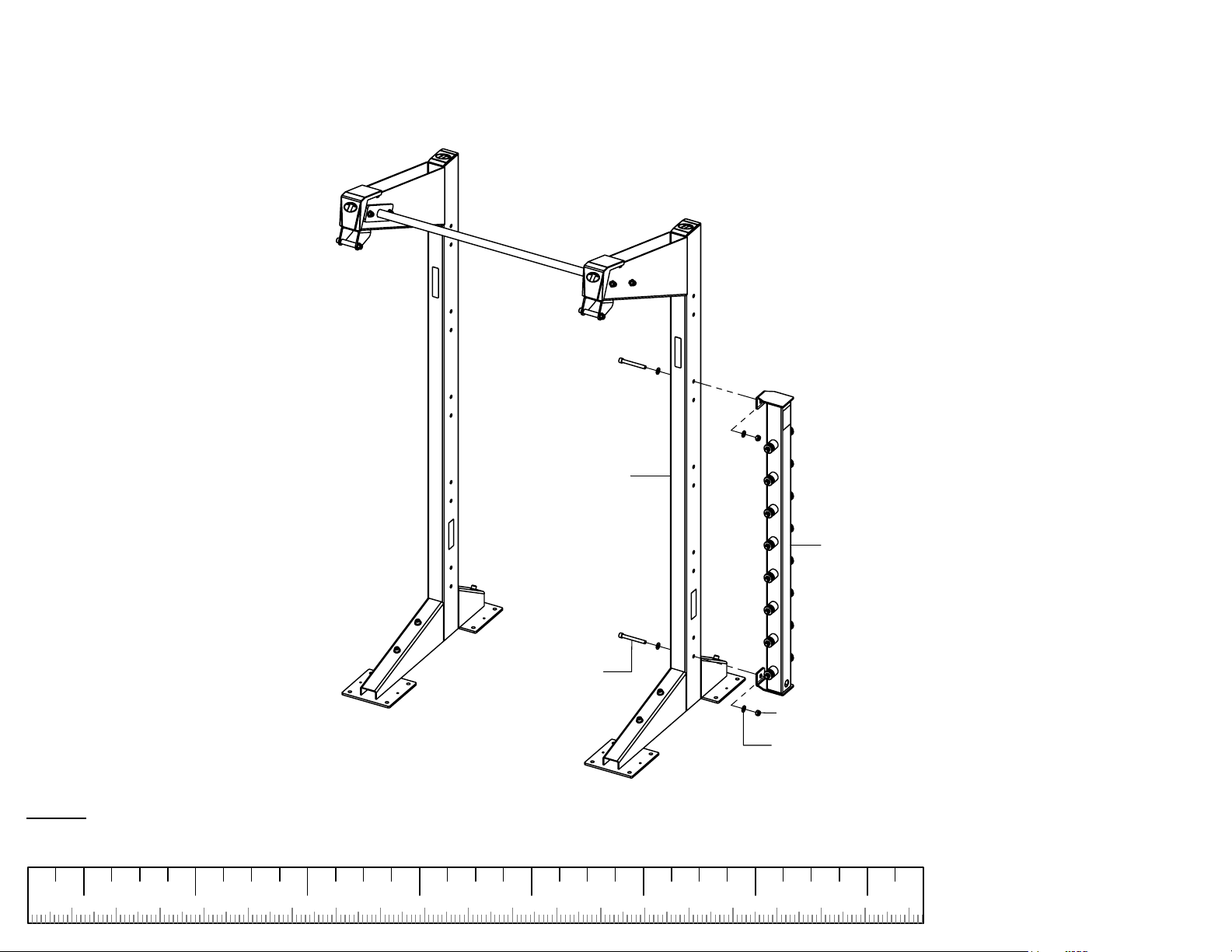

XCREATE-VDS4
VERTICAL DUMBBELL STORAGE - 4 PAIR
XCREATE-8U
1/2" FLAT WASHER (16)
1/2 X 4-1/4" BOLT (8)
XCREATE-VDS4
1/2" LOCK NUT (8)
NOTE:
SECURELY
tighten bolt connections in this step.
1 2 4 5 7
50 1803190150 170160
130 14012090 110100403010 706020 80
6
200
47
Page 48
XERD
ENDLESS ROPE DRUM (VERTICAL MOUNT)
1/2" LOCK NUT (2)
1/2" FLAT WASHER (4)
1/2 X 4-1/4" BOLT (2)
CONNECTOR BRACKET
(VERTICAL)
XCREATE-8U
NOTE:
SECURELY
tighten bolt connections in this step.
1 2 4 5 7
50 1803190150 170160
130 14012090 110100403010 706020 80
6
200
48
Page 49
XERD
ENDLESS ROPE DRUM (VERTICAL MOUNT)
1/2" FLAT
WASHER (4)
CONNECTOR
BRACKET
(VERTICAL)
NOTE:
THIS BOLT MUST BE ASSEMBLED
FROM THIS DIRECTION
1/2" FLANGE
NUT (4)
1/2 X 1-1/4"
HEX BOLT (4)
ENDLESS ROPE DRUM
NOTE:
SECURELY
tighten bolt connections in this step.
1 2 4 5 7
50 1803190150 170160
130 14012090 110100403010 706020 80
6
200
49
Page 50
XERD
ENDLESS ROPE DRUM (HORIZONTAL MOUNT)
XCREATE-4MBX
NOTE:
SECURELY
1/2" LOCK
NUT (2)
CONNECTOR
BRACKET
(HORIZONTAL)
1/2 X 4-1/2" BOLT (2)
1/2" FENDER WASHER (4)
tighten bolt connections in this step.
1 2 4 5 7
50 1803190150 170160
130 14012090 110100403010 706020 80
6
200
50
Page 51
XERD
ENDLESS ROPE DRUM (HORIZONTAL MOUNT)
CONNECTOR
BRACKET
(HORIZONTAL)
NOTE:
THIS BOLT MUST BE ASSEMBLED
FROM THIS DIRECTION
1/2" FLANGE NUT (4)
1/2" FLAT WASHER (4)
1/2 X 1-1/4" BOLT (4)
ENDLESS ROPE DRUM
NOTE:
SECURELY
tighten bolt connections in this step.
1 2 4 5 7
50 1803190150 170160
130 14012090 110100403010 706020 80
6
200
51
Page 52
XCREATE-3DSM
3 DIMENSIONAL SWIVEL W/ MOUNT
NOTE:
SECURELY
1/2" LOCK
NUT (2)
XCREATE-4MBX
XCREATE-3DSM
1/2 X 4-1/2" BOLT (2)
1/2" FENDER WASHER (4)
tighten bolt connections in this step.
1 2 4 5 7
50 1803190150 170160
130 14012090 110100403010 706020 80
6
200
52
Page 53
XRACK-RCK
ROCK CLIMBING KIT
XCREATE-6MBX
LEFT ROCK
CLIMBING HOLD
LEFT
NOTE:
MAKE SURE THE LEFT AND RIGHT ROCK CLIMBING
HOLDS ANGLE IN TOWARDS EACH OTHER.
RIGHT
XCREATE-6MBX
NOTE:
1/2" LOCK
NUT (8)
RIGHT ROCK
CLIMBING HOLD
1/2 X 4-1/2" BOLT (4)
1/2" FENDER WASHER (8)
SECURELY
tighten bolt connections in this step.
1 2 4 5 7
50 1803190150 170160
130 14012090 110100403010 706020 80
6
200
53
Page 54
XLAB-AA
ATTACHMENT ANCHOR
XCREATE-8U
NOTE:
SECURELY
1/2 X 4-1/4" BOLT (2)
1/2" LOCK NUT (2)
1/2" FLAT WASHER (4)
tighten bolt connections in this step.
1 2 4 5 7
50 1803190150 170160
130 14012090 110100403010 706020 80
6
XLAB-AA
200
54
Page 55

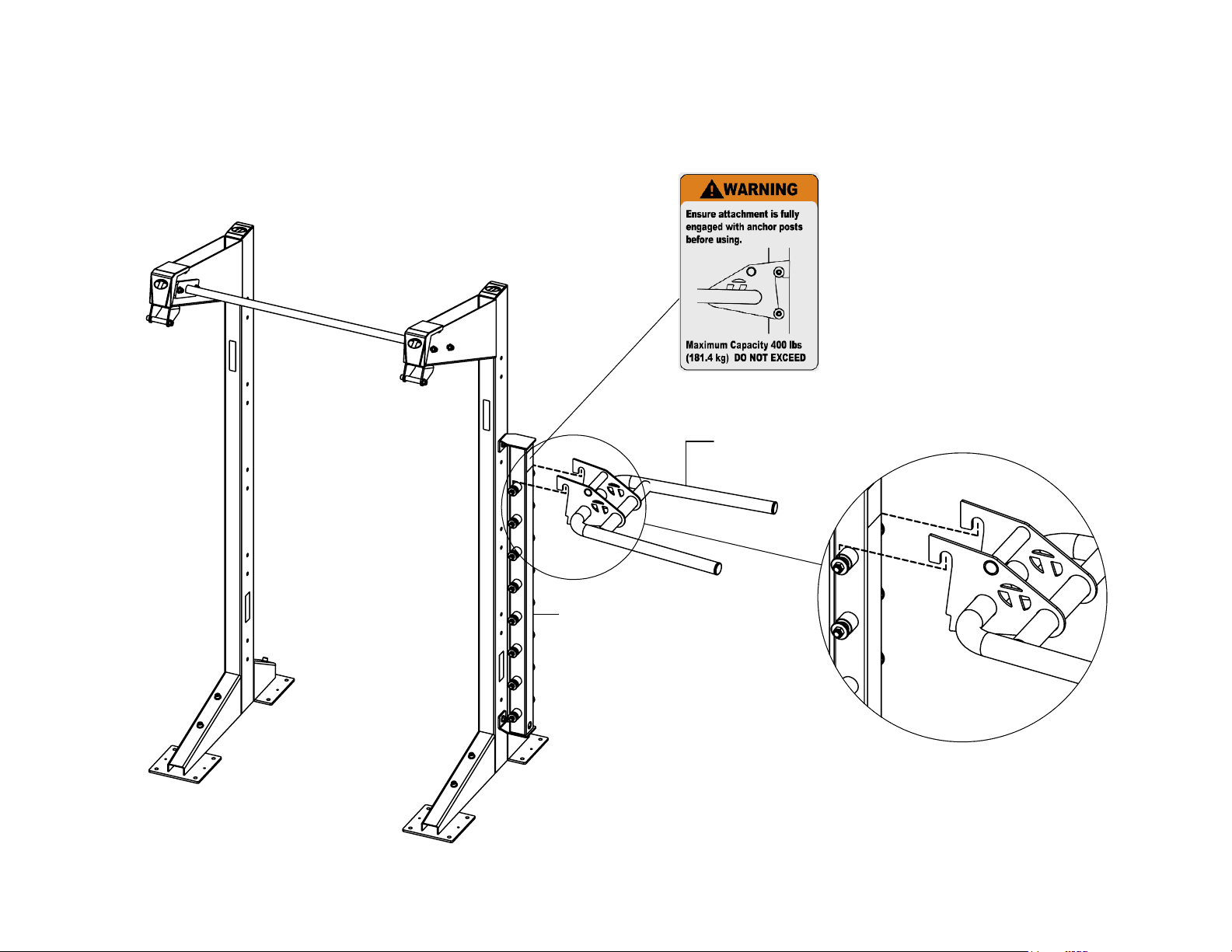

XLAB-DA
DIP ATTACHMENT
XLAB-DA
XLAB-AA
55
Page 56
XLAB-PS
PLYO STEP
XLAB-AA
XLAB-PS
56
Page 57

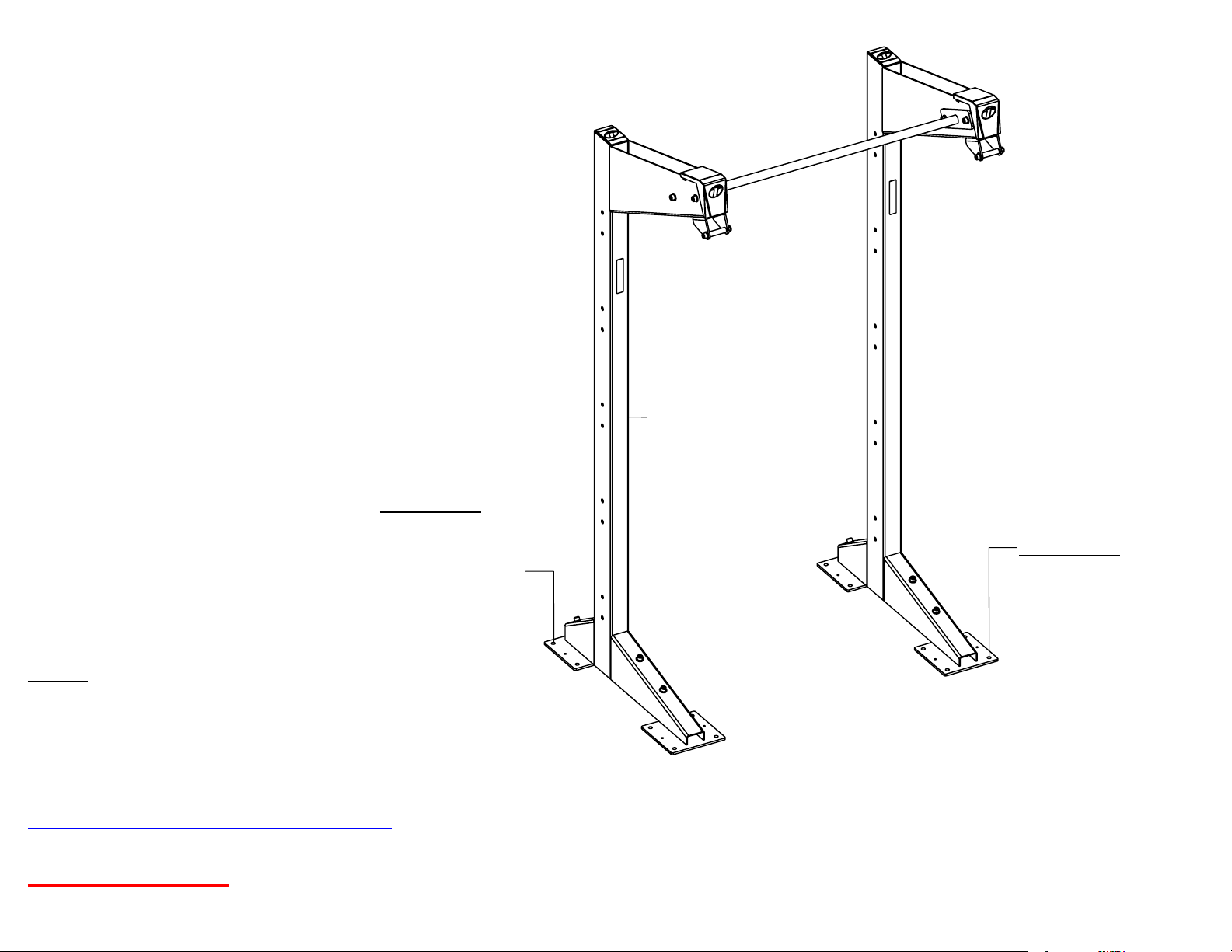

ANCHOR
XCREATE-8U
ANCHOR HOLES
ALL UPRIGHTS ARE TO
BE ANCHORED TO THE
FLOOR. (MINIMUM TWO
ANCHORS PER PLATE).
NOTE:
Make sure all bolts are
SECURELY
tighten.
Position system to desired location in the room.
Anchor system to the floor referencing X-CREATE
ANCHORING INSTRUCTIONS which can be downloaded at
www.torquefitness.com/assembly-manuals
WARNING!
ALL X-CREATE ARE REQUIRED TO BE ANCHORED TO THE
FLOOR TO PREVENT ROCKING OR TIPPING DURING USE.
ANCHOR HOLES
ALL UPRIGHTS ARE TO
BE ANCHORED TO THE
FLOOR. (MINIMUM TWO
ANCHORS PER PLATE).
57
Page 58
URETHANE BOOTS
2-3/4"
REAR BOOT
XCREATE-8U
1-3/4"
FRONT BOOT
1/4 X 3/8" BOLT
1/4" FLAT WASHER
REAR BOOT
NOTE:
The URETHANE BOOTS and hardware are packaged in the
upright boxes
SECURELY
tighten bolt connections in this step.
Repeat this step for every upright.
1 2 4 5 7
50 1803190150 170160
FRONT BOOT
130 14012090 110100403010 706020 80
6
200
58
Loading...
