TORO TX-1000 Specifications

Page 1

TX 1000

THE COMPACT UTILITY LOADER, REDEFINED.

The all-new TX 1000 - a giant step forward in performance and versatility. This lightweight maneuverable machine packs unmatched strength and reach in a compact package for the ultimate working advantage. The 1,000 pound rated operating capacity makes the TX 1000 a powerful, compact alternative to larger skid steer loaders and other machines.

Auxiliary ﬂow of 15. 2 gpm

TX 1000 CONTROLS

New patent-pending control system exclusive to the Tor o TX 1000 provides intuitive operation that’s eortless for the operator, all day long. 1 Curl, dump or ﬂoat the bucket while raising or

lowering the loader arms with one hand using the joystick.

2 Grab the traction drive joystick for eortless,

single-hand control.

3 Activate the auxiliary circuit

control lever to power the attachments instantly.

81" Hinge Pin Height

TX 1000

Rated operating capacity up to 1,075 lbs

Maximum ground speed of 4.7 mph

TX 1000 FEATURES

UNMATCHED STRENGTH

Vertical lift loader arms allow the TX 1000 to lift and transport heavy loads with a categoryleading rated operating capacity of 1,000 lbs.

MAXIMUM HEIGHT AND REACH

The 81” (206 cm) hinge pin height allows attachments to easily clear the side of 30-yard dumpsters or one-ton trucks.

HIGH DRIVE TRACK SYSTEM

Ideal for the demands of any jobsite to outperform on any surface, even sand or loose gravel.

COMPACT FOOTPRINT

The narrow model is just 33.7” (86 cm) wide and ﬁts through standard 36” gates. At just 41” (104 cm) wide, the wide-track model is also easy to maneuver.

Page 2

MEET THE

TX 427

22321

TX 427 WIDE

22322

31.2" (79 cm)

4.6" (11.7 cm)

33.7" (85.6 cm) 41" (104 cm)

92" (233.7 cm) w/bucket; 70.7" (180 cm) w/o bucket

46.1" (117.1 cm)

90.1" (229 cm)

65.8" (167.1 cm)

46.1" (117.1 cm)

38-degrees

21.8" (55.4 cm)

0-4.5 mph (0-7.2 km/h) / 0-2.0 mph (0-3.2 km/h)

1,882 lbs (854 kg) 1,990 lbs (902 kg)

1,530 lbs. (694 kg)

535 lbs. (243 kg)

Kohler Command Pro Series CH 740

25 HP (20.1 kW) @ 3600 rpm

44 cu. in. (725cc)

Gas

Two-stage, heavy-duty, remote

Air Cooled

6.0 gallons (23 liters)

2.0 quarts (2.95 liters)

Radial

3,000 PSI

Traction: 16.9 gpm (each pump); Auxiliary: 11.4 gpm

10.5 gallons (40 liters)

Sprocket-drive, 10 road wheels per side

Dual hydrostatic pump

96.6" x 5.9" (245 cm x 15 cm) 96.6" x 9.5" (245 cm x 24 cm)

5.0 PSI 3.5 PSI

FA MILY

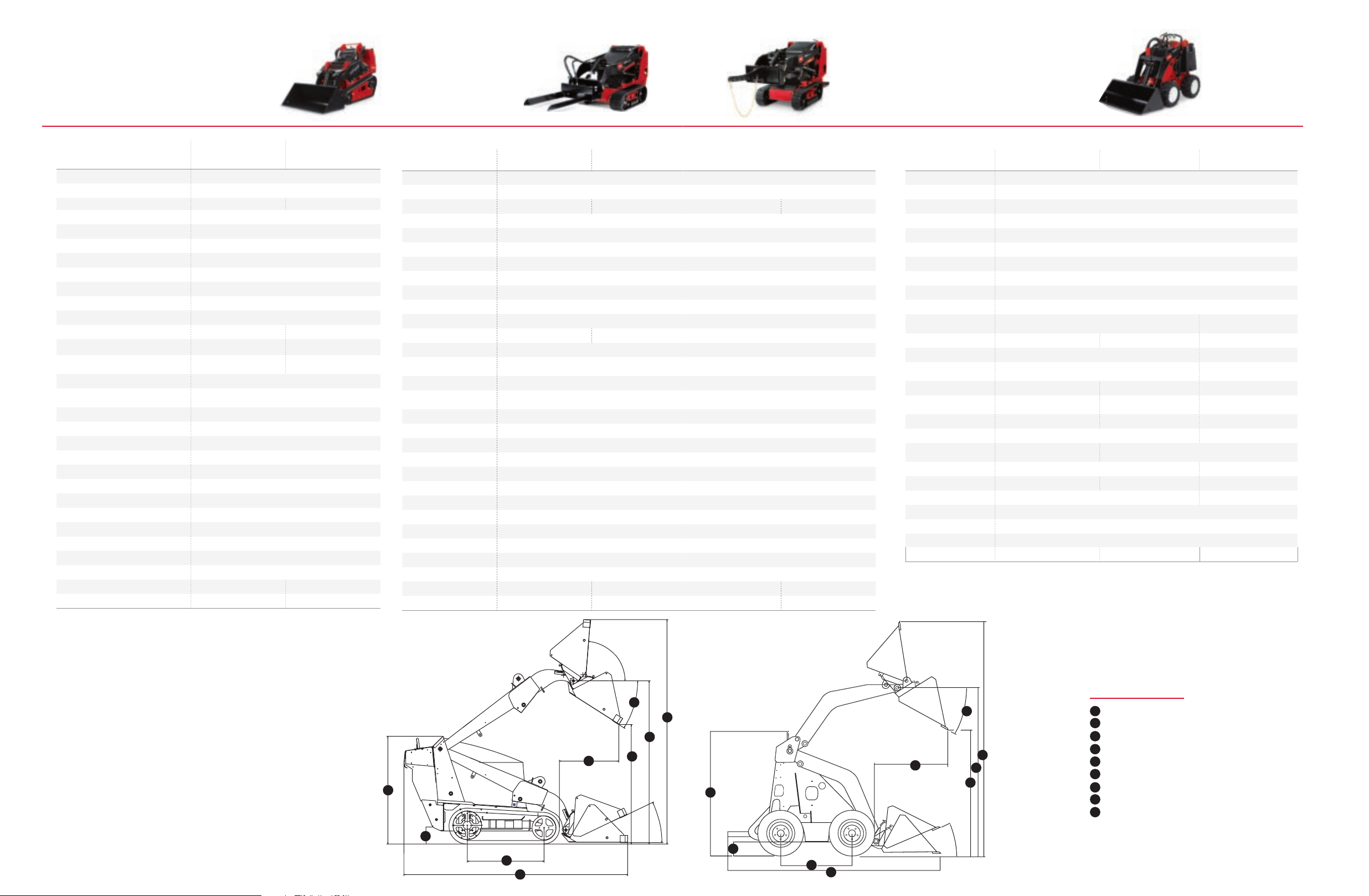

DINGO TX 1000 SPECIFICATIONS DINGO TX 427 & TX 525 SPECIFICATIONS

DIMENSIONS A Wheelbase 41" (10 cm)

B Ground Clearance 6.0" (15 cm)

Overall Width 33.7" (86 cm 41" (104 cm)

C Overall Length 100.7" (256 cm) w/bucket; 81.7" (208 cm) w/o bucket

D Overall Height 53.2" (135 cm)

E Max Operating Height 105" (267 cm)

F Hinge Pin Height 81" (206 cm

G Dump Height 61" (155 cm)

H Dump Angle 40-degrees

I Reach - Fully Raised 24.5" (62 cm)

Ground Speed (F/R) 4.7 mph (7.6 km/h)/ /4.7 mph (7.6 km/h)

Weight 2,610 lbs (1184 kg) 2,790 lbs (1266 kg)

Tip Capacity 2,857 lbs (1,296 kg) 3,071 lbs (1,393 kg)

Rated Operating Capacity (35% of Tip Capacity)*

ENGINE Engine Kubota® D1305

Manufacturer's Gross HP Rating at RPM**

Displacement 77 cu. in. (1262cc)

Fuel Type Diesel

Air Filter

Cooling System Liquid Cooled

Fuel Tank 11.5 gallons (44 liters)

Oil Capacity 6.0 quarts (5.7 liters)

Loader Arms Vertical

OPERATION Hydraulic Pressure 3,000 PSI

Hydraulic Flow Traction: 13.3 gpm (each pump); Auxiliary: 15.2 gpm

Reservoir Capacity 10 gallons (57.5 liters)

TRACKS Tracks Sprocket-drive, 6 road wheels per side

Traction Dual hydrostatic pump

Track Length x Width 127.6" x 5.9" (324 cm x 15 cm) 127.6" x 9.5" (324 cm x 24 cm)

Ground Pressure 5.4 PSI 3.6 PSI

* Per ISO 14397-1 ** Per SAE 1995

DINGO TX 1000

NARROW TRACK

22327

1,000 lbs (454 kg) 1,075 lbs (488 kg)

24.9 HP (18.6 kW) @ 2600 rpm

Two-stage, heavy-duty, remote

DINGO TX 1000

WIDE TRACK

22328

A Wheelbase 31.2" (79 cm)

B Ground Clearance 4.6" (11.7 cm)

Overall Width 33.7" (85.6 cm) 41" (104 cm)

C Overall Length 92" (233.7 cm) w/bucket; 70.7" (180 cm) w/o bucket

D Overall Height 46.1" (117.1 cm)

E Max Operating Height 90.1" (229 cm)

F Hinge Pin Height 65.8" (167.1 cm)

G Dump Height 46.1" (117.1 cm)

H Dump Angle 38-degrees

I Reach - Fully Raised 21.8" (55.4 cm)

Ground Speed (F/R) 0-4.5 mph (0-7.2 km/h) / 0-2.0 mph (0-3.2 km/h)

Weight 1,904 lbs (864 kg) 2,013 lbs (907 kg)

Tip Capacity 1,580 lbs. (717 kg)

Rated Operating Capacity (35% of Tip Capacity)*

Engine Kubota D902

Manufacturer's Gross HP Rating at RPM**

Displacement 55 cu. in. (901cc)

Fuel Type Diesel

Air Filter Two-stage, heavy-duty, remote

Cooling System Liquid Cooled

Fuel Tank 6.0 gallons (23 liters)

Oil Capacity 3.84 quarts (3.63 liters) 2.0 quarts (2.95 liters)

Loader Arms Radial

Hydraulic Pressure 3,000 PSI

Hydraulic Flow Traction: 16.9 gpm (each pump); Auxiliary: 13.8 gpm

Reservoir Capacity 10.5 gallons (40 liters)

Tracks Sprocket-drive, 10 road wheels per side

Traction Dual hydrostatic pump

Track Length 96.6" x 5.9" (245 cm x 15 cm) 96.6" x 9.5" (245 cm x 24 cm)

Ground Pressure 5.0 PSI 3.5 PSI

* Per ISO 14397-1 ** Per SAE 1995

TX 525

22323

553 lbs. (251 kg)

23.3 HP (17.3 kW) @ 3400 rpm

TX 525 WIDE

22324

TX 427

22321

33.7" (85.6 cm) 41" (104 cm)

92" (233.7 cm) w/bucket; 70.7" (180 cm) w/o bucket

0-4.5 mph (0-7.2 km/h) / 0-2.0 mph (0-3.2 km/h)

1,882 lbs (854 kg) 1,990 lbs (902 kg)

Traction: 16.9 gpm (each pump); Auxiliary: 11.4 gpm

Sprocket-drive, 10 road wheels per side

96.6" x 5.9" (245 cm x 15 cm) 96.6" x 9.5" (245 cm x 24 cm)

5.0 PSI 3.5 PSI

31.2" (79 cm)

4.6" (11.7 cm)

46.1" (117.1 cm)

90.1" (229 cm)

65.8" (167.1 cm)

46.1" (117.1 cm)

38-degrees

21.8" (55.4 cm)

1,530 lbs. (694 kg)

535 lbs. (243 kg)

Kohler Command Pro Series CH 740

25 HP (20.1 kW) @ 3600 rpm

44 cu. in. (725cc)

Two-stage, heavy-duty, remote

Air Cooled

6.0 gallons (23 liters)

2.0 quarts (2.95 liters)

3,000 PSI

10.5 gallons (40 liters)

Dual hydrostatic pump

Gas

Radial

TX 427 WIDE

22322

DINGO 220, 323 & 320-D SPECIFICATIONS

DINGO 220

22317

A Wheelbase

B Ground Clearance 5.8" (15 cm) front & rear

Overall Width 40.5" (103 cm) standard tires; 35" (90 cm) narrow tires

C Overall Length 82.2" (208.8 cm) w/bucket; 62" (157.5 cm) w/o bucket

D Overall Height 48.7" (123.7 cm)

E Max Operating Height 91.2" (231.6 cm)

F Hinge Pin Height 66" (167.6 cm)

G Dump Height 47" (119 cm)

H Dump Angle 34-degrees

I Reach – Fully Raised 28" (71.1 cm)

Ground Speed (F/R) 0-3.7 mph (0-6 km/h) / 0-3.7 mph (0-6 km/h)

Weight 1,430 lbs (649 kg) 1,567 lbs (711 kg) 1,722 lbs (781 kg)

Tip Capacity 1,030 lbs (467 kg) 1,048 lbs (146 kg)

Rated Operating Capacity (50% of Tip Capacity)*

Engine Kohler® Command Series CH20 Kohler® Command Series CH23 Kubota D722

Manufacturer's Gross HP Rating at RPM*

Displacement 38.1 cu. in. (624 cc) 41 cu. in. (674cc) 43.88 cu. in. (719 cc)

Fuel Type Gas Diesel

Air Filter

Cooling System Air Cooled Liquid Cooled

Fuel Tank 5.6 gallon (21 liter) 11.2 gallon (42.4 liter) 4 gallon (15 liter)

Oil Capacity 2 quarts (1.9 liter) 3.4 quarts (3.2 liter)

Loader Arms Radial

Hydraulic Pressure 3,250 PSI

Hydraulic Flow 10.8 gpm high-ﬂow hydraulic circuit, 4 gpm low-ﬂow hydraulic circuit

Reservoir Capacity 14.8 gallons (56 liter) 17 gallons (64 liter) 14.8 gallons (56 liter)

* Per ISO 14397-1 ** Per SAE 1995

20 HP (14.9 kW) @ 3600 rpm 23 HP (17.2 kW) @ 3600 rpm 20 HP (14.9 kW) @ 3600 rpm

High-capacity, paper type

w/pre-cleaner

515 lbs. (234 kg) 524 lbs. (238 kg)

DINGO 323

22318

28" (71 cm)

Two-stage, heavy-duty, remote

DINGO 320-D

22337CP

0-3.0 mph (0-4.8 km/h) / 0-3.0

mph (0-4.8 km/h)

TORO DINGO SPECIFICATIONS

DIMENSIONS

Wheelbase

Ground Clearance

Overall Length

Overall Height

Maximum Operating Height

Hinge Pin Height

Dump Height

Dump Angle

Reach
