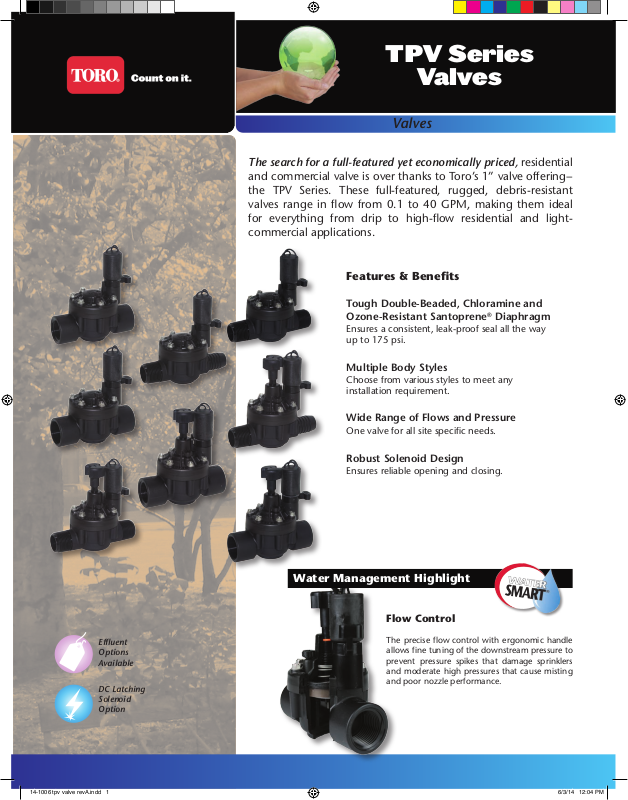

Toro TPV Series Sell Sheet
TPV Series
Valves
Valves
The search for a full-featured yet economically priced, residential
and commercial valve is over thanks to Toro’s 1” valve offering−
the TPV Series. These full-featured, rugged, debris-resistant
valves range in flow from 0.1 to 40 GPM, making them ideal
for everything from drip to high-flow residential and lightcommercial applications.
Features & Benefits
Tough Double-Beaded, Chloramine and
Ozone-Resistant Santoprene
Ensures a consistent, leak-proof seal all the way
up to 175 psi.
®
Diaphragm
Effluent
Options
Available
DC Latching
Solenoid
Option
Multiple Body Styles
Choose from various styles to meet any
installation requirement.
Wide Range of Flows and Pressure
One valve for all site specific needs.
Robust Solenoid Design
Ensures reliable opening and closing.
Water Management Highlight
Flow Control
The precise flow control with ergonomic handle
allows fine tuning of the downstream pressure to
prevent pressure spikes that damage sprinklers
and moderate high pressures that cause misting
and poor nozzle performance.
TPV Series Valves
Specifications
Dimensions
• 5 1⁄8” H, 2 ¾” W, 5” L
Operating Specifications
• Flow Range: 0.1 to 40 GPM
• Operating Pressure: Electric – 10 to 175 psi
• Burst pressure safety rating: 1000 psi
• Solenoid: 24 VAC (50/60 Hz) Standard (102-7053)
- Inrush: 0.4 amps
- Holding: 0.2 amps
Additional Features
• Operates in low-flow and landscape drip applications when a
filter is installed upstream
• Built with either AC or DC Latching Solenoids
• Manual Operation without the use of a controller—Internal
and External Bleed
• Captured hex/Phillips screws
• Optional flow control allows precise zone adjustment and
manual shutoff
•
Encapsulated injection-molded solenoid with a captured plunger
• Removable flow control handle to ensure vandal-resistance
• Slip models feature patented Glue Stop™
• Self-aligning bonnet permits fast and easy servicing
• Large directional flow arrows
Options Available
• EFF-Kit-60Hz - Recycled Water Solenoid Assembly
and Watering Tag
• DCLS-P - Potted DC Latching Solenoid Assembly
Warranty
• Five years
Glue Stop
™
TPV Slip-by-Slip models include a patented feature which ensures
that the installer can not block the downstream port of the valve
during installation with primer and cement.
Models
AC Solenoids
Model Description
• TPV100
• TPVF100
• TPV100MM
• TPVF100MM
• TPV100S
• TPVF100S
• TPV100MB
• TPVF100MB
DC Solenoids
Model Description
• TPVF100DC
• TPVF100MMDC
• TPVF100SDC
• TPVF100MBDC
1” Female NPT, In-Line, w/o Flow Control
1” Female NPT, In-Line, w/Flow Control
1” Male Thread x Male Thread, In-Line, w/o
Flow Control
1” Male Thread x Male Thread, In-Line, w/
Flow Control
1” Slip x Slip, In-Line, w/o Flow Control
1” Slip x Slip, In-Line, w/Flow Control
1” Male Thread x Barb, In-Line, w/o Flow Control
1” Male Thread x Barb, In-Line, w/Flow Control
1” Female NPT, In-Line, w/ Flow Control, DCLS-P
1” Male Thread x Male Thread, In-Line, w/
Flow Control, DCLS-P
1” Slip x Slip, In-Line, w/Flow Control, DCLS-P
1” Male Thread x Barb, In-Line, w/Flow Control,
DCLS-P
TPV Friction Loss data
GPM Flow .10 .25 5 10 15 20 30 40
PSI Loss 2.0 2.0 3.5 3.9 3.0 3.3 7.0 13
Specifying Information—TPV
TPVF100XXXX
Description Flow Control Size Body Style Solenoid
TPV
TPV—TPV Valve F—With Flow Control 100—1” MM—Male X Male
F 100 X X XX
DC—DCLS-P
S—Slip
MB—Male X Barb
Example: A 1" TPV Valve with slip configuration and flow control would be specified as: TPVF100S
Latching
Solenoid
www.toro.com • The Toro Company • Irrigation Division • 5825 Jasmine St. • Riverside, CA • 92504 • 877-345-8676
Specifications subject to change without notice. For more information, contact your local Toro distributor.
P/N 14-1006-IRC-Rev. A ©2014 The Toro Company. All rights reserved.
