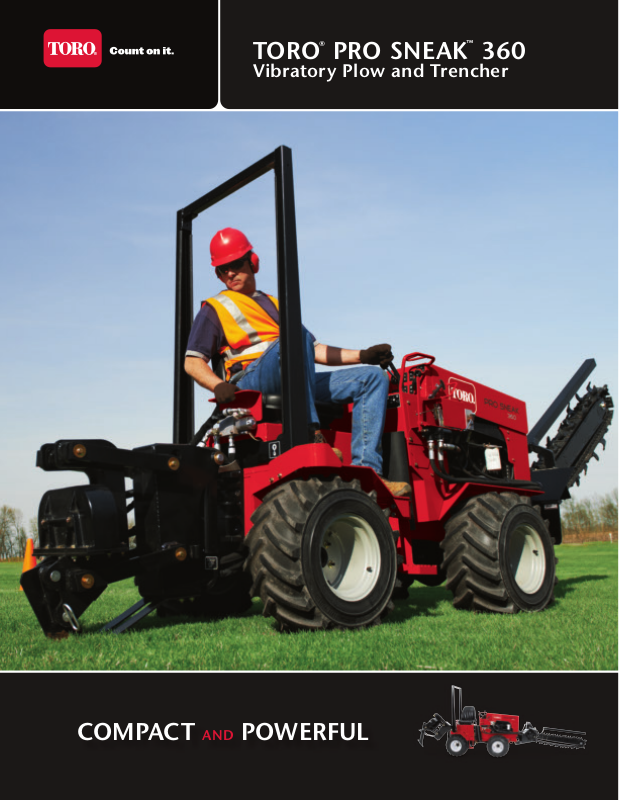

TORO ® PRO SNEAK™ 360
Vibratory Plow and Trencher
COMPACT AND POWERFUL
Introducing the
SAFE OPERATION due to an optimized
operator’s position that allows operator to
see all 4 tires while trenching, plowing or
transporting.
PRECISE CONTROL from low-effort,
dual-lever ground drive controls for
creep and transport modes.
Vibratory Plow
MAXIMUM MANEUVERABILITY as a
result of hydraulic steering allowing
articulation to a full 28-degrees to the
left or right of center for a minimum
inside turning radius of 72" (183 cm).
Pro Sneak™ 360
From Toro®.
The name may have changed, but
the reputation remains the same.
Toro’s Pro Sneak™ 360 Vibratory
Plow delivers powerful plowing in
a compact, maneuverable package.
It all adds up to reliable performance
job after job.
Since 1914, the Toro Company has built its
reputation on providing quality products
and service to the professionals who create,
maintain and preserve outdoor environments.
Toda y, professionals and contractors around the
world count on Toro products to stand up to
the demands of heavy use, season after season.
EASY-TO-READ system gauges
and indicator lights are grouped
together for high visibility.
CONSISTENT PLOWING Optimized plow
design provides down pressure to maintain
consistent plowing up to 24” deep in a variety
of conditions. The 10-degree frame oscillation
ensures constant wheel-to-ground contact
when plowing over rough terrain or crossing
open trench lines.
PRODUCTIVE TRENCHING with optional
front-mounted, hydraulically-driven
trencher. Dig depths of 24" or 36"
(61 cm or 91 cm).
As a leading manufacturer of turf maintenance
equipment, precision irrigation solutions,
concrete and compaction tools, and equipment
for trenching and horizontal directional drilling,
Toro products are aimed at allowing you to do
your job more efficiently and profitably.
We value the trust professionals place in our
people and products to meet their unique
needs and deliver superior results. That’s
why the Toro Pro Sneak and every product
that carries the Toro name also carries our
commitment to quality and product excellence.
INCREASED TRACTION AND STABILITY
with optional dual wheel configuration.
Dual wheel configuration also minimizes
the impact on soft tur f. Dual wheels
available in two sizes.
COMPACT FOOTPRINT
36" (91 cm) width and 23" (58 c m) tires
allows easy access to tight spaces — less
than any other riding vibratory plow. 26"
(66 cm) or 23" (58 cm) tire options can be
easily mounted inward for narrow width
configuration or outward for added stability.
RELIABLE POWER Caterpillar C1.6 4 cylinder,
4 stroke, liquid cooled engine, provides gross
35.5 HP (26.5 kW) at 3,000 RPM to ensure
constant performance while plowing or
trenching.
ADDED VERSATILITY from
optional Hydra-Borer attachment.
Hydra-Borer’s high rotational torque
provides smooth boring through
difficult soil conditions beneath
driveways and walkways, even when
back reaming.
SPECIFICATIONS
DIMENSIONS
Width (with 26x12x12 tires) 46" (117 cm)
Wi dt h (with 23x10.5x12 tires) 36" (91 cm)
Wheelbase 48" (122 cm)
Overall Height (with ROPS and 26x12x12 tires) 81.9" (208 cm)
Overall Lengt h (with plow and blade, no trencher) 118" (300 cm)
Ground Clearance (with 26x12x12 tires) 7.9" (20 cm)
Operating Weight
(with 26x12x12 tires, ROPS and vibratory plow less blade)
POWER
Engine Caterpillar C1.6
Fuel Type Diesel
Fuel Tank Capacity 7.4 gal (15.1 L)
Cooling Liquid
Cylinders 4
Displacement 92 cubic inches (1.508 L)
Bore 3.03" (77 mm)
Stroke 3.19" (81 mm)
Net Power Rating per SAE J1349 35.5 hp (26.5 kW)
Rated Speed 3,000 rpm
Battery 12-Volt, 685 cranking amps
2,770 lbs (1,256 kg)
PERFORMANCE
Ground Drive Hydrostatic
Ground Drive Pump Flow Rate 27.7 gpm (105 L/m)
Attachment Pump Flow Rate 16.4 gpm (62 L/m)
Ground Drive Speed; Forward/Reverse (with 26x12x12 tires) 0 to 4.2 mph (0 to 6.8 km/h)
VIBR ATORY PLOW
Maximum Plow Depth 24" (61 cm)
Vibrations 2,381 vpm
Angle of Approach 35°
Angle of Departure 35°
TRENCHER
Boom Options
48" (122 cm) Boom
36" (91 cm) Boom
Chain Options Cup, combo or shark teeth; 4" (10 cm) or 6" (15 cm) width
Trencher Head Shaft to Wheelbase 38.5" (98 cm)
Boom Travel (up/down) 45°/60°
36" (91 cm) trench depth
24" (61 cm) trench depth
OPTIONAL EQUIPMENT
• Single Tires: 23x10.5x12
• Dual Tires: 23x10.5x12 or 26x12x12
• Hydra-borer System
• Wheel Weights
• Reel Carrier
• Trenchers
• Crumber
• Chains (Cup, combo or shark teeth)
Produc ts depicted in this literature are for demonstration purposes only. Actual products offered
for sale may vary in use, design, required attachments and safet y features. We reserve t he right
to improve our products and make changes in specifications, designs and standard equipment
without notice and without incurring obligation. See your dealer for details on all of our
warranties.
©2013 The Toro Company 490-8724 toro.com
