Toro Groundsmaster 360 Quad-Steer Specifications

Groundsmaster® 360 Quad-Steer

The Toro Groundsmaster 360 utilizes revolutionary Quad-Steer™ all wheel steering to maximize productivity. Climb hills
without slipping. Make 180° turns without tearing turf. Hug the turns or side hills while mowing in total comfort. Save time
without sacrificing quality. Intuitive controls and unparalleled maneuverability turn work into play. But this is no toy. It’s a
performer in every sense of the word. A higher quality of cut, speed and efficiency, lasting dependability. Surprisingly, the
world’s most exhilarating mower is also the most efficient. The Groundsmaster 360 is the science and the art of mowing,
a sensory experience you simply have to feel for yourself.

™

2015 Toro Commercial Equipment Guide 15-003-T Rev. 2/15

6

ENGINE

FUEL CAPACITY

TRACTION DRIVE

TIRES

AIR CLEANER

GAUGES

CONTROLS

GROUND SPEED

RADIATOR

MAIN FRAME

BRAKES

STEERING

ELECTRICAL

INTERLOCKS

SEAT

OPERATOR AREA

HYDRAULICS/COOLING

PTO CLUTCH

ROLL-OVER PROTECTION

SAFETY

CERTIFICATION

WARRANTY

HEIGHT ROPS UP

OVERALL LENGTH

OVERALL WIDTH

WHEELBASE

EST. SHIPPING WEIGHT

Groundsmaster® 360 2WD Specifications

*

GROUNDSMASTER 360 – 2WD, TIER 4 DIESEL, MODEL 31201

Kubota,® 3-cylinder, liquid-cooled diesel. Power: 24.8 hp (18.5 kW) gross, at rated speed of 3000 rpm. Torque peak: 71.5 (52.7) Nm (lbs-ft) @ 2200 rpm. Displacement:
1123cc. High idle: 3200 rpm no load (uninstalled) 3100-3200 installed. Remote-mounted 5" Donaldson

13.5 gallons (51.1 liters) diesel. Biodiesel Ready for use up to B-20 (20% biodiesel and 80% diesel blend).

Independent high-torque, low-speed wheel motors with 280 cc displacement. Dual pump hydrostatic drive system with optional differential lock.

Front & Rear: (All 4 tires and wheels are the same part number) 23/10.5x12 6 ply pneumatic tubeless, demountable and interchangeable. Tread Kenda K500 TL similar to “Toro Tuff Trac”.

Dry, replaceable primary element.

Hour meter, fuel gauge, indicator lights for glow plugs, high coolant temperature, battery charge, and low oil pressure. Automatic shutdown for high coolant temperature.
Two wheel steer lockout indicator light on 4WD units.

Ignition switch, hand-throttle, foot-operated traction pedal with mowing speed control stop, service brake with parking brake latch, switch for raising and lowering cutting unit.

Transport and Mow: Forward 0-10 mph (0-16 km/h), variable. Reverse 0-8.5 mph (0-13.7 km/h), variable.

Rear mount, cross flow, 6.5 fins per 1” (25 mm), 8 quart (7.6 liter) capacity

Rectangular structured steel tube and high strength steel plate welded construction.

Service Brake: Foot pedal with dynamic braking through hydrostatic transmission. Parking Brake: foot actuated brake lever with two 8” (20.3 cm) diameter drum
brakes mounted on the rear wheel motors.

Quad Steer™ all wheel steer with four wheel Ackermann steering. Two turns Lock to Lock controlled via steering wheel and automatic synchronizing hydraulic cylinders.

12-volt, 40 amp internal regulated alternator/generator charging @ 3150 rpm. Battery: BCI Group No. 26, 540 cold cranking amps @ 0° F (-17.78° C).

Prevents engine from starting unless traction pedal is in neutral and deck is disengaged. If operator leaves seat with deck engaged, engine stops. If operator leaves
the seat with the unit out of neutral, engine stops. Engine stops if parking brake engaged and traction pedal not in neutral. High temp (PTO shuts down but engine
remains running), Over temp (engine shuts down).

High back cushion vinyl seat with drain hole, deluxe low profile mechanical suspension, 4” (10 cm) fore-aft travel with an additional 44 mm (1.75”) foreword
adjustment, armrests standard, retractable seat belt, lateral shock absorption.

Operator platform with isolated operator seat (all models). Storage area behind operator seat, 12-volt power outlet, cup holder.

3 gallon (11.4 liter) capacity, suction spin-on filter mounted to transmission, oil cooler 6.5” x 17”x 3.5” (16.5 cm x 43.2 cm x 8.9 cm). Bar and Plate Core; 6.5 serpentine fins per 1” (25 mm).

Hydraulically actuated wet multi disc clutch.

2 post Standard foldable ROPS certified per ISO/DIS 21299.2 specifications Cab ROPS certified

Complies with American National Standards Institute (ANSI B71.4-2004)

Certified to meet SAE J2258. Certified to meet ISO/DIS 21299 for ROPS. Engine meets all applicable emission standards per the manufacturer. Certified to meet C-Tick
2004/108/EC/(EMC). Certified to meet the CE Machinery Directive.

Two year limited

®

air cleaner. Fuel filter/water separator. EPA Tier IV Final Compliant.

DIMENSIONS & WEIGHT WITH CUTTING DECKS

78” (198 cm)

91.5” (232 cm)

78” (198 cm) [72” (183 cm) base deck] / 75” (191 cm) [72” (183 cm) side discharge deck] / 55” (140 cm) wheel to wheel

57” (145 cm)

2,522 lbs. (1145 kg)

PART NUMBER

AIR RIDE GRAMMER SEAT

SPARK ARRESTOR KIT

SPEED REDUCTION KIT

ROTATING BEACON KIT

BIMINI CANVAS SHADE

UNIVERSAL MOUNT SUNSHADE

DIFFERENTIAL LOCK

NORTH AMERICA ROAD LIGHT KIT

SMV SIGN KIT

* Specifications and design subject to change without notice. Products depicted in this literature are for demonstration purposes only.

Actual products offered for sale may vary in use, design, required attachments and safety features. See distributor for details on all warranties.

2015 Toro Commercial Equipment Guide 15-003-T Rev. 5/15

Air ride suspension and vinyl cushions. Model 30511.

Part No. 119-8018

Model 30547

Part No. 120-0256

Model 30358

Model 30349 (White), Model 30552 (Red)

Model 30508

Includes headlights, red/amber flashers, turn signals and one rear work light. Model 30513

Part No. 115-0014

GROUNDSMASTER 360 ATTACHMENTS AND ACCESSORIES

7

The Groundsmaster 360 is manufactured
in Tomah, WI ISO 9002 Certified Plant.

HEIGHT OF CUT

72” SIDE DISCHARGE CONST.

72” BASE DECK CONST.

FINE CUT GUARDIAN®

COMPLETION KIT

SPINDLE ASSEMBLY

CUTTER DRIVE

BLADES

DECK SUSPENSION

BELT IDLER

DECK SKID

ANTI-SCALP CUPS

WIDTH OF CUT

BLADE TIP SPEED

@ 3250 ENGINE RPM

RUBBER DISCHARGE CHUTE

CUTTING DECK DEPTH

DECK ANTI-SCALP ROLLERS

BUMPER SKIDS

Groundsmaster® 360 2WD Specifications

*

CUTTING DECKS

1”-6” (25 - 152 mm) adjustable in 0.25” (6 mm) increments

7-gauge (4.5 mm) 5.5” steel (14 cm) deep; welded deck with grass discharged on the right side. An 5/16” (8 mm) thick rubber discharge chute covers the discharge
opening to limit the throw distance of clippings.

7-gauge (4.5 mm) 4.25” steel (11 cm) deep; welded deck. Requires Guardian® Recycler® or rear discharge completion kit.

Three deflectors inside the chamber redirect clippings that are elevated in the chambers so that they are cut and re-cut. Deck chambers prevent throwing of objects
out from deck.

Ductile cast iron 9" (23 cm) diameter conical spindle housing; Dual greaseable tapered roller bearings; Spindle shaft is 1.25" (3.2 cm) diameter, solid cold finished
steel, and splined connection between spindle shaft and pulley; Welded blade retainer plus anti-scalp cups.

Isolation mounted, splined PTO-driven gearbox transfers power to three separate spindles via two separate "B" section belts.

Three 0.25” (6 mm) thick, 2.5” (63 mm) wide, heat-treated steel blades.

Frame which supports deck via 4 vertically suspended chains. Front drag links provide fore/aft and left/right stability. Hydraulic deck lift includes load holding check
valves and gravity lower. Weight transfer system consisting of two torsion springs counterbalances some cutting deck weight to reduce turf damage.

Spring loaded (torsion) idler.

Replaceable, bolt-on, non-marking UHMW skid on both sides for Base decks and on left side on side discharge decks. Interchangeable left to right on base decks.

Anti-scalp cup located on each blade spindle.

DECK OPTIONS

Base: 72” (183 cm) with Guardian® kit, fine cut
Guardian kit, or rear discharge kit

16,000 ft ± 1,000 ft./min
(4877 m ± 305 m/min)

NA Yes, 5/16” (8 mm) thick

4.25” (108 mm) 5.5” (140 mm)

4 5

2 1

Side Discharge (non-CE): 72” (183 cm)

18,000 ft ± 1,000 ft./min
(5486 m ± 305 m/min)

RECYCLER KIT

LEAF MULCHING KIT

MEDIUM FLOW BLADE

HIGH FLOW BLADE

ATOMIC MULCHING BLADE

BLADE AND BELT KIT

72" FINE CUT GUARDIAN

RECYCLER COMPLETION KIT

72" GUARDIAN RECYCLER

COMPLETION KIT

72" REAR DISCHARGE

COMPLETION KIT

STANDARD BLADE

FLAT BLADE

TALL GRASS BAFFLE KIT

STANDARD BLADE

& BELT KIT

CUTTING DECK SPECIFIC ACCESSORIES FOR 72” SIDE DISCHARGE DECK (NON-CE)

Model 30347

Part No. 108-5273

Part No. 110-0621-03

Part No. 110-0622-03

Part No. 110-0624-03

Part No. 105-7272

CUTTING DECK SPECIFIC ACCESSORIES FOR 72” BASE DECK

Model 30346

Model 30304

Model 30549

Part No. 108-1958

(72” Rear Discharge Guardian Deck Only) Part No. 112-9586

Improves cut of tall grass with seed heads. Part No. 105-7269

Part No. 105-7271

* Specifications and design subject to change without notice. Products depicted in this literature are for demonstration purposes only.

Actual products offered for sale may vary in use, design, required attachments and safety features. See distributor for details on all warranties.

2015 Toro Commercial Equipment Guide 15-003-T Rev. 4/15

8

The Groundsmaster 360 is manufactured
in Tomah, WI ISO 9002 Certified Plant.

Groundsmaster® 360 4WD Specifications

*

ENGINE

FUEL CAPACITY

TRACTION DRIVE

TIRES

AIR CLEANER

INSTRUMENTATION

CONTROLS

GROUND SPEED

RADIATOR

MAIN FRAME

BRAKES

STEERING

ELECTRICAL

INTERLOCKS

SEAT

OPERATOR AREA

HYDRAULICS/COOLING

PTO CLUTCH

ROLL-OVER PROTECTION

ALL-SEASON SAFETY CAB

FUEL ECONOMY

SAFETY

CERTIFICATION

WARRANTY

HEIGHT ROPS UP

OVERALL LENGTH

OVERALL WIDTH

WHEELBASE

EST. SHIPPING WEIGHT

GROUNDSMASTER 360 – 4WD

TIER 4 FINAL DIESEL, MODEL 31200(A)

Yanmar; 3-cylinder common-rail, liquid-cooled, diesel with EGR and diesel particulate filter (DPF), 36.8hp (27.5 Kw) rated @ 3000 rpm, 80 ft-lbs @ 1950 rpm, High idle
3000 rpm, Low idle 1400 rpm, displacement 1642 cc. Remote mounted Donaldson air filter, external spin-on oil filter and high flow fixed fan. EPA Tier IV Final Compliant.

13.5 gallons (51.1 liters) diesel. Biodiesel Ready for use up to B-20 (20% biodiesel and 80% diesel blend).

Independent high-torque, low-speed wheel motors with 280 cc displacement. CrossTrax® drive system utilizing series parallel hydraulic drive circuit with full time
forward and reverse 4WD. Patent pending.

Front & Rear: (All 4 tires and wheels are the same part number) 23/10.5x12 6 ply pneumatic tubeless, demountable and interchangeable. Tread Kenda K500 TL similar to “Toro Tuff Trac”.

Dry, replaceable primary element.

InfoCenter™: Onboard LCD display shows gauges, alerts/faults, service reminders, and electrical system diagnostics. Indicates coolant temp, intake temperature, low
oil pressure, alternator, engine hours, engine rpm, hydraulic oil temperature, voltage

Ignition switch, throttle switch, foot-operated traction pedal with mowing speed control stop, service brake with parking brake latch, switch for raising and lowering cutting unit.

Transport and Mow: Forward 0-12 mph (0-19.3 km/h), variable. Reverse 0-6 mph (0-9.7 km/h), variable.

Rear mount, cross flow, 6.5 fins per 1” (25 mm), 8 quart (7.6 liter) capacity

Rectangular structured steel tube and high strength steel plate welded construction.

Service Brake: Foot pedal with dynamic braking through hydrostatic transmission. Parking Brake: foot actuated brake lever with two 8” (20.3 cm) diameter drum
brakes mounted on the rear wheel motors.

Quad Steer™ all wheel steer with four wheel Ackermann steering. Two turns Lock to Lock controlled via steering wheel and automatic synchronizing hydraulic cylinders.
4WD models have rear wheel steer lock out position, providing front two wheel steering (2WS).

12-volt, 55 amp internal regulated alternator/generator charging @ 3150 rpm. Battery: BCI Group No. 26, 540 cold cranking amps @ 0° F (-17.78° C).

Prevents engine from starting unless traction pedal is in neutral and deck is disengaged. If operator leaves seat with deck engaged, engine stops. If operator leaves the seat with the unit out of
neutral, engine stops. Engine stops if parking brake engaged and traction pedal not in neutral. High temp (PTO shuts down but engine remains running), Over temp (engine shuts down).

High back cushion vinyl seat with drain hole, deluxe low profile mechanical
suspension, 4” (10 cm) fore-aft travel with an additional 44 mm (1.75”) foreword
adjustment, armrests standard, retractable seat belt, lateral shock absorption.

Operator platform with isolated operator seat (all models), 12-volt power outlet, cup holder.

3 gallon (11.4 liter) capacity, suction spin-on filter mounted to transmission, oil cooler 6.5” x 17”x 3.5” (16.5 cm x 43.2 cm x 8.9 cm). Bar and Plate Core; 6.5 serpentine fins per 1” (25 mm).

Hydraulically actuated wet multi disc clutch.

2 post Standard foldable ROPS certified per ISO/DIS 21299.2 specifications Safety cab is ROPS certified

Factory installed, ROPS certified, pressurized cab with AC and heat. Tempered curved windshield, opening side window, opening rear window, emergency exit: front,
rear or side window, tinted side and rear glass (50% tint); front wiper/washer; interior mirror and exterior side mirrors; SMV sign; interior dome light. Model 31202
only. Road light kit and work light kit sold separately. All glass windows meets ANSI Z-26.1999 and ECE R43

1.1 gallons/hr (4.8 litres/h)**

Complies with American National Standards Institute (ANSI B71.4-2004)

Certified to meet SAE J2258. Certified to meet ISO/DIS 21299 for ROPS. Engine meets all applicable emission standards per the manufacturer. Certified to meet C-Tick
2004/108/EC/(EMC). Certified to meet the ISO EN5395 Machinery Directive requirement.

Two year limited

Grammer low profile air ride suspension, cloth cushions, retractable seat belt,

GROUNDSMASTER 360 – CAB

TIER 4 FINAL DIESEL, MODEL 31202

lateral shock absorption.

DIMENSIONS & WEIGHT WITH CUTTING DECKS (Cutting Decks Sold Separately)

78” (198 cm) 86” (218 cm) (Cab height)

110” (279 cm) / 117” (297 cm) with front Quick Attach System™ (QAS) only

78” (198 cm) [72” (183 cm) base deck] / 75” (191 cm) [72” (183 cm) side discharge deck] / 55” (140 cm) wheel to wheel

57” (145 cm)

2,658 lbs. (1206 kg) 3,134 lbs. (1422 kg)

* Specifications and design subject to change without notice. Products depicted in this literature are for demonstration purposes only. Actual

products offered for sale may vary in use, design, required attachments and safety features. See distributor for details on all warranties.

**Dependent on operator and turf conditions. Assume 85% efficiency for turns and overlap; 8 mph (12.9 km/hr) mow speed.

2015 Toro Commercial Equipment Guide 15-003-T Rev. 5/15

9

The Groundsmaster 360 is manufactured
in Tomah, WI ISO 9002 Certified Plant.

WIDTH OF CUT

HEIGHT OF CUT

DECK CONSTRUCTION

DISCHARGE

WING DECK ARTICULATION

SPINDLE ASSEMBLY

CUTTER DRIVE

BLADES

BLADE TIP SPEED

DECK SUSPENSION

CASTOR WHEELS

BELT IDLER

DECK SKID

DECK ANTI-SCALP ROLLERS

ANTI-SCALP CUPS

DECK COVERS

CUTTING DECK DEPTH

WING DECK TRANSPORT

LOCKS

WEIGHT

WIDTH

OPTIONAL ACCESSORIES

CERTIFICATION

MOWING RATE

Groundsmaster® 360 4WD Specifications / Attachments

*

100" CUTTING DECK, MODEL 31101 (ONLY mounts to 31200(A))

100" (254cm), by five blades

1”-5” (25 - 127 mm) adjustable in 0.25” (6 mm) increments

Center deck with two wing decks; Welded .120" (11 gauge) high strength steel with steel .180" (7 gauge) stiffener plates and .1046" (12 gauge) chambers.

Rear Discharge – complete width of deck.

15 degrees, up or down.

Ductile cast iron 9" (23 cm) diameter conical spindle housing; Dual greaseable tapered roller bearings; Spindle shaft is 1.25" (3.2 cm) diameter, solid cold finished steel, and
splined connection between spindle shaft and pulley; Welded blade retainer plus anti-scalp cups.

Isolation mounted, PTO driven gearbox with 1.25:1 spiral bevel gears. “B” section belt drive to all spindles.

Wing Decks: 25.2" (64cm) long,.25" (6mm) thick, 2.5 (63mm) wide, heat treated steel blade in each wing; Center Deck: Three 18"(45.7cm) long, .25" (6mm) thick, 2.5" (63mm)
wide, heat treated steel blades.

16,000 ± 1,000 ft/min at 3250 engine rpm

Center deck is supported via 4 vertically suspended chains to the frame of the machine. Wing decks are supported by pin connections to center deck and castor wheels on the
ground. Hydraulic deck lift includes load holding check valves and gravity lower.

Four 8 x 3.50-4, 4-ply, smooth, pneumatic, sealed precision ball bearings. Tensioning caps, made from impact modified thermoplastic alloy, are used to hold the castor wheels on
the castor arms.

Fixed and spring loaded idlers.

Replaceable, bolt-on, non-marking UHMW skid on both sides.

5

Anti-scalp cup located on each blade spindle.

Steel and plastic with rubber latch connectors.

4.25" (108 mm)

Manual latches (standard)

Approximately 790 lbs (358 kg)

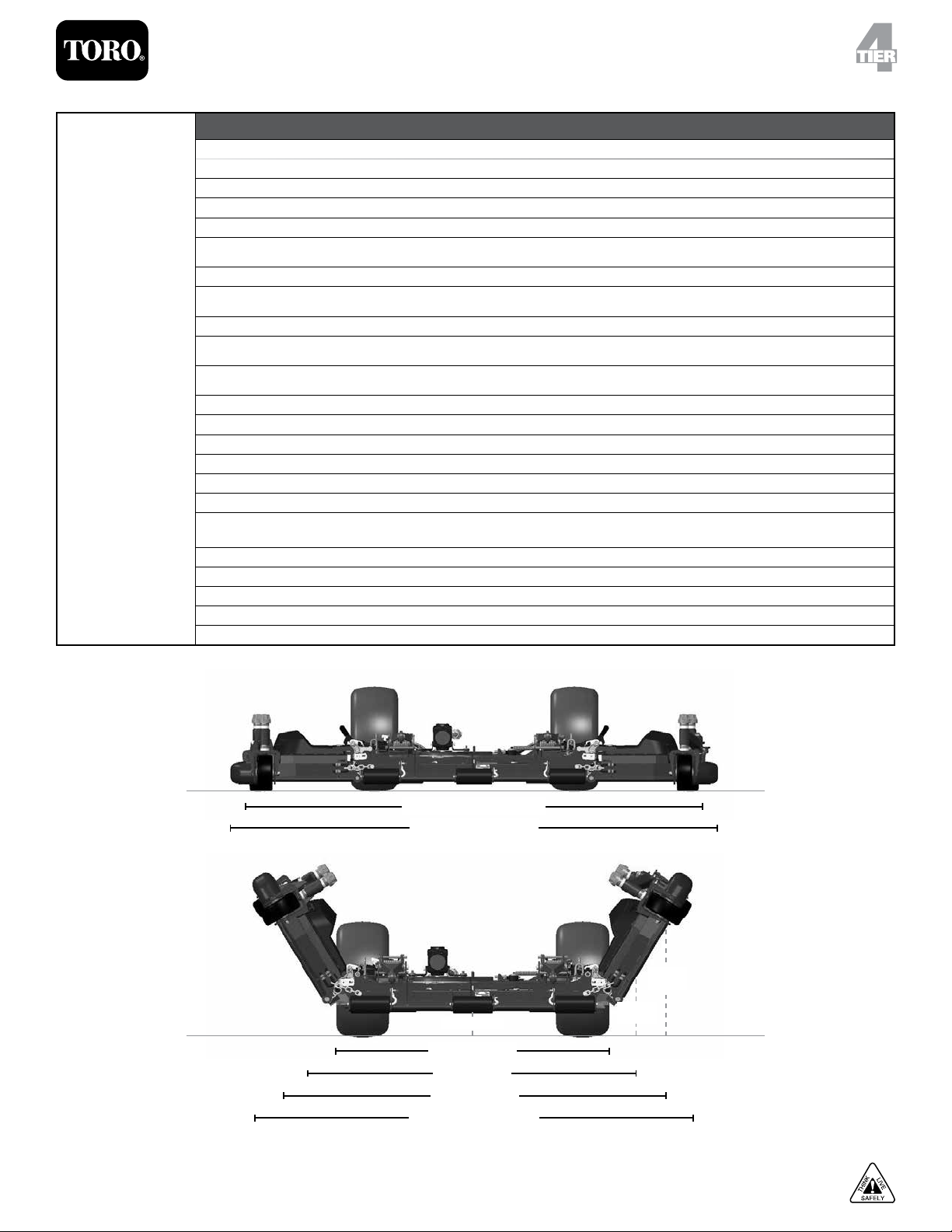

Mow: 108" (274 cm) Transport: Overall width with wing decks raised: 88 in (223.5 cm); center deck is 54.5 in (138.4 cm) wide and 5" (12.7 cm) off ground when raised.

Leaf Mulching Kit (Model 31105)

American National Standard ANSI B71.4-2012. European standard per ISO EN 5395 , CE approved.

Mow up to 8.0 acres/hr (3.2 hectare/hr) at 8 mph (12.9 km/hr). Assumes no overlap and 100% efficiency.

MOWING POSITION

100” (254 cm) Mowing Width

108” (274 cm) Total Width

TRANSPORT/TRAILERING POSITION

5” (12.7 cm)

54.5” (138.4 cm)
67” (170.2 cm)

73.5” (186.7 cm)

88” (223.5 cm) Total Width

12”

(30.5 cm)

30”

(76.2 cm)

18”

(45.7 cm)

* Specifications and design subject to change without notice. Products depicted in this literature are for demonstration purposes only. Actual

products offered for sale may vary in use, design, required attachments and safety features. See distributor for details on all warranties.

2015 Toro Commercial Equipment Guide 15-003-T Rev. 4/15

10

Groundsmaster® 360 4WD Specifications / Attachments

*

AIR RIDE GRAMMER SEAT

SPEED REDUCTION KIT

ROTATING BEACON KIT

BIMINI CANVAS SHADE

UNIVERSAL SUNSHADE

FRONT QUICK ATTACH

SYSTEM (QAS)

V-PLOW

ROTARY BROOM

SNOWTHROWER

STRAIGHT BLADE

POWERED V-PLOW

NORTH AMERICAN ROAD

LIGHT KIT

SMV SIGN KIT

WORK LIGHT KIT

PRE-FILTER SCREEN KIT

WINTER ENCLOSURE

AERA-VATOR®

GROUNDSMASTER 360 – 4WD

TIER 4 FINAL DIESEL, MODEL 31200(A)

Air ride suspension and vinyl cushions. Model 30511. Standard

Model 30287 (F'15 and newer models)

Part No. 120-0256 31509

Model 30358 N/A

Model 30349 (White), 30552 (Red) N/A

Front Quick Attach System (QAS) with quick connects to PTO coupler and front attachment’s hydraulic connections. Model 30509. Electrical accessory kit (PN 115-

0019) or Joystick/ Electrical Accessory Kit (31219) required.

48” (122 cm) wide V-Plow. Model 30750. (V-Plow Mounting Kit 30378 required)

Rotary Broom (Supplied by M-B Companies, Model MCT)

Must control with Joystick/Electrical Accessory Kit (31219). (Supplied by Erskine Attachments)

Straight Blade (Supplied by M-B Companies)

Snow implement combines two useful attachments; V-Plow and Angled Blade Must control with Joystick/ Electrical Accessory Kit (31219). (Supplied by M-B Companies)

Model 30513; Includes headlights, red/amber flashers, turn signals and one
rear work light.

Part No. 115-0014 Included with cab

N/A Part No. 114-5610

N/A Part No. 30647

Removable weather-tight enclosure for existing ROPS structure. Heater, wiper,
windshield washer and light package. Model 31220. (Overall height of unit with
enclosure is 86”)

The AERA-Vator’s vibrating tines deliver results without the extra work of traditional aerification and the fractured soil creates the ideal seedbed, making this a
multifunctional machine that can be used in many applications. Model GM82001. Requires one of the following shafts: Aera-vator (UA82015), Multi-Tine (UA82049),
Slicer (UA82017) or Coring (UA82058).

Model 30701, Includes headlights, red/amber flashers and turn signals

N/A

GROUNDSMASTER 360 – CAB

TIER 4 FINAL DIESEL, MODEL 31202

* Specifications and design subject to change without notice. Products depicted in this literature are for demonstration purposes only. Actual

products offered for sale may vary in use, design, required attachments and safety features. See distributor for details on all warranties.

2015 Toro Commercial Equipment Guide 15-003-T Rev. 4/15

11

CONFIGURATIONS

DECK MODEL #

COMPLETION KIT (REQUIRED)

(BLADES AND BAFFLES)

WIDTH OF CUT

BLADE TIP SPEED

(@3250 ENGINE RPM)

5/16” THICK RUBBER

DISCHARGE CHUTE

CUTTING DECK DEPTH

DECK ANTI-SCALP ROLLERS

BUMPER SKIDS

LEAF MULCHING KIT

STRIPING KIT

RECYCLER KIT

TALL GRASS BAFFLE KIT

MEDIUM FLOW BLADE

HIGH FLOW BLADE

ATOMIC MULCHING BLADE

FLAT BLADE

STANDARD BLADE

BLADE AND BELT KIT

MOWING RATE (ACRES/HR)**

EST. SHIPPING WEIGHT

Groundsmaster® 360 4WD Specifications / Attachments

CUTTING DECKS (Sold Separately)

72" DECK W/

GUARDIAN® KIT OR

FINE CUT GUARDIAN® KIT

30353 30481 30353 30456 30457

30304 or 30346 NA 30549 NA 30306

72" (182.8 cm) 72" (182.8 cm) 72" (182.8 cm) 60”(152.4 cm) 62" (158 cm)

16,000±1,000 ft./min. 18,000±1,000 ft./min. 16,000±1,000 ft./min. 18,000±1,000 ft./min. 16,000±1,000 ft./min.

NA Yes Yes Yes NA

4.25" (10.8 cm) 5.5" (13.9 cm) 4.25" (10.8 cm) 5.5” (13.9 cm) 4.25" (10.8 cm)

4 5 4 5 4

2 1 2 1 2

NA PN 108-5273 NA NA NA

NA NA NA NA NA

NA 30347 NA 30348 NA

PN 105-7269 NA PN 105-7269 NA PN 105-7269

NA PN 110-0621-03 NA PN 110-4701 NA

NA PN 110-0622-03 NA PN 110-4702-03 NA

NA PN 110-0622-03 NA PN 110-4703-03 NA

NA NA PN 112-9586 NA NA

PN 108-1958 NA PN 108-1958 NA PN 92-5608-03

PN 105-7271 PN 105-7272 PN 105-7271 NA PN 105-7270

5.8 5.8 5.8 4.8 4.9

472 lb. (214 kg.) 600 lb. (272 kg.) 472 lb. (214 kg.) 525 lb. (238 kg.) 424 lb. (192 kg.)

72" SIDE

DISCHARGE

72" DECK W/ REAR

DISCHARGE KIT

60" SIDE

DISCHARGE

62" DECK W/

GUARDIAN® RECYCLER KIT

*

HEIGHT OF CUT

60” & 72” SIDE DISCHARGE

DECK CONSTRUCTION

62” & 72” BASE DECK

CONSTRUCTION

FINE CUT GUARDIAN®

RECYCLER COMPLETION KIT

SPINDLE ASSEMBLY

CUTTER DRIVE

BLADES

DECK SUSPENSION

BELT IDLER

DECK SKID

ANTI-SCALP CUPS

* Specifications and design subject to change without notice. Products depicted in this literature are for demonstration purposes only.

Actual products offered for sale may vary in use, design, required attachments and safety features. See distributor for details on all warranties.

**Assumes 8 mph mow speed, no overlap and 100% efficiency.

2015 Toro Commercial Equipment Guide 15-003-T Rev. 4/15

1”-6” (25 - 152 mm) adjustable in 0.25” (6 mm) increments.

7-gauge (4.5 mm) 5.5” steel (14 cm) deep; welded deck with grass discharged on the right side. A 5/16” (8 mm) thick rubber discharge chute covers the discharge
opening to limit the throw distance of clippings.

7-gauge (4.5 mm) 4.25” steel (11 cm) deep; welded deck. Requires Guardian® Recycler® or rear discharge (72” base deck only) completion kit.

Three deflectors inside the chamber redirect clippings that are elevated in the chambers so that they are cut and re-cut. Deck chambers prevent throwing of objects
out from deck.

Ductile cast iron 9" (23 cm) diameter conical spindle housing; Dual greaseable tapered roller bearings; Spindle shaft is 1.25" (3.2 cm) diameter, solid cold finished
steel, splined connection between spindle shaft and pulley; Welded blade retainer plus anti-scalp cups.

Isolation mounted, splined PTO-driven gearbox transfers power to three separate spindles via two separate "B" section belts.

Three 0.25” (6 mm) thick, 2.5” (63 mm) wide, heat-treated steel blades.

Frame which supports deck via 4 vertically suspended chains. Front drag links provide fore/aft and left/right stability. Hydraulic deck lift includes load holding check
valves and gravity lower. Weight transfer system consisting of two torsion springs counterbalances some cutting deck weight to reduce turf damage.

Spring loaded (torsion) idler.

Replaceable, bolt-on, non-marking UHMW skid on both sides for Base decks and on left side on side discharge decks. Interchangeable left to right on base decks.

Anti-scalp cup located on each blade spindle.

12

The Groundsmaster 360 is manufactured
in Tomah, WI ISO 9002 Certified Plant.

Groundsmaster® 360 4WD Attachments Specifications

*

STAGE

WIDTH OF CUT

CUTTING HEIGHT

CUTTING EDGE

SKID SHOES

AUGER DIAMETER

FAN DIAMETER

CHUTE ROTATION

SHEAR PROTECTION

CASTING DISTANCE

APPROXIMATE SHIPPING

WEIGHT

HOSES

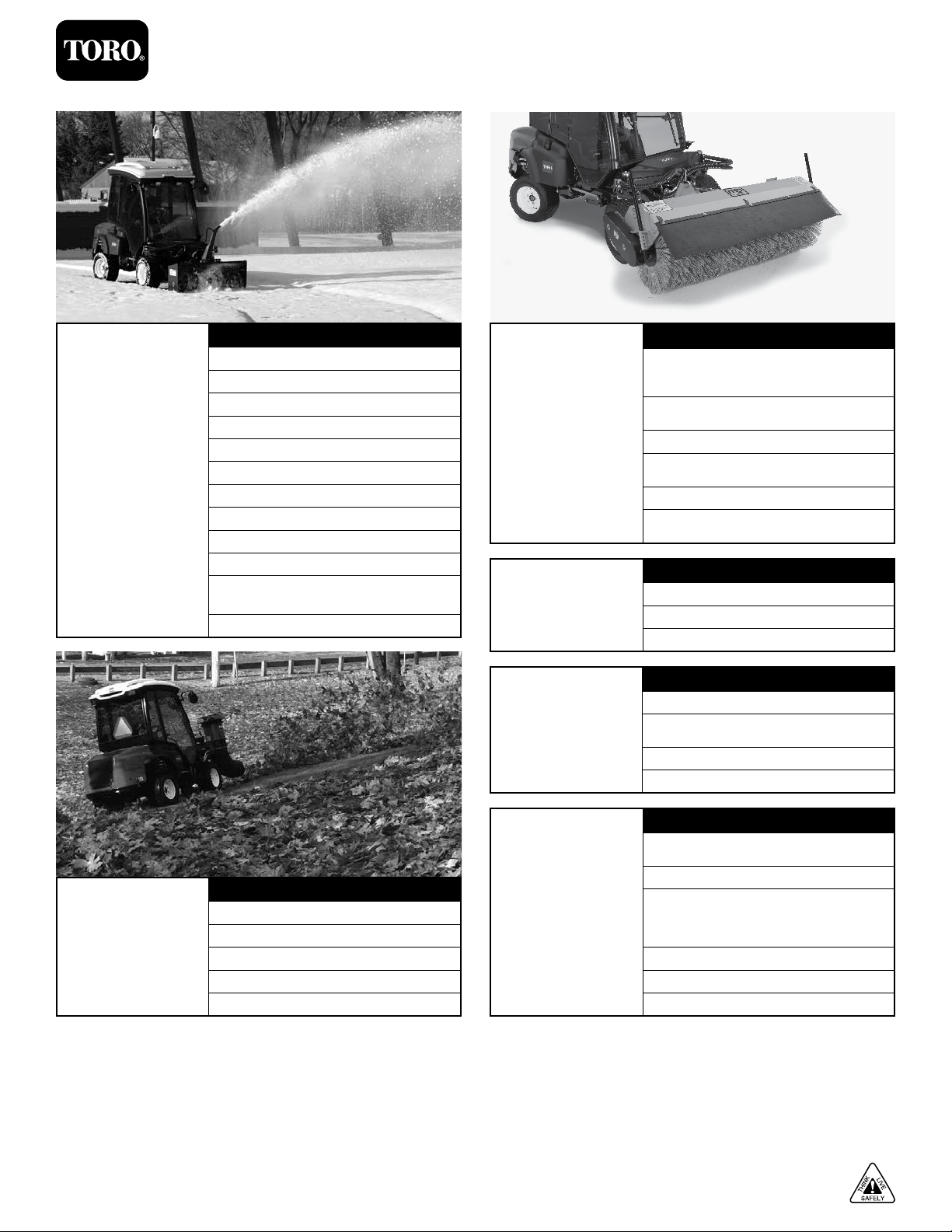

SNOWTHROWER, ERSKINE MODEL 1600**

2

53" (135 cm)

22" (56 cm)

51" (130 cm) bolt-on

Adjustable/Hardened

12" (30 cm) open flight

16" (41 cm)

Hydraulic

Pressure relief

Up to 25' (7.62 m)

418 lbs. (190 kg)

Included

TYPE

SWING

BROOM SIZE

BRUSH

SHIPPING WEIGHT

OPTIONS

CUTTING WIDTH

HITCH/MOUNT

CONSTRUCTION

BLADE

CUTTING EDGE

ANGLING

WIDTH

ROTARY BROOM, M-B MODEL MCT***

Windrow type, front mounted mechanical drive broom.
Hydraulic angling, 30 degrees left and right.

Swing pivot point inline with 50 degree
CV joint

25" (63.5 cm) diameter brush, 60" (152 cm) width.

Sectional brush with choice of polypropylene, wire or combina tion
radial segments.

60" Broom: 500 lbs., (227 kg).

Hydraulic Swing Cylinder, Electric Swing Mechanism, Dirt
Deflector, Storage Stands.

MECHANICAL

V-PLOW, MODEL 30750

48" (121.9 cm)

V-Plow Mounting Kit 30757 required for installation.

All welded steel.

STRAIGHT BLADE, M-B MODEL DOZER BLADE***

Heavy-duty 10-guage formed plate 60" (152.4 cm)

3/8"x 4"x 60" (.95 cm x 10.2 cm x 152.4 cm) high carbon
steel bar; reversible

0-30 degrees infinitely left & right hydraulically operated

60" (152.4 cm)

PRO FORCE® DEBRIS BLOWER, MODEL 44547

TRACTION UNIT

QAS MOUNT

NOZZLE ROTATION

OPERATION HEIGHT

* Specifications and design subject to change without notice. Products depicted in this literature are for demonstration purposes only. Actual

products offered for sale may vary in use, design, required attachments and safety features. See distributor for details on all warranties.

** Manufactured by Erskine. Attachment model ES1600. The Toro Company does not manufacture or sell the snowthrower,

nor does Toro guarantee these accessories in any manner whatsoever.

***Manufactured by M-B Companies, Inc.

2015 Toro Commercial Equipment Guide 15-003-T Rev. 4/15

Works with Groundsmaster 360 4WD models only

Turbine debris blower. PTO Shaft-driven off the engine.

TYPE

Front Quick Attach System (QAS) 30509, required.

245 degrees

Adjustable, 4.5" to 8.5" off the ground.

13

CONFIGURATION

ANGLING

BLADE WIDTHS

BLADE HEIGHT
CUTTING EDGE

SKID SHOES

POWERED V-PLOW, M-B MODEL V-PLOW**

This implement combines two useful snow attachments,
V-plow and angled blade, into one.

0-30 degrees, left and right, hydraulically

Straight – 57.5" (146 cm)
"V" – 50" (127 cm)
Scoop – 48.25" (123 cm)
Angled – 61" (155 cm)

23" (58 cm)

Bolt-on, trip edge

Adjustable, cast-hardened

The Groundsmaster 360 is manufactured
in Tomah, WI ISO 9002 Certified Plant.

Groundsmaster® 360 4WD Attachments Specifications

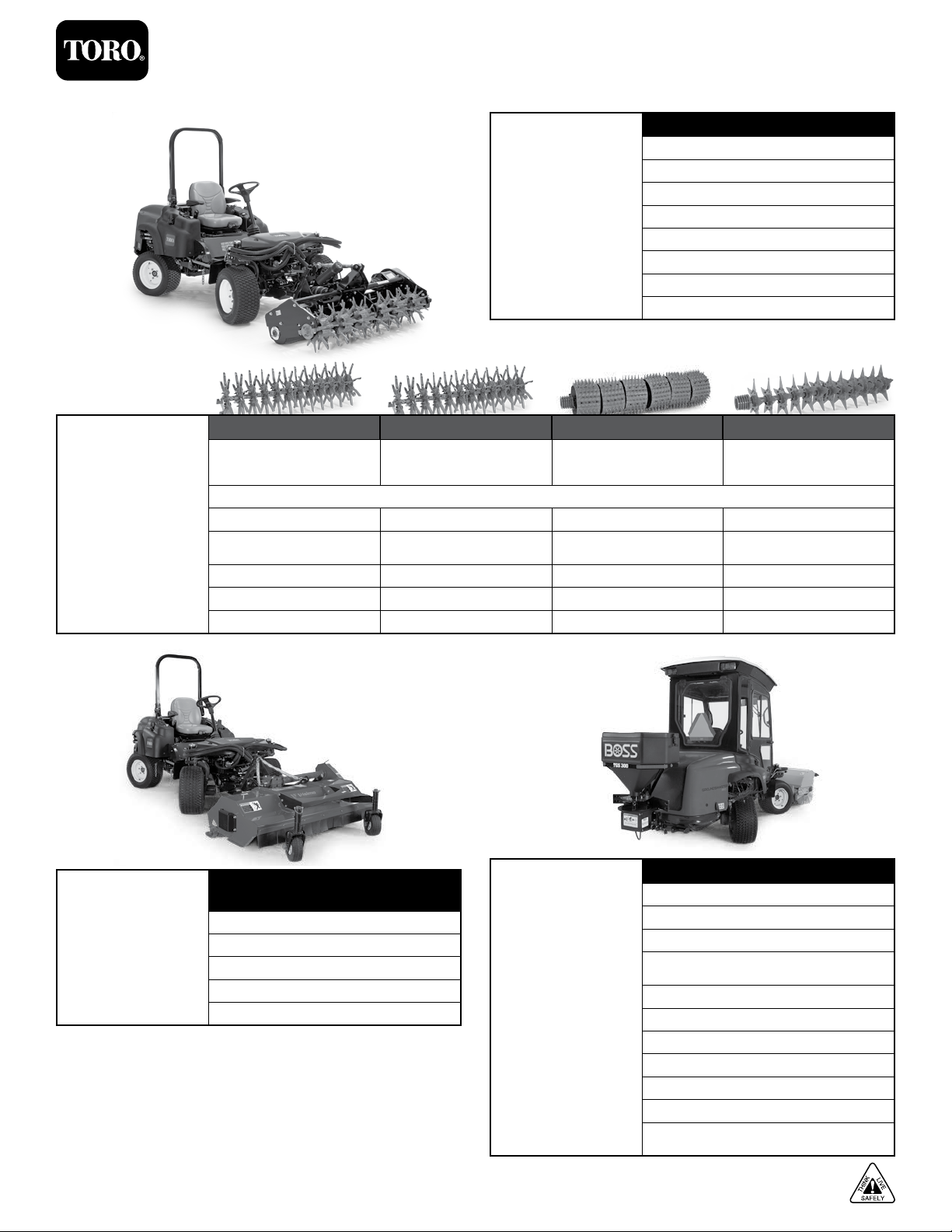

Aera-vator Universal Shaft System Frame**

†

WEIGHT (FRAME ONLY)

WORKING WIDTH

CENTER DRIVE GEARBOX

END DRIVE

TINE VIBRATION FREQUENCY

HEAVY DUTY LIFT/TRAIL HITCH

DRIVE LINE

FINISH

†

Add appropriate shaft weight (selected) to AERA-vator weight

900 lbs (408 kg)

60" (152.4 cm)

1:1 Right Angle

4 “BX” 46 Belts (Each End)

@540 PTO RPM = 800 Cycles/Min

3 ft (91.4 cm) Turn Radius (approx.)

1.375” (3.5 cm) Spline w/Safety Shield

Black Polyurethane w/Red Trim

*

AERA-VATOR SHAFTS

SHAFT ACCESSORY USE

Aera-vator Shaft Coring Shaft Multi-Tine Shaft Aera-Slicer Shaft

Vibrating tines loosen dry soil by
fracturing - no holes, no plugs, no
pre-irrigation

Non-PTO, powered by 3-point tow,
.75” (1.9 cm) cores

WIDTH

SHAFT WEIGHT

†

SIDE-TO-SIDE TINE TRAVEL

CORING DEPTH

VIBRATING DEPTH

AERATION DENSITY (APPROX)

†

Add appropriate shaft weight (selected) to AERA-vator weight

236 lbs (107 kg) 145 lbs (65.8 kg) 245 lbs (111 kg) 155 lbs (70.3 kg)

1.375” (3.5 cm) N/A .5" (1.27 cm)

N/A Up to 4.5" (11.4 cm) N/A N/A

3.75" (9.5 cm) N/A Up to 2” (5 cm) deep 4.5" (11.4 cm) full depth

9 Holes per sq ft (.093 sq. m) 5-6 Holes per sq. ft (.093 sq. m) 55 Holes per sq ft (.093 sq. m) 6-7 Slits per sq ft (.093 sq. m)

Utility Flail Mower, Vrisimo MiniMax,

Model FM60***

CUTTING WIDTH

OVERALL WIDTH (APPROX.)

NUMBER SCOOP HAMMERS

REAR HEIGHT ADJUSTMENT

WEIGHT

* Specifications and design subject to change without notice. Products depicted in this literature are for demonstration purposes

only. Actual products offered for sale may vary in use, design, required attachments and safety features. See distributor for
details on all warranties.

** Manufactured by First Products. Aeravator Shaft System Frame and Shaft Accessories. The Toro Company does not manufacture

or sell this product, nor does Toro guarantee these accessories in any manner whatsoever.

*** Manufactured by Vrisimo. Attachment model 60MM. The Toro Company does not manufacture or sell the flail,

nor does Toro guarantee these accessories in any manner whatsoever.

**** Manufactured by BOSS®. Attachment model TGS 300. The Toro Company does not manufacture or sell the spreader, nor does Toro

guarantee these accessories in any manner whatsoever.

60" (152.4 cm)

66.5" (167 cm)

30

0 - 4" (0 - 10.2 cm)

480 lbs. (218 kg)

Less aggressive vibrating tines,
great for overseeding without
surface disruption

60" (152.4 cm)

BOSS® Salt Spreader, Model TGS 300****

HOPPER CAPACITY

HOPPER DIMENSIONS

SPREADER WEIGHT

FEED MECHANISM

VIBRATOR KIT

MOTOR

SPINNER

SPREAD WIDTH

MATERIAL DEFLECTOR

RECEIVER HITCH

CONTROL

†

Designed to spread dry, free-flowing material (i.e., salt, deicers, etc.).

3 cu ft/200 lbs (.08 cu m/91 kg)

217⁄8"H X 29"W X 15"D (53 cm x 74 cm x 38 cm)

70 lb (31 kg) plus mount

Internal auger w/material saving brush and adjustable

†

drop-feed gate

Not recommended

High-torque/12-volt DC

12" (31 cm) poly

4–30 feet (1–9 meters)

Adjustable poly deflector

See Toro Distributor for details on mounting.

Variable speed control with blast feature and overload
protection

Compaction relief with minimal
surface disruption during hot
summer months

.625" (1.6 cm) vibration blade travel

(vertical)

2015 Toro Commercial Equipment Guide 15-003-T Rev. 4/15

14
