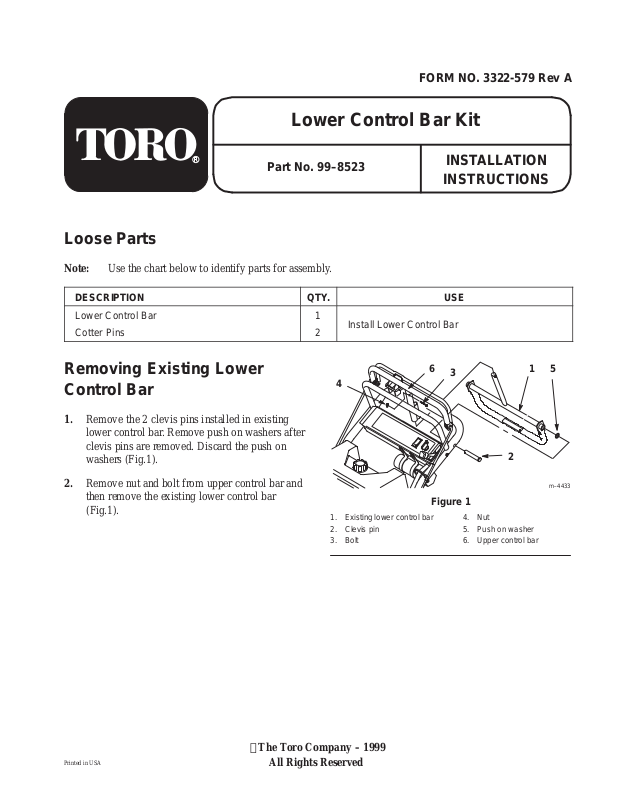

Toro 99-8523 Installation Instructions

FORM NO. 3322-579 Rev A

Lower Control Bar Kit

Part No. 99–8523

Loose Parts

Note: Use the chart below to identify parts for assembly.

DESCRIPTION QTY. USE

Lower Control Bar
Cotter Pins

Removing Existing Lower
Control Bar

1. Remove the 2 clevis pins installed in existing

lower control bar. Remove push on washers after
clevis pins are removed. Discard the push on
washers (Fig.1).

1

Install Lower Control Bar

2

6

4

INSTALLATION

INSTRUCTIONS

3

1

2

5

2. Remove nut and bolt from upper control bar and

then remove the existing lower control bar
(Fig.1).

The Toro Company – 1999

Printed in USA

All Rights Reserved

1. Existing lower control bar

2. Clevis pin

3. Bolt

m–4433

Figure 1

4. Nut

5. Push on washer

6. Upper control bar

Installation Instructions

Installing Lower Control Bar

1. Install the new lower control bar into the upper

control bar and align it with holes in the handle
(Fig. 2).

2. Install the new clevis pins through the handle

and into the lower control bar. Align the holes in
the clevis pins with the holes in the new lower
control bar (Fig. 2).

3. Install the new cotter pins into aligned holes

(Fig. 2).

4. Install the nut and bolt into the upper control bar

and tighten securely (Fig. 2).

4

1. Lower control bar

2. Clevis pin

3. Bolt

4. Nut

6

3

Figure 2

1 5

7

2

m–4434

5. Cotter pin

6. Upper control bar

7. Handle

2
