Toro 88515, 88516, 88517, 88519 Operator's Manual

48VBatteryPack/Charger

ModelNo.88515

ModelNo.88516

ModelNo.88517

ModelNo.88519

FormNo.3379-377RevA

Operator'sManual

Safety

Importantsafetyinstructions—Savetheseinstructions.

DANGER

Usingthewrongplugforapoweroutletcancause
reorelectricshock.

Useapowercordwiththepropercongurationfor
yourpoweroutlet.

CAUTION

Thebatteryusedinthisdevicemaypresentarisk
ofreorchemicalburnifmistreated.

Donotdisassemble,heatabove50°C(122°F),
orincinerate.ReplacebatterywithT orogenuine
batteriesonly.Useofanotherbatterymaypresenta
riskofreorexplosion.

CAUTION

Disposeofausedbatterypromptly.Keepaway
fromchildren.Donotdisassembleanddonot
disposeofinre.

CAUTION

Overheatingbatteriescancausereandsevere
burns.

Donotopen,crush,heatabove50°C(122°F),or
incinerate.Followthemanufacturer’sinstructions.

•Thisapplianceisnotintendedforusebypersons

(includingchildren)withreducedphysical,sensoryor
mentalcapabilities,orlackofexperienceandknowledge,
unlesstheyhavebeengivensupervisionorinstruction
concerninguseoftheappliancebyapersonresponsible
fortheirsafety.

•Childrenshouldbesupervisedtoensurethattheydonot

playwiththeappliance.

•Donotdismantle,openorshredsecondarycellsor

batterypack.

•Donotexposecellsorbatterypacktoheatorre.Avoid

storageindirectsunlight.

•Donotshort-circuitacellorabatterypack.Donotstore

cellsorbatterypackhaphazardlyinaboxordrawerwhere
theymayshort-circuiteachotherorbeshort-circuitedby
othermetalobjects.

•Donotremoveacellorbatteryfromitsoriginalbattery

packenclosurerequiredforuse.

•Donotsubjectcellsorbatterypacktomechanicalshock.

•Intheeventofacellleaking,donotallowtheliquidto

comeincontactwiththeskinoreyes.Ifcontacthasbeen
made,washtheaffectedareawithcopiousamountsof
waterandseekmedicaladvice.

•Donotuseanychargerotherthanthatspecically

providedforusewiththeequipment.

•Observetheplus(+)andminus(–)marksonthecell,

batteryandequipmentandensurecorrectuse.

•Donotuseanycellorbatterypackwhichisnotdesigned

forusewiththeequipment.

•Donotmixcellsofdifferentmanufacture,capacity,size

ortypewithinadevice.

•Keepcellsandbatterypackoutofthereachofchildren.

•Seekmedicaladviceimmediatelyifacellorabatterypack

hasbeenswallowed.

•Alwayspurchasethecorrectcellorbatteryforthe

equipment.

•Keepcellsandbatterypackcleananddry.

•Wipethecellorbatterypackterminalswithacleandry

clothiftheybecomedirty.

•Secondarycellsandbatterypackneedtobecharged

beforeuse.Alwaysusethecorrectchargerandreferto
themanufacturer’ sinstructionsorequipmentmanualfor
propercharginginstructions.

•Donotleaveabatterypackonprolongedchargewhen

notinuse.

•Afterextendedperiodsofstorage,itmaybenecessary

tochargeanddischargethecellsorbatterypackseveral
timestoobtainmaximumperformance.

•Secondarycellsandbatterypackgivetheirbest

performancewhentheyareoperatedatnormalroom
temperature(20°C±5°C).

©2013—TheT oro®Company
8111LyndaleAvenueSouth
Bloomington,MN55420

Registeratwww.T oro.com.

OriginalInstructions(EN)

PrintedinChina

AllRightsReserved

*3379-377*A

•Retaintheoriginalproductliteratureforfuturereference.

•Useonlythecellorbatterypackintheapplicationfor

whichitwasintended.

•Whenpossible,removethebatterypackfromthe

equipmentwhennotinuse.

•Disposeofproperly.

Thispowerunitisintendedtobecorrectlyorientatedina
verticaloroormountedposition.

SafetyandInstructional
Decals

Important:Safetyandinstructiondecalsarelocated

nearareasofpotentialdanger.Replacedamageddecals.

121–7676

1.ReadtheOperator’s
Manual.

2.Donotdisposeofthe
batteryinre.

1.Productismadefor
householduseonly .

2.ReadtheOperator’s
Manual.

121–7679

3.DonotthrowLithium-Ion
batteriesinthetrash.

3.Donotthrowthecharger
inthetrash.

4.Doubleinsulated

1.ReadtheOperator’s
Manual.

2.Donotdisposeofthe
batteryinre.

121–7677

1.Productismadefor
householduseonly .

2.ReadtheOperator’s
Manual.

121–7680

3.DonotthrowLithium-Ion
batteriesinthetrash.

2

3.Donotthrowthecharger
inthetrash.

4.Doubleinsulated

ChargingtheBatteryPack

Important:Forbestresults,yourbatterytoolshould

bechargedinalocationwherethetemperatureismore
than5°C(41°F)butlessthan40°C(104°F).Toreduce
theriskofseriouspersonalinjury,donotstoreoutside
orinvehicles.Chargingtimewillbeincreasedifnot
chargedwithinthisrange.

1.Plugthepowercordthatmatchesyourpoweroutlets
intothebatterycharger(

2.Turnthebatteryupsidedownandlineupthebattery
terminalwiththeslotinthecharger(Figure1and
Figure2).

Figure1).

121–7654

Figure1

1.Insertbatteryhere

2.LEDindicators4.Powercordplug-in

3.Charge/storagemode
switch

location

3

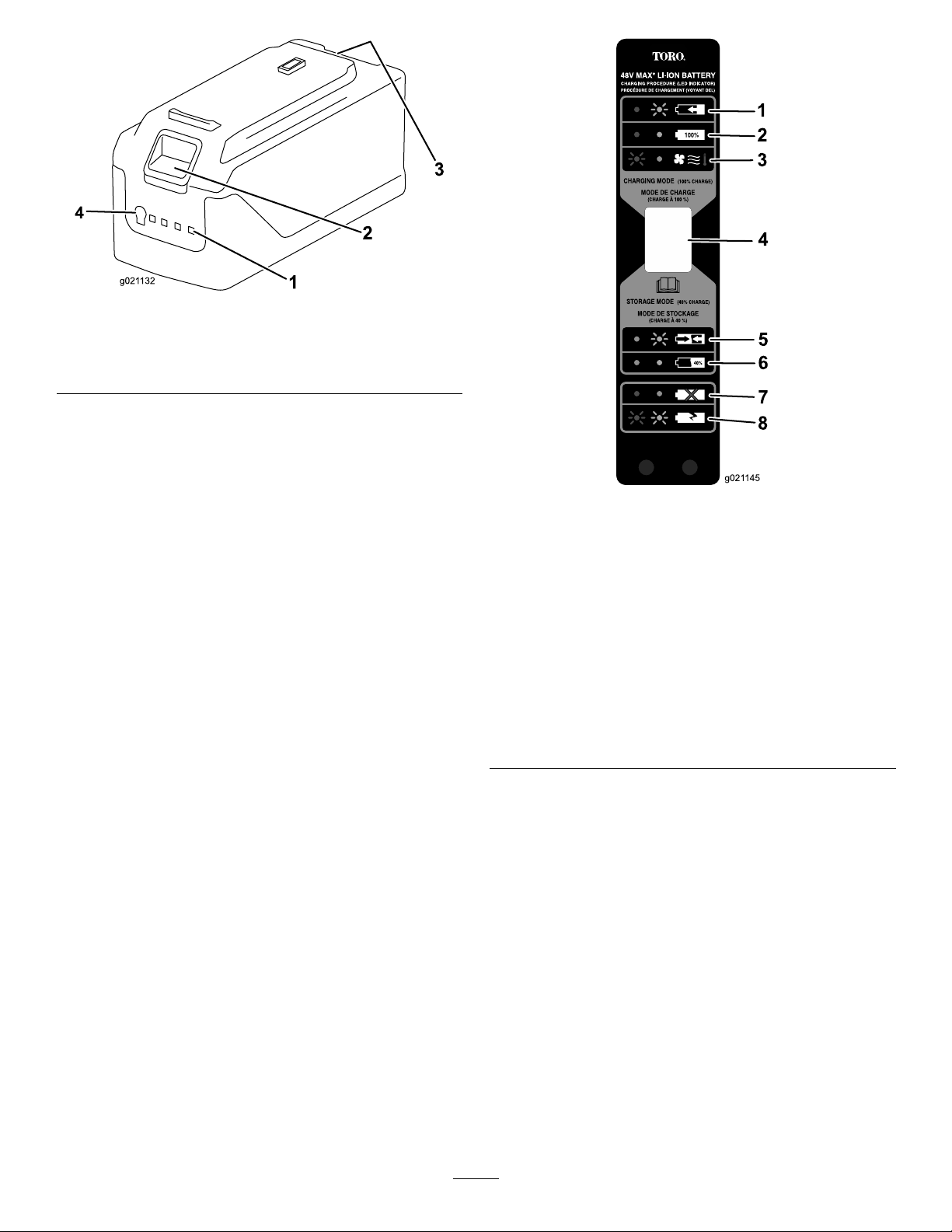

Figure2

1.LEDindicators(levelof
charge)

2.Releasebutton4.Testbutton

3.Batteryterminal

3.Slidethebatteryintothechargeruntilitclicksinto
place.

4.Toremovethebattery,pressdownontherelease
buttonandslidethebatterybackwardsoutofthe
charger.

5.Referto

Figure3tointerprettheLEDindicatorson

thebatterycharger.

1.Redlighton;green
lightashing—batteryis
charging.

2.Redlighton;green
lighton—batteryisfully
charged.

3.Redlightashing;green
lightoff—abnormalbattery
temperature(greaterthan
50C(122F)orlessthan0
C(32F).

4.Charge/storagemode
switch

Figure3

5.Redlightoff;green
lightashing—batteryis
preparingforstorage.

6.Redlightoff;greenlight
on—batteryisprepared
forstorage.

7.Redlighton;greenlight
off—nobatteryinserted.

8.Redlightashing;green
lightashing—batteryis
defective.

Storingalithium-ionbatteryat40%ofitscapacitymaximizes
batterylife.

Usestoragemode(

Figure3)whenthebatterywillnotbe

usedfor1monthorlonger.

1.Insertthebatteryintothecharger.

2.Turnstoragemodeon.

3.Thebatterywillchargeordischargeasnecessaryto
approximately40%charge.

4.Whenthebatteryisreadyforstorage(Figure3),
removethebatteryfromthecharger.

4

InsertingtheBatteryIntothe
Trimmer

1.Alignthetongueofthebatterypackwiththecavityin
thehandlehousing(Figure4).

Figure4

1.Triggerhandle3.Latch

2.Tongue

2.Graspthetriggerhandle(Figure4).

3.Pushthebatterypackintothehandleuntilthelatch
locksintoplace.

Important:Thebatterypackisnotfullychargedwhen
itispurchased.Beforeusingthetrimmerfortherst
time,placethebatterypackinthechargerandchargeit
untiltheLEDdisplayindicatesthebatteryischarged.
Makesuretoreadallsafetyprecautions.Withregular
use,itwillneedshorterchargingtime.Ifstoringfor1
monthorlonger,removethebatteryandusestorage
mode((page)).Whenreadytouseagain,chargethe
batterypackuntiltheLEDdisplayindicatesthebattery
ischarged.

BatteryPackPreparationFor
Recycling

WARNING

Uponremoval,coverthebatterypack'sterminals
withheavy-dutyadhesivetape.Donotattemptto
destroyordisassemblethebatterypackorremove
anyofitscomponents.Lithium-ionbatteriesmust
berecycledordisposedofproperlyatthenearest
batteryrecyclingfacility.

Troubleshooting

Usingthebatterywhenitishotcanreducetheoperating
time.Thebatterywillautomaticallystopworkingwhenit
isoverheatedtopreventdamagetoit.Removethebattery
fromthechargerandallowittocoolbeforeplacingitback
intothetrimmer.

Usingthebatterywhenthereismoistureontheleadscan
causethetrimmertomalfunction.Allowthebatterytodryor
wipeitdrybeforeplacingitbackintothetrimmer.

5
