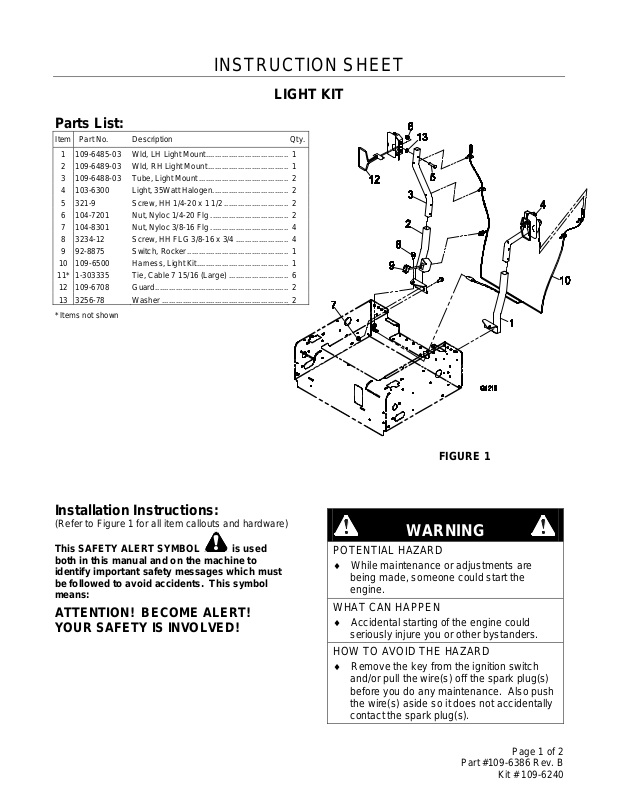

INSTRUCTION SHEET
LIGHT KIT
Parts List:
Item Part No. Description Qty.
1 109-6485-03 Wld, LH Light Mount.................................... 1
2 109-6489-03 Wld, RH Light Mount................................... 1
3 109-6488-03 Tube, Light Mount....................................... 2
4 103-6300 Light, 35Watt Halogen................................. 2
5 321-9 Screw, HH 1/4-20 x 1 1/2............................ 2
6 104-7201 Nut, Nyloc 1/4-20 Flg.................................. 2
7 104-8301 Nut, Nyloc 3/8-16 Flg.................................. 4
8 3234-12 Screw, HH FLG 3/8-16 x 3/4....................... 4
9 92-8875 Switch, Rocker............................................ 1
10 109-6500 Harness, Light Kit........................................ 1
11* 1-303335 Tie, Cable 7 15/16 (Large) .......................... 6
12 109-6708 Guard.......................................................... 2
13 3256-78 Washer ....................................................... 2
* Items not shown
Installation Instructions:
(Refer to Figure 1 for all item callouts and hardware)
This SAFETY ALERT SYMBOL
both in this manual and on the machine to
identify important safety messages which must
be followed to avoid accidents. This symbol
means:
ATTENTION! BECOME ALERT!
YOUR SAFETY IS INVOLVED!
is used
FIGURE 1
WARNING
POTENTIAL HAZARD
♦ While maintenance or ad justments are
being made, someone could start t he
engine.
WHAT CAN HAPPEN
♦ Accidental starting of the engine could
seriously injure you or other bystanders.
HOW TO AVOID THE HAZARD
♦ Remove the key from the ignition switch
and/or pull the wire(s) off the spark plug(s)
before you do any maintenance. Also push
the wire(s) aside so it does not accidentally
contact the spark plug(s).
Page 1 of 2
Part #109-6386 Rev. B
Kit # 109-6240
1. Tip seat forward.
2. Remove hydro fan cover and hydraulic reservoir
cap as shown in Figure 2.
FIGURE 2
Routing Wire Harness
Note: Be sure unit is not running, key is removed
from ignition switch, and parking brake is engaged
prior to proceeding with the harness installation.
1. On both sides of the machine, route the harness
up the light mount brackets and insert harness
clips into mount holes on brackets as shown in
Figure 1. Be sure the connectors are fully
inserted on to the terminals.
Connecting Headlights
1. Connect the black wire on the harness to the
black wire on the headlight. Then connect the
white wire on the harness to the white wire on
the headlight.
Mounting Brackets and Lights
1. Position the RH mount bracket (item 2) on the
seat box frame and secure with (2) 3/8-16 x 3/4
screws (item 8) and (2) 3/8-16 nyloc nuts
(Item 7) as shown in Figure 1.
2. Insert light mount tube (item 3) into the RH
mount bracket (item 2). If the mount tube does
not slide into the mount bracket, file the inside of
the mount bracket and reinsert tube.
3. Position and mount the guard (item 12) and light
(item 4) to the light mount tube (item 3) using (1)
1/4-20 x 1 1/4 screw (item 5), (1) washer
(item 13), and (1) 1/4-20 nyloc nut (item 6).
Rotate the light adjustment bracket left or right to
ensure leads on light are facing straight down.
4. Repeat steps 1 through 3 for LH side using
items 1, 3, 4, 5, 6, 7, 8, 12, and 13.
5. Replace hydraulic reservoir cap.
Installing Switch
1. Orient the switch (Item 9) so the “on” position
points up as shown in Figure 2. Carefully snap
the switch into the bracket cutout.
2. Locate the switch, connect the brown wire to the
top terminal of the switch and connect white wire
to the bottom terminal on the switch.
FIGURE 3
FIGURE 3
Connecting to Tractor Harness
1. Remove the plug from the molded accessory
connector located on the right side of the main
tractor harness inside the seat box frame as
shown in Figure 4.
2. Route bottom light kit harness connector through
the seat frame hole and connect to the molded
accessory connector on main tractor harness.
Zip tie the light kit harness to the tractor harness
where shown in Figure 4.
FIGURE 4
3. Reinstall hydro fan cover, tip seat back and put
wires back on spark plugs.
Operation
1. Use switch to turn lights on and off.
2. Light switch is operable only if ignition key is
turned on.
Page 2 of 2
Part #109-6386 Rev. B
Kit # 109-6240
