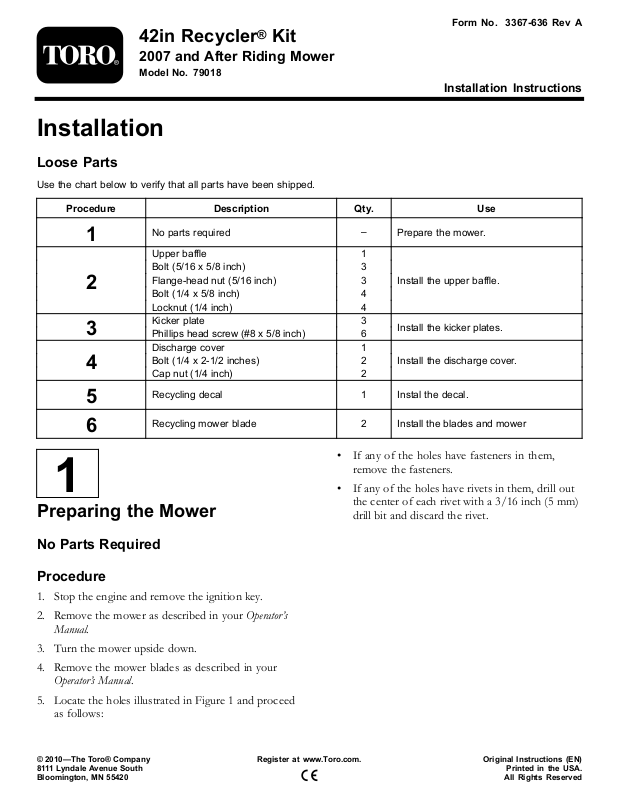

Toro 79018 Installation Instructions

42inRecycler

2007andAfterRidingMower

ModelNo.79018

Installation

LooseParts

Usethechartbelowtoverifythatallpartshavebeenshipped.

FormNo.3367-636RevA

®

Kit

InstallationInstructions

ProcedureDescription

1

2

3

4

5
6

1

PreparingtheMower

Qty.

Nopartsrequired

Upperbafe
Bolt(5/16x5/8inch)
Flange-headnut(5/16inch)
Bolt(1/4x5/8inch)
Locknut(1/4inch)
Kickerplate3
Phillipsheadscrew(#8x5/8inch)
Dischargecover1
Bolt(1/4x2-1/2inches)
Capnut(1/4inch)

Recyclingdecal1Instalthedecal.

Recyclingmowerblade2Installthebladesandmower

–

1
3
3
4
4

6

2
2

•Ifanyoftheholeshavefastenersinthem,
removethefasteners.

•Ifanyoftheholeshaverivetsinthem,drillout
thecenterofeachrivetwitha3/16inch(5mm)
drillbitanddiscardtherivet.

Preparethemower.

Installtheupperbafe.

Installthekickerplates.

Installthedischargecover.

Use

NoPartsRequired

Procedure

1.Stoptheengineandremovetheignitionkey.

2.RemovethemowerasdescribedinyourOperator’s
Manual.

3.Turnthemowerupsidedown.

4.Removethemowerbladesasdescribedinyour
Operator’sManual.

5.LocatetheholesillustratedinFigure1andproceed
asfollows:

©2010—TheToro®Company
8111LyndaleAvenueSouth
Bloomington,MN55420

Registeratwww.Toro.com.

OriginalInstructions(EN)

PrintedintheUSA.

AllRightsReserved

Figure1

1.Holesformountingtheupperbafe

2.Holesformountingthekickers

3.Locknut(3/8inch)fromthedischargechuteretainingrod

4.Cutoffbafe

6.Removethelocknut(3/8inch)securingthedischarge
chuteretainingrodtothemower(Figure1).Save
itforlateruse.

7.Ifthedeckhasacutoffbafeinstalleditmustbe
removedbeforetheRecyclerkitcanbeinstalled

Figure1).Retainthecutoffbafeforconverting

(
backtosidedischarge.

Figure2

1.Upperbafe3.Bolts(1/4x5/8inch)

2.Bolts(5/16x5/8inch)4.Locknut(3/8inch),install
onthedischargechute
retainingrod

2

InstallingtheUpperBafe

Partsneededforthisprocedure:

1

Upperbafe

3

Bolt(5/16x5/8inch)

3

Flange-headnut(5/16inch)

4

Bolt(1/4x5/8inch)

4

Locknut(1/4inch)

Procedure

1.Installtheupperbafe,tabspointedintothemower
asshowninFigure2.Ensurethatthethreadsofthe
dischargechuterodcomethroughthebafehole.

2.Installthelocknutremovedpreviouslyoverthe
threadsofthedischargechuteretainingrodtosecure
thebafetothemower(Figure2).

3.Installthreebolts(5/16x5/8inch)andthreeange
nuts(5/16inch)throughthesideofthemowerat
eachtabasshownin

Figure2.Installthefasteners

withthenutsontheinside.

4.Installfourbolts(1/4x5/8inch)inthebafeand
upthroughthetopofthemowerandsecureitwith
fourlocknuts(1/4inch)asshownin

Figure2.

2

3

4

InstallingtheKickerPlates

Partsneededforthisprocedure:

3Kickerplate

6

Phillipsheadscrew(#8x5/8inch)

Procedure

1.Alignthethreekickerplateswithholestowardthe
topofthemower(
kickersmustbefaceinward.

Figure3).Thelongslopeofthe

InstallingtheDischargeCover

Partsneededforthisprocedure:

1Dischargecover

2

Bolt(1/4x2-1/2inches)

2

Capnut(1/4inch)

Procedure

1.Liftthegrassdeectorandslidethetabsontop
ofthedischargecoverunderthegrassdeector
retainingrod.Rotatethedischargecoverdownover
theopening,andontothelowerlipofthemower

Figure4).

(

Figure3

1.Kickerplate

2.SecuretheplatestothemowerusingsixPhillips
headscrews(#8x5/8inch).Thescrewscomeup
throughthetopofthemowerandintotheplates
(Figure3).

2.Phillipsheadscrew(#8x
5/8inch)

Figure4

1.Dischargecover

2.Capnut(1/4inch)

2.Securethedischargecovertothelowerlipofthe
mowerwithtwobolts(1/4x2-1/2inches)andtwo
capnuts(1/4inch)asshowninFigure4.

Note:Donotovertightenthenuts;thiscould
distortthecoverandcausebladecontact.

3

3.Bolt(1/4x2-1/2inches)
