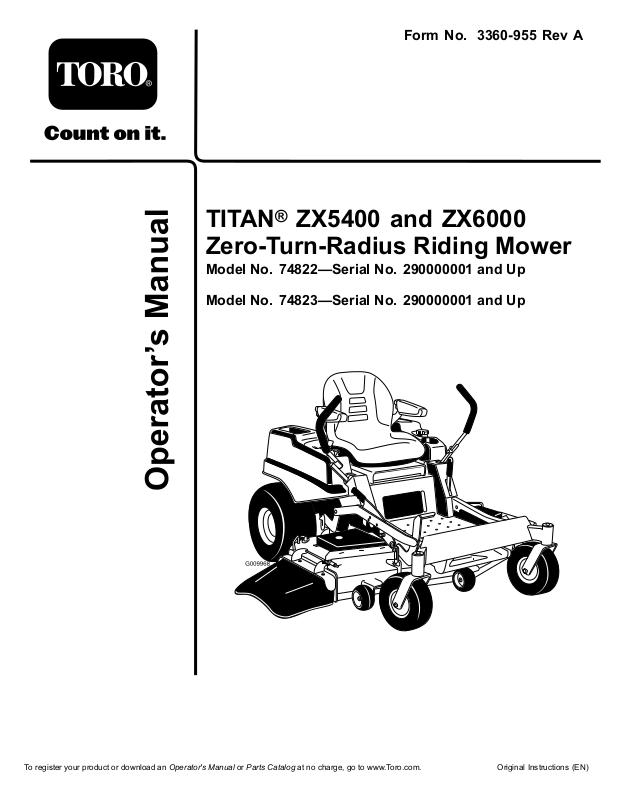

Page 1

FormNo.3360-955RevA

G009968

TITAN

ZX5400andZX6000

Zero-Turn-RadiusRidingMower

ModelNo.74822—SerialNo.290000001andUp

ModelNo.74823—SerialNo.290000001andUp

ToregisteryourproductordownloadanOperator'sManualorPartsCatalogatnocharge,gotowww.T oro.com.OriginalInstructions(EN)

Page 2

Warning

G009950

G010228

CALIFORNIA

Proposition65Warning

Theengineexhaustfromthisproduct

containschemicalsknowntotheStateof

Californiatocausecancer,birthdefects,

orotherreproductiveharm.

Important:Thisengineisnotequippedwitha sparkarrestermufer.ItisaviolationofCalifornia PublicResourceCodeSection4442touseoroperate theengineonanyforest-covered,brush-covered,or grass-coveredland.Otherstatesorfederalareas mayhavesimilarlaws.

ThissparkignitionsystemcomplieswithCanadian ICES-002

Theenclosed

Engine Owner’ s Man ual

issupplied forinformationregardingtheUSEnvironmental ProtectionAgency(EPA)andtheCalifornia EmissionControlRegulationofemissionsystems, maintenance,andwarranty.Replacementsmaybe orderedthroughtheenginemanufacturer.

Formodelswithstatedenginehorsepower,thegross horsepoweroftheenginewaslaboratoryratedbythe enginemanufacturerinaccordancewithSAEJ1940. Asconguredtomeetsafety,emission,andoperating requirements,theactualenginehorsepoweronthisclass oflawnmowerwillbesignicantlylower.

Introduction

Readthisinformationcarefullytolearnhowtooperate andmaintainyourproductproperlyandtoavoidinjury andproductdamage.Youareresponsibleforoperating theproductproperlyandsafely.

YoumaycontactTorodirectlyatwww .T oro.comfor productandaccessoryinformation,helpndinga dealer,ortoregisteryourproduct.

Wheneveryouneedservice,genuineToroparts,or additionalinformation,contactanAuthorizedService DealerorToroCustomerServiceandhavethemodel andserialnumbersofyourproductready .Figure1 identiesthelocationofthemodelandserialnumbers ontheproduct.Writethenumbersinthespace provided.

Figure1

1.Modelandserialnumberlocation

ModelNo.

SerialNo.

Thismanualidentiespotentialhazardsandhas safetymessagesidentiedbythesafetyalertsymbol (Figure2),whichsignalsahazardthatmaycauseserious injuryordeathifyoudonotfollowtherecommended precautions.

Figure2

1.Safetyalertsymbol

Thismanualuses2otherwordstohighlightinformation. Importantcallsattentiontospecialmechanical informationandNoteemphasizesgeneralinformation worthyofspecialattention.

Contactusatwww.T oro.com.

PrintedintheUSA.

AllRightsReserved

Page 3

Contents

Introduction.................................................................2

Safety...........................................................................4

SafeOperatingPractices.......................................4

ToroRidingMowerSafety....................................6

SlopeChart..........................................................7

SafetyandInstructionalDecals.............................8

ProductOverview......................................................12

Controls.............................................................13

Operation...................................................................14

ThinkSafetyFirst...............................................14

AddingFuel.......................................................15

CheckingtheEngineOilLevel............................17

OperatingtheParkingBrake...............................17

OperatingtheThrottle.......................................17

OperatingtheChoke..........................................17

OperatingtheIgnitionSwitch.............................18

StartingandStoppingtheEngine........................18

OperatingtheMowerBladeControlSwitch

(PTO)............................................................19

TheSafetyInterlockSystem................................19

DrivingForwardorBackward.............................20

StoppingtheMachine.........................................21

AdjustingtheHeightofCut................................21

AdjustingtheAnti-ScalpRollers.........................22

PositioningtheSeat............................................23

ChangingtheSeatRideSuspension.....................23

AdjustingtheMotionControlLevers..................23

PushingtheMachinebyHand.............................24

UsingtheSideDischarge....................................25

OperatingTips...................................................25

Maintenance...............................................................27

RecommendedMaintenanceSchedule(s)................27

PremaintenanceProcedures....................................29

RaisingtheSeat..................................................29

RemovingtheFloorPan.....................................29

Lubrication.............................................................29

GreasingtheBearings.........................................29

EngineMaintenance...............................................30

ServicingtheAirCleaner....................................30

ServicingtheEngineOil.....................................31

ServicingtheSparkPlug.....................................33

CleaningtheBlowerHousing..............................34

FuelSystemMaintenance.......................................34

ReplacingtheFuelFilter.....................................34

ElectricalSystemMaintenance................................35

ServicingtheBattery...........................................35

ServicingtheFuses.............................................36

DriveSystemMaintenance.....................................37

CheckingtheTirePressure.................................37

HydraulicSystemMaintenance...............................38

CheckingtheHydraulicOilLevel........................38

ChangingtheHydraulicSystemFilterand

Oil..................................................................38

MowerDeckMaintenance......................................40

ServicingtheCuttingBlades...............................40

MowerDeckLeveling.........................................42

InspectingtheBelts............................................44

ReplacingtheMowerBelt...................................44

RemovingtheMower.........................................45

InstallingtheMower...........................................47

ReplacingtheGrassDeector.............................47

Cleaning.................................................................48

WashingtheUndersideoftheMower..................48

WasteDisposal...................................................49

Storage.......................................................................50

CleaningandStorage..........................................50

Troubleshooting.........................................................51

Schematics.................................................................53

Page 4

Safety

ThismachinemeetsorexceedstheB71.1-2003 specicationsoftheAmericanNationalStandards Institute,ineffectatthetimeofproduction. However,improperuseormaintenancebythe operatororownercanresultininjury.T oreduce thepotentialforinjury,complywiththesesafety instructionsandalwayspayattentiontothe safetyalertsymbol,whichmeansCAUTION, WARNING,orDANGER-"personalsafety instruction."Failuretocomplywiththeinstruction mayresultinpersonalinjuryordeath.

•Neverleavearunningmachineunattended.Always turnoffblades,setparkingbrake,stopengine,and removekeybeforedismounting.

•Turnoffbladeswhennotmowing.Stoptheengine andwaitforallpartstocometoacompletestop beforecleaningthemachine,removingthegrass catcheroruncloggingthedischargechute.

•Operatethemachineonlyindaylightorgood articiallight.

•Donotoperatethemachinewhileunderthe inuenceofalcoholordrugs.

•Watchfortrafcwhenoperatingnearorcrossing roadways.

SafeOperatingPractices

ThefollowinginstructionsarefromANSIstandard B71.1-2003.

Thisproductiscapableofamputatinghandsand feetandthrowingobjects.Alwaysfollowallsafety instructionstoavoidseriousinjuryordeath.

GeneralOperation

•Read,understand,andfollowallinstructionsin theoperator’smanualandonthemachinebefore starting.

•Donotplacehandsorfeetnearrotatingpartsor underthemachine.Keepclearofthedischarge openingatalltimes.

•Allowonlyresponsibleadultswhoarefamiliarwith theinstructionstooperatethemachine.

•Cleartheareaofobjectssuchasrocks,toys,wire, etc.,whichcouldbepickedupandthrownbythe blade.

•Besuretheareaisclearofotherpeoplebefore mowing.Stopthemachineifanyoneentersthearea.

•Nevercarrypassengers.

•Donotmowinreverseunlessabsolutelynecessary. Alwayslookdownandbehindbeforeandwhile backingup.

•Beawareofthemowerdischargedirectionanddo notpointitatanyone.Avoiddischargingmaterial againstawallorobstruction.Materialmayricochet backtowardtheoperator.Stoptheblade(s)when crossinggravelsurfaces.

•Donotoperatethemachinewithoutdeector, dischargecoverorentiregrasscollectionsystemin placeandworking.

•Bealert,slowdownandusecautionwhenmaking turns.Lookbehindandtothesidebeforechanging directions.

•Useextracarewhenloadingorunloadingthe machineintoatrailerortruck.

•Alwaysweareyeprotectionwhenoperatingthe mower.

•Dataindicatesthatoperators,age60yearsand above,areinvolvedinalargepercentageofriding mower-relatedinjuries.Theseoperatorsshould evaluatetheirabilitytooperatetheridingmower safelyenoughtoprotectthemselvesandothersfrom seriousinjury.

•Alwaysfollowtherecommendationsforwheel weightsorcounterweights.

SlopeOperation

Slopesareamajorfactorrelatedtolossofcontroland tip-overaccidents,whichcanresultinsevereinjuryor death.Operationonallslopesrequiresextracaution.If youcannotbackuptheslopeorifyoufeeluneasyonit, donotmowit.

•Donotmowslopesgreaterthan15degrees.

•Watchforditches,holes,rocks,dips,andrisesthat changetheoperatingangle,asroughterraincould overturnthemachine.

•Choosealowgroundspeedsoyouwillnothaveto stopwhileoperatingonaslope.

•Donotmowslopeswhengrassiswet.Slippery conditionsreducetractionandcouldcausesliding andlossofcontrol.

•Alwayskeepthewheelmotorsengagedwhengoing downslopes.

•Reducespeedanduseextremecautiononslopes.

•Donotmakesuddenturnsorrapidspeedchanges.

•Removeormarkobstaclessuchasrocks,treelimbs, etc.fromthemowingarea.Tallgrasscanhide obstacles.

Page 5

•Avoidsuddenstartswhenmowinguphillbecause themowermaytipbackwards.

•Beawarethatlossoftractionmayoccurgoing downhill.Weighttransfertothefrontwheelsmay causedrivewheelstoslipandcauselossofbraking andsteering.

•Alwaysavoidsuddenstartingorstoppingona slope.Iftireslosetraction,disengagethebladesand proceedslowlyofftheslope.

•Useextremecarewithgrasscatchersorother attachments.Thesecanchangethestabilityofthe machineandcauselossofcontrol.

•Donottrytostabilizethemachinebyputtingyour footontheground.

•Donotmowneardrop-offs,ditches,steepbanks orwater.Wheelsdroppingoveredgescancause rollovers,whichmayresultinseriousinjury,death ordrowning.

•Useawalkbehindmowerand/orahandtrimmer neardrop-offs,ditches,steepbanksorwater.

Children

Tragicaccidentscanoccuriftheoperatorisnotalertto thepresenceofchildren.Childrenareoftenattractedto themachineandthemowingactivity.Neverassumethat childrenwillremainwhereyoulastsawthem.

•Keepchildrenoutofthemowingareaandunder thewatchfulcareofanotherresponsibleadult,not theoperator.

•Bealertandturnthemachineoffifchildrenenter thearea.

•Beforeandwhilebackingorchangingdirection,look behind,down,andside-to-sideforsmallchildren.

•Nevercarrychildren,evenwiththebladesoff.They mayfalloffandbeseriouslyinjuredorinterferewith safemachineoperation.

•Childrenwhohavebeengivenridesinthepastmay suddenlyappearinthemowingareaforanotherride andberunoverorbackedoverbythemower.

•Neverallowchildrentooperatethemachine.

•Useextracarewhenapproachingblindcorners, shrubs,trees,theendofafenceorotherobjectsthat mayobscurevision.

Towing

Ahitchkitisavailableforthismachineandcanbe obtainedbycontactinganAuthorizedToroDealer. Donottowwithoutrstinstallingthismanufacturer approvedhitch.Thefollowingguidelinesapplywhen towingwiththeapprovedhitchkitinstalled.

•Towonlywithamachinethathasahitchdesigned fortowing.Donotattachtowedequipmentexcept atthehitchpoint.

•Followthemanufacturer’srecommendationfor weightlimitsfortowedequipmentandtowingon slopes.

•Neverallowchildrenorothersinorontowed equipment.

•Onslopes,theweightofthetowedequipmentmay causelossoftractionandlossofcontrol.

•Travelslowlyandallowextradistancetostop.

Service

SafeHandlingofGasoline:

Toavoidpersonalinjuryorpropertydamage,useextra carewhenhandlinggasolineandotherfuels.Theyare ammableandthevaporsareexplosive.

•Extinguishallcigarettes,cigars,pipesandother sourcesofignition.

•Useonlyanapprovedcontainer.

•Neverremovethegascaporaddfuelwhenthe engineisrunning.Allowtheenginetocoolbefore refueling.

•Neverrefuelthemachineindoors.

•Neverstorethemachineorfuelcontainerinside wherethereisanopename,suchasnearawater heaterorfurnace.

•Neverllcontainersinsideavehicleoronatruckor trailerwithaplasticliner.Alwaysplacecontainerson thegroundawayfromyourvehiclebeforelling.

•Removegas-poweredequipmentfromthetruck ortrailerandrefuelitontheground.Ifthisisnot possible,thenrefuelsuchequipmentwithaportable container,ratherthanfromagasolinedispenser nozzle.

•Keepthenozzleincontactwiththerimofthefuel tankorcontaineropeningatalltimesuntilthefueling iscomplete.Donotuseanozzlelock-opendevice.

•Iffuelisspilledonclothing,changeclothing immediately.

•Neveroverllthefueltank.Replacegascapand tightensecurely .

GeneralService:

•Neveroperateamachineinsideaclosedarea.Engine exhaustcontainscarbonmonoxide,whichisan odorless,deadlypoisonthatcankillyou.

•Keepnutsandboltstight,especiallytheblade attachmentbolts.Keepequipmentingood condition.

Page 6

•Nevertamperwithsafetydevices.Checktheir properoperationregularly .

•Keepthemachinefreeofgrass,leaves,orother debrisbuild-up.Cleanupoilorfuelspillagefuel soakeddebris.Allowthemachinetocoolbefore storing.

•Stopandinspecttheequipmentifyoustrikean object.Repair,ifnecessary,beforerestarting.

•Nevermakeanyadjustmentsorrepairswiththe enginerunning.

•Grasscatchercomponentsaresubjecttowear, damageanddeterioration,whichcouldexpose movingpartsorallowobjectstobethrown. Frequentlycheckcomponentsandreplacewith manufacturers’recommendedparts,whennecessary.

•Mowerbladesaresharpandcancut.Wrapthe blade(s)orweargloves,anduseextracautionwhen servicingthem.

•Checkforproperbrakeoperationfrequently.Adjust andserviceasrequired.

Note:Determinetheleftandrightsidesofthe machinefromthenormaloperatingposition.

•Maintainorreplacesafetyandinstructiondecalsas necessary.

•UseonlygenuineTororeplacementpartstoensure thatoriginalstandardsaremaintained.

ToroRidingMowerSafety

Thefollowinglistcontainssafetyinformationspecicto Toroproductsorothersafetyinformationthatyoumust knowthatisnotincludedintheANSIstandards.

•Stoptheengine,disconnectsparkplugwire(s)and removekeybeforeperforminganyservice,repairs, maintenanceoradjustments.

•Keephands,feet,hair,andlooseclothingawayfrom attachmentdischargearea,undersideofmowerand anymovingpartswhileengineisrunning.

•Donottouchequipmentorattachmentpartswhich maybehotfromoperation.Allowtocoolbefore attemptingtomaintain,adjustorservice.

•Batteryacidispoisonousandcancauseburns.Avoid contactwithskin,eyes,andclothing.Protectyour face,eyes,andclothingwhenworkingwithabattery.

•Batterygasescanexplode.Keepcigarettes,sparks andamesawayfrombattery.

•UseonlyToroapprovedattachments.W arrantymay bevoidedifusedwithunapprovedattachments.

•Ifloadingthemachineontoatrailerortruck,usea single,full-widthramponly.Therampangleshould notexceed15degrees.

Page 7

SlopeChart7SafetyandInstructional Decals

Page 8

Safetydecalsandinstructionsareeasilyvisibletotheoperatorandarelocatednearanyareaof potentialdanger.Replaceanydecalthatisdamagedorlost.

1.Machinespeed4.Neutral

2.Fast5.Reverse

3.Slow

115-9631

1.Powertake-off(PTO),

99-8936

Bladecontrolswitchon somemodels

2.Bladecontrolswitch—On6.Continuousvariable

3.Bladecontrolswitch—Off7.Slow

4.Choke

5.Fast

setting

1.Parking brake—disengaged

1.Bypassleverpositionfor operatingthemachine

114-1606

1.Entanglementhazard,belt—keepallguardsinplace.

115-9625

2.Parkingbrake—engaged

93-7009

1.Warning—don’toperatethemowerwiththedeectorupor removed;keepthedeectorinplace.

2.Cutting/dismembermenthazardofhandorfoot,mower blade—stayawayfrommovingparts.

Manufacturer’sMark

1.Indicatesthebladeisidentiedasapartfromtheoriginal machinemanufacturer.

117-1158

2.Bypassleverpositionfor pushingthemachine

Page 9

110-6691

1.Thrownobjecthazard—keepbystandersasafedistance fromthemachine.

2.Thrownobjecthazard,mower—donotoperatewithoutthe deector,dischargecover,orgrasscollectionsystemin place.

3.Cutting/dismembermentofhandorfoot—stayawayfrom movingparts.

112-9840

1.ReadtheOperator’s Manual.

2.Heightofcut

3.Removetheignitionkey andreadtheinstructions beforeservicingor performingmaintenance.

115-9644

1.Pressthepedalandlifttheheightofcutlevertounlock thedeckposition.

2.Heightofcut

3.Pressthepedaltomovethedecktothetransportposition

BatterySymbols

Someorallofthesesymbolsareonyourbattery

1.Explosionhazard

2.Nore,opename,or smoking.

117-1194

1.Engine

3.Causticliquid/chemical burnhazard

4.Weareyeprotection9.Flusheyesimmediately

5.ReadtheOperator’s

Manual.

6.Keepbystandersasafe distancefromthebattery.

7.Weareyeprotection; explosivegasescan causeblindnessandother injuries

8.Batteryacidcancause blindnessorsevereburns.

withwaterandgetmedical helpfast.

10.Containslead;donot discard.

Page 10

109-8965

1.Warning–readtheOperator’sManual.

2.Readtheinstructionsbeforeservicingorperformingmaintenance;applyparkingbrake,removetheignitionkeyanddisconnect thesparkplugwire.

3.Thrownobjecthazard—keepbystandersasafedistancefromthemachine,pickupdebrisbeforeoperating,keepthedischarge deectorinplace.

4.Lossoftraction/controlhazard,slopes–lossoftraction/controlonslope,disengagethebladecontrolswitch(PTO),proceed offtheslopeslowly.

5.Tippinghazard–avoidsuddenandsharpturnswhileonslopes,onlymowacrossslopeslessthan15degrees,keepasafe distancefromwater,andonlymowupanddownslopeslessthan15degrees.

6.Cutting/dismembermenthazardofhandorfoot,mowerblade–stayawayfrommovingparts.

7.Crushing/dismembermenthazardofbystanders,reversing–DoNotcarrypassengers,lookbehindanddownwhenreversing.

115-9630

1.ReadtheOperator’sManualbeforeperformingany maintenance.

2.Checktheengineoilevery8hours5.Checkthecasterwheeltirepressureevery25hours

3.Checkthedrivewheeltirepressureevery25hours

4.Checkthehydraulicoilevery25hours

6.Lubricatethecasterwheelevery25hours

Page 11

1.Fuel2.Full

115-9628

3.Half

4.Empty

115-9629

3.Half

4.Empty

Page 12

ProductOverview

G010001

G010009

Figure3

1.Motioncontrollevers4.Fuelgauge7.Anti-scalproller

2.Operatorseat

3.Parkingbrake6.Frontcasterwheel

5.Footrest

8.Deector

9.Footpedaldeckliftand height-of-cut

10.Controlpanel

Figure4

1.Gastankcap

2.MowerDeck4.Drivewheel6.Engine

3.Washoutport5.Engineguard

Page 13

Controls

G009918

G010016

G010077

Becomefamiliarwithallthecontrolsbeforeyoustart theengineandoperatethemachine(Figure5).

Figure5

1.Throttleandchokecontrol

2.Hourmeter5.Fuses

3.Ignitionswitch

IgnitionSwitch

4.Bladecontrolswitch(PTO)

Figure6

1.Fuelgaugewindow

Theignitionswitchhasthreepositions:Start,Run andOff.ThekeywillturntoStartandmovebackto Runuponrelease.TurningthekeytotheOffposition willstoptheengine;however,alwaysremovethekey whenleavingthemachinetopreventtheenginefrom accidentallystarting(Figure5).

Throttle/ChokeControl

Thethrottleandchokeiscombinedintoonecontrol lever.ThethrottlecontrolisvariablebetweenFastand

Slow.Engagethechokebymovingtheleverpastthe Fastsettinguntilitstops(Figure5).

BladeControlSwitch(PowerTake-Off)

Thebladecontrolswitch,representedbyapower take-off(PTO)symbol,engagesanddisengagespower tothemowerblades(Figure5).

HourMeter

Thehourmeterrecordsthenumberofhourstheblades haveoperated.Itoperateswhenthebladecontrol switch(PTO)isengaged.Usethesetimesforscheduling regularmaintenance(Figure5).

FuelGauge

Thefuelwindowlocatedbelowtheoperatorposition canbeusedtoverifythelevelofgasolineinthetank (Figure6).

MotionControlLevers

Themotioncontrolleversarespeedsensitivecontrols ofindependentwheelmotors.Movingaleverforward orbackwardturnsthewheelonthesamesideforward orinreverse;wheelspeedisproportionaltotheamount theleverismoved.Movethecontrolleversoutward fromthecentertotheneutrallockpositionandexitthe machine(Figure3).Alwayspositionthemotioncontrol leversintotheneutrallockpositionwhenyoustopthe machineorleaveitunattended.

NeutralLockPosition

Theneutrallockpositionisusedwiththesafetyinterlock systemtoengageanddisengagethemowerbladesand todetermineneutralposition.

FootPedalDeckLiftSystem

Thefootpedaldeckliftsystemallowstheoperator tolowerandraisethedeckfromtheseatedposition. Theoperatorcanusethefootpedaltoliftthedeck brieytoavoidobstaclesorlockthedeckinthehighest height-of-cutortransportposition(Figure3).

Height-of-CutLever

Theheight-of-cutleverworkswiththefootpedalto lockthedeckinaspeciccuttingheight.Onlyadjustthe heightofcutwhilemachineisnotmoving(Figure3).

Page 14

Attachments/Accessories

AselectionofToroapprovedattachmentsand accessoriesareavailableforusewiththemachineto enhanceandexpanditscapabilities.Contactyour AuthorizedServiceDealerorDistributororgoto www.Toro.comforalistofallapprovedattachments andaccessories.

Operation

Note:Determinetheleftandrightsidesofthe

machinefromthenormaloperatingposition.

ThinkSafetyFirst

Pleasecarefullyreadallofthesafetyinstructionsand decalsinthesafetysection.Knowingthisinformation couldhelpyou,yourfamily,petsorbystandersavoid injury.

Mowingonwetgrassorsteepslopescancause slidingandlossofcontrol.

Wheelsdroppingoveredgescancauserollovers, whichmayresultinseriousinjury,deathor drowning.

Alossoftractionisalossofsteeringcontrol.

Toavoidlossofcontrolandpossibilityof rollover:

•Donotmowneardrop-offsornearwater.

•Donotmowslopesgreaterthan15degrees.

•Reducespeedanduseextremecautionon slopes.

•Whenmowingslopes,graduallyworkfrom lowertohigherareasontheincline.

•Avoidsuddenturnsorrapidspeedchanges.

•Turnup,intoaninclinewhenchanging directionsonslopes.Turningdownthe slopereducestraction.

•Attachmentschangethehandling characteristicsofthemachine.Useextra cautionwhenusingattachmentswiththe machine.

Page 15

Figure7

1.SafeZone-usethemachinehere

2.Usewalkbehindmowerand/orhandtrimmerneardrop-offs andwater.

3.Water

AddingFuel

Useunleadedregulargasolinesuitableforautomotive use(85pumpoctaneminimum).Leadedregular gasolinemaybeusedifunleadedregularisnotavailable.

Important:Neverusemethanol,gasoline containingmethanol,orgasoholcontainingmore than10%ethanolbecausethefuelsystemcouldbe damaged.Donotmixoilwithgasoline.

Incertainconditions,gasolineisextremely ammableandhighlyexplosive.Areor explosionfromgasolinecanburnyouand othersandcandamageproperty.

•Fillthefueltankoutdoors,inanopenarea, whentheengineiscold.Wipeupany gasolinethatspills.

•Neverllthefueltankinsideanenclosed trailer.

•Donotllthefueltankcompletelyfull.Add gasolinetothefueltankuntilthelevelis1/4 to1/2inch(6to13mm)belowthebottomof thellerneck.Thisemptyspaceinthetank allowsgasolinetoexpand.

•Neversmokewhenhandlinggasoline,and stayawayfromanopenameorwhere gasolinefumesmaybeignitedbyaspark.

•Storegasolineinanapprovedcontainerand keepitoutofthereachofchildren.Never buymorethana30-daysupplyofgasoline.

•Donotoperatewithoutentireexhaust systeminplaceandinproperworking condition.

Page 16

Important:Donotusefueladditivescontaining

G010016

G010077

methanolorethanol.

Incertainconditionsduringfueling,static electricitycanbereleasedcausingaspark whichcanignitethegasolinevapors.Are orexplosionfromgasolinecanburnyouand othersandcandamageproperty.

•Alwaysplacegasolinecontainersonthe groundawayfromyourvehiclebeforelling.

•Donotllgasolinecontainersinsidea vehicleoronatruckortrailerbedbecause interiorcarpetsorplastictruckbedliners mayinsulatethecontainerandslowtheloss ofanystaticcharge.

•Whenpractical,removegas-powered equipmentfromthetruckortrailerand refueltheequipmentwithitswheelsonthe ground.

•Ifthisisnotpossible,thenrefuelsuch equipmentonatruckortrailerfroma portablecontainer,ratherthanfroma gasolinedispensernozzle.

Addthecorrectamountofgasstabilizer/conditioner tothegas.

Note:Afuelstabilizer/conditionerismosteffective whenmixedwithfreshgasoline.Tominimizethe chanceofvarnishdepositsinthefuelsystem,usefuel stabilizeratalltimes.

Gasoline/Alcoholblends

Gasohol(upto10percentethylalcohol,90percent unleadedgasolinebyvolume)isapprovedforfueluse bytheenginemanufacturer.Othergasoline/alcohol blends,suchasE85,arenotapproved.

Gasoline/Etherblends

MethylTertiaryButylEther(MTBE)andunleaded gasolineblends(uptoamaximumof15percentMTBE byvolume)areapprovedforfuelusebytheengine manufacturer.Othergasoline/etherblendsarenot approved.

•Ifagasolinedispensernozzlemustbeused, keepthenozzleincontactwiththerimof thefueltankorcontaineropeningatall timesuntilfuelingiscomplete.

Gasolineisharmfulorfatalifswallowed. Long-termexposuretovaporscancauseserious injuryandillness.

•Avoidprolongedbreathingofvapors.

•Keepfaceawayfromnozzleandgastankor conditioneropening.

•Keepgasawayfromeyesandskin.

UsingStabilizer/Conditioner

Useafuelstabilizer/conditionerinthemachineto providethefollowingbenets:

FuelGauge

Usethefuelwindowbelowtheoperatortoverifythe levelofgasolinebeforellingthetank(Figure8).

•Keepsgasolinefreshduringstorageof90daysor less.Forlongerstorageitisrecommendedthatthe fueltankbedrained.

•Cleanstheenginewhileitruns

•Eliminatesgum-likevarnishbuildupinthefuel system,whichcauseshardstarting

Figure8

1.Fuelgaugewindow

Page 17

FillingtheFuelTank

G010016

G010475

G010078

G010079

G010289

Note:Donotllthefueltankcompletelyfull,thiswill allowgasolinetoexpand.

1.Shuttheengineoffandsettheparkingbrake.

2.Cleanaroundthefueltankcap.

3.Fillthefueltanktothebottomoftheller neckFigure9.

SettingtheParkingBrake

Figure10

ReleasingtheParkingBrake

Figure9

CheckingtheEngineOilLevel

Beforeyoustarttheengineandusethemachine,check theoillevelintheenginecrankcase;refertoChecking theEngineOilLevel.

OperatingtheParkingBrake

Alwayssettheparkingbrakewhenyoustopthe machineorleaveitunattended.

Figure11

OperatingtheThrottle

ThethrottlecontrolcanbemovedbetweenFastand Slowpositions(Figure12).

Alwaysusethefastpositionwhenturningonthe mowerdeckwiththebladecontrolswitch(PTO).

Figure12

OperatingtheChoke

Iftheengineiscold,usethechoketostarttheengine.

Engagethechokebymovingthethrottleleverpastthe Fastsettinguntilitstops(Figure13).

Page 18

G010288

Figure13

START

RUN

STOP

G008947

G010080

Movethethrottleleverbacktodisengagethechoke aftertheenginehasstarted.

OperatingtheIgnitionSwitch

1.TurntheignitionkeytotheStartposition (Figure14).Whentheenginesstarts,releasethekey.

Important:Donotengagestarterformore than5secondsatatime.Iftheenginefails tostartallowa15secondcool-downperiod betweenattempts.Failuretofollowthese instructionscanburnoutthestartermotor.

3.Settheparkingbrake(Figure15);refertoSetting theParkingBrake.

4.Movethebladecontrolswitch(PTO)totheOff position(Figure15).

5.MovethethrottlelevertoChokebeforestarting acoldengine.

Note:Awarmorhotenginemaynotrequire choking.

Note:Additionalstartingcyclesmayberequired whenstartingtheengineforthersttimeafterthe fuelsystemhasbeenwithoutfuelcompletely.

Figure14

2.Turntheignitionkeytostoptostoptheengine.

StartingandStoppingthe Engine

Figure15

6.TurntheignitionkeytotheStartposition (Figure14).Whentheenginesstarts,releasethekey.

Important:Donotengagestarterformore than5secondsatatime.Iftheenginefails tostartallowa15secondcool-downperiod betweenattempts.Failuretofollowthese instructionscanburnoutthestartermotor.

Note:Additionalstartingcyclesmayberequired whenstartingtheengineforthersttimeafterthe fuelsystemhasbeenwithoutfuelcompletely.

StartingtheEngine

1.Sitdownontheseat(Figure15).

2.Movethemotioncontrolsoutwardtotheneutral lockposition(Figure15).

Page 19

START

RUN

STOP

G008947

ART

RUN

G010081

OperatingtheMowerBlade

G008945

G009174

ControlSwitch(PTO)

Thebladecontrolswitch(PTO)startsandstopsthe mowerbladesandanypoweredattachments.

EngagingtheBladeControlSwitch (PTO)

Figure16

1.Off3.Start

2.Run

StoppingtheEngine

Childrenorbystandersmaybeinjuredifthey moveorattempttooperatethetractorwhileit isunattended.

Alwaysremovetheignitionkeyandsetthe parkingbrakewhenleavingthemachine unattended,evenifjustforafewminutes.

Note:Engagingthebladecontrolswitch(PTO)with thethrottlepositionathalforlesswillcauseexcessive weartothedrivebelts.

Figure18

DisengagingtheBladeControlSwitch (PTO)

Figure17

Figure19

TheSafetyInterlockSystem

Ifsafetyinterlockswitchesaredisconnected ordamagedthemachinecouldoperate unexpectedlycausingpersonalinjury.

•Donottamperwiththeinterlockswitches.

•Checktheoperationoftheinterlock switchesdailyandreplaceanydamaged switchesbeforeoperatingthemachine.

Page 20

UnderstandingtheSafetyInterlock System

Thesafetyinterlocksystemisdesignedtopreventthe enginefromstartingunless:

•Theparkingbrakeisengaged.

•Thebladesaredisengaged.

•Themotioncontrolleversareintheneutrallock position.

Machinecanspinveryrapidly.Operatormay losecontrolofmachineandcausepersonal injuryordamagetomachine.

•Usecautionwhenmakingturns.

•Slowthemachinedownbeforemaking sharpturns.

Thesafetyinterlocksystemalsoisdesignedtostopthe enginewhenthecontrolleversareoutoftheneutral lockpositionwiththeparkingbrakeonorifyourise fromtheseatwhenthebladesareengaged.

TestingtheSafetyInterlockSystem

Testthesafetyinterlocksystembeforeyouusethe machineeachtime.Ifthesafetysystemdoesnot operateasdescribedbelow,haveanAuthorizedService Dealerrepairthesafetysystemimmediately .

1.Whilesittingontheseat,engagetheparkingbrake andmovethebladecontrolswitchtoOn.Try startingtheengine;theengineshouldnotcrank.

2.Whilesittingontheseat,engagetheparkingbrake andmovethebladecontrolswitchtoOff.Move eithermotioncontrollever(forwardorreverse). Trystartingtheengine;theengineshouldnotcrank. Repeatwiththeothermotioncontrollever.

3.Whilesittingontheseat,engagetheparkingbrake, movethebladecontrolswitchtoOff,andlockthe motioncontrolleversinneutral.Starttheengine. Whiletheengineisrunning,releasetheparking brake,engagethebladecontrolswitch,andrise slightlyfromtheseat;theengineshouldstop.

4.Whilesittingontheseat,engagetheparkingbrake, movethebladecontrolswitchtoOff,andlockthe motioncontrolleversinneutral.Starttheengine. Whiletheengineisrunning,centerthemotion controlsandmove(forwardorreverse);theengine shouldstop.

DrivingForwardorBackward

Thethrottlecontrolregulatestheenginespeedas measuredinrpm(revolutionsperminute).Place thethrottlecontrolinthefastpositionforbest performance.Alwaysoperateinthefullthrottle positionwhenmowing.

UsingtheMotionControlLevers

Figure20

1.Motioncontrol lever-neutrallockposition

2.Center,unlockedposition

3.Forward

4.Backward

DrivingForward

Note:Theenginewillkillifthetractioncontrollevers

aremovedwiththeparkingbrakeengaged.

1.Releasetheparkingbrake;refertoReleasingthe ParkingBrakeinOperation.

2.Movetheleverstothecenter,unlockedposition.

3.Togoforward,slowlypushthemotioncontrol leversforward(Figure21).

Page 21

G008952

Figure21

G008953

StoppingtheMachine

Tostopthemachine,movethetractioncontrollevers toneutralandmovetolockedposition,disengagethe bladecontrolswitch(PTO),andturntheignitionkey tooff.

Settheparkingbrakewhenyouleavethemachine;refer toSettingtheParkingBrake.Remembertoremovethe keyfromtheignitionswitch.

Childrenorbystandersmaybeinjuredifthey moveorattempttooperatethetractorwhileit isunattended.

Alwaysremovetheignitionkeyandsetthe parkingbrakewhenleavingthemachine unattended,evenifjustforafewminutes.

AdjustingtheHeightofCut

DrivingBackward

1.Movetheleverstothecenter,unlockedposition.

2.Togobackward,slowlypullthemotioncontrol leversrearward(Figure22).

Themachineisequippedwithafootpedaldecklift system.Theoperatorcanusethefootpedaltolift thedeckbrieytoavoidobstaclesorlockthedeckin thehighestheight-of-cutortransportposition.The operatorcanusetheheightofcutleverwiththefoot pedaltolockthedeckinaspeciccuttingheight.

UsingtheFootPedalDeckLiftSystem

Pressthepedaldowntoraisethedeck;continueto pressthepedaluntilthedeckislockedinthetransport positionFigure23.Pushonthedeckliftpedalwith yourfootandraisetheheight-of-cutleverslightlyto disengagethetransportlock.

Figure22

Page 22

G010016

G010219

G010236

1.Deckliftpedal

2.Cutheightpin

3.Height-of-cutpositions

UsingtheLockPositions

Figure24

4.Lockposition.lowest height-of-cut(useonlyfor deckremoval)

5.Lockposition.transport position

Figure23

TransportLockPosition

Thedeckcanbelockedinthehighestheight-of-cutor transportpositionorthelowestheight-of-cutposition.

1.Pushonthedeckliftpedalwithyourfootandraise themowerdecktothetransportposition(also the4.5inch(114mm)cuttingheightposition)

AdjustingtheHeight-of-Cut

(Figure24).

2.Removethepinfromtheheight-of-cutbracket

Theheight-of-cutcanbeadjustedfrom1-1/2to

(Figure24).

4-1/2inch(38to114mm)in1/4inch(6mm) incrementsbyrelocatingtheclevispinintodifferent holelocations.

1.Pushonthedeckliftpedalwithyourfootandraise themowerdecktothetransportposition(also the4-1/2inch(114mm)cuttingheightposition) (Figure24).

2.Toadjust,removethepinfromtheheight-of-cut bracket(Figure24).

3.Selectaholeintheheight-of-cutsystem correspondingtotheheight-of-cutdesiredand, insertthepin(Figure24).

4.Pushonthedeckliftpedalwithyourfootandraise theheight-of-cutleverslightlytodisengagethe transportlock.Lowerthedeckslowlyuntilthepin makescontactwiththelever.

3.Selectaholeonthelockdecalandinsertthepin (Figure24).

4.Pushonthedeckliftpedalwithyourfootandraise theheight-of-cutleverslightlytodisengagethe transportlock.Lowerthedecktoslowlyuntilthe pinmakescontactwiththelever.

AdjustingtheAnti-Scalp Rollers

Wheneveryouchangetheheight-of-cut,itis recommendedtoadjusttheheightoftheanti-scalp rollers.

1.Disengagethebladecontrolswitch(PTO),move themotioncontrolleverstotheneutrallock positionandsettheparkingbrake.

2.Stoptheengine,removethekey,andwaitforall movingpartstostopbeforeleavingtheoperating position.

Page 23

G010233

Figure25

G010016

G010232

G010484

1.Anti-scalproller3.FlangeNut

2.Bolt4.Holespacing

PositioningtheSeat

Theseatcanmoveforwardandbackward.Positionthe seatwhereyouhavethebestcontrolofthemachine andaremostcomfortable.

Whilesittingintheoperator’ sposition,raisetheseat adjustmentleverslightlyandmovetheseatforwardor backwardtothedesiredposition(Figure26).

ChangingtheSeatRide Suspension

Thenumberofseatspringscanbechangedto maximizeridercomfort.Morespringsshouldbeused withheavieroperatorsandonroughterrain.Fewer springsshouldbeusedwithlighteroperatorsandwhen mowingsmooth,wellestablishedlawns.Alwayskeep thenumberofspringsontheleftandrightsidethe samewhenaddingandremovingsprings.

1.Adjustmentlever

Figure27

1.Bolt3.Nut

2.Spring

4.Additionalmountingholes

Uptovespringscanbesecuredtotheseatsupport withanutandbolt,seeFigure27.

RefertoyourPartsManualforspringandhardware partnumbers.

AdjustingtheMotionControl Levers

AdjustingtheHeight

Figure26

Themotioncontrolleverscanbeadjustedhigheror lowerformaximumoperatorcomfort.

1.Removethe2boltsholdingthecontrollevertothe controlarmshaft(Figure28).

2.Movethecontrollevertothenextsetofholes. Securetheleverwiththe2bolts(Figure28).

Note:Thecontrolleverscanalsobeinstalledon theoutsideofthecontrolarmshafts.

Page 24

G010229

Figure28

G010337

G010230

1.Controlarmshaft3.Slotted,upperhole

2.Controllever

4.Bolt

3.Repeattheadjustmentfortheoppositecontrol lever.

PushingtheMachinebyHand

Important:Alwayspushthemachinebyhand.

Nevertowthemachinebecausedamagemay occur.

ToPushtheMachine

1.Parkthemachineonalevelsurfaceanddisengage thebladecontrolswitch.

2.Movethemotioncontrolleversoutwardtoneutral lockposition,stoptheengine,removethekey,and waitforallmovingpartstostopbeforeleavingthe operatingposition.

3.Locatethebypassleversattherearofthemachine, ontheleftandrightsideoftheframe.

4.Movethebypassleversrearwardandthendown tolocktheminplaceasshowninFigure30to disengagethewheelmotors.Repeatthisoneach sideofthemachine.

5.Movethemotioncontrolleversinwardtothe neutralposition.

AdjustingtheTilt

Themotioncontrolleverscanbetiltedforeoraftfor maximumoperatorcomfort.

1.Loosentheupperboltholdingthecontrolleverto thecontrolarmshaft.

2.Loosenthelowerboltjustenoughtopivotthe controlleverforeoraft(Figure28).Tightenboth boltstosecurethecontrolinthenewposition.

3.Repeattheadjustmentfortheoppositecontrol lever.

Themachineisnowabletobepushedbyhand.

Figure29

1.Bypassleverdecal

2.Leverpositionfor operatingthemachine

Figure30

3.Leverpositionforpushing themachine

Page 25

ToOperatetheMachine

Movethebypasstothepositionforpushingthe machine(Figure30)toengagethewheelmotors.

thansixinchestall,youmaywanttocutthelawntwice toensureanacceptablequalityofcut.

Cut1/3oftheGrassBlade

UsingtheSideDischarge

Themowerhasahingedgrassdeectorthatdisperses clippingstothesideanddowntowardtheturf.

Withoutagrassdeector,dischargecover,or completegrasscatcherassemblymountedin place,youandothersareexposedtoblade contactandthrowndebris.Contactwith rotatingmowerblade(s)andthrowndebriswill causeinjuryordeath.

•Neverremovethegrassdeectorfrom themowerbecausethegrassdeector routesmaterialdowntowardtheturf.Ifthe grassdeectoriseverdamaged,replaceit immediately.

•Neverputyourhandsorfeetunderthe mower.

•Nevertrytoclearthedischargeareaor mowerbladesunlessyoumovetheblade controlswitch(PTO)totheoffposition, rotatetheignitionkeytooffandremovethe key.

Itisbesttocutonlyabout1/3ofthegrassblade. Cuttingmorethanthatisnotrecommendedunless grassissparse,oritislatefallwhengrassgrowsmore slowly.

MowingDirection

Alternatemowingdirectiontokeepthegrassstanding straight.Thisalsohelpsdisperseclippingswhich enhancesdecompositionandfertilization.

MowatCorrectIntervals

Normally,moweveryfourdays.Butremember, grassgrowsatdifferentratesatdifferenttimes.So tomaintainthesamecuttingheight,whichisagood practice,mowmoreofteninearlyspring.Asthegrass growthrateslowsinmidsummer,mowlessfrequently. Ifyoucannotmowforanextendedperiod,rstmow atahighcuttingheight;thenmowagaintwodayslater atalowerheightsetting.

CuttingSpeed

Toimprovecutquality,useaslowergroundspeedin certainconditions.

•Makesurethegrassdeectorisinthedown position.

OperatingTips

FastThrottleSetting

Forbestmowingandmaximumaircirculation,operate theengineatthefastthrottleposition.Airisrequired tothoroughlycutgrassclippings,sodonotsetthe height-of-cutsolowastototallysurroundthemower byuncutgrass.Alwaystrytohaveonesideofthe mowerfreefromuncutgrass,whichallowsairtobe drawnintothemower.

CuttingaLawnfortheFirstTime

Cutgrassslightlylongerthannormaltoensurethe cuttingheightofthemowerdoesnotscalpanyuneven ground.However,thecuttingheightusedinthepastis generallythebestonetouse.Whencuttinggrasslonger

AvoidCuttingTooLow

Ifthecuttingwidthofthemoweriswiderthanthe moweryoupreviouslyused,raisethecuttingheightto ensurethatuneventurfisnotcuttooshort.

LongGrass

Ifthegrassiseverallowedtogrowslightlylongerthan normal,orifitcontainsahighdegreeofmoisture,raise thecuttingheighthigherthanusualandcutthegrassat thissetting.Thencutthegrassagainusingthelower, normalsetting.

WhenStopping

Ifthemachine’sforwardmotionmustbestoppedwhile mowing,aclumpofgrassclippingsmaydropontoyour lawn.T oavoidthis,moveontoapreviouslycutarea withthebladesengaged.

Page 26

KeeptheUndersideoftheMower Clean

Cleanclippingsanddirtfromtheundersideofthe moweraftereachuse.Ifgrassanddirtbuildupinside themower,cuttingqualitywilleventuallybecome unsatisfactory.

BladeMaintenance

Maintainasharpbladethroughoutthecuttingseason becauseasharpbladecutscleanlywithouttearingor shreddingthegrassblades.Tearingandshreddingturns grassbrownattheedges,whichslowsgrowthand increasesthechanceofdisease.Checkthecutterblades dailyforsharpness,andforanywearordamage.File downanynicksandsharpenthebladesasnecessary.If abladeisdamagedorworn,replaceitimmediatelywith agenuineTOROreplacementblade.

Page 27

Maintenance

RecommendedMaintenanceSchedule(s)

MaintenanceService

Interval

Aftertherst8hours

Aftertherst50hours

Beforeeachuseordaily

Every25hours

Every50hours

Every100hours

Every200hours

MaintenanceProcedure

•Changetheengineoil.

•Changethehydraulicsystemlterandoil.

•Checkthesafetyinterlocksystem.

•Checktheaircleanerfordirty ,looseordamagedparts.

•Checktheengineoillevel.

•Checkairintakeandcoolingareas,cleanasnecessary.

•Checkthemowerblades.

•Inspectthegrassdeectorfordamage

•Cleanthemowerhousing.

•Greasealllubricationpoints.

•Servicethefoamelement.(moreoftenunderdusty ,dirtyconditions)

•Checktirepressure.

•Checkthehydraulicoillevelintheexpansiontank.

•Servicethepaperelement.(moreoftenunderdusty ,dirtyconditions)

•Inspectthebeltsforcracksandwear .

•Replacethepaperelement.(moreoftenunderdusty ,dirtyconditions)

•Changetheengineoil.(moreoftenunderdusty,dirtyconditions)

•Cleantheblowerhousing(moreoftenunderdusty,dirtyconditions).

•Changetheengineoillter.

•Checksparkplug(s)conditionandgap.

Every400hours

Every500hours

Monthly

Yearlyorbeforestorage

•Changethehydraulicsystemlterandoil.

•Replacethesparkplug(s).

•Replacethefuellters(moreoftenunderdusty,dirtyconditions).

•Checkthebatterycharge.

•Paintchippedsurfaces.

•Checkallmaintenanceprocedureslistedabovebeforestorage.

Important:Refertoyourengineoperator’smanualforadditionalmaintenanceprocedures.

Ifyouleavethekeyintheignitionswitch,someonecouldaccidentlystarttheengineandseriously injureyouorotherbystanders.

Removethekeyfromtheignitionbeforeyoudoanymaintenance.

Page 28

Figure31

Locatedontheseatpanunderside

1.ReadtheOperator’sManualbeforeperformingany maintenance.

2.Checktheengineoilevery8hours5.Checkthecasterwheeltirepressureevery25hours

3.Checkthedrivewheeltirepressureevery25hours

4.Checkthehydraulicoilevery25hours

6.Lubricatethecasterwheelevery25hours

Page 29

Premaintenance

G009804

G009949

Lubrication

Procedures

GreasingtheBearings

RaisingtheSeat

Makesurethemotioncontrolleversarelockedinthe neutrallockposition.Lifttheseatforward.

Thefollowingcomponentscanbeaccessedbyraising theseat:

•Servicedecal

•Fuses

•Batteryandcables

RemovingtheFloorPan

ServiceInterval:Every25hours—Greaseall

lubricationpoints.

GreaseType:No.2GeneralPurposeLithiumBase Grease

1.Parkthemachineonalevelsurfaceanddisengage thebladecontrolswitch.

2.Movethemotioncontrolleversoutwardtothe neutrallockposition,stoptheengine,removethe key,andwaitforallmovingpartstostopbefore leavingtheoperatingposition.

3.Cleanthegreasettings(Figure33andFigure31) witharag.Makesuretoscrapeanypaintoffofthe frontofthetting(s).

Figure32

1.Screw

2.Floorpan

1.Frontcastertire

4.Connectagreaseguntoeachtting(Figure33and Figure31).Pumpgreaseintothettingsuntilgrease beginstooozeoutofthebearings.

5.Wipeupanyexcessgrease.

Figure33

Page 30

EngineMaintenance

G010338

Contactwithhotsurfacesmaycausepersonal injury.

Keephands,feet,face,clothingandotherbody partsawaythemuferandotherhotsurfaces.

ServicingtheAirCleaner

ServiceInterval:Beforeeachuseordaily—Checkthe

aircleanerfordirty,looseordamaged parts.

Every25hours/Yearly(whichever comesrst)—Servicethefoam element.(moreoftenunderdusty, dirtyconditions)

Every50hours—Servicethepaper element.(moreoftenunderdusty, dirtyconditions)

Every100hours/Y early(whichever comesrst)—Replacethepaper element.(moreoftenunderdusty, dirtyconditions)

Thisengineisequippedwithareplaceable,highdensity paperaircleanerelement.Checktheaircleanerdailyor beforestartingtheengine.Checkforabuildupofdirt anddebrisaroundtheaircleanersystem.Keepthisarea clean.Alsocheckforlooseordamagedcomponents. Replaceallbentordamagedaircleanercomponents.

Note:Operatingtheenginewithlooseordamagedair cleanercomponentscouldallowunlteredairintothe enginecausingprematurewearandfailure.

Note:Servicetheaircleanermoreoftenunder extremelydusty,dirtyconditions.

Figure34

1.Aircleanercover4.Aircleanerbase

2.Aircleanerlatch5.Foamelement

3.Aircleaner6.Paperelement

ServicingFoamElement

Checkthefoamelementevery25hoursofoperation (moreoftenunderextremelydustyordirtyconditions). Cleanorreplacetheelementasnecessary.

Replacetheaircleanerelementyearly ,orevery100 hours.

1.Opentheaircleanercoverdoorontheblower housingtoaccesstheaircleanerelement(Figure34).

2.Unhookthelatchandremovetheaircleaner (Figure34).

3.Washthefoamelementinwarmwaterwith detergent.Rinsetheelementthoroughlyuntilall tracesofdetergentareeliminated.Squeezeout excesswater(donotwring)andallowthefoam elementtoairdry.

4.Saturatethefoamelementwithnewengineoil. Squeezeoutallexcessoil.

5.Reinstallthefoamelementoverthepaperaircleaner element.

6.Cleantheaircleanerbaseasrequiredandcheck condition.

7.Installtheaircleanerontotheaircleanerbase. Securewiththelatch.

8.Closetheaircleanercoverdoor.

ServicingPaperElement

Checkthepaperelementevery50hoursofoperation (moreoftenunderextremelydustyordirtyconditions). Cleanorreplacetheelementasnecessary.

Page 31

Replacetheaircleanerelementyearly ,orevery100

hours.

1.Opentheaircleanercoverdoorontheblower housingtoaccesstheaircleanerelement(Figure34).

2.Unhookthelatchandremovetheair cleaner(Figure34).

3.Removethefoamelementandinspect.Cleanand replaceasnecessary.

4.Gentlytapthepaperelementtodislodgedirt.Do

notwashthepaperelementorusepressurized air,asthiswilldamagetheelement.Replaceadirty,

bent,ordamagedelement.Handlethenewelement carefully;donotuseifthesealingsurfacesarebent ordamaged.

5.Cleantheaircleanerbaseasrequiredandcheck condition.

6.Installthepaperelementontotheaircleanerbase. Securewiththelatch.

7.Closetheaircleanercoverdoor.

ServicingtheEngineOil

OilType:Detergentoil(APIserviceSG,SH,SJ,or higher)

CrankcaseCapacity:1.6-1.8qt(1.7-1.9l)whenthe lterischanged

Viscosity:Seethetablebelow .

CheckingtheEngineOilLevel

ServiceInterval:Beforeeachuseordaily

Note:Checktheoilwhentheengineiscold.

Contactwithhotsurfacesmaycausepersonal injury.

Keephands,feet,face,clothingandotherbody partsawaythemuferandotherhotsurfaces.

Important:Donotoverllthecrankcasewithoil becausedamagetotheenginemayresult.Donot runenginewithoilbelowthelowmarkbecausethe enginemaybedamaged.

1.Disengagethebladecontrolswitch(PTO),movethe motioncontrolleverstotheneutrallockedposition andsettheparkingbrake.

2.Makesuretheengineisstopped,level,andiscoolso theoilhashadtimetodrainintothesump.

3.Tokeepdirt,grassclippings,etc.,outoftheengine, cleantheareaaroundtheoilllcap/dipstickbefore removingit.

4.Removethedipstickandwipetheoiloff.

Note:Checkthestyleofoildipstickfortheengine. Dipstickswiththreadedcapsareuseddifferently whencheckingtheoillevelthandipsticksthatare seatedbypushingthemintoplace.

5.Reinsertthedipstickintothetubetochecktheoil level:

•Threadeddipstickcaps:restthecaponthe tube.Turnitcouterclockwiseuntiltheoildipstick dropsdowntothelowestpointofthethread leads.Donotscrewthecapontothetube.

•Unthreadeddipstickcaps:reinsertthedipstick

Figure35

andpushrmlyintoplace.

6.Removethedipstickoutandchecktheoillevel.

Theoillevelshouldbeupto,butnotover,the

Important:UseotherthanserviceclassSG,SH,SJ,

“FULL”or“F”markonthedipstick

orhigheroilorextendingoilchangeintervalslonger thanrecommendedcancauseenginedamage.

7.Ifthelevelislow ,addoilofthepropertype,uptothe “FULL”or“F”markonthedipstick.Alwayscheck

Note:Syntheticoilsmeetingthelistedclassications

thelevelwiththedipstickbeforeaddingmoreoil.

maybeusedwithoilchangesperformedatthe recommendedintervals.Howevertoallowpistonrings toproperlyseat,aneworrebuiltengineshouldbe operatedforatleast50hoursusingstandardpetroleum

Note:Topreventextensiveenginewearordamage, alwaysmaintaintheproperoillevelinthecrankcase. Neveroperatetheenginewiththeoillevelbelowthe

basedoilbeforeswitchingtosyntheticoil.

Page 32

“ADD”or“L”markorabovethe“FULL”or“F”

G009950

G010457

1 2

markonthedipstick.

8.Removedipstickandcheckoillevel.Thelevelshould bebetweenthe“FullorF”and“ AddorL”marks.If low,addoilofthepropertypeuptothefullmark. Reinstalloilllcap/dipstickandscrewtight.

ChangingtheEngineOil

ServiceInterval:Aftertherst8hours

Every100hours(moreoftenunder dusty,dirtyconditions)

Note:Disposeoftheusedoilatarecyclingcenter.

1.Starttheengineandletitrunveminutes.This warmstheoilsoitdrainsbetter.

2.Parkthemachinesothatthedrainsideisslightly lowerthantheoppositesidetoassuretheoildrains completely.

3.Disengagethebladecontrolswitch(PTO),movethe motioncontrolleverstotheneutrallockposition andsettheparkingbrake.

4.Stoptheengine,removethekey,andwaitforall movingpartstostopbeforeleavingtheoperating position(Figure36).

Figure36

Page 33

5.Slowlypourapproximately80%ofthespeciedoil

G009950

G008748

3/4

G010230

intothellertubeandslowlyaddtheadditionaloil tobringittotheFullmark.

6.Installtheoilllcap/dipstick.

7.Checktheoillevel;refertoCheckingtheOilLevel.

8.Slowlyaddadditionaloiltobringittothefullmark.

9.Installtheoilllcap/dipstick.

Note:Ensuretheoilltergaskettouchestheengine andthenanextra3/4turniscompleted.

3.Fillthecrankcasewiththepropertypeofnewoil; refertoChangingtheOil.

ServicingtheSparkPlug

ServiceInterval:Every200hours—Checkspark

plug(s)conditionandgap.

ChangingtheEngineOilFilter

ServiceInterval:Every200hours

Note:Changetheengineoilltermorefrequently whenoperatingconditionsareextremelydustyorsandy.

1.Draintheoilfromtheengine;refertoChangingthe EngineOil.

2.Changetheengineoillter(Figure37).

Every500hours—Replacethespark plug(s).

ThesparkplugisRFIcompliant.Equivalentalternate brandplugscanalsobeused.Sparkplugreplacementis recommendedat500hours.

Type:ChampionXC12YC(orequivalent)

AirGap:0.030inch(0.76mm)

RemovingtheSparkPlug

1.Disengagethebladecontrolswitch(PTO),movethe motioncontrolleverstotheneutrallockposition andsettheparkingbrake.

2.Stoptheengine,removethekey,andwaitforall movingpartstostopbeforeleavingtheoperating position.

Figure37

Figure38

CheckingtheSparkPlug

Important:Nevercleanthesparkplug(s).Always

replacethesparkplug(s)whenithas:ablack coating,wornelectrodes,anoilylm,orcracks.

Ifyouseelightbrownorgrayontheinsulator,the engineisoperatingproperly.Ablackcoatingonthe insulatorusuallymeanstheaircleanerisdirty.

Setthegapto0.030inches(0.76mm).

Page 34

G008794

InstallingtheSparkPlug

18-22ft-lb 25-29N-m

G010339

G008963

12

Figure39

FuelSystem Maintenance

ReplacingtheFuelFilter

ServiceInterval:Every500hours/Yearly(whichever

comesrst)(moreoftenunderdusty, dirtyconditions).

1.Disengagethebladecontrolswitch(PTO),movethe motioncontrolleverstotheneutrallockposition, andsettheparkingbrake.

Tightenthesparkplugto18-22ft-lb(25-29N-m).

Figure40

2.Stoptheengine,removethekey,andwaitforall movingpartstostopbeforeleavingtheoperating position.

3.Allowthemachinetocooldown.

4.Stoptheengine,removethekey,andwaitforall movingpartstostopbeforeleavingtheoperating position.

5.Squeezetheendsofthehoseclampstogetherand slidethemawayfromthelter(Figure41).

CleaningtheBlowerHousing

Toensurepropercooling,makesurethegrassscreen, coolingns,andotherexternalsurfacesoftheengine arekeptcleanatalltimes.

Annuallyorevery100hoursofoperation(moreoften underextremelydusty ,dirtyconditions),removethe blowerhousingandanyothercoolingshrouds.Clean thecoolingnsandexternalsurfacesasnecessary.Make surethecoolingshroudsarereinstalled.Torquethe blowerhousingscrewsto5.5ft-lb(7.5N-m).

Important:Operatingtheenginewithablocked grassscreen,dirtyorpluggedcoolingns,and/or coolingshroudsremoved,willcauseenginedamage duetooverheating.

Figure41

1.Fuellter

2.Hoseclamp

6.Removethelterfromthefuellines.

7.Installanewlterandmovethehoseclampsclose tothelter(Figure41).

8.Openthefuelshutoffvalve.

Note:Itisimportanttoreinstallthefuellinehosesand securewithplastictiesthesameastheywereoriginally installedatthefactorytokeepthefuellineawayfrom componentsthatcouldcausefuellinedamage.

3.Fuelline

Page 35

ElectricalSystem

G010340

G010240

Maintenance

ServicingtheBattery

ServiceInterval:Monthly

Warning

CALIFORNIA

Proposition65Warning

Batteryposts,terminals,andrelated

accessoriescontainleadandleadcompounds,

chemicalsknowntotheStateofCalifornia

tocausecancerandreproductiveharm.

Washhandsafterhandling .

Batteryelectrolytecontainssulfuricacidwhich isadeadlypoisonandcausessevereburns.

Donotdrinkelectrolyteandavoidcontactwith skin,eyesorclothing.Wearsafetyglassesto shieldyoureyesandrubberglovestoprotect yourhands.

Incorrectbatterycableroutingcoulddamage themachineandcablescausingsparks.Sparks cancausethebatterygassestoexplode, resultinginpersonalinjury.

•AlwaysDisconnectthenegative(black) batterycablebeforedisconnectingthe positive(red)cable.

•AlwaysReconnectthepositive(red)battery cablebeforereconnectingthenegative (black)cable.

1.Disengagethebladecontrolswitch(PTO),movethe motioncontrolleverstotheneutrallockposition andsettheparkingbrake.

2.Stoptheengine,removethekey,andwaitforall movingpartstostopbeforeleavingtheoperating position.

3.Removethewingnutsecuringthebatteryclamp (Figure42).

RemovingtheBattery

Batteryterminalsormetaltoolscouldshort againstmetalmachinecomponentscausing sparks.Sparkscancausethebatterygassesto explode,resultinginpersonalinjury.

•Whenremovingorinstallingthebattery ,do notallowthebatteryterminalstotouchany metalpartsofthemachine.

•Donotallowmetaltoolstoshortbetween thebatteryterminalsandmetalpartsofthe machine.

Figure42

1.Removethewingnutand clamp

2.Removethenegative batterycablebeforethe positive

4.Firstdisconnectthenegativebatterycable(black) fromthenegative(-)(black)batteryterminal (Figure42).

3.Removethepositive batterycable

4.Removebattery

Page 36

5.Slidetheredterminalbootoffthepositive(red) batteryterminalandremovethepositive(+)(red) batterycable(Figure42).

6.Removetheclamp(Figure42).

7.Removethebattery.

InstallingtheBattery

1.Positionbatteryinthetraywiththeterminalposts oppositefromthehydraulictank(Figure42).

2.First,installthepositive(red)batterycableto positive(+)batteryterminal.

3.Theninstallthenegativebatterycableandground wiretothenegative(-)batteryterminal.

4.Securethecableswith2bolts,2washers,and 2locknuts(Figure42).

1.PositiveBatteryPost

2.NegativeBatteryPost

Figure43

3.Red(+)ChargerLead

4.Black(-)ChargerLead

5.Slidetheredterminalbootontothepositive(red) batterypost.

6.Installtheclampandsecureitwiththewingnut (Figure42).

ChargingtheBattery

Chargingthebatteryproducesgassesthatcan explode.

Neversmokenearthebatteryandkeepsparks andamesawayfrombattery.

Important:Alwayskeepthebatteryfullycharged. Thisisespeciallyimportanttopreventbattery damagewhenthetemperatureisbelow32°F(0°C).

1.Chargebatteryfor10to15minutesat25to30amps or30minutesat10amps.

2.Whenthebatteryisfullycharged,unplugthecharger fromtheelectricaloutlet,thendisconnectthe chargerleadsfromthebatteryposts(Figure43).

ServicingtheFuses

Theelectricalsystemisprotectedbyfuses.Itrequires nomaintenance,however,ifafuseblowscheckthe component/circuitforamalfunctionorshort.

Fuses:

•Main,30amp,blade-type

•Engine,20amp,blade-type

1.Thefusesarelocatedonrighthandconsolenextto theseat(Figure44).

2.Toreplacethefuses,pulloutonthefusetoremove it.

3.Installanewfuse(Figure44).

3.Installthebatteryinthemachineandconnectthe batterycables,refertoInstallingtheBattery.

Note:Donotrunthemachinewiththebattery disconnected,electricaldamagemayoccur.

Page 37

G010340

1 2

G010241

Figure44

1.30amp3.Fuseblock

2.25amp

DriveSystem Maintenance

CheckingtheTirePressure

ServiceInterval:Every25hours—Checktirepressure.

Maintaintheairpressureinthefrontandreartiresas specied.Uneventirepressurecancauseunevencut. Checkthepressureatthevalvestem(Figure45).Check thetireswhentheyarecoldtogetthemostaccurate pressurereading.

RearTires:13psi(90kPa)

FrontTires(casterwheels):35psi(241kPa)

Figure45

1.Valvestem

Page 38

HydraulicSystem

G010253

G010254

Maintenance

OilType:20w-50engineoil.

Important:Useoilspeciedorequivalent.Other uidscouldcausesystemdamage.

CheckingtheHydraulicOil Level

ServiceInterval:Every25hours

Checkexpansionreservoirandifnecessaryadd20W-50 engineoiltotheFULLCOLDline

2.Locatethelterandguardsoneachtransaxledrive system(Figure47).Removethreescrewssecuring thelterguardandguard.

Figure47

Rightsideshown

Figure46

1.Expansionreservoir3.Engine

2.FullColdline

ChangingtheHydraulic SystemFilterandOil

Thelterandoilarechangedatthesametime.DoNot reuseoil.Oncethenewlterisinstalledandoilisadded anyairinthesystemmustbepurged.

Thebleedingprocessisrepeateduntiltheoilremains attheFULLCOLDlineinthereservoirafterpurging.

Failuretoproperlyperformthisprocedurecan resultinirreparabledamagetothetransaxledrive system.

1.Transaxledrive

2.Oillter

3.Filterguard

3.Carefullycleanareaaroundlters.Itisimportant thatnodirtorcontaminationenterhydraulicsystem.

4.Locateandremovetheventplugoneach transmission

5.Placeacontainerbelowtheltertocatchtheoilthat drainswhenthelterisremoved.Unscrewthelter toremoveandallowoiltodrainfromdrivesystem.

Repeatthisprocedureforbothlters.

4.Screws

5.Ventplug

InstallingtheHydraulicSystemFilters

ServiceInterval:Aftertherst50hours

Every400hours

RemovingHydraulicSystemFilters

1.Stopengine,waitforallmovingpartstostop,and allowenginetocool.Removethekeyandengage theparkingbrake.

Page 39

G008748

3/4

G010333

Figure49

1.Jackingpoints

2.Startengineandmovethrottlecontrolaheadto1/2 throttleposition.Disengageparkingbrake.

A.Movethebypassleversintothepushingthe

machineposition;refertothePushingthe MachinebyHandsectioninOperation.With thebypassvalvesopenandtheenginerunning, slowlymovethemotioncontrolleversinboth forwardandreverse(5or6times).

Figure48

1.Applyathincoatofoilonthesurfaceoftherubber sealofeachlter.

2.Turnthelterclockwiseuntilrubbersealcontacts thelteradapterthentightenthelteranadditional 3/4to1fullturn.Repeatfortheotherlter

3.Installthelterguardsovereachlteraspreviously removed.Usethethreescrewstosecurethelter guards.

4.Slowlypourthespeciedoilthroughexpansion reservoiruntiloilcomesoutofventplugholes.Stop andinstalltheventplugs.Torqueplugsto180in-lb (20.3N-m).

5.ContinuetoaddoiluntilitreachestheFULLCOLD lineontheexpansionreservoir.Proceedtothe BleedingtheHydraulicSystemsection.

Important:Failuretoperformthe

the Hy draulic System

hydraulicltersandoilcanresultinirreparable damagetothetransaxledrivesystem.

procedureafterchanging

BleedingtheHydraulicSystem

B.Movethebypassleversintotheoperating

themachineposition.Withthebypassvalve closedandtheenginerunning,slowlymovethe directionalcontrolinbothforwardandreverse directions(5to6times).

C.Stoptheengineandchecktheoillevelinthe

expansionreservoir.Addthespeciedoilas untilitreachestheFULLCOLDlineonthe expansionreservoir.

3.Repeatstep2untilalltheairiscompletelypurged fromthesystem.

Whenthetransaxleoperatesatnormalnoiselevels andmovessmoothlyforwardandreverseatnormal speeds,thenthetransaxleisconsideredpurged.

4.Checktheoillevelintheexpansionreservoirone lasttime.Addthespeciedoilasuntilitreaches theFULLCOLDlineontheexpansionreservoir ifnecessary.

Bleeding

1.Raisetherearofmachineupandsupportwithjack stands(orequivalentsupport)justhighenoughto allowdrivewheelstoturnfreely.

Page 40

MowerDeck

G009679

Maintenance

ServicingtheCuttingBlades

Maintainsharpbladesthroughoutthecuttingseason becausesharpbladescutcleanlywithouttearingor shreddingthegrassblades.Tearingandshreddingturns grassbrownattheedges,whichslowsgrowthand increasesthechanceofdisease.

Checkthecutterbladesdailyforsharpness,andforany wearordamage.Filedownanynicksandsharpenthe bladesasnecessary.Ifabladeisdamagedorworn, replaceitimmediatelywithagenuineTororeplacement blade.Forconvenientsharpeningandreplacement,you maywanttokeepextrabladesonhand.

Figure50

1.CuttingEdge3.Wear/slotForming

2.CurvedArea4.Crack

CheckingforBentBlades

Note:Themachinemustbeonalevelsurfaceforthe

followingprocedure.

1.Raisethemowerdecktothehighestheight-of-cut position;alsoconsideredthe’transport’position.

Awornordamagedbladecanbreak,anda pieceofthebladecouldbethrownintothe operator’sorbystander’sarea,resultingin seriouspersonalinjuryordeath.

•Inspectthebladeperiodicallyforwearor damage.

•Replaceawornordamagedblade.

BeforeInspectingorServicingthe Blades

Parkthemachineonalevelsurface,disengagetheblade controlswitch(PTO),andsettheparkingbrake.Turn theignitionkeytoOff.Removethekey.

InspectingtheBlades

ServiceInterval:Beforeeachuseordaily

1.Inspectthecuttingedges(Figure50).Iftheedges arenotsharporhavenicks,removeandsharpenthe blades.RefertoSharpeningtheBlades.

2.Whilewearingthicklypaddedglovesorother adequatehandprotectionslowlyrotatebladeto bemeasuredintoapositionthatallowseffective measurementofthedistancebetweenthecutting edgeandthelevelsurfacethemachineison.

Figure51

1.Deck3.Blade

2.Spindlehousing

2.Inspecttheblades,especiallythecurvedarea (Figure50).Ifyounoticeanydamage,wear,oraslot forminginthisarea(Figure50),immediatelyinstalla newblade.

Page 41

3.Measurefromthetipofthebladetotheatsurface

G009680

G009681

G009680

here.

Figure52

1.Blade,inpositionformeasuring

2.Levelsurface

3.Measureddistancebetweenbladeandsurface(A)

Figure54

1.Opposingbladeedge,inpositionformeasuring

2.Levelsurface

3.Secondmeasureddistancebetweenbladeandsurface(B)

4.Rotatethesameblade180degreessothatthe opposingcuttingedgeisnowinthesameposition.

Figure53

1.Blade,sidepreviouslymeasured

2.Measurementpositionusedpreviously

3.Opposingsideofbladebeingmovedintomeasurement position

5.Measurefromthetipofthebladetotheatsurface here.Thevarianceshouldbenomorethan1/8inch (3mm).

Abladethatisbentordamagedcouldbreak apartandcouldseriouslyinjureorkillyouor bystanders.

•Alwaysreplacebentordamagedbladewith anewblade.

•Neverleorcreatesharpnotchesinthe edgesorsurfacesofblade.

A.IfthedifferencebetweenAandBisgreater

than1/8inch(3mm)replacethebladewitha newblade.RefertoRemovingtheBladesand InstallingtheBlades.

Note:Ifabentbladeisreplacedwithanewone andthedimensionobtainedcontinuestoexceed 1/8inch(3mm),thebladespindlecouldbebent. ContactanAuthorizedToroDealerforservice.

B.Ifthevarianceiswithinconstraints,movetothe

nextblade..

Repeatthisprocedureoneachblade.

RemovingtheBlades

Bladesmustbereplacedifasolidobjectishit,ifthe bladeisoutofbalanceorisbent.Toensureoptimum performanceandcontinuedsafetyconformanceof themachine,usegenuineT ororeplacementblades. Replacementbladesmadebyothermanufacturersmay resultinnon-conformancewithsafetystandards.

Holdthebladeendusingaragorthickly-paddedglove. Removethebladebolt,curvedwasher,andbladefrom thespindleshaft(Figure55).

Page 42

G010341

Figure55

1.SailAreaofBlade3.Curvedwasher

2.Blade4.BladeBolt

Figure57

1.Blade2.Balancer

InstallingtheBlades

1.Installthebladeontothespindleshaft(Figure55).

Important:Thecurvedpartoftheblademust bepointingupwardtowardtheinsideofthe mowertoensurepropercutting.

2.Installthespringdiskandbladebolt.Thespring diskconemustbeinstalledtowardthebolthead (Figure55).Torquethebladeboltto100-110ft-lb (135-150N-m).

MowerDeckLeveling

SharpeningtheBlades

Whensharpeningblade,piecesofbladecould bethrownandcauseseriousinjury.

Wearpropereyeprotectionwhensharpening blade.

1.Usealetosharpenthecuttingedgeatbothends oftheblade(Figure56).Maintaintheoriginalangle. Thebladeretainsitsbalanceifthesameamountof materialisremovedfrombothcuttingedges.

Figure56

1.Sharpenatoriginalangle

Checktoensurethemowerdeckislevelanytimeyou installthemowerorwhenyouseeanunevencuton yourlawn.

Themowerdeckmustbecheckedforbentblades priortoleveling;anybentbladesmustberemoved andreplaced.RefertotheCheckingforBentBlades procedurebeforecontinuing.

Themowerdeckmustbeleveledside-to-siderstthen thefronttorearslopecanbeadjusted.

Requirements:

•Themachinemustbeonalevelsurface.

•Allfourtiremustbeproperlyinated.Referto CheckingtheTirePressureintheDriveSystem Maintenancesection.

CheckingSide-to-SideLevel

Themowerbladesmustbelevelfromsidetoside. Checktheside-to-sidelevelanytimeyouinstallthe mowerorwhenyouseeanunevencutonyourlawn.

1.Parkthemachineonalevelsurfaceanddisengage thebladecontrolswitch.

2.Checkthebalanceofthebladebyputtingitona bladebalancer(Figure57).Ifthebladestaysina horizontalposition,thebladeisbalancedandcanbe used.Ifthebladeisnotbalanced,lesomemetaloff theendofthesailareaonly(Figure55).Repeatthis procedureuntilthebladeisbalanced.

2.Movethemotioncontrolleversoutwardtothe neutrallockposition,stoptheengine,removethe key,andwaitforallmovingpartstostopbefore leavingtheoperatingposition.

3.Carefullyrotatethebladessidetoside.

4.Measurebetweentheoutsidecuttingedgesand theatsurface(Figure58).Ifbothmeasurements

Page 43

arenotwithin3/16inch(5mm),anadjustmentis

G010336

required;continuetotheLevelingprocedure.

Figure58

1.Bladessidetoside

2.Outsidecuttingedges

3.Measurefromthetipofthe bladetotheatsurface here

CheckingtheFront-to-RearBlade Slope

Checkthefront-to-rearbladelevelanytimeyouinstall themower.Ifthefrontofthemowerismorethan 5/16inch(7.9mm)lowerthantherearofthemower, adjustthebladelevelusingthefollowinginstructions:

1.Parkthemachineonalevelsurfaceanddisengage thebladecontrolswitch.

Figure59

1.Bladesfronttorear3.Measurefromthetipofthe bladetotheatsurface here

2.Outsidecuttingedges

LevelingtheMowerDeck

1.Setanti-scalprollerstotopholesorremove completelyforthisprocedure.

2.Settheheight-of-cutlevertothe3inch(76mm) position.

3.Placetwo2-5/8inch(6.66cm)blocksundereach sideofthefrontedgeofthedeck,butnotunderthe anti-scalprollerbrackets.Placetwo2-7/8inch(7.30 cm)thickblocksundertherearedgeofthecutting deckskirt;oneoneachsideofthecuttingdeck.

2.Movethemotioncontrolleversoutwardtothe neutralposition,engagetheparkingbrake,stopthe engine,removethekey ,andwaitforallmovingparts tostopbeforeleavingtheoperatingposition.

3.Carefullyrotatethebladessotheyarefacingfront torear(Figure59).

4.Measurefromthetipofthefrontbladetotheat surfaceandthetipoftherearbladetotheatsurface (Figure59).Ifthefrontbladetipisnot1/16-5/16 inch(1.6-7.9mm)lowerthantherearbladetip, continuetotheLevelingtheMowerDeckprocedure.

Figure60

1.Woodblock,2-5/8inch (6.66cm)thick

2.Woodblock,2-7/8inch (7.30cm)thick

3.Frontedge

4.Loosenthelevelingadjustlockingnuts(item3)on allfourcornerssothatthedeckissittingsecurely onallfourblocks.Makesurethatthedeckhangers areallthewaydown(atthetopoftheslot)andthe deckliftfootleverispushedbackagainstthestop,

Page 44

thentightenthefourlevelingadjustlockingnuts

G010342

G010321

G009805

1 2

(Figure61).

Figure61

54inchMowerDecks

1.Deckliftarm4.Slotindeckhanger

2.Deckhanger

3.Levelingadjustlockingnut6.Reardeckhangerbracket

5.Slotinreardeckhanger bracket

5.Recheckthatblockstjustsnuglyunderthedeck skirt.Makesureallattachmentboltsaretight

6.Verifythedeckislevelbycheckingtheside-to-side levelandfront-to-rearbladeslope;repeatdeck levelingprocedureifnecessary.

InspectingtheBelts

ServiceInterval:Every50hours

Checkthebeltsforsquealingwhenthebeltisrotating, bladesslippingwhencuttinggrass,frayedbeltedges, burnmarksandcracksaresignsofawornmowerbelt. Replacethemowerbeltifanyoftheseconditionsare evident.

ReplacingtheMowerBelt

Squealingwhenthebeltisrotating,bladesslippingwhen cuttinggrass,frayedbeltedges,burnmarksandcracks aresignsofawornmowerbelt.Replacethemowerbelt ifanyoftheseconditionsareevident.

1.Disengagethebladecontrolswitch(PTO),movethe motioncontrolleverstotheneutrallockedposition andsettheparkingbrake.

2.Stoptheengine,removethekey,andwaitforall movingpartstostopbeforeleavingtheoperating position.

3.Lowerthemowertothe3inch(76mm)height-of-cut position.

4.Removethebeltcovers(Figure63).

1.Deckliftarm

2.Deckhanger

60inchMowerDecks

Figure62

3.Levelingadjustlockingnut

4.Slotindeckhanger

Figure63

1.Removethescrews3.Removebeltcover

2.Pivotthebeltcoverup

Page 45

5.Removetheoorpantoaccesstheidlerpulley;

G009806

G010343

1 2

refertotheRemovingtheFloorPanprocedurein Premaintenance.

6.Usingaspringremovaltool,(Toropartno.92-5771), removetheidlerspringfromthedeckpostto removetensionontheidlerpulley(Figure64).

1.Positionthebeltcover, ensurethetabsseat

2.Pivotthebeltcoverdown

Figure65

3.Installthescrews

Figure64

1.Springremovaltool(T oro partno.92-5771)

2.Idlerspring5.Mowerbelt

3.Deckpost

4.Idlerarm

RemovingtheMower

Parkthemachineonalevelsurfaceanddisengagethe bladecontrolswitch.Movethemotioncontrollevers outwardtotheneutralposition,engageparkingbrake, stoptheengine,removethekey,andwaitforallmoving

7.Lowerthemowertothelowestheight-of-cut.Place partstostopbeforeleavingtheoperatingposition.

theheight-of-cutpininthelockpositionforlowest height-of-cut.

8.Removethebeltfromthemowerdeckpulleysand

removetheexistingbelt.

9.Installthenewbeltaroundthemowerpulleysand

theclutchpulleyundertheengine(Figure64).

Lowerthemowertothe3inch(76mm)height-of-cut position.Removethemowerbeltfromtheengine pulley;refertotheReplacingtheMowerBeltprocedure. Lowerthemowertothelowestheight-of-cut.Selectone ofthefollowingproceduresdependingonthemower decksizeinstalledtocompletetheremoval.

54inchMowerDecks

Thespringisundertensionwheninstalledand cancausepersonalinjury.

Becarefulwhenremovingthebelt.

10.Usingaspringremovaltool,(Toropartno.92-5771),

installtheidlerspringoverthedeckpostand placingtensionontheidlerpulleyandmowerbelt (Figure64).

11.Ensurethatthebeltisproperlyseatedinallpulleys.

12.Installthebeltcovers(Figure65).

1.MovethespringloadedJ-hooksoutoftheslotin

therearhangerbracketsonbothsidesofthedeck (Figure66).

Page 46

G01031 1

Figure66

G010304

G010309

G010305

2.Removethehardwarefromthefrontdeckhangers

onbothsidesofthedeck(Figure67).

3.Carefullyliftthedeckofftherearhangerboltsand

lowerthefrontofthemowerdecktotheground (Figure67).

60inchMowerDecks

1.Removethehairpincotterandwashersecuringthe

long,linkbartotheframeanddeck;removethelink bar(Figure68).

Figure68

1.Hairpincotter3.Linkbar

2.Washer

2.Removethehardwarefromthefrontandreardeck

hangersonbothsidesofthedeck(Figure67).

Figure67

1.Deckhanger5.Rearhangerbolts

2.Hairpincotter6.J-hook

3.Washer7.Reardeckhangerbracket

4.Weldedpostondeck

4.Raisetheheight-of-cuttothetransportposition

5.Slidethemoweroutfromunderneaththemachine.

Note:Retainallpartsforfutureinstallation.

Figure69

1.Deckhanger3.Washer

2.Hairpincotter4.Weldedpostondeck

3.Raisetheheight-of-cuttothetransportposition

4.Slidethemoweroutfromunderneaththemachine.

Note:Retainallpartsforfutureinstallation.

Page 47

InstallingtheMower

G006036

Installing54inchMowerDecks

1.Parkthemachineonalevelsurfaceanddisengage

thebladecontrolswitch.

2.Movethemotioncontrolleversoutwardtothe

neutrallockposition,stoptheengine,removethe key,andwaitforallmovingpartstostopbefore leavingtheoperatingposition.

3.Slidethemowerunderthemachine.

4.Lowertheheight-of-cutlevertothelowestposition.

Placetheheight-of-cutpininthelockpositionfor lowestheight-of-cut.

5.Lifttherearofthemowerdeckandguidethehanger

bracketsovertherearhangerbolts(Figure69).

6.Attachthefrontsupportonthemowerdecktothe

frontdeckhangersandsecurethemwithawasher andhairpincotter(Figure68).

7.Installthemowerbeltontotheenginepulley;refer

toReplacingtheMowerBelt.

Installing60inchMowerDecks

Anuncovereddischargeopeningcouldallow thelawnmowertothrowobjectsinthe operator’sorbystander’sdirectionandresult inseriousinjury.Also,contactwiththeblade couldoccur.

Neveroperatethelawnmowerunlessyou installamulchplate,dischargedeector,or grasscollectionsystem.

Inspectthegrassdeectorfordamagebeforeeachuse. Replaceanydamagedpartsbeforeuse.

1.Disengagethespringfromthenotchinthedeector

bracketandslidetherodoutoftheweldeddeck brackets,spring,anddischargedeector(Figure70). Removethedamagedorworndischargedeector.

1.Parkthemachineonalevelsurfaceanddisengage

thebladecontrolswitch.

2.Movethemotioncontrolleversoutwardtothe

neutrallockposition,stoptheengine,removethe key,andwaitforallmovingpartstostopbefore leavingtheoperatingposition.

3.Slidethemowerunderthemachine.

4.Lowertheheight-of-cutlevertothelowestposition.

Placetheheight-of-cutpininthelockpositionfor lowestheight-of-cut.

5.Lifttherearofthemowerdeckandattachtherear

supportonthemowerdecktothereardeckhangers. Securethemwithaclevispinandhairpincotter (Figure69).

6.Attachthefrontsupportonthemowerdecktothe

frontdeckhangersandsecurethemwithawasher andhairpincotter(Figure68).

7.Installthelong,linkbarthroughtheframehanger

anddeck.Securethelinkbarwiththehairpin cottersandwashersremovedpreviously.

Figure70

1.Deectorassembly4.Spring

2.Deckbrackets

3.Rod

5.Springinstalledoverthe rod

8.Installthemowerbeltontotheenginepulley;refer toReplacingtheMowerBelt.

2.Positionthenewdischargedeectorassemblywith thebracketendsbetweentheweldedbracketsonthe deckasshowninFigure70.

ReplacingtheGrassDeector

ServiceInterval:Beforeeachuseordaily—Inspectthe

grassdeectorfordamage

3.Installthespringontothestraightendoftherod. Positionthespringontherodasshowninsothe shorterspringendiscomingfromundertherod

Page 48

beforethebendandgoingovertherodasitreturns

G006049

fromthebend.

Cleaning

4.Liftthelongendofthespringandplaceitintothe notchonthedeectorassemblybracket(Figure71).

Figure71

1.Rodandspringassembly partiallyinstalled

2.Longendofthespring installedintothenotchin thedeectorbracket

3.Rod,shortend,moved behindmowerbracket

4.Shortend,retainedby mowerbracket.

WashingtheUndersideofthe Mower

ServiceInterval:Beforeeachuseordaily—Cleanthe

mowerhousing.

Washtheundersideofthemoweraftereachuseto preventgrassbuildupforimprovedmulchactionand clippingdispersal.

1.Parkthemachineonalevelsurfaceanddisengage thebladecontrolswitch.

2.Movethemotioncontrolleversoutwardtothe neutrallockposition,stoptheengine,removethe key,andwaitforallmovingpartstostopbefore leavingtheoperatingposition.

3.Attachthehosecouplingtotheendofthemower washouttting,andturnthewateronhigh (Figure72).

Note:Spreadpetroleumjellyonthewashouttting O-ringtomakethecouplingslideoneasierand protecttheO-ring.

5.Securetherodandspringassemblybytwistingitso theshortendoftherodcanbeplacedbehindthe frontbracketweldedtothedeck(Figure71).

Important:Thegrassdeectormustbespring loadedinthedownposition.Liftthedeector uptotestthatitsnapstothefulldownposition.

Page 49

G010344

Figure72

1.Washoutttinglocations on54inchdecks

2.Washoutttinglocations on60inchdecks

3.Washouttting6.Coupling

Abrokenormissingwashoutttingcould exposeyouandotherstothrownobjectsor bladecontact.Contactwithbladeorthrown debriscancauseinjuryordeath.

•Replacebrokenormissingwashouttting immediately,beforeusingmoweragain.

•Neverputyourhandsorfeetunderthe mowerorthroughopeningsinthemower.

WasteDisposal

Engineoil,batteries,hydraulicoil,andenginecoolant arepollutantstotheenvironment.Disposeofthese accordingtoyourstateandlocalregulations.

4.O-ring

5.Hose

4.Lowerthemowertothelowestheight-of-cut.

5.Sitontheseatandstarttheengine.Engagetheblade controlswitchandletthemowerrunforoneto threeminutes.

6.Disengagethebladecontrolswitch,stoptheengine, andremovetheignitionkey .Waitforallmoving partstostop.

7.Turnthewateroffandremovethecouplingfrom thewashouttting.

Note:Ifthemowerisnotcleanafteronewashing, soakitandletitstandfor30minutes.Thenrepeat theprocess.

8.Runthemoweragainforonetothreeminutesto removeexcesswater.

Page 50

Storage

B.Runtheenginetodistributeconditionedfuel

throughthefuelsystem(5minutes).

CleaningandStorage

1.Disengagethebladecontrolswitch(PTO),setthe parkingbrake,andturntheignitionkeytoOff. Removethekey.

2.Removegrassclippings,dirt,andgrimefromthe externalpartsoftheentiremachine,especiallythe engineandhydraulicsystem.Cleandirtandchaff fromtheoutsideoftheenginecylinderheadnsand blowerhousing.

Important:Youcanwashthemachinewith milddetergentandwater.Donotpressure washthemachine.Avoidexcessiveuseof water,especiallynearthecontrolpanel,engine, hydraulicpumps,andmotors.

3.Checkthebrake;refertoServicingtheBrakeinthe MaintenanceSection.

4.Servicetheaircleaner;refertoServicingtheAir CleanerintheMaintenanceSection.

5.Greasethemachine;refertoGreasingand LubricationintheMaintenanceSection.

C.Stoptheengine,allowittocool,anddrainthe

fueltank;refertoServicingtheFuelTankinthe MaintenanceSection.

D.Restarttheengineandrunituntilitstops.

E.Disposeoffuelproperly .Recycleasperlocal

codes.

Important:Donotstore stabilizer/conditionedfuelover90days.

13.Checkandtightenallbolts,nuts,andscrews.Repair orreplaceanypartthatisdamaged.

14.Paintallscratchedorbaremetalsurfaces.Paintis availablefromyourAuthorizedServiceDealer.

15.Storethemachineinaclean,drygarageorstorage area.Removethekeyfromtheignitionswitchand keepitoutofreachofchildrenorotherunauthorized users.Coverthemachinetoprotectitandkeepit clean.

6.Changethecrankcaseoil;refertoServicingthe EngineOilintheMaintenanceSection.

7.Checkthetirepressure;refertoCheckingtheTire PressureintheMaintenanceSection.

8.Changethehydrauliclter;refertoServicingthe HydraulicSystemintheMaintenanceSection.

9.Chargethebattery;refertoServicingtheBatteryin theMaintenanceSection.

10.Scrapeanyheavybuildupofgrassanddirtfromthe undersideofthemower,thenwashthemowerwith agardenhose.

Note:Runthemachinewiththebladecontrol switch(PTO)engagedandtheengineathighidle for2to5minutesafterwashing.

11.Checktheconditionoftheblades;refertoServicing theCuttingBladesintheMaintenanceSection.

12.Preparethemachineforstoragewhennon-use occursover30days.Preparethemachineforstorage asfollows:

A.Addapetroleumbasedstabilizer/conditioner

tofuelinthetank.Followmixinginstructions fromthestabilizermanufacturer.Donotusean alcoholbasedstabilizer(ethanolormethanol).

Note:Afuelstabilizer/conditionerismost effectivewhenmixedwithfreshfuelandused atalltimes.

Page 51

Troubleshooting

Problem

Starterdoesnotcrank

Enginewillnotstart,startshard,orfails tokeeprunning

PossibleCauseCorrectiveAction

1.Bladecontrolswitch(PTO)isengaged.1.Movebladecontrolswitch(PTO)to

2.Parkingbrakeisnoton.

3.Driveleversarenotinneutrallock position.

4.Operatorisnotseated.4.Sitontheseat.

5.Batteryisdead.

6.Electricalconnectionsarecorrodedor loose.

7.Fuseisblown.

8.Relayorswitchisdefective.8.ContactanAuthorizedServiceDealer .

1.Fueltankisempty .

2.Fuelshutoffvalveisclosed.2.Openthefuelshutoffvalve.

3.Oillevelinthecrankcaseislow.

4.Thethrottleandchokearenotinthe correctposition.

5.Dirtinfuellter.5.Replacethefuellter.

6.Dirt,water,orstalefuelisinthefuel system.

7.Aircleanerisdirty .

8.Seatswitchisnotfunctioningproperly.8.Checktheseatswitchindicator .

9.Electricalconnectionsarecorroded, looseorfaulty.

10.Relayorswitchisdefective.10.ContactanAuthorizedServiceDealer.

11.Faultysparkplug.

12.Sparkplugwireisnotconnected.12.Checkthesparkplugwireconnection.

disengaged.

2.Settheparkingbrake.

3.Ensurethedriveleversareinthe neutrallockposition.

5.Chargethebattery.

6.Checktheelectricalconnectionsfor goodcontact.

7.Replacefuse.

1.Fillthefueltank.

3.Addoiltothecrankcase.

4.Besurethethrottlecontrolismidway betweenthe“SLOW”and“FAST” positions,andthechokeisinthe“ON” positionforacoldengineorthe“OFF” positionforawarmengine.

6.ContactanAuthorizedServiceDealer.

7.Cleanorreplacetheaircleaner element.

Replaceseatifneeded.

9.Checktheelectricalconnections forgoodcontact.Cleanconnector terminalsthoroughlywithelectrical contactcleaner,applydielectricgrease andreconnect.

11.Clean,adjustorreplacesparkplug.

Enginelosespower.

Engineoverheats.

Mowerpullsleftorright(withleversfully forward)

1.Engineloadisexcessive.1.Reducethegroundspeed.

2.Aircleanerisdirty .

3.Oillevelinthecrankcaseislow.

4.Coolingnsandairpassagesabove theengineareplugged.

5.Ventholeinthefuelcapisplugged.5.Cleanorreplacethefuelcap.

6.Dirtinthefuellter.6.Replacethefuellter.

7.Dirt,water,orstalefuelisinthefuel system.

1.Engineloadisexcessive.1.Reducethegroundspeed.

2.Oillevelinthecrankcaseislow.

3.Coolingnsandairpassagesabove theengineareplugged.

1.Trackingneedsadjustment1.Adjustthetracking.

2.Tirepressureindrivetiresnotcorrect.2.Adjusttirepressureinthedrivetires.

2.Cleantheaircleanerelement.

3.Addoiltothecrankcase.

4.Removetheobstructionfromthe coolingnsandairpassages.

7.ContactanAuthorizedServiceDealer.

2.Addoiltothecrankcase.

3.Removetheobstructionfromthe coolingnsandairpassages.

Page 52

Problem

PossibleCauseCorrectiveAction

Machinedoesnotdrive.

Abnormalvibration.

Unevencuttingheight.

1.Bypassvalvesisnotclosedtight.1.Tightenthebypassvalves.

2.Pumpbeltisworn,looseorbroken.

3.Pumpbeltisoffapulley.3.Changethebelt.

4.Brokenormissingidlerspring.4.Replacethespring.

5.Hydraulicoillevelislowortoohot.5.Addhydraulicoiltoreservoirsorletit

1.Cuttingblade(s)is/arebentor unbalanced.

2.Blademountingboltisloose.2.Tightentheblademountingbolt.

3.Enginemountingboltsareloose.3.Tightentheenginemountingbolts.

4.Looseenginepulley,idlerpulley,or bladepulley .

5.Enginepulleyisdamaged.

6.Bladespindleisbent.

7.Motormountislooseorworn.

1.Blade(s)notsharp.1.Sharpentheblade(s).

2.Cuttingblade(s)is/arebent.2.Installnewcuttingblade(s).

3.Mowerdeckisnotlevel.

4.Undersideofmowerisdirty.4.Cleantheundersideofthemower.

5.Tirepressureisnotcorrect.5.Adjustthetirepressure.

6.Bladespindlebent.

2.Changethebelt.

cooldown.

1.Installnewcuttingblade(s).

4.Tightentheappropriatepulley .

5.ContactanAuthorizedServiceDealer.

6.ContactanAuthorizedServiceDealer.

7.ContactanAuthorizedServiceDealer.

3.Levelmowerdeckfromside-to-side andfront-to-rear.

6.ContactanAuthorizedServiceDealer.

Bladesdonotrotate.

1.Mowerdeckbeltisworn,looseor broken.

2.Mowerdeckbeltisoffpulley.

3.Pumpdrivebeltisworn,looseor broken.

4.Brokenormissingidlerspring.4.Replacethespring.

1.Installnewdeckbelt.

2.Installmowerdeckpulleyandcheck theidlerpulley ,idlerarmandspringfor correctpositionandfunction.

3.Checkthebelttensionorinstallnew belt.

Page 53

Schematics

G010474

WireDiagram(Rev.A)

Page 54

Notes:

Page 55

Notes:

Page 56

TheToroTotalCoverageGuarantee

AThree-Y earLimitedWarranty

TITANMowers

ConditionsandProductsCovered

TheToro®Companyanditsafliate,T oroWarrantyCompany ,pursuantto anagreementbetweenthem,jointlypromisetorepairanyToroProduct,if defectiveinmaterialsorworkmanshipfortheperiodlistedbelow.

ThisWarrantyappliestoallTIT ANMowersandtheiraccessories. Thiswarrantycoversthecostofpartsandlabor,butyoumustpay transportationcosts.

Thefollowingtimeperiodsapplyfromthedateofpurchase:

ProductsWarrantyPeriod

TITANMowers

-Frame

-Engine Attachments(foraboveunits)3yearsor240hours* Batteries1year

Warrantymaybedeniedifthehourmeterisdisconnected,altered,or showssignsofbeingtamperedwith.

3yearsor240hours* Lifetime(originalowneronly)** 3yearsor240hours*

OwnerResponsibilities

YoumustmaintainyourT oroProductbyfollowingthemaintenance proceduresdescribedintheOperator’sManual.Suchroutine maintenance,whetherperformedbyadealerorbyyou,isatyourexpense.

ItemsandConditionsNotCovered

Thereisnootherexpresswarrantyexceptforspecialemissionsystem coverageandenginewarrantycoverageonsomeproducts.Thisexpress warrantydoesnotcoverthefollowing:

•Costofregularmaintenanceserviceorparts,suchaslters,fuel,

lubricants,oilchanges,sparkplugs,airlters,bladesharpening/worn bladeonmowers,cable/linkageadjustments,orbrakeandclutch adjustments

•Componentsfailingduetonormalweararenotcoveredbythis

warranty

•Anyproductorpartwhichhasbeenalteredormisusedandrequires

replacementorrepairduetoaccidentsorlackofpropermaintenance

•Repairsnecessaryduetoimproperbatterycare,failuretousefresh

fuel(lessthanonemonthold),orfailuretoproperlypreparetheunit priortoanyperiodofnon-useoveronemonth

•Pickupanddeliverycharges

•Operationalmisuse,neglect,oraccidents

•RepairsorattemptedrepairsbyanyoneotherthananAuthorized

ToroServiceDealer

InstructionsforObtainingWarrantyService

IfyouthinkthatyourT oroProductcontainsadefectinmaterialsor workmanship,followthisprocedure:

1.ContactanyAuthorizedToroServiceDealertoarrangeserviceattheir dealership.Tolocateadealerconvenienttoyou,refertotheYellow Pagesofyourtelephonedirectory(lookunder“LawnMowers”)or accessourwebsiteatwww.Toro.com.Y oumayalsocallthenumbers listedinitem#3tousethe24-hourToroDealerlocatorsystem.

2.Bringtheproductandyourproofofpurchase(salesreceipt)tothe ServiceDealer.Thedealerwilldiagnosetheproblemanddetermine ifitiscoveredunderwarranty.

3.IfforanyreasonyouaredissatisedwiththeServiceDealer’s analysisorwiththeassistanceprovided,contactusat:

CustomerCareDepartment,ConsumerDivision

ToroW arrantyCompany 811 1LyndaleAvenueSouth Bloomington,MN55420-1196 Tollfreeat866-216-6029(U.S.customers) Tollfreeat866-216-6030(Canadiancustomers)

GeneralConditions

Allrepairscoveredbythesewarrantiesmustbeperformedbyan AuthorizedToroServiceDealerusingT oroapprovedreplacementparts. RepairbyanAuthorizedT oroServiceDealerisyoursoleremedyunder thiswarranty .

NeitherTheToro®CompanynorToroWarrantyCompanyisliablefor indirect,incidental,orconsequentialdamagesinconnectionwiththe useoftheToroProductscoveredbythesewarranties,includingany costorexpenseofprovidingsubstituteequipmentorserviceduring reasonableperiodsofmalfunctionornon-usependingcompletionof repairsunderthesewarranties.

Allimpliedwarrantiesofmerchantability(thattheproductistfor ordinaryuse)andtnessforuse(thattheproductistforaparticular purpose)arelimitedtothedurationoftheexpresswarranty.

Somestatesdonotallowexclusionsofincidentalorconsequential damages,orlimitationsonhowlonganimpliedwarrantylasts,sothe aboveexclusionsmaynotapplytoyou.

Thiswarrantygivesyouspeciclegalrights,andyoumayalsohaveother rightswhichvaryfromstatetostate.

CountriesOtherthantheUnitedStatesorCanada

CustomerswhohavepurchasedT oroproductsexportedfromtheUnitedStatesorCanadashouldcontacttheirT oroDistributor(Dealer)toobtain guaranteepoliciesforyourcountry ,province,orstate.IfforanyreasonyouaredissatisedwithyourDistributor’sserviceorhavedifcultyobtaining guaranteeinformation,contacttheToroimporter.Ifallotherremediesfail,youmaycontactusatT oroWarrantyCompany .

*Whicheveroccursrst. **LifetimeFrameWarranty-Ifthemainframe,consistingofthepartsweldedtogethertoformthetractorstructurethatothercomponentssuchastheenginearesecuredto,

cracksorbreaksinnormaluse,itwillberepairedorreplacedunderwarrantyatnocostforpartsandlabor.Framefailuresduetomisuseorabuseandfailureorrepair requiredduetorustorcorrosionarenotcovered.

374-0258RevA

Toro 74822, 74823 Operator's Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
