Toro 74776 Operator's Manual

Download
Page 1
FormNo.3409-418RevA

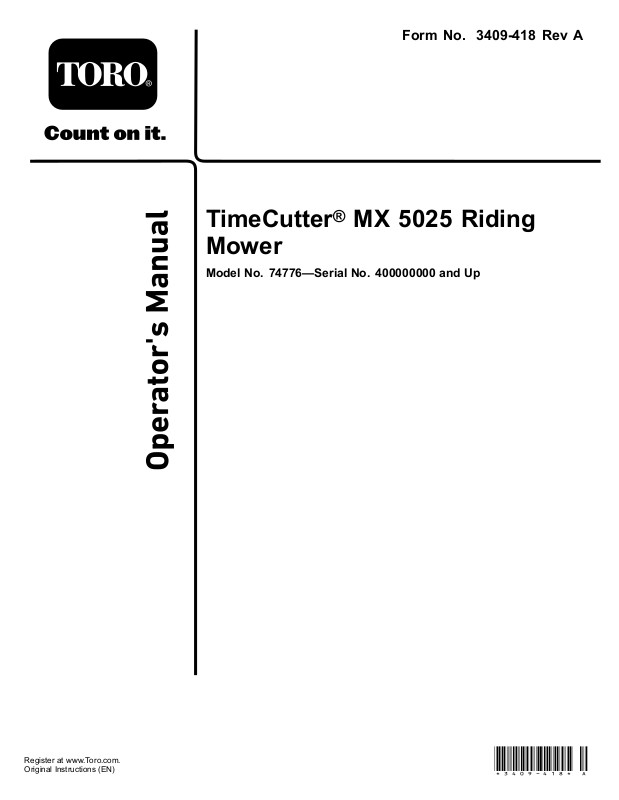

TimeCutter
®
MX5025Riding
Mower
ModelNo.74776—SerialNo.400000000andUp
Registeratwww.T oro.com. OriginalInstructions(EN)
Page 2
WARNING
CALIFORNIA
Proposition65Warning
Thisproductcontainsachemicalorchemicals
knowntotheStateofCaliforniatocausecancer,
birthdefects,orreproductiveharm.
Theengineexhaustfromthisproduct
containschemicalsknowntotheStateof
Californiatocausecancer,birthdefects,
orotherreproductiveharm.
ThissparkignitionsystemcomplieswithCanadianICES-002
ItisaviolationofCaliforniaPublicResourceCode Section4442or4443touseoroperatetheengineonany forest-covered,brush-covered,orgrass-coveredlandunless theengineisequippedwithasparkarrester,asdenedin Section4442,maintainedineffectiveworkingorderorthe engineisconstructed,equipped,andmaintainedforthe preventionofre.
Pleaserefertotheenginemanufacturer’sinformation includedwiththemachine.
Gotowww .Toro.comtoviewspecicationsonyourmower model.
g188142
Figure1
Undertheseat
1.Modelandserialnumberplate
Writetheproductmodelandserialnumbersinthespace below:
ModelNo.
SerialNo.
Thismanualidentiespotentialhazardsandhassafety messagesidentiedbythesafety-alertsymbol(Figure2), whichsignalsahazardthatmaycauseseriousinjuryordeath ifyoudonotfollowtherecommendedprecautions.
Introduction
Thismachineisaride-on,rotary-bladelawnmowerintended tobeusedbyhomeownersinresidentialapplications.Itis primarilydesignedforcuttinggrassonwell-maintainedlawns. Itisnotdesignedforcuttingbrush,mowinggrassandother growthalongsidehighways,orforagriculturaluses.
Readthisinformationcarefullytolearnhowtooperateand maintainyourproductproperlyandtoavoidinjuryand productdamage.Youareresponsibleforoperatingthe productproperlyandsafely.
YoumaycontactTorodirectlyatwww .Toro.comforproduct safetyandoperationtrainingmaterials,accessoryinformation, helpndingadealer,ortoregisteryourproduct.
Wheneveryouneedservice,genuineT oroparts,oradditional information,contactanAuthorizedServiceDealerorToro CustomerServiceandhavethemodelandserialnumbersof yourproductready.Figure1identiesthelocationofthe modelandserialnumbersontheproduct.Writethenumbers inthespaceprovided.
g000502
Figure2
1.Safety-alertsymbol.
Thismanualuses2wordstohighlightinformation. Importantcallsattentiontospecialmechanicalinformation andNoteemphasizesgeneralinformationworthyofspecial attention.
©2016—TheToro®Company 8111LyndaleAvenueSouth Bloomington,MN55420
Contactusatwww.Toro.com.
2
PrintedintheUSA
AllRightsReserved
Page 3
Contents
Safety...........................................................................4
GeneralSafety.........................................................4
SlopeIndicator.......................................................5
SafetyandInstructionalDecals.................................6
ProductOverview.........................................................11
Controls...............................................................11
BeforeOperation......................................................12
BeforeOperationSafety..........................................12
RecommendedFuel................................................13
UsingStabilizer/Conditioner...................................13
FillingtheFuelTank...............................................13
CheckingtheEngine-OilLevel.................................14
BreakinginaNewMachine......................................14
ThinkSafetyFirst...................................................14
UsingtheSafety-InterlockSystem.............................15
PositioningtheSeat................................................15
AdjustingtheMotion-ControlLevers........................15
DuringOperation.....................................................16
DuringOperationSafety.........................................16
OperatingtheMowerBlade-ControlSwitch
(PTO)...............................................................17
OperatingtheThrottle............................................18
OperatingtheChoke...............................................18
OperatingtheIgnitionSwitch..................................18
StartingandShuttingOfftheEngine.........................19
UsingtheMotion-ControlLevers.............................19
DrivingtheMachine...............................................19
StoppingtheMachine.............................................21
AdjustingtheHeightofCut.....................................21
AdjustingtheAnti-ScalpRollers...............................21
UsingtheSideDischarge.........................................22
OperatingTips......................................................22
AfterOperation........................................................23
AfterOperationSafety............................................23
PushingtheMachinebyHand..................................23
TransportingtheMachine........................................25
LoadingtheMachine..............................................25
Maintenance.................................................................27
RecommendedMaintenanceSchedule(s)......................27
Pre-MaintenanceProcedures......................................28
MaintenanceandStorageSafety................................28
RaisingtheSeat......................................................28
Lubrication...............................................................29
GreasingtheBearings.............................................29
EngineMaintenance..................................................29
EngineSafety.........................................................29
ServicingtheAirCleaner.........................................29
ServicingtheEngineOil..........................................30
ServicingtheSparkPlug..........................................32
CleaningtheCoolingSystem....................................33
FuelSystemMaintenance...........................................33
ReplacingtheIn-LineFuelFilter...............................33
ElectricalSystemMaintenance....................................34
ElectricalSystemSafety...........................................34
ServicingtheBattery...............................................34
ServicingtheFuses.................................................36
DriveSystemMaintenance.........................................36
CheckingtheTirePressure......................................36
ReleasingtheElectricBrake.....................................37
MowerMaintenance...................................................37
ServicingtheCuttingBlades.....................................37
LevelingtheMowerDeck........................................39
RemovingtheMowerDeck.....................................41
InstallingtheMower...............................................42
ReplacingtheGrassDeector..................................42
MowerBeltMaintenance............................................43
InspectingtheBelts................................................43
ReplacingtheMowerBelt........................................43
Cleaning...................................................................44
WashingtheUndersideoftheMower........................44
Storage........................................................................45
CleaningandStorage..............................................45
Troubleshooting...........................................................47
Schematics...................................................................49
3
Page 4
Safety
ThismachinehasbeendesignedinaccordancewithANSI B71.1-2012.

GeneralSafety

Thisproductiscapableofamputatinghandsandfeetand ofthrowingobjects.Alwaysfollowallsafetyinstructionsto avoidseriouspersonalinjury.
Usingthisproductforpurposesotherthanitsintendeduse couldprovedangeroustoyouandbystanders.
•ReadandunderstandthecontentsofthisOperator’ sManual
beforeyoustarttheengine.Ensurethateveryoneusing thisproductknowshowtouseitandunderstandsthe warnings.
•Donotputyourhandsorfeetnearmovingcomponents
ofthemachine.
•Donotoperatethemachinewithoutallguardsandother
safetyprotectivedevicesinplaceandworkingonthe machine.
•Keepclearofanydischargeopening.Keepbystandersa
safedistanceawayfromthemachine.
•Keepchildrenoutoftheoperatingarea.Neverallow
childrentooperatethemachine.
•Stopthemachineandshutofftheenginebeforeservicing,
fueling,oruncloggingthemachine.
Improperlyusingormaintainingthismachinecanresult ininjury.Toreducethepotentialforinjury,complywith thesesafetyinstructionsandalwayspayattentiontothe safety-alertsymbol,whichmeansCaution,Warning,or Danger—personalsafetyinstruction.Failuretocomplywith theseinstructionsmayresultinpersonalinjuryordeath.
Youcanndadditionalitemsofsafetyinformationintheir respectivesectionsthroughoutthismanual.
4
Page 5
SlopeIndicator
G011841
Figure3
Thispagemaybecopiedforpersonaluse.
1.Themaximumslopeyoucansafelyoperatethemachineonis15degrees.Usetheslopecharttodeterminethedegreeofslope ofhillsbeforeoperating.Donotoperatethismachineonaslopegreaterthan15degrees.Foldalongtheappropriateline tomatchtherecommendedslope.
2.Alignthisedgewithaverticalsurface,atree,building,fencepole,etc.
3.Exampleofhowtocompareslopewithfoldededge
5
g011841
Page 6
SafetyandInstructionalDecals
Safetydecalsandinstructionsareeasilyvisibletotheoperatorandarelocatednearanyareaofpotential danger.Replaceanydecalthatisdamagedormissing.
93-7009
1.Warning—donotoperatethemowerwiththedeectorup orremoved;keepthedeectorinplace.
2.Cutting/dismembermenthazardofhandorfoot,mower blade—stayawayfrommovingparts.
decal93-7009
decal112-9840
112-9840
1.ReadtheOperator's Manual.
3.Removetheignitionkey andreadtheinstructions beforeservicingor performingmaintenance.
2.Heightofcut
decal99-3943
99-3943
1.Engine
1.Parkingposition4.Neutral
119-8814
decal119-8814
2.Fast5.Reverse
3.Slow
decal106-8717
106-8717
1.Readtheinstructionsbeforeservicingorperforming maintenance.
2.Checktirepressureevery25operatinghours.
3.Greaseevery25operatinghours.
4.Engine
decal119-8815
119-8815
1.Parkingposition4.Neutral
2.Fast5.Reverse
3.Slow
6
Page 7
decalbatterysymbols
BatterySymbols
Someorallofthesesymbolsareonyourbattery .
1.Heightofcut
1.Explosionhazard
6.Keepbystandersasafe distanceawayfromthe battery.
2.Nore,opename,or smoking
7.Weareyeprotection; explosivegasescan causeblindnessandother injuries.
3.Causticliquid/chemical burnhazard
8.Batteryacidcancause blindnessorsevereburns.
4.Weareyeprotection.9.Flusheyesimmediately
decal119-8870
119-8870
5.ReadtheOperator's
Manual.
withwaterandgetmedical helpfast.
10.Containslead;donot discard.
121-2989
1.Bypassleverpositionfor pushingthemachine
2.Bypassleverpositionfor operatingthemachine
Manufacturer'sMark
1.Indicatesthebladeisidentiedasapartfromtheoriginal machinemanufacturer.
decal131-1097
131-1097
decal121-2989b
decaloemmarkt
1.Oildrain
7
Page 8
decal132-0872
132-0872
1.Thrownobject hazard—keepbystanders awayfromthemachine.
2.Thrownobjecthazard, raisedbafe—donot operatethemachinewith anopendeck;usea baggerorabafe.
3.Severinghazardofhand orfoot—keepawayfrom movingparts.
4.Entanglement hazard—keepaway frommovingparts;keep allguardsandshieldsin place.
8
Page 9
decal121-0773
121-0773
1.Fast
4.Choke
2.Continuous-variablesetting5.Powertake-off(PTO),blade-controlswitch
3.Slow
9
Page 10
decal131-3947
131-3947
1.Trim—slow
3.Mow—fast
2.Tow—medium
132-0869
1.Warning—readtheOperator'sManual.
2.Warning—beforeservicing,engagetheparkingbrake,removethekeyandthesparkplugconnection.
3.Cuttinghazardofhand,mowerblade;pinchinghazardofhand,belt—keephandsandfeetawayfrommovingparts;keepall guardsandshieldsinplace.
4.Thrownobjecthazard—keepbystandersawayfromthemachine;removedebrisfromtheareabeforemowing;keepthedeector shielddown.
5.Ramptippinghazard—whenloadingontoatrailer,donotusedualramps;onlyuseasinglerampwideenoughforthemachine andthathasaninclinelessthan15degrees;backuptheramp(inreverse)anddriveforwardofftheramp.
6.Bodilyharmhazard—noriders;lookbehindyouwhenmowinginreverse.
7.Tippinghazardonslopes—donotuseonslopesnearopenwater;donotuseonslopesgreaterthan15degrees.
10
decal132-0869
Page 11
ProductOverview
Figure4
1.Footrest
2.Deector9.SmartSpeed™lever
3.Height-of-cutlever
4.Motion-controllever11.Mowerdeck
5.Controlpanel
6.Operatorseat
7.Engine
8.Gas-tankcap
10.Reardrivewheel
12.Anti-scalproller
13.Frontcasterwheel
Controls
BecomefamiliarwithallofthecontrolsinFigure1and
Figure5beforeyoustarttheengineandoperatethemachine.
g028411
g032603
Figure5
Controlpanel
1.Throttle3.Blade-controlswitch
2.Chokecontrol
(powertakeoff)
4.Ignitionswitch
IgnitionSwitch
Usethisswitchtostartthemowerengine.Ithas3positions: START,RUN,andOFF.
ChokeControl
Usethechoketostartacoldengine.Pullthechokeknob uptoengageit.Pushthechokeknobdowntodisengage it(Figure5).
ThrottleControl
Thethrottlecontrolstheenginespeed,andithasa continuous-variablesettingfromtheSLOWtoFASTposition (Figure5).
Blade-ControlSwitch(PowerTakeoff)
Theblade-controlswitch,representedbyapower-takeoff (PTO)symbol,engagesanddisengagespowertothemower blades(Figure5).
11
Page 12
Motion-ControlLevers
G014521
1
Usethemotion-controlleverstodrivethemachineforward, reverse,andturneitherdirection.
ParkPosition
Movethemotion-controlleversoutwardfromthecenterto thePARKpositionwhenexitingthemachine(Figure19). Alwayspositionthemotion-controlleversintothePARK positionwhenyoustopthemachineorleaveitunattended.
SmartSpeed™ControlSystemLever
TheSmartSpeed™Control-Systemlever,locatedbelowthe operatingposition,givesyouachoicetodrivethemachineat 3speedranges—trim,tow ,andmow(Figure22).
Fuel-PresenceWindow
Youcanusethefuelwindow ,locatedontheleftsideofthe machine,toverifythepresenceoffuelinthetank(Figure6).
Operation
Note:Determinetheleftandrightsidesofthemachine
fromthenormaloperatingposition.
BeforeOperation

BeforeOperationSafety

GeneralSafety
•Neverallowchildrenoruntrainedpeopletooperateor
servicethemachine.Localregulationsmayrestrictthe ageoftheoperator.Theownerisresponsiblefortraining alloperatorsandmechanics.
•Becomefamiliarwiththesafeoperationoftheequipment,
operatorcontrols,andsafetysigns.
•Knowhowtostopthemachineandshutofftheengine
quickly.
•Checkthatoperator-presencecontrols,safetyswitches,
andshieldsareattachedandfunctioningproperly.Donot operatethemachineunlesstheyarefunctioningproperly.
•Beforemowing,alwaysinspectthemachinetoensurethat
theblades,bladebolts,andcuttingassembliesareingood workingcondition.Replacewornordamagedbladesand boltsinsetstopreservebalance.
•Inspecttheareawhereyouwillusethemachineand
removeallobjectsthatthemachinecouldthrow.
•Evaluatetheterraintodeterminetheappropriate
equipmentandanyattachmentsoraccessoriesrequiredto operatethemachineproperlyandsafely.
Figure6
1.Fuel-presencewindow
Height-of-CutLever
Usetheheight-of-cutlevertolowerandraisethedeckfrom theseatedposition.Movingtheleverup(towardyou)raises thedeckfromthegroundandmovingtheleverdown(away fromyou)lowersthedecktowardtheground.Adjustthe height-of-cutonlywhilethemachineisnotmoving(Figure
23).
Attachments/Accessories
AselectionofToroapprovedattachmentsandaccessoriesis availableforusewiththemachinetoenhanceandexpand itscapabilities.ContactyourAuthorizedServiceDealeror Distributororgotowww .Toro.comforalistofallapproved attachmentsandaccessories.
g014521
FuelSafety
•Toavoidpersonalinjuryorpropertydamage,useextreme
careinhandlingfuel.Fuelvaporsareammableand explosive.
•Extinguishallcigarettes,cigars,pipes,andothersources
ofignition.
•Useonlyanapprovedfuelcontainer.
•Donotremovethefuelcaporaddfueltothefueltank
whiletheengineisrunningorwhilehot.
•Donotrefuelthemachineindoors.
•Donotstorethemachineorfuelcontainerwherethere
isanopename,spark,orpilotlight,suchasonawater heateroronotherappliances.
•Donotllcontainersinsideavehicleoronatruckor
trailerbedwithaplasticliner.Alwaysplacecontainerson theground,awayfromyourvehiclebeforelling.
•Removetheequipmentfromthetruckortrailerand
refuelitwhileitisontheground.Ifthisisnotpossible, thenrefuelfromaportablecontainerratherthana fuel-dispensernozzle.
12
Page 13
•Donotoperatethemachinewithouttheentireexhaust
g027243
A
B
E
D
C
systeminplaceandinproperworkingcondition.
•Keepthefuel-dispensernozzleincontactwiththerimof
thefueltankorcontaineropeningatalltimesuntilfueling iscomplete.Donotuseanozzlelock-opendevice.
•Ifyouspillfuelonyourclothing,changeyourclothing
immediately.Wipeupanyfuelthatspills.
•Neveroverllthefueltank.Replacethefuelcapand
tightenitsecurely.
•Storefuelinanapprovedcontainerandkeepitoutofthe
reachofchildren.Neverbuymorethana30-daysupply offuel.
•Donotllthefueltankcompletelyfull.Addfueltothe
fueltankuntilthelevelis6to13mm(1/4to1/2inch) belowthebottomofthellerneck.Thisemptyspacein thetankallowsfueltoexpand.
–Avoidprolongedbreathingofvapors.
–Keepyourfaceawayfromthenozzleandfueltank
opening.
–Avoidcontactwithskin;washoffspillswithsoapand
water.

UsingStabilizer/Conditioner

Useafuelstabilizer/conditionerinthemachinetoprovide thefollowingbenets:
•Keepsfuelfreshduringstorageof90daysorless(drain
thefueltankwhenstoringthemachineformorethan 90days)
•Cleanstheenginewhileitruns
•Eliminatesgum-likevarnishbuildupinthefuelsystem,
whichcauseshardstarting
Important:Donotusefueladditivescontaining methanolorethanol.
Addthecorrectamountoffuelstabilizer/conditioner tothefuel.
Note:Afuelstabilizer/conditionerismosteffective whenmixedwithfreshfuel.T ominimizethechanceof varnishdepositsinthefuelsystem,usefuelstabilizerat alltimes.

FillingtheFuelTank

1.Parkthemachineonlevelground.

RecommendedFuel

•Forbestresults,useonlyclean,fresh(lessthan30days
old),unleadedgasolinewithanoctaneratingof87or higher((R+M)/2ratingmethod).
•Ethanol:Gasolinewithupto10%ethanol(gasohol)
or15%MTBE(methyltertiarybutylether)byvolume isacceptable.EthanolandMTBEarenotthesame. Gasolinewith15%ethanol(E15)byvolumeisnot approvedforuse.Neverusegasolinethatcontains morethan10%ethanolbyvolume,suchasE15 (contains15%ethanol),E20(contains20%ethanol),or E85(containsupto85%ethanol).Usingunapproved gasolinemaycauseperformanceproblemsand/orengine damagewhichmaynotbecoveredunderwarranty.
•Donotusegasolinecontainingmethanol.
•Donotstorefueleitherinthefueltankorfuelcontainers
•Donotaddoiltogasoline.
overthewinterunlessyouuseafuelstabilizer.
2.Shutofftheengineandengagetheparkingbrake.
3.Cleanaroundthefuel-tankcap.
4.Fillthefueltanktothebottomofthellerneck(Figure
7).
Note:Donotllthefueltankcompletelyfull.The emptyspaceinthetankallowsthefueltoexpand.
g027243
Figure7
13
Page 14

CheckingtheEngine-OilLevel

G009027
1
2
Beforeyoustarttheengineandusethemachine,check theoillevelintheenginecrankcase;refertoCheckingthe
Engine-OilLevel(page14).

BreakinginaNewMachine

Newenginestaketimetodevelopfullpower.Mowerdecks anddrivesystemshavehigherfrictionwhennew,placing additionalloadontheengine.Allow40to50hoursof break-intimefornewmachinestodevelopfullpowerand bestperformance.

ThinkSafetyFirst

Pleasereadallsafetyinstructionsandsymbolsinthesafety section.Knowingthisinformationcouldhelpyouor bystandersavoidinjury.
DANGER
Operatingthemachineonwetgrassorsteepslopes cancauseslidingandlossofcontrol.
•Donotoperateonslopesgreaterthan15degrees.
•Reducespeedanduseextremecautionon slopes.
•Donotoperatethemachinenearwater.
DANGER
Wheelsdroppingoveredgescancauserollovers, whichmayresultinseriousinjury,death,or drowning.
Donotoperatethemachineneardrop-offs.
Figure8
1.SafeZone—usethe machinehereonslopes lessthan15degreesor atareas.
2.DangerZone—usea walk-behindmowerand/or ahandtrimmeronslopes greaterthan15degrees, neardrop-offsandwater.
3.Water
CAUTION
Thismachineproducessoundlevelsinexcessof 85dBAattheoperator’searandcancausehearing lossthroughextendedperiodsofexposure.
Wearhearingprotectionwhenoperatingthis machine.
Useprotectiveequipmentforyoureyes,ears,hands,feet, andhead.
g000513
g009027
Figure9
1.Weareyeprotection.2.Wearhearingprotection.
14
Page 15
UsingtheSafety-Interlock
g027252
B
A

PositioningtheSeat

System
WARNING
Ifthesafety-interlockswitchesaredisconnectedor damaged,themachinecouldoperateunexpectedly, causingpersonalinjury.
•Donottamperwiththeinterlockswitches.
•Checktheoperationoftheinterlockswitches dailyandreplaceanydamagedswitchesbefore operatingthemachine.
UnderstandingtheSafety-Interlock System
Thesafety-interlocksystemisdesignedtopreventtheengine fromstartingunless:
•Theblade-controlswitch(PTO)isdisengaged.
•Themotion-controlleversareinthePARKposition.
Thesafety-interlocksystemalsoisdesignedtoshutoffthe enginewheneverthecontrolleversareoutofthePARK positionandyourisefromtheseat.
Theseatcanmoveforwardandbackward.Positiontheseat whereyouhavethebestcontrolofthemachineandaremost comfortable(Figure10).
g027632
Figure10
AdjustingtheMotion-Control
TestingtheSafety-InterlockSystem
Testthesafety-interlocksystembeforeyouusethemachine eachtime.Ifthesafetysystemdoesnotoperateasdescribed below,haveanAuthorizedServiceDealerrepairthesafety systemimmediately.
1.Sitontheseat,movethemotion-controlleversinthe PARKposition,andmovetheblade-controlswitchto theONposition.Trystartingtheengine;theengine shouldnotcrank.
2.Sitontheseatandmovetheblade-controlswitchto theOFFposition.Moveeithermotion-controlleverto thecenter,unlockedposition.Trystartingtheengine; theengineshouldnotcrank.Repeatwiththeother motion-controllever.
3.Sitontheseat,movetheblade-controlswitchtothe OFFposition,andlockthemotion-controlleversin thePARKposition.Starttheengine.Whiletheengine isrunning,engagetheblade-controlswitch,andrise slightlyfromtheseat;theengineshouldshutoff.
4.Sitontheseat,movetheblade-controlswitchtothe OFFposition,andlockthemotion-controlleversinthe PARKposition.Starttheengine.Whiletheengineis running,movethemotion-controlleverstothecenter, unlockedposition,engagetheblade-controlswitch,and riseslightlyfromtheseat;theengineshouldshutoff.
Levers
AdjustingtheHeight
Youcanadjustthemotion-controllevershigherorlowerfor maximumcomfort(Figure11).
g027252
Figure11
15
Page 16
AdjustingtheTilt
Youcanadjustthemotion-controlleversforwardorrearward foryourcomfort.
1.Loosentheupperboltholdingthecontrollevertothe control-armshaft.
2.Loosenthelowerboltjustenoughtopivotthecontrol leverforwardorrearward(Figure11).
3.Tightenbothboltstosecurethecontrolleverinthe newposition.
4.Repeattheadjustmentfortheothercontrollever.
DuringOperation

DuringOperationSafety

GeneralSafety
•Theowner/operatorcanpreventandisresponsiblefor
accidentsthatmaycausepersonalinjuryorproperty damage.
•Wearappropriateclothing,includingeyeprotection;
slip-resistant,substantialfootwear;andhearing protection.Tiebacklonghairanddonotwearjewelry.
•Donotoperatethemachinewhileill,tired,orunderthe
inuenceofalcoholordrugs.
•Nevercarrypassengersonthemachineandkeep
bystandersandpetsawayfromthemachineduring operation.
•Operatethemachineonlyingoodvisibilitytoavoidholes
orhiddenhazards.
•Avoidmowingonwetgrass.Reducedtractioncould
causethemachinetoslide.
•Ensurethatalldrivesareinneutral,theparkingbrake
isengaged,andyouareintheoperatingpositionbefore youstarttheengine.
•Keepyourhandsandfeetawayfromthecuttingunits.
Keepclearofthedischargeopeningatalltimes.
•Lookbehindanddownbeforebackinguptobesureof
aclearpath.
•Usecarewhenapproachingblindcorners,shrubs,trees,
orotherobjectsthatmayobscureyourvision.
•Donotmowneardrop-offs,ditches,orembankments.
Themachinecouldsuddenlyrolloverifawheelgoes overtheedgeoriftheedgegivesway.
•Stopthebladeswheneveryouarenotmowing.
•Stopthemachineandinspectthebladesafterstrikingan
objectorifthereisanabnormalvibrationinthemachine. Makeallnecessaryrepairsbeforeresumingoperation.
•Slowdownandusecautionwhenmakingturnsand
crossingroadsandsidewalkswiththemachine.Always yieldtheright-of-way.
•Disengagethedrivetothecuttingunitandshutoffthe
enginebeforeadjustingtheheightofcut(unlessyoucan adjustitfromtheoperatingposition).
•Neverrunanengineinanareawhereexhaustgasesare
enclosed.
•Neverleavearunningmachineunattended.
•Beforeleavingtheoperatingposition(includingtoempty
thecatchersortounclogthechute),dothefollowing:
–Stopthemachineonlevelground. –Disengagethepowertake-offandlowerthe
attachments. –Engagetheparkingbrake. –Shutofftheengineandremovethekey .
16
Page 17
–Waitforallmovingpartstostop.
G008945
G009174
•Donotoperatethemachinewhenthereistheriskof
lightning.
•Donotusethemachineasatowingvehicle.
•Donotchangethegovernorspeedoroverspeedthe
engine.
•UseaccessoriesandattachmentsapprovedbyToroonly.
SlopeSafety
•Slowdownthemachineanduseextracareonhillsides.
Travelupanddownonhillsides.Turfconditionscan affectthestabilityofthemachine.
•Avoidturningthemachineonslopes.Ifyoumustturnthe
machine,turnitslowlyandgraduallydownhill,ifpossible.

OperatingtheMower Blade-ControlSwitch(PTO)

Theblade-controlswitch(PTO)startsandstopsthemower bladesandanypoweredattachments.
EngagingtheBlade-ControlSwitch (PTO)
•Donotturnthemachinesharply .Usecarewhenreversing
themachine.
•Useextracarewhileoperatingthemachinewith
attachments;theycanaffectthestabilityofthemachine.
g008945
Figure12
Note:AlwaysengagethebladeswiththethrottleintheFAST
position(Figure13).
g187516
Figure13
DisengagingtheBlade-ControlSwitch (PTO)
g009174
Figure14
17
Page 18

OperatingtheThrottle

G008959
1
2
START
RUN
STOP
G008947

OperatingtheIgnitionSwitch

YoucanmovethethrottlecontrolbetweentheFASTand SLOWpositions(Figure15).
AlwaysusetheFASTpositionwhenturningonthemower deckwiththeblade-controlswitch(PTO).
Figure15

OperatingtheChoke

Usethechoketostartacoldengine.
1.Iftheengineiscold,usethechoketostarttheengine.
2.Pullupthechokeknobtoengagethechokebefore usingtheignitionswitch(Figure16).
Note:Ensurethatyoufullyengagethechoke.You mayneedtoholdtheknobupwhenyouusethe ignitionswitch.
3.Pushdownthechoketodisengagethechokeafterthe enginehasstarted(Figure16).
1.TurntheignitionkeytotheSTARTposition(Figure17).
Note:Whentheenginestarts,releasethekey.
Important:Donotengagethestarterformore
than5secondsatatime.Iftheenginefailsto start,wait15secondsbetweenattempts.Failureto followtheseinstructionscanburnoutthestarter motor.
Note:Youmayneedmultipleattemptstostartthe enginewhenyoustartitthersttimeafterthefuel systemhasbeenwithoutfuelcompletely.
g187517
g008947
Figure17
2.TurntheignitionkeytotheSTOPpositiontoshutoff theengine.
g008959
Figure16
1.Onposition2.Offposition
18
Page 19
StartingandShuttingOffthe
g027581
B
C
D
E
A
G
F
UsingtheMotion-Control
Engine
StartingtheEngine
Note:Awarmorhotenginemaynotrequirechoking.
Important:Donotengagethestarterformorethan
5secondsatatime.Engagingthestartermotorfor morethan5secondscandamagethestartermotor.If theenginefailstostart,wait10secondsbeforeoperating theenginestarteragain.
Levers
Figure18
ShuttingOfftheEngine
1.Disengagethebladesbymovingtheblade-control switchtotheOFFposition(Figure16).
2.TurntheignitionkeytotheOFFpositionandremove thekey.
g004532
Figure19
1.Motion-control lever—PARKposition
2.Center,unlockedposition5.Frontofmachine
3.Forward
4.Backward

DrivingtheMachine

Thedrivewheelsturnindependently,poweredbyhydraulic motorsoneachaxle.Youcanturn1sideinreversewhileyou turntheotherforward,causingthemachinetospinrather thanturn.Thisgreatlyimprovesthemachinemaneuverability butmayrequiresometimeforyoutoadapttohowitmoves.
g027581
Thethrottlecontrolregulatestheenginespeedasmeasured inrpm(revolutionsperminute).Placethethrottlecontrolin theFASTpositionforbestperformance.Alwaysoperatein thefullthrottlepositionwhenmowing.
WARNING
Themachinecanspinveryrapidly.Y oumaylose controlofthemachineandcausepersonalinjuryor damagetothemachine.
•Usecautionwhenmakingturns.
•Slowthemachinedownbeforemakingsharp turns.
19
Page 20
DrivingForward
G008952
G008953
Note:Alwaysusecautionwhenbackingupandturning.
1.Movetheleverstothecenter,unlockedposition.
2.Togoforward,slowlypushthemotion-controllevers forward(Figure20).
UsingtheSmartSpeed
TM
Control
System
TheSmartSpeed operatingposition(Figure22),givestheoperatorachoice todrivethemachineat3groundspeedranges—trim,tow , andmow .
1.Smart-speedlever
TM
Control-Systemlever,locatedbelowthe
Figure22
g027625
Figure20
DrivingBackward
1.Movetheleverstothecenter,unlockedposition.
2.Togobackward,slowlypullthemotion-controllevers rearward(Figure21).
Tochangespeeds,dothefollowing:
g008952
1.Movethemotion-controlleverstoneutralandoutward tothePARKposition.
2.Disengagetheblade-controlswitch.
3.Adjustthelevertothedesiredposition.
Thefollowingareonlyrecommendationsforuse. Adjustmentsvarybygrasstype,moisturecontent,andthe heightofthegrass.
Suggested uses:
ParkingX
Heavy,wet grass
TrainingX
BaggingX
MulchingX
Normal mowing
TransportX
TrimTowMow
X
X
Figure21
Trim
Thisisthelowestspeed.Thesuggestedusesforthisspeed areasfollows:
•Parking
g008953
•Heavy,wetgrassmowingconditions
•Training
20
Page 21
Tow
Thisisthemediumspeed.Thesuggestedusesforthisspeed areasfollows:
•Bagging
•Mulching
Mow
Thisisthefastestspeed.Thesuggestedusesforthisspeed areasfollows:
•Normalmowing
•Transportingthemachine

StoppingtheMachine

Tostopthemachine,movethemotion-controlleversto NEUTRALandoutwardtothePARKposition,disengagethe blade-controlswitch,ensurethatthethrottleisintheFAST position,andturntheignitionkeytoOFF.Removethekey fromtheignitionswitch.
WARNING

AdjustingtheHeightofCut

Note:Thetransportpositionisthehighestheight-of-cut
positionat115mm(4-1/2inches)asshowninFigure23.
Childrenorbystandersmaybeinjuredifthey moveorattempttooperatethemowerwhileitis unattended.
Alwaysremovetheignitionkeyandmovethe motion-controlleversoutwardtothePARKposition whenleavingthemachineunattended,evenifjust forafewminutes.
g027504
Figure23

AdjustingtheAnti-Scalp Rollers

Wheneveryouchangetheheightofcut,adjusttheheight oftheanti-scalprollers.
Note:Adjusttheanti-scalprollerssothattherollersdonot touchthegroundinnormal,atmowingareas.
1.Disengagetheblade-controlswitch(PTO),move themotion-controlleverstothePARKposition,and engagetheparkingbrake.
2.Shutofftheengine,removethekey ,andwaitforall movingpartstostopbeforeleavingtheoperating position.
3.Adjusttheanti-scalprollersasshowninFigure24to matchtheclosestheight-of-cutposition.
21
Page 22
G010233
1
2
3
4
OperatingTips
UsingtheFastThrottleSetting
Forbestmowingandmaximumaircirculation,operatethe engineattheFASTposition.Airisrequiredtothoroughlycut grassclippings,sodonotsettheheight-of-cutsolowasto totallysurroundthemowerinuncutgrass.Alwaystrytohave 1sideofthemowerfreefromuncutgrass,whichallowsair tobedrawnintothemower.
Figure24
1.Anti-scalproller3.Flangenut
2.Bolt4.Holespacing

UsingtheSideDischarge

Themowerhasahingedgrassdeectorthatdisperses clippingstothesideanddowntowardtheturf.
DANGER
Withoutagrassdeector,dischargecover,ora completegrass-catcherassemblymountedin place,youandothersareexposedtobladecontact andthrowndebris.Contactwithrotatingmower blade(s)andthrowndebriswillcauseinjuryor death.
•Neverremovethegrassdeectorfromthemower becausethegrassdeectorroutesmaterialdown towardtheturf.Ifthegrassdeectorisever damaged,replaceitimmediately .
•Neverputyourhandsorfeetunderthemower.
•Nevertrytoclearthedischargeareaormower bladesunlessyoumovetheblade-controlswitch (PTO)totheOFFposition,rotatetheignition keytotheOFFposition,andremovethekey.
g010233
CuttingaLawnfortheFirstTime
Cutgrassslightlylongerthannormaltoensurethatthe cuttingheightofthemowerdoesnotscalpanyuneven ground.However,thecuttingheightusedinthepastis generallythebestonetouse.Whencuttinggrasslongerthan 15cm(6inches)tall,youmaywanttocutthelawntwiceto ensureanacceptablequalityofcut.
CuttingaThirdoftheGrassBlade
Itisbesttocutonlyaboutathirdofthegrassblade.Cutting morethanthatisnotrecommendedunlessgrassissparse,or itislatefallwhengrassgrowsmoreslowly.
AlternatingtheMowingDirection
Alternatethemowingdirectiontokeepthegrassstanding straight.Thisalsohelpsdisperseclippingswhichenhances decompositionandfertilization.
MowingatCorrectIntervals
Grassgrowsatdifferentratesatdifferenttimesoftheyear. Tomaintainthesamecuttingheight,mowmoreofteninearly spring.Asthegrassgrowthrateslowsinmidsummer,mow lessfrequently .Ifyoucannotmowforanextendedperiod, rstmowatahighcuttingheight,thenmowagain2days lateratalowerheightsetting.
UsingaSlowerCuttingSpeed
•Makesurethatthegrassdeectorisinthedown position.
Toimprovecutquality,useaslowergroundspeedincertain conditions.
AvoidingCuttingTooLow
Whenmowinguneventurf,raisethecuttingheighttoavoid scalpingtheturf.
StoppingtheMachine
Ifyoumuststoptheforwardmotionofthemachinewhile mowing,aclumpofgrassclippingsmaydropontoyour lawn.Toavoidthis,moveontoapreviouslycutareawiththe bladesengagedoryoucandisengagethemowerdeckwhile movingforward.
22
Page 23
KeepingtheUndersideoftheMower Clean
AfterOperation
Cleanclippingsanddirtfromtheundersideofthemower aftereachuse.Ifgrassanddirtbuildupinsidethemower, cuttingqualitywilleventuallybecomeunsatisfactory.
MaintainingtheBlade(s)
Maintainasharpbladethroughoutthecuttingseasonbecause asharpbladecutscleanlywithouttearingorshreddingthe grassblades.Tearingandshreddingturnsgrassbrownat theedges,whichslowsgrowthandincreasesthechanceof disease.Checkthemowerbladesaftereachuseforsharpness, andforanywearordamage.Filedownanynicksandsharpen thebladesasnecessary.Ifabladeisdamagedorworn,replace itimmediatelywithagenuineTororeplacementblade.

AfterOperationSafety

GeneralSafety
•Cleangrassanddebrisfromthecuttingunits,mufers,
andenginecompartmenttohelppreventres.Cleanup oilorfuelspills.
•Disengagethedrivetotheattachmentwheneveryouare
transportingornotusingthemachine.
•Usefull-widthrampsforloadingthemachineintoa
trailerortruck.
•Tiethemachinedownsecurelyusingstraps,chains,cable,
orropes.Bothfrontandrearstrapsshouldbedirected downandoutwardfromthemachine.
•Allowtheenginetocoolbeforestoringthemachinein
anyenclosure.
•Shutoffthefuelbeforestoringortransportingthe
machine.
•Neverstorethemachineorfuelcontainerwherethereis
anopename,spark,orpilotlight,suchasonawater heateroronotherappliances.

PushingtheMachinebyHand

Important:Alwayspushthemachinebyhand.Donot
towthemachine,becausedamagetothehydraulicdrive systemmayoccur.
Thismachinehasanelectric-brakemechanism.Topushthe machine,turntheignitionkeytotheRUNposition.The batterymustbechargedandfunctioningtodisengagethe electricbrake.
PushingtheMachine
1.Parkthemachineonalevelsurfaceanddisengagethe blade-controlswitch.
2.Movethemotion-controlleversoutwardtothePARK position,shutofftheengine,andwaitforallmoving partstostopbeforeleavingtheoperatingposition.
3.Locatethebypassleversontheframeonbothsidesof theengine.
4.Movethebypassleversforwardthroughthekeyhole anddowntolocktheminplace(Figure25).
Note:Dothisforeachlever.
5.Movethemotion-controlleversinwardtothe NEUTRALpositionandturntheignitionkeytothe RUNposition.
Note:Donotstartthemachine.
Note:Youcannowpushthemachinebyhand.
23
Page 24
g017303
1 2
3
Figure25
g017303
1.Bypass-leverlocations
2.Leverpositionfor operatingthemachine
3.Leverpositionforpushing themachine
6.Whennished,turnthekeytotheSTOPpositionto avoiddrainingthebatterycharge.
Note:Ifthemachinefailstomove,theelectricbrake maystillbeengaged.Youcanreleasetheelectricbrakeif necessary;refertoReleasingtheElectricBrake(page37).
OperatingtheMachine
Movethebypassleversrearwardthroughthekeyholeand downtolocktheminplaceasshowninFigure25.
Note:Dothisforeachlever.
24
Page 25

TransportingtheMachine

LoadingtheMachine

Useaheavy-dutytrailerortrucktotransportthemachine. Ensurethatthetrailerortruckhasallnecessarybrakes, lighting,andmarkingasrequiredbylaw .Pleasecarefullyread allthesafetyinstructions.Knowingthisinformationcould helpyou,yourfamily,pets,orbystandersavoidinjury.
WARNING
Drivingonthestreetorroadwaywithout turnsignals,lights,reectivemarkings,ora slow-moving-vehicleemblemisdangerousandcan leadtoaccidents,causingpersonalinjury.
Donotdrivethemachineonapublicstreetor roadway.
1.Ifyouareusingatrailer,connectittothetowing vehicleandconnectthesafetychains.
2.Ifapplicable,connectthetrailerbrakes.
3.Loadthemachineontothetrailerortruck.
4.Shutofftheengine,removethekey,setthebrake,and closethefuelvalve.
5.Tiedownthemachinenearthefrontcasterwheelsand therearbumper(Figure26).
Useextremecautionwhenloadingorunloadingmachines ontoatraileroratruck.Useafull-widthrampthatiswider thanthemachineforthisprocedure.Backuptherampand driveforwarddowntheramp(Figure27).
Figure27
1.Backthemachineupthe ramp.
Important:Donotusenarrowindividualrampsfor eachsideofthemachine.
2.Drivethemachineforward downtheramp.
WARNING
Loadingamachineontoatrailerortruckincreases thepossibilityoftip-overandcouldcauseserious injuryordeath(Figure28).
•Useextremecautionwhenoperatingamachine onaramp.
g027995
Figure26
•Useonlyafull-widthramp;donotuseindividual rampsforeachsideofthemachine.
•Donotexceeda15-degreeanglebetweenthe rampandthegroundorbetweentherampand thetrailerortruck.
g027708
•Ensurethatthelengthoframpisatleast4times aslongastheheightofthetrailerortruckbed totheground.Thisensuresthattherampangle doesnotexceed15degreesonatground.
•Backuprampsanddriveforwarddownramps.
•Avoidsuddenaccelerationordecelerationwhile drivingthemachineonarampasthiscould causealossofcontroloratip-oversituation.
25
Page 26
g027996
5
1
2
6
Figure28
g027996
1.Full-widthrampinstowed position
2.Sideviewoffull-width rampinloadingposition
3.Notgreaterthan 15degrees
4.Rampisatleast4times aslongastheheightof thetrailerortruckbedto theground
5.H=heightofthetraileror truckbedtotheground
6.Trailer
26
Page 27
Maintenance
Note:Determinetheleftandrightsidesofthemachinefromthenormaloperatingposition.
RecommendedMaintenanceSchedule(s)
MaintenanceService
Interval
Aftertherst5hours
Beforeeachuseordaily
Aftereachuse
Every25hours
Every100hours
Every200hours
Beforestorage
MaintenanceProcedure
•Changetheengineoil.
•Checkthesafety-interlocksystem.
•Checktheaircleanerfordirty,loose,ordamagedparts.
•Checktheengine-oillevel.
•Cleantheairintakescreen.
•Inspecttheblades.
•Cleanthemower-deckhousing.
•Greasealllubricationpoints.
•Checktirepressure.
•Checkthebeltsforwearorcracks.
•Servicetheair-cleanerpaperelement(moreoftenindusty,dirtyconditions).
•Changetheengineoil(moreoftenindusty,dirtyconditions).
•Changetheoillter(moreoftenindusty,dirtyconditions).
•Checkthesparkplug(s).
•Checkthein-linefuellter.
•Replacetheair-cleanerpaperelement(moreoftenindusty,dirtyconditions).
•Replacethesparkplug(s).
•Replacethein-linefuellter.
•Chargethebatteryanddisconnectthebatterycables.
•Performallmaintenanceprocedureslistedabovebeforestorage.
•Paintanychippedsurfaces.
CAUTION
Ifyouleavethekeyintheignitionswitch,someonecouldaccidentlystarttheengineandseriouslyinjure youorotherbystanders.
Removethekeyfromtheignitionbeforeyouperformanymaintenance.
Important:Refertoyourengineoperator'smanualforadditionalmaintenanceprocedures.
27
Page 28
Pre-Maintenance

RaisingtheSeat

Procedures

MaintenanceandStorage Safety

•Beforerepairingthemachinedothefollowing:
–Disengagethedrives.
–Engagetheparkingbrake.
–Shutofftheengineandremovethekey .
–Disconnectthespark-plugwire.
•Parkthemachineonalevelsurface.
•Cleangrassanddebrisfromthecuttingunit,drives,
mufers,andenginetohelppreventres.
•Cleanupoilorfuelspills.
•Lettheenginecoolbeforestoringthemachine.
•Donotstorethemachineorfuelnearamesordrain
thefuelindoors.
•Donotallowuntrainedpersonneltoservicethemachine.
Makesurethatthemotion-controlleversarelockedinthe PARKposition.Lifttheseatforward.
Youcanaccessthefollowingcomponentsbyraisingtheseat:
•Serialplate
•Servicedecal
•Fuellter
•Batteryandbatterycables
•Usejackstandstosupportthemachineand/or
componentswhenrequired.
•Carefullyreleasepressurefromcomponentswithstored
energy.
•Disconnectthebatteryorremovethespark-plugwire
beforemakinganyrepairs.Disconnectthenegative terminalrstandthepositiveterminallast.Connectthe positiveterminalrstandnegativelast.
•Usecarewhencheckingtheblades.Wraptheblade(s)
orwearthicklypaddedgloves,andusecautionwhen servicingthem.Onlyreplaceblades;donotstraighten orweldthem.
•Keepyourhandsandfeetawayfrommovingparts.
Ifpossible,donotmakeadjustmentswiththeengine running.
•Keepallpartsingoodworkingconditionandallhardware
tightened,especiallytheblade-attachmentbolts.Replace allwornordamageddecals.
•Neverinterferewiththeintendedfunctionofasafety
deviceorreducetheprotectionprovidedbyasafety device.Checktheirproperoperationregularly.
•Toensureoptimumperformanceandcontinuedsafety
certicationofthemachine,useonlygenuineToro replacementpartsandaccessories.Replacementparts andaccessoriesmadebyothermanufacturerscouldbe dangerous,andsuchusecouldvoidtheproductwarranty.
•Checktheparkingbrakeoperationfrequently.Adjustand
serviceasrequired.
28
Page 29
Lubrication
G014908
1
2
3
EngineMaintenance

GreasingtheBearings

ServiceInterval:Every25hours—Greasealllubrication
points.
GreaseType:No.2lithiumgrease
1.Parkthemachineonalevelsurfaceanddisengagethe blade-controlswitch.
2.Movethemotion-controlleversoutwardtothePARK position,shutofftheengine,removethekey,and waitforallmovingpartstostopbeforeleavingthe operatingposition.
3.Cleanthegreasettings(Figure29andFigure30)with arag.
Note:Makesuretoscrapeanypaintoffthefrontof thetting(s).

EngineSafety

Shutofftheenginebeforecheckingtheoiloraddingoilto thecrankcase.

ServicingtheAirCleaner

ServiceInterval:Beforeeachuseordaily
Note:Servicetheaircleanermorefrequently(everyfew hours)ifoperatingconditionsareextremelydustyorsandy.
RemovingtheElement
1.Parkthemachineonalevelsurfaceanddisengagethe blade-controlswitch(PTO).
2.Movethemotion-controlleverstothebrakeposition, shutofftheengine,removethekey,andwaitforall movingpartstostopbeforeleavingtheoperating position.
3.Cleanaroundtheair-cleanercovertopreventdirtfrom gettingintotheengineandcausingdamage.
4.Liftthecoverandremovethehoseclampsecuringthe air-cleanerassemblytotheengine(Figure31).
5.Loosenthehoseclampandremovethepaperelement (Figure31).
g032432
Figure29
1.Frontcastertire
decal106-8717
Figure30
Locatedontheseat-panunderside
1.Readtheinstructions beforeservicingor performingmaintenance.
2.Checkthetirepressure every25operatinghours.
4.Connectagreaseguntoeachtting(Figure29and
3.Greaseevery25operating hours.
4.Engine
1.Cover
2.Paperelement
g014908
Figure31
3.Hoseclamp
Figure30).
5.Pumpgreaseintothettingsuntilgreasebeginsto oozeoutofthebearings.
29
Page 30
ServicingthePaperElement
g017470
SAE V iscosity Grades
SAE 40
SAE 30
SAE 10W– 30/ SAE 10W– 40
-20 0 20 32 40 60 80 100
-30 -20 -10 0 10 20 30 40
°F
°C
STARTING TEMPERA TURE RANGE ANTICIPATED BEFORE NEXT OIL CHANGE
SAE 5W– 20
ServiceInterval:Every100hours/Yearly(whichevercomes
rst)—Servicetheair-cleanerpaper element(moreoftenindusty,dirty conditions).
Every200hours/Every2years(whichevercomes rst)—Replacetheair-cleanerpaperelement(more oftenindusty,dirtyconditions).
1.Parkthemachineonalevelsurface,disengagethe blade-controlswitch,shutofftheengine,engage parkingbrake,andremovethekey.
2.Makesurethattheengineisshutoff,level,andiscool, sothattheoilhashadtimetodrainintothesump.
3.Tokeepdirt,grassclippings,etc.,outoftheengine, cleantheareaaroundtheoil-llcapanddipstickbefore removingit(Figure33).
1.Lightlytaptheelementonaatsurfacetoremovedust anddirt.
2.Inspecttheelementfortears,anoilylm,anddamage totheseal.
Important:Donotcleanthepaperelement withpressurizedairorliquids,suchassolvent, gasoline,orkerosene.Replacethepaperelement ifitisdamagedorcannotbecleanedthoroughly .

ServicingtheEngineOil

OilType:Detergentoil(APIserviceSF,SG,SH,SJ,orSL)
CrankcaseCapacity:withlter—1.8L(1.9USqt)
Viscosity:Seethetablebelow.
4.Shutofftheengine,removethekey ,andwaitforall movingpartstostopbeforeleavingtheoperating position.
Figure32
CheckingtheEngine-OilLevel
ServiceInterval:Beforeeachuseordaily
Note:Checktheoilwhentheengineiscold.
WARNING
Contactwithhotsurfacesmaycausepersonal injury.
Keepyourhands,feet,face,clothing,andother bodypartsawaythemuferandotherhotsurfaces.
Important:Ifyouoverllorunderlltheengine crankcasewithoilandruntheengine,youmaydamage theengine.
g017470
g193541
Figure33
30
Page 31
ChangingtheEngineOilandOilFilter
A B
C
D
F
E
G027539
B
A
C D
E
F
3/4
g027477
ServiceInterval:Aftertherst5hours/Aftertherst
month(whichevercomesrst)—Change theengineoil.
Every100hours/Yearly(whichevercomes rst)—Changetheengineoil(moreoftenindusty, dirtyconditions).
Every100hours/Yearly(whichevercomes rst)—Changetheoillter(moreoftenindusty,dirty conditions).
Note:Changetheengine-oilltermorefrequentlywhen operatingconditionsareextremelydustyorsandy.
Note:Disposeoftheusedoilatarecyclingcenter.
1.Parkthemachineonalevelsurfacetoensurethatthe oildrainscompletely.
2.DisengagethePTOandensurethattheparkingbrake isengaged.
3.Shutofftheengine,removethekey ,andwaitforall movingpartstostopbeforeleavingtheoperating position.
4.Draintheengineoil.
g027477
Figure35
Figure34
5.Changetheengine-oillter(Figure35).
Note:Ensurethattheoil-ltergaskettouchesthe engineandthenturnthelteranextra3/4turn.
g027539
31
Page 32
6.Slowlypourapproximately80%ofthespeciedoil
B
A
g027478
B
A
g027479
intothellertubeandslowlyaddtheadditionaloilto bringittotheFullmark(Figure36).
RemovingtheSparkPlug
1.DisengagethePTOandmovethemotion-control leverstothePARKposition.
2.Shutofftheengine,removethekey ,andwaitforall movingpartstostopbeforeleavingtheoperating position.
g027478
Figure37
Note:Duetothedeeprecessaroundthesparkplug,
blowingoutthecavitywithcompressedairisthemost effectivemethodforcleaning.Thesparkplugismost accessiblewhentheblowerhousingisremovedfor cleaning.
Figure36

ServicingtheSparkPlug

ServiceInterval:Every100hours/Yearly(whichevercomes
rst)—Checkthesparkplug(s).
Every200hours/Every2years(whichevercomes rst)—Replacethesparkplug(s).
Makesurethattheairgapbetweenthecenterandside electrodesiscorrectbeforeinstallingthesparkplug.Use aspark-plugwrenchforremovingandinstallingthespark plug(s)andagappingtool/feelergaugetocheckandadjust theairgap.Installanewsparkplug(s)ifnecessary.
Type:Champion
Airgap:0.76mm(0.03inch)
®
RN9YCorNGK
®
BPR6ES
g193530
CheckingtheSparkPlug
Important:Donotcleanthesparkplug(s).Always
replacethesparkplug(s)whenithas:ablackcoating, wornelectrodes,anoilylm,orcracks.
Ifyouseelightbrownorgrayontheinsulator,theengineis operatingproperly .Ablackcoatingontheinsulatorusually meanstheaircleanerisdirty.
Setthegapto0.76mm(0.03inch).
g027479
Figure38
32
Page 33
InstallingtheSparkPlug
B
A
25-30 N-m
18.5-22.1 ft-lb
g027960
C
D
Tightenthesparkplug(s)to25to30N∙m(18.5to22.1ft-lb).
FuelSystem Maintenance
DANGER
Incertainconditions,fuelisextremelyammable andhighlyexplosive.Areorexplosionfromfuel canburnyou,others,andcandamageproperty.
•Performanyfuel-relatedmaintenancewhenthe engineiscold.Dothisoutdoorsinanopenarea. Wipeupanyfuelthatspills.
•Neversmokewhendrainingfuel,andstayaway fromanopenameorwhereasparkmayignite thefuelfumes.
Figure39

CleaningtheCoolingSystem

Cleantheairintakescreenfromgrassanddebrisbeforeeach use.
1.Disengagetheblade-controlswitchandmovethe motion-controlleverstothePARKposition.
2.Shutofftheengine,removethekey ,andwaitforall movingpartstostopbeforeleavingtheoperating position.
3.Removetheairlterfromtheengine.
4.Removetheengineshroud.
5.Topreventdebrisenteringtheairintake,installtheair ltertothelterbase.
6.Cleandebrisandgrassfromtheparts.
7.Removetheairlterandinstalltheengineshroud.
g027960

ReplacingtheIn-LineFuel Filter

ServiceInterval:Every100hours/Yearly(whichevercomes
rst)—Checkthein-linefuellter.
Every200hours/Every2years(whichevercomes rst)—Replacethein-linefuellter.
Neverinstalladirtylterifitisremovedfromthefuelline.
1.Parkthemachineonalevelsurfaceanddisengagethe blade-controlswitch.
2.Ensurethatthebrakeisengaged,shutofftheengine, removethekey ,andwaitforallmovingpartstostop beforeleavingtheoperatingposition.
8.Installtheairlter.
33
Page 34
g027939
ElectricalSystem Maintenance

ElectricalSystemSafety

g027939
•Disconnectthebatterybeforerepairingthemachine.
Disconnectthenegativeterminalrstandthepositive last.Connectthepositiveterminalrstandthenegative last.
•Chargethebatteryinanopen,well-ventilatedarea,away
fromsparksandames.Unplugthechargerbefore connectingordisconnectingthebattery.Wearprotective clothinganduseinsulatedtools.
WARNING
CALIFORNIA
Proposition65Warning
Batteryposts,terminals,andrelated
accessoriescontainleadandleadcompounds,
chemicalsknowntotheStateofCalifornia
tocausecancerandreproductiveharm.
Washhandsafterhandling.
Figure40

ServicingtheBattery

DANGER
Batteryelectrolytecontainssulfuricacidwhichis fatalifconsumedandcausessevereburns.
g033082
Donotdrinkelectrolyteandavoidcontactwith skin,eyes,orclothing.Wearsafetyglassestoshield youreyesandrubberglovestoprotectyourhands.
RemovingtheBattery
WARNING
Batteryterminalsormetaltoolscouldshortagainst metalmachinecomponentscausingsparks.Sparks cancausethebatterygassestoexplode,resulting inpersonalinjury.
•Whenremovingorinstallingthebattery,donot allowthebatteryterminalstotouchanymetal partsofthemachine.
•Donotallowmetaltoolstoshortbetween thebatteryterminalsandmetalpartsofthe machine.
1.Parkthemachineonalevelsurfaceanddisengagethe blade-controlswitch.
2.Movethemotion-controlleversoutwardtothePARK position,shutofftheengine,removethekey,and
34
Page 35
waitforallmovingpartstostopbeforeleavingthe
G005072
1
2
3
4
5
6
7
operatingposition.
3.Raisetheseattoaccessthebattery.
4.Disconnectthenegative(black)groundcablefromthe batterypost(Figure41).
ChargingtheBattery
ServiceInterval:Beforestorage—Chargethebatteryand
disconnectthebatterycables.
1.Removethebatteryfromthechassis;refertoRemoving
theBattery(page34).
Note:Retainallfasteners.
WARNING
Incorrectbattery-cableroutingcoulddamage themachineandcablescausingsparks. Sparkscancausethebatterygassesto explode,resultinginpersonalinjury.
•Alwaysdisconnectthenegative(black) batterycablebeforedisconnectingthe positive(red)cable.
•Alwaysconnectthepositive(red)battery cablebeforeconnectingthenegative (black)cable.
5.Slidetherubbercoverupthepositive(red)cable.
6.Disconnectthepositive(red)cablefromthebattery post(Figure41).
Note:Retainallfasteners.
7.Removethebatteryhold-down(Figure41),andliftthe batteryfromthebatterytray .
2.Chargethebatteryforaminimumof1hourat6to 10A.
Note:Donotoverchargethebattery.
3.Whenthebatteryisfullycharged,unplugthecharger fromtheelectricaloutlet,thendisconnectthecharger leadsfromthebatteryposts(Figure42).
g000538
Figure42
1.Positive(+)batterypost3.Red(+)chargerlead
2.Negative(–)batterypost4.Black(–)chargerlead
1.Battery
2.Positive(+)batterypost
3.Bolt,washer,andnut7.Batteryhold-down
4.T erminalboot
InstallingtheBattery
1.Positionthebatteryinthetray(Figure41).
2.Usingthefastenerspreviouslyremoved,installthe positive(red)batterycabletothepositive(+)battery terminal.
3.Usingthefastenerspreviouslyremoved,installthe negativebatterycabletothenegative(-)battery terminal.
4.Slidetheredterminalbootontothepositive(red) batterypost.
5.Securethebatterywiththehold-down(Figure41).
Figure41
5.Negative(–)batterypost
6.Wingnut,washer,andbolt
g005072
6.Lowertheseat.
35
Page 36

ServicingtheFuses

30
25
30
25
G014921
2
1
DriveSystem
Theelectricalsystemisprotectedbyfuses.Itrequires nomaintenance;however,ifafuseblows,checkthe component/circuitforamalfunctionorshort.
Fusetype:
•Main—F1(30A,blade-type)
•ChargeCircuit—F2(25A,blade-type)
1.Removethescrewssecuringthecontrolpaneltothe machine.
Note:Retainallfasteners.
2.Liftthecontrolpaneuptoaccessthemainwireharness andfuseblock(Figure43).
3.Toreplaceafuse,pulloutonthefusetoremoveit (Figure43).
Maintenance

CheckingtheTirePressure

ServiceInterval:Every25hours—Checktirepressure.
Maintaintheairpressureinthefrontandreartiresas specied.Uneventirepressurecancauseunevencut.Check thepressureatthevalvestem(Figure44).Checkthetires whentheyarecoldtogetthemostaccuratepressurereading.
Refertothemaximumpressuresuggestedbythetire manufactureronthesidewallofthecasterwheeltires.
Inatethereardrivewheeltiresto90kPa(13psi).
g000554
Figure44
Figure43
1.Main(30A)2.Chargecircuit(25A)
4.Returnthecontrolpaneltoitsoriginalposition.
Note:Usethescrewsremovedpreviouslytosecure thepaneltothemachine.
1.Valvestem
g014921
36
Page 37

ReleasingtheElectricBrake

Youcanmanuallyreleasetheelectricbrakebyrotatingthe linkarmsforward.Oncetheelectricbrakeisenergized,the brakeresets.
1.TurntheignitionkeytotheOFFpositionordisconnect thebattery.
2.Locatetheshaftontheelectricbrakewherethebrake linkarmsareconnected(Figure45).

MowerMaintenance

ServicingtheCuttingBlades

Toensureasuperiorqualityofcut,keepthebladessharp.For convenientsharpeningandreplacement,keepextrablades onhand.
BladeSafety
3.Rotatetheshaftforwardtoreleasethebrake.
Figure45
1.Brake-linkarmontheelectricbrakecontrolmodule
2.Left,reartire
Awornordamagedbladecanbreak,andapieceoftheblade couldbethrowntowardyouorbystanders,resultinginserious personalinjuryordeath.Tryingtorepairadamagedblade mayresultindiscontinuedsafetycerticationoftheproduct.
•Inspectthebladesperiodicallyforwearordamage.
•Usecarewhencheckingtheblades.Wrapthebladesor
weargloves,andusecautionwhenservicingtheblades. Onlyreplaceorsharpentheblades;neverstraightenor weldthem.
•Onmulti-bladedmachines,takecareasrotating1blade
cancauseotherbladestorotate.
BeforeInspectingorServicingthe
g027911
Blades
1.Parkthemachineonalevelsurface,disengage theblade-controlswitch(PTO),andmovethe motion-controlleversoutwardtothePARKposition.
2.Shutofftheengine,removethekey,anddisconnectthe spark-plugwiresfromthesparkplugs.
InspectingtheBlades
ServiceInterval:Beforeeachuseordaily
1.Inspectthecuttingedges(Figure46).
2.Iftheedgesarenotsharporhavenicks,removeand sharpentheblade;refertoSharpeningtheBlades(page
39).
3.Inspecttheblades,especiallyinthecurvedarea.
4.Ifyounoticeanycracks,wear,oraslotforminginthis area,immediatelyinstallanewblade(Figure46).
Figure46
1.Cuttingedge3.Wear/slotforming
2.Curvedarea4.Crack
37
g006530
Page 38
CheckingforBentBlades
G014972
1
2
3
G014973
1
2
3
G014974
1
2
3
G014973
1
2
3
Note:Themachinemustbeonalevelsurfaceforthe followingprocedure.
1.Raisethemowerdecktothehighestheight-of-cut position.
2.Whilewearingthicklypaddedgloves,orotheradequate handprotection,slowlyrotatethebladetobemeasure intoapositionthatallowseffectivemeasurementofthe distancebetweenthecuttingedgeandthelevelsurface themachineison(Figure47).
Figure47
1.Deck3.Blade
2.Spindlehousing
g014974
Figure49
1.Blade(sidepreviouslymeasured)
2.Measurement(positionusedpreviously)
3.Opposingsideofbladebeingmovedintomeasurement position
5.Measurefromthetipofthebladetotheatsurface (Figure50).
Note:Thevarianceshouldbenomorethan3mm
g014972
(1/8inch).
3.Measurefromthetipofthebladetotheatsurface (Figure48).
Figure48
1.Blade(inpositionformeasuring)
2.Levelsurface
3.Measureddistancebetweenbladeandthesurface(A)
4.Rotatethesameblade180degreessothattheopposing cuttingedgeisnowinthesameposition(Figure49).
g014973
Figure50
1.Oppositebladeedge(inpositionformeasuring)
2.Levelsurface
3.Secondmeasureddistancebetweenbladeandsurface(B)
g014973
A.IfthedifferencebetweenAandBisgreaterthan
3mm(1/8inch),replacethebladewithanew blade;refertoRemovingtheBlades(page39)and
SharpeningtheBlades(page39).
Note:Ifabentbladeisreplacedwithanew blade,andthedimensionobtainedcontinuesto exceed3mm(1/8inch),thebladespindlecould bebent.ContactanAuthorizedToroDealerfor service.
B.Ifthevarianceiswithinconstraints,movetothe
nextblade.
6.Repeatthisprocedureoneachblade.
38
Page 39
RemovingtheBlades
G027833
Replacethebladesiftheyhitasolidobject,orifthebladeis outofbalanceorbent.
1.Holdthebladeendusingaragorthicklypaddedglove.
2.Removethebladebolt,curvedwasher,andbladefrom thespindleshaft(Figure51).
Figure51
1.Sailareaoftheblade
2.Blade
3.Curvedwasher
4.Bladebolt
5.Bladestiffener
g000553
Figure53
1.Blade2.Balancer
3.Repeatthisprocedureuntilthebladeisbalanced.
InstallingtheBlades
1.Installthebladeontothespindleshaft(Figure51).
Important:Thecurvedpartoftheblademust pointupwardtowardtheinsideofthemowerto ensurepropercutting.
2.Installthecurvedwasher(cuppedsidetowardthe blade)andthebladebolt(Figure51).
3.Torquethebladeboltto47to88N∙m(35to65ft-lb).
g027833

LevelingtheMowerDeck

Checktoensurethatthemowerdeckislevelanytimeyou installthemowerorwhenyouseeanunevencutonyour lawn.
SharpeningtheBlades
1.Usealetosharpenthecuttingedgeatbothendsof theblade(Figure52).
Note:Maintaintheoriginalangle.
Note:Thebladeretainsitsbalanceifthesameamount
ofmaterialisremovedfrombothcuttingedges.
Figure52
1.Sharpenatoriginalangle.
2.Checkthebalanceofthebladebyputtingitonablade balancer(Figure53).
Note:Ifthebladestaysinahorizontalposition,the bladeisbalancedandcanbeused.
Note:Ifthebladeisnotbalanced,lesomemetaloff theendofthesailareaonly(Figure52).
Themowerdeckmustbecheckedforbentbladespriorto leveling;anybentbladesmustberemovedandreplaced;refer totheCheckingforBentBlades(page38)beforecontinuing.
Themowerdeckmustbeleveledside-to-siderstthenthe fronttorearslopecanbeadjusted.
Requirements:
•Themachinemustbeonalevelsurface.
•Alltiresmustbeproperlyinated;refertoCheckingthe
TirePressure(page36).
LevelingfromSidetoSide
g000552
1.Parkthemachineonalevelsurfaceanddisengagethe blade-controlswitch.
2.Movethemotion-controlleversoutwardtothePARK position,shutofftheengine,removethekey,and waitforallmovingpartstostopbeforeleavingthe operatingposition.
3.Settheheight-of-cutlevertomiddleposition.
4.Carefullyrotatetheblade(s)sothattheyareallside toside(Figure54).
39
Page 40
G005278
1
2
2
3
3
4
4
10.Continuelevelingthedeckbycheckingthefront-to-rear
G009659
1
2
3
2
3
bladeslope;refertoAdjustingtheFront-to-RearBlade
Slope(page40).
AdjustingtheFront-to-RearBlade Slope
Checkthefront-to-rearbladelevelanytimeyouinstallthe mower.Ifthefrontofthemowerismorethan7.9mm (5/16inch)lowerthantherearofthemower,adjusttheblade level.
Figure54
1.Bladessidetoside
2.Sailareaoftheblade4.measurefromthetipofthe
3.Outsidecuttingedges
bladetotheatsurface here.
5.Measurebetweentheoutsidecuttingedgesandtheat surface(Figure54).
Note:Ifbothmeasurementsarenotwithin5mm (3/16inch),anadjustmentisrequired;continuewith thisprocedure.
6.Movetotheleftsideofthemachine.
7.Loosenthesidelockingnut.
8.Raiseorlowertheleftsideofthemowerdeckby rotatingtherearlockingnut.(Figure55).
Note:Rotatetherearlockingnutclockwiseto raisethemowerdeck;rotatetherearlockingnut counter-clockwisetolowerthemowerdeck.
g005278
1.Parkthemachineonalevelsurfaceanddisengagethe blade-controlswitch.
2.Movethemotion-controlleversoutwardtothePARK position,shutofftheengine,removethekey,and waitforallmovingpartstostopbeforeleavingthe operatingposition.
3.Settheheight-of-cutlevertomiddleposition.
Note:Checkandadjusttheside-to-sidebladelevel ifyouhavenotcheckedthesetting;refertoLeveling
fromSidetoSide(page39).
4.Carefullyrotatethebladessothattheyarefacingfront torear(Figure56).
g009659
Figure56
1.Bladesfronttorear3.Measurefromthetipofthe
2.Outsidecuttingedges
bladetotheatsurface here.
5.Measurefromthetipofthefrontbladetotheat surface,andthetipoftherearbladetotheatsurface (Figure56).
Note:Ifthefrontbladetipisnot1.6to7.9mm(1/16 to5/16inch)lowerthantherearbladetip,adjustthe frontlocknut.
Figure55
g027588
6.Toadjustthefront-to-rearbladeslope,rotatethe adjustmentnutinthefrontofthemower(Figure57).
1.Hangerbracket3.Rearlockingnut
2.Sidelockingnut
Note:Toraisethefrontofthemower,tightenthe adjustmentnut.Tolowerthefrontofthemower, loosentheadjustmentnut.
9.Checktheside-to-sideadjustmentsagain.Repeatthis procedureuntilthemeasurementsarecorrect.
40
Page 41
G014634
1
2
3
Figure57
G014635
1
2
3
2
2
3
G005077
1
2
2
3
1.Adjustingrod3.Locknut
2.Adjustingblock
7.Afteradjustment,checkthefront-to-rearslopeagain, continueadjustingthenutuntilthefrontbladetipis
1.6to7.9mm(1/16to5/16inch)lowerthantherear bladetip(Figure56).
g014634
g014635
Figure58
1.Frontsupportrod3.Deckbracket
2.Lockingnut
8.Whenthefront-to-rearbladeslopeiscorrect,checkthe side-to-sidelevelofthemoweragain,refertoLeveling
fromSidetoSide(page39).

RemovingtheMowerDeck

1.Parkthemachineonalevelsurfaceanddisengagethe blade-controlswitch.
2.Movethemotion-controlleversoutwardtothePARK position,shutofftheengine,removethekey,and waitforallmovingpartstostopbeforeleavingthe operatingposition.
3.Lowertheheight-of-cutlevertothelowestposition.
4.Removethehairpincotterfromthefrontsupportrod andremovetherodfromthedeckbracket(Figure58).
5.Carefullylowerthefrontofthemowerdecktothe ground.
6.Liftthemowerdeckandhangerbracketsclearof therearliftrodandlowerthemowercarefullytothe ground(Figure59).
g005077
Figure59
1.Mowerdeck
2.Hangerbracket
7.Slidethemowerdeckrearwardtoremovethemower beltfromtheenginepulley.
41
3.Rearliftrod
Page 42
8.Slidethemowerdeckoutfromunderneaththe
g017617
1
3
2
4
5
machine.
Note:Retainallpartsforfutureinstallation.

InstallingtheMower

1.Parkthemachineonalevelsurfaceanddisengagethe blade-controlswitch.
2.Movethemotion-controlleversoutwardtothePARK position,shutofftheengine,removethekey,and waitforallmovingpartstostopbeforeleavingthe operatingposition.
3.Slidethemowerunderthemachine.
4.Lowertheheight-of-cutlevertothelowestposition.
5.Lifttherearofthemowerdeckandguidethehanger bracketsovertherearliftrod(Figure59).
6.Attachthefrontsupportrodtothemowerdeckwith theclevispinandhairpincotter(Figure58).
7.Installthemowerbeltontotheenginepulley.
ReplacingtheGrassDeector
Inspectthegrassdeectorfordamagebeforeeachuse. Replaceanydamagedpartsbeforeuse.
1.Disengagethespringfromthenotchinthedeector bracketandslidetherodoutoftheweldeddeck brackets,spring,anddischargedeector(Figure60).
Figure60
1.Rod4.Deckbrackets
2.Spring5.Springinstalledoverthe
3.Deector
2.Removethedamagedorworndischargedeector.
3.Positionthenewdischargedeectorwiththebracket endsbetweentheweldedbracketsonthedeckas showninFigure61.
4.Installthespringontothestraightendoftherod.
5.Positionthespringontherodasshowninsothe shorterspringendiscomingfromundertherodbefore
42
rod
g017617
Page 43
thebendandgoingovertherodasitreturnsfromthe
g017618
1
3
4
2
bend.
6.Lifttheloopendofthespringandplaceitintothe notchonthedeectorbracket(Figure61).

MowerBeltMaintenance

InspectingtheBelts

ServiceInterval:Every25hours—Checkthebeltsforwear
orcracks.
Checkthebeltsforcracks,frayededges,burnmarks,orany otherdamage.Replacedamagedbelts.

ReplacingtheMowerBelt

Thesignsofawornbeltincludesquealingwhilethebeltis rotating,bladesslippingwhilecuttinggrass,andfrayededges, burnmarks,andcracksonthebelt.Replacethemowerbeltif anyoftheseconditionsareevident.
1.Parkthemachineonalevelsurfaceanddisengagethe blade-controlswitch.
2.Movethemotion-controlleversoutwardtothePARK position,shutofftheengine,removethekey,and waitforallmovingpartstostopbeforeleavingthe operatingposition.
Figure61
1.Rodandspringassembly installed
2.Loopendofthespring installedintothenotchin thedeectorbracket
3.Rod,shortend,moved behindmowerbracket
4.Shortend,retainedby mowerbracket.
7.Securetherodandspringassemblybytwistingitsothe shortendoftherodisplacedbehindthefrontbracket weldedtothedeck(Figure61).
Important:Thegrassdeectormustbespring loadedinthedownposition.Liftthedeectorup totestthatitsnapstothefulldownposition.
3.Settheheight-of-cutatthelowestcuttingpositionof 38mm(1-1/2inches).
g017618
4.Removethepulleycovers(Figure62).
g032555
Figure62
1.Cover2.Screw
5.Usingaspring-removaltool(ToroPartNo.92-5771), removetheidlerspringfromthedeckhooktoremove tensionontheidlerpulley ,androllthebeltoffthe pulleys(Figure63).
WARNING
Thespringisundertensionwheninstalled andcancausepersonalinjury.
Becarefulwhenremovingthebelt.
43
Page 44
G014931
1
2
3
3
4
5
6
Cleaning

WashingtheUndersideofthe Mower

ServiceInterval:Aftereachuse—Cleanthemower-deck
housing.
Important:Y oucanwashthemachinewithamild detergentandwater.Donotpressurewashthemachine. Avoidexcessiveuseofwater,especiallynearthecontrol panel,undertheseat,aroundtheengine,hydraulic pumps,andmotors.
Washtheundersideofthemoweraftereachusetoprevent grassbuildupforimprovedmulchactionandclipping dispersal.
Figure63
1.Idlerpulley
2.Mowerbelt5.Enginepulley
3.Outsidepulley6.Spring-removaltool
4.Spring
6.Routethenewbeltaroundtheenginepulleyand mowerpulleys(Figure63).
7.Usingaspring-removaltool,installtheidlerspringover thedeckhook,andplacetensionontheidlerpulley andmowerbelt(Figure63).
8.Installthepulleycovers(Figure62).
g014931
1.Parkthemachineonalevelsurfaceanddisengagethe blade-controlswitch.
2.Movethemotion-controlleversoutwardtothePARK position,shutofftheengine,removethekey,and waitforallmovingpartstostopbeforeleavingthe operatingposition.
3.Attachthehosecouplingtotheendofthemower washouttting,andturnthewateronhigh(Figure64).
Note:Spreadpetroleumjellyonthewashouttting O-ringtomakethecouplingslideoneasierandprotect theO-ring.
1.Washouttting3.O-ring
2.Hose
Figure64
4.Coupling
g003934
4.Lowerthemowertothelowestheight-of-cut.
5.Sitontheseatandstarttheengine.
6.Engagetheblade-controlswitchandletthemowerrun for1to3minutes.
44
Page 45
7.Disengagetheblade-controlswitch,shutoffthe engine,removetheignitionkey,andwaitforallmoving partstostop.
8.Turnthewateroffandremovethecouplingfromthe washouttting.
Note:Ifthemowerisnotcleanafter1washing,soak itandletitstandfor30minutes.Then,repeatthe process.
9.Runthemoweragainfor1to3minutestoremove excesswater.
WARNING
Abrokenormissingwashoutttingcould exposeyouandotherstothrownobjectsor bladecontact.Contactwithabladeorthrown debriscancauseinjuryordeath.
•Replacebrokenormissingwashouttting immediately,beforeusingmoweragain.
•Neverputyourhandsorfeetunderthe mowerorthroughopeningsinthemower.
Storage

CleaningandStorage

1.Disengagetheblade-controlswitch,movethe motion-controlleversoutwardtothePARKposition, shutofftheengine,andremovethekey .
2.Removegrassclippings,dirt,andgrimefromthe externalpartsoftheentiremachine,especiallythe engine.Cleandirtandchafffromtheoutsideofthe enginecylinderheadnsandblowerhousing.
Important:Youcanwashthemachinewithmild detergentandwater.Donotpressurewashthe machine.Avoidexcessiveuseofwater,especially nearthecontrolpanel,undertheseat,aroundthe engine,hydraulicpumps,andmotors.
3.Servicetheaircleaner;refertoServicingtheAir
Cleaner(page29).
4.Greaseandoilthemachine;refertoLubrication(page
29).
5.Changetheengineoilandlter;refertoChangingthe
EngineOilandOilFilter(page31).
6.Checkthetirepressure;refertoCheckingtheTire
Pressure(page36).
7.Chargethebattery;refertoChargingtheBattery(page
35).
8.Checktheconditionoftheblades;refertoServicing
theCuttingBlades(page37).
9.Preparethemachineforstoragewhennon-useoccurs over30days.Preparethemachineforstorageas follows.
A.Addapetroleumbasedstabilizer/conditionerto
thefuelinthetank.Followthemixinginstructions fromthestabilizermanufacturer.Donotusean alcoholbasedstabilizer(ethanolormethanol).
Note:Afuelstabilizer/conditionerismost effectivewhenmixedwithfreshfuelandusedat alltimes.
B.Runtheenginetodistributetheconditionedfuel
throughthefuelsystem(5minutes).
C.Shutofftheengine,waitforittocool,anddrain
thefueltank.
D.Restarttheengineandrunituntilitstops.
E.Startandruntheengineuntilitdoesnotstart.
F.Disposeoffuelproperly .Recyclepursuantto
localcodes.
Important:Donotstorefuelwith stabilizer/conditionerover90days.
10.Removethesparkplug(s)andcheckitscondition; refertoServicingtheSparkPlug(page32).Withthe sparkplug(s)removedfromtheengine,pour30ml (2tablespoons)ofengineoilintothesparkplughole.
45
Page 46
Usethestartertocranktheengineanddistributethe oilinsidethecylinder.Installthesparkplug(s).Donot installthewireonthesparkplug(s).
11.Cleananydirtandchafffromthetopofthemower.
12.Scrapeanyheavybuildupofgrassanddirtfromthe undersideofthemower,thenwashthemowerwith agardenhose.
13.Checktheconditionofthedriveandmowerbelts.
14.Checkandtightenallbolts,nuts,andscrews.Repairor replaceanypartthatiswornordamaged.
15.Paintallscratchedorbaremetalsurfaces.Paintis availablefromyourAuthorizedServiceDealer.
16.Storethemachineinaclean,drygarageorstoragearea. Removethekeyfromtheignitionswitchandkeepit inamemorableplace.Coverthemachinetoprotect itandkeepitclean.
46
Page 47
Troubleshooting
Problem
Theengineoverheats.
Thestarterdoesnotcrank.
Theenginedoesnotstart,startshard,or failstokeeprunning.
PossibleCauseCorrectiveAction
1.Theengineloadisexcessive.1.Reducethegroundspeed.
2.Theoillevelinthecrankcaseislow.2.Addoiltothecrankcase.
3.Thecoolingnsandairpassages undertheengineblowerhousingare plugged.
4.Theaircleanerisdirty.
5.Dirt,water,orstalefuelisinthefuel system.
1.Theblade-controlswitchisengaged.1.Movetheblade-controlswitchto
2.Themotion-controlleversarenotin thePARKposition.
3.Thebatteryisdead.
4.Theelectricalconnectionsare corrodedorloose.
5.Afuseisblown.5.Replacethefuse.
6.Arelayorswitchisdamaged.
1.Thefueltankisempty.1.Fillthefueltank.
2.Theaircleanerisdirty.
3.Thesparkplugwire(s)islooseor disconnected.
4.Thesparkplug(s)ispitted,fouled,or thegapisincorrect.
5.Thereisdirtinfuellter .5.Replacethefuellter.
6.Dirt,water,orstalefuelisinfuel system.
7.Thereisincorrectfuelinthefueltank.7.Drainthetankandreplacethefuelwith
8.Theoillevelinthecrankcaseislow.8.Addoiltothecrankcase.
3.Removetheobstructionfromthe coolingnsandairpassages.
4.Cleanorreplacetheair-cleaner element.
5.ContactanAuthorizedServiceDealer.
Disengaged.
2.Movethemotion-controllevers outwardtothePARKposition.
3.Chargethebattery.
4.Checktheelectricalconnectionsfor goodcontact.
6.ContactanAuthorizedServiceDealer.
2.Cleanorreplacetheair-cleaner element.
3.Installthewire(s)onthesparkplug.
4.Installanew,correctlygappedspark plug(s).
6.ContactanAuthorizedServiceDealer.
thepropertype.
Theenginelosespower.
Themachinedoesnotdrive.
1.Theengineloadisexcessive.1.Reducethegroundspeed.
2.Theaircleanerisdirty.
3.Theoillevelinthecrankcaseislow.3.Addoiltothecrankcase.
4.Thecoolingnsandairpassages undertheengineblowerhousingare plugged.
5.Thesparkplug(s)ispitted,fouled,or thegapisincorrect.
6.Thefuel-tankventisblocked.6.ContactanAuthorizedServiceDealer.
7.Thereisdirtinthefuellter.7.Replacethefuellter.
8.Dirt,water,orstalefuelisinthefuel system.
9.Thereisincorrectfuelinthefueltank.9.Drainthetankandreplacethefuelwith
1.Thebypassvalvesareopen.
2.Thetractionbeltsareworn,loose,or broken.
3.Thetractionbeltsareoffthepulleys.3.ContactanAuthorizedServiceDealer.
4.Thetransmissionhasfailed.4.ContactanAuthorizedServiceDealer.
2.Cleantheair-cleanerelement.
4.Removetheobstructionfromthe coolingnsandairpassages.
5.Installanew,correctlygappedspark plug(s).
8.ContactanAuthorizedServiceDealer.
thepropertype.
1.Closethetowvalves.
2.ContactanAuthorizedServiceDealer.
47
Page 48
Problem
PossibleCauseCorrectiveAction
Thereisanabnormalvibration.
Thecuttingheightisuneven.
Thebladesdonotrotate.
1.Theengine-mountingboltsareloose.1.Tightentheengine-mountingbolts.
2.Theenginepulley,idlerpulley ,orblade pulleyisloose.
3.Theenginepulleyisdamaged.
4.Thecuttingblade(s)is/arebentor unbalanced.
5.Ablade-mountingboltisloose.5.Tightentheblade-mountingbolt.
6.Abladespindleisbent.
1.Theblade(s)isnotsharp.1.Sharpentheblade(s).
2.Acuttingblade(s)is/arebent.2.Installanewcuttingblade(s).
3.Themowerisnotlevel.
4.Ananti-scalpwheelisnotsetcorrectly.4.Adjusttheanti-scalpwheelheight.
5.Theundersideofthemowerisdirty.5.Cleantheundersideofthemower.
6.Thetirepressureisincorrect.6.Adjustthetirepressure.
7.Abladespindleisbent.
1.Thedrivebeltisworn,loose,orbroken.1.Installanewdrivebelt.
2.Thedrivebeltisoffthepulley.
3.Thepower-takeoff(PTO)switchor PTOclutchisfaulty.
4.Themowerbeltisworn,loose,or broken.
2.Tightentheappropriatepulley .
3.ContactanAuthorizedServiceDealer.
4.Installanewcuttingblade(s).
6.ContactanAuthorizedServiceDealer.
3.Levelthemowerfromside-to-sideand front-to-rear.
7.ContactanAuthorizedServiceDealer.
2.Installthedrivebeltandcheckthe adjustingshaftsandbeltguidesforthe correctposition.
3.ContactanAuthorizedServiceDealer.
4.Installanewmowerbelt.
48
Page 49
Schematics
ElectricalDiagram(Rev .A)
49
g028022
Page 50
Notes:
Page 51
Notes:
Page 52
LimitedWarranty(seewarrantyperiodsbelow)
TheToroWarranty
TimeCutter
ConditionsandProductsCovered
TheT oroCompanyanditsafliate,ToroWarrantyCompany ,pursuanttoan agreementbetweenthem,jointlypromisetorepairtheT oroProductslisted belowifdefectiveinmaterialsorworkmanship.
Thefollowingtimeperiodsapplyfromtheoriginaldateofpurchase:
Products
TimeCutterMowers
•Engines
TimeCutterMowersCommercialuse30days
•Engines
TimeCutterHDMowers
•Engines CommercialUse
AllMowers
•Attachments1year
•Battery90daysPartsandLabor
•BeltsandTires90days
1
SomeenginesusedonT oroProductsarewarrantedbytheenginemanufacturer.
2
Residentialusemeansuseoftheproductonthesamelotasyourhome.Useatmorethanone
locationisconsideredcommercialuseandthecommercialusewarrantywouldapply.
3
Whicheveroccursrst.
Warrantymaybedeniedifthehourmeterisdisconnected,altered,or showssignsofbeingtamperedwith.
1
—ResidentialuseKawasaki–3years
1
—Commercialuse
1
—Residentialand
WarrantyPeriod
ResidentialUse
Kohler–3years Toro–3years
Kawasaki–3years Kohler–90days Toro–2years/300Hours 3yearsor300Hours
3yearsor300Hours
1yearPartsonly
2
–3years
3
3
3
OwnerResponsibilities
YoumustmaintainyourToroProductbyfollowingthemaintenance proceduresdescribedintheOperator'sManual.Suchroutinemaintenance, whetherperformedbyadealerorbyyou,isatyourexpense.
InstructionsforObtainingWarrantyService
IfyouthinkthatyourT oroProductcontainsadefectinmaterialsor workmanship,followthisprocedure:
1.ContactanyAuthorizedT oroServiceDealertoarrangeserviceat theirdealership.Tolocateadealerconvenienttoyou,accessourweb siteatwww .Toro.com.Youmayalsocallthenumberslistedinitem#3 tousethe24-hourT oroDealerlocatorsystem.
2.Bringtheproductandyourproofofpurchase(salesreceipt)tothe ServiceDealer.Thedealerwilldiagnosetheproblemanddetermineif itiscoveredunderwarranty.
3.IfforanyreasonyouaredissatisedwiththeServiceDealer’s analysisorwiththeassistanceprovided,contactusat:
ToroWarrantyCompany CustomerCareDepartment,RLCDivision 811 1LyndaleAvenueSouth Bloomington,MN55420-1196 Tollfreeat866-216-6029(U.S.customers) Tollfreeat866-216-6030(Canadiancustomers)
ItemsandConditionsNotCovered
Thereisnootherexpresswarrantyexceptforspecialemissionsystem coverageandenginewarrantycoverageonsomeproducts.Thisexpress warrantydoesnotcoverthefollowing:
•Costofregularmaintenanceserviceorparts,suchaslters,fuel,
lubricants,oilchanges,sparkplugs,airlters,bladesharpening orwornblades,cable/linkageadjustments,orbrakeandclutch adjustments
•Componentsfailingduetonormalwear
•Anyproductorpartwhichhasbeenaltered,misused,neglected,
requiresreplacementorrepairduetoaccidentsorlackofproper maintenance
•Pickupanddeliverycharges
•RepairsorattemptedrepairsbyanyoneotherthananAuthorizedToro
ServiceDealer
•Repairsnecessaryduetofailuretofollowrecommendedfuel
procedure(consultOperator'sManualformoredetails)
–Removingcontaminantsfromthefuelsystemisnotcovered
–Useofoldfuel(morethanonemonthold)orfuelwhichcontains
morethan10%ethanolormorethat15%MTBE
–Failuretodrainthefuelsystempriortoanyperiodofnon-use
overonemonth
GeneralConditions
AllrepairscoveredbythesewarrantiesmustbeperformedbyanAuthorized ToroServiceDealerusingT oroapprovedreplacementparts.
NeitherTheToroCompanynorToroWarrantyCompanyisliablefor indirect,incidentalorconsequentialdamagesinconnectionwiththe useoftheToroProductscoveredbythiswarranty,includingany costorexpenseofprovidingsubstituteequipmentorserviceduring reasonableperiodsofmalfunctionornon-usependingcompletionof repairsunderthiswarranty.
Allimpliedwarrantiesofmerchantability(thattheproductistfor ordinaryuse)andtnessforuse(thattheproductistforaparticular purpose)arelimitedtothedurationoftheexpresswarranty.
Somestatesdonotallowexclusionsofincidentalorconsequential damages,orlimitationsonhowlonganimpliedwarrantylasts,sothe aboveexclusionsandlimitationsmaynotapplytoyou.
Thiswarrantygivesyouspeciclegalrights,andyoumayalsohaveother rightswhichvaryfromstatetostate.
CountriesOtherthantheUnitedStatesorCanada
ThiswarrantyisnotvalidinMexico.CustomerswhohavepurchasedT oroproductsoutsidetheUnitedStatesorCanadashouldcontacttheirT oro Distributor(Dealer)toobtainguaranteepoliciesforyourcountry,province,orstate.IfforanyreasonyouaredissatisedwithyourDistributor'sserviceor havedifcultyobtainingguaranteeinformation,contacttheT oroimporter.Ifallotherremediesfail,youmaycontactusatT oroWarrantyCompany.
AustralianConsumerLaw:AustraliancustomerswillnddetailsrelatingtotheAustralianConsumerLaweitherinsidetheboxoratyourlocalT oro Dealer.
374-0258RevH
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
