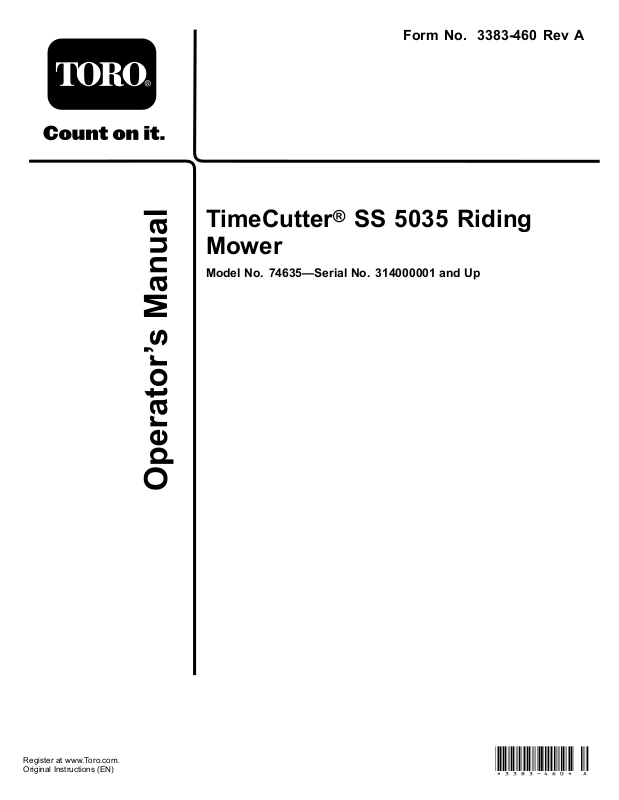

Page 1

FormNo.3383-460RevA

TimeCutter

SS5035Riding

Mower

ModelNo.74635—SerialNo.314000001andUp

Registeratwww.T oro.com. OriginalInstructions(EN)

*3383-460*A

Page 2

WARNING

G014523

CALIFORNIA

Proposition65Warning

Thisproductcontainsachemicalorchemicals

knowntotheStateofCaliforniatocausecancer,

birthdefects,orreproductiveharm.

Theengineexhaustfromthisproduct

containschemicalsknowntotheStateof

Californiatocausecancer,birthdefects,

orotherreproductiveharm.

Thismachineisaride-on,rotary-bladelawnmowerintended tobeusedbyhomeownersinresidentialapplications.Itis primarilydesignedforcuttinggrassonwell-maintainedlawns. Itisnotdesignedforcuttingbrush,mowinggrassandother growthalongsidehighways,orforagriculturaluses.

Important:Thisengineisnotequippedwithaspark arrestermufer.ItisaviolationofCaliforniaPublic ResourceCodeSection4442touseoroperatetheengine onanyforest-covered,brush-covered,orgrass-covered land.Otherstatesorfederalareasmayhavesimilarlaws.

Introduction

Readthisinformationcarefullytolearnhowtooperateand maintainyourproductproperlyandtoavoidinjuryand productdamage.Youareresponsibleforoperatingthe productproperlyandsafely.

YoumaycontactTorodirectlyatwww .Toro.comforproduct andaccessoryinformation,helpndingadealer,ortoregister yourproduct.

Wheneveryouneedservice,genuineT oroparts,oradditional information,contactanAuthorizedServiceDealerorToro CustomerServiceandhavethemodelandserialnumbersof yourproductready.Figure1identiesthelocationofthe modelandserialnumbersontheproduct.Writethenumbers inthespaceprovided.

ThissparkignitionsystemcomplieswithCanadianICES-002.

WARNING

Removingstandardoriginalequipmentpartsand accessoriesmayalterthewarranty,traction,and safetyofthemachine.FailuretouseoriginalToro partscouldcauseseriousinjuryordeath.Making unauthorizedchangestotheengine,fuelorventing system,mayviolateEPAandCARBregulations.

Replaceallpartsincluding,butnotlimitedto,tires, belts,blades,andfuelsystemcomponentswith originalToroparts.

Theenclosed informationregardingtheUSEnvironmentalProtection Agency(EPA)andtheCaliforniaEmissionControl Regulationofemissionsystems,maintenance,and warranty.Replacementsmaybeorderedthroughthe enginemanufacturer.

Formodelswithstatedenginehorsepower,thegross horsepoweroftheenginewaslaboratorytestedbytheengine manufacturerinaccordancewithSAEJ1995andratedto J2723.Asconguredtomeetsafety,emission,andoperating requirements,theactualenginehorsepoweronthisclassof lawnmowerwillbesignicantlylower.

Engine Owner's Man ual

issuppliedfor

Figure1

Undertheseat

1.Modelandserialnumberplate

Writetheproductmodelandserialnumbersinthespace below:

ModelNo.

SerialNo.

Thismanualidentiespotentialhazardsandhassafety messagesidentiedbythesafetyalertsymbol(Figure2), whichsignalsahazardthatmaycauseseriousinjuryordeath ifyoudonotfollowtherecommendedprecautions.

Figure2

1.Safetyalertsymbol.

Thismanualusestwowordstohighlightinformation. Importantcallsattentiontospecialmechanicalinformation andNoteemphasizesgeneralinformationworthyofspecial attention.

Contactusatwww.Toro.com.

PrintedintheUSA

AllRightsReserved

Page 3

Contents

Introduction..................................................................2

Safety...........................................................................4

SafeOperatingPractices...........................................4

ToroRidingMowerSafety........................................6

SlopeIndicator.......................................................7

SafetyandInstructionalDecals.................................8

ProductOverview.........................................................12

Controls...............................................................12

Operation....................................................................14

ThinkSafetyFirst...................................................14

BeforeStarting.......................................................15

StartingtheEngine.................................................17

OperatingtheBlades...............................................18

TestingtheSafetyInterlockSystem...........................18

StoppingtheEngine...............................................19

Driving.................................................................19

StoppingtheMachine.............................................20

AdjustingtheHeightofCut.....................................21

AdjustingtheAnti-ScalpRollers...............................21

PositioningtheSeat................................................21

AdjustingtheMotionControlLevers........................22

PushingtheMachinebyHand..................................22

GrassDeector......................................................22

OperatingTips......................................................23

Maintenance.................................................................24

RecommendedMaintenanceSchedule(s)......................24

PremaintenanceProcedures........................................25

RaisingtheSeat......................................................25

Lubrication...............................................................25

GreasingtheBearings.............................................25

EngineMaintenance..................................................26

ServicingtheAirCleaner.........................................26

ServicingtheEngineOil..........................................26

ServicingtheSparkPlug..........................................28

CleaningtheCoolingSystem....................................29

FuelSystemMaintenance...........................................30

ServicingtheEmissionsFilter..................................30

ReplacingtheIn-lineFuelFilter................................30

ElectricalSystemMaintenance....................................31

ChargingtheBattery...............................................31

ServicingtheFuses.................................................32

DriveSystemMaintenance.........................................33

CheckingtheTirePressure......................................33

ReleasingtheElectricBrake.....................................33

MowerMaintenance...................................................34

ServicingtheCuttingBlades.....................................34

LevelingtheMowerDeck........................................36

RemovingtheMower..............................................38

MowerBeltMaintenance.........................................39

InstallingtheMower...............................................39

ReplacingtheGrassDeector..................................40

Cleaning...................................................................41

WashingtheUndersideoftheMower........................41

Storage........................................................................42

CleaningandStorage..............................................42

Troubleshooting...........................................................43

Schematics...................................................................45

Page 4

Safety

Toreducethepotentialforinjury,complywiththese safetyinstructionsandalwayspayattentiontothesafety alertsymbol,whichmeansCAUTION,WARNING, orDANGER-"personalsafetyinstruction."Failure tocomplywiththeinstructionmayresultinpersonal injuryordeath.

•Turnoffbladeswhennotmowing.Stoptheengine,wait

forallpartstocometoacompletestopandremovethe keybeforecleaningthemachine,removingthegrass catcheroruncloggingthedischargechute.

•Operatethemachineonlyindaylightorgoodarticial

light.

•Donotoperatethemachinewhileundertheinuence

ofalcoholordrugs.

SafeOperatingPractices

Thisproductiscapableofamputatinghandsandfeetand throwingobjects.Alwaysfollowallsafetyinstructionsto avoidseriousinjuryordeath.

ThefollowinginstructionsareadaptedfromANSIstandard B71.1-2012.AllthelanguagewithinthisANSIstandard appliestothismachine;however,duetotheapplicationof thestandardacrossmanydifferenttypesofproductssome statementscanseemgeneralormisleading.Intheseinstances, Torohasrenedthestatementtoconveythemeaningofthe standardwhilebettermatchingtheproductthisOperator's Manualpertains.Safetyinformationinadditiontothe instructionsfoundintheANSIstandardbelowcanbefound inToroRidingMowerSafetyattheendofthissection.

GeneralOperation

•Read,understand,andfollowallinstructionsinthe

operator'smanualandonthemachinebeforestarting.

•Donotplacehandsorfeetnearrotatingpartsorunder

themachine.Keepclearofthedischargeopeningatall times.

•Allowonlyresponsibleadultswhoarefamiliarwiththe

instructionstooperatethemachine.

•Cleartheareaofobjectssuchasrocks,toys,wire,etc.,

whichcouldbepickedupandthrownbytheblade.

•Besuretheareaisclearofotherpeoplebeforemowing.

Stopthemachineifanyoneentersthearea.

•Nevercarrypassengers.

•Donotmowinreverseunlessabsolutelynecessary.

Alwayslookdownandbehindbeforeandwhilebacking up.

•Beawareofthemowerdischargedirectionanddonot

pointitatanyone.Avoiddischargingmaterialagainsta wallorobstruction.Materialmayricochetbacktoward theoperator.Stoptheblade(s)whencrossinggravel surfaces.

•Donotoperatethemachinewithoutdeector,discharge

coverorentiregrasscollectionsysteminplaceand working.

•Bealert,slowdownandusecautionwhenmakingturns.

Lookbehindandtothesidebeforechangingdirections.

•Neverleavearunningmachineunattended.Alwaysturn

offblades,setparkingbrake,stopengine,andremovekey beforedismounting.

•Watchfortrafcwhenoperatingnearorcrossing

roadways.

•Useextracarewhenloadingorunloadingthemachine

intoatrailerortruck.

•Alwaysweareyeprotectionwhenoperatingthemower.

•Dataindicatesthatoperators,age60yearsandabove,are

involvedinalargepercentageofridingmower-related injuries.Operatorsshouldevaluatetheirabilitytooperate theridingmowersafelyenoughtoprotectthemselvesand othersfromseriousinjury.

•Alwaysfollowtherecommendationsforanyapplication

ofcounterweights.

•Lightningcancausesevereinjuryordeath.Iflightning

isseenorthunderisheardinthearea,donotoperate themachine;seekshelter.

SlopeOperation

Slopesareamajorfactorrelatedtolossofcontroland tip-overaccidents,whichcanresultinsevereinjuryordeath. Operationonallslopesrequiresextracaution.Ifyoucannot backuptheslopeorifyoufeeluneasyonit,donotmowit.

•Donotmowslopesgreaterthan15degrees.

•Watchforditches,holes,rocks,dips,andrisesthatchange

theoperatingangle,asroughterraincouldoverturnthe machine.

•Choosealowgroundspeedsoyouwillnothavetostop

whileoperatingonaslope.

•Donotmowslopeswhengrassiswet.Slippery

conditionsreducetractionandcouldcauseslidingand lossofcontrol.

•Alwayskeepthedrivewheelsengagedwhengoingdown

slopes.

•Reducespeedanduseextremecautiononslopes.

•Donotmakesuddenturnsorrapidspeedchanges.

•Removeormarkobstaclessuchasrocks,treelimbs,etc.

fromthemowingarea.Tallgrasscanhideobstacles.

•Avoidsuddenstartswhenmowinguphillbecausethe

mowermaytipbackwards.

•Beawarethatlossoftractionmayoccurgoingdownhill.

Weighttransfertothefrontwheelsmaycausedrive wheelstoslipandcauselossofbrakingandsteering.

Page 5

•Alwaysavoidsuddenstartingorstoppingonaslope.If

tireslosetraction,stopthemachine,disengagetheblades andproceedslowlyofftheslope.

•Useextremecarewithgrasscatchersorotherattachments.

Thesecanchangethestabilityofthemachineandcause lossofcontrol.

•Donottrytostabilizethemachinebyputtingyourfoot

ontheground.

•Donotmowneardrop-offs,ditches,steepbanksor

water.Wheelsdroppingoveredgescancauserollovers, whichmayresultinseriousinjury,deathordrowning.

•Useawalkbehindmowerand/orahandtrimmernear

drop-offs,ditches,steepbanksorwater.

Children

Tragicaccidentscanoccuriftheoperatorisnotalerttothe presenceofchildren.Childrenareoftenattractedtothe machineandthemowingactivity.Neverassumethatchildren willremainwhereyoulastsawthem.

•Keepchildrenoutofthemowingareaandunderthe

watchfulcareofanotherresponsibleadult,notthe operator.

•Bealertandturnthemachineoffifchildrenenterthe

area.

•Beforeandwhilebackingorchangingdirection,look

behind,down,andside-to-sideforsmallchildren.

•Nevercarrychildren,evenwiththebladesoff.Theymay

falloffandbeseriouslyinjuredorinterferewithsafe machineoperation.

•Childrenwhohavebeengivenridesinthepastmay

suddenlyappearinthemowingareaforanotherrideand berunoverorbackedoverbythemower.

•Neverallowchildrentooperatethemachine.

•Useextracarewhenapproachingblindcorners,shrubs,

trees,theendofafenceorotherobjectsthatmayobscure vision.

TowingSafety

•Donotattachtowedequipmentexceptatthehitchpoint.

•Followtheattachmentmanufacturer'srecommendation

forweightlimitsfortowedequipmentandtowingon slopes.Towedweightmustnotexceedtheweightofthe machine,operator,andballast.Usecounterweightsor wheelweightsasdescribedintheattachment,orinthe pullingmachineOperator’sManual.

•Neverallowchildrenorothersinorontowedequipment.

•Onslopes,theweightofthetowedequipmentmaycause

lossoftraction,increasedriskofrollover,andlossof control.Reducethetowedweightandslowdown.

•Stoppingdistanceincreaseswiththeweightofthetowed

load.Travelslowlyandallowextradistancetostop.

•Makewideturnstokeeptheattachmentclearofthe

machine.

Service

SafeHandlingofGasoline:

Toavoidpersonalinjuryorpropertydamage,useextracare whenhandlinggasolineandotherfuels.Theyareammable andthevaporsareexplosive.

•Extinguishallcigarettes,cigars,pipesandothersources

ofignition.

•Useonlyanapprovedcontainer.

•Neverremovethegascaporaddfuelwhentheengineis

running.Allowtheenginetocoolbeforerefueling.

•Neverrefuelthemachineindoors.

•Neverstorethemachineorfuelcontainerinsidewhere

thereisanopename,suchasnearawaterheateror furnace.

•Neverllcontainersinsideavehicleoronatruckor

trailerwithaplasticliner.Alwaysplacecontainersonthe groundawayfromyourvehiclebeforelling.

•Removegas-poweredequipmentfromthetruckortrailer

andrefuelitontheground.Ifthisisnotpossible,then refuelsuchequipmentwithaportablecontainer,rather thanfromagasolinedispensernozzle.

•Keepthenozzleincontactwiththerimofthefueltank

orcontaineropeningatalltimesuntilthefuelingis complete.Donotuseanozzlelock-opendevice.

•Iffuelisspilledonclothing,changeclothingimmediately.

•Neveroverllthefueltank.Replacegascapandtighten

securely.

GeneralService:

•Neveroperateamachineinsideaclosedarea.Engine

exhaustcontainscarbonmonoxide,whichisanodorless, deadlypoisonthatcankillyou.

•Keepnutsandboltstight,especiallythebladeattachment

bolts.Keepequipmentingoodcondition.

•Neverinterferewiththeintendedfunctionofasafety

deviceortoreducetheprotectionprovidedbyasafety device.Checktheirproperoperationregularly.

•Keepthemachinefreeofgrass,leaves,orotherdebris

build-up.Cleanupoilorfuelspillagefuelsoakeddebris. Allowthemachinetocoolbeforestoring.

•Stopandinspecttheequipmentifyoustrikeanobject.

Repair,ifnecessary,beforerestarting.

•Nevermakeanyadjustmentsorrepairswiththeengine

running.

•Grasscatchercomponentsaresubjecttowear,damage

anddeterioration,whichcouldexposemovingpartsor allowobjectstobethrown.Frequentlycheckcomponents andreplacewithmanufacturers'recommendedparts, whennecessary.

•Mowerbladesaresharpandcancut.Wraptheblade(s)or

weargloves,anduseextracautionwhenservicingthem.

•Checkforproperbrakeoperationfrequently .Adjustand

serviceasrequired.

Page 6

•Maintainorreplacesafetyandinstructiondecalsas

necessary.

•UseonlygenuineTororeplacementpartstoensurethat

originalstandardsaremaintained.

ToroRidingMowerSafety

ThefollowinglistcontainssafetyinformationspecictoToro productsorothersafetyinformationthatyoumustknowthat maynotbeincludedintheANSIstandards.

•Stoptheengine,movethemotioncontrolleverstoneutral

andoutwardtotheparkposition,disengagetheblade controlswitch,removekeybeforeanddisconnectspark plugwire(s)performinganyservice,repairs,maintenance oradjustments.

•Keephands,feet,hair,andlooseclothingawayfrom

attachmentdischargearea,undersideofmowerandany movingpartswhileengineisrunning.

•Donottouchequipmentorattachmentpartswhichmay

behotfromoperation.Allowtocoolbeforeattempting tomaintain,adjustorservice.

•Batteryacidispoisonousandcancauseburns.Avoid

contactwithskin,eyes,andclothing.Protectyourface, eyes,andclothingwhenworkingwithabattery.

•Batterygasescanexplode.Keepcigarettes,sparksand

amesawayfrombattery.

•UseonlyToroapprovedattachments.Warrantymaybe

voidedifusedwithunapprovedattachments.

•Ifloadingthemachineontoatrailerortruck,useasingle,

full-widthramponly.Therampangleshouldnotexceed 15degrees.

Page 7

SlopeIndicator

G011841

Figure3

Thispagemaybecopiedforpersonaluse.

1.Themaximumslopeyoucansafelyoperatethemachineonis15degrees.Usetheslopecharttodeterminethedegreeofslope ofhillsbeforeoperating.Donotoperatethismachineonaslopegreaterthan15degrees.Foldalongtheappropriateline tomatchtherecommendedslope.

2.Alignthisedgewithaverticalsurface,atree,building,fencepole,etc.

3.Exampleofhowtocompareslopewithfoldededge.

Page 8

SafetyandInstructional Decals

Safetydecalsandinstructionsareeasilyvisibletotheoperatorandarelocatednearanyareaofpotential danger.Replaceanydecalthatisdamagedorlost.

93-7009

1.Warning—don'toperatethemowerwiththedeectorupor removed;keepthedeectorinplace.

2.Cutting/dismembermenthazardofhandorfoot,mower blade—stayawayfrommovingparts.

106-8717

1.Readtheinstructionsbeforeservicingorperforming maintenance.

2.Checktirepressureevery25operatinghours.

3.Greaseevery25operatinghours.

4.Engine

110-6691

1.Thrownobjecthazard—keepbystandersasafedistance fromthemachine.

2.Thrownobjecthazard,mower—donotoperatewithoutthe deector,dischargecover,orgrasscollectionsystemin place.

3.Cutting/dismembermentofhandorfoot—stayawayfrom movingparts.

109-7076

112-9840

1.ReadtheOperator's

99-3943

Manual.

ForModelswith50InchDecks

1.Engine

2.Heightofcut

3.Removetheignitionkey andreadtheinstructions beforeservicingor performingmaintenance.

Page 9

114-1606

1.Entanglementhazard,belt—keepallguardsinplace.

117-2718

119-8870

50InchModel

119-8814

1.Parkingposition4.Neutral

2.Fast5.Reverse

3.Slow

119-8815

1.Parkingposition4.Neutral

2.Fast5.Reverse

3.Slow

1.Height-of-cut

BatterySymbols

Someorallofthesesymbolsareonyourbattery

1.Explosionhazard

2.Nore,opename,or smoking.

3.Causticliquid/chemical burnhazard

4.Weareyeprotection9.Flusheyesimmediately

5.ReadtheOperator's

Manual.

6.Keepbystandersasafe

7.Weareyeprotection;

8.Batteryacidcancause

10.Containslead;donot

distancefromthebattery.

explosivegasescan causeblindnessandother injuries

blindnessorsevereburns.

withwaterandgetmedical helpfast.

discard.

Page 10

Manufacturer'sMark

1.Indicatesthebladeisidentiedasapartfromtheoriginal machinemanufacturer.

121-2989

1.Bypassleverpositionfor pushingthemachine

2.Bypassleverpositionfor operatingthemachine

120-2239

1.Warning—readtheOperator'sManual.5.Warning—donotusesplitramps,useafullrampswhen

2.Warning—readtheinstructionsbeforeservicingorperforming maintenance;movethemotioncontrolleverstothepark (brake)position,removetheignitionkeyanddisconnectthe sparkplugwire.

3.Cutting/dismembermenthazard,mowerblade;entanglement hazard,belt—stayawayfrommovingparts,keepallguards andshieldsinplace.

4.Thrownobjecthazard—keepbystandersasafedistancefrom themachine,pickupdebrisbeforeoperating,keepdeector inplace.

transportingmachine.

6.Lossoftraction/controlhazard,slopes—lossoftraction/control onaslope,disengagethebladecontrolswitch(PTO), proceedofftheslopeslowly.

7.Crushing/dismembermenthazardofbystanders,reversing; crushing/dismembermenthazardofbystanders—donotcarry passengers,lookbehindanddownwhenreversing.

8.Tippinghazard—donotmowslopesgreaterthan15degrees, avoidsuddenandsharpturnswhileonslopes.

Page 11

130-0780

1.Lowspeed—trimmingand towing

2.Highspeed—mowingand transport

121-0772

1.Fast

2.Continuousvariablesetting5.Powertake-off(PTO),Bladecontrolswitch

3.Slow

4.Choke

Page 12

ProductOverview

G014910

Figure4

1.Footassistlever(certain modelsonly)

2.Heightofcutlever

3.Motioncontrollevers7.Anti-scalproller11.Engine15.Engineguard

4.Operatorseat(armrests optional)

5.SmartSpeed™lever

6.Mowerdeck

8.Frontcasterwheel

9.Footrest

10.Gastankcap

12.Controlpanel

13.Deector

14.Reardrivewheel

Controls

BecomefamiliarwithallofthecontrolsinFigure4and Figure5beforeyoustarttheengineandoperatethemachine.

1.Throttle3.Bladecontrolswitch

2.Ignitionswitch

ControlPanel

Figure5

(powertake-off)

4.Choke

IgnitionSwitch

Theignitionswitchhasthreepositions,Off,RunandStart. ThekeywillturntoStartandmovebacktoRunuponrelease.

Page 13

TurningthekeytotheOffpositionwillstoptheengine;

G014475

G014521

g017640

however,alwaysremovethekeywhenleavingthemachine topreventsomeonefromaccidentallystartingtheengine (Figure5).

ThrottleControl

Thethrottlecontrolstheenginespeedandithasacontinuous variablesettingfromSlowtoFast(Figure5).

ChokeControl

PullupontheChokecontroluntilitstopstochokethe engine(Figure5).PushdownontheChokecontrolfor normalengineoperation

BladeControlSwitch(PowerTake-Off)

Thebladecontrolswitch,representedbyapowertake-off (PTO)symbol,engagesanddisengagespowertothemower blades(Figure5).

FuelWindow

Thefuelwindowlocatedonthelefthandsideofthemachine canbeusedtoverifythepresenceofgasolineinthetank (Figure7).

Figure7

1.Fuelpresencewindow

MotionControlLeversandPark Position

Themotioncontrolleversarespeedsensitivecontrolsof independentwheelmotors.Movingaleverforwardor backwardturnsthewheelonthesamesideforwardorin reverse;wheelspeedisproportionaltotheamountthelever ismoved.Movethecontrolleversoutwardfromthecenter totheparkpositionandexitthemachine(Figure17).Always positionthemotioncontrolleversintotheparkposition whenyoustopthemachineorleaveitunattended.

SmartSpeed™ControlSystemLever

TheSmartSpeed™ControlSystemlever,locatedbelowthe operatingposition,givestheoperatorachoicetodrivethe machineattwospeedranges,highandlow(Figure6).

Height-of-CutLever

Theheightofcutleverallowstheoperatortolowerand raisethedeckfromtheseatedposition.Whentheleveris movedup,towardtheoperatorthedeckisraisedfromthe groundandwhenmoveddown,awayfromtheoperatoritis loweredtowardtheground.Onlyadjusttheheightofcut whilemachineisnotmoving(Figure21).

HourMeter

Thehourmeterrecordsthenumberofhourswhenthe operatorisintheseatandtheignitionswitchisintheON position(Figure8).

1.Smartspeedlever

Figure8

Figure6

Page 14

Operation

Note:Determinetheleftandrightsidesofthemachine

fromthenormaloperatingposition.

ThinkSafetyFirst

OperatingSafety

Pleasecarefullyreadallofthesafetyinstructionsanddecals inthesafetysection.Knowingthisinformationcouldhelp you,yourfamily ,petsorbystandersavoidinjury.

DANGER

Mowingonwetgrassorsteepslopescancause slidingandlossofcontrol.

Wheelsdroppingoveredgescancauserollovers, whichmayresultinseriousinjury,deathor drowning.

Alossoftractionisalossofsteeringcontrol.

Toavoidlossofcontrolandpossibilityofrollover:

•Donotmowneardrop-offsornearwater.

•Donotmowslopesgreaterthan15degrees.

•Reducespeedanduseextremecautionon slopes.

•Whenmowingslopes,graduallyworkfrom lowertohigherareasontheincline.

•Avoidsuddenturnsorrapidspeedchanges.

•Turnup,intoaninclinewhenchanging directionsonslopes.Turningdowntheslope reducestraction.

•Attachmentschangethehandlingcharacteristics ofthemachine.Useextracautionwhenusing attachmentswiththemachine.

Figure9

1.SafeZone-usethe TimeCutterhere

2.Usewalkbehindmower and/orhandtrimmernear drop-offsandwater.

3.Water

FuelSafety

DANGER

Incertainconditions,gasolineisextremely ammableandhighlyexplosive.Areorexplosion fromgasolinecanburnyouandothersandcan damageproperty.

•Fillthefueltankoutdoors,inanopenarea, whentheengineiscold.Wipeupanygasoline thatspills.

•Neverllthefueltankinsideanenclosedtrailer.

•Donotllthefueltankcompletelyfull.Add gasolinetothefueltankuntilthefuelreaches thebaseofthellerneck.Thisemptyspacein thetankallowsgasolinetoexpand.

•Neversmokewhenhandlinggasoline,andstay awayfromanopenameorwheregasoline fumesmaybeignitedbyaspark.

•Storegasolineinanapprovedcontainerand keepitoutofthereachofchildren.Neverbuy morethana30-daysupplyofgasoline.

•Donotoperatewithoutentireexhaustsystemin placeandinproperworkingcondition.

Page 15

DANGER

Incertainconditionsduringfueling,static electricitycanbereleasedcausingasparkwhich canignitethegasolinevapors.Areorexplosion fromgasolinecanburnyouandothersandcan damageproperty.

•Alwaysplacegasolinecontainersontheground awayfromyourvehiclebeforelling.

•Donotllgasolinecontainersinsideavehicleor onatruckortrailerbedbecauseinteriorcarpets orplastictruckbedlinersmayinsulatethe containerandslowthelossofanystaticcharge.

•Whenpractical,removegas-poweredequipment fromthetruckortrailerandrefueltheequipment withitswheelsontheground.

•Ifthisisnotpossible,thenrefuelsuch equipmentonatruckortrailerfromaportable container,ratherthanfromagasolinedispenser nozzle.

•Ifagasolinedispensernozzlemustbeused, keepthenozzleincontactwiththerimofthe fueltankorcontaineropeningatalltimesuntil fuelingiscomplete.

Thesafetyinterlocksystemalsoisdesignedtostoptheengine wheneverthecontrolleversareoutoftheparkpositionand yourisefromtheseat.

BeforeStarting

AddingFuel

•Forbestresults,useonlyclean,fresh(lessthan30days

old),unleadedgasolinewithanoctaneratingof87or higher((R+M)/2ratingmethod).

•Ethanol:Gasolinewithupto10%ethanol(gasohol)

or15%MTBE(methyltertiarybutylether)byvolume isacceptable.EthanolandMTBEarenotthesame. Gasolinewith15%ethanol(E15)byvolumeisnot approvedforuse.Neverusegasolinethatcontains morethan10%ethanolbyvolume,suchasE15 (contains15%ethanol),E20(contains20%ethanol),or E85(containsupto85%ethanol).Usingunapproved gasolinemaycauseperformanceproblemsand/orengine damagewhichmaynotbecoveredunderwarranty.

•Donotusegasolinecontainingmethanol.

•Donotstorefueleitherinthefueltankorfuelcontainers

overthewinterunlessafuelstabilizerisused.

•Donotaddoiltogasoline.

WARNING

Gasolineisharmfulorfatalifswallowed.Long-term exposuretovaporscancauseseriousinjuryand illness.

•Avoidprolongedbreathingofvapors.

•Keepfaceawayfromnozzleandgastankor conditioneropening.

•Keepgasawayfromeyesandskin.

UnderstandingtheSafetyInterlock System

WARNING

Ifsafetyinterlockswitchesaredisconnectedor damagedthemachinecouldoperateunexpectedly causingpersonalinjury.

•Donottamperwiththeinterlockswitches.

•Checktheoperationoftheinterlockswitches dailyandreplaceanydamagedswitchesbefore operatingthemachine.

UsingStabilizer/Conditioner

Useafuelstabilizer/conditionerinthemachinetoprovide thefollowingbenets:

•Keepsgasolinefreshduringstorageof90daysorless.

Forlongerstorageitisrecommendedthatthefueltank bedrained.

•Cleanstheenginewhileitruns

•Eliminatesgum-likevarnishbuildupinthefuelsystem,

whichcauseshardstarting

Important:Donotusefueladditivescontaining methanolorethanol.

Addthecorrectamountofgasstabilizer/conditionerto thegas.

Note:Afuelstabilizer/conditionerismosteffective whenmixedwithfreshgasoline.T ominimizethechance ofvarnishdepositsinthefuelsystem,usefuelstabilizer atalltimes.

FillingtheFuelTank

Makesuretheengineisshutoffandthemotioncontrolsare intheparkposition.Tankmaximumcapacityis2.9gallons.

Thesafetyinterlocksystemisdesignedtopreventtheengine fromstartingunless:

•Thebladesaredisengaged.

•Themotioncontrolleversareintheparkposition.

Important:DoNotoverllfueltank.Fillthefueltank tothebottomofthellerneck.Theemptyspaceinthe tankallowsthefueltoexpand.Overllingmayresult infuelleakageordamagetotheengineoremissions system.

Page 16

1.Cleanaroundthefueltankcapandremovethecap.

G014474

G014895

CheckingtheEngineOilLevel

Note:Youcanusethefuelwindowtoverifythe

presenceofgasolinebeforellingthetank(Figure10).

2.Slowlyaddregular,unleadedgasolineuntilthefuel reachesthebaseofthellerneck(Figure10).

Figure10

1.Fueltankcap

2.Fillopening5.Fuelwindow

3.Fillerneck

4.Baseofllerneck,DO

NOTFILLPASTHERE

Beforeyoustarttheengineandusethemachine,checktheoil levelintheenginecrankcase;refertoCheckingtheOilLevel intheEngineMaintenancesection.

Figure11

1.Fillopening3.Fuel

2.Baseofllerneck,DO

NOTFILLPASTHERE

4.Emptyspaceforfuel expansion.

Important:DoNotoverllfueltank.Fillthe fueltanktothebottomofthellerneck.The emptyspaceinthetankallowsthefueltoexpand. Overllingmayresultinfuelleakageordamage totheengine.

3.Installthefueltankcapsecurelyandtightenuntilit “clicks”.Wipeupanygasolinethatmayhavespilled.

Page 17

StartingtheEngine

1.Sitdownontheseatandmovethemotioncontrols outwardtotheparkposition.

2.Disengagethebladesbymovingthebladecontrol switchtoOff(Figure12)

Figure13

Figure12

1.Controlpanel2.Bladecontrolswitch—Off position

3.PullupontheChokecontrolbeforestartingacold engine(Figure13).

Note:Awarmorhotenginemaynotrequirechoking.

1.Controlpanel4.Continuousvariable

2.Throttle

3.Fast

setting

5.Slow

6.Chokecontrol

4.TurntheignitionkeytoStarttoenergizethestarter. Whentheenginestarts,releasethekey(Figure14).

Important:Donotengagethestarterformore than10secondsatatime.Iftheenginefailsto start,allowa60secondcool-downperiodbetween attempts.Failuretofollowtheseinstructionscan damagethestartermotor.

Page 18

Figure15

Figure14

1.Controlpanel

2.Ignitionkey—runposition

3.Ignitionkey—startposition

4.Off

5.Aftertheenginestarts,pushdownontheChoke control( upontheChokecontrolandlettheenginerunfora fewseconds.ThenpushdownontheChokecontrol. Repeatthisasrequired.

Figure14).Iftheenginestallsorhesitates,pull

5.Run

6.Start

7.Chokecontrol

OperatingtheBlades

Thebladecontrolswitch,representedbyapowertake-off (PTO)symbol,engagesanddisengagespowertothemower blades.Thisswitchcontrolspowertoanyattachmentsthat drawpowerfromtheengine,includingthemowerdeckand cuttingblades.

EngagingtheBlades

1.Controlpanel2.Bladecontrolswitch—On position

DisengagingtheBlades

PushdownonthebladecontrolswitchtomoveittotheOff positionanddisengagetheblades(Figure16).

Important:Donotengagethebladeswhenparkedin tallgrass.Beltorclutchdamagecanoccur.

1.Releasepressureonthemotioncontrolleversand placethemachineinneutral.

2.MovethethrottletotheFastposition.

Note:Alwaysengagethebladeswiththethrottlein theFastposition.

3.Pulluponthebladecontrolswitchtomoveittothe Onpositionandengagetheblades(

Figure15).

Figure16

1.Controlpanel2.Bladecontrolswitch—Off

TestingtheSafetyInterlock System

Testthesafetyinterlocksystembeforeyouusethemachine eachtime.Ifthesafetysystemdoesnotoperateasdescribed below,haveanAuthorizedServiceDealerrepairthesafety systemimmediately.

Page 19

1.Whilesittingontheseat,withthecontrolleversinpark

G014475

position,andmovethebladecontrolswitchtoOn.Try startingtheengine;theengineshouldnotcrank.

2.Whilesittingontheseat,movethebladecontrol switchtoOff.Moveeithermotioncontrollevertothe center,unlockedposition.Trystartingtheengine;the engineshouldnotcrank.Repeatwiththeothermotion controllever.

3.Whilesittingontheseat,movethebladecontrolswitch toOff,andlockthemotioncontrolleversinthepark position.Starttheengine.Whiletheengineisrunning, engagethebladecontrolswitch,andriseslightlyfrom theseat;theengineshouldstop.

4.Whilesittingontheseat,movethebladecontrolswitch toOff,andlockthemotioncontrolleversinthepark position.Starttheengine.Whiletheengineisrunning, movethemotioncontrolleverstothecenter,unlocked position,engagethebladecontrolswitch,andrise slightlyfromtheseat;theengineshouldstop.

StoppingtheEngine

1.Disengagethebladesbymovingthebladecontrol switchtoOff(Figure16).

Figure17

2.MovethethrottlelevertobetweentheFastposition (Figure13).

3.TurntheignitionkeytoOff(Figure14)andremove thekey.

Driving

Drivingthemachinebenetsfromanunderstandingof whatzeroturnradiusmowermeans.Thedrivewheelsturn independently,poweredbyhydraulicmotorsoneachaxle; henceonesidecanturninreversewhiletheotherturns forwardcausingthemachinetospinratherthanturn.This vastlyimprovesthemachinemaneuverabilitybutmayrequire someadjustmentiftheoperatorisunfamiliar.

WARNING

Themachinecanspinveryrapidly.Theoperator maylosecontrolofthemachineandcausepersonal injuryordamagetothemachine.

•Usecautionwhenmakingturns.

•Slowthemachinedownbeforemakingsharp turns.

1.Park(brake)position

2.Centerunlockposition

3.Forward

4.Backward

UsingtheSmartSpeed™Control System

TheSmartSpeed™ControlSystemlever,locatedbelowthe operatingposition(Figure18),givestheoperatorachoiceto drivethemachineattwogroundspeedranges,highandlow.

Figure18

1.Smartspeedlever

Thethrottlecontrolregulatestheenginespeedasmeasured inrpm(revolutionsperminute).Placingthethrottlecontrol intheFastpositioncanbebestforperformance.Formost applications,operatinginthefullthrottlepositionisdesirable.

Tochangespeeds:

1.Movethemotioncontrolleverstoneutralandoutward totheparkposition;disengagethebladecontrolswitch.

Page 20

WARNING

G008952

G008953

Removingyourhandsfromthemotioncontrol leverswhilethemachineisinmotioncan resultinalossofcontrolcausingharmtoyou orbystanders.

Alwaysstopthemachineandmovethemotion controlleverstotheparkpositionbefore adjustingtheSmartSpeed™ControlSystem.

2.Adjustthelevertothedesiredposition.

Forward

1.Movetheleverstothecenter,unlockedposition.

2.Togoforward,slowlypushthemotioncontrollevers forward(Figure17).

Figure19

Figure20

Togostraight,applyequalpressuretobothmotion controllevers(Figure20).

Toturn,releasethepressureonthemotioncontrol levertowardthedirectionyouwanttoturn.

Tostop,pushthemotioncontrolleverstoneutral.

StoppingtheMachine

Tostopthemachine,movethemotioncontrolleversto neutralandoutwardtotheparkposition,disengagetheblade controlswitch,ensurethethrottleisinthefastposition,and turntheignitionkeytoOff.Remembertoremovethekey fromtheignitionswitch.

WARNING

Childrenorbystandersmaybeinjuredifthey moveorattempttooperatethemowerwhileitis unattended.

Togostraight,applyequalpressuretobothmotion controllevers(Figure17).

Toturn,releasepressureonthemotioncontrollever towardthedirectionyouwanttoturn(Figure17).

Thefartheryoumovethemotioncontrolleversin eitherdirection,thefasterthemachinewillmovein thatdirection.

Tostop,pullthemotioncontrolleverstoneutral.

Backward

1.Movetheleverstothecenter,unlockedposition.

2.Togobackward,lookbehindyouanddownasyou slowlypullthemotioncontrolleversrearward(Figure

20).

Alwaysremovetheignitionkeyandmovethe motioncontrolleversoutwardtotheparkposition whenleavingthemachineunattended,evenifjust forafewminutes.

Page 21

AdjustingtheHeightofCut

G014476

G010233

G014477

Height-of-cutiscontrolledbytheleverlocatedtotherightof theoperatingposition(Figure21).

Figure21

1.Height-of-cutlever3.115mm(4.5inch), Transportposition

2.Height-of-cutpositions

Figure22

1.Anti-scalproller3.FlangeNut

2.Bolt4.Holespacing

PositioningtheSeat

Theseatcanmoveforwardandbackward.Positiontheseat whereyouhavethebestcontrolofthemachineandaremost comfortable.

1.Raisetheseatandloosentheadjustmentboltsjust enoughthatseatcanmove(Figure23).

1.Pullupandinwardonthelevertomoveittothe desiredcuttingposition.

2.Onceatthedesiredcuttingposition,slowlylowerthe leveruntilitengagestheposition.

Thetransportpositionisthehighestheight-of-cutpositionor cuttingheight115mm[4.5inch](Figure21).

AdjustingtheAnti-Scalp Rollers

Wheneveryouchangetheheight-of-cut,itisrecommended toadjusttheheightoftheanti-scalprollers.

Note:Adjusttheanti-scalprollerssotherollersdonottouch thegroundinnormal,atmowingareas.

1.Disengagethebladecontrolswitch(PTO),movethe motioncontrolleverstotheneutrallockpositionand settheparkingbrake.

2.Stoptheengine,removethekey,andwaitforallmoving

3.Adjusttheanti-scalprollersasshownin

partstostopbeforeleavingtheoperatingposition.

matchtheclosestheight-of-cutposition.

Figure22to

Figure23

1.Adjustmentbolt

2.Movetheseattothedesiredpositionandtightenthe bolts.

Page 22

AdjustingtheMotionControl

G014970

g017303

1 2

Levers

AdjustingtheHeight

Themotioncontrolleverscanbeadjustedhigherorlowerfor maximumoperatorcomfort.

1.Removethe2boltsholdingthecontrollevertothe controlarmshaft(Figure24).

2.Movethecontrollevertothenextsetofholes.Secure theleverwiththe2bolts(

Figure24

Figure24).

3.Locatethebypassleversontheframeonbothsidesof theengine.

4.Movethebypassleversforwardthroughthekeyhole anddowntolocktheminplaceasshownin Ensurethisisdoneforeachlever.

5.Movethemotioncontrolleversinwardtotheneutral positionandturntheignitionkeytotherunposition. Donotstartthemachine.

Themachineisnowabletobepushedbyhand.

Figure25.

1.Controlarmshaft3.Slotted,upperhole

2.Controllever

3.Repeattheadjustmentfortheoppositecontrollever.

4.Bolt

AdjustingtheTilt

Themotioncontrolleverscanbetiltedforeoraftfor maximumoperatorcomfort.

1.Loosentheupperboltholdingthecontrollevertothe controlarmshaft.

2.Loosenthelowerboltjustenoughtopivotthecontrol leverforeoraft( securethecontrolinthenewposition.

3.Repeattheadjustmentfortheoppositecontrollever.

Figure24).Tightenbothboltsto

PushingtheMachinebyHand

Important:Alwayspushthemachinebyhand.Never

towthemachinebecausedamagemayoccur.

Thismachinehasanelectricbrakemechanismandtopush themachinetheignitionkeyneedstobeintheRunposition. Thebatteryneedstobechargedandfunctioningforthe electricbraketobedisengage.

Figure25

1.Bypassleverlocation

2.Leverpositionfor operatingthemachine

6.Whennished,ensurethekeyhasbeenreturnedtothe Stoppositiontoavoiddrainingthebatterycharge.

Ifthemachinefailstomovetheelectricbrakemaystillbe engaged.Ifnecessarytheelectricbrakecanbereleased manually.RefertotheReleasingtheElectricBrake(page33) procedureinDriveMaintenance.

3.Leverpositionforpushing themachine

ToOperatetheMachine

Movethebypassleversrearwardthroughthekeyholeand downtolocktheminplaceasshowninFigure25.Ensure thisisdoneforeachlever.

GrassDeector

Themowerhasahingedgrassdeectorthatdisperses clippingstothesideanddowntowardtheturf.

ToPushtheMachine

1.Parkthemachineonalevelsurfaceanddisengagethe bladecontrolswitch.

2.Movethemotioncontrolleversoutwardtopark position,stoptheengine,andwaitforallmovingparts tostopbeforeleavingtheoperatingposition.

Page 23

DANGER

Withoutthegrassdeector,dischargecover,or completegrasscatcherassemblymountedin place,youandothersareexposedtobladecontact andthrowndebris.Contactwithrotatingmower blade(s)andthrowndebriswillcauseinjuryor death.

•Neverremovethegrassdeectorfromthemower becausethegrassdeectorroutesmaterialdown towardtheturf.Ifthegrassdeectorisever damaged,replaceitimmediately .

•Neverputyourhandsorfeetunderthemower.

•Nevertrytocleardischargeareaormower bladesunlessyoumovethebladecontrolswitch toOffandrotatetheignitionkeytoOff.Also removethekeyandpullthewireoffthespark plug(s).

OperatingTips

FastThrottleSetting

Forbestmowingandmaximumaircirculation,operatethe engineattheFastposition.Airisrequiredtothoroughlycut grassclippings,sodonotsettheheight-of-cutsolowasto totallysurroundthemowerbyuncutgrass.Alwaystrytohave onesideofthemowerfreefromuncutgrass,whichallowsair tobedrawnintothemower.

MowingDirection

Alternatemowingdirectiontokeepthegrassstanding straight.Thisalsohelpsdisperseclippingswhichenhances decompositionandfertilization.

MowatCorrectIntervals

Normally,moweveryfourdays.Butremember,grassgrows atdifferentratesatdifferenttimes.Sotomaintainthesame cuttingheight,whichisagoodpractice,mowmoreoftenin earlyspring.Asthegrassgrowthrateslowsinmidsummer, mowlessfrequently.Ifyoucannotmowforanextended period,rstmowatahighcuttingheight;thenmowagain twodayslateratalowerheightsetting.

AvoidCuttingTooLow

Ifthecuttingwidthofthemoweriswiderthanthemower youpreviouslyused,raisethecuttingheighttoensurethat uneventurfisnotcuttooshort.

LongGrass

Ifthegrassiseverallowedtogrowslightlylongerthan normal,orifitcontainsahighdegreeofmoisture,raisethe cuttingheighthigherthanusualandcutthegrassatthis setting.Thencutthegrassagainusingthelower,normal setting.

WhenStopping

UsingtheSmartSpeed™Control System

TheSmartSpeed™ControlSystemlever,locatedbelowthe operatingposition,givestheoperatorachoicetodrivethe machineattwospeedranges,highandlow .Anoperator canbenetfromthelowerspeedsettingwhenmaneuvering themachineintightspacesoroperatingarounddelicate landscapes.Thelowsettingcanalsobeusedtooperatethe machineatahighthrottlesettingandbladespeedwhilestill beingabletoreducegroundspeedtoincreasequalityofcut.

CuttingaLawnfortheFirstTime

Cutgrassslightlylongerthannormaltoensurethatthe cuttingheightofthemowerdoesnotscalpanyuneven ground.However,thecuttingheightusedinthepastis generallythebestonetouse.Whencuttinggrasslongerthan sixinchestall,youmaywanttocutthelawntwicetoensure anacceptablequalityofcut.

Cut1/3oftheGrassBlade

Itisbesttocutonlyabout1/3ofthegrassblade.Cutting morethanthatisnotrecommendedunlessgrassissparse,or itislatefallwhengrassgrowsmoreslowly.

Ifthemachine'sforwardmotionmustbestoppedwhile mowing,aclumpofgrassclippingsmaydropontoyour lawn.Toavoidthis,moveontoapreviouslycutareawiththe bladesengagedoryoucandisengagethemowerdeckwhile movingforward.

KeeptheUndersideoftheMowerClean

Cleanclippingsanddirtfromtheundersideofthemower aftereachuse.Ifgrassanddirtbuildupinsidethemower, cuttingqualitywilleventuallybecomeunsatisfactory.

BladeMaintenance

Maintainasharpbladethroughoutthecuttingseasonbecause asharpbladecutscleanlywithouttearingorshreddingthe grassblades.Tearingandshreddingturnsgrassbrownat theedges,whichslowsgrowthandincreasesthechanceof disease.Checkthecutterbladesdailyforsharpness,andfor anywearordamage.Filedownanynicksandsharpenthe bladesasnecessary.Ifabladeisdamagedorworn,replaceit immediatelywithagenuineT ororeplacementblade.

Page 24

Maintenance

Note:Determinetheleftandrightsidesofthemachinefromthenormaloperatingposition.

RecommendedMaintenanceSchedule(s)

MaintenanceService

Interval

Aftertherst8hours

Beforeeachuseordaily

Aftereachuse

Every25hours

Every100hours

Every200hours

Beforestorage

MaintenanceProcedure

•Changetheengineoil.

•Checkthesafetyinterlocksystem.

•Checktheengineoillevel.

•Cleantheairintakescreen.

•Checkthecuttingblades.

•Inspectthegrassdeectorfordamage

•Cleanthemowerdeckhousing.

•Greasealllubricationpoints.

•Checktirepressure.

•Checkthebeltsforwear/cracks.

•Servicethepaperelement.(moreoftenindusty,dirtyconditions)

•Changetheengineoil.(moreoftenindusty,dirtyconditions)

•Checkthesparkplug(s).

•Replacetheemissionslter.

•Replacethein-linefuellter

•Replacethepaperelement.(moreoftenindusty ,dirtyconditions)

•Changetheoillter.(moreoftenindusty,dirtyconditions)

•Chargethebatteryanddisconnectbatterycables.

•Performallmaintenanceprocedureslistedabovebeforestorage.

•Paintanychippedsurfaces.

Important:Refertoyourengineoperator'smanualforadditionalmaintenanceprocedures.

CAUTION

Ifyouleavethekeyintheignitionswitch,someonecouldaccidentlystarttheengineandseriouslyinjure youorotherbystanders.

Removethekeyfromtheignitionanddisconnectthewirefromthesparkplugbeforeyoudoany maintenance.Setthewireasidesothatitdoesnotaccidentallycontactthesparkplug.

Page 25

Premaintenance

G014522

Lubrication

Procedures

GreasingtheBearings

RaisingtheSeat

Makesurethemotioncontrolleversarelockedinthepark position.Lifttheseatforward.

Thefollowingcomponentscanbeaccessedbyraisingtheseat:

•Serialplate

•Servicedecal

•Seatadjustmentbolts

•Fuellter

•Batteryandbatterycables

ServiceInterval:Every25hours—Greasealllubrication

points.

GreaseType:No.2GeneralPurposeLithiumBaseGrease

1.Parkthemachineonalevelsurfaceanddisengagethe bladecontrolswitch.

2.Movethemotioncontrolleversoutwardtothepark position,stoptheengine,removethekey ,andwaitfor allmovingpartstostopbeforeleavingtheoperating position.

3.Cleanthegreasettings( arag.Makesuretoscrapeanypaintoffofthefront ofthetting(s).

Figure26andFigure27)with

Figure26

1.Frontcastertire

Figure27

Locatedontheseatpanunderside

1.Readtheinstructions beforeservicingor performingmaintenance.

2.Checktirepressureevery 25operatinghours.

3.Greaseevery25operating hours.

4.Engine

4.Connectagreaseguntoeachtting(Figure26and Figure27).Pumpgreaseintothettingsuntilgrease beginstooozeoutofthebearings.

5.Wipeupanyexcessgrease.

Page 26

EngineMaintenance

G014908

g017470

SAE V iscosity Grades

SAE 40

SAE 30

SAE 10W– 30/ SAE 10W– 40

-20 0 20 32 40 60 80 100

-30 -20 -10 0 10 20 30 40

°F

°C

STARTING TEMPERA TURE RANGE ANTICIPATED BEFORE NEXT OIL CHANGE

SAE 5W– 20

ServicingtheAirCleaner

Important:Nevercleanthepaperelementwith

pressurizedairorliquids,suchassolvent,gas, orkerosene.Replacethepaperelementifitis damagedorcannotbecleanedthoroughly.

Note:Servicetheaircleanermorefrequently(everyfew hours)ifoperatingconditionsareextremelydustyorsandy.

RemovingtheElement

1.Parkthemachineonalevelsurfaceanddisengagethe bladecontrol(PTO).

2.Movethemotioncontrolleverstothebrakeposition, stoptheengine,removethekey,andwaitforallmoving partstostopbeforeleavingtheoperatingposition.

3.Cleanaroundtheaircleanercovertopreventdirtfrom gettingintotheengineandcausingdamage.Liftthe coverandremovethehoseclampsecuringtheair cleanerassemblytotheengine(Figure28).

4.Loosenthehoseclampandremovethepaperelement (Figure28).

ServicingtheEngineOil

OilType:Detergentoil(APIserviceSF,SG,SH,SJ,orSL)

CrankcaseCapacity:

OillternotremovedOillterremoved

1.8L(61ounces)2.1L(70ounces)

Viscosity:Seethetablebelow.

Figure29

Note:Usingmultigradeoils(5W-20,10W -30,and10W-40)

willincreaseoilconsumption.Checkoillevelmorefrequently whenusingthem.

CheckingtheEngineOilLevel

ServiceInterval:Beforeeachuseordaily

Note:Checktheoilwhentheengineiscold.

Figure28

1.Cover

2.Paperelement

3.Hoseclamp

CleaningtheElement

ServiceInterval:Every100hours—Servicethepaper

Every200hours/Yearly(whichevercomes rst)—Replacethepaperelement.(moreoftenin dusty,dirtyconditions)

1.Lightlytaptheelementonaatsurfacetoremovedust anddirt.

2.Inspecttheelementfortears,anoilylm,anddamage totheseal.

element.(moreoftenindusty ,dirty conditions)

WARNING

Contactwithhotsurfacesmaycausepersonal injury.

Keephands,feet,face,clothingandotherbody partsawaythemuferandotherhotsurfaces.

Important:Donotoverllthecrankcasewithoil becausedamagetotheenginemayresult.Donotrun enginewithoilbelowthelowmarkbecausetheengine maybedamaged.

1.Parkthemachineonalevelsurface,disengagethe bladecontrolswitch,stoptheengine,engageparking brake,andremovethekey.

2.Makesuretheengineisstopped,level,andiscoolso theoilhashadtimetodrainintothesump.

3.Tokeepdirt,grassclippings,etc.,outoftheengine, cleantheareaaroundtheoilllcap/dipstickbefore removingit.

Page 27

4.Stoptheengine,removethekey,andwaitforall

G008792

G014971

5 6

movingpartstostopbeforeleavingtheoperating position(Figure30).

Figure30

ChangingtheEngineOil

ServiceInterval:Aftertherst8hours—Changetheengine

Every100hours—Changetheengineoil.(moreoften industy ,dirtyconditions)

Note:Disposeoftheusedoilatarecyclingcenter.

1.Parkthemachinesothatthedrainsideisslightly lowerthantheoppositesidetoassuretheoildrains completely.

oil.

Figure31

2.DisengagethePTO ,movethemotioncontrolleversto theneutrallockedpositionandsettheparkingbrake.

3.Stoptheengine,removethekey,andwaitforall movingpartstostopbeforeleavingtheoperating position(

Figure31).

Page 28

4.Slowlypourapproximately80%ofthespeciedoil

G008796

G008748

3/4

intothellertubeandslowlyaddtheadditionaloilto bringittotheFullmark(Figure32).

Figure32

ChangingtheEngineOilFilter

ServiceInterval:Every200hours—Changetheoillter.

(moreoftenindusty,dirtyconditions)

Note:Changetheengineoilltermorefrequentlywhen operatingconditionsareextremelydustyorsandy.

1.Draintheoilfromtheengine;refertoChangingthe EngineOil.

2.Changetheengineoillter(Figure33).

Figure33

Note:Ensuretheoilltergaskettouchestheengine

andthenanextra3/4turniscompleted.

3.Fillthecrankcasewiththepropertypeofnewoil;refer toChangingtheOil.

ServicingtheSparkPlug

ServiceInterval:Every100hours—Checkthesparkplug(s).

Makesuretheairgapbetweenthecenterandsideelectrodes iscorrectbeforeinstallingthesparkplug.Useasparkplug wrenchforremovingandinstallingthesparkplug(s)anda gappingtool/feelergaugetocheckandadjusttheairgap. Installanewsparkplug(s)ifnecessary.

Type:NGKBPR4ES(orequivalent)

AirGap:0.76mm(0.030inch)

RemovingtheSparkPlug

1.DisengagethePTO ,movethemotioncontrolleversto theneutrallockedpositionandsettheparkingbrake.

2.Stoptheengine,removethekey,andwaitforallmoving partstostopbeforeleavingtheoperatingposition.

Page 29

Figure34

G008794

16ft-lb 22N-m

G010687

Note:Duetothedeeprecessaroundthesparkplug, blowingoutthecavitywithcompressedairisusually themosteffectivemethodforcleaning.Thesparkplug ismostaccessiblewhentheblowerhousingisremoved forcleaning.

CheckingtheSparkPlug

InstallingtheSparkPlug

Tightenthesparkplug(s)to22N-m(16ft-lb).

Important:Nevercleanthesparkplug(s).Always replacethesparkplug(s)whenithas:ablackcoating, wornelectrodes,anoilylm,orcracks.

Ifyouseelightbrownorgrayontheinsulator,theengineis operatingproperly .Ablackcoatingontheinsulatorusually meanstheaircleanerisdirty.

Setthegapto0.76mm(0.030inches).

Figure35

Figure36

CleaningtheCoolingSystem

Cleantheairintakescreenfromgrassanddebrisbeforeeach use.

1.Disengagethebladecontrolswitchandmovethe controlleverstotheneutrallockedpositionandapply theparkingbrake.

2.Stoptheengine,removethekey,andwaitforallmoving partstostopbeforeleavingtheoperatingposition.

3.Removetheairintakescreen,aircleanercover,and fanhousing.

4.Cleandebrisandgrassfromtheparts.

5.Installtheairintakescreen,aircleanercover,andfan housing.

Page 30

FuelSystem

g020178

g017471

Maintenance

DANGER

Incertainconditions,gasolineisextremely ammableandhighlyexplosive.Areorexplosion fromgasolinecanburnyouandothersandcan damageproperty.

•Performanyfuelrelatedmaintenancewhenthe engineiscold.Dothisoutdoorsinanopenarea. Wipeupanygasolinethatspills.

•Neversmokewhendraininggasoline,andstay awayfromanopenameorwhereasparkmay ignitethegasolinefumes.

ServicingtheEmissionsFilter

ServiceInterval:Every100hours/Yearly(whichevercomes

rst)

Note:Thismodelisequippedwithamaintenancefree emissionscanisterandhasanemissionsltertobeserviced.

ReplacingtheIn-lineFuel Filter

ServiceInterval:Every100hours—Replacethein-linefuel

lter

Neverinstalladirtylterifitisremovedfromthefuelline.

1.Parkthemachineonalevelsurfaceanddisengagethe bladecontrolswitch.

2.Movethemotioncontrolleversoutwardtothepark position,stoptheengine,removethekey ,andwaitfor allmovingpartstostopbeforeleavingtheoperating position.

3.Locatethefuellteronthesideoftheengineasshown

Figure38.

Thelterislocatedbehindtheoperatorsseat,nexttothe engine.Pullthelteroffofthehoseandreplacewithanew lter.

Figure38

1.Fuellinefromtank

2.In-lineFuellter

3.Flowdirectionarrow

4.Squeezetheendsofthehoseclampstogetherandslide themawayfromthelter(Figure38).

5.Removethelterfromthefuellines.

6.Installanewlterwiththeowdirectionarrowcoming fromthefueltankandpointingtotheengine.Move thehoseclampsclosetothelter(Figure38)tosecure itinplace.

4.Fuellinetoengine

5.Hoseclamp

Figure37

1.Emissionslter

2.Emissionscanister

Page 31

ElectricalSystem

G005072

Maintenance

WARNING

CALIFORNIA

Proposition65Warning

Batteryposts,terminals,andrelated

accessoriescontainleadandleadcompounds,

chemicalsknowntotheStateofCalifornia

tocausecancerandreproductiveharm.

Washhandsafterhandling.

ChargingtheBattery

RemovingtheBattery

WARNING

5.Slidetherubbercoverupthepositive(red)cable. Disconnectthepositive(red)cablefromthebattery post(Figure39).Retainallfasteners.

6.Removethebatteryhold-down(Figure39)andliftthe batteryfromthebatterytray .

Batteryterminalsormetaltoolscouldshortagainst metalmachinecomponentscausingsparks.Sparks cancausethebatterygassestoexplode,resulting inpersonalinjury.

•Whenremovingorinstallingthebattery,donot allowthebatteryterminalstotouchanymetal partsofthemachine.

•Donotallowmetaltoolstoshortbetween thebatteryterminalsandmetalpartsofthe machine.

1.Parkthemachineonalevelsurfaceanddisengagethe bladecontrolswitch.

2.Movethemotioncontrolleversoutwardtothepark position,stoptheengine,removethekey ,andwaitfor allmovingpartstostopbeforeleavingtheoperating position.

3.Raisetheseattoaccessthebattery.

4.Disconnectthenegative(black)groundcablefromthe batterypost(

WARNING

Incorrectbatterycableroutingcoulddamage

Figure39).Retainallfasteners.

themachineandcablescausingsparks. Sparkscancausethebatterygassesto explode,resultinginpersonalinjury.

•Alwaysdisconnectthenegative(black) batterycablebeforedisconnectingthe positive(red)cable.

•Alwaysconnectthepositive(red)battery cablebeforeconnectingthenegative (black)cable.

Figure39

1.Battery5.Negativebatterypost

2.Positivebatterypost6.Wingnut,washer,andbolt

3.Bolt,washer,andnut7.Batteryhold-down

4.Terminalboot

ChargingtheBattery

ServiceInterval:Beforestorage—Chargethebatteryand

disconnectbatterycables.

1.Removethebatteryfromthechassis;refertoRemoving theBattery.

2.Chargethebatteryforaminimumof1hourat6to10 amps.Donotoverchargethebattery.

3.Whenthebatteryisfullycharged,unplugthecharger fromtheelectricaloutlet,thendisconnectthecharger leadsfromthebatteryposts(

Figure40).

Page 32

Figure40

G014921

1.Positivebatterypost

2.Negativebatterypost

3.Red(+)chargerlead

4.Black(-)chargerlead

Note:Donotrunthemachinewiththebattery disconnected,electricaldamagemayoccur.

InstallingtheBattery

1.Positionthebatteryinthetray(Figure39).

2.Installthepositive(red)batterycabletothepositive(+) batteryterminalusingthefastenersremovedpreviously.

3.Installthenegativebatterycabletothenegative(-) batteryterminalusingthefastenersremovedpreviously.

4.Slidetheredterminalbootontothepositive(red) batterypost.

5.Securethebatterywiththehold-down(

Figure39).

6.Lowertheseat.

ServicingtheFuses

Figure41

1.Main-30amp

2.Chargecircuit-25amp

4.Returnthecontrolpaneltoitsoriginalposition.Use thescrewsremovedpreviouslytosecurethepanelto themachine.

Theelectricalsystemisprotectedbyfuses.Itrequires nomaintenance;however,ifafuseblows,checkthe component/circuitforamalfunctionorshort.

Fuse:

•MainF1-30amp,blade-type

•ChargeCircuitF2-25amp,blade-type

1.Removethescrewssecuringthecontrolpaneltothe machine.Retainallfasteners

2.Liftthecontrolpaneuptoaccessthemainwiring harnessandfuseblock(

3.Toreplaceafuse,pulloutonthefusetoremoveit (

Figure41).

Page 33

DriveSystem

G015000

Maintenance

CheckingtheTirePressure

ServiceInterval:Every25hours—Checktirepressure.

Maintaintheairpressureinthefrontandreartiresas specied.Uneventirepressurecancauseunevencut.Check thepressureatthevalvestem(Figure42).Checkthetires whentheyarecoldtogetthemostaccuratepressurereading.

Refertothemaximumpressuresuggestedbythetire manufactureronthesidewallofthecasterwheeltires.

Inatethereardrivewheeltiresto12psi.

2.Rotatetheshaftforwardtoreleasethebrake.

Figure42

1.Valvestem

ReleasingtheElectricBrake

Theelectricbrakecanbereleasebymanuallyrotatingthe linkarmsforward.Oncetheelectricbrakeisenergizedthe brakewillreset.

Toreleasethebrake:

Figure43

1.Brakelinkarmontheelectricbrakecontrolmodule

1.Locatetheshaftontheelectricbrakewherethebrake linkarmsareconnected.

Page 34

MowerMaintenance

G014972

ServicingtheCuttingBlades

Maintainsharpbladesthroughoutthecuttingseasonbecause sharpbladescutcleanlywithouttearingorshreddingthegrass blades.Tearingandshreddingturnsgrassbrownattheedges, whichslowsgrowthandincreasesthechanceofdisease.

Checkthecutterbladesdailyforsharpness,andforany wearordamage.Filedownanynicksandsharpenthe bladesasnecessary.Ifabladeisdamagedorworn,replace itimmediatelywithagenuineT ororeplacementblade.For convenientsharpeningandreplacement,youmaywantto keepextrabladesonhand.

WARNING

Awornordamagedbladecanbreak,andapiece ofthebladecouldbethrownintotheoperator's orbystander'sarea,resultinginseriouspersonal injuryordeath.

•Inspectthebladeperiodicallyforwearor damage.

•Replaceawornordamagedblade.

Figure44

1.Cuttingedge3.Wear/slotforming

2.Curvedarea

4.Damage

CheckingforBentBlades

Note:Themachinemustbeonalevelsurfaceforthe

followingprocedure.

1.Raisethemowerdecktothehighestheight-of-cut position;alsoconsideredthe'transport'position.

2.Whilewearingthicklypaddedglovesorotheradequate handprotectionslowlyrotatebladetobemeasured intoapositionthatallowseffectivemeasurementof thedistancebetweenthecuttingedgeandthelevel surfacethemachineison.

BeforeInspectingorServicingthe Blades

Parkthemachineonalevelsurface,disengagetheblade controlswitch,andmovethemotioncontrolleversoutward totheparkposition.Stoptheengineandremovethekey .

InspectingtheBlades

ServiceInterval:Beforeeachuseordaily—Checkthe

cuttingblades.

1.Inspectthecuttingedges(Figure44).Iftheedges arenotsharporhavenicks,removeandsharpenthe blades;refertoSharpeningtheBlades.

2.Inspecttheblades,especiallythecurvedarea(Figure

44).Ifyounoticeanydamage,wear,oraslotforming inthisarea(item3inFigure44),immediatelyinstall anewblade.

Figure45

1.Deck3.Blade

2.Spindlehousing

Page 35

3.Measurefromthetipofthebladetotheatsurface

G014973

G014974

G014973

here.

Figure46

1.Blade,inpositionformeasuring

2.Levelsurface

3.Measureddistancebetweenbladeandsurface(A)

Figure48

1.Opposingbladeedge,inpositionformeasuring

2.Levelsurface

3.Secondmeasureddistancebetweenbladeandsurface(B)

WARNING

4.Rotatethesameblade180degreessothattheopposing cuttingedgeisnowinthesameposition.

Figure47

1.Blade,sidepreviouslymeasured

2.Measurementpositionusedpreviously

3.Opposingsideofbladebeingmovedintomeasurement position

5.Measurefromthetipofthebladetotheatsurface here.Thevarianceshouldbenomorethan3mm(1/8 inch).

Abladethatisbentordamagedcouldbreak apartandcouldseriouslyinjureorkillyouor bystanders.

•Alwaysreplacebentordamagedblade withanewblade.

•Neverleorcreatesharpnotchesinthe edgesorsurfacesofblade.

A.IfthedifferencebetweenAandBisgreaterthan3

mm(1/8inch)replacethebladewithanewblade. RefertoRemovingtheBladesandInstallingthe Blades.

Note:Ifabentbladeisreplacedwithanewone andthedimensionobtainedcontinuestoexceed3 mm(1/8inch),thebladespindlecouldbebent. ContactanAuthorizedToroDealerforservice.

B.Ifthevarianceiswithinconstraints,movetothe

nextblade..

Repeatthisprocedureoneachblade.

RemovingtheBlades

Thebladesmustbereplacedifasolidobjectishit,ifthe bladeisoutofbalance,orthebladeisbent.Toensure optimumperformanceandcontinuedsafetyconformance ofthemachine,usegenuineTororeplacementblades. Replacementbladesmadebyothermanufacturersmayresult innon-conformancewithsafetystandards.

Holdthebladeendusingaragorthickly-paddedglove. Removethebladebolt,curvedwasher,andbladefromthe spindleshaft(

Figure49).

Page 36

Figure49

G005278

1.Sailareaofblade3.Curvedwasher

2.Blade4.Bladebolt

SharpeningtheBlades

1.Usealetosharpenthecuttingedgeatbothendsof theblade(Figure50).Maintaintheoriginalangle.The bladeretainsitsbalanceifthesameamountofmaterial isremovedfrombothcuttingedges.

Figure50

1.Sharpenatoriginalangle

LevelingtheMowerDeck

Checktoensurethemowerdeckislevelanytimeyouinstall themowerorwhenyouseeanunevencutonyourlawn.

Themowerdeckmustbecheckedforbentbladespriorto leveling;anybentbladesmustberemovedandreplaced.Refer totheCheckingforBentBladesprocedurebeforecontinuing.

Themowerdeckmustbeleveledside-to-siderstthenthe fronttorearslopecanbeadjusted.

Requirements:

•Themachinemustbeonalevelsurface.

•Allfourtiremustbeproperlyinated.RefertoChecking

theTirePressureintheDriveSystemMaintenance section.

Side-to-SideLeveling

1.Parkthemachineonalevelsurfaceanddisengagethe bladecontrolswitch.

2.Movethemotioncontrolleversoutwardtothepark position,stoptheengine,removethekey ,andwaitfor allmovingpartstostopbeforeleavingtheoperating position.

3.Settheheight-of-cutlevertomiddleposition.

4.Carefullyrotatethebladessothattheyareallsideto

Figure52).

side(

2.Checkthebalanceofthebladebyputtingitonablade balancer(

Figure51).Ifthebladestaysinahorizontal position,thebladeisbalancedandcanbeused.Ifthe bladeisnotbalanced,lesomemetalofftheendof thesailareaonly(

Figure50).Repeatthisprocedure

untilthebladeisbalanced.

Figure52

3.Outsidecuttingedges

bladetotheatsurface here

1.Blade2.Balancer

InstallingtheBlades

Figure51

MowerDeckswith3Blades

1.Bladessidetoside

2.Sailareaofblade4.Measurefromthetipofthe

1.Installthebladeontothespindleshaft(Figure49).

Important:Thecurvedpartoftheblademustbe pointingupwardtowardtheinsideofthemowerto ensurepropercutting.

2.Installthecurvedwasher(cuppedsidetowardthe blade)andthebladebolt(

Figure49).

3.Torquethebladeboltto35-65ft-lb(47-88N-m).

5.Measurebetweentheoutsidecuttingedgesandthe atsurface(Figure52).Ifbothmeasurementsarenot within5mm(3/16inch),anadjustmentisrequired; continuewiththisprocedure.

6.Supporttheweightofmowerdeckbyplacingwood blocksundertheedgesofthemowerdeck.

Note:Avoidplacingthesupportsunderanyanti-scalp rollersifpresentonthemowerdeck.

Page 37

7.Movetotheleftsideofthemachine.Checkiftheside

G015323

G015324

G015325

carriageboltisinthexedorslottedposition(Figure

53).

8.Ifthesidecarriageboltisinthexedposition,remove thesidecarriageboltandsidelockingnutfromthe xedpositionandinstallitintotheslottedadjustment position(Figure53).

Iftheboltisintheslottedposition,thecarriagebolt andsidelockingnutdonotneedtoberemoved.

Figure53

1.Hangerbracket

2.Slottedadjustment position

3.Fixedposition

4.Sidelockingnut.

5.Sidecarriagebolt

9.Loosentherearlockingnutonthehangerbracket (Figure54).

equivalentto0.25inch,whileasinglesideis0.125inch (Figure55).Adjusttheheightofthemowerdecktothe desiredheight.

Figure55

1.0.25inch2.0.125inch

11.Stopthedeckattheadjustedpositionandtightenthe sidelockingnutonthehangerbrackettoholdthenew position(Figure54).Tightentherearlockingnuton thehangerbracket.

12.Continuelevelingthedeckbycheckingthefront-to-rear bladeslope;refertoAdjustingtheFront-to-RearBlade Slope.

AdjustingtheFront-to-RearBlade Slope

Checkthefront-to-rearbladelevelanytimeyouinstallthe mower.Ifthefrontofthemowerismorethan7.9mm (5/16inch)lowerthantherearofthemower,adjusttheblade levelusingthefollowinginstructions:

1.Parkthemachineonalevelsurfaceanddisengagethe bladecontrolswitch.

2.Movethemotioncontrolleversoutwardtothepark position,stoptheengine,removethekey ,andwaitfor allmovingpartstostopbeforeleavingtheoperating position.

3.Settheheight-of-cutlevertomiddleposition.

Note:Checkandadjusttheside-to-sidebladelevelif youhavenotcheckedthesetting;refertoSide-to-Side Leveling.

Figure54

1.Hangerbracket

2.Rearlockingnut4.Adjustmentnotches

3.Sidelockingnut,slotted position.

4.Carefullyrotatethebladessotheyarefacingfrontto rear(

Figure56).

10.Loosenthesidelockingnutonthehangerbracketjust enoughtoallowthehangertobeadjusted(Figure54). Usethenotchesontheweldedbrackettomeasure theamountofadjustment.Eachnotchsurfaceis

Page 38

G009659

Figure56

G014634

G014635

MowerDeckswith3Blades

1.Bladesfronttorear3.Measurefromthetipofthe bladetotheatsurface here

2.Outsidecuttingedges

5.Measurefromthetipofthefrontbladetotheat surfaceandthetipoftherearbladetotheatsurface (Figure56).Ifthefrontbladetipisnot1.6-7.9mm (1/16-5/16inch)lowerthantherearbladetip,adjust thefrontlocknut.

6.Toadjustthefront-to-rearbladeslope,rotatethe adjustmentnutinthefrontofthemower(Figure57).

RemovingtheMower

1.Parkthemachineonalevelsurfaceanddisengagethe bladecontrolswitch.

2.Movethemotioncontrolleversoutwardtothepark position,stoptheengine,removethekey ,andwaitfor allmovingpartstostopbeforeleavingtheoperating position.

3.Lowertheheight-of-cutlevertothelowestposition.

4.Removethehairpincotterfromthefrontsupportrod andremovetherodfromthedeckbracket(Figure

58).Carefullylowerthefrontofthemowerdeckto theground.

Figure58

1.Frontsupportrod3.Deckbracket

2.Lockingnut

5.Liftthemowerdeckandhangerbracketsclearof

Figure57

therearliftrodandlowerthemowercarefullytothe ground(Figure59).

1.Adjustingrod3.Locknut

2.Adjustingblock

7.Toraisethefrontofthemower,tightentheadjustment nut.T olowerthefrontofthemower,loosenthe adjustmentnut.

8.Afteradjustment,checkthefront-to-rearslopeagain. Continueadjustingthenutuntilthefrontbladetipis

1.6-7.9mm(1/16-5/16inch)lowerthantherearblade tip(

9.Whenthefront-to-rearbladeslopeiscorrectcheckthe

Figure56).

side-to-sidelevelofthemoweragain;refertoLeveling theMowerfromSide-to-Side.

Page 39

G005077

Figure59

G014931

WARNING

Thespringisundertensionwheninstalled andcancausepersonalinjury.

Becarefulwhenremovingthebelt.

1.Mowerdeck

2.Hangerbracket

6.Slidethemowerdeckrearwardtoremovethemower beltfromtheenginepulley.

7.Slidethemowerdeckoutfromunderneaththe machine.

Note:Retainallpartsforfutureinstallation.

3.Rearliftrod

MowerBeltMaintenance

InspectingtheBelts

ServiceInterval:Every25hours—Checkthebeltsfor

wear/cracks.

Checkthebeltsforcracks,frayededges,burnmarks,orany otherdamage.Replacedamagedbelts.

ReplacingtheMowerBelt

Squealingwhenthebeltisrotating,bladesslippingwhen cuttinggrass,frayedbeltedges,burnmarks,andcracksare signsofawornmowerbelt.Replacethemowerbeltifanyof theseconditionsareevident.

1.Parkthemachineonalevelsurfaceanddisengagethe

2.Movethemotioncontrolleversoutwardtothepark

3.Settheheight-of-cutatthelowestcuttingposition[38

4.Usingaspringremovaltool,(T oropartno.92-5771),

bladecontrolswitch.

position,stoptheengine,removethekey ,andwaitfor allmovingpartstostopbeforeleavingtheoperating position.

mm(1-1/2inch)].

removetheidlerspringfromthedeckhooktoremove tensionontheidlerpulleyandrollthebeltoffofthe pulleys(

Figure60).

Figure60

MowerDeckswith3Blades

1.Idlerpulley

2.Mowerbelt5.Enginepulley

3.Outsidepulley6.Springremovaltoo

5.Routethenewbeltaroundtheenginepulleyand mowerpulleys(Figure60).

6.Usingaspringremovaltool,(T oropartno.92-5771), installtheidlerspringoverthedeckhookandplacing tensionontheidlerpulleyandmowerbelt(

4.Spring

InstallingtheMower

1.Parkthemachineonalevelsurfaceanddisengagethe bladecontrolswitch.

2.Movethemotioncontrolleversoutwardtothepark position,stoptheengine,removethekey ,andwaitfor allmovingpartstostopbeforeleavingtheoperating position.

3.Slidethemowerunderthemachine.

4.Lowertheheight-of-cutlevertothelowestposition.

5.Lifttherearofthemowerdeckandguidethehanger bracketsovertherearliftrod(

6.Attachthefrontsupportrodtothemowerdeckwith theclevispinandhairpincotter(

7.Installthemowerbeltontotheenginepulley;referto ReplacingtheMowerBelt.

Figure59).

Figure58).

Figure60).

Page 40

ReplacingtheGrassDeector

G005192

ServiceInterval:Beforeeachuseordaily—Inspectthegrass

deectorfordamage

WARNING

Anuncovereddischargeopeningcouldallowthe lawnmowertothrowobjectsintheoperator'sor bystander'sdirectionandresultinseriousinjury. Also,contactwiththebladecouldoccur.

Neveroperatethemachinewithoutgrassdeector, dischargecoverorgrasscollectionsysteminplace.

Inspectthegrassdeectorfordamagebeforeeachuse. Replaceanydamagedpartsbeforeuse.

1.LocateitemsshowninFigure61.

Important:Thegrassdeectormustbespring loadedinthedownposition.Liftthedeectorup totestthatitsnapstothefulldownposition.

Figure61

1.Mowerdeck

2.Grassdeector6.Nut(3/8inch)

3.Grassdeectorbracket7.Shortstand-off

4.Rod

2.Removethenut(3/8inch)fromtherodunderthe mower(Figure61).

3.Slidetherodoutoftheshortstand-off,spring,and grassdeector(Figure61).Removethedamagedor worngrassdeector.

4.Replacethegrassdeector(Figure61).

5.Sliderod,straightend,throughthereargrassdeector bracket.

6.Placethespringontherod,withendwiresdown,and betweenthegrassdeectorbrackets.Sliderodthrough secondgrassdeectorbracket(Figure61).

7.Insertrodatfrontofgrassdeectorintoshort stand-offondeck.Securerearendofrodintothe mowerwithanut(3/8inch)(Figure61).

5.Spring

Page 41

Cleaning

8.Runthemoweragainforonetothreeminutesto removeexcesswater.

WashingtheUndersideofthe Mower

ServiceInterval:Aftereachuse—Cleanthemowerdeck

housing.

Washtheundersideofthemoweraftereachusetoprevent grassbuildupforimprovedmulchactionandclipping dispersal.

1.Parkthemachineonalevelsurfaceanddisengagethe bladecontrolswitch.

2.Movethemotioncontrolleversoutwardtothepark position,stoptheengine,removethekey ,andwaitfor allmovingpartstostopbeforeleavingtheoperating position.

3.Attachthehosecouplingtotheendofthemower washouttting,andturnthewateronhigh(

Note:Spreadpetroleumjellyonthewashouttting O-ringtomakethecouplingslideoneasierandprotect theO-ring.

Figure62).

WARNING

Abrokenormissingwashoutttingcould exposeyouandotherstothrownobjectsor bladecontact.Contactwithbladeorthrown debriscancauseinjuryordeath.

•Replacebrokenormissingwashouttting immediately,beforeusingmoweragain.

•Neverputyourhandsorfeetunderthe mowerorthroughopeningsinthemower.

Figure62

1.Washouttting3.O-ring

2.Hose

4.Lowerthemowertothelowestheight-of-cut.

5.Sitontheseatandstarttheengine.Engagetheblade controlswitchandletthemowerrunforonetothree minutes.

6.Disengagethebladecontrolswitch,stoptheengine, andremovetheignitionkey.Waitforallmovingparts tostop.

7.Turnthewateroffandremovethecouplingfromthe washouttting.

Note:Ifthemowerisnotcleanafteronewashing, soakitandletitstandfor30minutes.Thenrepeatthe process.

4.Coupling

Page 42

Storage

CleaningandStorage

1.Disengagethebladecontrolswitch,movethemotion controlsoutwardtotheparkposition,stoptheengine, andremovethekey.

2.Removegrassclippings,dirt,andgrimefromthe externalpartsoftheentiremachine,especiallythe engine.Cleandirtandchafffromtheoutsideofthe enginecylinderheadnsandblowerhousing.

Important:Youcanwashthemachinewithmild detergentandwater.Donotpressurewashthe machine.Avoidexcessiveuseofwater,especially nearthecontrolpanel,undertheseat,aroundthe engine,hydraulicpumps,andmotors.

3.Servicetheaircleaner;refertoServicingtheAir CleanerintheEngineMaintenancesection.

4.Greaseandoilthemachine;refertotheLubrication section.

5.Changethecrankcaseoilandlter;refertoServicing theEngineOilintheEngineMaintenancesection.

6.Checkthetirepressure;refertoCheckingtheTire PressureintheDriveSystemMaintenancesection.

7.Chargethebattery;refertoServicingtheBatteryinthe ElectricalSystemMaintenancesection.

8.Checktheconditionoftheblades;refertoServicing theCuttingBladesintheMowerMaintenancesection.

9.Preparethemachineforstoragewhennon-useoccurs over30days.Preparethemachineforstorageas follows.

10.Addapetroleumbasedstabilizer/conditionertothe fuelinthetank.Followthemixinginstructionsfrom thestabilizermanufacturer.Donotuseanalcohol basedstabilizer(ethanolormethanol).

14.Checktheconditionofthedriveandmowerbelts.

15.Checkandtightenallbolts,nuts,andscrews.Repairor replaceanypartthatiswornordamaged.

16.Paintallscratchedorbaremetalsurfaces.Paintis availablefromyourAuthorizedServiceDealer.

17.Storethemachineinaclean,drygarageorstoragearea. Removethekeyfromtheignitionswitchandkeepit inamemorableplace.Coverthemachinetoprotect itandkeepitclean.

Note:Afuelstabilizer/conditionerismosteffective whenmixedwithfreshgasolineandusedatalltimes.

Runtheenginetodistributetheconditionedfuel throughthefuelsystem(5minutes).

Important:Donotstorestabilizer/conditioned gasolineover90days.

11.Removethesparkplug(s)andcheckitscondition;refer toServicingtheSparkPlugintheEngineMaintenance section.Withthesparkplug(s)removedfromthe engine,pourtwotablespoonsofengineoilintothe sparkplughole.Usethestartertocranktheengineand distributetheoilinsidethecylinder.Installthespark plug(s).Donotinstallthewireonthesparkplug(s).

12.Cleananydirtandchafffromthetopofthemower.

13.Scrapeanyheavybuildupofgrassanddirtfromthe undersideofthemower,thenwashthemowerwith agardenhose.

Page 43

Troubleshooting

Problem

Thefueltankisshowingsignsof collapsingorthemachineisshowingsigns offrequentlyrunningoutoffuel.

Theengineoverheats.

Thestarterdoesnotcrank

Theenginewillnotstart,startshard,or failstokeeprunning.

PossibleCauseCorrectiveAction

1.Theaircleanerpaperelementclogged.

1.Theengineloadisexcessive.1.Reducegroundspeed.

2.Theoillevelinthecrankcaseislow.2.Addoiltothecrankcase.

3.Thecoolingnsandairpassages undertheengineblowerhousingare plugged.

4.Theaircleanerisdirty.

5.Dirt,water,orstalefuelisinfuel system.

1.Thebladecontrolswitchisengaged.1.Movethebladecontrolswitchto

2.Themotioncontrolleversarenotinthe parkposition.

3.Thebatteryisdead.

4.Theelectricalconnectionsarecorroded orloose.

5.Afuseisblown.5.Replacethefuse.

6.Arelayorswitchisdamaged.

1.Thefueltankisempty.1.Fillthefueltank.

2.Thechokeisnoton.

3.Theaircleanerisdirty.

4.Thesparkplugwire(s)islooseor disconnected.

5.Thesparkplug(s)ispitted,fouled,or thegapisincorrect.

6.Thereisdirtinfuellter.6.Replacethefuellter .

7.Dirt,water,orstalefuelisinfuel system.

8.Thereisincorrectfuelinthefueltank.8.Drainthetankandreplacethefuelwith

9.Theoillevelinthecrankcaseislow.9.Addoiltothecrankcase.

1.Cleanthepaperelement.

3.Removetheobstructionfromthe coolingnsandairpassages.

4.Cleanorreplacetheaircleaner element.

5.ContactanAuthorizedServiceDealer

Disengaged.

2.Movethemotioncontrolleversoutward totheparkposition.

3.Chargethebattery.

4.Checktheelectricalconnectionsfor goodcontact.

6.ContactanAuthorizedServiceDealer.

2.MovethechokelevertoOn.

3.Cleanorreplacetheaircleaner element.

4.Installthewire(s)onthesparkplug.

5.Installanew,correctlygappedspark plug(s).

7.ContactanAuthorizedServiceDealer.

thepropertype.

Theenginelosespower.

1.Theengineloadisexcessive.1.Reducegroundspeed.

2.Theaircleanerisdirty.

3.Theoillevelinthecrankcaseislow.3.Addoiltothecrankcase.

4.Thecoolingnsandairpassages undertheengineblowerhousingare plugged.

5.Thesparkplug(s)ispitted,fouled,or thegapisincorrect.

6.Thefueltankventisblocked.6.ContactanAuthorizedServiceDealer.

7.Thereisdirtinthefuellter.7.Replacethefuellter.

8.Dirt,water,orstalefuelisinthefuel system.

9.Thereisincorrectfuelinthefueltank.9.Drainthetankandreplacethefuelwith

2.Cleantheaircleanerelement.

4.Removetheobstructionfromthe coolingnsandairpassages.

5.Installanew,correctlygappedspark plug(s).

8.ContactanAuthorizedServiceDealer.

thepropertype.

Page 44

Problem

PossibleCauseCorrectiveAction

Themachinedoesnotdrive.

Thereisabnormalvibration.

Unevencuttingheight.

Thebladesdonotrotate.

1.Thebypassvalvesareopen.

2.Thetractionbeltsareworn,loose,or broken.

3.Thetractionbeltsareoffofthepulleys.3.ContactanAuthorizedServiceDealer.

4.Thetransmissionhasfailed.4.ContactanAuthorizedServiceDealer.

1.Theenginemountingboltsareloose.1.Tightentheenginemountingbolts.

2.Theenginepulley,idlerpulley ,orblade pulleyisloose.

3.Theenginepulleyisdamaged.

4.Thecuttingblade(s)is/arebentor unbalanced.

5.Ablademountingboltisloose.5.Tightentheblademountingbolt.

6.Abladespindleisbent.

1.Theblade(s)isnotsharp.1.Sharpentheblade(s).

2.Acuttingblade(s)is/arebent.2.Installanewcuttingblade(s).

3.Themowerisnotlevel.

4.Ananti-scalpwheelisnotsetcorrectly.4.Adjusttheanti-scalpwheelheight.

5.Theundersideofthemowerisdirty.5.Cleantheundersideofthemower.

6.Thetirepressureisincorrect.6.Adjustthetirepressure.

7.Abladespindleisbent.

1.Thedrivebeltisworn,looseorbroken.1.Installanewdrivebelt.

2.Thedrivebeltisoffofthepulley.

3.ThePowerTake-Off(PTO)switchor PTOclutchisfaulty.

4.Themowerbeltisworn,loose,or broken.

1.Closethetowvalves.

2.ContactanAuthorizedServiceDealer.

2.Tightentheappropriatepulley.

3.ContactanAuthorizedServiceDealer.

4.Installanewcuttingblade(s).

6.ContactanAuthorizedServiceDealer.

3.Levelthemowerfromside-to-sideand front-to-rear.

7.ContactanAuthorizedServiceDealer.

2.Installthedrivebeltandcheckthe adjustingshaftsandbeltguidesforthe correctposition.

3.ContactanAuthorizedServiceDealer.

4.Installanewmowerbelt.

Page 45

Schematics

G014644

ElectricalDiagram(Rev .A)

Page 46

Notes:

Page 47

Notes:

Page 48

TheToroTotalCoverageWarranty

LimitedWarranty(seewarrantyperiodsbelow)

TimeCutter

and

TITAN

Mowers

ConditionsandProductsCovered

TheT oroCompanyanditsafliate,T oroWarrantyCompany,pursuantto anagreementbetweenthem,jointlypromisetotheoriginalpurchaser torepairtheT oroProductslistedbelowifdefectiveinmaterialsor workmanship.

Thefollowingtimeperiodsapplyfromthedateofpurchasebytheoriginal owner:

ProductsWarrantyPeriod

TimeCutterandMXMowers

•Engines

Residentialuse

—ResidentialuseKawasaki–3years

–3years

Kohler–3years Toro–3years

TimeCutterandMXMowersCommercialuse30days

•Engines

—Commercialuse

Kawasaki–3years Kohler–90days Toro–90days

TITANMowers–Residentialor Commercialuse

•Engines

—Residentialor

Commercialuse

•Frame

TITANMX5400andMX600Mowers –ResidentialorCommercialuse

•Engines

—Residentialor

Commercialuse

•Frame

3yearsor300hours

Kawasaki–3years

Lifetime(originalowneronly)

4yearsor400hours

Kawasaki–3years

Lifetime(originalowneronly)

AllMowers

•Attachments1year

•Battery90daysPartsandLabor

1yearPartsonly

•BeltsandTires90days

SomeenginesusedonToroProductsarewarrantedbytheenginemanufacturer.

Residentialusemeansuseoftheproductonthesamelotasyourhome.Useatmorethanone

locationisconsideredcommercialuseandthecommercialusewarrantywouldapply.

Whicheveroccursrst.

LifetimeFrameWarranty-Ifthemainframe,consistingofthepartsweldedtogethertoformthe

tractorstructurethatothercomponentssuchastheenginearesecuredto,cracksorbreaksin

normaluse,itwillberepairedorreplaced,atToro'soption,underwarrantyatnocostforparts

andlabor .Framefailureduetomisuseorabuseandfailureorrepairrequiredduetorustor

corrosionarenotcovered.

Warrantymaybedeniedifthehourmeterisdisconnected,altered,or showssignsofbeingtamperedwith.

OwnerResponsibilities

YoumustmaintainyourToroProductbyfollowingthemaintenance proceduresdescribedintheOperator'sManual.Suchroutine maintenance,whetherperformedbyadealerorbyyou,isatyourexpense.

InstructionsforObtainingWarrantyService

IfyouthinkthatyourT oroProductcontainsadefectinmaterialsor workmanship,followthisprocedure:

1.ContactanyAuthorizedT oroServiceDealertoarrangeservice attheirdealership.Tolocateadealerconvenienttoyou,referto

theYellowPagesofyourtelephonedirectory(lookunder“Lawn Mowers”)oraccessourwebsiteatwww .Toro.com.Y oumayalso callthenumberslistedinitem#3tousethe24-hourT oroDealer locatorsystem.

2.Bringtheproductandyourproofofpurchase(salesreceipt)tothe ServiceDealer.Thedealerwilldiagnosetheproblemanddetermine ifitiscoveredunderwarranty.

3.IfforanyreasonyouaredissatisedwiththeServiceDealer’s analysisorwiththeassistanceprovided,contactusat:

CustomerCareDepartment,RLCDivision ToroWarrantyCompany 811 1LyndaleAvenueSouth Bloomington,MN55420-1196 Tollfreeat866-216-6029(U.S.customers) Tollfreeat866-216-6030(Canadiancustomers)

ItemsandConditionsNotCovered

Thereisnootherexpresswarrantyexceptforspecialemissionsystem coverageandenginewarrantycoverageonsomeproducts.Thisexpress warrantydoesnotcoverthefollowing:

•Costofregularmaintenanceserviceorparts,suchaslters,fuel,

lubricants,oilchanges,sparkplugs,airltersbladesharpening orwornblades,cable/linkageadjustments,orbrakeandclutch adjustments

•Componentsfailingduetonormalwear

•Anyproductorpartwhichhasbeenalteredormisusedorneglected

andrequiresreplacementorrepairduetoaccidentsorlackofproper maintenance

•Pickupanddeliverycharges

•RepairsorattemptedrepairsbyanyoneotherthananAuthorized

ToroServiceDealer

•Repairsnecessaryduetofailuretofollowrecommendedfuel

procedure(consultOperator'sManualformoredetails)

–Removingcontaminantsfromthefuelsystemisnotcovered

–Useofoldfuel(morethanonemonthold)orfuelwhichcontains

morethan10%ethanolormorethat15%MTBE

–Failuretodrainthefuelsystempriortoanyperiodofnon-use

overonemonth

GeneralConditions

Allrepairscoveredbythesewarrantiesmustbeperformedbyan AuthorizedT oroServiceDealerusingToroapprovedreplacementparts.

NeitherTheToroCompanynorToroWarrantyCompanyisliablefor indirect,incidentalorconsequentialdamagesinconnectionwiththe useoftheToroProductscoveredbythiswarranty ,includingany costorexpenseofprovidingsubstituteequipmentorserviceduring reasonableperiodsofmalfunctionornon-usependingcompletion ofrepairsunderthiswarranty.

Allimpliedwarrantiesofmerchantability(thattheproductistfor ordinaryuse)andtnessforuse(thattheproductistforaparticular purpose)arelimitedtothedurationoftheexpresswarranty.

Somestatesdonotallowexclusionsofincidentalorconsequential damages,orlimitationsonhowlonganimpliedwarrantylasts,so theaboveexclusionsandlimitationsmaynotapplytoyou.

Thiswarrantygivesyouspeciclegalrights,andyoumayalsohaveother rightswhichvaryfromstatetostate.

CountriesOtherthantheUnitedStatesorCanada

CustomerswhohavepurchasedT oroproductsoutsidetheUnitedStatesorCanadashouldcontacttheirT oroDistributor(Dealer)toobtainguarantee policiesforyourcountry,province,orstate.IfforanyreasonyouaredissatisedwithyourDistributor'sserviceorhavedifcultyobtainingguarantee information,contacttheT oroimporter.Ifallotherremediesfail,youmaycontactusatT oroWarrantyCompany.

AustralianConsumerLaw:AustraliancustomerswillnddetailsrelatingtotheAustralianConsumerLaweitherinsidetheboxoratyourlocalT oro Dealer.

374-0258RevE

Toro 74635 Operator's Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

SafeOperatingPractices

ToroRidingMowerSafety

ThinkSafetyFirst

BeforeStarting

StartingtheEngine

OperatingtheBlades

TestingtheSafetyInterlock System

StoppingtheEngine

Driving

StoppingtheMachine

AdjustingtheHeightofCut

PositioningtheSeat

AdjustingtheAnti-Scalp Rollers

PushingtheMachinebyHand

GreasingtheBearings

RaisingtheSeat

ServicingtheAirCleaner

ServicingtheEngineOil

ServicingtheSparkPlug

CleaningtheCoolingSystem

ServicingtheEmissionsFilter

ReplacingtheIn-lineFuel Filter

ChargingtheBattery

ServicingtheFuses

CheckingtheTirePressure

ReleasingtheElectricBrake

MowerMaintenance

ServicingtheCuttingBlades

LevelingtheMowerDeck

RemovingtheMower

MowerBeltMaintenance

InstallingtheMower

WashingtheUndersideofthe Mower

CleaningandStorage
