Toro 74454, 74452, 74453, 74463, 74465 Operator's Manual

FormNo.3426-574RevB

48in,52in,or60inTITAN
1500,2000,or2500SeriesRiding
Mower

ModelNo.74452—SerialNo.404315000andUp
ModelNo.74453—SerialNo.400000000andUp
ModelNo.74454—SerialNo.400000000andUp
ModelNo.74463—SerialNo.404315000andUp
ModelNo.74465—SerialNo.404315000andUp
ModelNo.74466—SerialNo.404315000andUp
ModelNo.74467—SerialNo.404315000andUp
ModelNo.74470—SerialNo.404315000andUp
ModelNo.74471—SerialNo.404315000andUp
ModelNo.74472—SerialNo.404315000andUp
ModelNo.78450—SerialNo.404315000andUp
ModelNo.78472—SerialNo.404315000andUp

®

HD

Registeratwww.T oro.com.
OriginalInstructions(EN)

*3426-574*B

ItisaviolationofCaliforniaPublicResourceCode
Section4442or4443touseoroperatetheengineon
anyforest-covered,brush-covered,orgrass-covered
landunlesstheengineisequippedwithaspark
arrester,asdenedinSection4442,maintainedin
effectiveworkingorderortheengineisconstructed,
equipped,andmaintainedforthepreventionofre.

GrossorNetTorque:Thegrossornettorque
ofthisenginewaslaboratoryratedbytheengine
manufacturerinaccordancewiththeSocietyof
AutomotiveEngineers(SAE)J1940orJ2723.As
conguredtomeetsafety,emission,andoperating
requirements,theactualenginetorqueonthisclass
ofmowerwillbesignicantlylower.Pleasereferto
theenginemanufacturer’sinformationincludedwith
themachine.

Important:IfyouareusingamachinewithaToro

engineabove1500m(5,000ft)foracontinuous
period,ensurethattheHighAltitudeKithasbeen
installedsothattheenginemeetsCARB/EP A
emissionregulations.TheHighAltitudeKit
increasesengineperformancewhilepreventing
spark-plugfouling,hardstarting,andincreased
emissions.Onceyouhaveinstalledthekit,attach
thehigh-altitudelabelnexttotheserialdecalon
themachine.ContactanyAuthorizedToroService
DealertoobtaintheproperHighAltitudeKitand
high-altitudelabelforyourmachine.Tolocate
adealerconvenienttoyou,accessourwebsite
atwww.T oro.comorcontactourToroCustomer
CareDepartmentatthenumber(s)listedinyour
EmissionControlWarrantyStatement.

Removethekitfromtheengineandrestorethe
enginetoitsoriginalfactorycongurationwhen
runningtheengineunder1500m(5,000ft).Do
notoperateanenginethathasbeenconverted
forhigh-altitudeuseatloweraltitudes;otherwise,
youcouldoverheatanddamagetheengine.

Ifyouareunsurewhetherornotyourmachine
hasbeenconvertedforhigh-altitudeuse,lookfor
thefollowinglabel.

WARNING

CALIFORNIA

Proposition65Warning

Theengineexhaustfromthisproduct

containschemicalsknowntotheStateof

Californiatocausecancer,birthdefects,

orotherreproductiveharm.

Batteryposts,terminals,andrelated

accessoriescontainleadandlead

compounds,chemicalsknownto

theStateofCaliforniatocause

cancerandreproductiveharm.Wash

handsafterhandling.

Useofthisproductmaycauseexposure

tochemicalsknowntotheStateof

Californiatocausecancer,birthdefects,

orotherreproductiveharm.

Introduction

Thisrotary-blade,ridinglawnmowerisintendedtobe
usedbyprofessional,hiredoperators.Itisdesigned
primarilyforcuttinggrassonwell-maintainedlawns
onresidentialorcommercialproperties.Usingthis
productforpurposesotherthanitsintendedusecould
provedangeroustoyouandbystanders.

Readthisinformationcarefullytolearnhowtooperate
andmaintainyourproductproperlyandtoavoid
injuryandproductdamage.Youareresponsiblefor
operatingtheproductproperlyandsafely .

Visitwww.Toro.comforproductsafetyandoperation
trainingmaterials,accessoryinformation,helpnding
adealer,ortoregisteryourproduct.

©2019—TheToro®Company
8111LyndaleAvenueSouth
Bloomington,MN55420

Figure4

Wheneveryouneedservice,genuineToroparts,or
additionalinformation,contactanAuthorizedService
DealerorToroCustomerServiceandhavethemodel
andserialnumbersofyourproductready.Figure1
orFigure2identiesthelocationofthemodeland
serialnumbersontheproduct.Writethenumbersin

decal127-9363

thespaceprovided.

Important:Withyourmobiledevice,youcan

scantheQRcodeontheserialnumberdecal(if
equipped)toaccesswarranty,parts,andother
productinformation.

Contactusatwww.Toro.com.

2

PrintedintheUSA

AllRightsReserved

Figure1

MachineswithoutMyRide

1.Modelandserialnumberlocation

Figure2

MachineswithMyRide

ModelNo.

SerialNo.

Thismanualidentiespotentialhazardsandhas
safetymessagesidentiedbythesafety-alertsymbol
(Figure3),whichsignalsahazardthatmaycause
seriousinjuryordeathifyoudonotfollowthe
recommendedprecautions.

Figure3

Safety-alertsymbol

Thismanualuses2wordstohighlightinformation.
Importantcallsattentiontospecialmechanical
informationandNoteemphasizesgeneralinformation
worthyofspecialattention.

Contents

Safety.......................................................................5

SafetyAlertSymbol............................................5

GeneralSafety...................................................5

SlopeIndicator...................................................6

SafetyandInstructionalDecals..........................7

ProductOverview...................................................16

Controls...........................................................16

g233854

g233855

g000502

Specications..................................................18

Attachments/Accessories.................................18

BeforeOperation.................................................19

BeforeOperationSafety...................................19

AddingFuel......................................................20

PerformingDailyMaintenance..........................21

BreakinginaNewMachine..............................21

UsingtheRollover-ProtectionSystem

(ROPS).........................................................21

UsingtheSafety-InterlockSystem....................22

PositioningtheSeat..........................................23

ChangingtheSeatSuspension.........................23

AdjustingtheRear-ShockAssemblies..............24

UsingAttachmentsandAccessories.................25

DuringOperation.................................................25

DuringOperationSafety...................................25

EnteringtheOperator’sPosition.......................27

OperatingtheParkingBrake.............................28

OperatingtheMowerBlade-ControlSwitch

(PTO)............................................................28

OperatingtheThrottle.......................................29

OperatingtheChoke........................................29

StartingtheEngine...........................................30

ShuttingOfftheEngine.....................................30

UsingtheMotion-ControlLevers.......................32

DrivingtheMachine..........................................32

UsingtheSideDischarge.................................33

AdjustingtheHeightofCut...............................33

AdjustingtheAnti-ScalpRollers........................34

AdjustingtheSideBumpers..............................35

OperatingTips.................................................36

AfterOperation....................................................36

AfterOperationSafety......................................36

UsingtheFuel-ShutoffValve.............................37

UsingtheDrive-WheelReleaseValves.............37

TransportingtheMachine.................................38

Maintenance...........................................................40

MaintenanceSafety..........................................40

RecommendedMaintenanceSchedule(s)...........41

Lubrication..........................................................43

GreasingtheMachine.......................................43

GreasingtheCaster-WheelHubs.....................43

EngineMaintenance...........................................44

EngineSafety...................................................44

IdentifyingtheEngine.......................................44

ServicingaKawasaki
ServicingaKohler

®

Engine..........................45

®

Engine...............................50

ServicingaT oroEngine....................................54

CleaningtheBlowerHousing............................59

3

CleaningtheCoolingSystem............................59

CheckingtheSparkArrester.............................60

ReplacingtheEmissions-AirIntake

Filter..............................................................60

FuelSystemMaintenance...................................60

ReplacingtheFuelFilter...................................60

ServicingtheFuelT ank.....................................61

ElectricalSystemMaintenance...........................61

ElectricalSystemSafety...................................61

ServicingtheBattery.........................................61

ServicingtheFuses..........................................63

DriveSystemMaintenance..................................64

CheckingtheSeatBelt.....................................64

CheckingtheRoll-BarKnobs............................64

AdjustingtheTracking......................................65

CheckingtheTirePressure...............................65

CheckingtheWheelLugNuts...........................65

CoolingSystemMaintenance..............................66

CleaningtheEngineScreen.............................66

BrakeMaintenance.............................................66

AdjustingtheParkingBrake..............................66

BeltMaintenance................................................68

InspectingtheBelts..........................................68

ReplacingtheMowerBeltforSide-Discharge

MowerDecks................................................68

ReplacingtheMowerBeltforRear-Discharge

MowerDecks................................................69

ReplacingtheHydraulicPump-Drive

Belt................................................................71

ControlsSystemMaintenance.............................72

AdjustingtheControl-HandlePosition..............72

AdjustingtheMotion-ControlLinkage...............73

HydraulicSystemMaintenance...........................74

HydraulicSystemSafety...................................74

HydraulicFluidSpecications...........................74

CheckingtheHydraulicFluidLevel...................74

ChangingtheHydraulicFluidand

Filters............................................................74

BleedingtheHydraulicSystem.........................76

MowerDeckMaintenance....................................77

ServicingtheCuttingBlades.............................77

AdjustingtheSide-to-SideLevelingandthe

BladeSlope..................................................80

RemovingtheMowerDeck...............................82

ReplacingtheGrassDeector..........................83

Cleaning..............................................................84

CleaningundertheMowerDeck.......................84

CleaningtheSuspensionSystem.....................84

DisposingofWaste...........................................84

Storage...................................................................85

StorageSafety..................................................85

CleaningandStorage.......................................85

Troubleshooting......................................................86

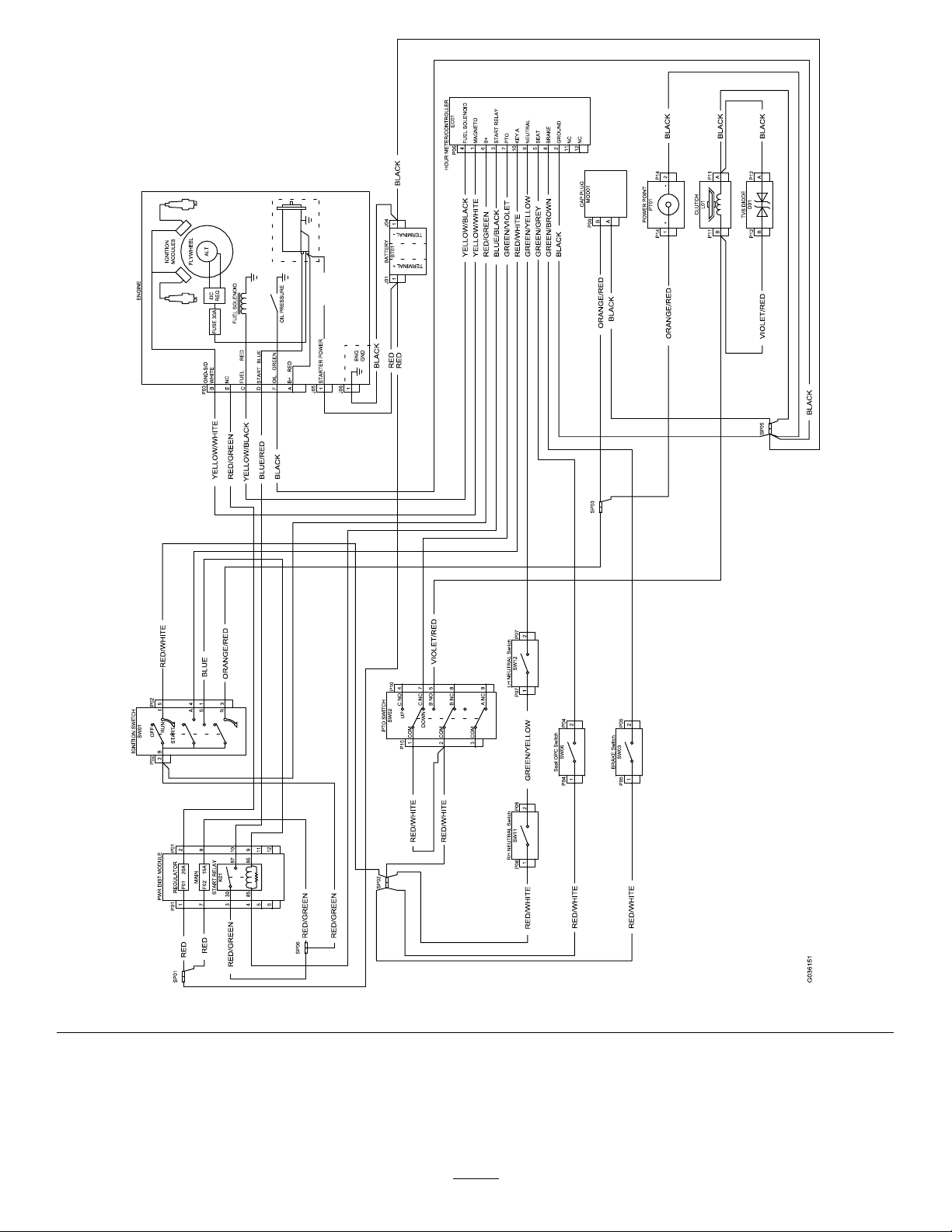

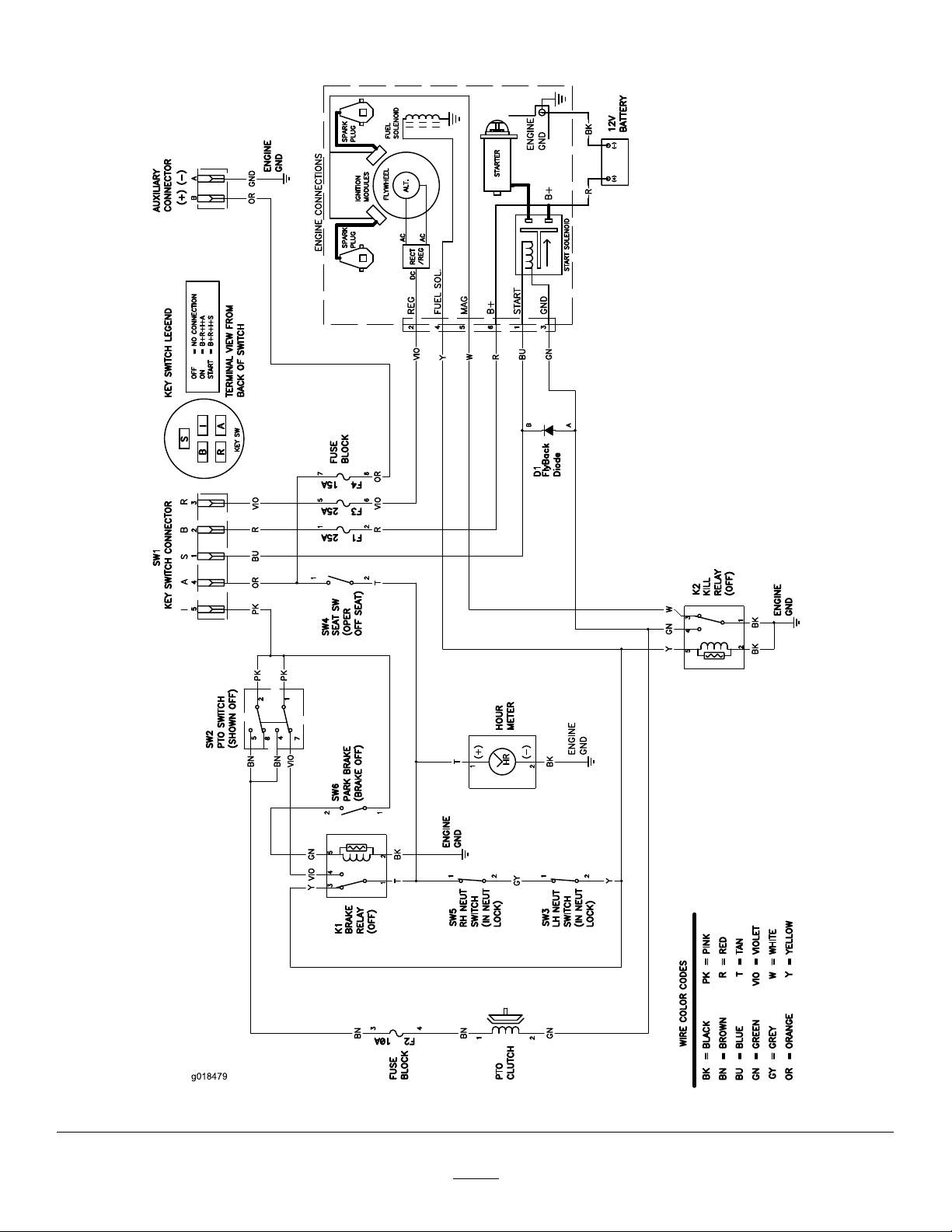

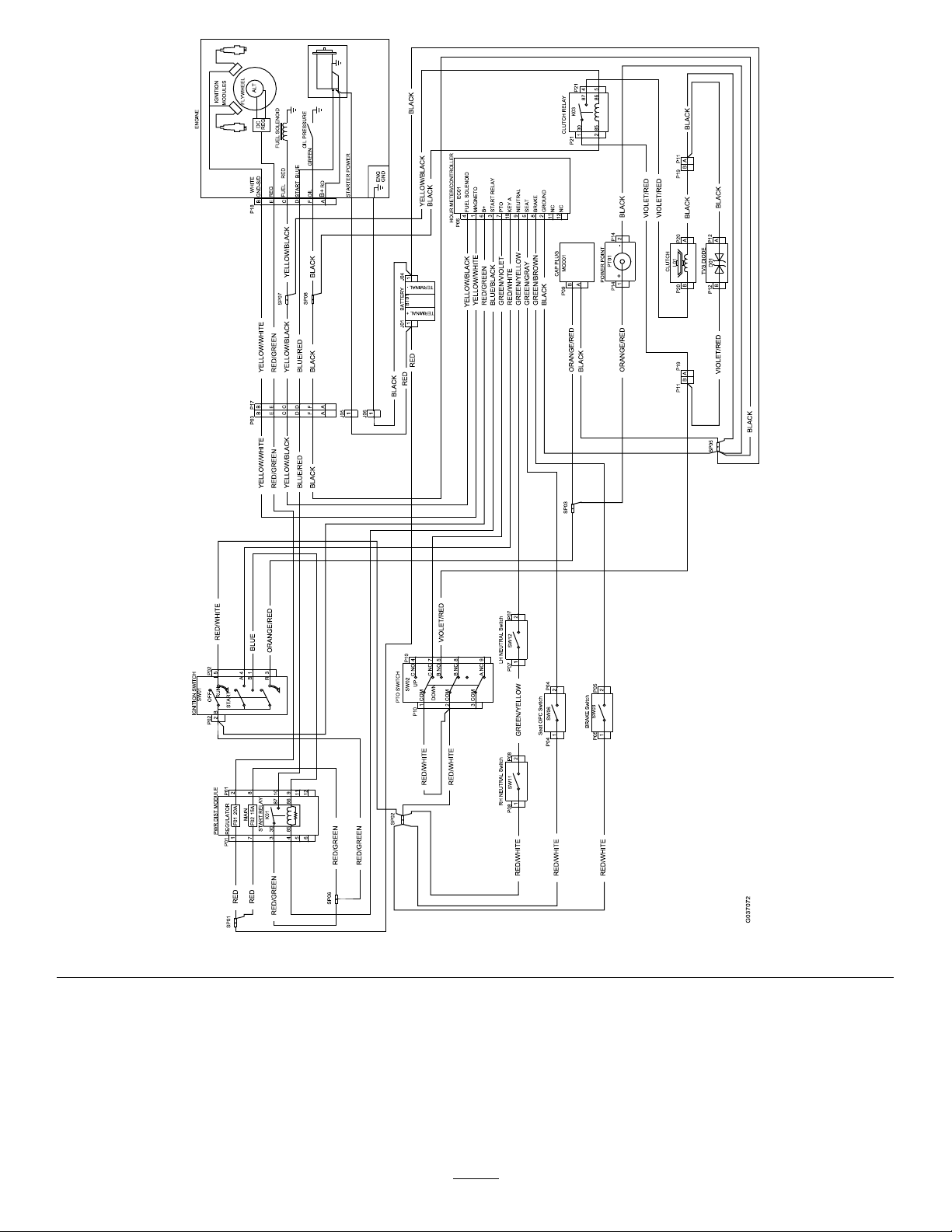

Schematics.............................................................88

4

Safety

Thismachinehasbeendesignedinaccordancewith
ANSIstandardB71.4-2017.

SafetyAlertSymbol

ThisSafetyAlertSymbol(Figure5)isusedbothin
thismanualandonthemachinetoidentifyimportant
safetymessageswhichmustbefollowedtoavoid
accidents.

Thissymbolmeans:ATTENTION!BECOMEALERT!

YOURSAFETYISINVOL VED!

Figure5

SafetyAlertSymbol

Thesafetyalertsymbolappearsaboveinformation
whichalertsyoutounsafeactionsorsituationsand
willbefollowedbythewordDANGER,WARNING,or
CAUTION.

•Onlyallowtrained,responsible,andphysically

capableoperatorsthatarefamiliarwiththesafe
operation,operatorcontrols,andsafetysignsand
instructionstooperatethemachine.Neverlet
childrenoruntrainedpeopleoperateorservicethe
equipment.Localregulationsmayrestricttheage
oftheoperator.

•Alwayskeeptherollbarinthefullyraisedand

lockedpositionandusetheseatbelt.

•Donotoperatethemachineneardrop-offs,

ditches,embankments,water,orotherhazards,or
onslopesgreaterthan15degrees.

•Donotputyourhandsorfeetnearmoving

componentsofthemachine.

•Neveroperatethemachinewithdamagedguards,

g000502

shields,orcovers.Alwayshavesafetyshields,
guards,switchesandotherdevicesinplaceandin
properworkingcondition.

•Stopthemachine,shutofftheengine,andremove

thekeybeforeservicing,fueling,orunclogging
themachine.

DANGER:Indicatesanimminentlyhazardous
situationwhich,ifnotavoided,Willresultindeathor
seriousinjury.

WARNING:Indicatesapotentiallyhazardoussituation
which,ifnotavoided,Couldresultindeathorserious
injury.

CAUTION:Indicatesapotentiallyhazardoussituation
which,ifnotavoided,Mayresultinminorormoderate
injury.

Thismanualusestwootherwordstohighlight
information.Importantcallsattentiontospecial
mechanicalinformationandNoteemphasizesgeneral
informationworthyofspecialattention.

GeneralSafety

Thismachineiscapableofamputatinghandsandfeet
andofthrowingobjects.T orodesignedandtested
thislawnmowertoofferreasonablysafeservice;
however,failuretocomplywithsafetyinstructions
mayresultininjuryordeath.

•Read,understand,andfollowallinstructionsand

warningsintheOperator’sManualandother
trainingmaterial,onthemachine,engine,and
attachments.Alloperatorsandmechanicsshould
betrained.Iftheoperator(s)ormechanic(s)can
notreadthismanual,itistheowner’sresponsibility
toexplainthismaterialtothem;otherlanguages
maybeavailableonourwebsite.

5

SlopeIndicator

Figure6

Youmaycopythispageforpersonaluse.

1.Themaximumslopeyoucanoperatethemachineonis15degrees.Usetheslopecharttodeterminethedegreeofslopeof
hillsbeforeoperating.Donotoperatethismachineonaslopegreaterthan15degrees.Foldalongtheappropriateline
tomatchtherecommendedslope.

2.Alignthisedgewithaverticalsurface,atree,building,fencepole,etc.

3.Exampleofhowtocompareslopewithfoldededge

6

g011841

SafetyandInstructionalDecals

Safetydecalsandinstructionsareeasilyvisibletotheoperatorandarelocatednearanyarea
ofpotentialdanger.Replaceanydecalthatisdamagedormissing.

Manufacturer'sMark

1.Indicatesthebladeisidentiedasapartfromtheoriginal
machinemanufacturer.

BatterySymbols

Someorallofthesesymbolsareonyourbattery .

decaloemmarkt

decal106-5517

106-5517

1.Warning—donottouchthehotsurface.

decalbatterysymbols

1.Explosionhazard6.Keepbystandersaway

2.Nore,opename,or
smoking

3.Causticliquid/chemical
burnhazard

4.Weareyeprotection.9.Flusheyesimmediately

5.ReadtheOperator's
Manual.

fromthebattery .

7.Weareyeprotection;
explosivegasescan
causeblindnessandother
injuries.

8.Batteryacidcancause
blindnessorsevereburns.

withwaterandgetmedical
helpfast.

10.Containslead;donot
discard

93-7818

1.Warning—readtheOperator'sManualforinstructionson
torquingthebladebolt/nutto1 15to149N∙m(85to110
ft-lb).

decal107-3069

107-3069

1.Warning—thereisnorolloverprotectionwhentherollbaris

decal93-7818

down.

2.Toavoidinjuryordeathfromarolloveraccident,keepthe
rollbarinthefullyraisedandlockedpositionandwear
theseatbelt.Lowertherollbaronlywhenabsolutely
necessary;donotweartheseatbeltwhentherollbaris
down.

3.ReadtheOperator'sManual;driveslowlyandcarefully.

7

decal109-6014

109-6014

112-3858

decal112-3858

1500and2000SeriesSideDischargeMachinesOnly

109-6035

2500SeriesSideDischargeMachinesOnly

1.ReadtheOperator's
Manual.

2.Readtheinstructions

3.Removethekeybefore
adjustingtheheightofcut.

4.Height-of-cutsettings.

beforeservicingor
performingmaintenance.

decal112-9028

decal109-6035

112-9028

1.Warning—stayawayfrommovingparts;keepallguards
andshieldsinplace.

109-6036

RearDischargeMachinesOnly

1.ReadtheOperator’sManual.

2.Removethekeyandreadtheinstructionsbeforeservicing
orperformingmaintenance.

3.Heightofcut

decal115-9625

115-9625

1.Parking
brake—disengaged

decal109-6036

2.Parkingbrake—engaged

8

116-5610

1.Hourmeter4.Neutral

2.Powertakeoff(PTO)5.Operator-presenceswitch

3.Parkingbrake6.Battery

116-8588

decal116-5610

decal117-1 194

117-1194

1500and2000SeriesSide-DischargeMachinesOnly

1.Engine

decal133-8062

133-8062

decal116-8588

1.ReadtheOperator’sManual.

2.Rotatethedrivereleaseknobtoloosen,slidetheknob,
andtighten.

3.Pushthemachine.

decal117-3848

117-3848

1.Thrownobjecthazard—keepbystandersaway.

2.Thrownobjecthazard,raiseddeector—donotoperate
withoutthedeector ,dischargecover ,orgrasscollection
systeminplace.

3.Cutting/dismembermenthazardofhandorfoot,mower
blade—stayawayfrommovingparts;keepallguardsand
shieldsinplace.

9

126-0768

126-4363

1.Cutting/dismembermenthazard,fanandentanglement
hazard,belt.Shutofftheengineandremovethekeybefore
adjusting,servicingorcleaningthemachine.

decal126-0768

decal126-4784

126-4784

1.Heightofcut

decal126-4363

decal126-6599

126-6599

RearDischargeMachinesOnly

1.Thrownobjects
hazard—keepbystanders
away.

2.Cutting/dismemberment
ofhand—stayawayfrom
movingparts;keepall
guardsandshieldsin
place.

10

decal126-8161

126-8161

1.ReadtheOperator’s

Manual.

2.Slideseatforward

1.ReadtheOperator’s
Manual.

3.Pressdownonlatchto
unlockseat

4.Rotateseat

126-9939

2.Filltothebottomofthe
llerneck;warning—do
notoverllthetank.

decal127-6662

127-6662

RearDischargeMowersOnly

1.Attention—readthe
Operator'sManual.

2.Removethenutbyturning

decal126-9939

itclockwise.

3.Removetheboltbyturning
itcounterclockwise.

127-0326

2500SeriesSideDischargeMachinesOnly

1.ReadtheOperator's
Manual.

2.Heightofcut

decal131-1097

131-1097

ToroEnginesOnly

1.Oildrain

decal127-0326

3.Removethekeyand
readtheOperator's
Manualbeforeperforming
maintenanceorservicing
themachine.

11

PTOSwitchSymbols

1.PTO–disengage2.PTO–engage

decalptosymbols

136-8992

MachineswithMyRideOnly

1.Fuel—full

2.Fuel—50%

3.Fuel—empty

136-9024

1.ReadtheOperator’s
Manualbeforeperforming

maintenance.

2.Operatinghours5.Hydraulic-uidlevel

3.Engine-oillevel6.Tirepressure

4.Greasepoint

decal136-8992

1.Heightofcut

TransportLock

2.Pulluptounlockthe

decaltransportlock

transportlock.

decal136-9024

decalmotioncntrllh-126-6194

LeftMotionControl

1.Machinespeed4.Neutral

2.Fast5.Reverse

3.Slow

12

RightMotionControl

1.Machinespeed4.Neutral

2.Fast5.Reverse

3.Slow

decalmotioncntrlrh-126-6183

decal126-8151

126-8151

1.Readtheinstructionsbeforeservicingorperforming

4.RefertotheOperator'sManualforgreaseinstructions.

maintenanceonthemachine.

2.Timeinterval

5.Checkthehydraulic-uidlevelandrefertotheOperator's
Manualforfurtherinstructions.

3.Checktheoillevel.6.Checkthetirepressure.

13

126-8383

Note:Thismachinecomplieswiththeindustrystandardstabilitytestinthestaticlateralandlongitudinaltestswiththemaximum

recommendedslopeindicatedonthedecal.ReviewtheinstructionsforoperatingthemachineonslopesintheOperator’sManualas
wellastheconditionsinwhichyouwouldoperatethemachinetodeterminewhetheryoucanoperatethemachineintheconditions
onthatdayandatthatsite.Changesintheterraincanresultinachangeinslopeoperationforthemachine.Ifpossible,keepthe
cuttingunitsloweredtothegroundwhileoperatingthemachineonslopes.Raisingthecuttingunitswhileoperatingonslopescan
causethemachinetobecomeunstable.

decal126-8383

1.Warning—readtheOperator’sManual;donotoperatethis
machineunlessyouaretrained;wearhearingprotection.

2.Cutting/dismembermenthazardofthehand,mowerblade;
entanglementhazardofthehand,belt—stayawayfrom
movingparts;keepallguardsandshieldsinplace.

3.Ramphazard—donotusedualrampswhenloadingontoa
trailer;use1rampwideenoughforthemachine;usearamp
withaslopelessthan15°;backuptherampwhenloadingthe
machineanddriveforwardofftherampwhenunloading.

decal137-9240

137-9240

4.Runover/backoverhazard—donotcarrypassengers;look
behindyouwhenmowinginreverse.

5.Thrownobjecthazard—keepbystandersaway.

6.Tippinghazard—donotuseonslopesnearopenwater;do
notuseonslopesgreaterthan15°.

1.Choke

2.Worklight

3.Fast

4.Slow

14

132-0871

MachineswithMyRideOnly

Note:Thismachinecomplieswiththeindustrystandardstabilitytestinthestaticlateralandlongitudinaltestswiththemaximum

recommendedslopeindicatedonthedecal.ReviewtheinstructionsforoperatingthemachineonslopesintheOperator’sManualas
wellastheconditionsinwhichyouwouldoperatethemachinetodeterminewhetheryoucanoperatethemachineinthoseconditions
onthatdayandatthatsite.Changesintheterraincanresultinachangeinslopeoperationforthemachine.Ifpossible,keepthe
cuttingunitsloweredtothegroundwhileoperatingthemachineonslopes.Raisingthecuttingunitswhileoperatingonslopescan
causethemachinetobecomeunstable.

decal132-0871

1.Warning—readtheOperator’sManual;donotoperatethis
machineunlessyouaretrained;wearhearingprotection.

4.Ramphazard—whenloadingontoatrailer,donotusedual
ramps;onlyuseasingularrampwideenoughforthemachine
andthathasaninclinelessthan15°;backuptheramp(in
reverse)anddriveforwardofftheramp.

2.Cutting,dismembering,andentanglementhazard—keep
handsawayfrommovingparts;keepallguardsandshieldsin

5.Bodilyharmhazard—donotcarrypassengers;lookbehind
youwhenmowinginreverse.

place.

3.Thrownobjecthazard—keepbystandersaway.6.Tippinghazardonslopes—donotuseonslopesnearopen
water;donotuseonslopesgreaterthan15°.

136-1720

1.Camlock2.Camunlock

decal136-1720

15

ProductOverview

KeySwitch

Thekeyswitch,usedtostartandshutofftheengine,
has3positions:OFF,RUN,andST ART.Referto

StartingtheEngine(page30).

ChokeControl

Usethechokecontroltostartacoldengine.

ThrottleControl

Thethrottlecontrolstheenginespeed,andithasa
continuous-variablesettingfromtheSLOWtoFAST
position(Figure8).

Figure7

1.Height-of-cutdeck-lift

pedal

2.Height-of-cutpositions8.Seatbelt

3.Transportlock9.Fuelcap

4.Controls

5.Motion-controllevers11.Mowerdeck

6.Rollbar

7.Shockassembly

10.Parking-brakelever

12.Casterwheel

Controls

Becomefamiliarwithallthecontrolsbeforeyoustart
theengineandoperatethemachine.

ControlPanel

g227688

Blade-ControlSwitch(Power
Takeoff)

Theblade-controlswitch,representedbya
power-takeoff(PTO)symbol,engagesand
disengagespowertothemowerblades(Figure8).

HourMeter

Thehourmeterrecordsthenumberofhoursthe
enginehasoperated.Itoperateswhentheengine
isrunning.Usethesetimesforschedulingregular
maintenance(Figure9).

1.Positionforoptionalpower

point

2.Chokecontrol

3.Throttlecontrol

4.Hourmeter

Figure8

5.Blade-controlswitch
(powertakeoff)

6.Keyswitch

7.Switchpositionforoptional
lightkit

g187133

Figure9

1.Safety-interlocksymbols

2.Hourmeter

g271171

3.Batterylight

Safety-InterlockIndicators

Therearesymbolsonthehourmeterthatindicate
withablacktrianglethattheinterlockcomponentis
positionedcorrectly(Figure9).

16

Battery-IndicatorLight

IfyouturnthekeyswitchtotheONpositionfora
fewseconds,thebatteryvoltagedisplaysinthearea
wherethehoursarenormallydisplayed.

Thebatterylightturnsonwhenthekeyswitchis
turnedonandwhenthechargeisbelowthecorrect
operatinglevel(Figure9).

Motion-ControlLevers

Usethemotion-controlleverstodrivethemachine
forward,reverse,andturneitherdirection(Figure7).

Neutral-LockPosition

Movethemotion-controlleversoutwardfromthe
centertotheNEUTRAL-LOCKpositionwhenexiting
themachine(Figure30).Alwayspositionthe
motion-controlleversintotheNEUTRAL-LOCKposition
whenyoustopthemachineorleaveitunattended.

Parking-BrakeLever

Wheneveryoushutofftheengine,engagetheparking
braketopreventaccidentalmovementofthemachine.

Fuel-ShutoffValve

Closethefuel-shutoffvalvewhentransportingor
storingthemachine;refertoUsingtheFuel-Shutoff

Valve(page37).

17

Specications

Note:Specicationsanddesignaresubjecttochangewithoutnotice.

Width—MachineswithSideDischargeMowerDecks

48-inchDeck52-inchDeck60-inchDeck

Withoutmowerdeck

Deectorup133cm(53inches)144cm(56-3/4inches)161cm(63-1/2inches)

Deectordown160cm(63-1/4inches)171cm(67-1/4inches)191cm(75-1/4inches)

Width—MachineswithRearDischargeMowerDecks

Withoutmowerdeck

Withmowerdeck

Length—MachineswithSideDischargeMowerDecks

Length

Length—MachineswithRearDischargeMowerDecks

121cm(47-1/2inches)124cm(49inches)133cm(52inches)

60-inchDeck

133cm(52inches)

168cm(66inches)

48-inchDeck52-inchDeck60-inchDeck

208cm(82inches)208cm(82inches)209cm(83inches)

60-inchDeck

Withmowerdeck

215cm(84-1/2inches)

Height

RollBar-UpRollBar-Down

179cm(70-1/2inches)125cm(49inches)

Weight

MachinesWeight

48-inchside-dischargemachines

52-inchside-dischargemachines

60-inchside-dischargemachines

60-inchrear-dischargemachines

385to425kg(849to937lb)

391to434kg(862to957lb)

409to456kg(901to1,006lb)

459kg(1,012lb)

Attachments/Accessories

AselectionofToroapprovedattachmentsandaccessoriesisavailableforusewiththemachinetoenhance
andexpanditscapabilities.ContactyourAuthorizedServiceDealerorauthorizedT orodistributororgoto
www.T oro.comforalistofallapprovedattachmentsandaccessories.

Toensureoptimumperformanceandcontinuedsafetycerticationofthemachine,useonlygenuineT oro
replacementpartsandaccessories.Replacementpartsandaccessoriesmadebyothermanufacturerscouldbe
dangerous,andsuchusecouldvoidtheproductwarranty .

18

Operation

Note:Determinetheleftandrightsidesofthe

machinefromthenormaloperatingposition.

BeforeOperation

BeforeOperationSafety

GeneralSafety

•Evaluatetheterraintodeterminewhataccessories

andattachmentsareneededtoproperlyand
safelyperformthejob.Onlyuseaccessoriesand
attachmentsapprovedbyToro.

FuelSafety

Useextremecarewhenhandlingfuel.

DANGER

Incertainconditionsgasolineisextremely
ammableandvaporsareexplosive.

Areorexplosionfromgasolinecanburn
you,others,andcausepropertydamage.

•Fillthefueltankoutdoorsonlevelground,
inanopenarea,whentheengineiscold.
Wipeupanygasolinethatspills.

•Neverrellthefueltankordrainthe
machineindoorsorinsideanenclosed
trailer.

•Inspecttheareawheretheequipmentistobe

usedandremoveallrocks,toys,sticks,wires,
bones,andotherforeignobjects.Thesecan
bethrownorinterferewiththeoperationofthe
machineandmaycausepersonalinjurytothe
operatororbystanders.

•Wearappropriatepersonalprotectiveequipment

suchassafetyglasses,substantialslip-resistant
footwear,andhearingprotection.Tiebacklong
hairandavoidlooseclothingandloosejewelry
whichmaygettangledinmovingparts.

CAUTION

Thismachineproducessoundlevelsin
excessof85dBAattheoperator’searand
cancausehearinglossthroughextended
periodsofexposure.

Wearhearingprotectionwhenoperating
thismachine.

•Checkthattheoperatorpresencecontrols,

safetyswitches,andshieldsareattachedand
functioningproperly.Donotoperateunlessthey
arefunctioningproperly.

•DoNotllthefueltankcompletelyfull.
Fillthefueltanktothebottomoftheller
neck.Theemptyspaceinthetankallows
gasolinetoexpand.Overllingmayresult
infuelleakageordamagetotheengineor
emissionsystem.

•Neversmokewhenhandlinggasoline,and
stayawayfromanopenameorwhere
gasolinefumesmaybeignitedbyspark.

•Storegasolineinanapprovedcontainer
andkeepitoutofthereachofchildren.

•Addfuelbeforestartingtheengine.Never
removethecapofthefueltankoraddfuel
whenengineisrunningorwhentheengine
ishot.

•Iffuelisspilled,DoNotattempttostart
theengine.Moveawayfromtheareaof
thespillandavoidcreatinganysourceof
ignitionuntilfuelvaporshavedissipated.

•DoNotoperatewithoutentireexhaust
systeminplaceandinproperworking
condition.

•Donotoperatethemowerwhenpeople,especially

children,orpetsareinthearea.Stopthemachine
andattachment(s)ifanyoneentersthearea.

•Donotoperatethemachinewithouttheentire

grasscollectionsystem,dischargedeector,
orothersafetydevicesinplaceandinproper
workingcondition.Grasscatchercomponents
aresubjecttowear,damageanddeterioration,
whichcouldexposemovingpartsorallowobjects
tobethrown.Frequentlycheckforwornor
deterioratingcomponentsandreplacethemwith
themanufacturer’srecommendedpartswhen
necessary.

19

DANGER

Incertainconditionsduringfueling,static
electricitycanbereleasedcausingaspark
whichcanignitegasolinevapors.Areor
explosionfromgasolinecanburnyouand
othersandcausepropertydamage.

•Alwaysplacegasolinecontainersonthe
groundawayfromyourvehiclebefore
lling.

•DoNotllgasolinecontainersinsidea
vehicleoronatruckortrailerbedbecause
interiorcarpetsorplastictruckbedliners
mayinsulatethecontainerandslowthe
lossofanystaticcharge.

•Whenpractical,removegas-powered
equipmentfromthetruckortrailerand
refueltheequipmentwithitswheelsonthe
ground.

•Ifthisisnotpossible,thenrefuelsuch
equipmentonatruckortrailerfroma
portablecontainer,ratherthanfroma
gasolinedispensernozzle.

•Ifagasolinedispensernozzlemustbe
used,keepthenozzleincontactwiththe
rimofthefueltankorcontaineropeningat
alltimesuntilfuelingiscomplete.DoNot
useanozzlelockopendevice.

WARNING

Gasolineisharmfulorfatalifswallowed.
Long-termexposuretovaporshascaused
cancerinlaboratoryanimals.Failuretouse
cautionmaycauseseriousinjuryorillness.

Tohelppreventres:

•Keepengineandengineareafreefrom

accumulationofgrass,leaves,excessivegrease
oroil,andotherdebriswhichcanaccumulatein
theseareas.

•Cleanupoilandfuelspillsandremovefuelsoaked

debris.

•Allowthemachinetocoolbeforestoringthe

machineinanyenclosure.DoNotstorenear
ameoranyenclosedareawhereopenpilotlights
orheatappliancesarepresent.

AddingFuel

RecommendedFuel

•Forbestresults,useonlyclean,fresh(lessthan

30daysold),unleadedgasolinewithanoctane
ratingof87orhigher((R+M)/2ratingmethod).

•Ethanol:Gasolinewithupto10%ethanol

(gasohol)or15%MTBE(methyltertiarybutyl
ether)byvolumeisacceptable.Ethanoland
MTBEarenotthesame.Gasolinewith15%
ethanol(E15)byvolumeisnotapprovedforuse.

Neverusegasolinethatcontainsmorethan
10%ethanolbyvolume,suchasE15(contains

15%ethanol),E20(contains20%ethanol),orE85
(containsupto85%ethanol).Usingunapproved
gasolinemaycauseperformanceproblemsand/or
enginedamagewhichmaynotbecoveredunder
warranty.

•Donotusegasolinecontainingmethanol.

•Donotstorefueleitherinthefueltankorfuel

containersoverthewinterunlessyouuseafuel
stabilizer.

•Donotaddoiltogasoline.

•Avoidprolongedbreathingofvapors.

•Keepfaceawayfromnozzleandgas
tank/containeropening.

•Keepawayfromeyesandskin.

•Neversiphonbymouth.

CAUTION

Fueltankventislocatedinsidetheroll
bartube.Removingormodifyingtheroll
barcouldresultinfuelleakageandviolate
emissionsregulations.

•DoNotremoverollbar.

•DoNotweld,drill,ormodifyrollbarinany
way.

UsingStabilizer/Conditioner

Useafuelstabilizer/conditionerinthemachineto
providethefollowingbenets:

•Keepsfuelfreshlongerwhenusedasdirectedby

thefuel-stabilizermanufacturer

•Cleanstheenginewhileitruns

•Eliminatesgum-likevarnishbuildupinthefuel

system,whichcauseshardstarting

Important:Donotusefueladditives

containingmethanolorethanol.

Addthecorrectamountoffuelstabilizer/conditioner
tothefuel.

Note:Afuelstabilizer/conditionerismost

effectivewhenmixedwithfreshfuel.T ominimize

20

thechanceofvarnishdepositsinthefuelsystem,
usefuelstabilizeratalltimes.

FillingtheFuelTank

1.Parkthemachineonalevelsurface.

2.Engagetheparkingbrake.

3.Shutofftheengineandremovethekey.

4.Cleanaroundthefuel-tankcap.

5.Fillthefueltanktothebottomofthellerneck
(Figure10).

Note:Donotllthefueltankcompletelyfull.

Theemptyspaceinthetankallowsthefuelto
expand.

BreakinginaNewMachine

Newenginestaketimetodevelopfullpower.Mower
decksanddrivesystemshavehigherfrictionwhen
new,placingadditionalloadontheengine.Allow
40to50hoursofbreak-intimefornewmachinesto
developfullpowerandbestperformance.

Usingthe
Rollover-ProtectionSystem
(ROPS)

WARNING

Toavoidinjuryordeathfromrollover,keep
therollbarinthefullyraised,lockedposition
andusetheseatbelt.

Ensurethattheseatissecuredtothe
machine.

Figure10

WARNING

Thereisnorolloverprotectionwhentheroll
barisinthedownposition.

•Lowertherollbaronlywhenabsolutely
necessary.

•Donotweartheseatbeltwhentherollbar
isinthedownposition.

•Driveslowlyandcarefully.

•Raisetherollbarassoonasclearance
permits.

•Checkcarefullyforoverheadclearances
(i.e.,branches,doorways,electricalwires)
beforedrivingunderanyobjectsanddo
notcontactthem.

LoweringtheRollBar

g036751

Important:Lowertherollbaronlywhen

absolutelynecessary.

1.T olowertherollbar,applyforwardpressureto
theupperpartoftherollbar.

PerformingDaily
Maintenance

Beforestartingthemachineeachday ,performthe
EachUse/DailyprocedureslistedinMaintenance

(page40).

2.Pullbothknobsoutandrotatethem90degrees
sothattheyarenotengaged(Figure1 1).

3.Lowertherollbartothedownposition(Figure

11).

21

Figure11

UsingtheSafety-Interlock
System

WARNING

Ifthesafety-interlockswitchesare
disconnectedordamaged,themachinecould
operateunexpectedly,causingpersonal
injury.

•Donottamperwiththeinterlockswitches.

•Checktheoperationoftheinterlock
switchesdailyandreplaceanydamaged
switchesbeforeoperatingthemachine.

Understandingthe
Safety-InterlockSystem

Thesafety-interlocksystemisdesignedtopreventthe
enginefromstartingunlessthefollowingoccurs:

•Theparkingbrakeisengaged.

•Theblade-controlswitch(PTO)isdisengaged.

g036746

•Themotion-controlleversareintheNEUTRAL-LOCK

position.

1.Rollbarintheupright
position

2.ROPSknobinthelatched
position

3.PulltheROPSknobout.6.Rollbarinthefolded

4.RotatetheROPSknob90
degrees.

5.ROPSknobinthe
unlatchedposition

position

RaisingtheRollBar

Important:Alwaysusetheseatbeltwiththeroll

barintheraisedposition.

1.Raisetherollbartotheoperatingpositionand
rotatetheknobsuntiltheymovepartiallyinto
thegrooves(Figure11).

2.Raisetherollbartothefulluprightpositionwhile
pushingontheupperrollbarsothatthepins
snapintopositionwhentheholesalignwiththe
pins(Figure11).

3.Pushontherollbarandensurethatbothpins
areengaged.

Thesafety-interlocksystemalsoisdesignedtoshut
offtheenginewhenthemotion-controlleversare
movedfromtheNEUTRAL-LOCKpositionwiththe
parkingbrakeengagedorifyourisefromtheseat
whenthePTOisengaged.

Thehourmeterhasindicatorstonotifytheuserwhen
theinterlockcomponentisinthecorrectposition.
Whenthecomponentisinthecorrectposition,an
indicatordisplaysonthescreen.

g187670

Figure12

1.Indicatorsdisplaywhentheinterlockcomponentsareinthe
correctposition

TestingtheSafety-Interlock
System

ServiceInterval:Beforeeachuseordaily

22

Testthesafety-interlocksystembeforeyouusethe
machineeachtime.Ifthesafetysystemdoesnot
operateasdescribedbelow,haveanAuthorized
ServiceDealerrepairthesafetysystemimmediately .

1.Sitontheseat,engagetheparkingbrake,and
movetheblade-controlswitch(PTO)totheON
position.Trystartingtheengine;theengine
shouldnotstart.

2.Sitontheseat,engagetheparkingbrake,and
movetheblade-controlswitch(PTO)totheOFF
position.Moveeithermotion-controlleverout
oftheNEUTRAL-LOCKposition.Trystartingthe
engine;theengineshouldnotstart.Repeatfor
theothercontrollever.

3.Sitontheseat,engagetheparkingbrake,
movetheblade-controlswitch(PTO)totheOFF
position,andmovethemotion-controllevers
totheNEUTRAL-LOCKposition.Nowstartthe
engine.Whiletheengineisrunning,disengage
theparkingbrake,engagetheblade-control
switch(PTO),andriseslightlyfromtheseat;the
engineshouldshutoff.

4.Sitontheseat,engagetheparkingbrake,
movetheblade-controlswitch(PTO)totheOFF
position,andmovethemotion-controllevers
totheNEUTRAL-LOCKposition.Nowstartthe
engine.Whiletheengineisrunning,center
eithermotioncontrolandmove(forwardor
reverse);theengineshouldshutoff.Repeatfor
othermotioncontrol.

5.Sitontheseat,disengagetheparkingbrake,
movetheblade-controlswitch(PTO)totheOFF
position,andmovethemotion-controllevers
totheNEUTRAL-LOCKposition.Trystartingthe
engine;theengineshouldnotstart.

PositioningtheSeat

Theseatcanmoveforwardandbackward(Figure13).
Positiontheseatwhereyouhavethebestcontrolof
themachineandaremostcomfortable.

g027632

Figure13

SeatformachineswithMyRideshown.

ChangingtheSeat
Suspension

MachineswithoutMyRide™
SuspensionSystemOnly

Theseatisadjustabletoprovideasmoothand
comfortableride.Positiontheseatwhereyouare
mostcomfortable.

Toadjustit,turntheknobinfronteitherdirectionto
providethebestcomfort(Figure14).

Figure14

1.Seat-suspensionknob

23

g019768

AdjustingtheRear-Shock
Assemblies

MachineswithMyRide™
SuspensionSystemOnly

TheMyRide™suspensionsystemadjuststoprovide
asmoothandcomfortableride.Youcanadjustthe
rear2-shockassembliestoquicklyandeasilychange
thesuspensionsystem.Positionthesuspension
systemwhereyouaremostcomfortable.

Theslotsfortherear-shockassemblieshave
detentpositionsforreference.Youcanpositionthe
rear-shockassembliesanywhereintheslot,notjustin
thedetentpositions.Thefollowinggraphicshowsthe
positionforasoftorrmrideandthedifferentdetent
positions(Figure15).

g227752

Figure15

1.Firmestposition3.Detentsintheslots

2.Softestposition

Note:Ensurethattheleftandrightrear-shock

assembliesarealwaysadjustedtothesamepositions.

Adjusttherear-shockassemblies(Figure16).

g227753

g227751

Figure16

24

UsingAttachmentsand

WARNING

Accessories

UseonlyToroapprovedattachmentsandaccessories.

Ifyouaddmorethan1accessory-mountkit(i.e.,
bucketkitoruniversalmountkit)isaddedtoanyof
the4locationsshowninFigure17,addafront-weight
kit.ContactanAuthorizedServiceDealerforthe
front-weightkit.

Figure17

1.Addafront-weightkitwhen2ormoreaccessory-mountkits

areinstalledatthesepositions.

Engineexhaustcontainscarbonmonoxide,
whichisanodorlessdeadlypoisonthatcan
killyou.

DoNotrunengineindoorsorinasmall
connedareawheredangerouscarbon
monoxidefumescancollect.

•Theowner/usercanpreventandisresponsible

foraccidentsorinjuriesoccurringtohimselfor
herself,otherpeopleorproperty .

•Thismowerwasdesignedforoneoperatoronly .

Donotcarrypassengersandkeepallothersaway
frommachineduringoperation.

•Donotoperatethemachinewhileill,tired,or

undertheinuenceofalcoholordrugs.

•Operateonlyindaylightorgoodarticiallight.

•Lightningcancausesevereinjuryordeath.If

lightningisseenorthunderisheardinthearea,
DoNotoperatethemachine;seekshelter.

g037417

•Useextracarewhileoperatingwithaccessoriesor

attachments,suchasgrasscollectionsystems.
Thesecanchangethestabilityofthemachine
andcausealossofcontrol.Followdirectionsfor
counterweightsifrequired.

DuringOperation

DuringOperationSafety

GeneralSafety

Theoperatormustusetheirfullattentionwhen
operatingthemachine.DoNotengageinanyactivity
thatcausesdistractions;otherwise,injuryorproperty
damagemayoccur.

WARNING

Operatingengineparts,especiallythemufer,
becomeextremelyhot.Severeburnscan
occuroncontactanddebris,suchasleaves,
grass,brush,etc.cancatchre.

•Allowengineparts,especiallythemufer,
tocoolbeforetouching.

•Removeaccumulateddebrisfrommufer
andenginearea.

•Keepawayfromholes,ruts,bumps,rocks,and

otherhiddenhazards.Usecarewhenapproaching
blindcorners,shrubs,trees,tallgrassorother
objectsthatmayhideobstaclesorobscurevision.
Uneventerraincouldoverturnthemachineor
causetheoperatortolosetheirbalanceorfooting.

•Besurealldrivesareinneutralandparkingbrake

isengagedbeforestartingengine.Useseatbelts
withtherollbarintheraisedandlockedposition.

•Starttheenginecarefullyaccordingtoinstructions

withfeetwellawayfromtheblades.

•Neveroperatethemowerwithdamagedguards,

shields,orcovers.Alwayshavesafetyshields,
guards,switchesandotherdevicesinplaceandin
properworkingcondition.

•Keepclearofthedischargeopeningatalltimes.

Nevermowwiththedischargedoorraised,
removedoralteredunlessthereisagrass
collectionsystemormulchkitinplaceandworking
properly.

•Keephandsandfeetawayfrommovingparts.

Ifpossible,DoNotmakeadjustmentswiththe
enginerunning.

25

WARNING

Hands,feet,hair,clothing,oraccessories
canbecomeentangledinrotatingparts.
Contactwiththerotatingpartscan
causetraumaticamputationorsevere
lacerations.

–DoNotoperatethemachinewithout

guards,shields,andsafetydevicesin
placeandworkingproperly.

–Keephands,feet,hair,jewelry ,or

clothingawayfromrotatingparts.

•Neverraisethedeckwithbladesrunning.

•Beawareofthemowerdischargepathanddirect

dischargeawayfromothers.Avoiddischarging
materialagainstawallorobstructionasthe
materialmayricochetbacktowardtheoperator.
Stoptheblades,slowdown,andusecautionwhen
crossingsurfacesotherthangrassandwhen
transportingthemowertoandfromtheareatobe
mowed.

•Bealert,slowdownandusecautionwhen

makingturns.Lookbehindandtothesidebefore
changingdirections.DoNotmowinreverse
unlessabsolutelynecessary.

•DoNotchangetheenginegovernorsettingor

overspeedtheengine.

•Parkthemachineonlevelground.Stopengine,

waitforallmovingpartstostop,andremovethe
sparkplugwire(s).

–Beforechecking,cleaningorworkingonthe

mower.

–Afterstrikingaforeignobjectorabnormal

vibrationoccurs(inspectthemowerfor
damageandmakerepairsbeforerestarting
andoperatingthemower).

–Beforeclearingblockages.

–Wheneveryouleavethemower.DoNotleave

arunningmachineunattended.

•Stopengine,waitforallmovingpartstostop:

–Beforerefueling.

–Beforedumpingthegrasscatcher.

–Beforemakingheightadjustments.

•Tragicaccidentscanoccuriftheoperatorisnot

alerttothepresenceofchildren.Childrenare
oftenattractedtothemachineandthemowing
activity.Neverassumethatchildrenwillremain
whereyoulastsawthem.

–Keepchildrenoutofthemowingareaand

underthewatchfulcareofanotherresponsible
adult,nottheoperator.

–Bealertandturnthemachineoffifchildren

enterthearea.

–Beforeandwhilebackingorchangingdirection,

lookbehind,down,andside-to-sideforsmall
children.

–Neverallowchildrentooperatethemachine.

–DoNotcarrychildren,evenwiththeblades

shutoff.Childrencouldfalloffandbeseriously
injuredorinterferewiththesafeoperationof
themachine.Childrenthathavebeengiven
ridesinthepastcouldsuddenlyappearinthe
workingareaforanotherrideandberunover
orbackedoverbythemachine.

SlopeSafety

•Slopesareamajorfactorrelatedtolossofcontrol

androlloveraccidents,whichcanresultinsevere
injuryordeath.Theoperatorisresponsiblefor
safeslopeoperation.Operatingthemachineon
anysloperequiresextracaution.Beforeusingthe
machineonaslope,theoperatormust:

–Reviewandunderstandtheslopeinstructions

inthemanualandonthemachine.

–Useanangleindicatortodeterminethe

approximateslopeangleofthearea.

–Neveroperateonslopesgreaterthan15

degrees.

–Evaluatethesiteconditionsofthedayto

determineiftheslopeissafeformachine
operation.Usecommonsenseandgood
judgmentwhenperformingthisevaluation.
Changesintheterrain,suchasmoisture,can
quicklyaffecttheoperationofthemachineon
aslope.

•Identifyhazardsatthebaseoftheslope.Do

Notoperatethemachineneardropoffs,ditches,
embankments,waterorotherhazards.The
machinecouldsuddenlyrolloverifawheelgoes
overtheedgeortheedgecollapses.Keepasafe
distance(twicethewidthofthemachine)between
themachineandanyhazard.Useawalkbehind
machineorahandtrimmertomowthegrassin
theseareas.

26

Figure18

1.SafeZone-Usethemowerhereonslopeslessthan15
degrees

2.DangerZone-Useawalk-behindmowerand/orhand
trimmeronslopesgreaterthan15degrees

3.Water

4.W=widthofthemachine

5.Keepasafedistance(twicethewidthofthemachine)
betweenthemachineandanyhazard.

RolloverProtectionSystem
(ROPS)Safety

ARolloverProtectionSystem(rollbar)isinstalledon
themachine.

WARNING

Thereisnorolloverprotectionwhentheroll
barisdown.Wheelsdroppingoveredges,
ditches,steepbanks,orwatercancause
rollovers,whichmayresultinseriousinjury,
deathordrowning.

•DoNotremovetheROPS.

•Keeptherollbarintheraisedandlocked

g221745

positionanduseseatbelt.

•Lowertherollbaronlywhenabsolutely
necessary.

•DoNotwearseatbeltwhentherollbaris
down.

•Driveslowlyandcarefully.

•Raisetherollbarassoonasclearance
permits.

•Avoidstarting,stoppingorturningthemachineon

slopes.Avoidmakingsuddenchangesinspeedor
direction;turnslowlyandgradually.

•DoNotoperateamachineunderanyconditions

wheretraction,steeringorstabilityisinquestion.
Beawarethatoperatingthemachineonwet
grass,acrossslopesordownhillmaycausethe
machinetolosetraction.Lossoftractiontothe
drivewheelsmayresultinslidingandalossof
brakingandsteering.Themachinecanslideeven
ifthedrivewheelsarestopped.

•Removeormarkobstaclessuchasditches,holes,

ruts,bumps,rocksorotherhiddenhazards.T all
grasscanhideobstacles.Uneventerraincould
overturnthemachine.

•Useextracarewhileoperatingwithaccessoriesor

attachments,suchasgrasscollectionsystems.
Thesecanchangethestabilityofthemachine
andcausealossofcontrol.Followdirectionsfor
counterweights.

•Ifpossible,keepthedeckloweredtotheground

whileoperatingonslopes.Raisingthedeckwhile
operatingonslopescancausethemachineto
becomeunstable.

•Becertainthattheseatbeltcanbereleased

quicklyintheeventofanemergency.

•Checkcarefullyforoverheadclearances(i.e.

branches,doorways,andelectricalwires)before
drivingunderanyobjectsandDoNotcontact
them.

•Intheeventofarollover,taketheunittoan

AuthorizedServiceDealertohavetheROPS
inspected.

•ReplaceadamagedROPS.DoNotrepairor

revise.

•Anyaccessories,alterations,orattachments

addedtotheROPSmustbeapprovedbyT oro.

EnteringtheOperator’s
Position

Usethemowerdeckasasteptogetintothe
operator’sposition(Figure19).

27

1.Stephere.

DisengagingtheParkingBrake

g029797

Figure19

OperatingtheParking
Brake

Alwaysengagetheparkingbrakewhenyoustopthe
machineorleaveitunattended.

EngagingtheParkingBrake

Parkthemachineonalevelsurface.

Figure20

g192635

Figure21

OperatingtheMower
Blade-ControlSwitch(PTO)

Theblade-controlswitch(PTO)startsandstopsthe
mowerbladesandanypoweredattachments.

EngagingtheBlade-Control
Switch(PTO)

Note:Engagingtheblade-controlswitch(PTO)with

thethrottlepositionathalforlesscausesexcessive
weartothedrivebelts.

g036754

g008945

Figure22

28
