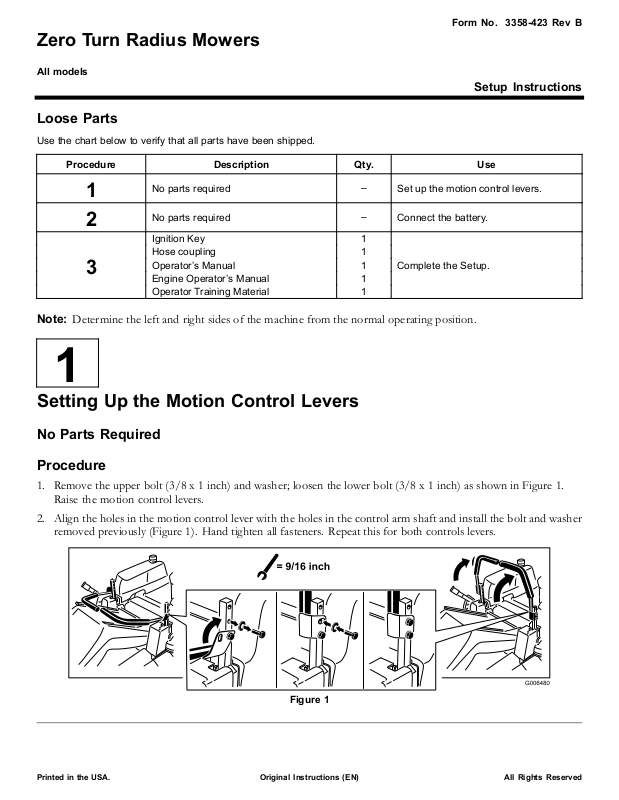

Toro 74370, 74372 Setup Instructions

ZeroTurnRadiusMowers

Allmodels

LooseParts

Usethechartbelowtoverifythatallpartshavebeenshipped.

FormNo.3358-423RevB

SetupInstructions

ProcedureDescription

1
2

3

Note:Determinetheleftandrightsidesofthemachinefromthenormaloperatingposition.

Nopartsrequired

Nopartsrequired

IgnitionKey1
Hosecoupling1
Operator’sManual
EngineOperator’sManual
OperatorTrainingMaterial

Qty.

–

–

1
1
1

1

SettingUptheMotionControlLevers

NoPartsRequired

Use

Setupthemotioncontrollevers.

Connectthebattery .

CompletetheSetup.

Procedure

1.Removetheupperbolt(3/8x1inch)andwasher;loosenthelowerbolt(3/8x1inch)asshowninFigure1.
Raisethemotioncontrollevers.

2.Aligntheholesinthemotioncontrolleverwiththeholesinthecontrolarmshaftandinstalltheboltandwasher
removedpreviously(

Figure1).Handtightenallfasteners.Repeatthisforbothcontrolslevers.

Figure1

PrintedintheUSA.OriginalInstructions(EN)

AllRightsReserved

3.Openthemotioncontrolleverandraisetheseat(Figure2).Movethecontrolleversbacktothecenterposition

G006481

G006482

G005280

1 2 543

(neutral).

Figure2

4.Verifythemotioncontrolleversareproperlyaligned(Figure3).Adjustasnecessary.Tightenallfasteners.

2

ConnectingtheBattery

NoPartsRequired

Procedure

1.Locatethebatteryandnegativebatterycableinthe
lefthandconsoleofthemachine.

2.Removethefastenersonthenegativebatterypost
andusethemtosecurethenegativebatterycableto
thenegativebatterypost(Figure4).

Figure3

Figure4

1.Wingnut4.Negativebatterypost

2.Washer

3.Negativebatterycable

5.Carriagebolt

3.Lifttheseatfromtheoorboardandplaceitinto
theoperationposition.

2

3

CompletingtheSetup

Partsneededforthisprocedure:

1IgnitionKey

1Hosecoupling

1

Operator’sManual

1

EngineOperator’sManual

1

OperatorTrainingMaterial

Procedure

CheckingtheTirePressure

Checkthefrontandreartiresforproperination.Refer
toCheckingtheTirePressureintheOperator’ sManualfor
therecommendedinationpressure.

CheckingtheSideDischargeChute

Removethepackingrestraintholdingthesidedischarge
chuteupandlowerthechuteintoplace.

CheckingtheEngineOilLevel

Beforeyoustarttheengineandusethemachine,check
theoillevelintheenginecrankcase;refertoChecking
theOilLevelintheOperator’sManual.

CheckingtheMowerAdjustment

Themowerdeckwasleveledatthefactory.Ifthemower
isnotcuttinglevel,adjusttheside-to-sidelevelandthe
front-to-rearbladeslope.SeetheOperator’sManual
fortheproperprocedure.

ReviewtheRemainingParts

Keepallthefollowingitemswiththemachine:

•IgnitionKey

•Hosecoupling

•Operator’sManual

•EngineOperator’sManual

•ViewtheOperatortrainingmaterial.

3
