Page 1

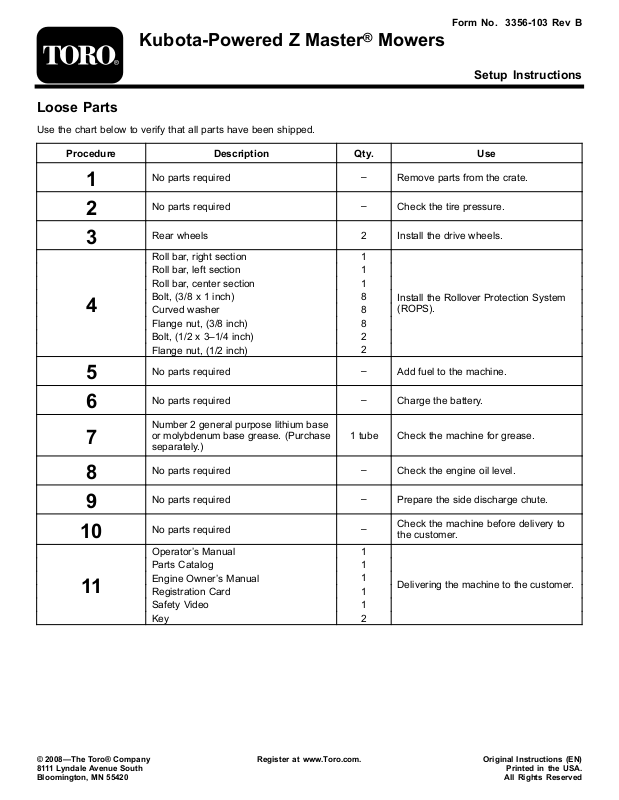

Kubota-PoweredZMaster

LooseParts

Usethechartbelowtoverifythatallpartshavebeenshipped.

FormNo.3356-103RevB

Mowers

SetupInstructions

ProcedureDescription

1 2 3

5 6

Qty.

Nopartsrequired

Rearwheels2Installthedrivewheels.

Rollbar,rightsection1 Rollbar,leftsection Rollbar,centersection1 Bolt,(3/8x1inch) Curvedwasher Flangenut,(3/8inch) Bolt,(1/2x3–1/4inch) Flangenut,(1/2inch)

Nopartsrequired

Number2generalpurposelithiumbase ormolybdenumbasegrease.(Purchase separately.)

–

8 8 8 2 2

–

1tube

Removepartsfromthecrate.

Checkthetirepressure.

InstalltheRolloverProtectionSystem (ROPS).

Addfueltothemachine.

Chargethebattery.

Checkthemachineforgrease.

Use

8 9

Nopartsrequired

Operator’sManual PartsCatalog EngineOwner’sManual RegistrationCard SafetyVideo Key2

Registeratwww.Toro.com.

–

1 1 1 1 1

Checktheengineoillevel.

Preparethesidedischargechute.

Checkthemachinebeforedeliveryto thecustomer.

Deliveringthemachinetothecustomer.

OriginalInstructions(EN)

PrintedintheUSA.

AllRightsReserved

Page 2

RemovingPartsfromtheCrate

NoPartsRequired

Procedure

RemovethetiresandthepartsfortheROPSfromthe shippingcrate.

CheckingtheTirePressure

NoPartsRequired

Procedure

Pressure:13psi(90kPa)

Note:Thefrontcasterwheelisasemi-pneumatictire anddoesnotneedtobechecked.

Checktheairpressureinthedrivetires.

RaisingtheMachineUpand InstallingtheDriveWheels

Partsneededforthisprocedure:

2Rearwheels

Procedure

1.Removethescrewsholdingtherightangleretaining platetothecrate.

Figure2

2.Raisethebackofthemachineupandsupportitwith jack-stands.

Figure1

Figure3

3.Removethewheelnutsfrombothsidesofthe vehicleandremovetherightangleretainingplate. Discardthescrewsandretainingplate.

Page 3

Figure4

4.Mountthewheelswiththevalvestemtotheoutside andsecurethemwiththewheelnutspreviously removed.

5.Torquethewheelnutsto95ft-lb(128N·m).

6.Removethejack-stands.

Figure5

Figure6

2.Installthelanyardclipsontothelongbolts(1/2x 3-1/4inch).

Note:Makesurethebenttabpointstowardthe headofthebolt.

Figure7

InstallingtheRollOver ProtectionSystem

Partsneededforthisprocedure:

1Rollbar,rightsection

Rollbar,leftsection

1Rollbar,centersection

Bolt,(3/8x1inch)

Curvedwasher

Flangenut,(3/8inch)

Bolt,(1/2x3–1/4inch)

Flangenut,(1/2inch)

Procedure

1.Looselyinstalltherightandleftrollbarsectionto theframe,with8bolts(3/8x1inch),8curved washers,and8angenuts(3/8inch).

3.Lightlyoiltheendsofthecenterrollbarsection.

4.Looselyinstallthecenterrollbarsectionusing2 bolts(1/2x3-1/4inch)and2angenuts(1/2inch).

Note:Makesuretheboltsareinstalledfromthe outsideoftherollbar.

Note:Makesurethelanyardtabisinstalledasshow andpointsforward.

Note:Thecurvewasherconemustbeinstalled towardthebolthead.

Page 4

Figure8

6.Torquealllowerfasteners,attachedtothemachine frame,to30ft-lb.

7.Tightenthecenterrollbarbolts(1/2x3-1/4inch) soitrotatesfreelywithsomeresistance.

Note:Nomorethanonethreadshouldbeexposed outsidethenut.

5.Raisetherollbarintotheuprightpositionandsecure itwiththepinsandhairpincotterpinsfastenedto thelanyards

Figure10

AddingFueltotheMachine

NoPartsRequired

Procedure

Addfueltothemachinebeforestartingit.Refertoyour Operator’sManual.forthecorrectfuelandprocedure.

Figure9

Page 5

ChargingtheBattery

NoPartsRequired

Procedure

Chargingthebatteryproducesgassesthatcan explodeandcauseseriousinjury.

•Keepcigarettes,sparksandamesaway fromthebattery.

•Makesuretheignitionswitchisoff.

•Ventilatewhenchargingorusingthebattery inanenclosedspace.

Important:Donotrunthemachinewiththe batterydisconnected;electricaldamagemayoccur totheengine.

CheckingtheMachinefor Grease

Partsneededforthisprocedure:

1tube

Procedure

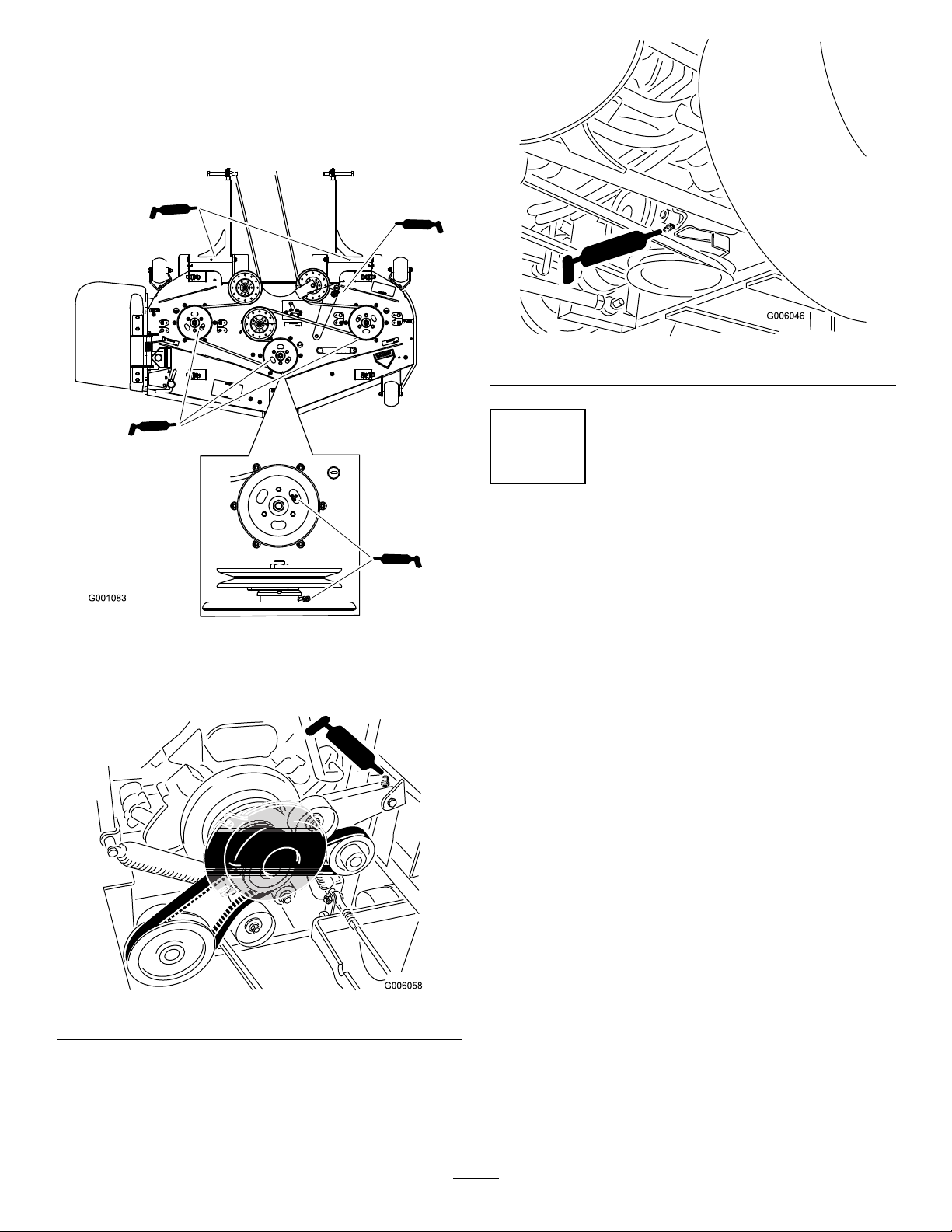

1.Removethebeltcoversondomesticmachinesas

Number2generalpurposelithiumbaseor molybdenumbasegrease.(Purchaseseparately .)

shownbelow.

Chargethebattery.RefertotheOperator’ sManualfor instructions.

Figure11

Figure12

2.Removethebeltcoversandboltsoninternational machinesasshownbelow.

Figure13

Page 6

3.Checkthetensioningarmforgrease.

4.Checkthegreaseforthethreespindlebearings.If needed,addgreaseuntilitcomesoutofthelower seals.

5.Installthebeltcovers.

Figure16

Figure14

6.Checkthegreaseforthepumpdrivebeltidlerarm.

CheckingtheEngineOilLevel

NoPartsRequired

Procedure

Beforeyoustarttheengineandusethemachine,check theoillevelintheenginecrankcase;refertoChecking OilLevelinOperator’ sManual.

Figure15

7.CheckthegreaseforthePTOdrivebeltidlerarm.

Page 7

CheckingtheSideDischarge Chute

NoPartsRequired

Procedure

Ifthereareplastictiesholdingthesidedischargechute up,removethemandlowerthechuteintoplace.

Anuncovereddischargeopeningcouldallow thelawnmowertothrowobjectsinthe operator’sorbystander’sdirectionandresultin seriousinjuryordeath.Also,contactwiththe bladecouldoccur.

Neveroperatethelawnmowerwiththegrass deectorremovedunlessyouinstallacover plate,amulchplate,oragrasschuteand catcher.

Figure17

1.GrassDeector4.Lendofspring,place

2.Spring

3.Jhookendofspring

behinddeckedgebefore installingbolt

5.Deckedge

1.MakesuretheLendofspringisinstalledbehind thedeckedgebeforeinstallingtheboltasshownin Figure17.

2.PlacetheJhookendofspringaroundgrassdeector (Figure17).

Important:Thegrassdeectormustbefreeto rotatewithdownwardtension.Liftthedeector uptothefullopenpositionandensurethatit rotatesfreely,withoutbindingintothefulldown position.

Page 8

CheckingtheMachineBeforeDeliverytotheCustomer

NoPartsRequired

Procedure

Beforedeliveringthemachinetothecustomer,ensurethatyouperformorhaveperformedtheprocedureslistedin thefollowingtableandinitialeachwhennished.RefertotheOperator’sManualforinstructionsonperforming theseprocedures.

Initial

Checkthetirepressure.

Checkthelevelofthemower.

Checkthatallmowerspindlesaregreased.

Checktheengineoillevel.

Checkthehydraulicuidlevel.

CheckROPSissecure.

Onliquidcooledmachines,checkthelevelofthecoolantintheradiatorandoverowbottle.

Checktheadjustmentoftheparkingbrake.

Ensurethatthemachinetrackscorrectly;refertotheOperator’sManualfortheadjustmentprocedure.

Checkthesafetyinterlocksystem;refertotheOperator’sManual.

EnsurethatthePTOworks.

Checkallfastenersyouinstalledtoensurethattheyaretight.

CheckProcedure

Whenyounishsettingupthemachine,signanddateinthespaceprovidedbelow:

Signature:Date:

Page 9

DeliveringtheMachinetotheCustomer

Partsneededforthisprocedure:

Operator’sManual

PartsCatalog

EngineOwner’sManual

RegistrationCard

SafetyVideo

2Key

Procedure

Atdelivery,completetheitemslistedinthefollowingtableandinitialeachwhennished.

ModelNo.SerialNo.

Page 10

DealerInitial

CustomerInitialCheckProcedure

Showthecustomerwherethefollowingfeaturesarelocatedandhowtheyfunction:

Fueltankcaps

Oilllcap/Oildipstick

Engineoillter

Engineoildrain

Fuellters

Airlter

Radiatorcoolant

Hydraulicuidreservoir

Hydrauliclter

Battery

Ignitionswitch

Throttlelever

Glowpluglightandswitch

Powertakeoffswitch(PTO)

Motioncontrollevers

Parkingbrake

Mowerheight-of-cut

Liftassistlever

ZStand®(OnlyonInternationalmachines)

Adjustableseat

Hydraulicbypassvalves

RolloverProtectionSystem(ROPS)

Mowerdeckowbafe

RefertotheOperator’sManualtopointoutsafetyprocedures,operation,and maintenanceprocedures.

ReviewthewarrantystatementasshownintheOperator’sManual.

Describethepostsaleserviceproceduresforyourstore.

Assistthecustomerinllingoutandmailingtheregistrationcardorregisteronlineat www.T oro.com

MakesurethatthecustomerreceivestheOperator’sManual,PartsCatalog,andEngine Owner’sManual,SetUpInstructions,andsafetyvideo.

Assistthecustomerinloadingthemower.

Note:Whenyou,thedealerrepresentative,havenisheddeliveringthemachinetothecustomer,signanddatein thespaceprovidebelowandkeepacopyofthispagefordealerrecords.

Signature:Date:
