Toro 74234 Operator's Manual
Form No. 3329–546
Z255
Z–Master with 62 SFS Side Discharge Mower
Model No. 74234—Serial No. 230006001 & Up
Operator ’s Manual
English (EN)
Warning
The engine exhaust from this product contains
chemicals known to the State of California to
cause cancer, birth defects, or other reproductive
harm.
Because in some areas there are local, state, or federal
regulations requiring that a spark arrestor be used on the
engine of this mower, a spark arrestor is incorporated with
the muffler assembly.
These parts are approved by the United States Department
of Agriculture Forestry Service.
Important This engine is equipped with a spark
arrester muffler. It is a violation of California Public
Resource Code Section 4442 to use or operate this engine
without a spark arrester muffler on any forest–covered,
brush–covered or grass–covered land. Other states or
federal areas may have similar laws.
This spark ignition system complies with Canadian
ICES-002.
Ce système d’allumage par étincelle de véhicule est
conforme à la norme NMB-002 du Canada.
The enclosed Engine Owner ’s Manual is supplied for
information regarding The U.S. Environmental
Protection Agency (EPA) and the California Emission
Control Regulation of emission systems, maintenance
and warranty.
Keep this engine Owner ’s Manual with your unit.
Should this engine Owner’s Manual become damaged
or illegible, replace immediately. Replacements may be
ordered through the engine manufacturer.
Contents
Page
Introduction 3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Safety 3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Safe Operating Practices 3. . . . . . . . . . . . . . . . . . .
Slope Chart 6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Safety and Instruction Decals 8. . . . . . . . . . . . . . .
Gasoline and Oil 13. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Recommended Gasoline 13. . . . . . . . . . . . . . . . . . .
Using Stabilizer/Conditioner 13. . . . . . . . . . . . . . . .
Filling the Fuel Tank 13. . . . . . . . . . . . . . . . . . . . . .
Check Engine Oil Level 13. . . . . . . . . . . . . . . . . . . .
Setup 14. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Loose Parts 14. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installing Drive Wheels 14. . . . . . . . . . . . . . . . . . . .
Checking the Tire Pressure 14. . . . . . . . . . . . . . . . .
2003 by The Toro Company
8111 Lyndale Avenue South
Bloomington, MN 55420-1196
Installing the Seat Retaining Rod 14. . . . . . . . . . . .
Installing the Motion Control Levers 15. . . . . . . . .
Activating the Battery 15. . . . . . . . . . . . . . . . . . . . .
Checking the Hydraulic Fluid 16. . . . . . . . . . . . . . .
Greasing the Bearings 16. . . . . . . . . . . . . . . . . . . . .
Checking the Side Discharge Chute 17. . . . . . . . . .
Checking the Level of Mower Deck 17. . . . . . . . . .
Checking the Engine Oil Level 17. . . . . . . . . . . . . .
Operation 17. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Think Safety First 17. . . . . . . . . . . . . . . . . . . . . . . .
Controls 18. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Operating the Parking Brake 18. . . . . . . . . . . . . . . .
Starting and Stopping the Engine 19. . . . . . . . . . . .

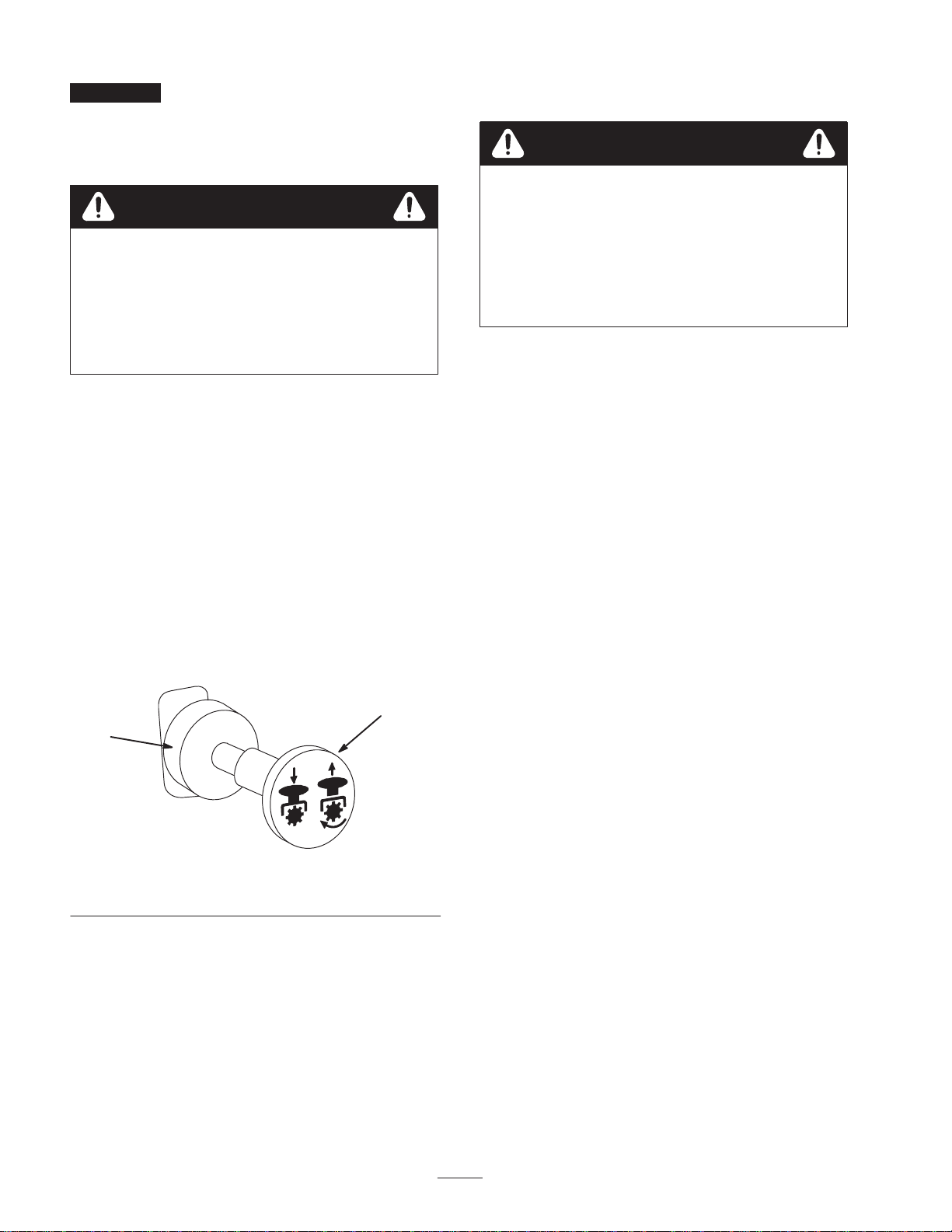

Operating the Power Take Off (PTO) 20. . . . . . . . .
The Safety Interlock System 20. . . . . . . . . . . . . . . .
Driving Forward or Backward 21. . . . . . . . . . . . . . .
Stopping the Machine 21. . . . . . . . . . . . . . . . . . . . .
Adjusting the Height-of-Cut 21. . . . . . . . . . . . . . . .
Using the Lift Assist Lever 22. . . . . . . . . . . . . . . . .
Adjusting the Anti-Scalp Rollers 22. . . . . . . . . . . . .
Positioning the Seat 23. . . . . . . . . . . . . . . . . . . . . . .
Pushing the Machine by Hand 23. . . . . . . . . . . . . . .
Using a Rollover Protection System (ROPS) 23. . .
Using the Side Discharge 24. . . . . . . . . . . . . . . . . . .
Transporting Machines 24. . . . . . . . . . . . . . . . . . . .
Loading Machines 24. . . . . . . . . . . . . . . . . . . . . . . .
Using the Z Stand) 25. . . . . . . . . . . . . . . . . . . . . . . .
Tips for Mowing Grass 26. . . . . . . . . . . . . . . . . . . .
Maintenance 27. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Recommended Maintenance Schedule 27. . . . . . . .

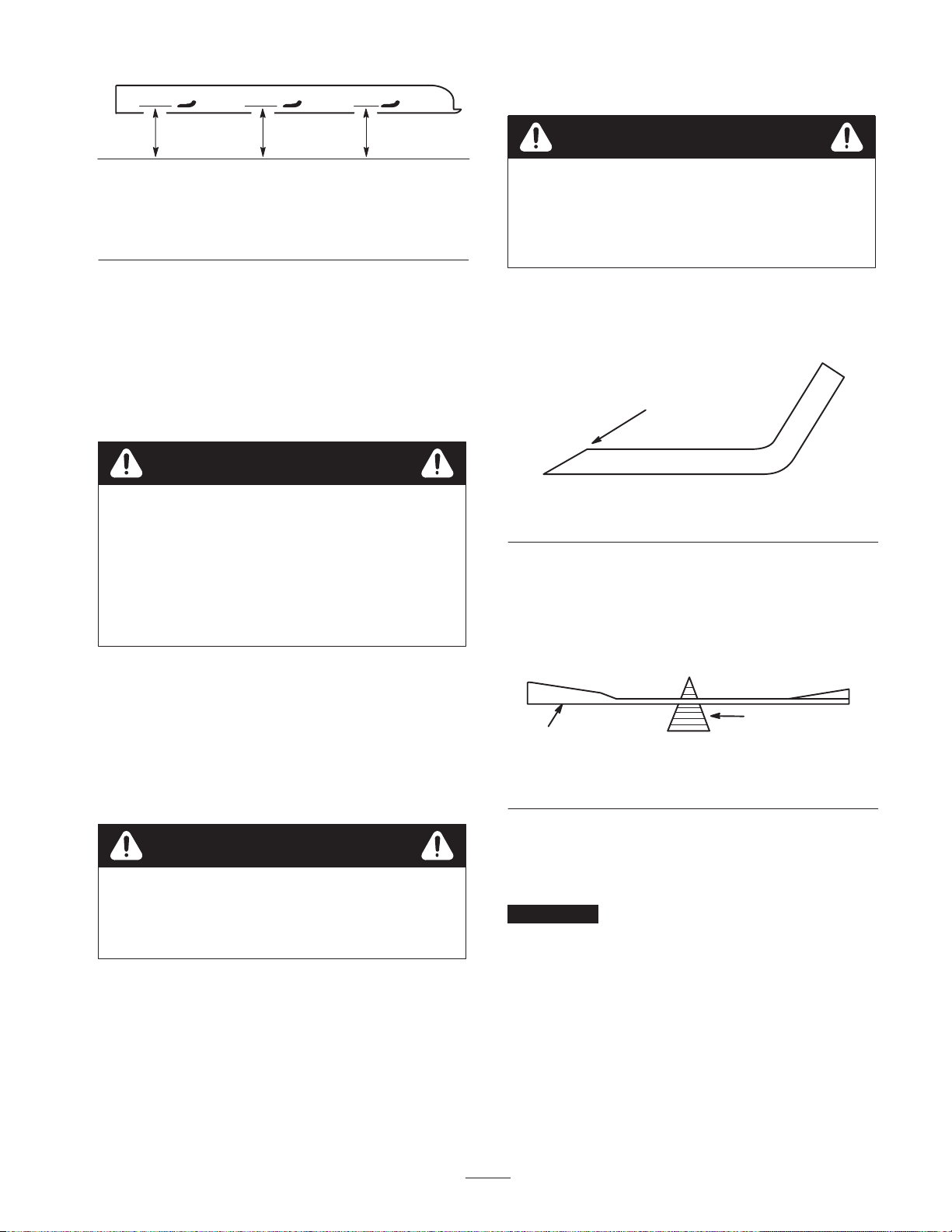

Servicing the Cutting Blades 28. . . . . . . . . . . . . . . .
Servicing the Air Cleaner 30. . . . . . . . . . . . . . . . . .
Servicing the Engine Oil 31. . . . . . . . . . . . . . . . . . .
Servicing the Spark Plug 33. . . . . . . . . . . . . . . . . . .

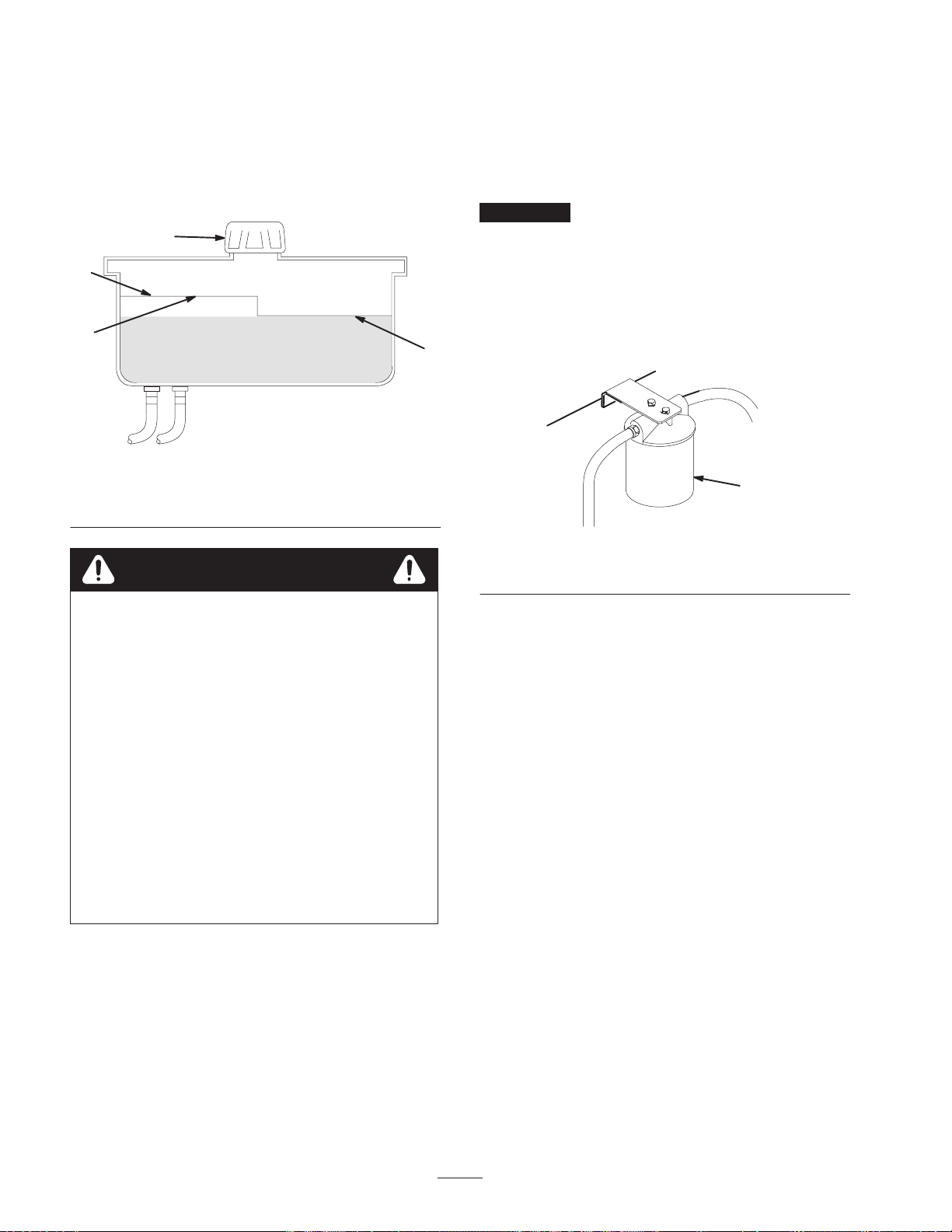

Servicing the Fuel Filter 34. . . . . . . . . . . . . . . . . . .
Servicing the Fuel Tank 34. . . . . . . . . . . . . . . . . . . .
Greasing and Lubrication 35. . . . . . . . . . . . . . . . . . .
Greasing the Bearings 35. . . . . . . . . . . . . . . . . . . . .
Cleaning the Cooling Systems 36. . . . . . . . . . . . . . .
Servicing the Spark Arrester 36. . . . . . . . . . . . . . . .
Checking the Tire Pressure 36. . . . . . . . . . . . . . . . .
Checking the Wheel Hub Slotted Nut 36. . . . . . . . .
Caster Pivot Bearing Adjustment 37. . . . . . . . . . . .
Servicing the Hydraulic System 37. . . . . . . . . . . . .
Adjusting the Handle Neutral 39. . . . . . . . . . . . . . .
Setting the Hydraulic Pump Neutral 40. . . . . . . . . .
Adjusting the Tracking 41. . . . . . . . . . . . . . . . . . . .
Replacing the Pump Drive Belt 42. . . . . . . . . . . . . .
Adjusting the Parking Brake 42. . . . . . . . . . . . . . . .
2
Page
All Rights Reserved
Printed in the USA
Servicing the Fuse 42. . . . . . . . . . . . . . . . . . . . . . . .

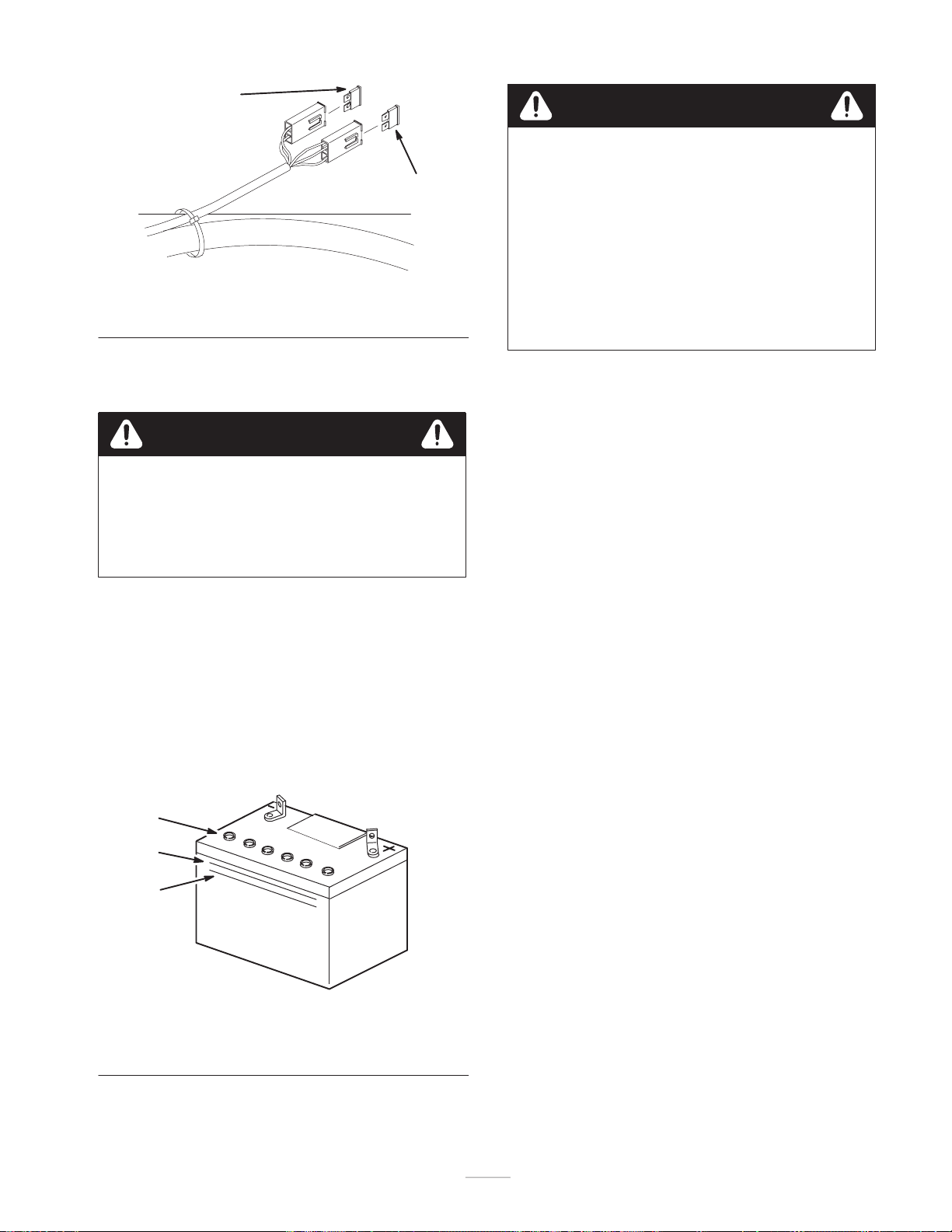

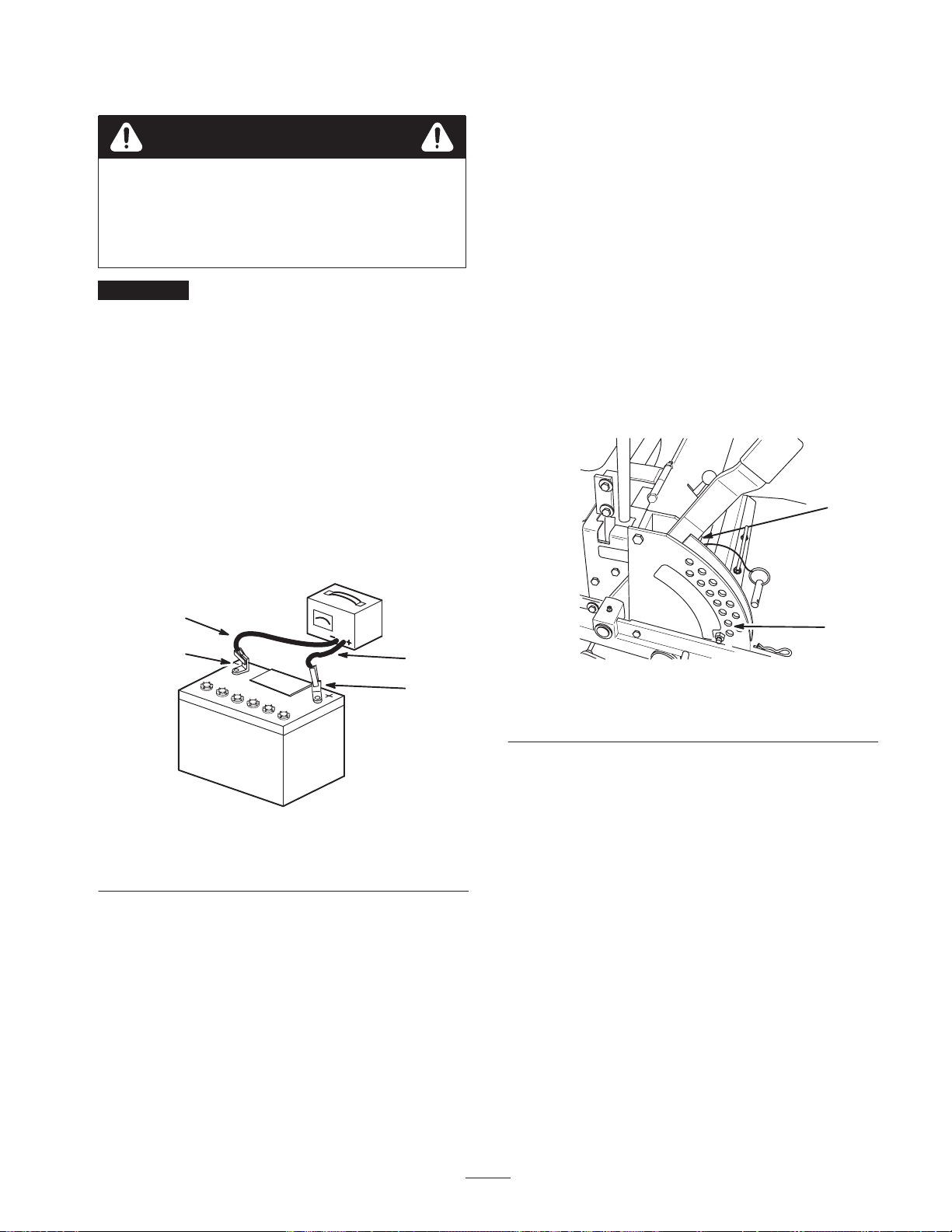

Servicing the Battery 43. . . . . . . . . . . . . . . . . . . . . .
Leveling the Mower 45. . . . . . . . . . . . . . . . . . . . . . .
Cleaning Under the Deck 46. . . . . . . . . . . . . . . . . . .
Inspecting Belts 46. . . . . . . . . . . . . . . . . . . . . . . . . .
Replacing the Deck Belt 46. . . . . . . . . . . . . . . . . . .
Replacing the PTO Drive Belt 47. . . . . . . . . . . . . . .
Replacing the Grass Deflector 48. . . . . . . . . . . . . . .
Mercury Tilt Switch 49. . . . . . . . . . . . . . . . . . . . . . .
Disposing the Mercury Tilt Switch 49. . . . . . . . . . .

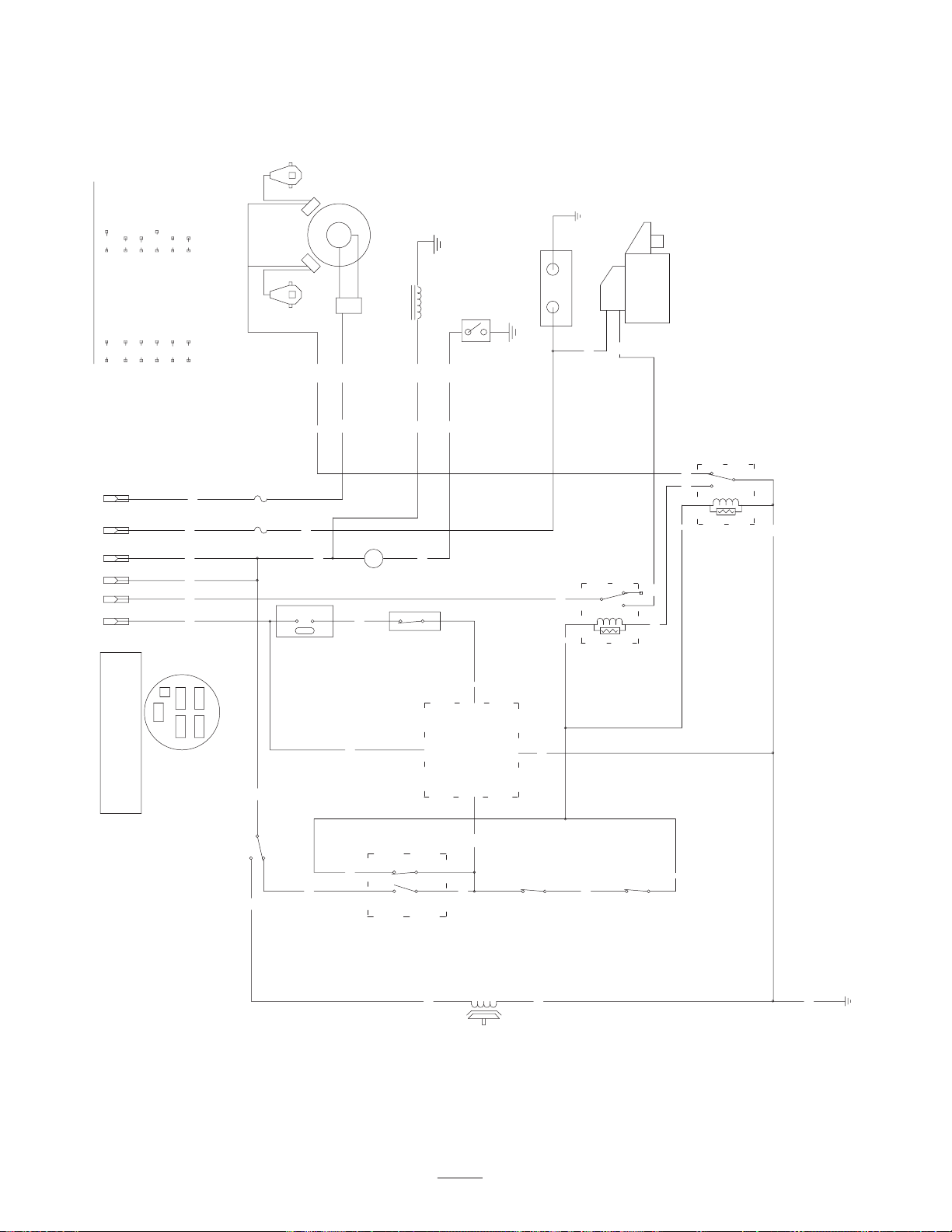

Wiring Diagram 50. . . . . . . . . . . . . . . . . . . . . . . . . .
Cleaning and Storage 51. . . . . . . . . . . . . . . . . . . . . .
Troubleshooting 52. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
The Toro Total Coverage Guarantee 56. . . . . . . . . . . . .
Introduction
Page
This manual identifies potential hazards and has special
safety messages that help you and others avoid personal
injury and even death. Danger, Warning, and Caution are
signal words used to identify the level of hazard.
However, regardless of the hazard, be extremely careful.
Danger signals an extreme hazard that will cause serious
injury or death if you do not follow the recommended
precautions.
Warning signals a hazard that may cause serious injury or
death if you do not follow the recommended precautions.
Caution signals a hazard that may cause minor or
moderate injury if you do not follow the recommended
precautions.
This manual uses two other words to highlight
information. Important calls attention to special
mechanical information and Note: emphasizes general
information worthy of special attention.
Read this manual carefully to learn how to operate and
maintain your product properly. The information in this
manual can help you and others avoid injury and product
damage. Although Toro designs and produces safe
products, you are responsible for operating the product
properly and safely.
Whenever you need service, genuine Toro parts, or
additional information, contact an Authorized Service
Dealer or Toro Customer Service and have the model and
serial numbers of your product ready. Figure 1 illustrates
the location of the model and serial numbers on the
product.
1
Figure 1
1. Location o f the model and serial numbers
Safety
This machine meets or exceeds the B71.4 1999
specifications of the American National Standards
Institute, in effect at time of production.
Note: The addition of attachments made by other
manufacturers that do not meet American National
Standards Institute certification will cause noncompliance
of this machine.
Improper use or maintenance by the operator or owner
can result in injury. To reduce the potential for injury,
comply with these safety instructions and always pay
attention to the safety alert symbol, which means
CAUTION, WARNING, or DANGER—“personal
safety instruction.” Failure to comply with the
instruction may result in personal injury or death.
This product is capable of amputating hands and feet and
throwing objects. Always follow all safety instructions to
avoid serious injury or death.
This product is designed for cutting and recycling grass or,
when equipped with a grass bagger, for catching cut grass.
Any use for purposes other than these could prove
dangerous to user and bystanders.
Write the product model and serial numbers in the space
below:
Model No.
Serial No.
Safe Operating Practices
The following instructions are from ANSI standard
B71.4—1999.
Training
• Read the Operator ’s Manual and other training
material. If the operator(s) or mechanic(s) can not read
English it is the owner’s responsibility to explain this
material to them.
3
• Become familiar with the safe operation of the
equipment, operator controls, and safety signs.
• Do not change the engine governor setting or
overspeed the engine.
• All operators and mechanics should be trained. The
owner is responsible for training the users.
• Never let children or untrained people operate or
service the equipment. Local regulations may restrict
the age of the operator.
• The owner/user can prevent and is responsible for
accidents or injuries occurring to himself or herself,
other people or property.
Preparation
• Evaluate the terrain to determine what accessories and
attachments are needed to properly and safely perform
the job. Only use accessories and attachments
approved by the manufacturer.
• Wear appropriate clothing including hard hat, safety
glasses and hearing protection. Long hair, loose
clothing or jewelry may get tangled in moving parts.
• Inspect the area where the equipment is to be used and
remove all objects such as rocks, toys and wire which
can be thrown by the machine.
• Use extra care when handling gasoline and other fuels.
They are flammable and vapors are explosive.
• Use only an approved container
• Never remove gas cap or add fuel with engine
running. Allow engine to cool before refueling.
Do not smoke.
• Never refuel or drain the machine indoors.
• Check that operator ’s presence controls, safety
switches and shields are attached and functioning
properly. Do not operate unless they are functioning
properly.
• Stop on level ground, lower implements, disengage
drives, engage parking brake, shut off engine before
leaving the operator ’s position for any reason
including emptying the catchers or unclogging the
chute.
• Stop equipment and inspect blades after striking
objects or if an abnormal vibration occurs. Make
necessary repairs before resuming operations.
• Keep hands and feet away from the cutting units.
• Never carry passengers and keep pets and bystanders
away.
• Be alert, slow down and use caution when making
turns. Look behind and to the side before changing
directions.
• Slow down and use caution when crossing roads and
sidewalks. Stop blades if not mowing.
• Be aware of the mower discharge direction and do not
point it at anyone.
• Do not operate the mower under the influence of
alcohol or drugs.
• Use extreme care when loading or unloading the
machine into a trailer or truck.
• Use care when approaching blind corners, shrubs,
trees, or other objects that may obscure vision.
Slope Operation
• Do not mow slopes greater than 15 degrees.
• Do not mow near drop–offs, ditches, steep banks or
water. Wheels dropping over edges can cause
rollovers, which may result in serious injury, death or
drowning.
Operation
• Never run an engine in an enclosed area.
• Only operate in good light, keeping away from holes
and hidden hazards.
• Be sure all drives are in neutral and parking brake is
engaged before starting engine. Start the engine only
from the operator’s position.
• Never raise deck with the blades running.
• Never operate without the PTO shield, or other guards
securely in place. Be sure all interlocks are functioning
properly.
• Never operate with the discharge deflector raised,
removed or altered, unless using a grass catcher.
• Do not mow slopes when grass is wet. Slippery
conditions reduce traction and could cause sliding and
loss of control.
• Do not make sudden turns or rapid speed changes.
• Use a walk behind mower and/or a hand trimmer near
drop–offs, ditches, steep banks or water.
• Reduce speed and use extreme caution on slopes.
• Remove or mark obstacles such as rocks, tree limbs,
etc. from the mowing area. Tall grass can hide
obstacles.
• Watch for ditches, holes, rocks, dips, and rises that
change the operating angle, as rough terrain could
overturn the machine.
• Avoid sudden starts when mowing uphill because the
mower may tip backwards.
4
• Be aware that loss of traction may occur going
downhill. Weight transfer to the front wheels may
cause drive wheels to slip and cause loss of braking
and steering.
• Always avoid sudden starting or stopping on a slope. If
tires lose traction, disengage the blades and proceed
slowly off the slope.
• Keep hands and feet away from moving parts. If
possible, do not make adjustments with the engine
running.
• Charge batteries in an open well ventilated area, away
from spark and flames. Unplug charger before
connecting or disconnecting from battery. Wear
protective clothing and use insulated tools.
• Follow the manufacturer ’s recommendations for wheel
weights or counterweights to improve stability.
• Use extreme care with grass catchers or other
attachments. These can change the stability of the
machine and cause loss of control.
Using the Rollover Protection System (ROPS)
• A rollbar is available and its use is recommended for
areas where there are slopes, drop–offs or water.
• When operating a machine with ROPS always use the
seat belt.
• Be certain that the seat belt can be released quickly if
the machine is driven or rolls into ponds or water.
• Check carefully for overhead clearances (i.e. branches,
doorways, electrical wires) before driving under any
objects and do not contact them.
Maintenance and storage
• Disengage drives, lower implement, set parking brake,
stop engine and remove key or disconnect spark plug
wire. Wait for all movement to stop before adjusting,
cleaning or repairing.
• Keep all parts in good working condition and all
hardware tightened. Replace all worn or damaged
decals.
• Use only Toro-approved attachments. Warranty may
be voided if used with unapproved attachments.
• Clean grass and debris from cutting units, drives,
mufflers, and engine to help prevent fires. Clean up oil
or fuel spillage.
• Let engine cool before storing and do not store near
flame.
• Shut off fuel while storing or transporting. Do not store
fuel near flames or drain indoors.
• Park machine on level ground. Never allow untrained
personnel to service machine.
• Use jack stands to support components when required.
• Carefully release pressure from components with
stored energy.
• Disconnect battery or remove spark plug wire before
making any repairs. Disconnect the negative terminal
first and the positive last. Reconnect positive first and
negative last.

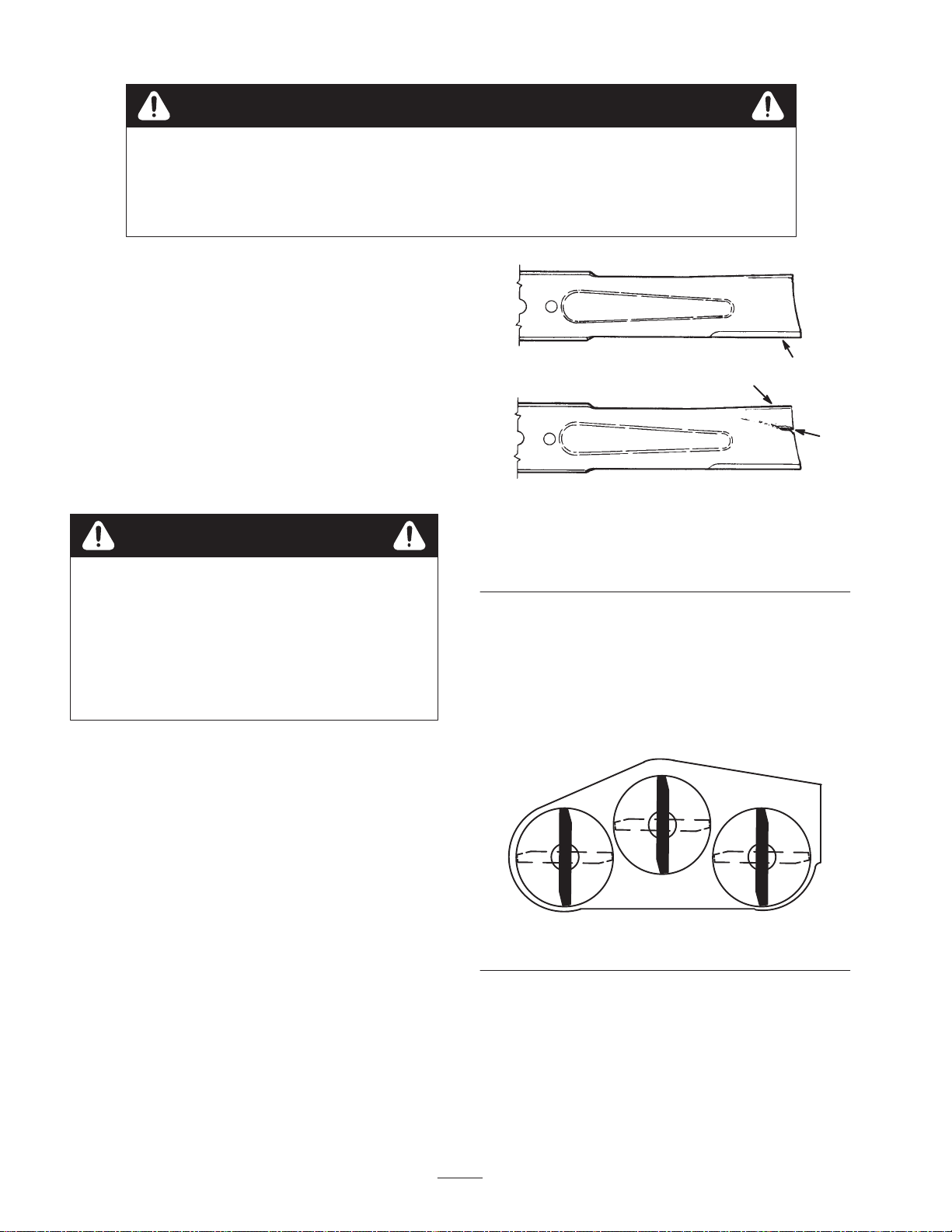

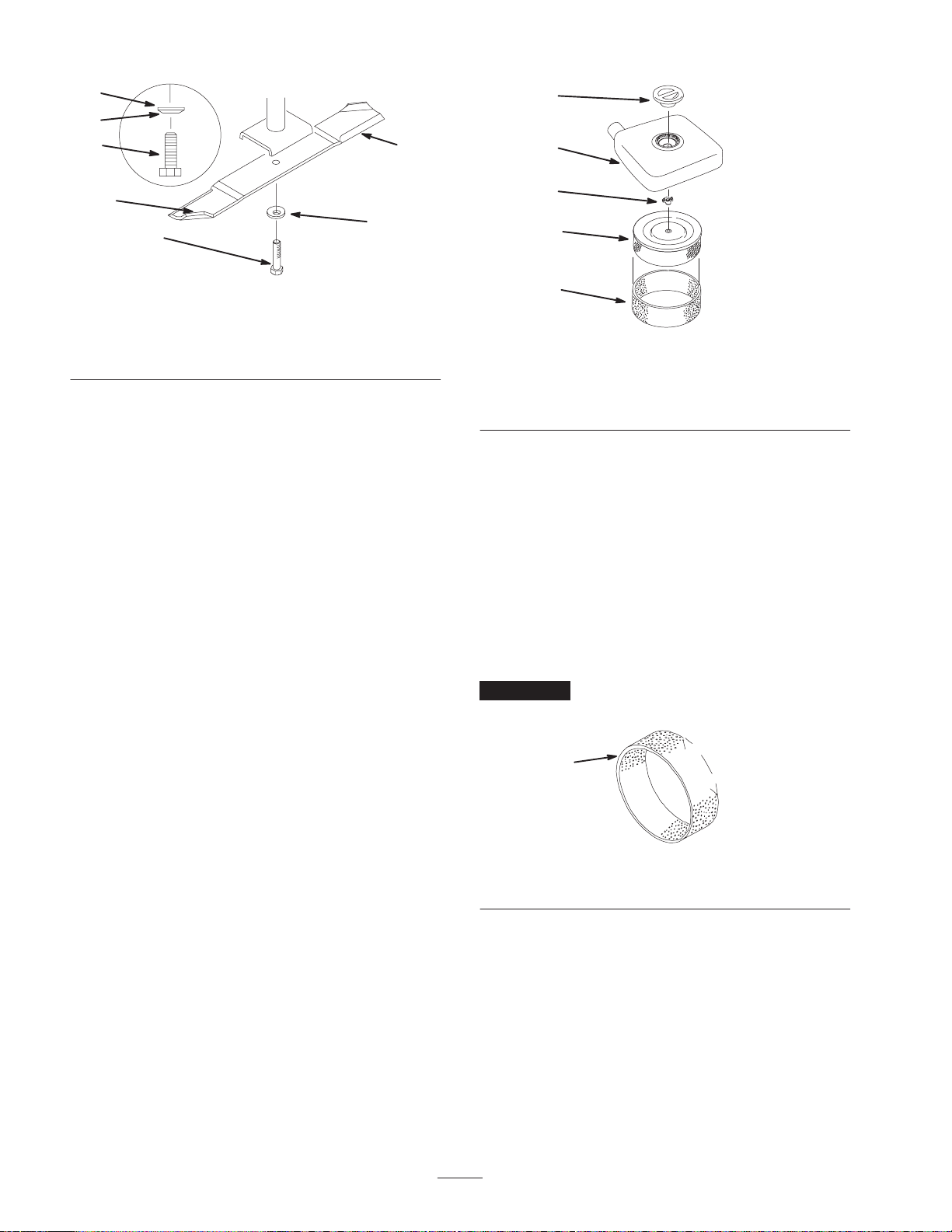

• Use care when checking blades. Wrap the blade(s) or
wear gloves, and use caution when servicing them.
Only replace blades. Never straighten or weld them.
5
Slope Chart
6
7
Safety and Instruction Decals
Safety decals and instructions are easily visible to the operator and are located near any
area of potential danger. Replace any decal that is damaged or lost.
1-633345
1-523552
1-633706
1-633462
1-643339
1-633766
1-643401
8
1-633818
43-8480
93-1122
93-7818
1. Warning—read the
torquing the blade bolt/nut to 115–149 N⋅m (85–110 ft.-lb.).
Operator’s Manual
for instructions on
66-1340
67-5360
98-3798
98-4387
1. Warning—wear hearing protection.
9
1. Engine—stop
2. Engine—run
98-5954
99-4632
3. Engine—start
1. Explosion hazard
2. No fire, open flames, or
smoking.
3. Caustic liquid/chemical
burn hazard
103-0368
104-4163
4. Wear eye protection
5. Read the
6. Keep bystanders a safe
Manual.
Operator’s
distance from the battery.
99-4686
103–0262
104-7759
104-8172
104-8569
10
1. Contains lead; do not
discard.
2. Recycle
104-4164
3. Wear eye protection;
explosive gases can cause
blindness and other injuries
4. No sparks, flame, or smoking
103-2433
5. Sulfuric acid can cause
blindness or severe burns.
6. Flush eyes immediately with
water and get medical help
fast.
7. Maximum fill line
8. Minimum fill line
9. Instructions for activating the
battery
106-6570
11
106-6571
12
Gasoline and Oil
Warning
Recommended Gasoline
Use UNLEADED Regular Gasoline suitable for
automotive use (85 pump octane minimum). Leaded
regular gasoline may be used if unleaded regular is not
available.
Important Never use methanol, gasoline containing
methanol, or gasohol containing more than 10% ethanol
because the fuel system could be damaged. Do not mix oil
with gasoline.
Danger
In certain conditions, gasoline is extremely
flammable and highly explosive. A fire or
explosion from gasoline can burn you and others
and can damage property.
• Fill the fuel tank outdoors, in an open area,
when the engine is cold. Wipe up any gasoline
that spills.
• Never fill the fuel tank inside an enclosed
trailer.
• Do not fill the fuel tank completely full. Add
gasoline to the fuel tank until the level is 1/4 to
1/2 inch (6 to 13 mm) below the bottom of the
filler neck. This empty space in the tank allows
gasoline to expand.
• Never smoke when handling gasoline, and stay
away from an open flame or where gasoline
fumes may be ignited by a spark.
• Store gasoline in an approved container and
keep it out of the reach of children. Never buy
more than a 30-day supply of gasoline.
• Always place gasoline containers on the ground
away from your vehicle before filling.
• Do not fill gasoline containers inside a vehicle
or on a truck or trailer bed because interior
carpets or plastic truck bed liners may insulate
the container and slow the loss of any static
charge.
• When practical, remove gas–powered
equipment from the truck or trailer and refuel
the equipment with its wheels on the ground.
• If this is not possible, then refuel such
equipment on a truck or trailer from a portable
container, rather than from a gasoline
dispenser nozzle.
• If a gasoline dispenser nozzle must be used,
keep the nozzle in contact with the rim of the
fuel tank or container opening at all times until
fueling is complete.
Gasoline is harmful or fatal if swallowed.
Long–term exposure to vapors can cause serious
injury and illness.
• Avoid prolonged breathing of vapors.
• Keep face away from nozzle and gas tank or
conditioner opening.
• Keep gas away from eyes and skin.
Using Stabilizer/Conditioner
Use a fuel stabilizer/conditioner in the machine to provide
the following benefits:
• Keeps gasoline fresh during storage of 90 days or less.
For longer storage it is recommended that the fuel tank
be drained.
• Cleans the engine while it runs
• Eliminates gum-like varnish buildup in the fuel
system, which causes hard starting
Important Do not use fuel additives containing
methanol or ethanol.
Add the correct amount of gas stabilizer/conditioner to the
gas.
Note: A fuel stabilizer/conditioner is most effective when
mixed with fresh gasoline. To minimize the chance of
varnish deposits in the fuel system, use fuel stabilizer at
all times.
Filling the Fuel Tank
1. Shut the engine off and set the parking brake.
2. Clean around each fuel tank cap and remove the cap.
Add unleaded regular gasoline to both fuel tanks, until
the level is 1/4 to 1/2 inch (6 to 13 mm) below the
bottom of the filler neck. This space in the tank allows
gasoline to expand. Do not fill the fuel tanks
completely full.
3. Install fuel tank caps securely. Wipe up any gasoline
that may have spilled.

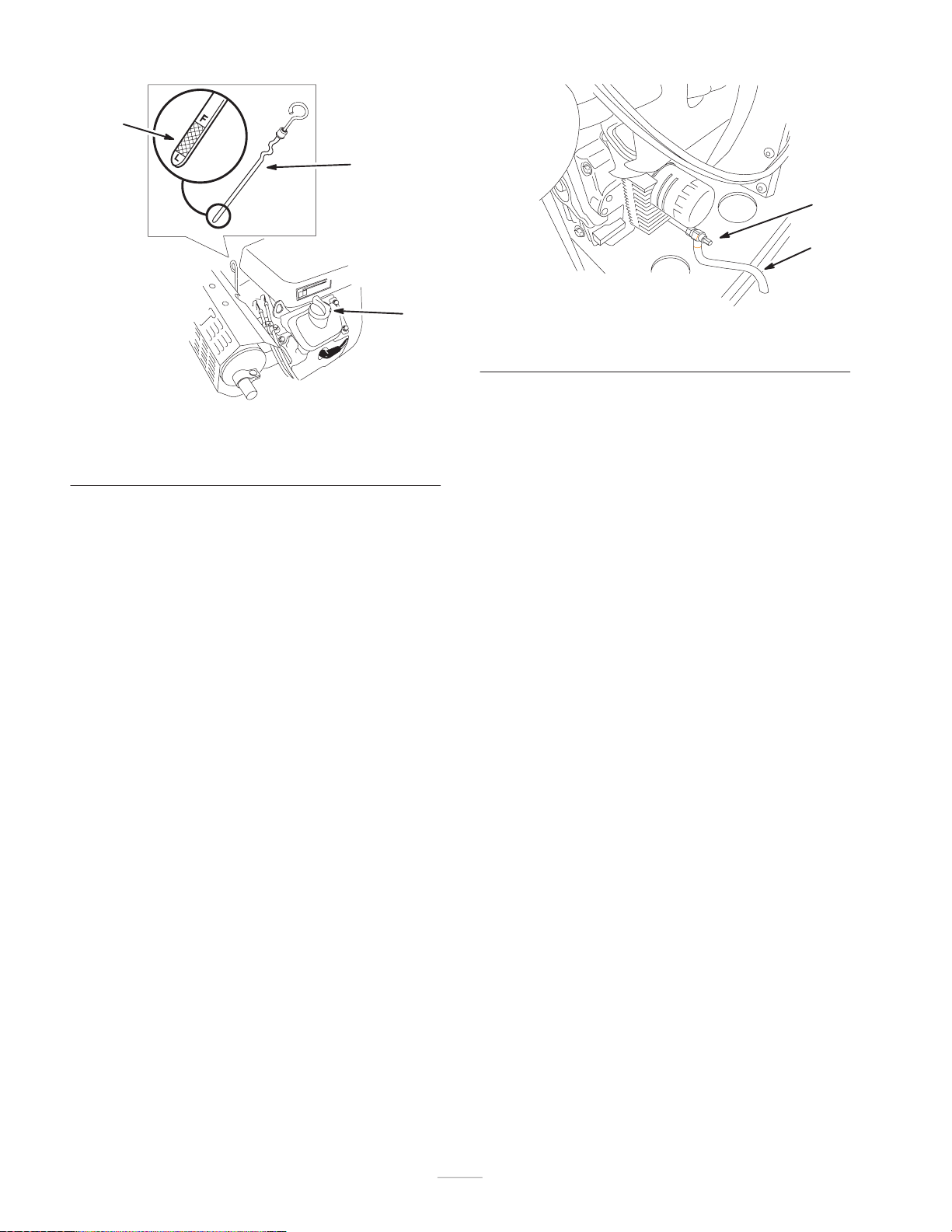

Check Engine Oil Level
Before you start the engine and use the machine, check
the oil level in the engine crankcase; refer to Checking the
Engine Oil Level, page 31.
13
Setup
Note: Determine the left and right sides of the machine
from the normal operating position.
Loose Parts
Note: Use the chart below to verify all parts have been shipped.
DESCRIPTION QTY. USE
Rear Wheels 2 Installing wheels to traction unit
Retaining rod
Bolt, 5/16 x 1 inch
Locknut, 5/16 inch
Control lever—right
Control lever—left
Bolt, 3/8 x 1 inch
Spring washer, 3/8 inch
Key
Operator’s Manual
Engine Operator’s Manual
Parts Catalog
Registration card
Oil drain hose 1
Installing Drive Wheels
1. Uncrate the mower.
2. Remove the wheel nuts from the rear wheel hubs.
1
1
1
1
1
4
4
2
1
1
1
1
Installing the seat retaining rod
Installing the motion control levers
Read before operating machine
Fill out and return to Toro
Changing the Engine Oil in the Maintenance
Section
1
3. Align the holes. Mount drive wheels with the valve
stem to the outside of the traction unit.
4. Secure using wheel nuts provided. Torque to 95 ft.–lb.
(128 NM).
Important Make sure that wheel nuts are torqued to
95 ft.–lb. (128 NM).
Checking the Tire Pressure
Check the air pressure in the front and rear tires (Fig. 2).
Pressure: 13 psi (90 kPa)
m–1872
Figure 2
1. Valve stem
Installing the Seat Retaining
Rod
1. Tilt seat up. Remove the locknut (5/16 inch) from bolt
attaching seat retaining rod to seat frame (Fig. 3).
14
2. Remove retaining rod from seat and insert the L
shaped end of the rod into the hole directly above the
left–side hydraulic pump (Fig. 3).
3. Place the seat retaining rod to the outside of the
mounting tab of the seat frame and secure with a bolt
(5/16 x 1 inch) bolt and locknut 5/16 inch (Fig. 3).
4. Tighten until snug, then loosen so the rod pivots freely.
1
2
3
m–3750
Figure 3
1. L end of retaining rod
2. Locknut, 5/16 inch
3. Bolt, 5/16 x 1 inch
2
1
4
5
6
3
m–5596
Figure 4
1. Mounting plate
2. Bolt, 3/8 x 1 inch
3. Spring washer, 3/8 inch
4. Top hole
5. Middle hole
6. Bottom hole
5. If the ends of the levers hit against each other, while in
the drive position (Fig 5) (levers rotated in as far as
possible) make adjustments by moving the levers
outward to the neutral lock position and carefully bend
them outward. Move them back to the drive position
and check for clearance. Repeat if necessary.
FRONT
OF
UNIT
Installing the Motion Control
Levers
There are two positions to install the control levers, high
and low. Install levers in the top and middle holes for the
high position. Install levers in the middle and bottom
holes for the low position (Fig. 4).
1. Remove the 4 bolts (3/8 x 1 inch) and 4 spring washers
(3/8 inch) which attach the motion control levers to the
control arm shafts for shipping (Fig. 4).
2. Place the levers (with the mounting plate toward the
rear) on the outside of the control arm shaft and secure
with 4 bolts (3/8 x 1 inch) and 4 spring washers
(3/8 inch) (Fig. 4).
3. Position the levers so the bolts are in the center of the
slots on the lever mounting plate and tighten until
snug.
4. Align the front\rear position of the levers, with each
other, in the neutral position. Loosen hardware and
adjustment by sliding/tilting the lever(s) forward or
backward until properly aligned(Fig. 4).
LEVERS IN
ALIGNMENT
Figure 5
Activating the Battery
Bulk electrolyte with 1.265 specific gravity must be
purchased from a local battery supply outlet.
15
Danger
Warning
Battery electrolyte contains sulfuric acid which is
a deadly poison and causes severe burns.
• Do not drink electrolyte and avoid contact with
skin, eyes or clothing. Wear safety glasses to
shield your eyes and robber gloves to protect
your hands.
• Fill the battery where clean water is always
available for flushing the skin.
• Follow all instructions and comply with all
safety messages on the electrolyte container.
1. Remove the battery from the machine. Refer to
Removing the Battery, page 44.
2. Clean the top of the battery with a paper towel.
Note: Never fill the battery with electrolyte while the
battery installed in the machine. Electrolyte could be
spilled on other parts and cause corrosion.
3. Remove the vent caps from the battery (Fig. 62).
4. Slowly pour electrolyte into each battery cell until the
level is up to the upper line (Fig. 62) on the battery
case.
Important Do not overfill the battery because
electrolyte (sulfuric acid) can cause severe corrosion and
damage to the chassis.
5. Wait five to ten minutes after filling the battery cells.
Add electrolyte, if necessary, until the electrolyte level
is up to the upper line (Fig. 62) on the battery case.
6. Reinstall battery filler caps.
Charging battery produces gasses that can
explode and cause serious injury.
• Keep cigarettes, sparks and flames away from
battery.
• Make sure the ignition switch is off.
• Ventilate when charging or using battery in an
enclosed space.
7. Charge the battery. Refer to Charging the Battery,
page 45.
8. Install the battery into the machine. Refer to Installing
the Battery on page 43.
Note: Do not run the machine with the battery
disconnected, electrical damage may occur.
Checking the Hydraulic Fluid
Check the hydraulic fluid level before the engine is first
started.
Refer to Checking the Hydraulic Fluid on page 37.
Greasing the Bearings
Important Make sure cutting unit spindles are full of
grease before engine is first started.
Grease with No. 2 general purpose lithium base or
molybdenum base grease.
1. Grease the fittings on the three spindle bearings.
Grease until it comes out lower seals (Fig. 7).
2
3
1
1. Filler caps
2. Upper line
Figure 6
3. Lower line
m–5004
1
M–5035
Figure 7
1. Spindles
16
Checking the Side Discharge
Chute
Remove plastic tie holding side discharge chute up and
lower into place.
Checking the Level of Mower
Deck
Check the level of the deck before the machine is first put
in use.
2
1
Refer to Mower Leveling and Compression Spring
Adjustment in the Maintenance section on page 45.
Checking the Engine Oil Level
Before you start the engine and use the machine, check
the oil level in the engine crankcase; refer to Checking Oil
Level, page 31.
Operation
Note: Determine the left and right sides of the machine
from the normal operating position.
Think Safety First
Please read all safety instructions and symbols in the
safety section. Knowing this information could help you
or bystanders avoid injury.
Danger
3
m–6478
Figure 8
1. Safe Zone—use the
Z Master here on slopes
less than 15 degrees or
flat areas.
The use of protective equipment for eyes, ears, feet, and
head is recommended.
2. Use walk behind mower
and/or hand trimmer near
drop–offs and water.
3. Water
Caution
This machine produces sound levels in excess of
85 dBA at the operators ear and can cause
hearing loss through extended periods of
exposure.
Wear hearing protection when operating this
machine.
Mowing on wet grass or steep slopes can cause
sliding and loss of control.
Wheels dropping over edges can cause rollovers,
which may result in serious injury, death or
drowning.
A rollbar is available and its use is recommended
for areas where there are slopes, drop–offs or
water.
To avoid loss of control and possibility of rollover:
• Do not mow near drop–offs or near water.
• Do not mow slopes greater than 15 degrees.
• Reduce speed and use extreme caution on
slopes.
• Avoid sudden turns or rapid speed changes.
Figure 9
1. Warning—wear hearing protection.
17
Loading...
