The engine exhaust from this product contains
chemicals known to the State of California to
cause cancer, birth defects, or other reproductive
harm.
Important This engine is not equipped with a spark
arrester muffler. It is a violation of California Public
Resource Code Section 4442 to use or operate this engine
on any forest–covered, brush–covered or grass–covered
land. Other states or federal areas may have similar laws.
This spark ignition system complies with Canadian
ICES-002.
Ce système d’allumage par étincelle de véhicule est
conforme à la norme NMB-002 du Canada.
The enclosed Engine Owner ’s Manual is supplied for
information regarding The U.S. Environmental
Protection Agency (EPA) and the California Emission
Control Regulation of emission systems, maintenance
and warranty.
Keep this engine Owner ’s Manual with your unit.
Should this engine Owner’s Manual become damaged
or illegible, replace immediately. Replacements may be
ordered through the engine manufacturer.
The Toro Total Coverage Guarantee56. . . . . . . . . . . . .
Introduction
Read this manual carefully to learn how to operate and
maintain your product properly. The information in this
manual can help you and others avoid injury and product
damage. Although Toro designs and produces safe
products, you are responsible for operating the product
properly and safely.
Whenever you need service, genuine Toro parts, or
additional information, contact an Authorized Service
Dealer or Toro Customer Service and have the model and
serial numbers of your product ready. Figure 1 illustrates
the location of the model and serial numbers on the
product.
1
Danger signals an extreme hazard that will cause serious
injury or death if you do not follow the recommended
precautions.
Warning signals a hazard that may cause serious injury or
death if you do not follow the recommended precautions.
Caution signals a hazard that may cause minor or
moderate injury if you do not follow the recommended
precautions.
This manual uses two other words to highlight
information. Important calls attention to special
mechanical information and Note: emphasizes general
information worthy of special attention.
Safety
This machine meets or exceeds the B71.4 1999
specifications of the American National Standards
Institute, in effect at time of production.
Note: The addition of attachments made by other
manufacturers that do not meet American National
Standards Institute certification will cause noncompliance
of this machine.
Improper use or maintenance by the operator or owner
can result in injury. To reduce the potential for injury,
comply with these safety instructions and always pay
attention to the safety alert symbol, which means
CAUTION, WARNING, or DANGER—“personal
safety instruction.” Failure to comply with the
instruction may result in personal injury or death.
m–3648
Figure 1
1. Location o f the model and serial numbers
Write the product model and serial numbers in the space
below:
Model No.
Serial No.
This manual identifies potential hazards and has special
safety messages that help you and others avoid personal
injury and even death. Danger, Warning, and Caution are
signal words used to identify the level of hazard.
However, regardless of the hazard, be extremely careful.
Safe Operating Practices
The following instructions are from ANSI standard
B71.4—1999.
Training
• Read the Operator ’s Manual and other training
material. If the operator(s) or mechanic(s) can not read
English it is the owner’s responsibility to explain this
material to them.
• Become familiar with the safe operation of the
equipment, operator controls, and safety signs.
• All operators and mechanics should be trained. The
owner is responsible for training the users.
• Never let children or untrained people operate or
service the equipment. Local regulations may restrict
the age of the operator.
3
• The owner/user can prevent and is responsible for
accidents or injuries occurring to himself or herself,
other people or property.
Preparation
• Evaluate the terrain to determine what accessories and
attachments are needed to properly and safely perform
the job. Only use accessories and attachments
approved by the manufacturer.
• Wear appropriate clothing including hard hat, safety
glasses and ear protection. Long hair, loose clothing or
jewelry may get tangled in moving parts.
• Inspect the area where the equipment is to be used and
remove all objects such as rocks, toys and wire which
can be thrown by the machine.
• Use extra care when handling gasoline and other fuels.
They are flammable and vapors are explosive.
• Use only an approved container
• Never remove gas cap or add fuel with engine
running. Allow engine to cool before refueling.
Do not smoke.
• Never refuel or drain the machine indoors.
• Check that operator ’s presence controls, safety
switches and shields are attached and functioning
properly. Do not operate unless they are functioning
properly.
• Do not change the engine governor setting or
overspeed the engine.
• Stop on level ground, lower implements, disengage
drives, engage parking brake (if provided), shut off
engine before leaving the operator’s position for any
reason including emptying the catchers or unclogging
the chute.
• Stop equipment and inspect blades after striking
objects or if an abnormal vibration occurs. Make
necessary repairs before resuming operations.
• Keep hands and feet away from the cutting units.
• Look behind and down before backing up to be sure of
a clear path.
• Never carry passengers and keep pets and bystanders
away.
• Slow down and use caution when making turns and
crossing roads and sidewalks. Stop blades if not
mowing.
• Be aware of the mower discharge direction and do not
point it at anyone.
• Do not operate the mower under the influence of
alcohol or drugs
• Use care when loading or unloading the machine into a
trailer or truck
• Use care when approaching blind corners, shrubs,
trees, or other objects that may obscure vision.
Operation
• Never run an engine in an enclosed area.
• Only operate in good light, keeping away from holes
and hidden hazards.
• Be sure all drives are in neutral and parking brake is
engaged before starting engine. Only start engine from
the operator ’s position. Use seat belts if provided.
• Slow down and use extra care on hillsides. Be sure to
travel in the recommended direction on hillsides. Turf
conditions can affect the machine’s stability. Use
caution while operating near drop–offs.
• Slow down and use caution when making turns and
when changing directions on slopes.
• Never raise deck with the blades running.
• Never operate with the PTO shield, or other guards not
securely in place. Be sure all interlocks are attached,
adjusted properly, and functioning property.
• Never operate with the discharge deflector raised,
removed or altered, unless using a grass catcher.
Maintenance and storage
• Disengage drives, lower implement, set parking brake,
stop engine and remove key or disconnect spark plug
wire. Wait for all movement to stop before adjusting,
cleaning or repairing.
• Clean grass and debris from cutting units, drives,
mufflers, and engine to help prevent fires. Clean up oil
or fuel spillage.
• Let engine cool before storing and do not store near
flame.
• Shut off fuel while storing or transporting. Do not store
fuel near flames or drain indoors.
• Park machine on level ground. Never allow untrained
personnel to service machine.
• Use jack stands to support components when required.
• Carefully release pressure from components with
stored energy.
4

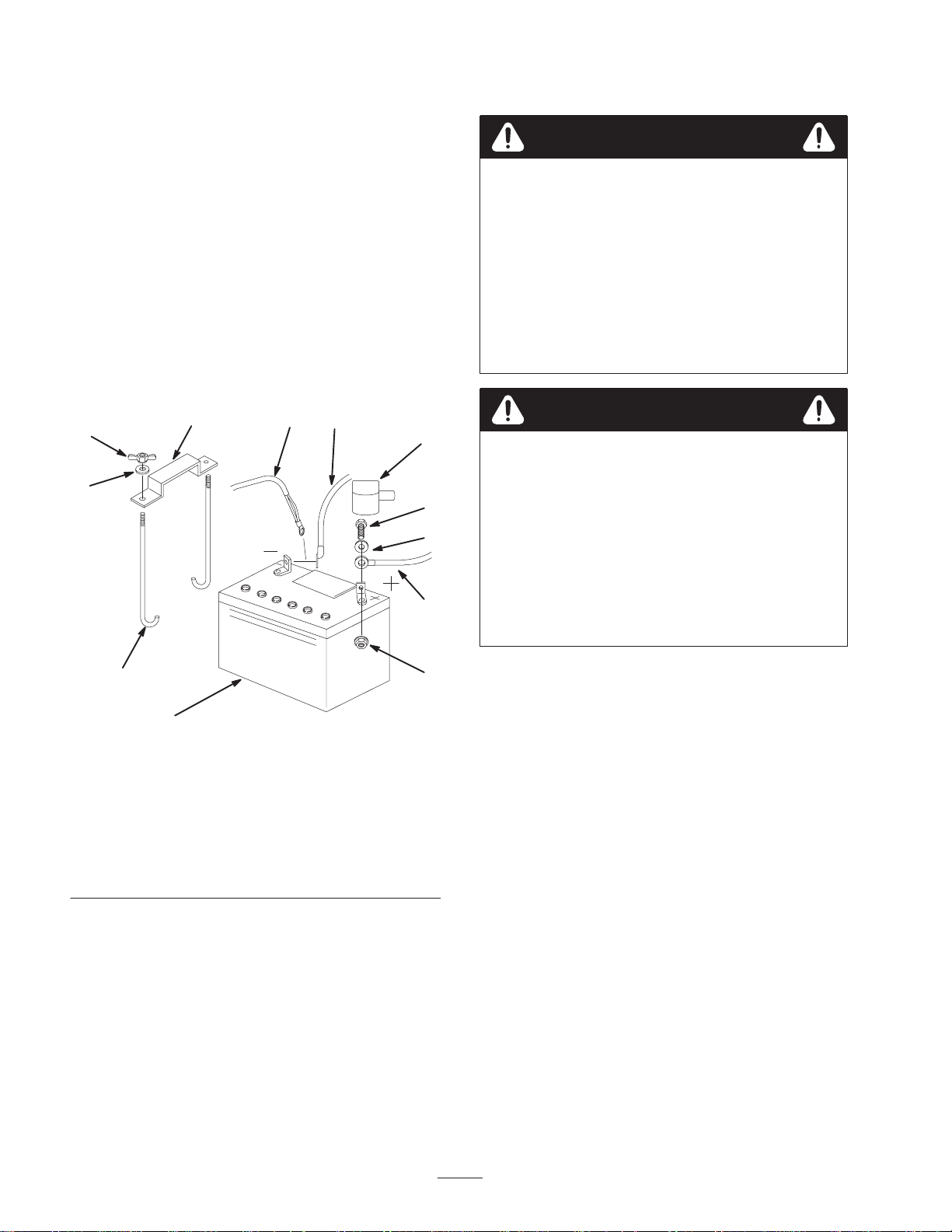

• Disconnect battery or remove spark plug wire before
making any repairs. Disconnect the negative terminal
first and the positive last. Reconnect positive first and
negative last.

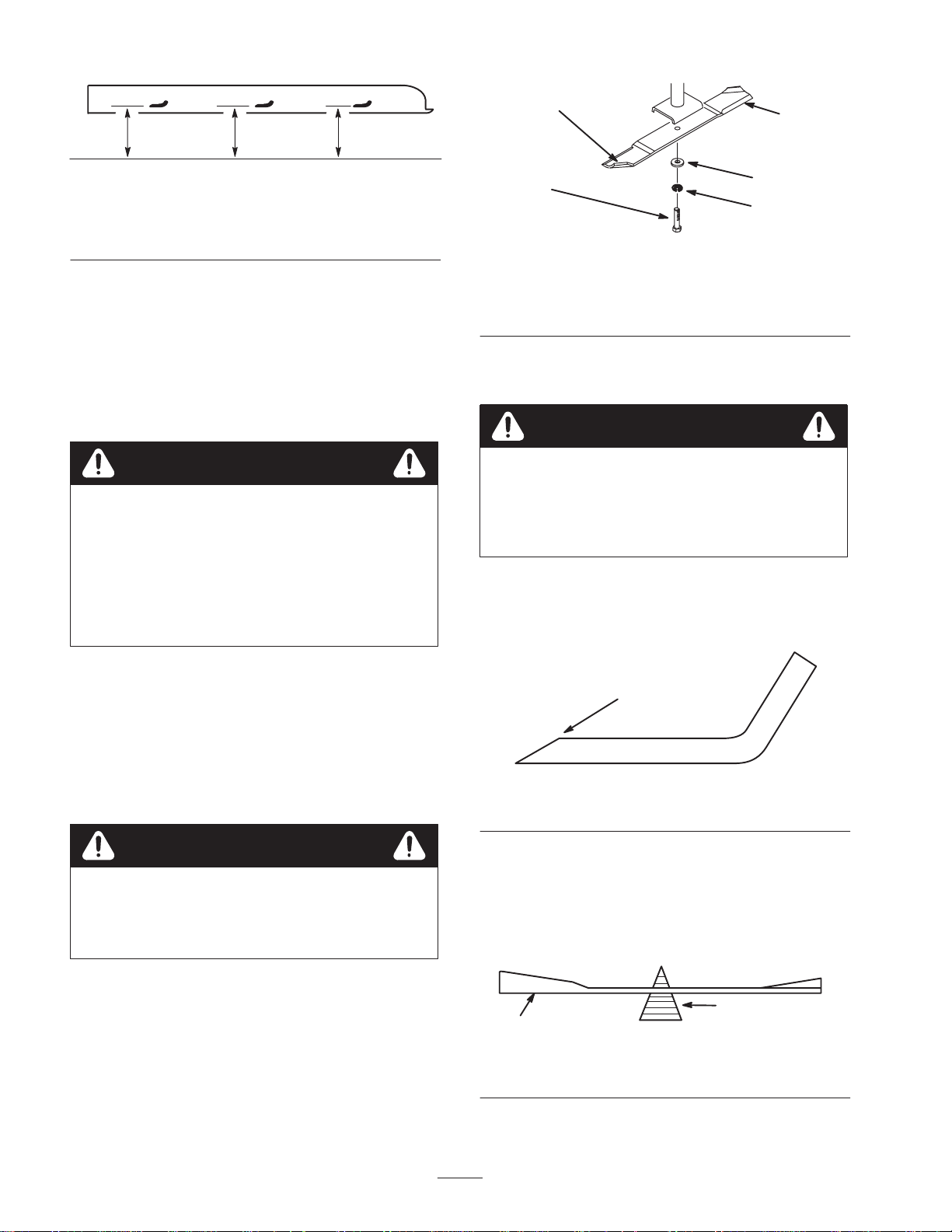

• Use care when checking blades. Wrap the blade(s) or
wear gloves, and use caution when servicing them.
Only replace blades. Never straighten or weld them.
• Keep hands and feet away from moving parts. If
possible, do not make adjustments with the engine
running.

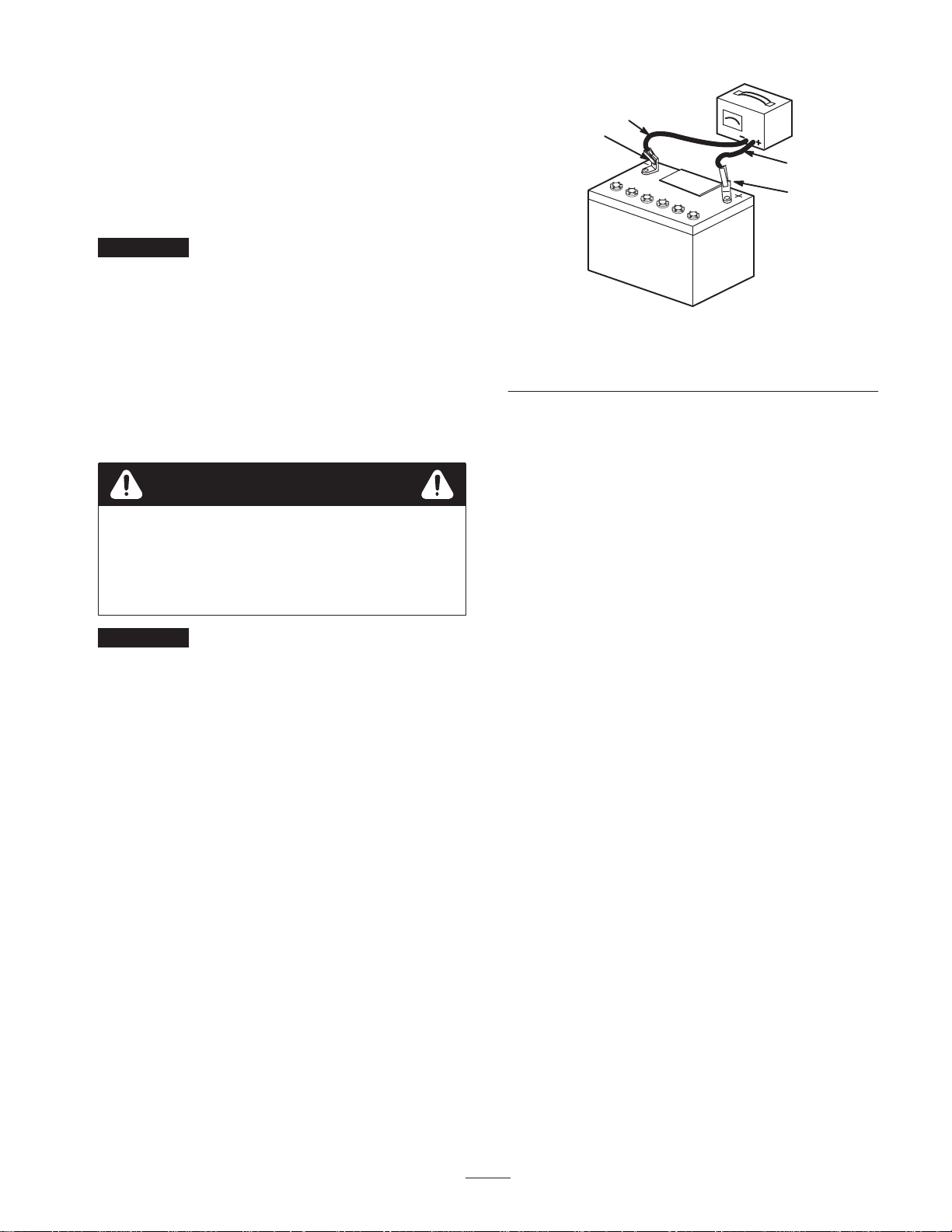

• Charge batteries in an open well ventilated area, away
from spark and flames. Unplug charger before
connecting or disconnecting from battery. Wear
protective clothing and use insulated tools.
• Keep all parts in good working condition and all
hardware tightened. Replace all worn or damaged
decals.
Toro Mower Safety
The following list contains safety information
specific to Toro products or other safety information
that you must know that is not included in the ANSI
standards.
This product is capable of amputating hands and feet and
throwing objects. Always follow all safety instructions to
avoid serious injury or death.
This product is designed for cutting and recycling grass or,
when equipped with a grass bagger, for catching cut grass.
Any use for purposes other than these could prove
dangerous to user and bystanders.
General Operation
• Allow only responsible adults who are familiar with
the instructions to operate the machine.
• Be sure the area is clear of other people before
mowing. Stop the machine if anyone enters the area.
• Do not mow in reverse unless absolutely necessary.
Always look down and behind before and while
backing.
• Be aware of the mower discharge direction and do not
point it at anyone. Do not operate the mower without
either the entire grass catcher or the guard in place.
• Slow down before turning. Sharp turns on any terrain
may cause loss of control.
• Turn off blades when not mowing.
• Keep hands, feet, hair and loose clothing away from
attachment discharge area, underside of mower and
any moving parts while engine is running.
• Stop the engine before removing the grass catcher or
unclogging the chute.
• Mow only in daylight or good artificial light.
• Watch for traffic when operating near or crossing
roadways.
• Do not touch equipment or attachment parts which
may be hot from operation. Allow to cool before
attempting to maintain, adjust or service.
• Before operating a machine with ROPS (roll over
protection) be certain the seat belts are attached to
prevent the seat from pivoting forward.
• Use only Toro-approved attachments. Warranty may
be voided if used with unapproved attachments.
Slope Operation
Slopes and ramps are a major factor related to
loss-of-control and tip-over accidents, which can result in
severe injury or death. All slopes and ramps require extra
caution. If you cannot back up the slope or if you feel
uneasy on it, do not mow it.
DO
• If a steep slope must be ascended, back up the hill, and
drive forward down the hill, keeping the machine in
gear.
• Remove obstacles such as rocks, tree limbs, etc. from
the mowing area. Watch for holes, ruts or bumps, as
uneven terrain could overturn the machine. Tall grass
can hide obstacles.
• Use slow speed so that you will not have to stop while
on the slope.
• Follow the manufacturer ’s recommendations for wheel
weights or counterweights to improve stability.
• Use extra care with grass catchers or other
attachments. These can change the stability of the
machine.
• Keep all movement on slopes slow and gradual. Do
not make sudden changes in speed or direction.
• Avoid starting or stopping on a slope. If tires lose
traction, disengage the blades and proceed slowly
straight down the slope.
• When operating machine on slopes, banks or near drop
offs, always have ROPS (roll over protection)
installed.
• When operating a machine with ROPS (roll over
protection) always use seat belt.
• Be certain that the seat belt can be released quickly if
the machine is driven or rolls into ponds or water.
5
• Check carefully for overhead clearances (i.e. branches,
doorways, electrical wires) before driving under any
objects and do not contact them.
DO NOT
• Do not mow slopes exceeding 15 degrees.
• Avoid turning on slopes. If you must turn, turn slowly
and gradually downhill, if possible.
• Do not mow near drop-offs, ditches, or embankments.
The machine could suddenly turn over if a wheel goes
over the edge of a cliff or ditch, or if an edge caves in.
• Do not mow on wet grass. Reduced traction could
cause sliding.
• Do not use a grass catcher on steep slopes. Heavy
grass bags could cause loss of control or overturn the
machine.
Service
• Never store the machine or fuel container inside where
there is an open flame, such as near a water heater or
furnace.
• Keep nuts and bolts tight, especially the blade
attachment bolts. Keep equipment in good condition.
• Never tamper with safety devices. Check safety
systems for proper operation before each use.
• Use only genuine replacement parts to ensure that
original standards are maintained.
• Check brake operation frequently. Adjust and service
as required.
• Battery acid is poisonous and can cause burns. Avoid
contact with skin, eyes and clothing. Protect your face,
eyes and clothing when working with a battery.
• Battery gases can explode. Keep cigarettes, sparks and
flames away from battery.
• Hydraulic fluid escaping under pressure can penetrate
the skin and cause injury. Use cardboard or paper to
find hydraulic leaks. Never use your hands.
6
Slope Chart
7
8
Safety and Instruction Decals
Safety decals and instructions are easily visible to the operator and are located near any
area of potential danger. Replace any decal that is damaged or lost.
1–653140
1–653147
1-523552
99–3924
1-643401
1-633818
9
43-8480
66-1340
67-5360
93-7818
1. Warning—read the
torquing the blade bolt/nut to 115–149 N⋅m (85–110 ft-lb).
Operator’s Manual
for instructions on
98-3798
98-4387
1. Warning—wear hearing protection.
93-1122
98-5954
103–0262
10
1. Explosion hazard
2. No fire, open flames, or
smoking.
3. Caustic liquid/chemical
burn hazard
104-4163
4. Wear eye protection
5. Read the
6. Keep bystanders a safe
104-8569
65–2690
Operator’s
Manual.
distance from the battery.
103–2644
1. Engine
99-3943
99–3942
11
1. Contains lead; do not
discard.
2. Recycle
103-1997
104-4164
3. Wear eye protection;
explosive gases can cause
blindness and other injuries
4. No sparks, flame, or smoking
5. Sulfuric acid can cause
blindness or severe burns.
6. Flush eyes immediately with
water and get medical help
fast.
7. Maximum fill line
8. Minimum fill line
9. Instructions for activating the
battery
12
Gasoline and Oil
Warning
Recommended Gasoline
Use UNLEADED Regular Gasoline suitable for
automotive use (85 pump octane minimum). Leaded
regular gasoline may be used if unleaded regular is not
available.
Important Never use methanol, gasoline containing
methanol, or gasohol containing more than 10% ethanol
because the fuel system could be damaged. Do not mix oil
with gasoline.
Danger
In certain conditions, gasoline is extremely
flammable and highly explosive. A fire or
explosion from gasoline can burn you and others
and can damage property.
• Fill the fuel tank outdoors, in an open area,
when the engine is cold. Wipe up any gasoline
that spills.
• Never fill the fuel tank inside an enclosed
trailer.
• Do not fill the fuel tank completely full. Add
gasoline to the fuel tank until the level is 1/4 to
1/2 inch (6 to 13 mm) below the bottom of the
filler neck. This empty space in the tank allows
gasoline to expand.
• Never smoke when handling gasoline, and stay
away from an open flame or where gasoline
fumes may be ignited by a spark.
• Store gasoline in an approved container and
keep it out of the reach of children. Never buy
more than a 30-day supply of gasoline.
• Always place gasoline containers on the ground
away from your vehicle before filling.
• Do not fill gasoline containers inside a vehicle
or on a truck or trailer bed because interior
carpets or plastic truck bed liners may insulate
the container and slow the loss of any static
charge.
• When practical, remove gas–powered
equipment from the truck or trailer and refuel
the equipment with its wheels on the ground.
• If this is not possible, then refuel such
equipment on a truck or trailer from a portable
container, rather than from a gasoline
dispenser nozzle.
• If a gasoline dispenser nozzle must be used,
keep the nozzle in contact with the rim of the
fuel tank or container opening at all times until
fueling is complete.
• Do not operate without entire exhaust system in
place and in proper working condition.
Gasoline is harmful or fatal if swallowed.
Long-term exposure to vapors can cause serious
injury and illness.
• Avoid prolonged breathing of vapors.
• Keep face away from nozzle and gas tank or
conditioner opening.
• Keep gas away from eyes and skin.
Using Stabilizer/Conditioner
Use a fuel stabilizer/conditioner in the machine to provide
the following benefits:
• Keeps gasoline fresh during storage of 90 days or less.
For longer storage it is recommended that the fuel tank
be drained.
• Cleans the engine while it runs
• Eliminates gum-like varnish buildup in the fuel
system, which causes hard starting
Important Do not use fuel additives containing
methanol or ethanol.
Add the correct amount of gas stabilizer/conditioner to the
gas.
Note: A fuel stabilizer/conditioner is most effective when
mixed with fresh gasoline. To minimize the chance of
varnish deposits in the fuel system, use fuel stabilizer at
all times.
Filling the Fuel Tank
1. Shut the engine off and set the parking brake.
2. Clean around each fuel tank cap and remove the cap.
Add unleaded regular gasoline to both fuel tanks, until
the level is 1/4 to 1/2 inch (6 mm to 13 mm) below the
bottom of the filler neck. This space in the tank allows
gasoline to expand. Do not fill the fuel tanks
completely full.
3. Install fuel tank caps securely. Wipe up any gasoline
that may have spilled.

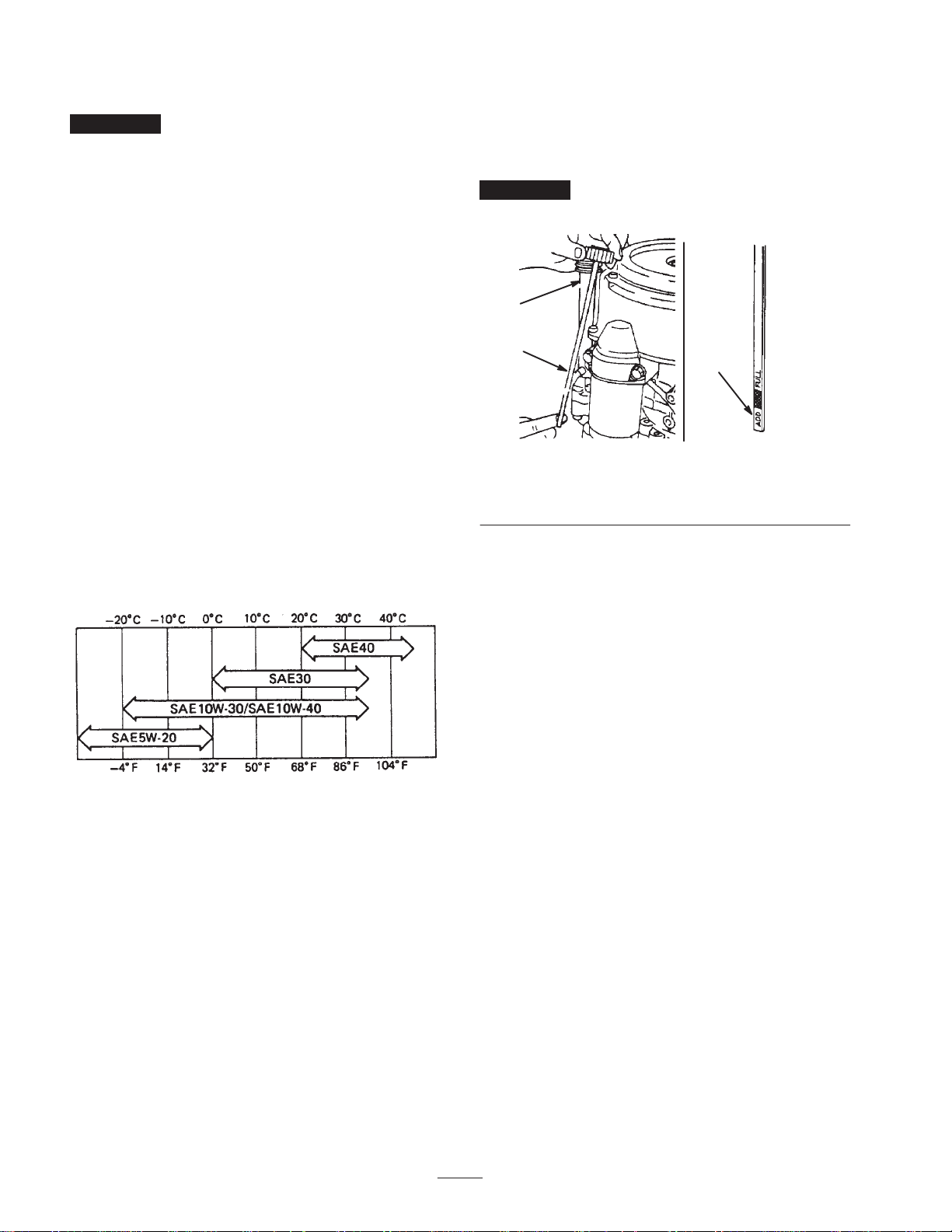

Check Engine Oil Level
Before you start the engine and use the machine, check
the oil level in the engine crankcase; refer to Checking the
Engine Oil Level, page 30.
13
Setup
Loose Parts
Note: Use the chart below to verify all parts have been shipped.
DescriptionQty.Use
Rear Wheels2Installing the drive wheels
Retaining rod
Bolt, 5/16 x 1 inch
Locknut, 5/16 inch
Control lever–right
Control lever–left
Bolt, 3/8 x 1 inch
Spring washer, 3/8 inch
Key
Operator’s Manual
Engine Operator’s Manual
Parts Catalog
Registration card1Fill out and return to Toro
1
1
1
1
1
4
4
2
1
1
1
Installing the seat retaining rod
Installing the motion control levers
Read before operating machine
Installing the Drive Wheels
1. Uncrate mower.
1. Remove wheel bolts or nuts from rear wheel hubs.
2. Align holes. Mount drive wheels with the valve stem
to the outside of the traction unit.
1
3. Secure using wheel bolts or nuts provided. Torque to
95 ft-lb (128 NM).
Important Make sure that wheel nuts are torqued to
95 ft–lb (128 NM).
Tire Pressure
Check the air pressure in the front and rear tires (Fig. 2).
Pressure: 13 psi (90 kPa)
m–1872
Figure 2
1. Valve stem
Installing the Seat Retaining
Rod
1. Tilt seat up. Remove the locknut (5/16 inch) from bolt
attaching seat retaining rod to seat frame (Fig. 3).
2. Remove retaining rod from seat and insert the L
shaped end of the rod into the hole directly above the
left–side hydraulic pump (Fig. 3).
14
3. Place the seat retaining rod to the outside of the
mounting tab of the seat frame and secure with a bolt
(5/16 x 1 inch) bolt and locknut 5/16 inch (Fig. 3).
4. Tighten until snug, then loosen so the rod pivots freely.
1
2
3
m–3750
Figure 3
1. L end of retaining rod
2. Locknut, 5/16 inch
3. Bolt, 5/16 x 1 inch
Installing the Motion Control
Levers
2
1
4
5
6
3
m–5596
Figure 4
1. Mounting plate
2. Bolt, 3/8 x 1 inch
3. Spring washer, 3/8 inch
4. Top hole
5. Middle hole
6. Bottom hole
5. If the ends of the levers hit against each other, while in
the drive position (Fig. 5) (levers rotated in as far as
possible) make adjustments by moving the levers
outward to the neutral lock position and carefully bend
them outward. Move them back to the drive position
and check for clearance. Repeat if necessary.
FRONT
OF
UNIT
There are two positions to install the control levers, high
and low. Install levers in the top and middle holes for the
high position. Install levers in the middle and bottom
holes for the low position.
1. Remove the 4 bolts (3/8 x 1 inch) and 4 spring washers
(3/8 inch) which attach the motion control levers to the
control arm shafts for shipping (Fig. 4).
2. Place the levers (with the mounting plate toward the
rear) on the outside of the control arm shaft and secure
with 4 bolts (3/8 x 1 inch) and 4 spring washers
(3/8 in.) (Fig. 4).
3. Position the levers so the bolts are in the center of the
slots on the lever mounting plate and tighten until
snug.
4. Align the front\rear position of the levers, with each
other, in the neutral position. Loosen hardware and
adjustment by sliding/tilting the lever(s) forward or
backward until properly aligned (Fig. 4).
LEVERS IN
ALIGNMENT
Figure 5
Activating the Battery
Bulk electrolyte with 1.265 specific gravity must be
purchased from a local battery supply outlet.
15
Danger
Warning
Battery electrolyte contains sulfuric acid which is
a deadly poison and causes severe burns.
• Do not drink electrolyte and avoid contact with
skin, eyes or clothing. Wear safety glasses to
shield your eyes and robber gloves to protect
your hands.
• Fill the battery where clean water is always
available for flushing the skin.
• Follow all instructions and comply with all
safety messages on the electrolyte container.
1. Remove the battery from the machine. Refer to
Removing the Battery on page 42.
2. Clean the top of the battery with a paper towel.
Note: Never fill the battery with electrolyte while the
battery is installed in the machine. Electrolyte could be
spilled on other parts and cause corrosion.
3. Remove the vent caps from the battery (Fig. 56).
4. Slowly pour electrolyte into each battery cell until the
level is up to the upper line (Fig. 56) on the battery
case.
Important Do not overfill the battery because
electrolyte (sulfuric acid) can cause severe corrosion and
damage to the chassis.
5. Wait five to ten minutes after filling the battery cells.
Add electrolyte, if necessary, until the electrolyte level
is up to the upper line (Fig. 56) on the battery case.
6. Reinstall battery filler caps.
Charging battery produces gasses that can
explode and cause serious injury.
• Keep cigarettes, sparks and flames away from
battery.
• Make sure the ignition switch is off.
• Ventilate when charging or using battery in an
enclosed space.
7. Charge the battery. Refer to Charging the Battery on
page 43.
8. Install the battery into the machine. Refer to Installing
the Battery on page 42.
Note: Do not run the machine with the battery
disconnected, electrical damage may occur.
Checking the Hydraulic Fluid
Check the hydraulic fluid level before the engine is first
started.
Refer to Checking the Hydraulic Fluid on page 35.
Greasing the Bearings
Make sure cutting unit spindles are full of grease
before engine is first started.
Grease with No. 2 general purpose lithium base or
molybdenum base grease.
1. Grease the fittings on the three spindle bearings.
Grease until it comes out lower seals (Fig. 7).
2
3
1
1. Filler caps
2. Upper line
1
m–5004
Figure 6
3. Lower line
M–4269
Figure 7
1. Spindles
16
Check the Level of Mower
Check the level of the deck before machine is first put
into use.
Refer to Adjusting the Mower Level section on page 43.
Check Side Discharge Chute
Remove plastic tie holding side discharge chute up and
lower into place.
Check Engine Oil Level
Before you start the engine and use the machine, check
the oil level in the engine crankcase; refer to Checking the
Engine Oil Level, page 30.
8
2
7
1
8
2
3
Operation
Think Safety First
Please read all safety instructions and symbols in the
safety section. Knowing this information could help you,
your family, pets or bystanders avoid injury.
The use of protective equipment for eyes, ears, feet, and
head is recommended.
Caution
This machine produces sound levels in excess of
85 dBA at the operator’s ear and can cause
hearing loss through extended periods of
exposure.
Wear hearing protection when operating this
machine.
49
1. Ignition switch
2. Motion control lever
3. Parking brake lever
4. Throttle
5. Choke
5
10
Figure 9
6. Power take off (PTO)
7. Height-of-Cut lever
8. Fuel cap
9. Hourmeter
10. Fuel shut-off valve
6
m–4200
Using the Hour Meter
The hour meter records the number of hours the engine
has operated. It operates when the engine is running. Use
these times for scheduling regular maintenance.
1
m–4202
Figure 10
1. Hour meter
Figure 8
1. Warning—wear hearing protection.
Controls
Become familiar with all the controls (Fig. 9) before you
start the engine and operate the machine.

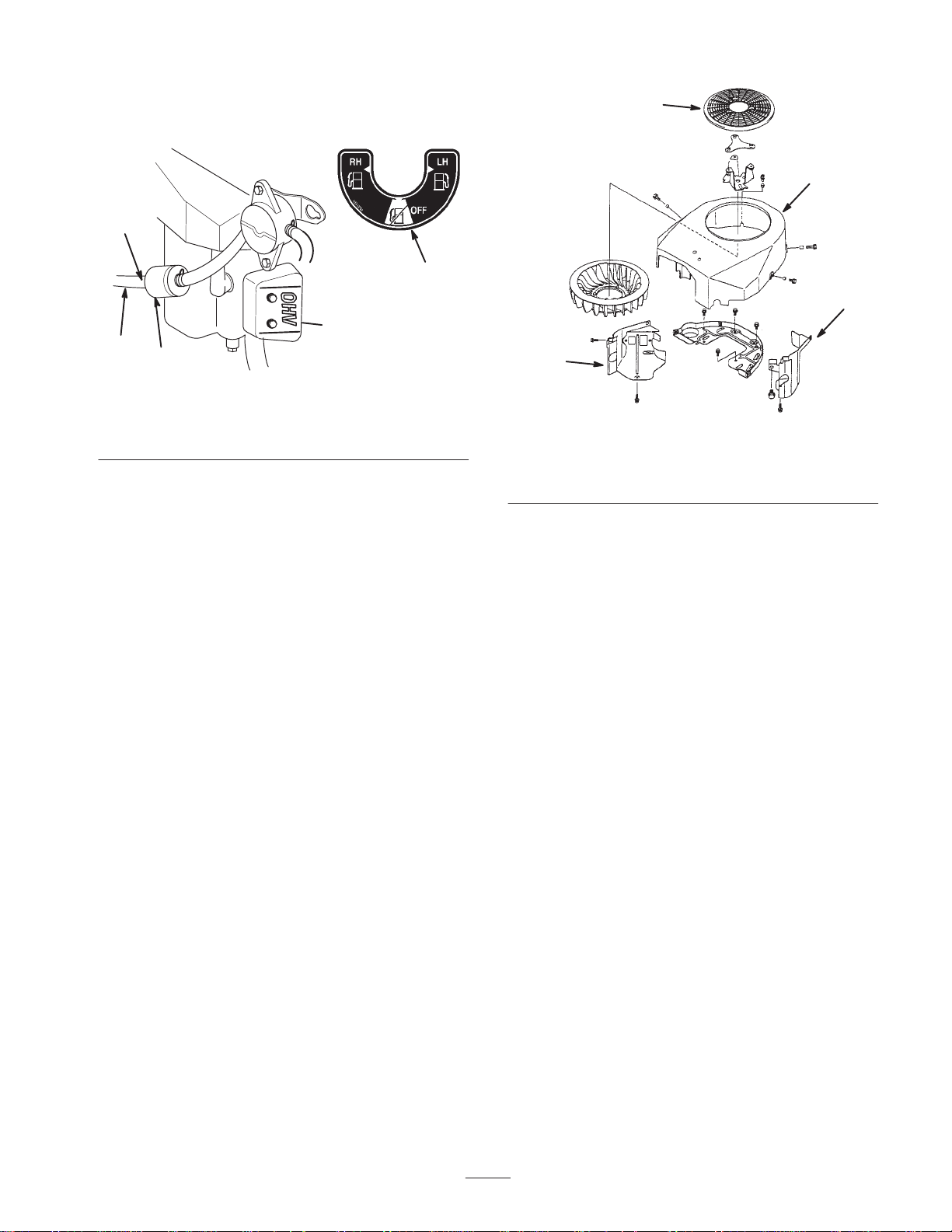

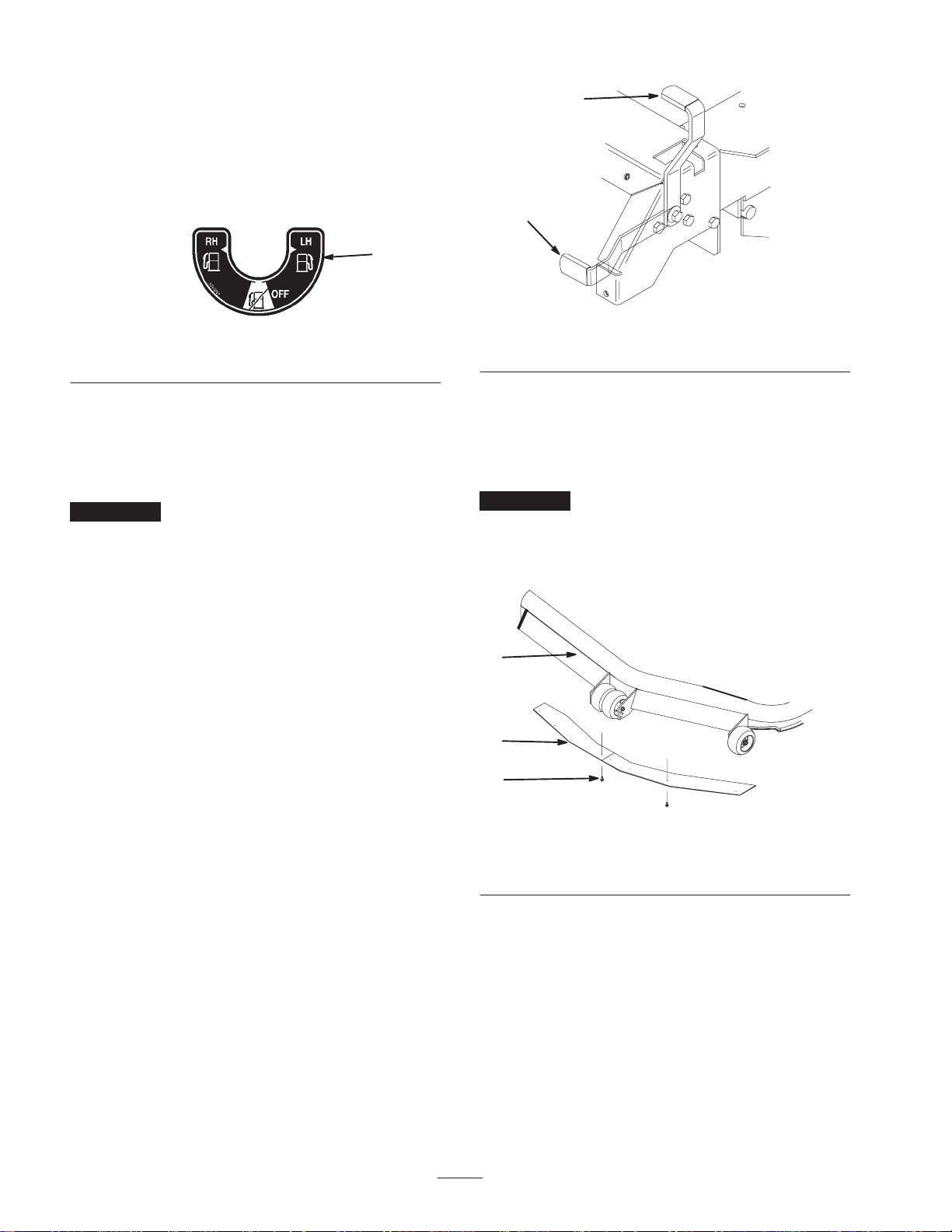

Switching the Fuel Tanks
The unit has two fuel tanks, one located on the left side
and one on the right side. Each tank connects to the fuel
shut off valve in the control panel. From there a common
fuel line leads to the engine (Fig. 11).
17
Loading...
+ 39 hidden pages
You need points to download manuals.
1 point = 1 manual.
You can buy points or you can get point for every manual you upload.
