570Z Series
Sprays
Sprays

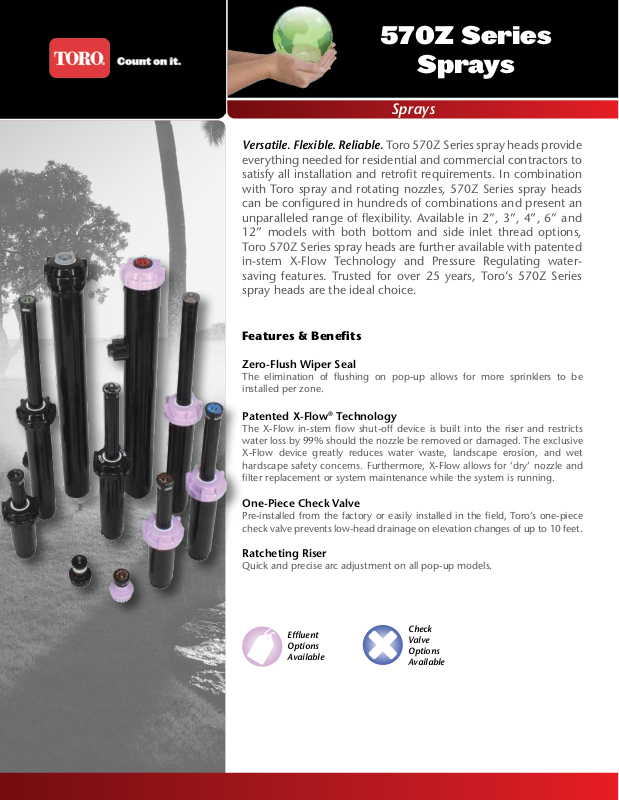

Versatile. Flexible. Reliable. Toro 570Z Series spray heads provide
everything needed for residential and commercial contractors to
satisfy all installation and retrofit requirements. In combination
with Toro spray and rotating nozzles, 570Z Series spray heads
can be configured in hundreds of combinations and present an
unparalleled range of flexibility. Available in 2”, 3”, 4”, 6” and
12” models with both bottom and side inlet thread options,
Toro 570Z Series spray heads are further available with patented
in-stem X-Flow Technology and Pressure Regulating watersaving features. Trusted for over 25 years, Toro’s 570Z Series
spray heads are the ideal choice.
Features & Benefits
Zero-Flush Wiper Seal
The elimination of flushing on pop-up allows for more sprinklers to be
installed per zone.
Patented X-Flow® Technology
The X-Flow in-stem flow shut-off device is built into the riser and restricts
water loss by 99% should the nozzle be removed or damaged. The exclusive
X-Flow device greatly reduces water waste, landscape erosion, and wet
hardscape safety concerns. Furthermore, X-Flow allows for ‘dry’ nozzle and
filter replacement or system maintenance while the system is running.
One-Piece Check Valve
Pre-installed from the factory or easily installed in the field, Toro’s one-piece
check valve prevents low-head drainage on elevation changes of up to 10 feet.
Ratcheting Riser
Quick and precise arc adjustment on all pop-up models.
Effluent
Options
Available
Check
Valve
Options
Available
Page 2
570Z Series Sprays
Water Management Highlights
No Water Wasted at System Start
System start up is a critical time
when water waste can occur. The
Toro 570Z Series spray head’s
wiper seal is pressure-activated
and prevents flow-by at start up,
meaning no water is wasted and
more heads can be installed on
the same line.
Enhanced
zero flush seal
X-Flow® Technology Cuts Off
Water Waste
Up to 40 gallons of water per minute
can escape through a spray head
that has a missing or damaged
nozzle. This wasted water can lead
to landscape erosion, property
damage, or unsafe conditions due
to wet hardscapes. The patented
X-Flow device is factory-installed in
the riser and holds back over 99%
of the water that would otherwise
be wasted in cases where the nozzle
has been compromised through
unintentional accidents or vandalism.
Furthermore, X-Flow technology
allows for spray head maintenance or
component replacement without the
need to turn off the system.
Reliability thanks to Built-in
Pressure Regulation
Toro’s factory-installed pressure
regulator eliminates water misting
and fogging at the nozzle that
can lead to rapid evaporation or
water being blown away from
the intended irrigation area. From
the first to the last head, the instem pressure regulator provides
a steady outlet pressure of 30
PSI and consistent spray head
performance across the zone.
Patented X-Flow®
Shut-off Device
Pressure Regulator
Without X-Flow
With X-Flow
Without Pressure
Regulation
With Pressure
Regulation
Page 3
570Z & 570ZLP
570Z Series Sprays
570Z (Standard Spray Heads)
570Z-2P
570Z-3P
570Z-4P
570Z-4P COM
570Z-6P
570Z-6P SI
570Z-6P COM
570Z-12P
570Z-12P SI
570Z-12P COM
570S
570ZLP (Low Pressure Spray Heads)
570Z-2LP
570Z-3LP
570Z-4LP
570Z-6LP
570Z-6LP SI
570Z-12LP
570Z-12LP SI
2” spray head
3” spray head
4” spray head
4” spray head with Check Valve
6” spray head
6” spray head, Side Inlet Body
6” spray head with Check Valve
12” spray head
12” spray head, Side Inlet Body
12” spray head with Check Valve
Shrub adapter
570Z, 2”, Low Pressure
570Z, 3”, Low Pressure
570Z, 4”, Low Pressure
570Z, 6”, Low Pressure
570Z, 6”, Low Pressure, Side Inlet Body
570Z, 12”, Low Pressure
570Z, 12”, Low Pressure, Side Inlet Body
570ZXF
570ZPR
570ZPRX
570ZXF (Spray Heads with X-Flow
570Z-4P XF
570Z-4P XF COM
570Z-6P XF
570Z-6P XF SI
570Z-6P XF COM
570Z-12P XF
570Z-12P XF SI
570Z-12P XF COM
570S-XF
4” spray head with X-Flow
4” spray head with X-Flow and Check Valve
6” spray head with X-Flow
6” spray head with X-Flow, Side Inlet Body
6” spray head with X-Flow and Check Valve
12” spray head with X-Flow
12” spray head with X-Flow, Side Inlet Body
12” spray head with X-Flow and Check Valve
Shrub adapter with X-Flow
®
Technology)
570ZPR (Spray Heads with Pressure Regulation)
570Z-4P PR
570Z-4P PR COM
570Z-6P PR
570Z-6P PR COM
570Z-12P PR
570Z-12P PR COM
570S-PR
4” spray head with Pressure Regulation
4” spray head with Pressure Regulation and Check Valve
6” spray head with Pressure Regulation
6” spray head with Pressure Regulation and Check Valve
12” spray head with Pressure Regulation
12” spray head with Pressure Regulation and Check Valve
Shrub adapter with Pressure Regulation
570ZPRX (Spray Heads with Pressure Regulation and X-Flow
570Z-4P PRX
570Z-4P PRX COM
570Z-4P PRX E
570Z-4P PRX COM E
570Z-6P PRX
570Z-6P PRX COM
570Z-6P PRX E
570Z-6P PRX COM E
570Z-6P SI PRX
570Z-12P PRX
570Z-12P PRX E
570Z-12P PRX COM E
570Z-12P SI PRX
570S-PRX
4” PRX spray head
4” PRX spray head with Check Valve
4” PRX spray head with Effluent cap
4” PRX spray head with Check Valve and Effluent cap
6” PRX spray head
6” PRX spray head with Check Valve
6” PRX spray head with Effluent cap
6” PRX spray head with Check Valve and Effluent cap
6” PRX spray head, Side Inlet Body
12” PRX spray head
12” PRX spray head with Effluent cap
12” PRX spray head with Check Valve and Effluent cap
12” PRX spray head, Side Inlet Body
PRX Shrub adapter
®
)
Page 4
570Z Series Sprays
Specifying Information—570Z Series
570X-XXP-SI-COM-E
Model Pop-Up
570X XXP SI COM E
S—Shrub
Z—Lawn
Pop-up &
High pop
Example: A 570ZLP Series Sprinkler (low pressure) with a pop-up height of 6”
Height
2—2” 3—3”
4—4” 6—6”
12—12”
and a check valve, you would specify: 570Z-6LP COM
Optional Optional
SI—Side
Inlet*
**Available with non-side inlet models except 2" and 3".
COM—Check- O Matic**
*Available for 6" and 12" models.
Optional
E—Effluent
Specifications
Dimensions
• Body diameters:
– 1 3/8” on 2”, 3”, 4”, 6” and 6” Side Inlet
– 1 5/8” on 12”
– 1 3/4” on 12” Side Inlet
• Cap diameter: 2”
• Inlet thread: 1/2” Female
• Side inlet location: 4¾” (measured from the top of spray head to
center of the side inlet port)
Operating Specifications
• Radius: 2 feet to 26 feet
• Operating pressure range: 20-75 PSI
• Recommended operating pressure for spray nozzles: 30 PSI
• Recommended operating pressure for rotating nozzles: 40-50 PSI
• Flow rate: 0.5 – 4.5 gallons per minute (GPM)
Additional Features
• Corrosion-resistant stainless steel retraction spring
• All models shipped with installed flush plug
Options Available
• Serviceable Check Valve (570CV) prevents low-head drainage on
elevation changes of up to 10 feet (not compatible with Side Inlet
models)
• Replacement Zero-Flush seal (570SEAL)
• Effluent water indicators:
– Effluent Shrub Adapter (102-1231)
– Effluent snap-on cap cover (89-9752)
– Effluent Cap with seal (102-1211)
• 6” Riser Extender (570-6X)
• 6” Stationary Riser (570-SR-6) [1/2” male-threaded inlet]
• 18” Stationary Riser (570-SR-18) [1/2” male-threaded inlet]
• Riser Pull-up Tool (89-6395)
• Nozzle Adjustment Key (89-7350)
Warranty
• Five years on 570ZPR and 570ZPRX models
• Two years on 570Z, 570ZLP and 570ZXF models
(15-75 PSI for Low Pressure models)
Specifying Information—570ZLP Series
570X-XXLP-XX-COM-E
Model Pop-Up
570X XXLP SI COM E
Z—Lawn Pop-up
& High Pop
Example: A 570ZLP Series Sprinkler (low pressure) with a pop-up height of 6"
Height
2—2”
3—3”
4—4”
6—6”
12—12”
and a check valve, you would specify: 570Z-6LP COM
Optional Optional
SI—Side
Inlet*
COM—Check- OMatic™**
Optional
E—Effluent
Specifying Information—570ZXF Series
570X-XXP-SI-XF-COM-E
Model Pop-Up
570X XXP SI COM E
S—Shrub
Z—Lawn Pop-up
& High-pop
Height
4—4"
6—6"
12—12"
Example: A 570Z XF Series Sprinkler with a pop-up height of 6"
and a check valve would be specified as: 570Z-6P XF COM
Optional Optional
SI—Side
Inlet*
COM—Check-O Matic**
Available for 6" and 12" models.
**Available with non-side inlet models.
Optional
E—Effluent
Specifying Information—
570ZPR & 570ZPRX Series
570X-XXP-SI-PRX-COM-E
Model Pop-up
570X XXP SI PRX COM E
S—Shrub
Z—Lawn
Pop-up
& High-
pop
Example: A 570Z PR Series Sprinkler with a pop-up height of 6” with a side-inlet
Example: A 570Z PRX Series Sprinkler with a pop-up height of 6” with a side-
Optional X-flow Optional
Height
4—4"
6—6"
12—12"
SI—Side
Inlet*
PR—Pressure
Reg. Only
PRX—Pressure
Reg. W/
X-flow™
option, would be specified as: 570Z-6P SI PR
inlet option, would be specified as: 570Z-6P SI PRX
*Available for 6” (150mm) and 12” (300mm) models.
PRX models not recommended for use with PCD nozzles.
Optional
COM—Check-O Matice*
**Available with non-side inlet models.
E—Effluent
