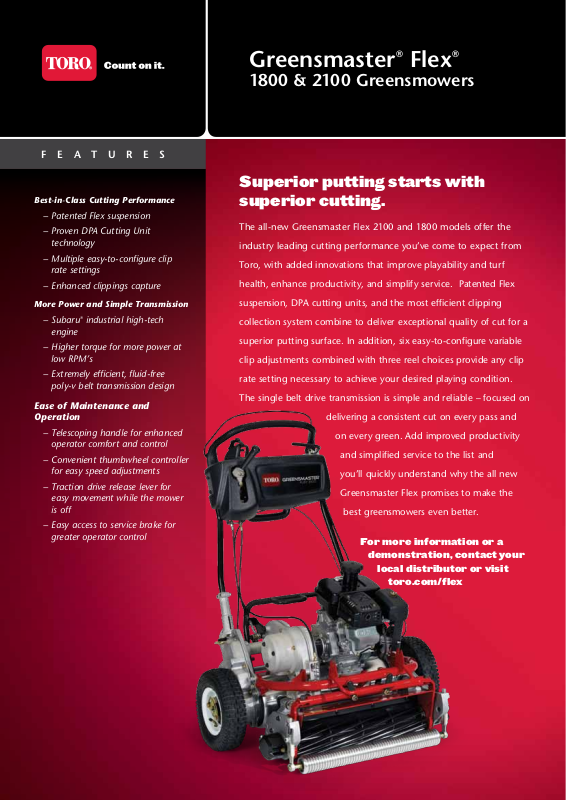

FEATURES
Best-in-Class Cutting Performance
– Patented Flex suspension
– Proven DPA Cutting Unit
technology
– Multiple easy-to-configure clip
rate settings
– Enhanced clippings capture
Greensmaster® Flex®
1800 & 2100 Greensmowers
Superior putting starts with
superior cutting.
The all-new Greensmaster Flex 2100 and 1800 models offer the
industry leading cutting performance you’ve come to expect from
Toro, with added innovations that improve playability and turf
health, enhance productivity, and simplify service. Patented Flex
More Power and Simple Transmission
– Subaru® industrial high-tech
engine
– Higher torque for more power at
low RPM’s
– Extremely efficient, fluid-free
poly-v belt transmission design
Ease of Maintenance and
Operation
– Telescoping handle for enhanced
operator comfort and control
– Convenient thumbwheel controller
for easy speed adjustments
– Traction drive release lever for
easy movement while the mower
is off
– Easy access to service brake for
greater operator control
suspension, DPA cutting units, and the most efficient clipping
collection system combine to deliver exceptional quality of cut for a
superior putting surface. In addition, six easy-to-configure variable
clip adjustments combined with three reel choices provide any clip
rate setting necessary to achieve your desired playing condition.
The single belt drive transmission is simple and reliable – focused on
delivering a consistent cut on every pass and
on every green. Add improved productivity
and simplified service to the list and
you’ll quickly understand why the all new
Greensmaster Flex promises to make the
best greensmowers even better.
For more information or a
demonstration, contact your
local distributor or visit
toro.com/flex
ENGINE
FUEL CAPACITY
TRANSMISSION
MAINTENANCE
GROUND SPEED
TRACTION DRUM
CONTROLS
HANDLE
TRANSPORT TIRES/KICKSTAND
REEL CONSTRUCTION
SUSPENSION
WIDTH OF CUT
HEIGHT OF CUT
CLIP FREQUENCIES
REEL DRIVE
CUTTING UNIT CONST.
CUTTING UNIT ADJUST./
SERVICE
BEDKNIFE
GRASS BASKET
ROLLERS
WORKING WEIGHT
CERTIFICATION
WARRANTY
GREENSMASTER FLEX 1800, MODEL 04041 GREENSMASTER FLEX 2100, MODEL 04040
®
Subaru
Heavy-Duty Industrial, 3.4 kW (4.5 hp), OHC, 4-cycle, CARB, EPA, EU certified gasoline engine with integral lighting coil. Displacement: 126 cc (7.7 cu
in.). Cast iron cylinder sleeve. Electronic ignition. Maximum noise suppression muffler.
2.7 liters (2.85 quarts) regular grade unleaded gasoline.
Engine powered ramp-engagement style friction clutch to the first stage of a multi-ribbed poly-V belt drive. The traction drums are belt driven through a spur
gear planetary differential with integral band style service/parking brake.
No grease zerks, sealed bearing design reduces daily maintenance.
Mowing speed: 2.6-5.8 km/h (1.6-3.6 mph). Transport speed (maximum): 8.7 km/h (5.4 mph).
Dual cast aluminum 19 cm (7.5”) diameter with taper on outer 5 cm (2”).
Engine Controls: Recoil starter, choke, fuel shut-off. Handle Controls: on/off (‘ignition’) switch, hour meter, throttle, dual function traction/reel control lever,
operator presence control, ser vice/park brake lever, on/off light switch (optional blank slot in console).
Loop style, molded contour upper, 2.5 cm (1”) diameter lower tube. Two angular adjustments and lift assist kickstand with 2.0 inches of telescoping adjustment.
Quick detachable 3.00/3.25 x 6 pneumatic. Kickstand standard equipment. Loop style with service position lock, 1” (2.5 cm) diameter tube.
8-Blade Reel : 12.7 cm (5”) diameter, 8 high carbon steel blades welded to 5 steel spiders (no 8-blade, 46 cm [18”] available).
11-Blade Reel: 12.7 cm (5”) diameter, 11 high carbon steel blades welded to 5 steel spiders.
14-Blade Reel: 12.7 cm (5”) diameter, 14 high carbon steel blades welded to 5 steel spiders.
Semi-floating cutting unit separable from drive unit, pivoting around reel centerline (pitch axis) and pivoting around bedknife centerline side to side (roll axis).
46 cm (18”) 53 cm (21”)
Front roller adjustable with 2 position rear roller: 1st position (spacer on top) 1.59 – 3.97 mm (1/16” - 5/32”). 2nd position (spacer below) 3.17 – 7.54 mm (1/8”
- 19/64”)
Reel drive consists of three pulleys of different diameter. 6-clip adjustments per reel, based on pulley configuration.
Transmission reel clutch shaft to a telescoping drive shaft with a pair of beam style couplers. Telescoping sleeve is retractable for ease of cutting unit removal.
Cast aluminum and machined tubular steel frame.
Cutting unit detachable from traction unit. Dual screw “click” adjustments to reel. Front roller height of cut adjustment. Sealed stainless steel reel bearings.
Bedknife is high carbon through-hardened steel. EdgeMax™ Microcut Bedknife is standard on 11 & 14-blade cutting unit. EdgeMax bedknife is solid tool steel.
Molded polyethylene with integrated graphics highlighting overlap guidelines, vented for high-ef ficiency collection.
Front Roller: Optional – must be ordered. Rear Roller: Aluminum full roller 5 cm (2”) diameter with sealed bearings.
Weight TBD 118 kg (260 lbs.) with basket, without transport tires and groomer.
ANSI & CE
Two-year limited warrant y. Refer to the Operator’s Manual for further details.
GREENSMASTER eFLEX 1800 ACCESSORIES
CUTTING UNITS & REEL OPTIONS GROOMER OPTIONS
04254 14-Blade DPA Cutting Unit 04259 Flex Groomer Drive, Fwd Rotating
04253 11-Blade DPA Cutting Unit 04263 Groomer Reel, Carbide 46 cm (18")
119 - 4102 14-Blade Reel 04264 Grooming Brush 46 cm (18”)
119 - 4101 11-Blade Reel 120-9661 Groomer Quick Up Kit
STANDARD CUTTING UNIT EQUIPMENT SCRAPER OPTIONS
117-153 0 EdgeMax™ Microcut Bedknife 120-9615 Narrow Wiehle Roller Scraper
BEDKNIFE & BEDBAR OPTIONS 120-9616 Wide Wiehle Roller Scraper
98-7260 Tournament Bedknife 120-9617 Full Roller Scraper
110 -23 01 Low Cut Bedknife 120-9621 Narrow Wiehle Roller Scraper Brush
110 -23 0 0 Extended Microcut Bedknife 120-9622 Wide Wiehle Roller Scraper Brush
98-7261 Microcut Bedknife 120-9623 Full Roller Scraper Brush
117-1532 EdgeMax™ Tournament Bedknife 120-9624 Narrow Wiehle Roller Scraper Comb
117-153 0 EdgeMax™ Microcut Bedknife 120-9625 Wide Wiehle Roller Scraper Comb
120-9600 High Height of Cut Kit 120-9626 Full Roller Scraper Comb
110-2282-01 Less Aggressive Bedbar 120-9627 Scraper Kit with Rear Roller
94 -9010 Height of Cut Adjustment Bar TRACTION UNIT ACCESSORIES
ROLLER OPTIONS 04265 LED Light Kit
120-9607 Front Narrow Wiehle Roller 04266 Push Broom Brush
120-9609 Front Wide Wiehle Roller 04123 Wheel Kit
120-9611
115 -7 3 61 Front Roller Extension Kit
114 - 4 63 0 Rear Roller Adjustment Kit
* Specifications and design subject to change without notice. Products depicted in this literature
are for demonstration purposes only. Actual products of fered for sale may var y in design, required
attachments and safety features. Consult your local Toro Distributor. The Greensmaster Flex 1800
& 2100 are manufactured in Tomah, WI ISO 9002 Certified Plant. Specifications subject to change.
Please contact your Toro distributor for details. ©2012 The Toro Company. All right s reser ved. 8111
Lyndale Ave. S., Bloomington, MN 55420-1196. Printed in the U.S.A. GB Part No. 200-5079
Front Full Steel Roller (6.3 cm
[2. 5”] dia.)
04399 Turf Evaluator
GREENSMASTER eFLEX 2100 ACCESSORIES
CUTTING UNITS & REEL OPTIONS ROLLER OPTIONS
04251 11-Blade DPA Cutting Unit 04255 Front Narrow Wiehle Roller
04252 14-Blade DPA Cutting Unit 04256 Front Wide Wiehle Roller
119 - 4105 14-Blade Reel 04257 Front Full Roller
119 - 4104 11-Blade Reel 04258 Long Front Narrow Wiehle Roller
119 - 4103 8-Blade Reel 115 -7 3 56 Rear Full Roller – Aluminum
STANDARD CUTTING UNIT EQUIPMENT 120-9595 Rear Full Roller – Steel
115 -188 0 EdgeMax™ Microcut Bedknife 115 -7 3 61 Front Roller Extension Kit
BEDKNIFE & BEDBAR OPTIONS 114 - 4 63 0 Rear Roller Adjustment Kit
93- 4263 Tournament Bedknife GROOMER OPTIONS
93- 4264 Low Cut Bedknife 04259 Flex Groomer Drive, Fwd Rotating
108 -4303 Extended Microcut Bedknife 04260 Flex Groomer Drive, Counter Rotating
93- 4262 Microcut Bedknife 04711 Groomer Reel, Carbide (RH)
108 -4302 Extended Tournament Bedknife 047 12 Groomer Reel, Spring Steel (RH)
115 -188 1 EdgeMax™ Tournament Bedknife 0 47 13 Grooming Brush
120-9600 High Height of Cut Kit 120-9661 Groomer Quick Up Kit
106-2648-01 Less Aggressive Bedbar SCRAPER OPTIONS
94 -9010 Height of Cut Adjustment Bar 115 -7 374 Narrow Wiehle Roller Scraper
TRACTION UNIT ACCESSORIES 115 -7 37 5 Wide Wiehle Roller Scraper
04265 LED Light Kit 115 -7 37 6 Full Roller Scraper
04266 Push Broom Brush 115-7 37 7 Narrow Wiehle Roller Scraper Brush
04123 Wheel Kit 115 -7 37 8 Wide Wiehle Roller Scraper Brush
04399 Turf Evaluator 115-7 37 9 Full Roller Scraper Brush
115 -7 3 80 Narrow Wiehle Roller Scraper Comb
115-7381 Wide Wiehle Roller Scraper Comb
115 -7 3 82 Full Roller Scraper Comb
115-7383 Rear Roller Scraper
