Toro 38743 Operator's Manual

PowerClear

ModelNo.38743—SerialNo.400010798andUp

®

721QZRSnowthrower

Introduction

WARNING

CALIFORNIA

Proposition65Warning

Thisproductcontainsachemicalorchemicals

knowntotheStateofCaliforniatocausecancer,

birthdefects,orreproductiveharm.

Theengineexhaustfromthisproduct

containschemicalsknowntotheStateof

Californiatocausecancer,birthdefects,

orotherreproductiveharm.

Thismachineisintendedtobeusedbyresidential
homeownersorprofessional,hiredoperators.Itis
designedprimarilyforremovingsnowfrompaved
surfaces,suchasdrivewaysandsidewalks,andother
surfacesfortrafconresidentialorcommercial
properties.Itisnotdesignedforremovingmaterials
otherthansnow,norisitdesignedforclearingoffgravel
surfaces.

Readthisinformationcarefullytolearnhowtooperateand
maintainyourmachineproperlyandtoavoidinjuryand
machinedamage.Youareresponsibleforoperatingthe
machineproperlyandsafely.

FormNo.3407-536RevA

Operator'sManual

Figure1

1.Modelandserialnumberlocation

ModelNo.

SerialNo.

Thismanualidentiespotentialhazardsandhassafety
messagesidentiedbythesafety-alertsymbol(Figure2),
whichsignalsahazardthatmaycauseseriousinjuryordeath
ifyoudonotfollowtherecommendedprecautions.

YoumaycontactTorodirectlyatwww.Toro.comformachine
andaccessoryinformation,helpndingadealer,ortoregister
yourmachine.

Wheneveryouneedservice,genuineToroparts,oradditional
information,contactanAuthorizedServiceDealerorToro
CustomerServiceandhavethemodelandserialnumbersof
yourmachineready.Figure1identiesthelocationofthe
modelandserialnumbersonthemachine.Writethenumbers
inthespaceprovided.

©2016—TheT oro®Company
8111LyndaleAvenueSouth
Bloomington,MN55420

Registeratwww.T oro.com.

Figure2

1.Safety-alertsymbol

Thismanualuses2wordstohighlightinformation.
Importantcallsattentiontospecialmechanicalinformation
andNoteemphasizesgeneralinformationworthyofspecial
attention.

Important:Ifyouareusingthismachineabove1500m
(5,000ft)foracontinuousperiod,ensurethattheHigh
AltitudeKithasbeeninstalledsothattheenginemeets
CARB/EPAemissionregulations.TheHighAltitude
Kitincreasesengineperformancewhilepreventing
spark-plugfouling,hardstarting,andincreased
emissions.Onceyouhaveinstalledthekit,attach
thehigh-altitudelabelnexttotheserialdecalonthe
machine.ContactanyAuthorizedT oroServiceDealer
toobtaintheproperHighAltitudeKitandhigh-altitude
labelforyourmachine.T olocateadealerconvenientto

OriginalInstructions(EN)

PrintedintheUSA

AllRightsReserved

*3407-536*A

you,accessourwebsiteatwww.Toro.comorcontactour
ToroCustomerCareDepartmentatthenumber(s)listed
inyourEmissionControlWarrantyStatement.

Removethekitfromtheengineandrestoretheengine
toitsoriginalfactorycongurationwhenrunningthe
engineunder1500m(5,000ft).Donotoperateanengine
thathasbeenconvertedforhigh-altitudeuseatlower
altitudes;otherwise,youcouldoverheatanddamage
theengine.

Ifyouareunsurewhetherornotyourmachinehasbeen
convertedforhigh-altitudeuse,lookforthefollowing
label(Figure3).

Figure3

ChangingtheEngineOil.........................................14

ServicingtheSparkPlug..........................................15

ReplacingtheDriveBelt..........................................16

AdjustingtheQuickShootControl...........................17

Storage........................................................................19

StoringtheMachine................................................19

Contents

Introduction..................................................................1

Safety...........................................................................3

SafetyandInstructionalDecals.................................3

Setup............................................................................4

1UnfoldingtheHandle............................................4

2InstallingtheDischargeChute................................4

3FillingtheEnginewithOil......................................5

4AdjustingtheControlCable...................................5

ProductOverview..........................................................6

Operation.....................................................................6

BeforeOperation.......................................................6

Safety.....................................................................6

FillingtheFuelTank................................................7

CheckingtheEngine-OilLevel..................................7

DuringOperation......................................................7

Safety.....................................................................7

StartingtheEngine..................................................8

EngagingtheRotorBlades........................................9

DisengagingtheRotorBlades...................................9

ShuttingOfftheEngine...........................................9

AdjustingtheDischargeChuteandChute

Deector...........................................................10

ClearingaCloggedDischargeChute.........................10

OperatingTips......................................................10

AfterOperation........................................................11

Safety....................................................................11

PreventingFreeze-upafterUse.................................11

Maintenance.................................................................12

RecommendedMaintenanceSchedule(s)......................12

MaintenanceSafety.................................................12

AdjustingtheControlCable.....................................12

InspectingtheRotorBlades.....................................13

2

Safety

•Keepclearofanydischargeopening.Keepbystandersa

safedistanceawayfromthemachine.

ThismachinecomplieswithANSIB71.3specicationsin
effectatthetimeofproduction.

•ReadandunderstandthecontentsofthisOperator’ sManual

beforeyoustarttheengine.Ensurethateveryoneusing
thisproductknowshowtouseitandunderstandsthe
warnings.

•Donotputyourhandsorfeetnearmovingcomponents

onthemachine.

•Donotoperatethemachinewithoutallguardsandother

safetyprotectivedevicesinplaceandworkingonthe
machine.

SafetyandInstructionalDecals

Safetyandinstructiondecalsarelocatednearareasofpotentialdanger.Replacedamagedor
missingdecals.

•Keepchildrenoutoftheoperatingarea.Neverallow

childrentooperatethemachine.

•Shutofftheenginebeforeunclogging,servicing,or

fuelingthemachine.

Youcanndadditionalitemsofsafetyinformationintheir
respectivesectionsthroughoutthismanual.

94-2577

1.Toengagetherotorblades,holdthecontrolbaragainst
thehandle.

2.Todisengagetherotorblades,releasethecontrolbar.

115-5698

OrderPartNo.1 17-9121

1.Cuttingdismembermenthazards,impellerandauger—do
notplaceyourhandinthechute;removetheignitionkey
andreadtheinstructionsbeforeservicingorperforming
maintenance.

OrderPartNo.1 17-6036

1.Warning—readthe

Operator'sManual.

2.Cutting/dismemberment
hazard,impeller—shutoff
theenginebeforeleaving
themachine.

3.Thrownobject
hazard—keepbystanders
asafedistanceawayfrom
themachine.

4.Fuelspillhazard—donot
tipmachinebackward.

5.Engineswitchon

117-9102

6.Engineswitchoff

7.Primer

8.Pushtheprimer3timesto
primetheengine.

9.ReadtheOperator's
Manualbeforechecking
engine-oillevel.

3

Setup

LooseParts

Usethechartbelowtoverifythatallpartshavebeenshipped.

ProcedureDescription

1

2

3
4

Nopartsrequired

Screw
Chuteassembly
Discharge-chutehandle1

Nopartsrequired

Nopartsrequired

1

UnfoldingtheHandle

NoPartsRequired

Procedure

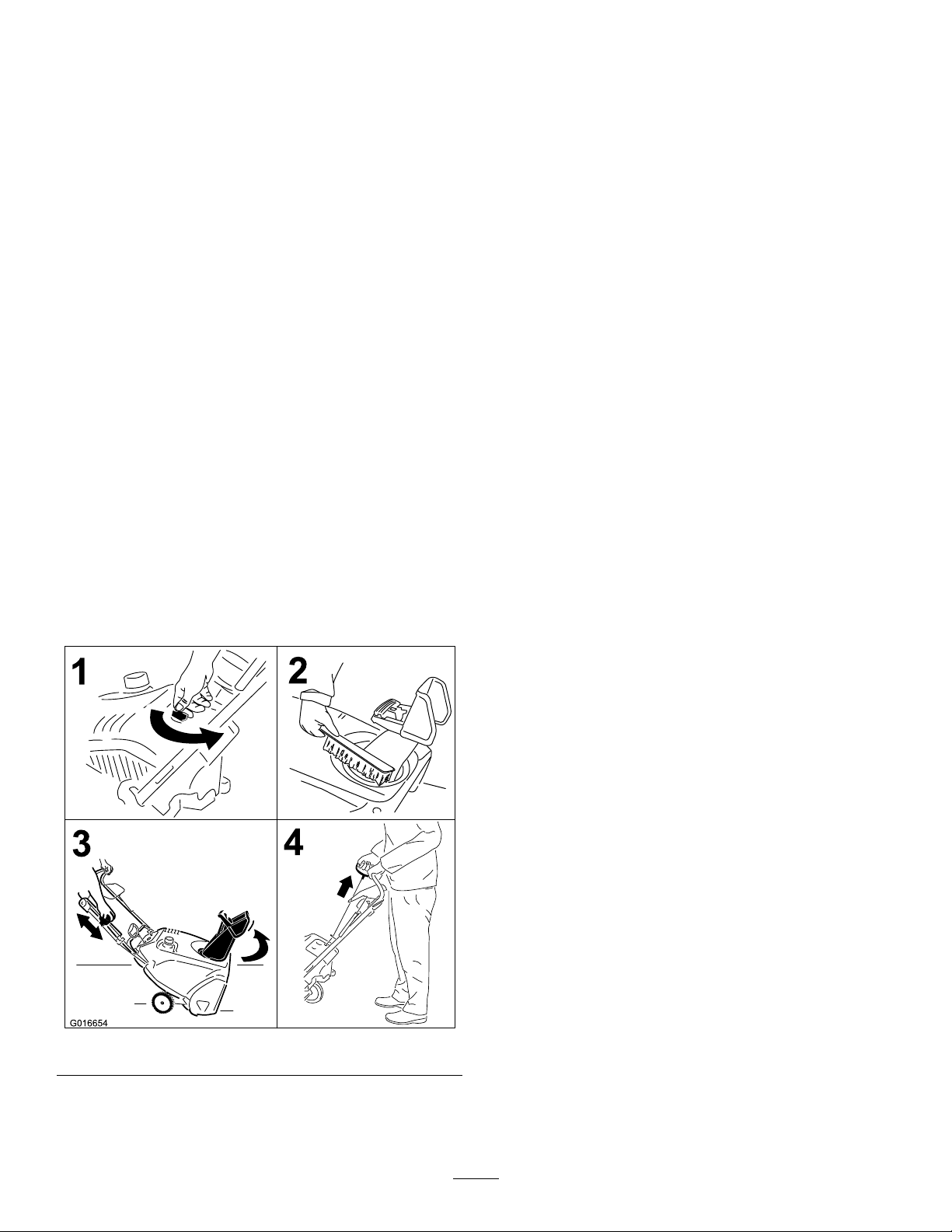

1.Loosenthehandleknobs,pullouttheU-shapedhandle
locksuntilyoucanmovethehandlefreely ,androtate
thehandletotheoperatingposition(Figure4).

Qty.

–

3
1

–

–

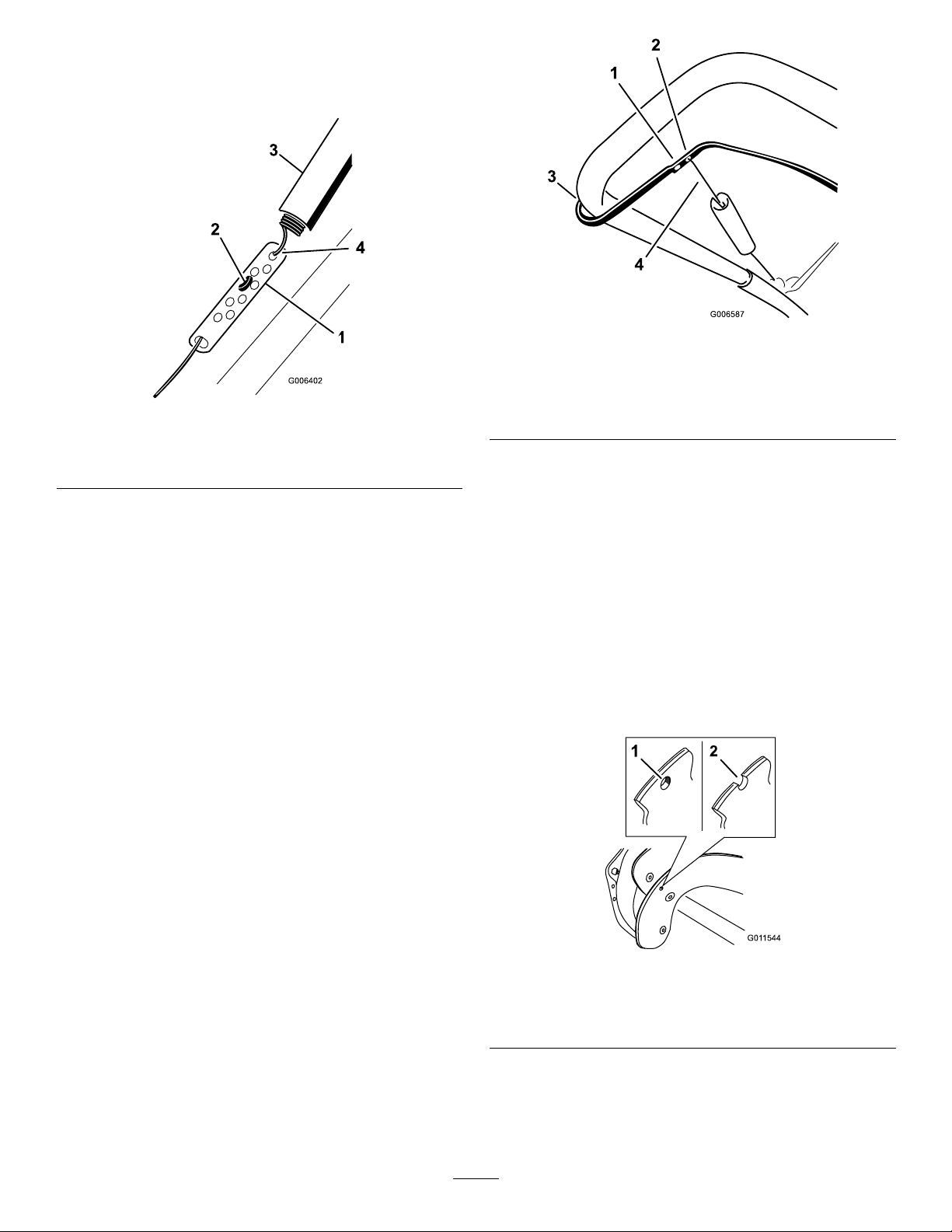

Important:Ensurethatyoudonotpinchorkink
thecontrolcable(Figure6).

Unfoldthehandle.

Installthedischargechute.

Filltheenginewithoil.

Adjustthecontrolcable.

Figure5

Use

Figure4

1.U-shapedhandlelock(2)

2.InserttheendoftheU-shapedhandlelockintothe
openholeinthehandleandtightenthehandleknobs
untiltheyaresnug(Figure5).

Note:Thehandleknobscontainnylocnutsthat
requiremorepressuretotightenfullytopreventthe
handlefromcominglooseduringoperation.

2.Handleknobs

Figure6

1.Controlcable

4

Maxll:.0.60L(20oz),type:automotivedetergentoilwith
anAPIserviceclassicationofSJ,SL,orhigher.

2

InstallingtheDischargeChute

Partsneededforthisprocedure:

3

Screw

1

Chuteassembly

1Discharge-chutehandle

Procedure

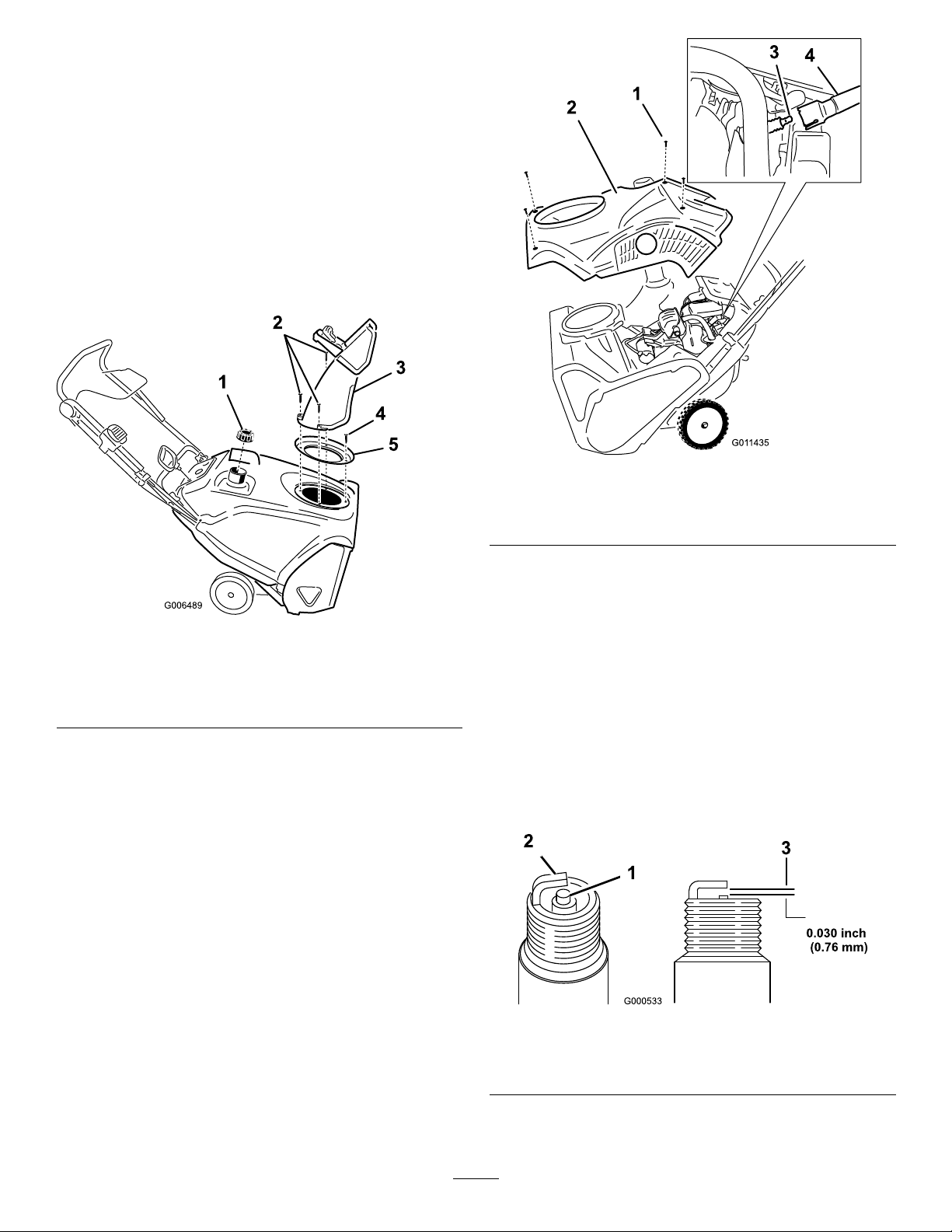

Installthedischargechuteasshown(Figure7).

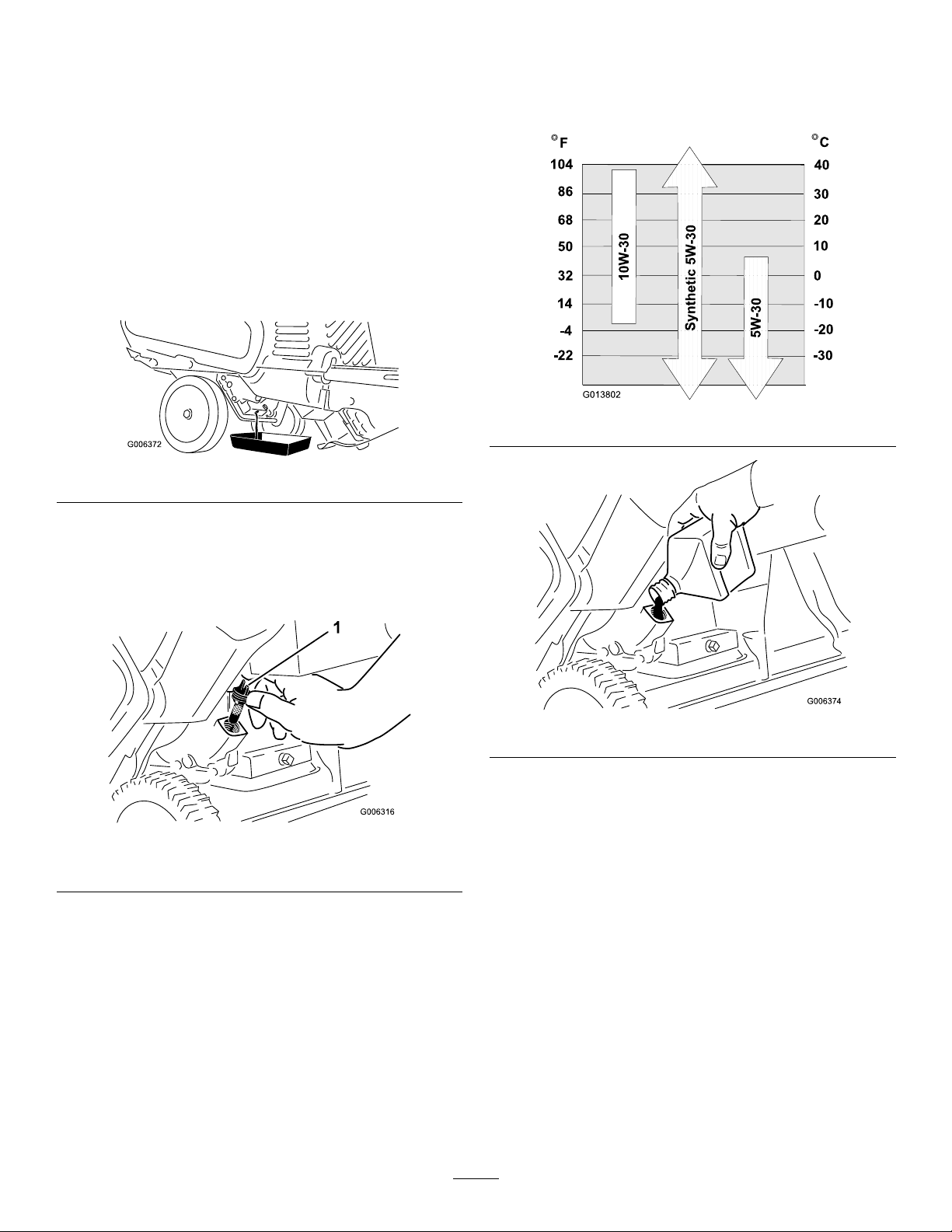

UseFigure8toselectthebestoilviscosityfortheoutdoor
temperaturerangeexpected.

Figure8

1.Movethemachinetoalevelsurface.

2.Cleanaroundtheoil-llcap(Figure9).

Figure7

1.Dischargechute

Note:Foreasierinstallation,useasmallratchetwrenchto
tightenthescrews.

Important:Donotovertightenthescrews;otherwise
youmaydamagethedischargechuteandpreventit
fromturningfreely.

2.Screw(3)

3

FillingtheEnginewithOil

NoPartsRequired

Procedure

Yourmachinedoesnotcomewithoilintheengine,butit
doescomewithabottleofoil.

Important:Beforestartingtheengine,lltheengine
withoil.

Note:Thebottleofoilmaycontainmoreoilthanisrequired.

Donotoverllorunderlltheengine.

Figure9

1.Oil-llcap

3.Unscrewtheoil-llcapandremoveit.

4.Withthemachineintheoperatingposition,carefully
pouroilintothecrankcaseuntilthepointofoverow.

Note:Youmaytipthemachineforward(handleup)
tomakeaddingoileasier.Remembertoreturnthe
machinetotheoperatingpositionbeforecheckingthe
oillevel.

Important:Donottipthemachinealltheway
forwardontoitsnose,orfuelmayleakoutofthe
machine.

5.Wait3minutesfortheoiltosettleandaddenoughto
bringittothepointofoverow .

6.Screwtheoil-llcapintotheoil-llholeandtightenit
securely.

5

4

AdjustingtheControlCable

NoPartsRequired

Procedure

RefertoAdjustingtheControlCable(page12).

ProductOverview

Figure10

1.Chute-deectortrigger

2.Dischargechute8.Ignitionkey

3.Fuel-tankcap

4.Controlbar10.Oil-drainplug

5.QuickShootcontrol11.Oil-llcap

6.Recoil-starthandle

7.Primer

9.Chokelever

12.Chutedeector

Operation

BeforeOperation

Safety

•Donotoperatethemachinewithoutwearingadequate

wintergarments.Avoidloosettingclothingthatcanget
caughtinmovingparts.Wearslipresistantfootwearthat
willimprovefootingonslipperysurfaces.

•Alwayswearsafetyglassesoreyeprotectionduring

operationorwhileperforminganadjustmentorrepairto
protectyoureyesfromforeignobjectsthatthemachine
maythrow .

•Thoroughlyinspecttheareawhereyouwillusethe

machineandremovealldoormats,sleds,boards,wires,
andotherforeignobjects.

•Ifashield,safetydevice,ordecalisdamaged,illegible,or

lost,repairorreplaceitbeforebeginningoperation.Also,
tightenanyloosefasteners.

6

FillingtheFuelTank

•Forbestresults,useonlyclean,fresh(lessthan30days

old),unleadedgasolinewithanoctaneratingof87or
higher((R+M)/2ratingmethod).

•Oxygenatedfuelwithupto10%ethanolor15%MTBE

byvolumeisacceptable.

•Donotuseethanolblendsofgasoline(suchasE15

orE85)withmorethan10%ethanolbyvolume.
Performanceproblemsand/orenginedamagemayresult
whichmaynotbecoveredunderwarranty.

•Donotusegasolinecontainingmethanol.

•Donotstorefueleitherinthefueltankorfuelcontainers

overthewinterunlessyouuseafuelstabilizer.

•Donotaddoiltogasoline.

Figure12

1.Oil-llcap

3.Unscrewtheoil-llcapandremoveit.

4.Iftheoillevelislow,slowlypouroilintotheoil-llhole
untilthepointofoverow .Wait3minutes,thencheck
theoillevelonthedipstickbywipingthedipstickclean
andtheninserting,butnotscrewingin,theoil-llcap
intothehole.

Note:Youmaytipthemachineforward(handleup)
tomakeaddingoileasier.Remembertoreturnthe
machinetotheoperatingpositionbeforecheckingthe
oillevel.

Figure11

1.6mm(1/4inch)

Note:Forbestresults,purchaseonlythequantityofgasoline
thatyouexpecttousein30days.Otherwise,youmayadd
fuelstabilizertonewlypurchasedgasolinetokeepitfreshfor
upto6months.

CheckingtheEngine-OilLevel

ServiceInterval:Beforeeachuseordaily—Checkthe

engine-oillevelandaddoilifnecessary.

1.Movethemachinetoalevelsurface.

2.Cleanaroundtheoil-llcap(Figure12).

Important:Donottipthemachinealltheway
forwardontoitsnose,orfuelmayleakoutofthe
machine.

Maxll:0.60L(20oz),type:SAE30detergentoil
withanAPIserviceclassicationofSJ,SL,orhigher.

5.Screwtheoil-llcapintotheoil-llholeandtighten
itsecurelybyhand.

DuringOperation

Safety

•Rotatingaugerbladescaninjurengersorhands.

Staybehindthehandlesandawayfromthedischarge
openingwhileoperatingthemachine.Keepyourface,

hands,feet,andanyotherpartofyourbodyor
clothingawayfrommovingorrotatingparts.

•Neverdirectthedischargetowardpeopleorareaswhere

propertydamagecanoccur.

•Exercisecautiontoavoidslippingorfalling.Alwaysbe

sureofyourfooting,andkeeparmholdonthehandles.
Walk;neverrun.

•Exerciseextremecautionwhenoperatingonslopes.

•Neveroperatethemachinewithoutgoodvisibilityor

light.

•Lookbehindandusecarewhenbackingupwiththe

machine.

•Whennotactivelyclearingsnow ,disengagepowertothe

rotorblades.

7

•Donotattempttoclearsnowfromagravelorcrushed

rocksurface.Thisproductisintendedforuseonlyon
pavedsurfaces.

•Donotusethemachineonaroof.

•Neverattempttomakeanyadjustmentswhiletheengine

isrunning(exceptwhenspecicallyrecommendedby
manufacturer).

•Stayalertforhiddenhazardsortrafc.

•Afterstrikingaforeignobject,shutofftheengine,

removetheignitionkey,thoroughlyinspectthemachine
foranydamage,andrepairthedamagebeforestarting
andoperatingthemachine.

•Ifthemachineshouldstarttovibrateabnormally,shutoff

theengineandcheckimmediatelyforthecause.

•Donotruntheengineindoors,exceptwhenstarting

theengineandfortransportingthemachineinorout
ofthebuilding.Opentheoutsidedoors;exhaustfumes
aredangerous.

Figure14

1.Chokelever

•Donotoverloadthemachinecapacitybyattemptingto

clearsnowattoofastarate.

•Nevertouchahotengineormufer.

StartingtheEngine

1.TurntheignitionkeyclockwisetotheONposition
(Figure13).

Figure13

2.Pulloutthechokelever(Figure14andFigure15).

Figure15

1.Symbolsonthechokeleverindicatingtopulloutthechoke
levertoactivatethechoke

3.Firmlypushintheprimerwithyourthumbasindicated
bythetablebelow,holdingintheprimerinforasecond
beforereleasingiteachtime(Figure16).

Temperature

-23°C(-10°F)andabove

Below-23°C(-10°F)

SuggestedNumberof

Primes

3

6

Figure16

Note:Removeyourglovewhenyoupushinthe

primersothataircannotescapefromtheprimerhole.

Important:Donotusetheprimerorthechokeif
theenginehasbeenrunningandishot.Excessive
primingmayoodtheengineandpreventitfrom
starting.

4.Pulltherecoil-starthandle(Figure17).

8

Figure17

Note:Ifyoupulltherecoilhandleandfeelno

resistance,thestartermaybefrozen.Thawoutthe
starterbeforeattemptingtostartthemachine.

5.Whiletheengineisrunning,pushinthechokelever
slowly.

EngagingtheRotorBlades

Toengagetherotorblades,holdthecontrolbaragainstthe
handle(Figure18).

DisengagingtheRotorBlades

Todisengagetherotorblades,releasethecontrolbar(Figure

19).

Figure19

ShuttingOfftheEngine

Toshutofftheengine,turntheignitionkeycounterclockwise
totheOFFposition(Figure20).

1.Controlbar

Figure20

Figure18

9

AdjustingtheDischargeChute

ClearingaCloggedDischarge

andChuteDeector

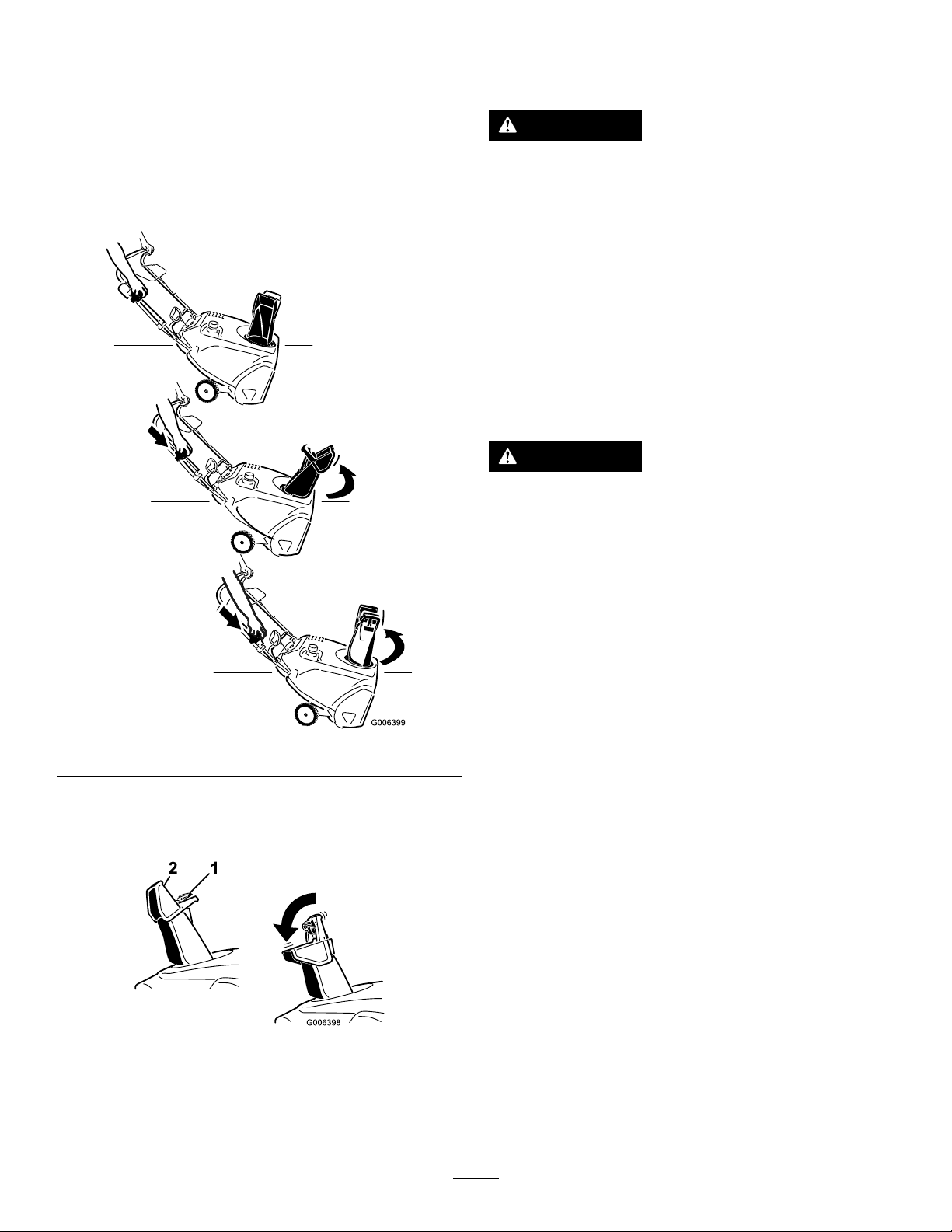

Toadjustthedischargechute,pressthetriggeroftheQuick
Shootcontrolontherighthandsideofthehandleandmove
itupordownalongthehandle.Movingthecontroldown
thehandlerotatesthedischargechutetotheleft;moving
thecontrolupthehandlerotatesthedischargechutetothe
right(Figure21).

Chute

WARNING

Handcontactwiththerotatingrotorbladesinside
thedischargechuteisthemostcommoncauseof
injuryassociatedwithmachines.Neveruseyour
handtocleanoutthedischargechute.

Toclearthechute:

•Shutofftheengine.

•Wait10secondstoensurethattherotorbladeshave

stoppedrotating.

•Alwaysuseacleanouttool,notyourhands.

OperatingTips

WARNING

Therotorbladescanthrowstones,toys,andother
foreignobjectsandcauseseriouspersonalinjuryto
theoperatorortobystanders.

Figure21

Toraiseorlowertheangleofthechutedeector,pressthe
triggeronthechutedeectorandmovethechutedeector
upordown(Figure22).

•Keeptheareatobeclearedfreeofallobjects
thattherotorbladescouldpickupandthrow.

•Keepallchildrenandpetsawayfromthearea
ofoperation.

•Removethesnowassoonaspossibleafteritfalls.

•Ifthemachinedoesnotpropelitselfforwardonslippery

surfacesorinheavysnow,pushforwardonthehandle,
butallowthemachinetoworkatitsownpace.

•Overlapeachswathtoensurecompletesnowremoval.

•Dischargethesnowdownwindwheneverpossible.

Figure22

1.Chute-deectortrigger2.Chutedeector

10

AfterOperation

1

2

G016654

3

4

Safety

•Neverstorethemachinewithfuelinthefueltankinsidea

buildingwhereignitionsourcesarepresent,suchashot
waterheaters,spaceheaters,orclothesdryers.Allowthe
enginetocoolbeforestoringinanyenclosure.

•Whenstoringthemachineformorethan30days,referto

Storage(page19)forimportantdetails.

PreventingFreeze-upafterUse

•Lettheenginerunforafewminutestopreventmoving

partsfromfreezing.Shutofftheengine,waitforall
movingpartstostop,andremoveiceandsnowfromthe
machine.

•Cleanoffanysnowandicefromthebaseofthechute.

•Rotatethedischargechuteleftandrighttofreeitfrom

anyicebuildup.

•WiththeignitionkeyintheOFFposition,pullthe

recoil-starthandleseveraltimestopreventtherecoil
starterfromfreezingup.

•Insnowyandcoldconditions,somecontrolsandmoving

partsmayfreeze.Donotuseexcessiveforcewhen
tryingtooperatefrozencontrols.Ifyouhavedifculty
operatinganycontrolorpart,starttheengineandletit
runforafewminutes.

Figure23

11

Maintenance

Note:Determinetheleftandrightsidesofthemachinefromthenormaloperatingposition.

RecommendedMaintenanceSchedule(s)

MaintenanceService

Interval

Afterthersthour

Aftertherst2hours

Beforeeachuseordaily

Yearly

Yearlyorbeforestorage

MaintenanceProcedure

•Checkthecontrolcableandadjustitifnecessary.

•Checkforloosefastenersandtightenthemifnecessary.

•Changetheengineoil.

•Checktheengine-oillevelandaddoilifnecessary.

•Checkthecontrolcableandadjustitifnecessary.

•InspecttherotorbladesandhaveanAuthorizedServiceDealerreplacetherotor
bladesandscraperifnecessary.

•Changetheengineoil.

•Checkthesparkplugandreplaceitifnecessary.

•Checkforloosefastenersandtightenthemifnecessary.

•HaveanAuthorizedServiceDealerinspectthedrivebeltandreplaceitifnecessary.

•Preparethemachineforstorage.

MaintenanceSafety

Readthefollowingsafetyprecautionsbeforeperformingany
maintenanceonthemachine:

•Beforeperforminganymaintenance,service,or

adjustment,shutofftheengineandremovethekey.If
majorrepairsareeverneeded,contactanAuthorized
ServiceDealer.

•Checkallfastenersatfrequentintervalsforproper

tightnesstobesurethemachineisinsafeworking
condition.

•Maintainorreplacesafetyandinstructionlabels,as

necessary.

•Donotchangethegovernorsettingsontheengine.

•PurchaseonlygenuineTororeplacementpartsand

accessories.

AdjustingtheControlCable

CheckingtheControlCable

ServiceInterval:Afterthersthour—Checkthecontrol

cableandadjustitifnecessary.

Yearly—Checkthecontrolcableandadjustitif
necessary.

Movethecontrolbarbacktowardthehandletoremovethe
slackinthecontrolcable(Figure24).

Figure24

1.Controlbar2.2mmto3mm(1/16inch
to1/8inch)gap

Note:Ensurethata2mmto3mm(1/16inchto1/8inch)
gapexistsbetweenthecontrolbarandthehandle(Figure24).

Important:Thecontrolcablemustcontainsomeslack
whenyoudisengagethecontrolbarfortherotorblades
tostopproperly.

12

AdjustingtheControlCable

1.Slideupthespringcoverandunhookthespringfrom
theadjusterlink(Figure25).

Figure26

Figure25

1.Adjusterlink

2.Z-tting

3.Springcover

4.Unhookthespringhere.

Note:Youcanpulluptheadjusterlinkandcableto
makeunhookingthespringeasier.

2.MovetheZ-ttingtoahigherorlowerholeonthe
adjusterlinkasneededtoobtainthe2mmto3mm
(1/16inchto1/8inch)gapbetweenthecontrolbar
andthehandle(Figure24).

Note:MovingtheZ-ttinghigherdecreasesthegap
betweenthecontrolbarandthehandle;movingit
lowerincreasesthegap.

3.Hookthespringtotheadjusterlinkandslidethespring
coverovertheadjusterlink.

4.Checktheadjustment;refertoCheckingtheControl

Cable(page12).

1.Removetheupperendof
springfromthishole.

2.Inserttheupperendof
springintothishole.

3.Pivotpoint

4.Upperendofspring

Note:Thebeltmayslip(squeal)inwetconditions;
todryoutthedrivesystem,starttherotorandrunit
withoutaloadfor30seconds.

InspectingtheRotorBlades

ServiceInterval:Yearly—Inspecttherotorbladesandhave

anAuthorizedServiceDealerreplacethe
rotorbladesandscraperifnecessary.

Beforeeachsession,inspecttherotorbladesforwear.When
arotorbladeedgehasworndowntothewear-indicatorhole,
haveanAuthorizedServiceDealerreplacetherotorblades
andthescraper(Figure27).

Note:Afterextendeduse,thedrivebeltmaywear
andloseitsproperbelttension.Ifthedrivebeltslips
(continuouslysqueals)underaheavyload,disconnect
thespringfromtheadjustorlinkandmovetheupper
endofthespringtotheholethatisfurtherfrom
thepivotpointinthecontrolbar(Figure26).Then
connectthespringtotheadjustorlinkandadjustthe
controlcable.

1.Thewear-indicatorholeis
intact;youdonotneedto
replacetherotorblades.

13

Figure27

2.Thewear-indicatorholeis
exposed;replacetherotor
blades.

ChangingtheEngineOil

ServiceInterval:Aftertherst2hours

Yearly

Runtheengineafewminutesbeforechangingtheoiltowarm
it.Warmoilowsbetterandcarriesmorecontaminants.

1.Siphonthefuelfromthefueltankintoanapproved
fuelcontainer,orruntheengineuntilitshutsoff.

2.Movethemachinetoalevelsurface.

3.Placeanoil-drainpanundertheoil-drainplug,remove
theplug,andtipthemachinebackwardanddrainthe
usedoilinthepan(Figure28).

Figure28

Maxll:0.60L(20oz),type:automotivedetergentoil
withanAPIserviceclassicationofSJ,SL,orhigher.

UseFigure30belowtoselectthebestoilviscosityfor
theoutdoortemperaturerangeexpected.

Figure30

4.Afterdrainingtheusedoil,returnthemachinetothe
operatingposition.

5.Installtheoil-drainplugandtightenitsecurely .

6.Cleanaroundtheoil-llcap(Figure29).

Figure29

1.Oil-llcap

7.Unscrewtheoil-llcapandremoveit(Figure29).

8.Withthemachineintheoperatingposition,carefully
pouroilintotheoil-llholetothepointofoverow
(Figure31).

Figure31

9.Wait3minutesfortheoiltosettleandaddenoughto
bringittothepointofoverow .

10.Screwtheoil-llcapintotheoil-llhole,andtighten
itsecurelybyhand.

11.Wipeupanyspilledoil.

12.Disposeoftheusedoilproperlyatalocalrecycling
center.

Note:Youmaytipthemachineforward(handleup)
tomakeaddingoileasier.Remembertoreturnthe
machinetotheoperatingpositionbeforecheckingthe
oillevel.

Important:Donottipthemachinealltheway
forwardontoitsnose,orfuelmayleakoutofthe
machine.

14

ServicingtheSparkPlug

ServiceInterval:Y early—Checkthesparkplugandreplace

itifnecessary.

UseaNGKBPR6ESorChampionRN9YCsparkplug
orequivalent.

1.Shutofftheengineandwaitforallmovingpartsto
stop.

2.Rotatethedischargechutesothatitfacesforward.

3.Removethedischargechute,thedischarge-chute
handle,andthechutesealbyremovingthe3large
screwsand1smallscrew(Figure32).

Figure33

1.Screw(4)3.Sparkplug

2.Shroud4.Spark-plugwire

Figure32

1.Fuel-tankcap

2.Largescrews(3)5.Chuteseal

3.Dischargechute

4.Smallscrew

4.Removethe4screwsthatsecuretheshroud(Figure33).

5.Removethefuel-tankcap.

6.Removetheshroud(Figure33).

7.Installthefuel-tankcap.

8.Disconnectthewirefromthesparkplug.

9.Cleanaroundthesparkplug.

10.Removethesparkplugfromthecylinderhead.

Important:Replaceacracked,fouled,ordirty
sparkplug.Donotcleantheelectrodesbecause
gritenteringthecylindercandamagetheengine.

11.Setthegapontheplugto0.76mm(0.030inch)as
showninFigure34.

Figure34

1.Center-electrodeinsulator3.Airgap(nottoscale)

2.Sideelectrode

12.Installthesparkplugandtorqueitto27to30N∙m
(20to22ft-lb).

15

13.Connectthewiretothesparkplug.

Note:Ensurethatthebreathertubeisroutedabove
thespark-plugwireasshowninFigure35.

Figure35

1.Breathertube

2.Carburetor-drainbolt

14.Removethefuel-tankcap.

15.Installtheshroudwiththescrewsthatyouremoved
instep4.

Note:Ensurethattheupperandlowershroudst
togetherinthesidegrooves.

16.Installthefuel-tankcap.

17.Installthechuteseal,dischargechute,and
discharge-chutehandleontothemachineusingthe
hardwarethatyouremovedinstep3.

Figure36

1.Drive-beltcover6.Drivebelt

2.Bolt(3)7.Rotorshaft

3.Rotor-pulleybolt

4.Curvedwasher

5.Rotorpulley10.Enginepulley

8.Brakespring(unhookfrom
idlerarmhere)

9.Idlerpulley

2.Unhookthebrakespringfromtheidlerarmtorelease
thebelttension(Figure36).

3.Removethescrewandcurvedwasherthatholdsthe
rotorpulley(Figure36).

4.Removetherotorpulleyandthedrivebelt(Figure36).

5.Installthenewdrivebelt,routingitasshowninFigure

37.

Note:Thesmallscrewgoesthroughthesmallhole
inthechutesealatthefrontofthedischarge-chute
opening.

ReplacingtheDriveBelt

Ifthedrivebeltbecomesworn,oil-soaked,excessively
cracked,frayed,orotherwisedamaged,replacethebelt.

1.Removethedrivebeltcoverbyremovingthe3boltsas
showninFigure36.

Figure37

1.Brakespring(installon
idlerarmhere)

2.Idlerpulley4.Rotorpulley

3.Enginepulley

Note:Routethenewdrivebeltrstaroundtheengine
pulley,thentheidlerpulley ,andnallyaroundthe
looserotorpulleypositionedjustabovetherotorshaft
(Figure36).

6.Installtherotorpulleyontotherotorshaft(Figure36).

7.Installthecurvedwasherandtherotor-pulleyboltand
tightenthemsecurely(Figure36).

Note:Theconcavesideofthecurvedwashergoes
againsttheoutsideofthepulley.

16

8.Installthebrakespringontotheidlerarm(Figure37).

9.Installthedrivebeltcoverwiththeboltsthatyou
removedinstep1.

Note:Ensurethatthedrivebeltisproperlyadjusted
andoperating;refertoCheckingtheControlCable

(page12)andAdjustingtheControlCable(page13).

AdjustingtheQuickShoot Control

Ifthereismorethan13mm(1/2inch)ofslackintheQuick
Shootcable(Figure38)orthedischargechutedoesnotrotate
leftandrightinequalangles,adjusttheQuickShootcontrol
cables.

Figure38

1.13mm(1/2inch)maximumslack

1.Loosenthe2QuickShootcontrol-cableclamps(Figure

39).

Figure40

1.Arrows

3.Rotatethedischargechutesothatitfacesstraight
aheadandthearrowonthebackofthedischargechute
alignswiththearrowontheshroud(Figure41).

Figure39

1.Cableclamps

2.PositiontheQuickShootcontrolbetweenthe2arrows
locatedontherightsideoftheupperhandle(Figure

40).

Figure41

17

4.Holdthedischargechuteinthestraight-aheadposition,
pullthelowercablecasingdownwarduntilyouremove
theslackinthecable,andtightenthescrewonthe
lowercableclampsecurely(Figure42).

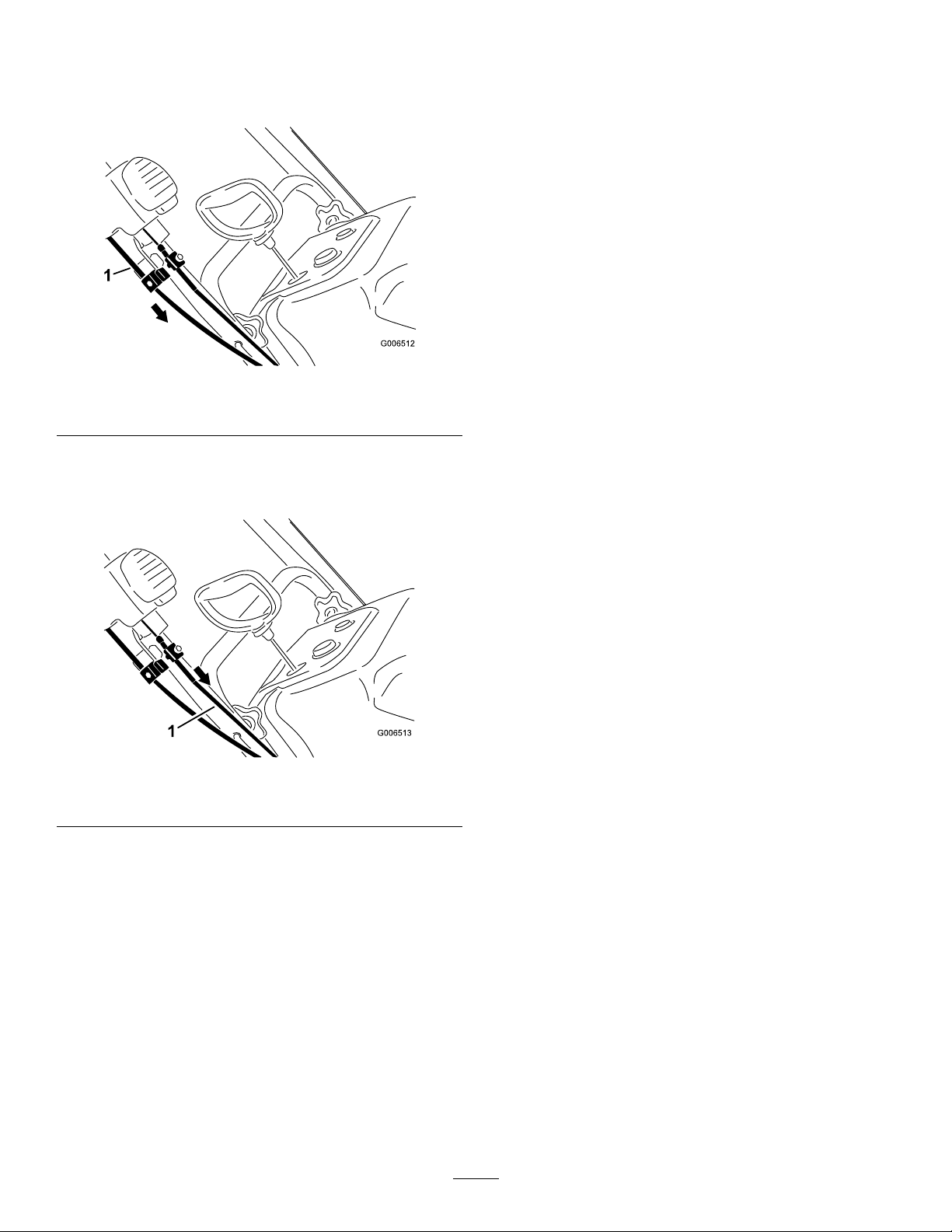

Figure42

1.Lowercablecasing

5.Pulltheuppercablecasingforwarduntilyouremove
theslackinthecable,andtightenthescrewonthe
uppercableclampsecurely(Figure43).

Figure43

1.Uppercablecasing

Note:Donotover-tensionthecables.Ifthecables
areover-tensioned,theQuickShootwillbehardto
operate.

18

Storage

StoringtheMachine

WARNING

•Fuelfumesarehighlyammable,explosive,and
dangerousifinhaled.Ifyoustorethemachine
inanareawithanopename,thefuelfumes
mayigniteandcauseanexplosion.

•Donotstorethemachineinahouse(living
area),basement,oranyotherareawhereignition
sourcesmaybepresent,suchashotwaterand
spaceheaters,clothesdryers,furnaces,and
otherlikeappliances.

•Donottipthemachinebackwardwithfuelin
thefueltank;otherwise,fuelmayleakoutof
themachine.

1.Onthelastrefuelingoftheseason,addfuelstabilizer
tofreshfuelasdirectedbytheenginemanufacturer.

16.Coverthemachineandstoreitinaclean,dryplace
outofthereachofchildren.Allowtheenginetocool
beforestoringitinanyenclosure.

2.Runtheenginefor10minutestodistributethe
conditionedfuelthroughthefuelsystem.

3.Shutofftheengine,allowittocool,andsiphonthe
fueltankorruntheengineuntilitshutsoff.

4.Starttheengineandrunituntilitshutsoff.

5.Chokeorprimetheengine,startitathirdtime,and
runtheengineuntilitdoesnotstart.

6.Drainthefuelinthecarburetorthroughthe
carburetor-drainbolt(Figure35)intoanapproved
gasolinecontainer.

7.Disposeofunusedfuelproperly.Recycleitaccording
tolocalcodes,oruseitinyourautomobile.

8.Whiletheengineisstillwarm,changetheengineoil.
RefertoChangingtheEngineOil(page14).

9.Removethesparkplug.

10.Squirt10ml(2tsp)ofoilintothespark-plughole.

11.Installthesparkplugbyhandandthentorqueitto27
to30N∙m(20to22ft-lb).

12.WiththeignitionkeyintheOFFposition,pullthe
recoil-starthandleslowlytodistributetheoilonthe
insideofthecylinder.

13.Cleanthemachine.

14.Touchupchippedsurfaceswithpaintavailablefroman
AuthorizedServiceDealer.Sandaffectedareasbefore
painting,andusearustpreventativetopreventthe
metalpartsfromrusting.

15.Tightenanyloosefasteners.Repairorreplaceany
damagedparts.

19

Notes:

Notes:

EmissionControlWarrantyStatement

FortheUnitedStates,California,andCanada

YourWarrantyRightsandObligations

TheCaliforniaAirResourcesBoard(CARB),theU.S.EnvironmentalProtectionAgency(EPA),andTheT oroCompany,arepleasedtoexplainthe
emissioncontrolsystemwarrantyonyour2017–2018smalloff-roadengine/equipment.InCaliforniaandtheUnitedStates,newsmalloff-road
engines/equipmentmustbedesigned,built,andcertiedtomeetstringentanti-smogstandards.TheToroCompanywarrantstheemissioncontrol
systemonyoursmalloff-roadengine/equipmentfortheperiodoftimelistedbelow,providedtherehasbeennoabuse,neglect,orimpropermaintenance
ofyoursmalloff-roadengine/equipment.

Youremissioncontrolsystemmayincludepartssuchasthecarburetor,fuel-injectionsystem,theignitionsystem,catalyticconverter,fueltanks,fuellines,
fuelcaps,valves,canisters,lters,vaporhoses,clamps,connectors,andotherassociatedemission-relatedcomponents.

Whereawarrantableconditionexists,TheT oroCompanywillrepairyoursmalloff-roadengine/equipmentatnocosttoyouincludingdiagnosis,
partsandlabor.

Manufacturer’sWarrantyCoverage

ThisemissioncontrolsystemiswarrantedfortwoyearsorthedurationofTheToroWarranty,whicheverislonger.Ifanyemission-relatedpartonyour
engine/equipmentisdefective,thepartwillberepairedorreplacedbyTheT oroCompany.

OwnerResponsibilities

Asthesmalloff-roadengineowner,youareresponsiblefortheperformanceoftherequiredmaintenancelistedinyourOperator'sManual.Werecommend
thatyouretainallreceiptscoveringmaintenanceonyoursmalloff-roadengine/equipment,butwecannotdenywarrantysolelyforthelackofreceipts.

Asthesmalloff-roadengine/equipmentowner ,youshouldhoweverbeawarethatwemaydenyyouwarrantycoverageifyoursmalloff-road
engine/equipmentoraparthasfailedduetoabuse,neglect,impropermaintenanceorunapprovedmodications.

Youareresponsibleforpresentingyoursmalloff-roadengine/equipmenttoaT oroDistributionCenterorServiceCenterassoonasaproblemexists.The
warrantyrepairsshouldbecompletedinareasonableamountoftime,nottoexceedthirty(30)days.

Ifyouhaveanyquestionsregardingyourwarrantycoverage,contactusat:

CustomerCareDepartment,ConsumerDivision
ToroWarrantyCompany
811 1LyndaleAvenueSouth
Bloomington,MN55420-1196
1-888-384-9939(U.S.andCanadiancustomers)
emailCustomerSupportat:www.toro.com

*374-0320*

GeneralEmissionsWarrantyCoverage

TheT oroCompanywarrantstotheultimatepurchaserandeachsubsequentpurchaserthatthesmalloff-roadengine/equipmentis:

•Designed,built,andcertiedtoconformwithallapplicableemissionsregulations;and

•Freefromdefectsinmaterialsandworkmanshipthatcouldcausethefailureofawarrantedpart;and

•Identicalinallmaterialrespectstothepartsasdescribedintheapplicationforcertication.

Thewarrantyperiodbeginsonthedatethesmalloff-roadengine/equipmentisdeliveredtoanultimatepurchaser.Thewarrantedperiodistwoyearsor
thedurationofTheToroWarranty,whicheverislonger.

Subjecttocertainconditionsandexclusionsasstatedbelow,thewarrantyonevaporativeemissions-relatedpartsisasfollows:

1.Anywarrantedpartthatisnotscheduledforreplacementasrequiredmaintenanceinthewritteninstructionssupplied,iswarranted
forthewarrantyperiodstatedabove.Ifthepartfailsduringtheperiodofwarrantycoverage,thepartwillberepairedorreplacedby
TheT oroCompany .Anysuchpartrepairedorreplacedunderwarrantywillbewarrantedfortheremainderofthewarrantyperiod.

2.Anywarrantedpartthatisscheduledonlyforregularinspectioninthewritteninstructionssuppliediswarrantedforthewarranty
periodstatedabove.Anysuchpartrepairedorreplacedunderthewarrantywillbewarrantedfortheremainderofthewarrantyperiod.

3.Anywarrantedpartthatisscheduledforreplacementasrequiredmaintenanceinthewritteninstructionssuppliedis
warrantedfortheperiodoftimebeforetherstscheduledreplacementdateforthatpart.Ifthepartfailsbeforetherst
scheduledreplacement,thepartwillberepairedorreplacedbyTheToroCompany .Anysuchpartrepairedorreplaced
underwarrantywillbewarrantedfortheremainderoftheperiodpriortotherstscheduledreplacementpointforthepart.

4.Repairorreplacementofanywarrantedpartunderthewarrantyprovisionshereinmustbeperformedatan
AuthorizedServiceDealeratnochargetotheowner.

5.WarrantyservicesorrepairswillbeprovidedatallServiceDealersauthorizedtoservicethesubjectenginesorequipment.

6.Thesmalloff-roadengine/equipmentownerwillnotbechargedfordiagnosticlaborthatisdirectlyassociatedwithdiagnosis
ofadefective,emission-relatedwarrantedpart,providedthatsuchdiagnosticworkisperformedatanAuthorizedServiceDealer.

7.TheToroCompanyisliablefordamagestootherengine/equipmentcomponentscausedbyafailureunderwarrantyofanywarrantedpart.

8.Throughoutthesmalloff-roadengine/equipmentwarrantyperiodstatedabove,TheToroCompanywillmaintainasupply
ofwarrantedpartssufcienttomeettheexpecteddemandforsuchparts.

9.Manufacturerapprovedreplacementpartsmaybeusedintheperformanceofanywarrantymaintenanceorrepairsand
mustbeprovidedwithoutchargetotheowner.SuchusewillnotreducethewarrantyobligationsofTheT oroCompany .

10.Add-onormodiedpartsthatarenotapprovedbyTheT oroCompanymaynotbeused.Theuseofanon-approvedadd-onormodiedpartsby
thepurchaserwillbegroundsfordisallowingawarrantyclaim.TheT oroCompanywillnotbeliabletowarrantfailuresofwarrantedpartscausedby
theuseofannon-approvedadd-onormodiedparts.

374-0320RevA

WarrantedParts

Thefollowingemissionwarrantypartsarecovered,totheextentthesepartswerepresentontheT oroengine/equipmentand/orT orosuppliedfuelsystem:

1.FuelSystemParts

•Carburetorandinternalparts

•Coldstartingenrichment(primerorchoke)

•Fuelpump

•Fuelline,ttings,andclamps

•Fueltank,cap,andtether

•Carboncanister

2.AirInductionSystem

•Aircleaner

•Intakemanifold

•Crankcaseventandline(s)

•Purgelineandttings

3.IgnitionSystem

•Sparkplug(s)andwire(s)

•Magnetoignitionsystem

4.CatalyticExhaustSystem

•Catalyticconverter

•Exhaustmanifold

•Airinjectorsystemandvalve(s)

5.MiscellaneousItemsUsedinEmissionControlSystem

•Valves,switches,andlinkages

•Connectors,ttings,andbrackets

374-0320RevA

TheToroWarrantyand

TheToro2-YearGTSStartingGuarantee

AT wo-Y earFullWarranty(45DayLimitedWarrantyforCommercialUse)

PowerClear
Single-StageSnowthrowers

TheToroStartingGuarantee

TheT oroCompanyanditsafliate,T oroWarrantyCompany,pursuant
toanagreementbetweenthem,jointlyguaranteethatyourT oroGTS
(GuaranteedtoStart)engine,whenusedforresidentialpurposes*,willstart
ontherstorsecondpullfortwo(2)yearsfromthedateofpurchase,ifyou
providetheroutinemaintenanceitrequires,orwewillxitfreeofcharge.
TheGTSStartingGuaranteedoesnotapplyundercommercialuse.

Thiswarrantycoversthecostofpartsandlabor,butyoumustpay
transportationcosts.

TheToroTotalCoverageGuarantee

TheToroCompanyanditsafliate,ToroWarrantyCompany,pursuantto
anagreementbetweenthem,jointlypromisetorepairtheT oroProduct
listedbelowifusedforresidentialpurposes*,ifdefectiveinmaterialsor
workmanshiporifitstopsfunctioningduetothefailureofacomponent
fortheperiodlistedbelow.

Thiswarrantycoversthecostofpartsandlabor,butyoumustpay
transportationcosts.

Thefollowingtimeperiodsapplyfromtheoriginaldateofpurchase:

ProductsWarrantyPeriod

PowerClearSnowthrowersandAttachments

2years

LimitedWarrantyforCommercialUse

Gas-poweredT oroProductsusedforcommercial,institutional,orrental
use,arewarrantedfor45daysagainstdefectsinmaterialsorworkmanship.
Componentsfailingduetonormalweararenotcoveredbythiswarranty .

InstructionsforObtainingWarrantyService

IfyouthinkthatyourToroProductcontainsadefectinmaterialsor
workmanship,followthisprocedure:

1.ContactanyAuthorizedToroServiceDealertoarrangeserviceat
theirdealership.T olocateadealerconvenienttoyou,accessourweb
siteatwww.T oro.com.Y oumayalsocallthenumberslistedinitem#3
tousethe24-hourT oroDealerlocatorsystem.

2.Bringtheproductandyourproofofpurchase(salesreceipt)tothe
ServiceDealer.Thedealerwilldiagnosetheproblemanddetermineif
itiscoveredunderwarranty.

3.IfforanyreasonyouaredissatisedwiththeServiceDealer’s
analysisorwiththeassistanceprovided,contactusat:

ToroW arrantyCompany
CustomerCareDepartment,RLCDivision
811 1LyndaleAvenueSouth
Bloomington,MN55420-1196
Tollfreeat866-336-5205(U.S.customers)
Tollfreeat866-854-9033(Canadiancustomers)

OwnerResponsibilities

YoumustmaintainyourT oroProductbyfollowingthemaintenance
proceduresdescribedintheOperator'sManual.Suchroutinemaintenance,
whetherperformedbyadealerorbyyou,isatyourexpense.

ItemsandConditionsNotCovered

Thereisnootherexpresswarrantyexceptforspecialemissionsystem
coverageandenginewarrantycoverageonsomeproducts.Thisexpress
warrantydoesnotcoverthefollowing:

•Costofregularmaintenanceorreplacementofwearparts,such

asrotorblades(paddles),scraperblades,belts,fuel,lubricants,oil
changes,sparkplugs,lightbulbs,cable/linkageorbrakeadjustments

•Anyproductorpartwhichhasbeenalteredormisusedorrequires

replacementorrepairduetoaccidentsorlackofpropermaintenance

•Pickupanddeliverycharges

•Operationalmisuse,neglect,oraccidents

•RepairsorattemptedrepairsbyanyoneotherthananAuthorizedToro

ServiceDealer

•Repairsnecessaryduetofailuretofollowrecommendedfuel

procedure(consultOperator'sManualformoredetails)

–Removingcontaminantsfromthefuelsystemisnotcovered

–Useofoldfuel(morethanonemonthold)orfuelwhichcontains

morethan10%ethanolormorethat15%MTBE

–Failuretodrainthefuelsystempriortoanyperiodofnon-use

overonemonth

•Repairsoradjustmentstocorrectstartingdifcultiesduetothe

following:

–Failuretofollowpropermaintenanceprocedures

–Snowthrowerauger/paddlesstrikinganobject

–Contaminantsinthefuelsystem

–Improperfuel(consultyourOperator'sManualifindoubt)

–Failuretodrainthefuelsystempriortoanyperiodofnon-use

overonemonth

•Specialoperationalconditionswherestartingmayrequiremorethan

twopulls:

–Firsttimestartsafterextendedperiodofnon-useoverthree

monthsorseasonalstorage

–Improperstartingprocedures

–Startingin-10°F(-23°C)orbelowtemperatures

Ifyouarehavingdifcultystartingyourunit,pleasechecktheOperator's
Manualtoensurethatyouareusingthecorrectstartingprocedures.This
cansaveanunnecessaryvisittoaServiceDealer.

GeneralConditions

AllrepairscoveredbythesewarrantiesmustbeperformedbyanAuthorized
ToroServiceDealerusingToroapprovedreplacementparts.Repairbyan
AuthorizedToroServiceDealerisyoursoleremedyunderthiswarranty .

NeitherTheToroCompanynorToroW arrantyCompanyisliablefor
indirect,incidental,orconsequentialdamagesinconnectionwiththe
useoftheToroProductscoveredbythesewarranties,includingany
costorexpenseofprovidingsubstituteequipmentorserviceduring
reasonableperiodsofmalfunctionornon-usependingcompletionof
repairsunderthesewarranties.

Somestatesdonotallowexclusionsofincidentalorconsequential
damages,sotheaboveexclusionsmaynotapplytoyou.

Thiswarrantygivesyouspeciclegalrights,andyoumayalsohaveother
rightswhichvaryfromstatetostate.

CountriesOtherthantheUnitedStatesorCanada

CustomerswhohavepurchasedT oroproductsexportedfromtheUnitedStatesorCanadashouldcontacttheirT oroDistributor(Dealer)toobtain
guaranteepoliciesforyourcountry,province,orstate.IfforanyreasonyouaredissatisedwithyourDistributor'sserviceorhavedifcultyobtaining
guaranteeinformation,contacttheToroimporter.Ifallotherremediesfail,youmaycontactusatToroWarrantyCompany.

AustralianConsumerLaw:AustraliancustomerswillnddetailsrelatingtotheAustralianConsumerLaweitherinsidetheboxoratyourlocalToro
Dealer.

*Residentialpurposesmeansuseoftheproductonthesamelotasyourhome.Useatmorethanonelocation,orinstitutionalorrentaluse,isconsidered
commercialuse,andthecommercialusewarrantywouldapply.

374-0312RevA
