Toro 38581, 38582 Operator's Manual

PowerClear™Snowthrower

ModelNo.38581—SerialNo.310000001andUp

ModelNo.38582—SerialNo.310000001andUp

FormNo.3362-534RevA

Operator'sManual

Introduction

Thissnowthrowerisintendedtobeusedby
residentialhomeownersorprofessional,hired
operators.Itisdesignedprimarilyforremoving
snowandicefrompavedsurfaces,suchas
drivewaysandsidewalks,andothersurfacesfor
trafconresidentialorcommercialproperties.It
isnotdesignedforremovingmaterialsotherthan
snowandice,norisitdesignedforclearingoff
irregularorgravelsurfaces.

Readthisinformationcarefullytolearnhowtooperate
andmaintainyourproductproperlyandtoavoidinjury
andproductdamage.Youareresponsibleforoperating
theproductproperlyandsafely.

YoumaycontactTorodirectlyatwww .Toro.comfor
productandaccessoryinformation,helpndinga
dealer,ortoregisteryourproduct.

Wheneveryouneedservice,genuineToroparts,or
additionalinformation,contactanAuthorizedService
DealerorToroCustomerServiceandhavethemodel
andserialnumbersofyourproductready.Figure1
identiesthelocationofthemodelandserialnumbers
ontheproduct.Writethenumbersinthespace
provided.

ModelNo.

SerialNo.

Thismanualidentiespotentialhazardsandhas
safetymessagesidentiedbythesafetyalertsymbol
(Figure2),whichsignalsahazardthatmaycauseserious
injuryordeathifyoudonotfollowtherecommended
precautions.

Figure2

1.Safetyalertsymbol

Thismanualuses2wordstohighlightinformation.
Importantcallsattentiontospecialmechanical
informationandNoteemphasizesgeneralinformation
worthyofspecialattention.

Warning

CALIFORNIA

Proposition65Warning

Theengineexhaustfromthisproduct

containschemicalsknowntotheStateof

Californiatocausecancer,birthdefects,

orotherreproductiveharm.

1.Modelandserialnumberlocation

©2009—TheT oro®Company
8111LyndaleAvenueSouth
Bloomington,MN55420

Figure1

Registeratwww.Toro.com.

ThissparkignitionsystemcomplieswithCanadian
ICES-002.

Theenclosed

Engine Owner’ s Man ual

issupplied
forinformationregardingtheUSEnvironmental
ProtectionAgency(EPA)andtheCalifornia
EmissionControlRegulationofemissionsystems,
maintenance,andwarranty.Replacementsmaybe
orderedthroughtheenginemanufacturer.

OriginalInstructions(EN)

PrintedintheUSA

AllRightsReserved

Safety

ThissnowthrowermeetsorexceedstheB71.3
specicationsoftheAmericanNationalStandards
Instituteineffectatthetimeofproduction.

Readandunderstandthecontentsofthismanual
beforeyoustarttheengine.

Thisisthesafetyalertsymbol.Itisusedtoalert
youtopotentialpersonalinjuryhazards.Obeyall
safetymessagesthatfollowthissymboltoavoid
possibleinjuryordeath.

Improperlyusingormaintainingthissnowthrower
couldresultininjuryordeath.Toreducethis
potential,complywiththefollowingsafety
instructions.

Thissnowthroweriscapableofamputatinghands
andfeetandofthrowingobjects.Failuretoobserve
thefollowingsafetyinstructionscouldresultin
seriousinjury.

–Neverllcontainersinsideavehicleorona

truckortrailerbedwithaplasticliner.Always
placecontainersontheground,awayfromyour
vehicle,beforelling.

–Whenpractical,removegas-poweredequipment

fromthetruckortrailerandrefuelitonthe
ground.Ifthisisnotpossible,thenrefuelsuch
equipmentonatrailerwithaportablecontainer,
ratherthanfromagasolinedispensernozzle.

–Keepthenozzleincontactwiththerimof

thefueltankorcontaineropeningatalltimes,
untilrefuelingiscomplete.Donotuseanozzle
lock-opendevice.

–Replacegasolinecapsecurelyandwipeupspilled

fuel.

–Iffuelisspilledonclothing,changeclothing

immediately.

•Useextensioncordsandreceptaclesasspeciedby
themanufacturerforallunitswithelectricstarting
motors.

Training

•Read,understand,andfollowallinstructionsonthe
machineandinthemanual(s)beforeoperatingthis
unit.Bethoroughlyfamiliarwiththecontrolsand
theproperuseoftheequipment.Knowhowtostop
theunitanddisengagethecontrolsquickly .

•Neverallowchildrentooperatetheequipment.
Neverallowadultstooperatetheequipmentwithout
properinstruction.

•Keeptheareaofoperationclearofallpersons,
particularlysmallchildren.

•Exercisecautiontoavoidslippingorfalling.

Preparation

•Thoroughlyinspecttheareawheretheequipmentis
tobeusedandremovealldoormats,sleds,boards,
wires,andotherforeignobjects.

•Donotoperatetheequipmentwithoutwearing
adequatewintergarments.Avoidloosetting
clothingthatcangetcaughtinmovingparts.Wear
footwearthatwillimprovefootingonslippery
surfaces.

•Handlefuelwithcare;itishighlyammable.

–Useanapprovedfuelcontainer.

–Neveraddfueltoarunningengineorhotengine.

–Fillfueltankoutdoorswithextremecare.Never

llfueltankindoors.

•Donotattempttoclearsnowfromagravelor
crushedrocksurface.Thisproductisintendedfor
useonlyonpavedsurfaces.

•Neverattempttomakeanyadjustmentswhile
theengineisrunning(exceptwhenspecically
recommendedbymanufacturer).

•Alwayswearsafetyglassesoreyeshieldsduring
operationorwhileperforminganadjustmentor
repairtoprotecteyesfromforeignobjectsthatmay
bethrownfromthemachine.

Operation

•Donotputhandsorfeetnearorunderrotatingparts.
Keepclearofthedischargeopeningatalltimes.

•Exerciseextremecautionwhenoperatingonor
crossinggraveldrives,walks,orroads.Stayalertfor
hiddenhazardsortrafc.

•Afterstrikingaforeignobject,stoptheengine,
removetheignitionkey,thoroughlyinspectthesnow
throwerforanydamage,andrepairthedamage
beforerestartingandoperatingthesnowthrower.

•Iftheunitshouldstarttovibrateabnormally,stop
theengineandcheckimmediatelyforthecause.
Vibrationisgenerallyawarningoftrouble.

•Stoptheenginewheneveryouleavetheoperating
position,beforeuncloggingtherotorbladehousing
ordischargechute,andwhenmakinganyrepairs,
adjustmentsorinspections.

2

•Whencleaning,repairing,orinspectingthesnow
thrower,stoptheengineandmakecertainthatthe
rotorbladesandallmovingpartshavestopped.

•AlwaysrefertotheOperator’sManualforimportant
detailsifthesnowthroweristobestoredforan
extendedperiod.

•Donotruntheengineindoors,exceptwhenstarting
theengineandfortransportingthesnowthrower
inoroutofthebuilding.Opentheoutsidedoors;
exhaustfumesaredangerous.

•Exerciseextremecautionwhenoperatingonslopes.

•Neveroperatethesnowthrowerwithoutproper
guardsandothersafetyprotectivedevicesinplace
andworking.

•Neverdirectthedischargetowardpeopleorareas
wherepropertydamagecanoccur.Keepchildren
andothersaway.

•Donotoverloadthemachinecapacitybyattempting
toclearsnowattoofastarate.

•Lookbehindandusecarewhenbackingupwiththe
snowthrower.

•Disengagepowertotherotorbladeswhensnow
throweristransportedornotinuse.

•Neveroperatethesnowthrowerwithoutgood
visibilityorlight.Alwaysbesureofyourfooting,and
keeparmholdonthehandles.Walk;neverrun.

•Nevertouchahotengineormufer.

•Maintainorreplacesafetyandinstructionlabels,as
necessary.

•Runthemachineafewminutesafterthrowingsnow
topreventfreeze-upoftherotorblades.

ToroSnowthrowerSafety

Thefollowinglistcontainssafetyinformationspecic
toToroproductsorothersafetyinformationthatyou
mustknow.

•Rotatingrotorbladescaninjurengersor
hands.Staybehindthehandlesandawayfromthe
dischargeopeningwhileoperatingthesnowthrower.

Keepyourface,hands,feet,andanyotherpart
ofyourbodyorclothingawayfrommovingor
rotatingparts.

•Beforeadjusting,cleaning,repairing,andinspecting
thesnowthrower,andbeforeuncloggingthe
dischargechute,stoptheengine,removethekey,

andwaitforallmovingpartstostop.

•Beforeleavingtheoperatingposition,stopthe
engine,removetheignitionkey,andwaitforall
movingpartstostop.

ClearingaCloggedDischarge
Chute

Handcontactwiththerotatingrotorbladesinsidethe
dischargechuteisthemostcommoncauseofinjury
associatedwithsnowthrowers.Neveruseyourhandto
cleanoutthedischargechute.

Toclearthechute:

•Shuttheengineoff!

•Wait10secondstobesuretherotorbladeshave
stoppedrotating.

•Alwaysuseaclean-outtool,notyourhands.

MaintenanceandStorage

•Checkallfastenersatfrequentintervalsforproper
tightnesstobesuretheequipmentisinsafeworking
condition.

•Neverstorethemachinewithfuelinthefueltank
insideabuildingwhereignitionsourcesarepresent,
suchashotwaterheaters,spaceheaters,orclothes
dryers.Allowtheenginetocoolbeforestoringin
anyenclosure.

•Ifashield,safetydevice,ordecalisdamaged,
illegible,orlost,repairorreplaceitbeforebeginning
operation.Also,tightenanyloosefasteners.

•Donotsmokewhilehandlinggasoline.

•Donotusethesnowthroweronaroof.

•Donottouchtheenginewhileitisrunningorsoon
afterithasstoppedbecausetheenginemaybehot
enoughtocauseaburn.

•Performonlythosemaintenanceinstructions
describedinthismanual.Beforeperformingany
maintenance,service,oradjustment,stoptheengine
andremovethekey.Ifmajorrepairsareeverneeded,
contactanAuthorizedServiceDealer.

•Donotchangethegovernorsettingsontheengine.

•Whenstoringthesnowthrowerformorethan30
days,drainthefuelfromthefueltanktoprevent
apotentialhazard.Storefuelinanapprovedfuel
container.Removethekeyfromtheignitionswitch
beforestoringthesnowthrower.

•PurchaseonlygenuineTororeplacementpartsand
accessories.

3

SafetyandInstructionalDecals

Important:Safetyandinstructiondecalsarelocatednearareasofpotentialdanger.Replacedamaged

decals.

94-2577

1.Toengagetherotorblades,holdthecontrolbaragainst
thehandle.

2.Todisengagetherotorblades,releasethecontrolbar.

114-1707(Model38581only)

Orderpartno.1 14-3752

1.Warning—readthe

Operator’sManual.

2.Cutting/dismemberment

110-9382

1.Choke

hazard,rotorblades—stop
theenginebeforeleaving
themachine.

3.Thrownobject
hazard—keepbystanders
asafedistancefromthe
machine.

4.EngineswitchOn

5.EngineswitchOff

6.Primer

7.Pushtheprimertwiceto
primetheengine.

110-9398(Model38582only)

1.Warning—readthe

Operator’sManual.

2.Cutting/dismemberment
hazard,rotorblades—stop
theenginebeforeleaving
themachine.

3.Thrownobject
hazard—keepbystanders
asafedistancefromthe
machine.

4.EngineswitchOn

Orderpartno.108-4928

5.EngineswitchOff

6.Primer

7.Pushtheprimertwiceto
primetheengine.

8.Plugthemachineinto
powertheelectricstarter .

114-1712

Orderpartno.1 14-171 1

1.Cuttingdismemberment,impellerandcutting
dismemberment,augerhazards—donotplaceyourhandin
thechute;removetheignitionkeyandreadtheinstructions
beforeservicingorperformingmaintenance.

4

114-3793

1.Hotsurface(onexhaustbafe)

Setup

LooseParts

Usethechartbelowtoverifythatallpartshavebeenshipped.

ProcedureDescription

1.

2.

Nopartsrequired

Screws
Chuteassembly
Dischargechutehandle1

1.UnfoldingtheHandle

Procedure

1.Loosenthehandleknobs,pulloutthe“U”-shaped
handlelocksuntilyoucanmovethehandlefreely ,
androtatethehandletotheoperatingposition
(Figure3).

Qty.

–

3
1

1.“U”-shapedhandlelock(2)

Unfoldthehandle.

Installthedischargechute.

Use

Figure3

2.Handleknobs

2.Inserttheendofthe“U”-shapedhandlelockinto
theopenholeinthehandleandtightenthehandle
knobsuntiltheyaresnug(Figure4).

5

Figure4

Important:Ensurethatyoudonotpinchor

kinkthecontrolcable(Figure5).

Figure6

1.Dischargechutehandle3.Dischargechute

2.Screw(3)

Note:Foreasierinstallation,useasmallratchetwrench
totightenthescrews.

Important:Donotovertightenthescrews;
otherwiseyoumaydamagethedischargechuteand
preventitfromturningfreely.

3.AdjustingtheControlCable

Procedure

Figure5

1.Controlcable

2.InstallingtheDischarge
Chute

3

Screws

1

Chuteassembly

1Dischargechutehandle

Procedure

Installthedischargechuteasshown(Figure6).

RefertoAdjustingtheControlCableinMaintenance.

6

ProductOverview

Figure7

1.Chutedeectortrigger

2.Dischargechutehandle7.Ignitionkey

3.Controlbar

4.Fueltankcap

5.Recoilstarthandle

6.Primer

8.Electric-startbutton

9.Chokelever

10.ChuteDeector

MixingGasolineandOil

Thissnowthrowerusesa50:1gasoline-to-oilmixture.
UseToro50:12-CycleOil(FuelStabilizerAdded)
oranequivalenthigh-grade,NMMATCW3-certied
2-cycleoil.

Important:Topreventenginedamage,donotuse
automotiveoil(suchasSAE30or10W30)orfuel
mixedatthewronggasoline-to-oilratio.

1.PourahalfUSgallon(1.9liters)offresh,unleaded
gasolineintoanapprovedfuelcontainer.

2.Add2-cycleoiltothegasolineaccordingtothechart
below(Figure8).

(model38582only)

Figure8

Operation

Note:Determinetheleftandrightsidesofthemachine

fromthenormaloperatingposition.

Gasolineisextremelyammableandexplosive.
Areorexplosionfromgasolinecanburnyou
andothers.

•Topreventastaticchargefromigniting
thegasoline,placethecontainerand/or
snowthroweronthegroundbeforelling,
notinavehicleoronanobject.

•Fillthetankoutdoorswhentheengineis
cold.Wipeupspills.

•Donothandlegasolinewhensmokingor
aroundanopenameorsparks.

•Storegasolineinanapprovedfuelcontainer,
outofthereachofchildren.

50:1Gasoline-to-OilRatioMixingChart

GasolineOil

1.5USgallons(5.7liters)4.0ounces(120ml)

2USgallons(7.6liters)5.2ounces(160ml)

3USgallons(1 1.4liters)8.0ounces(240ml)

3.Installthecaponthefuelcontainer.

4.Shakethecontainertomixthegasolineandoil
thoroughly.

5.Slowlyremovethecapandaddtheremaining
amountofgasoline.

Note:Donotmixgasolineandoilinthefueltank.
Oilatroomtemperaturemixeseasierandmore
thoroughlythancoldoil.Oilbelow32°F(0°C)
requiresadditionalmixing.

7

FillingtheFuelTank

Fillthefueltankwithfreshunleadedgasoline(Figure9).

Figure9

1.1/4inch(6mm)

Figure11

1.Chokelever

3.Firmlypushintheprimer2timeswithyourthumb,
holdingtheprimerinaforasecondbeforereleasing
iteachtime(Figure12).

Important:DonotuseE85orE20fuel.Alternative
fuelswithhighalcoholcontentcancausehard
starting,poorengineperformance,andmaycause
internalenginedamage.

StartingtheEngine

1.TurntheignitionkeyclockwisetotheOnposition
(Figure10).

Figure10

2.Movethechokelevertotheright(Figure11).

Figure12

Note:Removeyourglovewhenyoupushinthe

primersothataircannotescapefromtheprimer
hole.

Important:Donotusetheprimerorthe
chokeiftheenginehasbeenrunningasishot.
Excessiveprimingmayoodtheengineand
preventitfromstarting.

4.Connectanextensioncordtoapowersourceand
thesnowthrower,andpushtheelectric-startbutton
(model38582only)(Figure13),orpulltherecoil
starthandle(Figure14).

8

waitatleast40minutestoallowthestarterto
coolbeforeattemptingtostartitagain.Ifthe
enginedoesnotstartafterthesecondseriesof
attempts,takethesnowthrowertoanAuthorized
ServiceDealerforservice(model38582only).

5.Whiletheengineisrunning,movethechokeleverto
theleftslowly.

6.Unplugtheextensioncordfromthepowersource
andthesnowthrower(model38582only).

Figure13

Note:UseonlyaUL-listed,16-gaugeextension

cordrecommendedforoutdoorusethatisnot
longerthan50feet(15m).

Theelectricalcordcanbecomedamaged,
causingashockorre.

Thoroughlyinspecttheelectricalcordbefore
usingthesnowthrower.Ifthecordisdamaged,
donotoperatedthesnowthrower.Replaceor
repairthedamagedcordimmediately.Contact
anAuthorizedServiceDealerforassistance.

Ifyouleavethesnowthrowerpluggedintoa
poweroutlet,someonecaninadvertentlystart
thesnowthrowerandinjurepeopleordamage
property(model38582only).

Unplugthepowercordwheneveryouarenot
startingthesnowthrower.

EngagingtheRotorBlades

Toengagetherotorblades,holdthecontrolbaragainst
thehandle(Figure15).

Figure14

Important:Runtheelectricstarternomore

than10timesatintervalsof5secondson,then
5secondsoff.Runningtheelectricstarter
extensivelycanoverheatanddamageit.Ifthe
enginedoesnotstartafterthisseriesofattempts,

Figure15

1.Controlbar

9

DisengagingtheRotorBlades

Todisengagetherotorblades,releasethecontrolbar
(Figure16).

Figure16

Figure18

Toraiseorlowertheangleofthechutedeector,press
thetriggeronthechutedeectorandmovethechute
deectorupordown(Figure19).

StoppingtheEngine

Tostoptheengine,turntheignitionkey
counterclockwisetotheOffposition(Figure17).

Figure17

AdjustingtheDischargeChute
andChuteDeector

Toadjustthedischargechute,movethechutehandle
asshown(Figure18).

Figure19

1.Chutedeectortrigger2.Chutedeector

PreventingFreeze-upafter
Use

•Lettheenginerunforafewminutestoprevent
movingpartsfromfreezing.Stoptheengine,wait
forallmovingpartstostop,andremoveiceand
snowfromthesnowthrower.

•Cleanoffanysnowandicefromthebaseofthe
chute.

•Rotatethedischargechuteleftandrighttofreeit
fromanyicebuildup.

•WiththeignitionkeyintheOffposition,pullthe
recoilstarterhandleseveraltimesorpushtheelectric
startbuttononce(model38582only)topreventthe
recoilandelectricstartersfromfreezingup.

•Insnowyandcoldconditions,somecontrolsand
movingpartsmayfreeze.Donotuseexcessiveforce
whentryingtooperatefrozencontrols.Ifyouhave
difcultyoperatinganycontrolorpart,startthe
engineandletitrunforafewminutes.

10

OperatingTips

•Overlapeachswathtoensurecompletesnow
removal.

•Dischargethesnowdownwindwheneverpossible.

Therotorbladescanthrowstones,toys,and
otherforeignobjectsandcauseseriouspersonal
injurytotheoperatorortobystanders.

•Keeptheareatobeclearedfreeofallobjects
thattherotorbladescouldpickupand
throw.

•Keepallchildrenandpetsawayfromthe
areaofoperation.

•Removethesnowassoonaspossibleafteritfalls.

•Iftheengineisrunningnormallybutthemachine
doesnotthrowsnowasfarasitusuallydoes,
performthefollowingstepsasneededuntilthe
problemissolved:

1.Checkthecontrolcableadjustmentandadjustit

ifnecessary;refertoAdjustingtheControlCable.

2.Inspecttherotorbladesforexcessivewear(refer

toCheckingtheRotorBlades),andhavean
AuthorizedDealerreplacethemifnecessary.

3.Replacethedrivebelt;refertoReplacingthe

DriveBelt.

•Ifthesnowthrowerdoesnotpropelitselfforward
onslipperysurfacesorinheavysnow,pushforward
onthehandle,butallowthesnowthrowertowork

4.Ifnoneoftheprocedureslistedabovesolvesthe
problem,contactanAuthorizedServiceDealer.

atitsownpace.

Maintenance

Note:Determinetheleftandrightsidesofthemachinefromthenormaloperatingposition.

RecommendedMaintenanceSchedule(s)

MaintenanceService

Interval

Afterthersthour

Yearly

Yearlyorbeforestorage

MaintenanceProcedure

•Checkthecontrolcableandadjustitifnecessary.

•Checkforloosefastenersandtightenthemifnecessary.

•Checkthecontrolcableandadjustitifnecessary.

•InspecttherotorbladesandhaveanAuthorizedServiceDealerreplacetherotor
bladesandscraperifnecessary.

•Servicethesparkplugandreplaceitifnecessary.

•Checkforloosefastenersandtightenthemifnecessary.

•HaveanAuthorizedServiceDealerinspectthedrivebeltandreplaceitifnecessary.

•Preparethesnowthrowerforstorage.

11

AdjustingtheControlCable

CheckingtheControlCable

ServiceInterval:Afterthersthour—Check

thecontrolcableandadjustitif
necessary.

Yearly—Checkthecontrolcableand
adjustitifnecessary.

Movethecontrolbarbacktowardthehandletoremove
theslackinthecontrolcable(Figure20).

Figure21

1.Adjusterlink

2.Z-tting

3.Springcover

4.Unhookthespringhere.

Note:Youcanpulluptheadjusterlinkandcableto
makeunhookingthespringeasier.

Figure20

1.Controlbar2.1/16-inchto1/8-inch(2
mmto3mm)gap

Note:Ensurethata1/16-inchto1/8-inch(2mmto3
mm)gapexistsbetweenthecontrolbarandthehandle
(Figure20).

Important:Thecontrolcablemustcontainsome
slackwhenyoudisengagethecontrolbarforthe
rotorbladestostopproperly.

AdjustingtheControlCable

1.Slideupthespringcoverandunhookthespring
fromtheadjusterlink(Figure21).

2.MovetheZ-ttingtoahigherorlowerholeonthe
adjusterlinkasneededtoobtainthe1/16-inchto
1/8-inch(2mmto3mm)gapbetweenthecontrol
barandthehandle(Figure20).

Note:MovingtheZ-ttinghigherdecreasesthe
gapbetweenthecontrolbarandthehandle;moving
itlowerincreasesthegap.

3.Hookthespringtotheadjusterlinkandslidethe
springcoverovertheadjusterlink.

4.Checktheadjustment;refertoCheckingtheControl
Cable.

Note:Afterextendeduse,thedrivebeltmaywear
andloseitsproperbelttension.Ifthedrivebelt
slips(continuouslysqueals)underaheavyload,
disconnectthespringfromtheadjustorlinkand
movetheupperendofthespringtotheholethat
isfurtherfromthepivotpointinthecontrolbar
(Figure22).Thenconnectthespringtotheadjustor
linkandadjustthecontrolcable.

12

Figure22

1.Removetheupperendof
springfromthishole

2.Inserttheupperendof
springintothishole

3.Pivotpoint

4.Upperendofspring

Note:Thebeltmayslip(squeal)inwetconditions;
todryoutthedrivesystem,starttherotorandrun
itwithoutaloadfor30seconds.

ServicingtheSparkPlug

ServiceInterval:Yearly—Servicethesparkplugand

replaceitifnecessary.

UseaNGKBPMR4Asparkplugorequivalent.

1.Stoptheengineandwaitforallmovingpartstostop.

2.Rotatethedischargechutesothatitfacesforward.

3.Removethedischargechute,thedischargechute
handle,andthechutesealbyremovingthe3large
screwsandonesmallscrew(Figure24).

InspectingtheRotorBlades

ServiceInterval:Yearly—Inspecttherotorbladesand

haveanAuthorizedServiceDealer
replacetherotorbladesandscraperif
necessary.

Beforeeachsession,inspecttherotorbladesforwear.
Whenarotorbladeedgehasworndowntothewear
indicatorhole,haveanAuthorizedServiceDealer
replacetherotorbladesandthescraper(Figure23).

Figure24

1.Dischargechutehandle4.Dischargechute

2.Largescrew(3)5.Smallscrew

3.Chuteseal

4.Removethe4screwsthatsecuretheshroud
(Figure24).

5.Removethefueltankcap.

6.Removetheshroud(Figure25).

1.Wearindicatorhole

Figure23

13

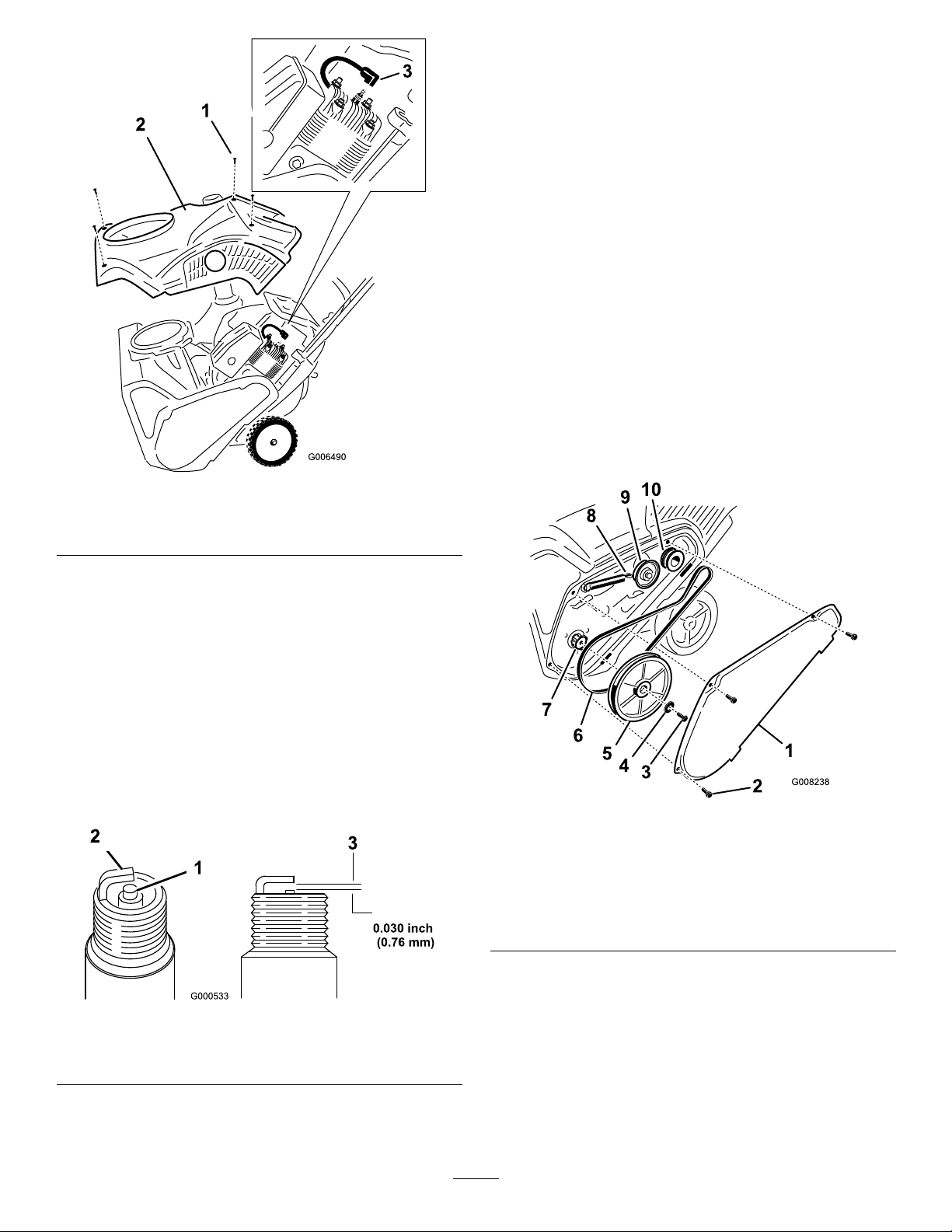

Figure25

1.Screw(4)3.Spark-plugwire

2.Shroud

14.Removethefueltankcap.

15.Installtheshroudwiththescrewsyouremovedin
step4.

Note:Ensurethattheupperandlowershroudst
togetherinthesidegrooves.

16.Installthefueltankcap.

17.Installthechuteseal,thedischargechute,andthe
dischargechutehandleontothesnowthrowerusing
thehardwareyouremovedinstep3.

Note:Thesmallscrewgoesthroughthesmallhole
inthechutesealatthefrontofthedischargechute
opening.

ReplacingtheDriveBelt

Ifdrivebeltbecomesworn,oil-soaked,excessively
cracked,frayed,orotherwisedamaged,replacethebelt.

1.Removethedrivebeltcoverbyremovingthe3bolts
asshowninFigureFigure27.

7.Installthefueltankcap.

8.Disconnectthewirefromthesparkplug.

9.Cleanaroundthesparkplug.

10.Removethesparkplugfromthecylinderhead.

Important:Replaceacracked,fouled,or
dirtysparkplug.Donotcleantheelectrodes
becausegritenteringthecylindercandamage
theengine.

11.Setthegapontheplugto0.030inch(0.76mm)
(Figure26).

Figure26

1.Centerelectrodeinsulator3.Airgap(nottoscale)

2.Sideelectrode

12.Installthesparkplugandtightenitsecurely.

13.Connectthewiretothesparkplug.

Figure27

1.Drivebeltcover6.Drivebelt

2.Bolt(3)7.Rotorshaft

3.Rotorpulleybolt

4.Curvedwasher

5.Rotorpulley10.Enginepulley

8.Brakespring(unhookfrom
idlerarmhere)

9.Idlerpulley

2.Unhookthebrakespringfromtheidlerarmto
releasethebelttension(Figure27).

3.Removethescrewandcurvedwasherthatholdsthe
rotorpulley(Figure27).

4.Removetherotorpulleyandthedrivebelt
(Figure27).

5.Installthenewdrivebelt,routingitasshownin
(Figure28).

14

Figure28

1.Brakespring(installon
idlerarmhere)

2.Idlerpulley4.Rotorpulley

Note:Routethenewdrivebeltrstaroundthe
enginepulley,thentheidlerpulley ,andnallyaround
thelooserotorpulleypositionedjustabovetherotor
shaft(Figure27).

6.Installtherotorpulleyontotherotorshaft
(Figure27).

7.Installthecurvedwasherandtherotorpulleybolt
andtightenthemsecurely(Figure27).

Note:Theconcavesideofthecurvedwashergoes
againsttheoutsideofthepulley.

8.Installthebrakespringontotheidlerarm(Figure28).

9.Installthedrivebeltcoverwiththeboltsyou
removedinstep1.

Note:Ensurethatthedrivebeltisproperlyadjusted
andoperating;refertoCheckingtheControlCable
andAdjustingtheControlCable.

3.Enginepulley

Storage

StoringtheSnowthrower

•Gasolinefumesarehighlyammable,
explosive,anddangerousifinhaled.Ifyou
storetheproductinanareawithanopen
ame,thegasolinefumesmayigniteand
causeanexplosion.

•Donotstorethesnowthrowerinahouse
(livingarea),basement,oranyotherarea
whereignitionsourcesmaybepresent,
suchashotwaterandspaceheaters,clothes
dryers,furnaces,andotherlikeappliances.

Important:Donotusethechutehandletoliftthe
snowthrower.Thiscandamagethechutehandle.

1.Addafuelstabilizer/conditionertothefuelinthe
fueltankasdirectedbytheenginemanufacturer.

2.Runtheenginefor5minutestodistributethe
conditionedfuelthroughthefuelsystem.

3.Stoptheengineandallowittocool.

4.Useahandpumptopumpthefuelfromthefuel
tankintoanapprovedfuelcontainer,orrunthe
engineuntilitstops.

5.Starttheengineandrunituntilitstops.

6.Chokeorprimetheengine,startitathirdtime,and
runtheengineuntilitwillnotstart.

7.Slowlypulltherecoilstarteruntilyoufeelresistance
duetocompressionpressure,thenstop.

8.Releasethestartertensiongraduallybyallowingthe
ropetogobackslowlytopreventtheenginefrom
thereversingduetocompressionpressure.

9.Disposeofunusedfuelproperly.Recycleit
accordinglytolocalcodes,oruseitinyour
automobile.

Note:Donotstorestabilizedfuelformorethan
90days.

10.Cleanthesnowthrower.

11.Tightenanyloosefasteners.Repairorreplaceany
damagedparts.

12.Coverthesnowthrowerandstoreitinaclean,dry
placeoutofthereachofchildren.Allowtheengine
tocoolbeforestoringitinanyenclosure.

15

TheToro2-YearGTSStartingGuaranteeand

TheToroTotalCoverageGuarantee

AT wo-Y earLimitedWarranty(45DayLimitedWarrantyforCommercialUse)

Powerlite
PowerClear
Single-StageSnowthrowers

TheToroStartingGuarantee

TheT oroCompanyanditsafliate,T oroWarrantyCompany,pursuant
toanagreementbetweenthem,jointlyguaranteethatyourT oroGTS
(GuaranteedtoStart)engine,whenusedforresidentialpurposes*,will
startontherstorsecondpullfortwo(2)yearsfromthedateofpurchase,
ifyouprovidetheroutinemaintenanceitrequires,orwewillxitfreeof
charge.

Thiswarrantycoversthecostofpartsandlabor ,butyoumustpay
transportationcosts.

ConditionsandProductsCovered

TheToroCompanyanditsafliate,T oroWarrantyCompany,pursuantto
anagreementbetweenthem,jointlypromisetorepairtheT oroProduct
listedbelowifusedforresidentialpurposes*,ifdefectiveinmaterialsor
workmanshiporifitstopsfunctioningduetothefailureofacomponent
fortheperiodlistedbelow.

Thiswarrantycoversthecostofpartsandlabor ,butyoumustpay
transportationcosts.

Thefollowingtimeperiodsapplyfromthedateofpurchase:

ProductsWarrantyPeriod

PowerliteSnowthrowersandAttachments
PowerClearSnowthrowersandAttachments

2years
2years

LimitedWarrantyforCommercialUse

Gas-poweredT oroProductsusedforcommercial,institutional,or
rentaluse,arewarrantedfor45daysagainstdefectsinmaterialsor
workmanship.Componentsfailingduetonormalweararenotcovered
bythiswarranty.

InstructionsforObtainingWarrantyService

IfyouthinkthatyourT oroProductcontainsadefectinmaterialsor
workmanship,followthisprocedure:

1.ContactanyAuthorizedT oroServiceDealertoarrangeserviceattheir
dealership.Tolocateadealerconvenienttoyou,refertotheY ellow
Pagesofyourtelephonedirectory(lookunder“LawnMowers”)or
accessourwebsiteatwww.T oro.com.Y oumayalsocallthenumbers
listedinitem#3tousethe24-hourT oroDealerlocatorsystem.

2.Bringtheproductandyourproofofpurchase(salesreceipt)tothe
ServiceDealer.Thedealerwilldiagnosetheproblemanddetermine
ifitiscoveredunderwarranty.

3.IfforanyreasonyouaredissatisedwiththeServiceDealer’s
analysisorwiththeassistanceprovided,contactusat:

CustomerCareDepartment,ConsumerDivision
TheT oroCompany
811 1LyndaleAvenueSouth
Bloomington,MN55420-1196
Tollfreeat866-336-5205(U.S.customers)
Tollfreeat866-854–9033(Canadiancustomers)

OwnerResponsibilities

YoumustmaintainyourToroProductbyfollowingthemaintenance
proceduresdescribedintheOperator’sManual.Suchroutine
maintenance,whetherperformedbyadealerorbyyou,isatyourexpense.

ItemsandConditionsNotCovered

Thereisnootherexpresswarrantyexceptforspecialemissionsystem
coverageandenginewarrantycoverageonsomeproducts.Thisexpress
warrantydoesnotcoverthefollowing:

•Costofregularmaintenanceserviceorwearparts,suchasrotor

blades(paddles),scraperblades,belts,fuel,lubricants,oilchanges,
sparkplugs,cable/linkageorbrakeadjustments

•Anyproductorpartwhichhasbeenalteredormisusedandrequires

replacementorrepairduetoaccidentsorlackofpropermaintenance

•Repairsnecessaryduetofailuretousefreshfuel(lessthanone

monthold),orfailuretoproperlypreparetheunitpriortoanyperiod
ofnon-useoveronemonth

•Pickupanddeliverycharges

•Operationalmisuse,neglect,oraccidents

•RepairsorattemptedrepairsbyanyoneotherthananAuthorized

ToroServiceDealer

•Repairsoradjustmentstocorrectstartingdifcultiesduetothe

following:

—failuretofollowpropermaintenanceprocedures

—snowthrowerauger/paddlesstrikinganobject

—contaminantsinthefuelsystem

—improperfuelorfuel/oilmixture(consultyourOperator’sManual
ifindoubt)

—failuretodrainthefuelsystempriortoanyperiodofnon-useover
onemonth

•Specialoperationalconditionswherestartingmayrequiremorethan

twopulls:

—rsttimestartsafterextendedperiodofnon-useoverthreemonths
orseasonalstorage

—improperstartingprocedures

Ifyouarehavingdifcultystartingyourunit,pleasechecktheOperator’s
Manualtoensurethatyouareusingthecorrectstartingprocedures.This
cansaveanunnecessaryvisittoaServiceDealer .

GeneralConditions

Allrepairscoveredbythesewarrantiesmustbeperformedbyan
AuthorizedToroServiceDealerusingT oroapprovedreplacementparts.
RepairbyanAuthorizedToroServiceDealerisyoursoleremedyunder
thiswarranty .

NeitherTheT oroCompanynorToroWarrantyCompanyisliablefor
indirect,incidental,orconsequentialdamagesinconnectionwiththe
useoftheT oroProductscoveredbythesewarranties,includingany
costorexpenseofprovidingsubstituteequipmentorserviceduring
reasonableperiodsofmalfunctionornon-usependingcompletionof
repairsunderthesewarranties.

Allimpliedwarrantiesofmerchantability(thattheproductistforordinary
use)andtnessforuse(thattheproductistforaparticularpurpose)are
limitedtothedurationoftheexpressedwarranty.Somestatesdonot
allowexclusionsofincidentalorconsequentialdamages,orlimitationson
howlonganimpliedwarrantylasts,sotheaboveexclusionsmaynot
applytoyou.

Thiswarrantygivesyouspeciclegalrights,andyoumayalsohaveother
rightswhichvaryfromstatetostate.

CountriesOtherthantheUnitedStatesorCanada

CustomerswhohavepurchasedT oroproductsexportedfromtheUnitedStatesorCanadashouldcontacttheirToroDistributor(Dealer)toobtain
guaranteepoliciesforyourcountry,province,orstate.IfforanyreasonyouaredissatisedwithyourDistributor’sserviceorhavedifcultyobtaining
guaranteeinformation,contacttheToroimporter.Ifallotherremediesfail,youmaycontactusatToroWarrantyCompany .

*Residentialpurposesmeansuseoftheproductonthesamelotasyourhome.Useatmorethanonelocation,orinstitutionalorrentaluse,isconsidered
commercialuse,andthecommercialusewarrantywouldapply .

374-0250RevA
