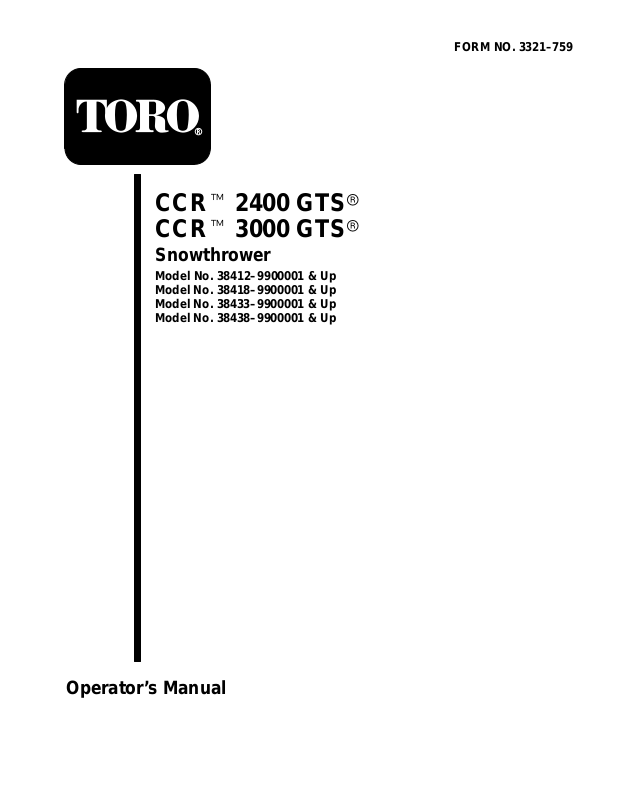

Toro 38412 CCR 2400 GTS, 38418 CCR 2400 GTS, 38433 CCR 3000 GTS, 38438 CCR 3000 GTS Operator's Manual
Page 1
FORM NO. 3321–759
CCR
CCR
Snowthrower
Model No. 38412–9900001 & Up
Model No. 38418–9900001 & Up
Model No. 38433–9900001 & Up
Model No. 38438–9900001 & Up
2400 GTS
3000 GTS
Operator’s Manual
Page 2
Figures
1
1. Model
2
and serial number decal
3
3
3
2
1
637
5
4
m-3277
Models 38412 & 38418
1.
Chute ring
2.
Discharge chute
3.
2
Chute handle
4.
Carriage bolt
5.
Lock nut
(Unit shown on right side)
1.
Short spacer
2.
Long spacer
i
3. Pushnut
1
637
The Toro Company – 1998
All Rights Reserved
Printed in USA
Page 3
893
4
6
2
4
1
2
5
1
4
3
3
m-2707
Models 38412 & 38418
1.
635
Lower handle
2.
Upper handle
3.
Handle bolt
4. Eyebolt
5.
Lock nut
Models 38433 & 38438
1.
Chute crank
2.
Mounting bracket
5
Models 38433 & 38438
1.
Chute ring
3. Gear
4.
Plastic bushing
2
2.
Discharge chute
7
2
1
4
3
6
5
1
636
Models 38433 & 38438
1.
Lower handle
2.
Upper handle
3.
Handle lock
4.
Cable guide
5.
Curved washer
6. Knob
m-2707
ii
Page 4
5
8
10
6
1/16–1/8”
Models 38412 & 38418
1. Eyebolt
2.
Control cable
3.
Spring cover
9
4
1
4.
Control bar bracket
5. T
op hole
6.
Bottom hole
2
4
3
3
1
2
m-2708
m–4017/4012
Models 38433 & 38438
1.
Cable guide
2.
Control bar bracket
3.
Rear hole
4.
Forward hole
1/16–1/8”
11
1
2
3
43 21
Models 38412 & 38418
1. Spring
2.
Cable adjuster
iii
3. Cable
4.
Z fitting
897
1.
Add oil to small amount of
gasoline
2.
Install cap and shake can
to mix
3.
Add remaining amount of
gasoline
111
Page 5
12
3
5
14
1
2
1
3
2
6
4
1.
Key switch
2. Primer
3.
Recoil start
4. Choke
13
Elec. start button*
5.
6.
Cord connection*
*
ELEC. START MODEL
2
642
Models 38433 & 38438
1.
Chute crank
2.
Chute deflector handle
1
15
3.
Deflector mounting nuts
629
1
3
Models 38412 & 38418
1.
Chute handle
2.
Chute deflector handle
3
3.
Deflector mounting nuts
m-3278
Models 38433 & 38438
1.
Spring cover
2.
Cable adjuster
2
630
3.
Z fitting
iv
Page 6
16
18
1/16”
634
1. Scraper
17
3
2
1
4
631
1.
Cap screw
2. Capscrew
1
19
, nut
, nut, washer
3.
Long self tapping screw
4.
Short self tapping screws
2
1
4
6
3
2
1
1. Scraper 2.
v
Carriage bolts & lock
nuts (3)
644
1.
Engine pulley
2.
Idler pulley
3. Roller
5
4.
Brake arm assembly
5.
Rotor pulley
6.
Belt guide
626
Page 7
20
1
22
0.032”
(0.81 mm)
110
1.
Control panel
21
1.
Spark plug wire
2
23
643
2.
Mounting screws
1
1. W
ear indicator hole
628
1
vi
Page 8
24
4
6
1
7
5
1.
Rotor blade (2)
2.
Rotor half (2)
25
3
8
3. T
orx screw (8)
4.
Locknut (13)
2
5.
Hex–head capscrew (4)
6.
Spacer (4)
7.
Auger shaft assembly
8.
Hex–head screw
4
680
1.
Thin layer
2.
Thick layer
vii
1
2
3. W
ear indicator hole
3
681
Page 9
Contents
Page
Introduction 1.
Safety 2
Assembly 8
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Before Operating 2
While Operating 3
Maintaining Snowthrower 3
Sound Pressure Level 4
Sound Power Level 4
Vibration Level 4
Symbol Glossary4. . . . . . . . . . . . . . . . . . . .
Install Wheels8. . . . . . . . . . . . . . . . . . . . . . .
Install Discharge Chute And Chute Handle 8
. . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . .
. . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Introduction
Thank you for purchasing a Toro product.
All of us at Toro want you to be completely satisfied
with your new product, so feel free to contact your
local Authorized Service Dealer for help with service,
genuine Toro parts, or other information you may
require.
Whenever you contact your Authorized Service
Dealer or the factory, always know the model and
serial numbers of your product. These numbers will
help the Service Dealer or Service Representative
provide exact information about your specific
product. You will find the model and serial number
decal located in a unique place on the product
(Fig. 1).
For your convenience, write the product model and
serial numbers in the space below.
Install Chute Crank 8
Install Dischar
Install Handle 9
Install Control Cable 9
Install Control Cable 9
Before Starting 10
Mix Gasoline And Oil 10
Operation 11
Starting/Stopping Engine 11
Operating Tips 11
Maintenance 13
Adjusting Control Bar 13
Draining Gasoline 13
Replacing Scraper 14
Replacing Drive Belt 14
Replacing Spark Plug 14
Adjusting Carburetor 14
Replacing Rotor Blades14. . . . . . . . . . . . . . .
Storage 15
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . .
ge Chute9. . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . .
. . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . .
Model No:
Serial No.
Read this manual carefully to learn how to operate
and maintain your product correctly. Reading this
manual will help you and others avoid personal injury
and damage to the product. Although Toro designs,
produces and markets safe, state-of-the-art products,
you are responsible for using the product properly
and safely. You are also responsible for training
persons who you allow to use the product about safe
operation.
The Toro warning system in this manual identifies
potential hazards and has special safety messages that
help you and others avoid personal injury, even death.
DANGER, WARNING and CAUTION are signal
words used to identify the level of hazard. However,
regardless of the hazard, be extremely careful.
DANGER signals an extreme hazard that will cause
serious injury or death if the recommended
precautions are not followed.
1
Page 10
WARNING signals a hazard that may cause serious
injury or death if the recommended precautions are
not followed.
CAUTION signals a hazard that may cause minor or
moderate injury if the recommended precautions are
not followed.
3. Keep everyone, especially children and pets,
away from snowthrower and area of operation.
4. Inspect area thoroughly where snowthrower will
be used. Remove doormats, sleds, boards, sticks,
wire and any other foreign objects which might
be picked up and thrown by the snowthrower.
Two other words are also used to highlight
information. “Important” calls attention to special
mechanical information and “Note” emphasizes
general information worthy of special attention.
The left and right side of the machine is determined
by standing behind the handle in the normal
operator’s position.
Safety
T
o ensur
to gain knowledge of the product, it is essential
that you or any other operator of the snowthrower
read and understand the contents of this manual
before the motor is ever started. Pay particular
attention to the safety alert symbol which
means CAUTION, W
“personal safety instruction.” Read and
understand the instruction because it has to do
with safety. Failure to comply with instruction
may result in personal injury.
This snowthrower is designed and tested to offer safe
and effective service, provided it is operated in strict
accordance with the following Safety Instructions.
Failure to comply with the following instructions
MA
Before
1. Read and understand the contents of this manual
2. Never allow children to operate the
e maximum safety, best performance, and
ARNING OR DANGER —
Y RESUL
T IN PERSONAL INJUR
Y.
Operating
before operating the snowthrower. Become
familiar with all controls and know how to stop
engine and snowthrower quickly.
snowthrower. Adults should operate the
snowthrower only after reading this manual.
5. Keep all shields and safety devices in place. If a
shield, safety device or decal is illegible,
damaged or lost, repair or replace it before
beginning operation. Also, tighten any loose
nuts, bolts or screws.
6. Wear adequate winter clothing and rubber boots
that will ensure proper footing on slippery
surfaces. Do not wear loose–fitting clothing that
could possibly get caught in moving parts.
7. Always wear safety glasses or eye shields during
operation or while performing an adjustment or
repair to protect eyes from foreign objects that
may be thrown from the machine.
8. Fill fuel tank with gasoline before starting the
engine. A
fuel is highly flammable, handle it carefully. DO
NOT SMOKE WHILE HANDLING
GASOLINE.
A. Use an approved gasoline container.
B. Fill fuel tank outdoors, not indoors.
C. Open doors if engine will be started in the
D. Wipe up any spilled gasoline. Reinstall
9. Allow engine to warm up outdoors before
operating. Do not run engine indoors.
void spilling any gasoline. Because
NEVER ADD FUEL T
THAT IS RUNNING OR HOT. Engine
must be cool to reduce potential fire hazard.
garage because exhaust fumes are
dangerous and could possibly be deadly. Do
not run engine indoors.
gasoline container cap and snowthrower
fuel tank cap securely before starting the
engine.
O AN ENGINE
2
Page 11
While
10. Use only the extension cord and receptacle
11. Never direct discharge toward or operate
Operating
provided with the electric start model
snowthrower. Do not plug the extension cord
into outlet while standing in water or when
hands are wet. Do not use cord if gasoline has
been spilled. If extension cord is damaged,
replace immediately (Part No. 28–9170).
snowthrower near bystanders, glass enclosures,
automobiles and trucks, window wells or a
drop–off. Never allow anyone in front of
snowthrower.
20. If a foreign object is hit or snowthrower vibrates
abnormally, stop engine by turning key to OFF
and wait for all moving parts to stop. Check
snowthrower immediately for possible damage,
an obstruction or loose parts. Vibration is
generally a sign of trouble. Repair any damage
before operating snowthrower again.
21. Before adjusting, cleaning, repairing or
inspecting the snowthrower, or before
unclogging the discharge chute, stop engine by
turning key to OFF and wait for all moving parts
to stop. Disconnect the spark plug wire and
keep the wire away from the plug to prevent
someone from accidentally starting the unit. Do
not make adjustments while engine is running.
12. Keep people and pets a safe distance away from
the snowthrower and area of operation.
13. Operate the snowthrower only when there is
good visibility or light. Always maintain secure
footing and balance and keep a firm grip on the
handle. Walk; never run.
14. DO NOT USE SNOWTHROWER ON A
ROOF.
15. Be attentive when using the snowthrower, and
stay alert for holes in the terrain and other
hidden hazards.
16. STAY AWAY FROM DISCHARGE
OPENING WHILE OPERA
SNOWTHROWER. Keep face, hands, feet, and
any other part of your body or clothing away
from concealed, moving, or rotating parts.
17. Never clear snow off steep slopes or across the
faces of slopes. Exercise extreme caution when
changing direction on slopes.
TING THE
22.
WHENEVER YOU LEA
OPERA
BY TURNING KEY T
KEY FROM SWITCH IF UNIT WILL BE
UNATTENDED.
23. Let snowthrower run for a few minutes after
clearing snow so moving parts do not freeze.
Maintaining
24. REMOVE KEY FROM SWITCH when storing
snowthrower. Store key in a memorable place.
25. Never store snowthrower with fuel in fuel tank
inside a building where ignition sources such as
an open flame, sparks, hot water and space
heaters, and clothes dryers are present. Allow
engine to cool before storing.
SNOWTHROWER IN HOUSE (LIVING
AREA) OR BASEMENT BECAUSE
GASOLINE AND FUMES ARE HIGHL
FLAMMABLE, EXPLOSIVE, AND
DANGEROUS IF INHALED.
TING POSITION, ST
Snowthrower
VE THE
O OFF
OP ENGINE
. REMOVE
NEVER ST
ORE
Y
18. Do not overload the snowthrower by clearing
snow at too fast a rate.
19. Use extreme caution when crossing or operating
snowthrower on walks, roads or gravel or
crushed rock drives. Refer to Operating Tips,
page 7, item 4 for correct operating procedure.
26. Perform only those maintenance instructions
described in this manual. Remove key from
switch before performing maintenance
procedures to prevent the possibility of
accidental starting. If major repairs are ever
needed, contact your local Authorized TORO
Service Dealer for assistance.
3
Page 12
27. Keep snowthrower in safe operating condition
by keeping nuts, bolts, and screws tight. Check
all fasteners frequently to ensure they are tight.
Sound
Models 38412 & 38418
Power Level
28. Maintain or replace safety and instruction labels,
as necessary
29. To ensure best performance and safety, purchase
genuine TORO replacement parts and
accessories to keep your TORO all TORO.
NEVER USE “WILL FIT” REPLACEMENT
PAR
TS AND ACCESSORIES.
Sound
Models 38412 & 38418
This unit has a sound pressure at the operator’s ear of
90 dB(A), based on measurements of identical
machines per Directive 81/1051/EEC.
Models 38433 & 38438
This unit has a sound pressure at the operator’s ear of
91 dB(A), based on measurements of identical
machines per Directive 81/1051/EEC.
.
Pressure Level
This unit has a sound power level of 103 LwA, based
on measurements of identical machines per Directive
79/113/EEC.
Models 38433 & 38438
This unit has a sound power level of 105 LwA, based
on measurements of identical machines per Directive
79/113/EEC.
Vibration
Models 38412 & 38418
This unit has a maximum hand-arm vibration level of
28.5 m/s
machines per EN 1033.
Models 38433 & 38438
This unit has a maximum hand-arm vibration level of
30 m/s
machines per EN 1033.
, based on measurements of identical
Level
, based on measurements of identical
Symbol
Safety
symbol within triangle
indicates a hazard
Safety alert symbol
Read operator
manual
Glossary
alert triangle —
’s
Do not open or
remove safety shields
while engine is
running
Stay a safe distance
from the machine
Stay a safe distance
from the machine –
single stage
snowthrower
4
Page 13
Consult technical
manual for proper
service procedures
Shut off engine and
remove key before
performing
maintenance or repair
work
Shut off engine and
remove key before
leaving operator
position – single
stage snowthrower
Shut off engine and
remove key before
leaving operator
position – two stage
snowthrower
Stay a safe distance
from the machine –
two stage
snowthrower
Thrown or flying
objects — Whole body
exposure
Electrical shock –
electrocution
Cutting or
entanglement of foot –
rotating auger
Severing of fingers or
hand – impeller blade
Hot surfaces – burns
to fingers or hands
Caustic liquids –
chemical burns to
fingers or hands
Electric start
Machine loss of
control – uphill slope
Machine loss of
control – downhill
slope
5
Page 14
Do not tip battery T
raction drive
Keep dry
Machine travel
direction – forward
Machine travel
direction – rearward
On/start Choke
Snowthrower collector
auger
Engage
Disengage
Off/stop
Fast Neutral
Engine speed
(Throttle)
6
Page 15
Slow
Decreasing/Increasing Lock
Snowthrower collector
auger
Engine start
Engine stop
Snowthrower chute
direction
Primer (start aid)
Unlock
Lever operation
Lever operation
Unleaded fuel
Primer operation
Throttle operation Cutting of foot
Cutting of fingers or
hand
7
Page 16
PowerShift operation
Belt routing
Assembly
Note: Determine left and right sides of the
snowthrower by standing in the normal
operator’s position behind the handles.
Install
1. Carefully turn machine onto its left side. Place a
2. Slide the short spacer and a wheel onto the right
3. Slide a pushnut onto the end of the axle.
4. Using a hammer, strike the pushnut to seat the
Wheels (Fig. 2)
wood block under the left axle end.
axle end. The side of the wheel with six spokes
must face the center of the machine.
nut FIRMLY
in place.
Install
Discharge Chute And
Chute Handle (Fig. 3)
Models 38412 & 38418
1. Place chute handle over chute ring.
2. Insert discharge chute between chute ring and
chute handle. Align holes.
3. Secure back of chute and handle to center hole in
chute ring with a carriage bolt and lock nut.
Position nut on outside of chute.
Note: Chute ring may be rotated to ease
assembly of dischar
4. Secure chute and handle to remaining holes in
chute ring and tighten all nuts SECURELY.
Install
Chute Crank (Fig. 4)
ge chute.
5. Turn the machine over on its right side so that
the left axle end is pointing up.
6. For the left side, slide the long spacer and a
wheel onto the left axle end. The side of the
wheel with six spokes must face the center of the
axle.
7. Place a wood block under the right axle end.
Repeat steps 3 and 4.
8
Models 38433 & 38438
1. Insert flattened end of chute crank through hole
in shroud while aligning mounting bracket with
holes in lower handle. Slowly rotate crank until
flattened end fits into hidden gear opening and
chute ring turns with crank. Make sure plastic
bushing is fully inserted into hole in mounting
bracket, then secure mounting bracket to handle
with (2) capscrews and locknuts.
Page 17
Install
Discharge Chute (Fig. 5)
Models 38433 & 38438
3. Route cable through elongated hole in cable
adjuster. Insert Z fitting on end of cable into 3rd
hole on cable adjuster (Fig. 9).
1. Set discharge chute onto chute ring. Align hole
in back of chute with center hole in ring and
install a carriage bolt and sems locknut. Position
nut on outside of chute.
Note: Chute ring may be rotated to ease
assembly of dischar
2. Secure chute to remaining holes in chute ring
and tighten all nuts SECURELY.
Install
1. Remove tie securing control cable to lower
2. Position upper handle so that control bar is on
3. Models 38412 & 38418 – Secure upper handle
Handle
handle.
top of handle, not underneath it.
in place with (3) handle bolts, (1) eyebolt, and
(4) lock nuts. Use eyebolt to mount upper left
side of handle. Eyebolt must be positioned
perpendicular to handle when tightened (Fig. 6).
Models 38433 & 38438 – Secure upper handle
in place with (2) handle locks, (1) cable guide,
(2) curved washers and (2) knobs. Cable guide
must be perpendicular to handle with loop facing
out and up (Fig. 7).
ge chute.
4. Slide spring cover over spring and cable adjuster.
Push spring end through hole at end of spring
cover (Fig. 8).
5. Hook spring into top hole of control bar bracket
(Fig. 8).
6. Move control bar back toward handle until slack
in cable is removed. The gap between the control
bar bracket and handle should be approximately
1/16”-1/8”. See insert, Figure 8. If an adjustment
is required, refer to Adjusting Control Bar,
page 13.
Note: The control cable must always have
slack in it when in the disengaged
position.
Install
Control Cable
Models 38433 & 38438
1. Route control cable through cable guide on left
side of snowthrower (Fig. 10).
2. Hook upper end of control cable in rear hole
(hole with arrow) in control bar bracket
(Fig. 10).
Install
Control Cable
Models 38412 & 38418
1. Route control cable through eyebolt on left side
of snowthrower (Fig. 8).
2. Hook spring to round hole at end of cable
adjuster (Fig. 9).
3. Move control bar back toward handle until slack
in cable is removed. The gap between bottom of
handle and stop on control bar (left hand side on
bottom of handle) should be approximately
1/16”-1/8”. See insert, Figure 10. If an
adjustment is required, refer to Adjusting
Control Bar, page 13.
Note: The control cable must always have
slack in it when in the disengaged
position.
9
Page 18
Before
POTENTIAL
Starting
HAZARD
• In certain conditions gasoline is extremely
flammable and highly explosive.
WHAT CAN HAPPEN
• A fire or explosion from gasoline can burn
you, others, and cause property damage.
HOW TO AV
OID THE HAZARD
• Use a funnel and fill the fuel tank outdoors,
in an open area, when the engine is cold.
Wipe up any gasoline that spills.
• Do not fill the fuel tank completely full.
Add gasoline to the fuel tank until the level
is 1/4” to 1/2” (6 mm to 13 mm) below the
bottom of the filler neck. This empty space
in the tank allows gasoline to expand.
• Never smoke when handling gasoline, and
stay away from an open flame or where
gasoline fumes may be ignited by a spark.
• Store gasoline in an approved container
and keep it out of the reach of children.
• Never buy more than a 30-day supply of
gasoline.
Toro Two–Cycle Oil is specially formulated to
provide superior lubrication, make starting easy,
and prolong engine life. If Toro T
is not available, mix two gallons of gasoline and
5.2 ounces of another high grade two–cycle oil
that has the NMMA or BIA–TCW III
certification printed on the label.
NEVER USE AUTOMOTIVE OIL (i.e. SAE
30, 10W30 etc.), TWO–CYCLE OIL THAT IS
NOT CERTIFIED NMMA/BIA–TCW III, OR
THE WRONG MIX RATIO BECAUSE THE
ENGINE CAN BE DAMAGED, AND IT
WOULD NOT BE COVERED BY THE TORO
WARRANTY.
2. Mixing Gasoline and Oil—Pour a half gallon of
gasoline into an approved gasoline container
(preferably plastic, not metal) and add the correct
amount of two–cycle oil. Reinstall cap on
gasoline container and shake the container to
mix oil and gas thoroughly. Remove cap and add
remaining amount of gasoline.
Toro also recommends that Toro
Stabilizer/Conditioner be used regularly in all
Toro gasoline powered products during operation
and storage seasons. Toro Stabilizer/Conditioner
cleans the engine during operation and prevents
gum–like varnish deposits from forming in the
engine during periods of storage.
wo–Cycle Oil
Mix
Gasoline And Oil (Fig. 1
Use clean, fresh lead-free gasoline, including
oxygenated or reformulated gasoline, with an octane
rating of 85 or higher. To ensure freshness, purchase
only the quantity of gasoline that can be used in 30
days. Use of lead-free gasoline results in fewer
combustion chamber deposits and longer spark plug
life. Use of premium grade fuel is not necessary or
recommended.
1. APPROVED OIL—For simplicity and best
engine performance, mix the contents of one
5.2–ounce bottle of Toro 50:1 T
with two gallons of fresh, unleaded regular
gasoline.
10
wo–Cycle Oil
1)
Note: A fuel stabilizer/conditioner is most
effective when mixed with fresh
gasoline.
IMPORTANT
GASOLINE CONT
GASOHOL CONT
10% ETHANOL, PREMIUM GASOLINE,
OR WHITE GAS BECAUSE ENGINE
FUEL SYSTEM DAMAGE COULD
RESULT.
DO NOT USE FUEL ADDITIVES OTHER
THAN THOSE MANUF
FUEL ST
STORAGE SUCH AS TORO’S
ST
ABILIZER/CONDITIONER OR A
SIMILAR PRODUCT
ST
ABILIZER/CONDITIONER IS A
: NEVER USE METHANOL
AINING METHANOL
AINING MORE THAN
ACTURED FOR
ABILIZA
TION DURING
. TORO’S
,
,
Page 19
PETROLEUM DISTILLA
CONDITIONER/ST
DOES NOT RECOMMEND ST
WITH AN ALCOHOL BASE SUCH AS
ETHANOL, METHANOL OR ISOPROPYL.
ADDITIVES SHOULD NOT BE USED T
TRY TO ENHANCE THE POWER OR
PERFORMANCE OF MACHINE.
Note: Do not mix gasoline and oil in the
product fuel tank. Oil that is at room
temperature mixes easier and more
thoroughly than cold oil.
50:1
GAS/OIL Mixing Chart
U.S. GALLON
Gasoline Oil
TE BASED
ABILIZER. T
ABILIZERS
ORO
O
B. ELECTRIC STARTING—Connect
extension cord to snowthrower and standard
household power outlet. Push starter button.
When engine starts, disconnect extension
cord from snowthrower and outlet.
IMPORTANT: Excessive running of the
electric starter could damage the starter due
to overheating. If you are having difficulty
starting the engine, ONL
STAR
TING PROCEDURE TWICE. Run the
electric starter no more than 10 times at
intervals of 5 seconds ON, 5 seconds OFF. If
engine does not start after this first attempt,
wait more than 40 minutes to allow starter to
cool before trying to run starter again. Before
repeating engine starting procedure, check
that ignition key switch is ON, and make sure
there is fresh fuel in fuel tank. If engine still
will not start after a second attempt, bring the
snowthrower to an Authorized Toro Service
Dealer for servicing.
Y TR
Y THIS
Operation
Starting/Stopping
(Fig. 12)
1. CONTROLS—Key switch, primer, recoil starter,
and electric start button are located on the
control panel. The choke is just below the
control panel.
2. Turn key to ON and pull choke out.
3. Cover hole in center of primer with thumb and
push twice. Additional primes may be necessary
in extremely cold temperatures.
Note: Choke and primer are usually not
necessary when starting a warm
engine.
4. STARTING
A. RECOIL STARTING—Hold snowthrower
with one hand and pull recoil starter
vigorously with other hand.
Engine
IMPORTANT: Do not leave the electric
starter cord connected to the power outlet
when storing the snowthrower. It should only
be connected to the power outlet during the
starting procedure. If you leave it connected
to the power outlet during storage, a power
surge could start the snowthrower when no
one is in attendance.
5. When engine starts, push in choke slowly.
6. TO START/STOP ROTOR—To start rotor,
squeeze control bar to handle. When the control
bar handle is released, the rotor blades stop, but
the engine continues to run.
7. TO STOP ENGINE—Release control bar to stop
rotor, turn key to OFF, and wait for all moving
parts to stop before leaving operator’s position.
Operating Tips
1. ADJUSTING
(Models 38412 & 38418) (Fig. 13)
chute handle left and right to adjust the direction
of the snow stream. The chute deflector handle
on top of the discharge chute controls the height
DISCHARGE CHUTE
–Move the
11
Page 20
of the snow stream. Do not overtighten the chute
deflector mounting nuts so excessive force is
required to adjust the deflector.
IMPORTANT: Do not use chute handle to lift
snowthrower; damage to chute handle could
result.
POTENTIAL HAZARD
• Stones, toys and other foreign objects may
be picked up and thrown by the rotor
blades.
ADJUSTING DISCHARGE CHUTE
(Models 38433 & 38438) (Fig. 14)
crank clockwise to move discharge chute to the
right and counterclockwise to move chute to the
left. The chute deflector handle on top of the
discharge chute controls the height of the snow
stream. Do not overtighten the chute deflector
mounting nuts so excessive force is required to
adjust the deflector.
2.
SELF–PROPELLING ACTION
snowthrower clears down to the ground and
propels itself forward when the handle is raised
and the snowthrower is tilted slightly forward so
rotor blades strike the ground. The wheels do not
have to touch the ground in order to self-propel.
The further you tilt the handle forward, the faster
the snowthrower self-propels. However, height
and density of snow affects forward speed.
Always overlap each swath and discharge
downwind whenever possible.
3. Keep the area to be cleared free of stones, toys or
other foreign objects which may be picked up
and thrown by the rotor blades. Such items could
be covered by snowfall and, therefore, unnoticed
until struck by the rotor blades. Always be sure
to keep children and pets away from area of
operation.
–Rotate chute
–The
WHAT CAN HAPPEN
• Thrown objects can cause serious personal
injury to operator or bystanders.
HOW TO AV
OID THE HAZARD
• Keep the area to be cleared free of all
objects that could be picked up and thrown
by rotor blades.
• Keep all children and pets away from area
of operation.
4. Should you find it necessary to clear snow from
crushed rock or gravel, push down on handle to
raise rotor blades clear of loose material that
could be thrown by the blades and push unit
forward.
5. In some snow and cold weather conditions, some
controls and moving parts may freeze solid. DO
NOT USE EXCESSIVE FORCE WHEN
TR
YING T
CONTROLS. When any control or part
becomes hard to operate, start the engine and let
it run for a few minutes.
AFTER CLEARING SNOW
6.
for a few minutes so ice does not freeze moving
parts solid. After engine is shut off, wipe ice and
snow off entire unit. On models 38422 & 38424,
operate chute crank several times to clear
mechanism of snow.
O OPERA
TE FROZEN
–Let engine run
12
IMPORTANT: ST
IN OPERA
WHEELS. TIPPING OR ST
FORW
MAY CAUSE HARD STARTING.
TING POSITION ON ITS
ARD ONT
ORE SNOWTHROWER
ORING UNIT
O FRONT HOUSING
Page 21
Maintenance
Keep snowthrower in safe operating condition by
cleaning the unit and tightening nuts, bolts, and
screws. The scraper, drive belt, rotor blades, and
spark plug should be checked once a year.
fitting in a higher or lower hole on adjuster
to obtain proper gap of 1/16”–1/8” between
control bar bracket and handle (Fig. 10).
(Positioning cable end in a lower hole
decreases gap; positioning cable end in a
higher hole increases gap.) Reinstall spring
cover over cable adjuster. Reinstall upper
cable end into rear hole in control bar
bracket (hole with arrow) (Fig. 10).
Adjusting
Periodically check control bar for proper adjustment.
1. Turn key switch to OFF.
2. CHECK ADJUSTMENT (Fig. 8 & 10)—Move
control bar back toward handle until slack in
cable is removed. Gap between control bar
bracket and handle should be approximately
1/16”–1/8”. If cable is too loose or too tight,
proceed to step 3 for adjustment procedure.
Note: The control cable must always have
3. ADJUST CABLE
A. Models 38412 & 38418 – Unhook spring
end from the top hole in control bar bracket
(Fig. 8). Slide spring cover off spring and
cable adjuster
adjuster and reposition Z fitting in a higher
or lower hole on adjuster to obtain proper
gap of 1/16”–1/8” between control bar
bracket and handle (Fig. 9). (Positioning
cable end in a lower hole decreases gap;
positioning cable end in a higher hole
increases gap.) Reinstall spring cover over
cable adjuster and spring. Rehook spring
into top hole of control bar bracket (Fig. 8).
Control Bar
slack in it when in the disengaged
position.
. Unhook Z fitting from cable
4. After extended use the drive belt may wear and
proper belt tension may not be maintained.
Improper belt tension causes belt slippage and
decreases the snowthrower
a heavy load. Belt slippage may occur after 2–3
seasons of normal usage (10–15 hours). If drive
belt slips (continuous squealing noise) under
heavy load, increase belt tension by:
A. Models 38412 & 38418 – repositioning
spring end in bottom hole in control bar
bracket (Fig. 8).
B. Models 38433 & 38438 – repositioning
upper cable end into forward hole in control
bar bracket (Fig. 10).
Readjust cable (see steps 2–3).
IMPORTANT: Unnecessary use of forward or
bottom adjusting hole in control bar bracket
reduces drive belt life. Occasional belt slippage
(squealing) may occur in extremely wet
conditions due to moisture in drive system. To
remove moisture, start rotor and operate under
no load for 30 seconds. Once moisture is
removed, belt should not slip.
Draining
1. Stop engine. Remove key from switch.
Gasoline
’s performance under
B. Models 38433 & 38438 – Unhook upper
cable end from hole in control bar bracket
(Fig. 10). Slide spring cover up cable to
expose cable adjuster (Fig. 15). Unhook Z
fitting from cable adjuster and reposition Z
2. Remove cap from fuel tank and use a pump type
syphon to drain fuel into a clean gas can.
Note: This is the only procedure
recommended for draining fuel.
13
Page 22
Replacing
Before each season, inspect scraper for wear. If
thickness of bottom of scraper is less than 1/16”
(1.6 mm), replace scraper (Fig. 16).
Scraper
5. Reinstall belt cover. T
but DO NOT OVERTIGHTEN.
Replacing
Spark Plug
ighten fasteners securely
,
Note: Scraper wear rates are determined by
the running time and the roughness of
the driveway or sidewalk.
1. Turn ignition key to OFF.
2. Drain gasoline from fuel tank; refer to Draining
Gasoline, page 13.
3. Tip snowthrower forward onto front housing.
4. Remove (3) carriage bolts and lock nuts holding
scraper in place (Fig. 17). Remove scraper by
sliding it to right and down.
5. Install new scraper to housing using carriage
bolts and nuts.
Replacing
Inspect drive belt before each season. If ribs on inside
of belt are damaged or belt is worn, replacement is
necessary.
Drive Belt
Before each snow season, check the spark plug. If
electrodes in center of plug are dark or have
deteriorated, install a new plug. Use an NGK
BPMR4A spark plug and set gap at .032” (.81 mm).
1. REMOVE CONTROL PANEL
(Fig. 20)—Remove (3) capscrews securing
control panel to housing. Remove ignition key
and lift off panel, allowing it to hang on recoil
rope.
2. REMOVE SPARK PLUG (Fig. 21)—Pull wire
off spark plug and remove plug. Examine the
plug and replace if cracked, fouled or dirty. DO
NOT SANDBLAST
SP
ARK PLUG BECAUSE DIR
RELEASE AND F
CAUSING ENGINE DAMAGE.
3. INSTALL SPARK PLUG—Set air gap (Fig. 22)
between electrodes at .032” (.81 mm). Install
plug and tighten to 15 ft–lb (20.4 Nm). If torque
wrench is not used, tighten plug firmly. Push
wire onto spark plug and reinstall control panel
with (3) capscrews.
, SCRAPE OR CLEAN
T MA
Y
ALL INT
O CYLINDER
1. Turn ignition key to OFF.
2. Remove (3) self tapping screws, (2) capscrews,
(1) washer and (2) nuts securing belt cover to
snowthrower frame (Fig. 18). Set belt cover
aside.
3. REMOVING BELT (Fig. 19)—Push down on
idler pulley allowing belt to be removed from
rotor pulley, brake arm assembly, and engine
pulley.
4. INSTALLING BELT (Fig. 19)—Loop belt
around engine pulley, under idler pulley, over
roller, through brake assembly, and around rotor
pulley.
IMPORTANT: Belt must be on top of roller as
shown.
14
Adjusting
The carburetor has been factory set, and no
adjustment is required.
Replacing
Before each snow season, inspect rotor blades for
wear. When blade edge has worn to the wear indicator
hole (Fig. 23), the blades must be replaced to ensure
proper performance and prevent damage to underside
of snowthrower. Always replace both blades at the
same time.
Note: Whenever rotor blades are replaced,
Carburetor
Rotor Blades
scraper should also be replaced to
ensure proper snowthrower operation
and performance.
Page 23
Note: Rotor blades wear rates are determined
by the running time and the roughness
of the driveway or sidewalk.
Storage
1. FUEL SYSTEM PREPARATION–
Removing Old Blade
1. Remove (4) torx screws and (4) lock nuts
securing outer edges of rotor blade to rotor shaft
assembly (Fig. 24).
2. Next, remove (2) hex–head capscrews, spacers
and lock nuts securing center of blade to rotor
halves (Fig. 24).
3. Loosen the hex–head screw securing the rotor
halves to the auger shaft assembly (Fig. 24).
4. Slide the blade out from between the rotor halves
(Fig. 24).
Installing New Blade
1. The rotor blades are made of laminated rubber.
Examine the edge of a blade to see the difference
in layer thicknesses (Fig. 25). (Some blades have
a part number on the thick side of the blade.)
Note: A fuel stabilizer/conditioner is most
effective when mixed with fresh
gasoline.
• Add Toro Stabilizer/Conditioner to the fuel tank
(one ounce per gallon of fuel).
• Run engine for five minutes to distribute
conditioned fuel through fuel system.
• Stop engine, allow it to cool, and drain fuel tank.
• Restart the engine again and run it until it stops.
• Either choke or prime the engine, restart it a
third time and run engine until it will not restart.
• Dispose of fuel properly. Recycle per local
codes.
• DO NOT store ST
days.
2. CYLINDER/PISTON CARE—Slowly pull
recoil starter until resistance is felt due to
compression pressure, then stop. Release starter
tension slowly to prevent engine from reversing
due to compression pressure. This position
closes both the intake and exhaust ports which
prevents corrosion of the cylinder bore.
ABILIZED gasoline over 90
Both blades must be installed with the thick
layer on the inside of the curve. If one blade is
installed with the thick layer on the outside of
the curve and the other blade installed with the
thick layer on the inside of the curve, the blades
will be unbalanced, causing the snowthrower to
“hop” or “bounce.”
2. Insert the new blade between the rotor halves.
Secure it to the rotor halves with (2) hex–head
capscrews, (2) spacers and (2) lock nuts
(Fig. 24). Position bolt heads on thick (bottom)
side of blade. Curve the blade, and secure it with
the remaining (4) torx screws and lock nuts
(position screw heads on thick side of blade).
Tighten all screws and nuts securely.
3. TIGHTEN FASTENERS AND
CLEAN—Tighten screws, bolts, and nuts if
necessary. Repair or replace damaged parts.
Clean unit thoroughly.
4. ST
ORE SNOWTHROWER—Cover
snowthrower and store in a clean, dry place out
of the reach of children.
SNOWTHROWER IN HOUSE (LIVING
AREA) OR BASEMENT WHERE
IGNITION SOURCES MA
SUCH AS HOT WATER AND SPACE
HEA
TERS, CLOTHES DR
LIKE
ARE HIGHL
EXPLOSIVE, AND DANGEROUS IF
INHALED.
in any enclosure.
BECAUSE GASOLINE AND FUMES
Y FLAMMABLE,
Allow engine to cool before storing
NEVER ST
Y BE PRESENT
YERS, AND THE
ORE
15
Page 24
Loading...
