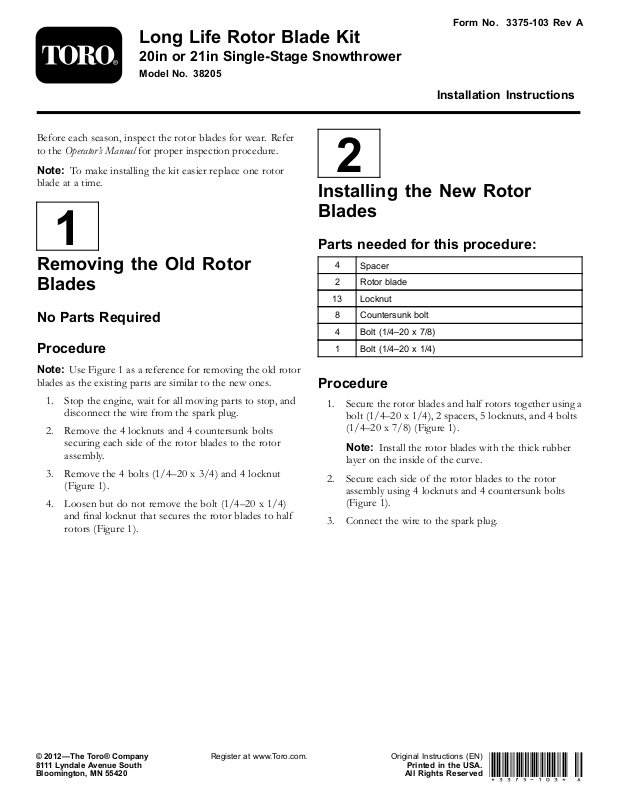

Toro 38205 Installation Instructions
LongLifeRotorBladeKit
20inor21inSingle-StageSnowthrower
ModelNo.38205
Beforeeachseason,inspecttherotorbladesforwear.Refer
totheOperator’sManualforproperinspectionprocedure.
FormNo.3375-103RevA
InstallationInstructions
Note:Tomakeinstallingthekiteasierreplaceonerotor
bladeatatime.
1
RemovingtheOldRotor Blades
NoPartsRequired
Procedure
Note:UseFigure1asareferenceforremovingtheoldrotor
bladesastheexistingpartsaresimilartothenewones.
1.Stoptheengine,waitforallmovingpartstostop,and
disconnectthewirefromthesparkplug.
2.Removethe4locknutsand4countersunkbolts
securingeachsideoftherotorbladestotherotor
assembly.
3.Removethe4bolts(1/4–20x3/4)and4locknut
(Figure1).
4.Loosenbutdonotremovethebolt(1/4–20x1/4)
andnallocknutthatsecurestherotorbladestohalf
rotors(Figure1).
2
InstallingtheNewRotor Blades
Partsneededforthisprocedure:
4
Spacer
2Rotorblade
13Locknut
8
Countersunkbolt
4
Bolt(1/4–20x7/8)
1
Bolt(1/4–20x1/4)
Procedure
1.Securetherotorbladesandhalfrotorstogetherusinga
bolt(1/4–20x1/4),2spacers,5locknuts,and4bolts
(1/4–20x7/8)(
Note:Installtherotorbladeswiththethickrubber
layerontheinsideofthecurve.
2.Secureeachsideoftherotorbladestotherotor
assemblyusing4locknutsand4countersunkbolts
(
Figure1).
3.Connectthewiretothesparkplug.
Figure1).
©2012—TheToro®Company
8111LyndaleAvenueSouth
Bloomington,MN55420
Registeratwww.T oro.com.
OriginalInstructions(EN)
PrintedintheUSA.
AllRightsReserved
*3375-103*A
Figure1
1.Spacer4.Countersunkbolt7.Halfrotors
2.Bolt(1/4–20x1/4)5.Bolt(1/4–20x7/8)
3.Rotorblade6.Locknut
8.Rotorassembly
