Toro 30612 Operator's Manual

Download

Groundsmaster 120

Groundsmaster Traction Unit

Model No. 30612—Serial No. 220000001 and Up

Form No. 3327-100

Operator ’s Manual

English (EN)

Warning

The engine exhaust from this product contains chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.

Important This engine is not equipped with a spark

arrester muffler. It is a violation of California Public Resource Code Section 4442 to use or operate this engine on any forest-covered, brush-covered, or grass-covered land. Other states or federal areas may have similar laws.

This spark ignition system complies with Canadian ICES-002.

Ce système d’allumage par étincelle de véhicule est conforme à la norme NMB-002 du Canada.

The enclosed Engine Owner’s Manual is supplied for information regarding The U.S. Environmental Protection Agency (EPA) and the California Emission Control Regulation of emission systems, maintenance and warranty.

Keep this engine Owner’s Manual with your unit. Should this engine Owner’s Manual become damaged or illegible, replace immediately. Replacements may be ordered through the engine manufacturer.

Contents

Page

Introduction 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Safety 3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Safe Operating Practices 3. . . . . . . . . . . . . . . . . . . .

Toro Mower Safety 4. . . . . . . . . . . . . . . . . . . . . . . .

Slope Chart 7. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Safety and Instruction Decals 9. . . . . . . . . . . . . . . .

Gasoline and Oil 12. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Recommended Gasoline 12. . . . . . . . . . . . . . . . . . . .

Using Stabilizer/Conditioner 12. . . . . . . . . . . . . . . .

Filling the Fuel Tank 12. . . . . . . . . . . . . . . . . . . . . .

Checking the Engine Oil Level 12. . . . . . . . . . . . . .

Assembly 13. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Loose Parts 13. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

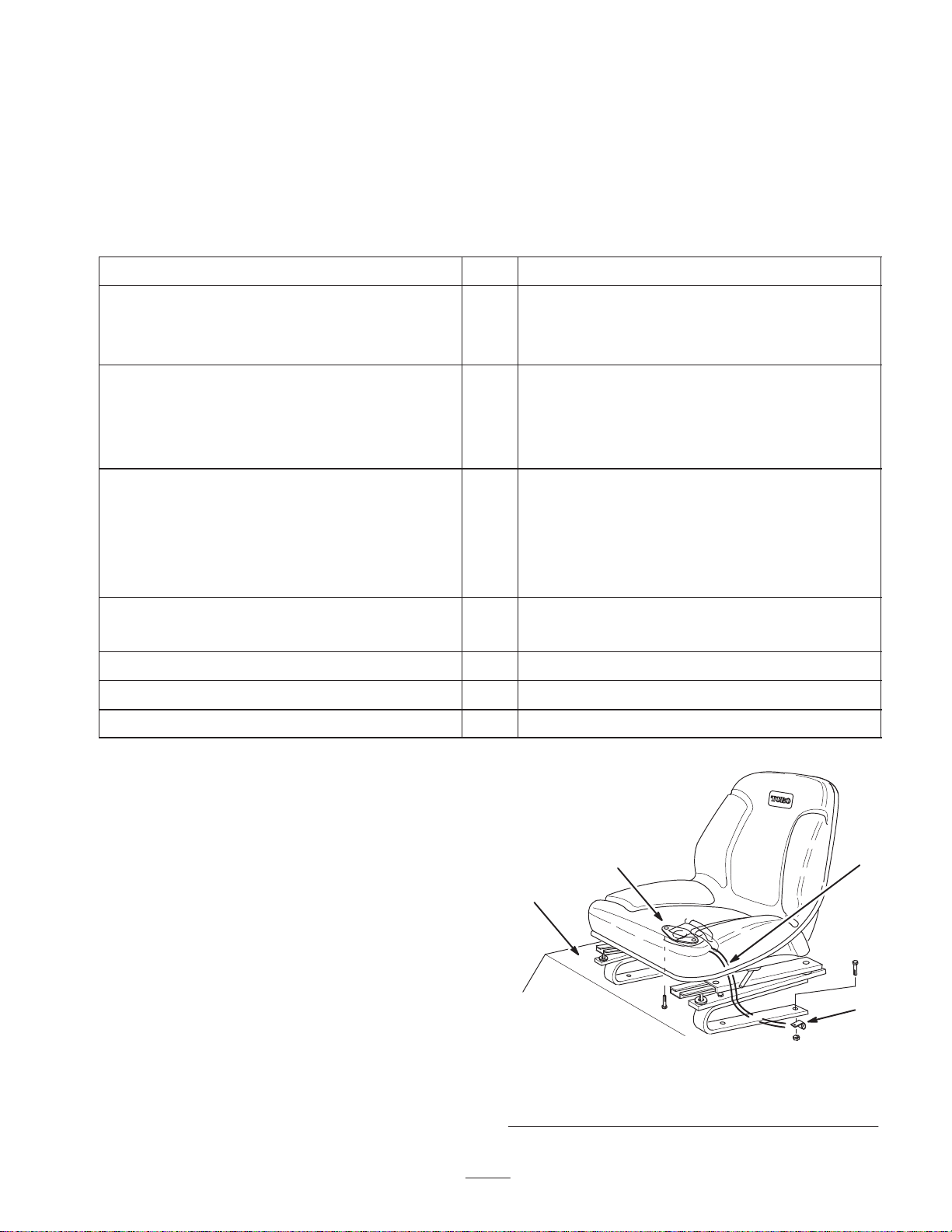

Installing the Seat 13. . . . . . . . . . . . . . . . . . . . . . . . .

Installing the Steering Wheel 14. . . . . . . . . . . . . . . .

Activating the Battery 14. . . . . . . . . . . . . . . . . . . . . .

Installing the Battery 15. . . . . . . . . . . . . . . . . . . . . .

Checking the Engine Oil 15. . . . . . . . . . . . . . . . . . .

Checking the Hydraulic System Fluid 15. . . . . . . . .

Operation 15. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Think Safety First 15. . . . . . . . . . . . . . . . . . . . . . . . .

 2002 by The Toro Company 8111 Lyndale Avenue South Bloomington, MN 55420-1196

Page

Starting and Stopping the Engine 15. . . . . . . . . . . . .

Operating the Power Take Off (PTO) 16. . . . . . . . . .

Driving Forward or Backward 16. . . . . . . . . . . . . . .

Parking Brake 17. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Implement Lift Lever 17. . . . . . . . . . . . . . . . . . . . . .

The Safety Interlock System 17. . . . . . . . . . . . . . . .

Positioning the Seat 18. . . . . . . . . . . . . . . . . . . . . . .

Pushing or Towing the Machine 18. . . . . . . . . . . . . .

Maintenance 19. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Recommended Maintenance Schedule 19. . . . . . . . .

Servicing the Air Cleaner 20. . . . . . . . . . . . . . . . . . .

Engine Oil Service 21. . . . . . . . . . . . . . . . . . . . . . . .

Spark Plug Service 22. . . . . . . . . . . . . . . . . . . . . . . .

Greasing and Lubrication 23. . . . . . . . . . . . . . . . . . .

Brake Service 24. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Replacing the Fuel Filter 24. . . . . . . . . . . . . . . . . . .

Tire Pressure Service 25. . . . . . . . . . . . . . . . . . . . . .

Cleaning the Cooling System 25. . . . . . . . . . . . . . . .

Adjusting the Belts 25. . . . . . . . . . . . . . . . . . . . . . . .

Replacing the Belts 25. . . . . . . . . . . . . . . . . . . . . . . .

Adjusting the Lift Cylinder and Counterbalance Springs

Adjusting the Transmission Neutral 26. . . . . . . . . . .

Adjusting the Electric Clutch 27. . . . . . . . . . . . . . . .

Checking the Hydraulic System Fluid 27. . . . . . . . .

Changing the Hydraulic System Oil 28. . . . . . . . . . .

Changing the Hydraulic Oil Filter 28. . . . . . . . . . . .

Adjusting the Steering 29. . . . . . . . . . . . . . . . . . . . .

Changing the Front Axle Oil 29. . . . . . . . . . . . . . . .

Servicing the Battery 29. . . . . . . . . . . . . . . . . . . . . .

Servicing the Wire Harness 30. . . . . . . . . . . . . . . . .

Waste Disposal 30. . . . . . . . . . . . . . . . . . . . . . . . . . .

Transporting Machines 30. . . . . . . . . . . . . . . . . . . . .

Hydraulic Schematic 31. . . . . . . . . . . . . . . . . . . . . .

Wiring Diagram 32. . . . . . . . . . . . . . . . . . . . . . . . . .

Cleaning and Storage 33. . . . . . . . . . . . . . . . . . . . . .

Troubleshooting 33. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

The Toro Total Coverage Guarantee 36. . . . . . . . . . . . .

Introduction

Read this manual carefully to learn how to operate and maintain your product properly. The information in this manual can help you and others avoid injury and product damage. Although Toro designs and produces safe products, you are responsible for operating the product properly and safely.

Whenever you need service, genuine Toro parts, or additional information, contact an Authorized Service Dealer or Toro Customer Service and have the model and

Printed in the USA

serial numbers of your product ready. Figure 1 illustrates the location of the model and serial numbers on the product.

m–2196

Figure 1

1. Location of the model and serial numbers

Write the product model and serial numbers in the space below:

Improper use or maintenance by the operator or owner can result in injury. To reduce the potential for injury, comply with these safety instructions and always pay attention to the safety alert symbol, which means CAUTION, WARNING, or DANGER—“personal safety instruction.” Failure to comply with the instruction may result in personal injury or death.

Safe Operating Practices

The following instructions are from ANSI standard B71.4—1999.

Training

• Read the Operator’s Manual and other training material.

If the operator(s) or mechanic(s) can not read English it is the owner’s responsibility to explain this material to them.

Model No.

Serial No.

This manual identifies potential hazards and has special safety messages that help you and others avoid personal injury and even death. Danger, Warning, and Caution are signal words used to identify the level of hazard. However, regardless of the hazard, be extremely careful.

Danger signals an extreme hazard that will cause serious injury or death if you do not follow the recommended precautions.

Warning signals a hazard that may cause serious injury or death if you do not follow the recommended precautions.

Caution signals a hazard that may cause minor or moderate injury if you do not follow the recommended precautions.

This manual uses two other words to highlight information.

Important calls attention to special mechanical

information and Note: emphasizes general information worthy of special attention.

• Become familiar with the safe operation of the

equipment, operator controls, and safety signs.

• All operators and mechanics should be trained. The

owner is responsible for training the users.

• Never let children or untrained people operate or

service the equipment. Local regulations may restrict the age of the operator.

• The owner/user can prevent and is responsible for

accidents or injuries occurring to himself or herself, other people or property.

Preparation

• Evaluate the terrain to determine what accessories and

attachments are needed to properly and safely perform the job. Only use accessories and attachments approved by the manufacturer.

• Wear appropriate clothing including hard hat, safety

glasses and ear protection. Long hair, loose clothing or jewelry may get tangled in moving parts.

• Inspect the area where the equipment is to be used and

remove all objects such as rocks, toys and wire which can be thrown by the machine.

Safety

This machine meets or exceeds the B71.4 1999 specifications of the American National Standards Institute, in effect at time of production.

Note: The addition of attachments made by other

manufacturers that do not meet American National Standards Institute certification will cause noncompliance of this machine.

• Use extra care when handling gasoline and other fuels.

They are flammable and vapors are explosive.

• Use only an approved container

• Never remove gas cap or add fuel with engine

running. Allow engine to cool before refueling. Do not smoke.

• Never refuel or drain the machine indoors.

• Check that operator’s presence controls, safety switches

and shields are attached and functioning properly. Do not operate unless they are functioning properly.

Operation

• Never run an engine in an enclosed area.

• Only operate in good light, keeping away from holes

and hidden hazards.

• Be sure all drives are in neutral and parking brake is

engaged before starting engine. Only start engine from the operator’s position. Use seat belts if provided.

• Slow down and use extra care on hillsides. Be sure to

travel in the recommended direction on hillsides. Turf conditions can affect the machine’s stability. Use caution while operating near drop–offs.

• Use care when approaching blind corners, shrubs, trees,

or other objects that may obscure vision.

Maintenance and storage

• Disengage drives, lower implement, set parking brake,

stop engine and remove key or disconnect spark plug wire. Wait for all movement to stop before adjusting, cleaning or repairing.

• Clean grass and debris from cutting units, drives,

mufflers, and engine to help prevent fires. Clean up oil or fuel spillage.

• Let engine cool before storing and do not store near

flame.

• Shut off fuel while storing or transporting. Do not store

fuel near flames or drain indoors.

• Slow down and use caution when making turns and

when changing directions on slopes.

• Never raise deck with the blades running.

• Never operate with the PTO shield, or other guards not

securely in place. Be sure all interlocks are attached, adjusted properly, and functioning property.

• Never operate with the discharge deflector raised,

removed or altered, unless using a grass catcher.

• Do not change the engine governor setting or overspeed

the engine.

• Stop on level ground, lower implements, disengage

drives, engage parking brake (if provided), shut off engine before leaving the operator’s position for any reason including emptying the catchers or unclogging the chute.

• Stop equipment and inspect blades after striking objects

or if an abnormal vibration occurs. Make necessary repairs before resuming operations.

• Keep hands and feet away from the cutting units.

• Look behind and down before backing up to be sure of

a clear path.

• Never carry passengers and keep pets and bystanders

away.

• Slow down and use caution when making turns and

crossing roads and sidewalks. Stop blades if not mowing.

• Be aware of the mower discharge direction and do not

point it at anyone.

• Do not operate the mower under the influence of

alcohol or drugs

• Use care when loading or unloading the machine into a

trailer or truck

• Park machine on level ground. Never allow untrained

personnel to service machine.

• Use jack stands to support components when required.

• Carefully release pressure from components with stored

energy.

• Disconnect battery or remove spark plug wire before

making any repairs. Disconnect the negative terminal first and the positive last. Reconnect positive first and negative last.

• Use care when checking blades. Wrap the blade(s) or

wear gloves, and use caution when servicing them. Only replace blades. Never straighten or weld them.

• Keep hands and feet away from moving parts. If

possible, do not make adjustments with the engine running.

• Charge batteries in an open well ventilated area, away

from spark and flames. Unplug charger before connecting or disconnecting from battery. Wear protective clothing and use insulated tools.

• Keep all parts in good working condition and all

hardware tightened. Replace all worn or damaged decals.

Toro Mower Safety

The following list contains safety information specific to Toro products or other safety information that you must know that is not included in the ANSI standards.

This product is capable of amputating hands and feet and throwing objects. Always follow all safety instructions to avoid serious injury or death.

This product is designed for cutting and recycling grass or, when equipped with a grass bagger, for catching cut grass. Any use for purposes other than these could prove dangerous to user and bystanders.

General Operation

• Allow only responsible adults who are familiar with the

instructions to operate the machine.

• Be sure the area is clear of other people before mowing.

Stop the machine if anyone enters the area.

• Do not mow in reverse unless absolutely necessary.

Always look down and behind before and while backing.

• Be aware of the mower discharge direction and do not

point it at anyone. Do not operate the mower without either the entire grass catcher or the guard in place.

• Slow down before turning. Sharp turns on any terrain

may cause loss of control.

• Turn off blades when not mowing.

• Keep hands, feet, hair and loose clothing away from

attachment discharge area, underside of mower and any moving parts while engine is running.

• Stop the engine before removing the grass catcher or

unclogging the chute.

• Mow only in daylight or good artificial light.

• Watch for traffic when operating near or crossing

roadways.

• Do not touch equipment or attachment parts which may

be hot from operation. Allow to cool before attempting to maintain, adjust or service.

• Before operating a machine with ROPS (roll over

protection) be certain the seat belts are attached to prevent the seat from pivoting forward.

• Use only Toro-approved attachments. Warranty may be

voided if used with unapproved attachments.

Slope Operation

• Follow the manufacturer’s recommendations for wheel

weights or counterweights to improve stability.

• Use extra care with grass catchers or other attachments.

These can change the stability of the machine.

• Keep all movement on slopes slow and gradual. Do not

make sudden changes in speed or direction.

• Avoid starting or stopping on a slope. If tires lose

traction, disengage the blades and proceed slowly straight down the slope.

• When operating machine on slopes, banks or near drop

offs, always have ROPS (roll over protection) installed.

• When operating a machine with ROPS (roll over

protection) always use seat belt.

• Be certain that the seat belt can be released quickly if

the machine is driven or rolls into ponds or water.

• Check carefully for overhead clearances (i.e. branches,

doorways, electrical wires) before driving under any objects and do not contact them.

DO NOT

• Do not mow slopes exceeding 15 degrees.

• Avoid turning on slopes. If you must turn, turn slowly

and gradually downhill, if possible.

• Do not mow near drop-offs, ditches, or embankments.

The machine could suddenly turn over if a wheel goes over the edge of a cliff or ditch, or if an edge caves in.

• Do not mow on wet grass. Reduced traction could cause

sliding.

• Do not try to stabilize the machine by putting your foot

on the ground.

• Do not use a grass catcher on steep slopes. Heavy grass

bags could cause loss of control or overturn the machine.

Slopes and ramps are a major factor related to loss-of-control and tip-over accidents, which can result in severe injury or death. All slopes and ramps require extra caution. If you cannot back up the slope or if you feel uneasy on it, do not mow it.

• If a steep slope must be ascended, back up the hill, and

drive forward down the hill, keeping the machine in gear.

• Remove obstacles such as rocks, tree limbs, etc. from

the mowing area. Watch for holes, ruts or bumps, as uneven terrain could overturn the machine. Tall grass can hide obstacles.

• Use slow speed so that you will not have to stop while

on the slope.

Service

• Never store the machine or fuel container inside where

there is an open flame, such as near a water heater or furnace.

• Keep nuts and bolts tight, especially the blade

attachment bolts. Keep equipment in good condition.

• Never tamper with safety devices. Check safety systems

for proper operation before each use.

• Use only genuine replacement parts to ensure that

original standards are maintained.

• Check brake operation frequently. Adjust and service as

required.

• Battery acid is poisonous and can cause burns. Avoid

contact with skin, eyes and clothing. Protect your face, eyes and clothing when working with a battery.

• Battery gases can explode. Keep cigarettes, sparks and

flames away from battery.

• Hydraulic fluid escaping under pressure can penetrate

the skin and cause injury. Use cardboard or paper to find hydraulic leaks. Never use your hands.

Slope Chart

Safety and Instruction Decals

Safety decals and instructions are easily visible to the operator and are located near any area of potential danger. Replace any decal that is damaged or lost.

92-6278

26-7390

92-6288

53-4430

54-0880

54-0900

54-0910

61-3610

63-8440

1. Hot surface

77-3100

1. Spinning blades can cut off fingers.

54-0920

55-4300

92-6277

92-6291

98-4387

1. Warning—wear hearing protection.

Gasoline and Oil

Warning

Recommended Gasoline

Use unleaded Regular Gasoline suitable for automotive use (85 pump octane minimum). Leaded regular gasoline may be used if unleaded regular is not available.

Important Never use methanol, gasoline containing

methanol, or gasohol containing more than 10% ethanol because the fuel system could be damaged. Do not mix oil with gasoline.

Danger

In certain conditions, gasoline is extremely flammable and highly explosive. A fire or explosion from gasoline can burn you and others and can damage property.

• Fill the fuel tank outdoors, in an open area,

when the engine is cold. Wipe up any gasoline that spills.

• Never fill the fuel tank inside an enclosed trailer.

• Do not fill the fuel tank completely full. Add

gasoline to the fuel tank until the level is 1/4 to 1/2 in. (6 to 13 mm) below the bottom of the filler neck. This empty space in the tank allows gasoline to expand.

• Never smoke when handling gasoline, and stay

away from an open flame or where gasoline fumes may be ignited by a spark.

• Store gasoline in an approved container and

keep it out of the reach of children. Never buy more than a 30-day supply of gasoline.

• Always place gasoline containers on the ground

away from your vehicle before filling.

• Do not fill gasoline containers inside a vehicle or

on a truck or trailer bed because interior carpets or plastic truck bed liners may insulate the container and slow the loss of any static charge.

• When practical, remove gas–powered

equipment from the truck or trailer and refuel the equipment with its wheels on the ground.

• If this is not possible, then refuel such

equipment on a truck or trailer from a portable container, rather than from a gasoline dispenser nozzle.

• If a gasoline dispenser nozzle must be used, keep

the nozzle in contact with the rim of the fuel tank or container opening at all times until fueling is complete.

Gasoline is harmful or fatal if swallowed. Long–term exposure to vapors can cause serious injury and illness.

• Avoid prolonged breathing of vapors.

• Keep face away from nozzle and gas tank or

conditioner opening.

• Keep gas away from eyes and skin.

Using Stabilizer/Conditioner

Use a fuel stabilizer/conditioner in the machine to provide the following benefits:

• Keeps gasoline fresh during storage of 90 days or less.

For longer storage it is recommended that the fuel tank be drained.

• Cleans the engine while it runs

• Eliminates gum-like varnish buildup in the fuel system,

which causes hard starting

Important Do not use fuel additives containing

methanol or ethanol. Add the correct amount of gas stabilizer/conditioner to the

gas. Note: A fuel stabilizer/conditioner is most effective when

mixed with fresh gasoline. To minimize the chance of varnish deposits in the fuel system, use fuel stabilizer at all times.

Filling the Fuel Tank

1. Shut the engine off and set the parking brake.

2. Clean around each fuel tank cap and remove the cap.

Add unleaded regular gasoline to both fuel tanks, until the level is 1/4 to 1/2 inch (6 mm to 13 mm) below the bottom of the filler neck. This space in the tank allows gasoline to expand. Do not fill the fuel tanks completely full.

3. Install fuel tank caps securely. Wipe up any gasoline

that may have spilled.

Checking the Engine Oil Level

Before you start the engine and use the machine, check the oil level in the engine crankcase; refer to Checking the Oil Level, page 21.

Assembly

Note: Determine the left and right sides of the machine from the normal operating position.

Loose Parts

Note: Use the chart below to verify that all parts have been shipped.

Description Qty. Use

Spacer Steering wheel Roll pin, 1/4 x 2-1/2 in.(64 mm)

Seat Bolt, 5/16-18 x 1 in. (25 mm) Lock nut, 5/16 R-clamp

Weight Bolt, 1/2 x 3-1/2 in. (89 mm) Washer, 1/2 in. (13 mm) Lock washer, 1/2 in. (13 mm) Nut, 1/2 in.

Carriage bolt, 1/4-20 x 3/4 in. (19 mm) Wing nut, 1/4

Parts catalog 1 Operator’s Manual 1 Read before operating the machine. Registration card 1 Fill out and return to Toro.

1 1 1

1 4 4 1

2 4 4 4 4

2 2

Installing the steering wheel

Installing the seat

Installing the rear weight

Installing the battery cables

Installing the Seat

1. Position the seat assembly onto the seat plate, aligning

the mounting holes (Fig. 1).

2. Slide the wire clamp over the seat switch wire (Fig. 1).

3. Using the left front hole, loosely secure the wire clamp

and seat to the seat base with capscrews and locknuts (Fig. 1).

4. Mount the seat to the seat base with the 3 remaining

bolts and locknuts.

5. Route the seat switch wire through the slot in the seat

plate and plug the connector onto the seat switch (Fig. 1).

6. Tighten all locknuts and check the operation of the seat.

7. Make sure the wire harness is clear of the lift arm and

all moving parts.

1. Seat plate

2. R-clamp

Figure 1

3. Seat switch wire

4. Seat switch connector

M–4264

Installing the Steering Wheel

1. Move the rear wheels so that they point straight ahead.

2. Slide the spacer and steering wheel onto the steering

shaft, aligning the mounting holes. Check that the logo on the steering cap points forward.

3. Secure the steering wheel to the shaft with a roll pin

(Fig. 2).

Figure 2

1. Spacer

2. Roll pin

3. Steering Wheel

Activating the Battery

Bulk electrolyte with 1.260 specific gravity must be purchased from a local battery supply outlet.

Danger

Battery electrolyte contains sulfuric acid which is a deadly poison and causes severe burns.

• Do not drink electrolyte and avoid contact with

skin, eyes or clothing. Wear safety glasses to shield your eyes and robber gloves to protect your hands.

• Fill the battery where clean water is always

available for flushing the skin.

• Follow all instructions and comply with all

safety messages on the electrolyte container.

M–4263

1262

Figure 3

1. Filler caps

2. Electrolyte

3. Lower part of the tube

3. Leave the covers off and connect a 3 to 4 amp battery

charger to the battery posts (Fig. 4). Charge the battery at a rate of 4 amperes or less for 4 hours (12 volts).

1254

Figure 4

1. Positive post

2. Negative post

3. Charger red (+) wire

4. Charger black (–) wire

Warning

1. If the battery is already installed, remove it from the

holder.

2. Remove the filler caps from the battery. Slowly pour

electrolyte into each cell until the electrolyte level is up to the lower part of the tube (Fig. 3).

Charging battery produces gasses that can explode and cause serious injury.

• Keep cigarettes, sparks and flames away from

battery.

• Make sure the ignition switch is off.

• Ventilate when charging or using battery in an

enclosed space.

4. When the battery is fully charged, disconnect the

charger from the electrical outlet then from the negative and positive battery posts (Fig. 4).

5. Slowly pour electrolyte into each cell until the level is

up to the lower part of the tube (Fig. 3) and install the covers.

Checking the Hydraulic System Fluid

6. Install the battery into the holder.

Installing the Battery

Important Activate the battery with electrolyte and

charge it before installing.

1. Mount the battery on the battery support with the

terminal posts toward the gas tank (Fig. 5).

2. Secure the battery with the clamp, support rod, and

wing nut (Fig. 5).

Note: Do not over tighten.

3. Slide the red terminal boot onto the red battery cable

(Fig. 5).

4. Install the positive battery cable to positive (+) battery

terminal and the negative battery cable to the negative (–) battery terminal and secure them with carriage bolts and locknuts (Fig. 5).

5 7

The hydraulic system is shipped with approximately 5 quarts of 10W-30 engine oil; however, the oil level must be checked before the engine is first started. Check the oil level; refer to Checking the Hydraulic System Fluid, page 27.

Operation

Note: Determine the left and right sides of the machine from the normal operating position.

Think Safety First

Please carefully read all of the safety instructions and decals in the safety section. Knowing this information could help you, your family, pets, or bystanders avoid injury.

Become familiar with all of the controls before you start the engine and operate the machine.

The use of protective equipment for eyes, hearing, feet, and head is recommended.

Caution

1. Clamp

2. Support rod

3. Wing nut

4. Positive battery cable

Figure 5

5. Negative battery cable

6. Carriage Bolt

7. Terminal Boot

M–4282

Checking the Engine Oil

The engine is shipped with 4 pints of oil in the crankcase; however, the oil level must be checked before and after the engine is first started. Check the oil level; refer to Checking the Oil Level, page 21.

This machine produces sound levels in excess of 85dBA at the operator’s ear and can cause hearing loss through extended periods of exposure.

Wear hearing protection when operating this machine.

Figure 6

1. Caution 2. Wear hearing protection

Starting and Stopping the Engine

Starting

1. Make sure that the spark plug wire(s) are installed on

the spark plug(s).

2. Move the traction pedal to neutral, set the parking

brake, and move the PTO switch to “OFF.”

3. Move the choke control to the “CHOKE” position

before starting a cold engine.

Note: A warm or hot engine may not require any choking.

Operating the Power Take Off (PTO)

The power take off (PTO) switch engages and disengages power to the electric clutch.

4. Rotate the ignition key to “START.” When the engine

starts, release the key, gradually move the choke to run, and regulate the throttle to the desired speed.

Important To prevent overheating of the starter motor,

do not engage the starter longer than 10 seconds. After 10 seconds of continuous cranking, wait 60 seconds before engaging the starter motor again.

Stopping

1. Move the throttle lever to “SLOW” (Fig. 7). Note: If the engine has been working hard or is hot, let it

idle for a minute before turning the ignition key “OFF.” This helps cool the engine before it is stopped. In an emergency, the engine may be stopped by turning the ignition key to “OFF.”

2. Turn the ignition key to “OFF” (Fig. 7).

3. Set the parking brake.

4. Pull the wire off of the spark plug(s) to prevent the

possibility of accidental starting before storing the machine.

Engaging the PTO

1. Release pressure on the traction pedal to stop

movement. (Fig. 7).

2. Lift the cover and move the PTO switch to the “ON”

position (Fig. 7).

Disengaging the PTO

Closing the cover moves the PTO switch to the “OFF” position (Fig. 7).

Driving Forward or Backward

The throttle control regulates the engine speed as measured in RPM (revolutions per minute). Move the throttle control to the “FAST” position for best performance.

Forward

1. Place your foot on the traction pedal (Fig. 7).

2. Release the parking brake.

3. Slowly press on the upper pad of the traction pedal to

move forward (Fig. 7).

2 3

1. Traction pedal

2. PTO switch

3. Ignition switch

Figure 7

4. Choke

5. Throttle

M–3329

Backward

1. Place your foot on the traction pedal (Fig. 7).

2. Release the parking brake.

3. Slowly press on the lower pad of the traction pedal to

move rearward (Fig. 7).

Stopping the Machine

To stop the machine, release the pressure on the traction pedal, move the PTO switch to “OFF,” and turn the ignition key to “OFF” to stop the engine. Remove the key. Also set the parking brake if you leave the machine unattended; refer to Setting the Parking Brake, page 17.

Caution

Children or bystanders may be injured if they move or attempt to operate the tractor while it is unattended.

Always remove the ignition and set the parking brake when leaving the machine unattended, even if just for a few minutes.

Raising Attachments

1. Remove pressure from traction pedal to stop the

machine.

2. Pull implement lift lever (Fig. 8) rearward to raise

attachment to the desired height.

Lowering Attachments

1. Remove pressure from traction pedal to stop the

machine.

Parking Brake

Always set the parking brake when you stop the machine or leave it unattended.

Setting the Parking Brake

1. Release pressure on the traction pedal to stop

movement.

2. Lift the parking brake lever up to apply the parking

brake (Fig. 8).

Releasing the Parking Brake

Move the parking brake lever down to the released the parking brake (Fig. 8).

2. Push implement lift lever (Fig. 8) forward to lower

attachment.

Note: Hold lift lever in down position 1–2 seconds after attachment in down to extend lift cylinder allowing attachment to float with changes in ground contour.

The Safety Interlock System

Caution

If safety interlock switches are disconnected or damaged the machine could operate unexpectedly causing personal injury.

• Do not tamper with the interlock switches.

• Check the operation of the interlock switches

daily and replace any damaged switches before operating the machine.

Understanding the Safety Interlock System

The safety interlock system is designed to prevent the engine from rotating or starting unless:

M–3155

Figure 8

1. Parking brake 2. Implement lift lever

Implement Lift Lever

The implement lift lever (Fig. 8) is used to raise and lower various attachments.

• The traction pedal is in neutral.

• The power take off (PTO) is disengaged.

The safety interlock system is designed to stop the engine if you rise from the seat when the PTO is engaged or the motion control is not in neutral.

Testing the Safety Interlock System

Test the safety interlock system before you use the machine each time. If the safety system does not operate as described below, have an Authorized Service Dealer repair the safety system immediately.

1. Set the parking brake, move motion control to neutral,

switch the power take off (PTO) “ON”. Now turn the key to “START”; the engine should not rotate.

2. Set the parking brake, turn the power take off (PTO)

“OFF” and move the motion control (forward or reverse). Now turn the ignition key to “START”; the engine should not rotate.

3. Move the power take off (PTO) to disengaged, motion

control to neutral, do not set parking brake. Now turn the key to “START”; the engine should not rotate.

4. Set the parking brake, move the power take off (PTO)

to disengaged, motion control to neutral and start the engine. While the engine is running, engage the power take off (PTO) and rise slightly from the seat; the engine should stop.

5. Set the parking brake, move the power take off (PTO)

to disengaged, motion control to neutral and start the engine. While the engine is running, slowly move the motion control (forward or reverse); the engine should stop.

Important The unit can be started when all controls are

in a safe position, without the operator in the seat, for servicing.

Positioning the Seat

Pushing or Towing the Machine

In an emergency, the traction unit can be pushed or towed for a very short distance. We do not recommend this as standard procedure.

Important Do not push or tow the traction unit faster

than 2 to 3 MPH because the transmission may be damaged. If the traction unit must be moved a considerable distance, transport it on a truck or trailer.

1. To push or tow forward, the traction pedal must be fully

depressed forward.

2. To push or tow in reverse, the traction pedal must be

fully depressed in reverse.

The seat can move forward and backward. Position the seat where you have the best control of the machine and are most comfortable.

1. To adjust the seat move the lever on the left side of the

seat rearward (Fig. 9).

2. Slide the seat to the desired position and release the

lever to lock the seat into position.

M–4283

Figure 9

1. Seat adjustment lever

Maintenance

Note: Determine the left and right sides of the machine from the normal operating position.

Recommended Maintenance Schedule

Maintenance Service

Interval

After first 5 Hours • Oil—change

Each Use

5 hours • Brake—check

25 hours

50 hours

100 hours

Maintenance Procedure

• Oil—check level

• Safety System—check

• Brake—check

• Engine—clean outside and cooling fins

• Bearings and Bushings—grease

• Foam Air Cleaner—clean

• Paper Air Cleaner—clean

• Oil—change

• Belts—check for wear/cracks

• Tires—check pressure

• Battery—check electrolyte level

• Oil Filter—change1 (Every other oil change)

• Engine—clean outside and cooling fins

• Paper Air Cleaner—replace

• Fuel Filter—replace

200 hours • Spark Plug(s)—check

250 hours

500 hours • Front Axle—change oil

At Storage

More often in dusty, dirty conditions

Important Refer to your engine operator’s manual for additional maintenance procedures.

• Hydraulic System—change oil

• Hydraulic System—change filter

• Chipped Surfaces—paint

• Perform all maintenance procedures listed above before storage

Caution

If you leave the key in the ignition switch, someone could accidently start the engine and seriously injure you or other bystanders.

Remove the key from the ignition and disconnect the wire from the spark plug(s) before you do any maintenance. Set the wire aside so that it does not accidentally contact the spark plug.

Servicing the Air Cleaner

Foam Element: Clean and oil after every 25 operating hours.

Paper Element: Replace after every 100 operating hours. Note: Service the air cleaner more frequently (every few

hours) if operating conditions are extremely dusty or sandy.

Removing the Foam and Paper Elements

1. Raise the seat

2. Disengage the power take off (PTO), set the parking

brake, stop the engine, and remove the key.

m–1213

Figure 11

1. Foam element 2. Oil

Cleaning the Paper Element

3. Clean around the air cleaner to prevent dirt from getting

into the engine and causing damage. Unscrew the knob and remove the air cleaner cover (Fig. 10).

M–4284

Figure 10

1. Wing nut

2. Cover

3. Filter

4. Pre-filter

5. Filter Base

4. Carefully slide the foam element off of the paper

element (Fig. 10).

5. Unscrew the cover nut and remove the cover and paper

element (Fig. 10).

1. Lightly tap the element on a flat surface to remove dust

and dirt (Fig. 12).

2. Inspect the element for tears, an oily film, and damage

to the rubber seal.

Important Never clean the paper element with

pressurized air or liquids, such as solvent, gas, or kerosene. Replace the paper element if it is damaged, or cannot be cleaned thoroughly.

m–1213

Figure 12

1. Paper element 2. Rubber seal

Cleaning the Foam Element

1. Wash the foam element in liquid soap and warm water.

When the element is clean, rinse it thoroughly.

2. Dry the element by squeezing it in a clean cloth (do not

wring).

3. Put one or two ounces of oil on the element (Fig. 11).

Squeeze the element to distribute the oil.

Important Replace the foam element if it is torn or

worn.

Installing the Foam and Paper Elements

1. Installing the Foam and Paper Elements

Important To prevent engine damage, always operate

the engine with the complete foam and paper air cleaner assembly installed.

1. Carefully slide the foam element onto the paper air

cleaner element (Fig. 10).

2. Place the air cleaner assembly onto the air cleaner base

(Fig. 10).

3. Install the air cleaner cover and secure it with the cover

nut (Fig. 10).

Engine Oil Service

Service Interval/Specification

Change the oil:

• After the first 5 operating hours

• After every 50 operating hours

Note: Change the oil more frequently when operating conditions are extremely dusty or sandy.

Oil Type: Detergent oil (API service SF, SE/CC, CD, or SE)

Crankcase Capacity: w/filter, 4 pints (1.9 l) Viscosity: See the table below:

USE THESE SAE VISCOSITY OILS

–20 0 20

–305–20 –10

40 60

01020

80 100

30 40

M–4285

Figure 13

1. Oil dipstick

2. Oil fill

3. Metal end

Changing and Draining Oil

1. Start the engine and let it run for five minutes. This

warms the oil so that it drains better.

2. Park the machine so that the drain side is slightly lower

than the opposite side to ensure that the oil drains completely. Then disengage the power take off (PTO), set the parking brake, stop the engine, and remove the key.

3. Place a pan below the oil drain. Remove the oil drain

plug (Fig. 14).

4. When oil has drained completely, install the oil drain

plug.

Note: Dispose of the used oil at a certified recycling center.

Checking the Oil Level

1. Raise the seat.

2. Park the machine on a level surface, disengage the

power take off (PTO), set the parking brake, stop the engine, and remove the key.

3. Clean around the oil dipstick and oil fill (Fig. 13) so

that dirt cannot fall into the filler hole and damage the engine.

4. Pull the oil dipstick out and wipe the metal end clean

(Fig. 13).

5. Slide the oil dipstick fully into the dipstick tube

(Fig. 13). Pull the dipstick out and look at the metal end. If the oil level is low, slowly pour only enough oil into the filler hole to raise the level to the “FULL” mark.

Important Do not overfill the crankcase with oil

because the engine may be damaged.

M–5176

Figure 14

1. Oil drain plug 2. Oil filter

5. Slowly pour approximately 80% of the specified

amount of oil into the filler tube (Fig. 13). Now check the oil level; refer to Checking the Oil Level, page 21. Slowly add oil to bring the level to the “FULL” mark on the dipstick.

Changing the Oil Filter

Replace the oil filter every 100 hours or every other oil change.

Note: Change the oil filter more frequently when operating conditions are extremely dusty or sandy.

1. Drain the oil from the engine; refer to Changing and

Draining the Oil, page 21.

2. Remove the old filter and wipe the filter adapter

(Fig. 14 and 15) gasket surface.

3. Apply a thin coat of new oil to the rubber gasket on the

replacement filter (Fig. 15).

Danger

In certain conditions, gasoline is extremely flammable and highly explosive. A fire or explosion from gasoline can burn you and others and can damage property.

• Drain gasoline from the fuel tank when the

engine is cold. Do this outdoors in an open area. Wipe up any gasoline that spills.

• Never smoke when draining gasoline, and stay

away from an open flame or where a spark may ignite the gasoline fumes.

3. Rotate the tank and set it in the hood to prevent any fuel

from spilling.

Figure 15

1. Oil filter

2. Gasket

4. Install the replacement oil filter to the filter adapter.

Turn the oil filter clockwise until the rubber gasket contacts the filter adapter, then tighten the filter an additional 1/2 turn (Fig. 15).

5. Fill the crankcase with the proper type of new oil; refer

to Changing and Draining the Oil, page 21.

3. Adapter

1256

Spark Plug Service

Service Interval/Specification

Check the spark plug(s) after every 200 operating hours. Make sure that the air gap between the center and side electrodes is correct before installing the spark plug. Use a spark plug wrench for removing and installing the spark plug(s) and a gapping tool/feeler gauge to check and adjust the air gap. Install a new spark plug(s) if necessary.

Type: Champion RC 12YC (or equivalent) Air Gap: 0.04 in. (1 mm)

Removing the Spark Plug(s)

1. Disengage the power take off (PTO), set the parking

brake, stop the engine, and remove the key.

2. To gain access to the rear spark plug, the gas tank must

be removed (Fig. 16).

4. Push out the plastic cover from the access hole in the

plate between the engine and gas tank.

5. Pull the wire(s) off of the spark plug(s). Now clean

around the spark plug(s) to prevent dirt from falling into the engine and potentially causing damage.

6. Remove the spark plug(s) and metal washer.

M–4286

Figure 16

1. Fuel tank 2. Opening for access

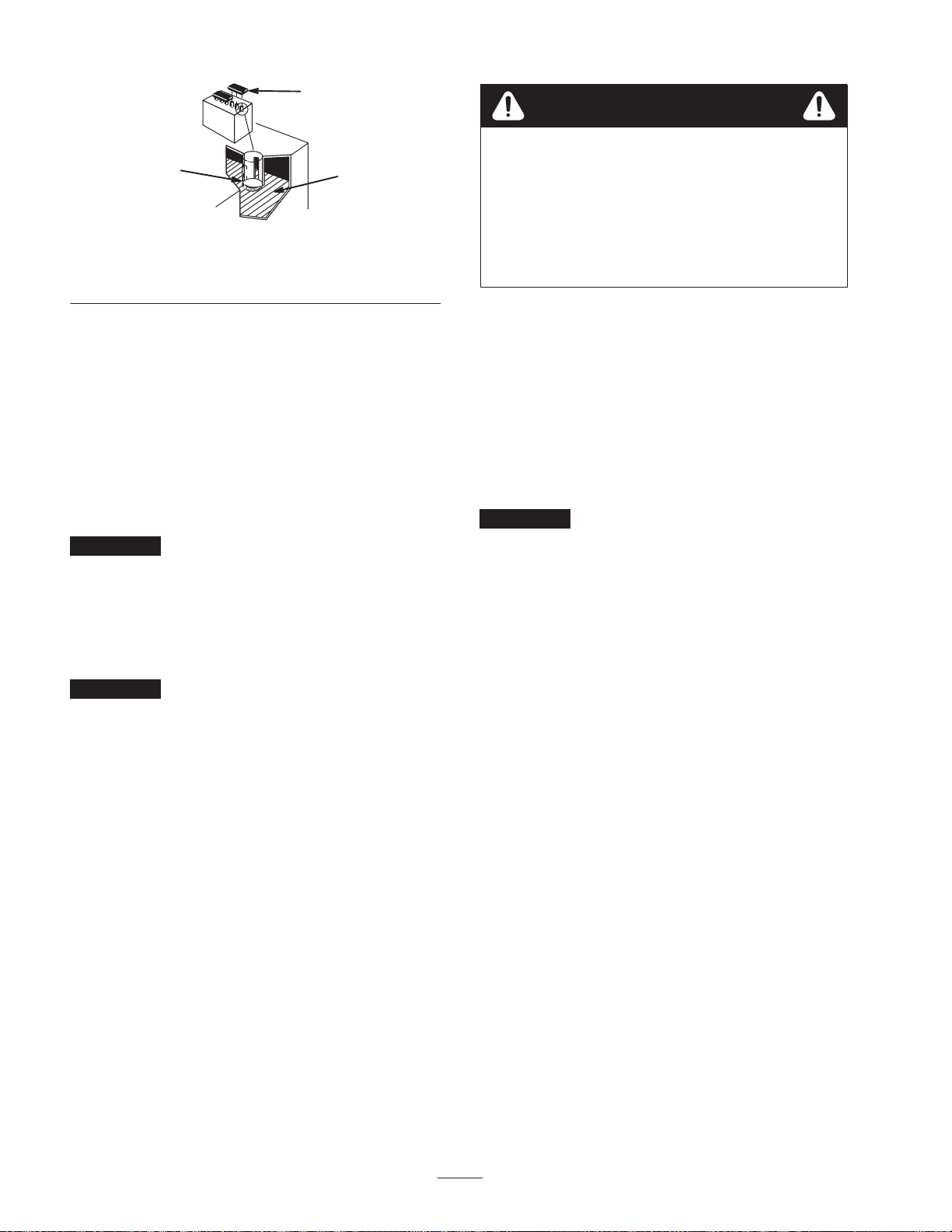

Checking the Spark Plug

1. Look at the center of the spark plug(s) (Fig. 17). If you

see light brown or gray on the insulator, the engine is operating properly. A black coating on the insulator usually means the air cleaner is dirty.

Important Never clean the spark plug(s). Always

replace the spark plug(s) when it has a black coating, worn electrodes, an oily film, or cracks.

2. Check the gap between the center and side electrodes

(Fig. 17). Bend the side electrode (Fig. 17) if the gap is not correct.

Figure 17

1. Center electrode insulator

2. Side electrode

0.04 in. (1 mm)

3. Air gap (not to scale)

Where to Add Grease

1. Lubricate the wheel bearings (Fig. 18).

M–4287

Figure 18

Installing the Spark Plug(s)

1. Install the spark plug(s) and metal washer. Make sure

that the air gap is set correctly.

2. Tighten the spark plug(s) to 12 ft.-lb. (17 N m).

3. Push the wire(s) onto the spark plug(s) (Fig. 16).

4. Push the plastic cover into the access hole in the plate

between the engine and gas tank.

5. Lift the fuel tank and attach the fuel hose. Secure it with

the hose clamp.

6. Rotate the fuel tank into position, hook the straps into

the lower bracket, and secure it with capscrews and locknuts.

Greasing and Lubrication

Service Interval/Specification

Grease all bearings and bushings every 25 operating hours. Grease more frequently (daily) when operating conditions are extremely dusty or sandy.

Grease Type: General-purpose lithium base grease

2. Lubricate the spindles, steering shaft, and pivot

(Fig. 19).

M–4281

Figure 19

3. Lubricate the axle bearings (Fig. 20).

Once a year, grease the front wheel hub to prevent the formation of rust and to simplify future wheel removal.

How to Grease

1. Disengage the power take off (PTO), set the parking

brake, stop the engine, and remove the key.

2. Clean the grease fittings with a rag. Make sure to scrape

any paint off of the front of the fitting(s).

3. Connect a grease gun to the fitting. Pump grease into

the fittings until grease begins to ooze out of the bearings.

4. Wipe up any excess grease.

M–4371

Figure 20

4. Lubricate the traction pedal bushings and steering shaft

with a few drops of SAE 10W-30 oil or dry spray lube (Fig. 21).

m–5131

3. If the distance is greater than 1/4 in. (6 mm), tighten the

locknut to decrease the distance between the actuating arm and stop pin (Fig. 22).

4. With the brake lever OFF, check the clearance between

the brake pads and disc with a feeler gauge (Fig. 22). Proper clearance is approximately 0.01 in. (.25 mm).

5. The actuating arm should be no more than 3/8 in.

(10 mm) away from the stop with the brake lever in the ON position.

6. Check the brake operation again; refer to Checking the

Brake, page 24.

7. Check the adjustment. The drive wheels should rotate

freely when the brake lever is in the OFF position.

Figure 21

Brake Service

Always set the parking brake when you stop the machine or leave it unattended. If the parking brake does not hold securely, an adjustment is required.

Checking the Brake

1. Park the machine on a level surface, disengage the

power take off (PTO), set the parking brake, stop the engine, and remove the key.

2. The drive wheels must lock when the brake is applied.

An adjustment is required if the wheels turn and do not lock; refer to Adjusting the Brake, page 24.

3. Release the brake. The wheels should rotate freely.

4. If both conditions are met no adjustment is required.

Important With the parking brake released, the drive

wheels must rotate freely. If brake action and free wheel rotation cannot be achieved, contact your service dealer immediately.

Adjusting the Brake

If the drive wheels do not rotate freely when the brake lever is in the OFF position, or the brake does not hold when the lever is in the ON position, an adjustment is required.

1. Move the brake lever to the ON position.

2. Measure the distance between the disc brake actuating

arm and stop pin on the axle bracket assembly (Fig. 22). The distance should be less than 1/4 in. (6 mm).

2183

Figure 22

1. Brake actuating arm

2. Stop pin

3. Locknut

4. Brake pad (2)

5. Disc

6. 1/4 in. (6mm)

Replacing the Fuel Filter

Replace the fuel filter after every 100 operating hours or yearly, whichever occurs first.

Never install a dirty filter if it is removed from the fuel line.

1. Disengage the power take off (PTO), set the parking

brake, stop the engine, and remove the key.

2. Have a container ready to drain fuel from the tank. It is

best to change the fuel filter when the fuel tank is almost empty.

3. Loosen the hose clamps and slide them up the hose,

away from the filter (Fig. 23).

4. Remove the filter from the fuel lines (Fig. 23).

5. Install a new filter. If the filter has an arrow, install it

with the arrow pointing toward the carburetor.

6. Move the hose clamps close to the filter and tighten

them.

Adjusting the Belts

If belt slippage occurs, the idler pulleys must be adjusted to increase the belt tension.

2261

Figure 23

1. Hose clamp

2. Fuel line

3. Filter

Tire Pressure Service

Maintain the air pressure in the front and rear tires as specified. Check the pressure at the valve stem after every 50 operating hours or monthly, whichever occurs first (Fig. 24). Check the tires when they are cold to get the most accurate pressure reading.

Pressure: 103 kPa (15 psi) front and rear

1. Disengage the power take off (PTO), set the parking

brake, stop the engine, and remove the key.

2. Raise the seat.

3. Measure the distance from the bottom of the spacer on

the pulley mounting screw to the bottom of the slot in the idler adjustment link. The distance should be 1/4 in. (6 mm) or less (Fig. 25).

4. To adjust, remove the hairpin cotter and washer

securing the tension bracket to the mounting pin (Fig. 25).

5. Slide the tension bracket off of the mounting pin.

Adjust and select a new hole until the bottom of the spacer is within 1/4 in. (6 mm) from the bottom of the slot (Fig. 25).

6. Secure the tension bracket with the washer and hairpin

cotter (Fig. 25).

M–4287

Figure 24

1. Valve stem

Cleaning the Cooling System

Before each use, remove grass clippings, dirt, and grime from the entire machine, muffler, and engine air intake screen. Every 100 operating hours clean dirt and chaff from the engine cylinder head fins and blower housing. This will help ensure adequate cooling and reduce the possibility of overheating and mechanical damage to the engine.

1. Open hood and pull the spark plug wire(s) off.

2. To avoid overheating and possible engine damage

clean, grass, dust, dirt, and oil from the outside of the engine, air intake screen, and muffler.

3. To clean the cylinder head fins, remove the engine from

the chassis and remove the cooling shrouds. Make sure that the cooling shrouds are installed before operating the engine.

m–5180

Figure 25

1. 1/4 in. (6 mm) space

2. Tension bracket

3. Pulley mounting screw

4. Bottom of slot

5. Hairpin cotter

6. Mounting pin

Replacing the Belts

To replace the traction or jackshaft belt, use the following procedures and belt routing diagram (Fig. 26).

1. Disengage the power take off (PTO), set the parking

brake, stop the engine, and remove the key.

2. Raise the seat.

3. Remove the clutch anchor bolt and unplug the clutch

from the wire harness.

4. Release the tension in the idler pulleys before removing

or installing the belts (Fig. 25).

5. Install the belts. Route the traction belt over the

transmission as shown (Fig. 26).

6. Install the clutch anchor bolt and plug in the connector.

Important To avoid damage, install the clutch anchor

bolt before connecting the wire.

7. Adjust the belt tension; refer to Adjusting the Belts,

page 25.

2194

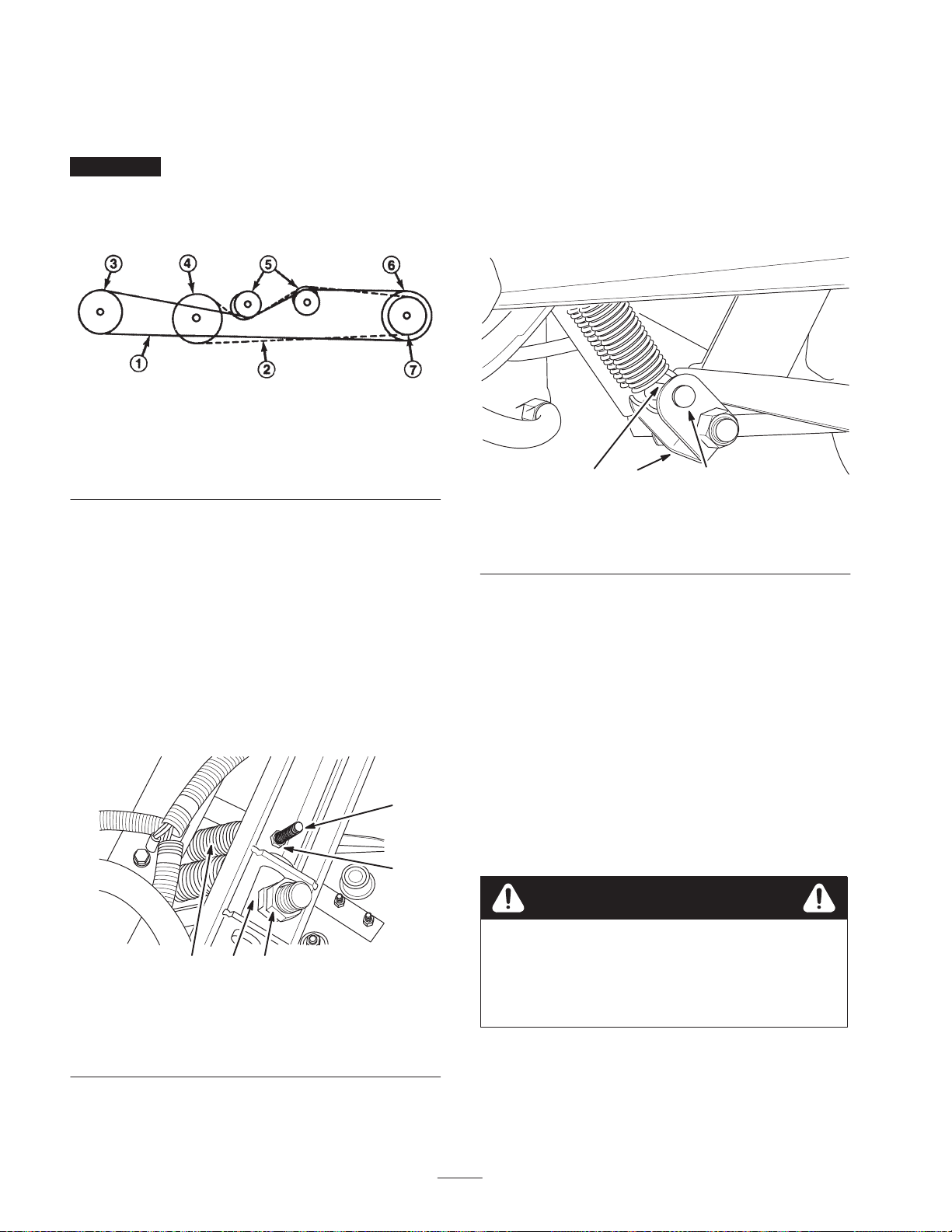

Figure 26

1. Jackshaft belt

2. Traction belt

3. Jackshaft pulley

4. Transmission pulley

5. Idler pulley

6. Clutch pulley

7. Engine pulley

Adjusting the Lift Cylinder and Counterbalance Springs

5. Start the engine and raise the lift arms until the lift

cylinder is fully retracted and lift (cutting unit) is fully raised.

6. Check the distance between the clevis pin and bottom

hooks of the springs (Fig. 25). The distance should be 1/4 in. (6 mm) or less.

7. Adjust the nut on the lift arm “T” hook to obtain the

required distance.

M–4351

Figure 28

1. 1/4 in. (6 mm) clearance

2. Clevis pin and cotter pin

3. Lift bracket

1. Raise the seat.

2. Start the engine and lower the cutting unit lift arms until

the lift cylinder is fully extended and lift (cutting unit) is fully lowered.

3. Measure the distance between the cylinder jam nuts and

cylinder pivot pin (Fig. 27). The distance should be approximately 2-1/4 in. (57 mm).

123

M–4350

Figure 27

1. Jam nut

2. Cylinder pivot pin

3. Counterbalance spring

4. Adjustment nut

5. Lift arm “T” hook

4. Loosen the jam nuts and adjust them, if necessary, to

attain the needed clearance.

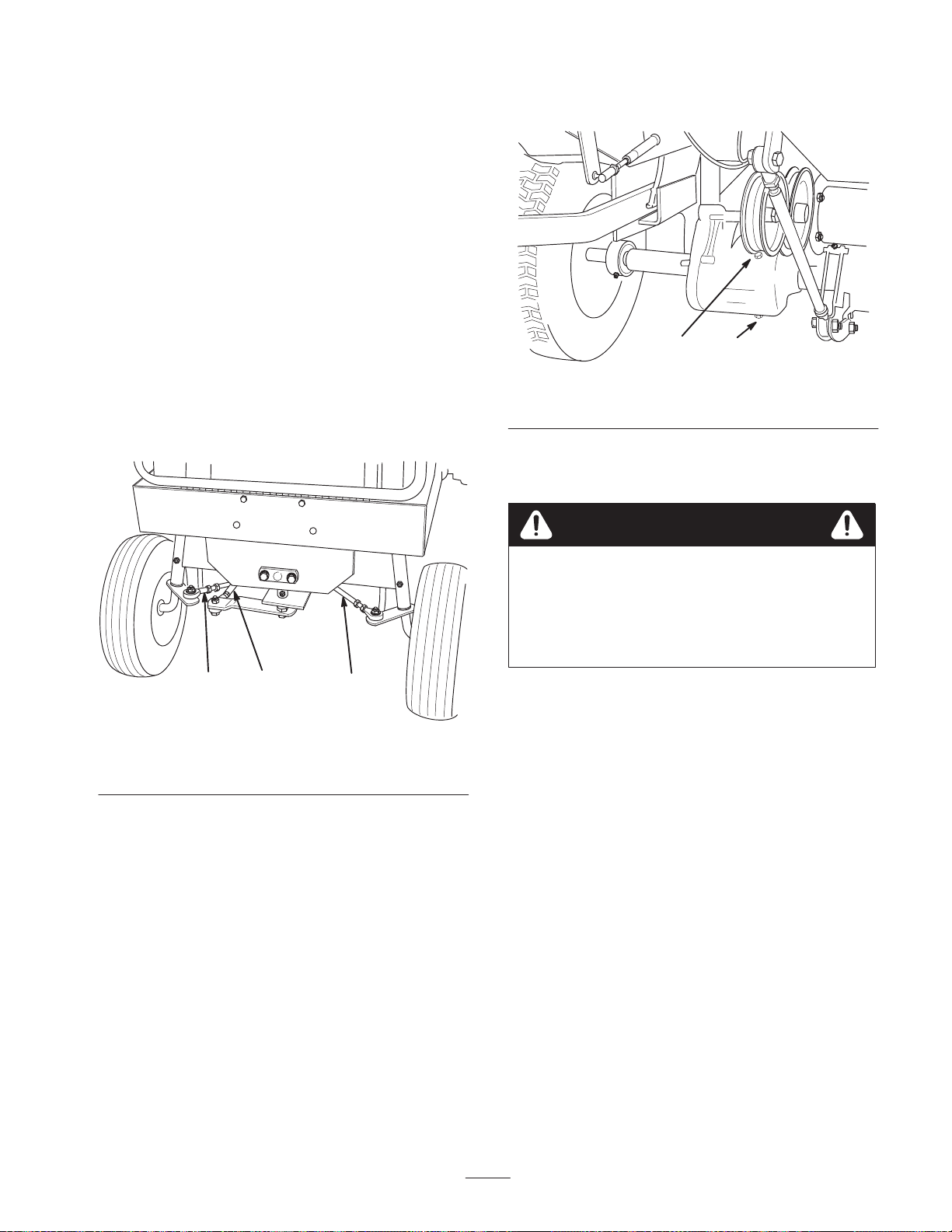

Adjusting the Transmission Neutral

The machine must not creep when the traction pedal is released. If it does creep, an adjustment is required.

1. Park machine on a level surface, lower the cutting unit,

and stop the engine. Disengage the PTO and engage the parking brake.

2. Raise the seat.

3. Jack up the front of the machine until the tires are off of

the shop floor. Support the machine with jack stands to prevent it from falling accidentally.

Danger

Mechanical or hydraulic jacks may fail to support machine and cause a serious injury.

• Use jack stand when supporting machine.

• Do not use hydraulic jacks.

4. Loosen the locknut on the adjustment cam (Fig. 29).

5. Start the engine and rotate the adjusting cam in either

direction until the wheels stop rotating (Fig. 29).

Warning

Engine must be running so transmission neutral adjustment can be performed. Contact with moving parts or hot surfaces may cause personal injury.

Keep hands, feet, face, clothing and other body parts away from rotating parts, muffler and other hot surfaces.

4. The proper disengaged clearance between the clutch

plates is 0.012–0.018 in. (0.30–0.45 mm). It will be necessary to check this clearance at each of the three slots to ensure that the plates are parallel to each other.

M–4352

Figure 30

1. Locknut 2. Adjustment slot

m–5179

Figure 29

1. Adjustment cam 2. Lock nut

6. Stop the engine and tighten the locknut to secure the

adjustment (Fig. 29).

7. Start the engine and check the adjustment. Repeat the

adjustment, if necessary.

8. Stop the engine. Remove the jack stands and lower the

machine to the shop floor. Test drive the machine to be sure it does not creep.

Adjusting the Electric Clutch

The clutch is adjusted to ensure proper engagement and braking action.

1. Disengage the power take off (PTO), set the parking

brake, stop the engine, and remove the key.

2. To adjust the clutch, tighten or loosen the locknuts on

the flange studs (Fig. 30).

3. Check the adjustment by inserting a feeler gauge

through the slots next to the studs.

Checking the Hydraulic System Fluid

Warning

Hydraulic fluid escaping under pressure can penetrate skin and cause injury.

• If hydraulic fluid is injected into the skin it must

be surgically removed within a few hours by a doctor familiar with this type of injury. Gangrene may result if this is not done.

• Keep body and hands away from pin hole leaks

or nozzles that eject high pressure hydraulic fluid.

• Use cardboard or paper to find hydraulic leaks.

• Safely relieve all pressure in the hydraulic

system before performing any work on the hydraulic system.

• Make sure all hydraulic fluid hoses and lines are

in good condition and all hydraulic connections and fittings are tight before applying pressure to hydraulic system.

The hydraulic system is designed to operate on SAE 10W-30 engine oil or, as a substitute, SAE 10W-40 engine oil. The reservoir is filled at the factory with approximately

4.73l (5 U.S. quarts) of 10W-30 engine oil. Check the reservoir oil level before the engine is first started and daily thereafter.

1. Position the machine on a level surface and stop the

engine.

2. Raise the seat.

3. Remove the dipstick cap from the filler neck (Fig. 31)

and wipe it with a clean rag. Insert the dipstick cap onto the filler neck; then remove it and check the oil level.

4. If the level is not within 1/2 in. (13 mm) from the full

mark on the dipstick, add SAE 10W-30 engine oil to raise the level to the FULL mark. Do not overfill.

5. Install the dipstick filler cap onto the filler neck

(Fig. 31).

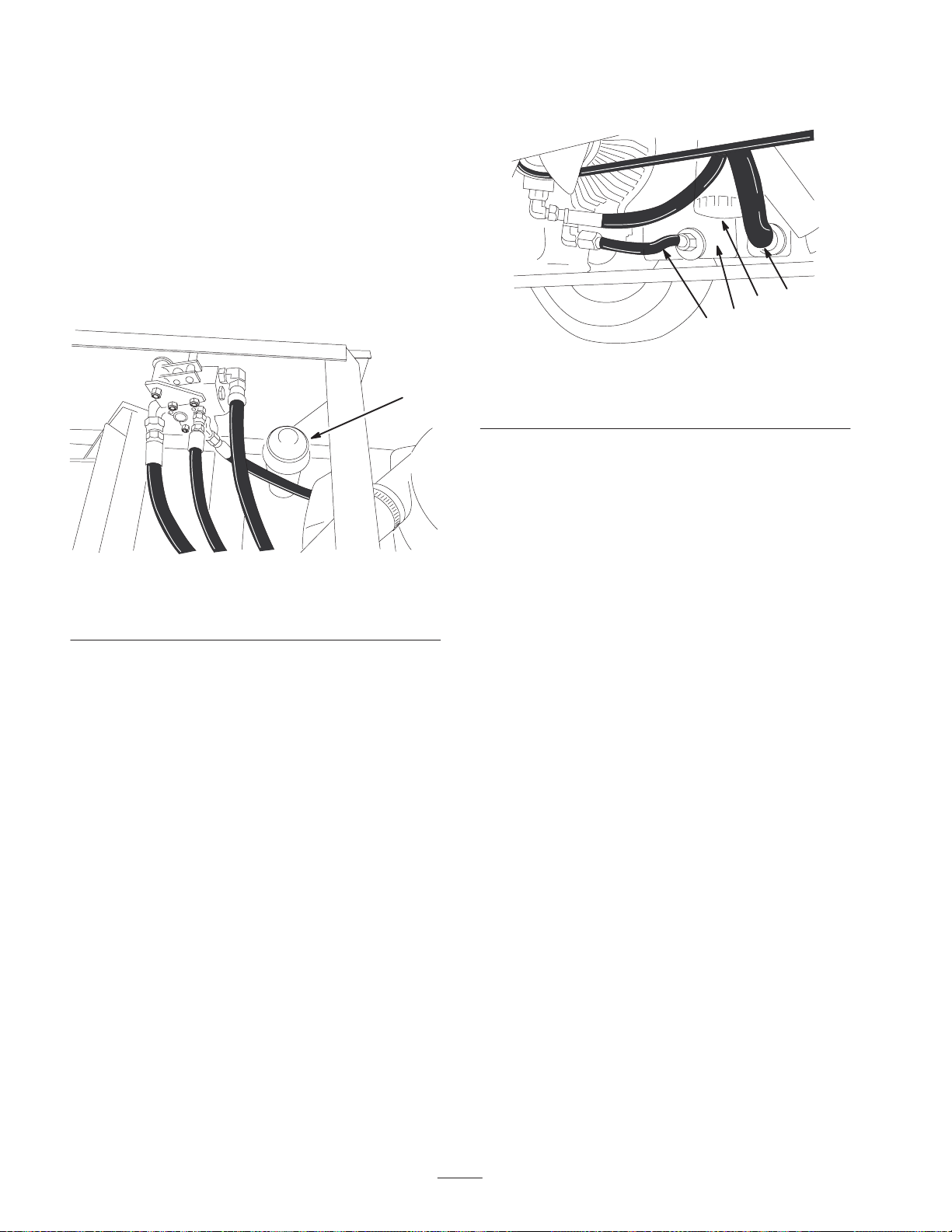

5. Install the tube assembly and hose assembly to the

reservoir (Fig. 32).

6. Run the engine for approximately 1 minute. Check the

reservoir oil level and add oil as required.

m–5155

Figure 31

1. Dipstick cap

Changing the Hydraulic System Oil

The hydraulic system oil must be changed after every 250 hours of operation or yearly, whichever comes first. The reservoir has a capacity of approximately 4.73l (5 U.S. quarts).

1. Park the machine on a level surface, lower the cutting

unit, engage the parking brake, and stop the engine.

2. Clean the area around the hydraulic oil filter and

remove the filter from the bottom of the filter housing. Use a bottom type filter wrench (Fig. 32).

3. Disconnect the tube assembly and hose assembly from

the reservoir and allow the oil to flow into a drain pan (Fig. 32).

Note: To drain remaining oil in the system, disconnect the spark plug wires and crank the engine for 15 seconds. This will pump the remaining oil out of the system through the tube assembly. Do not crank the engine for more than 15 seconds.

4. Install the new hydraulic filter onto the bottom of the

filter housing (Fig. 32).

Figure 32

1. Filter

2. Reservoir

6. Fill the reservoir to the proper level; refer to Checking

the Hydraulic System Fluid, page 27.

7. Place all controls in the neutral or disengaged position

and start the engine. Run the engine at the lowest possible RPM to purge the system of air.

8. Run the engine until the lift cylinder extends and

retracts and forward and reverse wheel motion is achieved.

9. Stop the engine and check the oil level in reservoir. Add

oil if necessary.

10.Check all connections for leaks.

3. Hose assembly

4. Tube assembly

m–5156

Changing the Hydraulic Oil Filter

The hydraulic oil filter keeps the hydraulic system relatively free of contaminants. However, the hydraulic oil filter must be serviced at regular intervals. The intervals are: initially, after the first 5 hours of operation, and thereafter every 250 hours of operation or yearly, whichever comes first. Use a genuine Toro oil filter for replacement.

1. Remove the hydraulic oil filter from the mounting head.

Use a bottom type filter wrench (Fig. 32). Dispose of the filter properly.

2. Apply a film of oil on the gasket. Install the filter by

hand until the gasket contacts the mounting head; then tighten the filter an additional 3/4 turn.

3. Start the engine and check for oil leaks. Allow the

engine to run for about 2 minutes so that any air in the system is purged. Then shut the engine off.

4. Check the oil level in the reservoir; refer to Checking

the Hydraulic System Fluid, page 27.

Adjusting the Steering

1. Measure the toe-in distance (at axle height) at the front

and rear of the steering tires. The front measurement must be 0–1/4 in. (6 mm) less than the rear measurement.

2. Loosen the jam nuts and rotate the tie rod to adjust the

clearance (Fig. 33).

3. Turn the steering wheel full left to achieve a full left

turn (Fig. 33).

4. Check the clearance between the left tire and tie rod.

There should be 1 in. (25 mm) ± 1/4 inch (6 mm) clearance at this position.

5. Loosen the jam nuts and rotate the steering rod to adjust

the clearance (Fig. 33).

6. Rotate the tie rod to move the front of the tire in or out.

7. Tighten the jam nuts when the adjustment is correct.

4. Remove the fill plug and fill to the plug level with SAE

EP-90 wt. oil (approximately 14.9cl [44 oz.]) (Fig. 34).

Figure 34

1. Drain plug 2. Fill plug

M–4371

Servicing the Battery

Warning

M–4281

1. Tie rod 2. Steering rod

Figure 33

Changing the Front Axle Oil

After every 500 hours of operation, change oil in the front axle.

1. Run the machine before changing the oil to warm the

oil. Warm oil flows more freely and carries more contaminants than cold oil.

2. Clean the area around the drain plug and place a drain

pan below the drain plug on the axle (Fig. 34).

3. Remove the drain plug and allow the oil to flow into the

drain pan (Fig. 34). After the oil is drained, install the drain plug.

Battery posts, terminals, and related accessories contain lead and lead compounds, chemicals known to the State of California to cause cancer and reproductive harm. Wash hands after

handling.

Service Interval/Specification

Check the electrolyte level in the battery every 50 hours. Always keep the battery clean and fully charged. Use a paper towel to clean the battery case. If the battery terminals are corroded, clean them with a solution of four parts water and one part baking soda. Apply a light coating of grease to the battery terminals to prevent corrosion.

Voltage: 12 v, 280 Cold Cranking Amps

Checking the Electrolyte Level

1. Raise the seat.

2. With the engine off, open the covers to see into the

cells. The electrolyte must be up to the lower part of the tube (Fig. 35). Do not allow the electrolyte to get below the plates. (Fig. 35).

3. If the electrolyte is low, add the required amount of

distilled water; refer to Adding Water to the Battery, page 30.

1. Filler caps

2. Lower part of tube

Figure 35

3. Plates

Warning

Charging battery produces gasses that can explode

1262

and cause serious injury.

• Keep cigarettes, sparks and flames away from

battery.

• Make sure the ignition switch is off.

• Ventilate when charging or using battery in an

enclosed space.

5. Install the battery into the holder.

Adding Water to the Battery

The best time to add distilled water to the battery is just before you operate the machine. This lets the water mix thoroughly with the electrolyte solution.

1. Clean the top of the battery with a paper towel.

2. Lift off the filler caps (Fig. 35).

3. Slowly pour distilled water into each battery cell until

the level is up to the lower part of the tube (Fig. 35).

Important Do not overfill the battery because

electrolyte (sulfuric acid) can cause severe corrosion and damage to the chassis.

4. Press the filler caps onto the battery.

Charging the Battery

Important Always keep the battery fully charged

(1.260 specific gravity). This is especially important to prevent battery damage when the temperature is below 0°C (32°F).

1. Raise the seat.

2. Remove the battery from the holder.

3. Check the electrolyte level; refer to Checking the

Electrolyte Level.

4. Remove the filler caps from the battery and connect a 3

to 4 amp battery charger to the battery posts. Charge the battery at a rate of 4 amperes or less for 4 hours (12 volts). Do not overcharge the battery. Install the filler caps after the battery is fully charged.

Servicing the Wire Harness

To prevent corrosion of the wiring terminals, apply Grafo 112X (Skin-over) grease to the inside of all harness connectors whenever the harness is replaced.

Whenever working with the electrical system, always disconnect the battery cables, negative (–) cable first, to prevent possible wiring damage from short-outs.

Important Before welding on the machine, disconnect

the ground cable from the battery to prevent damage to the electrical system.

Waste Disposal

Engine oil, hydraulic oil, and engine coolant are pollutants to the environment. Dispose of these according to your state and local regulations.

Transporting Machines

Use a heavy-duty trailer or truck to transport the machine. Ensure that the trailer or truck has all necessary lighting and marking as required by law. Please carefully read all of the safety instructions and decals in the safety section. Knowing this information could help you, your family, pets, or bystanders avoid injury.

To transport the machine:

1. Lock the brake and block the wheels.

2. Securely fasten the machine to the trailer or truck with

straps, chains, cable, or ropes.

3. Secure a trailer to towing vehicle with safety chains.

Hydraulic Schematic

TRANSMISSION

RESERVOIR

VALVE

CYLINDER

FILTER

T–0084

1.9L (4PT.)

4.73L (5QT.)

18.93L (5GAL.)

14.9cl (44oz.)

Wiring Diagram

DIODE MODULE

CONNECTOR

IGNITION SWITCH CIRCUITRY

START

RUN OFF

B+S+I A+B+I

OPEN

X+Y

CLUTCH

HOUR METER

PTO SWITCH CIRCUITRY

ON OFF

A + B C + D

CLOSED WHEN TRACTION PEDAL IS IN NEUTRAL

WHITE BLACK BLACK

BLACK

BLUE

PTO SWITCH

BROWN

NEUTRAL

GREY

N O

N C

RELAY

ORANGE

Y AB

KEY SWITCH

PARKING BRAKE

CLOSED WHEN PARKING BRAKE IN OFF POSITION

SEAT

OPEN WHEN OPERATOR IS NOT IN SEAT

REDRED

ENGINE CONNECTOR

GREEN

TO MAGNETO

TO REGULATOR

BLU E

VIOLET

FUSE

20 A

RED

TO STARTER

STARTER

RED

BLACK

c–pl120

Cleaning and Storage

1. Disengage the power take off (PTO), set the parking

brake, and turn the ignition key to “OFF” to stop the engine. Remove the key.

2. Remove grass clippings, dirt, and grime from the

external parts of the entire machine, especially the engine. Clean dirt and chaff from the outside of the engine cylinder head fins and blower housing.

Important You can wash the machine with mild

detergent and water. Do not pressure wash the machine. Avoid excessive use of water, especially near the control panel, and engine.

3. Check the brake; refer to Brake Service, page 24.

4. Service the air cleaner; refer to Servicing the Air

Cleaner, page 20.

5. Grease the machine; refer to Greasing and Lubrication,

page 23.

6. Change the crankcase oil and filter; refer to the Engine

Oil Service, page 21.

7. Change the hydraulic system oil and filter; refer to

Changing the Hydraulic Oil and Filter, page 28.

8. Remove the battery from the chassis, check the

electrolyte level, and charge fully; refer to Servicing the Battery, page 29. Do not connect the battery cables to the battery posts during storage.

Important The battery must be fully charged to prevent

it from freezing and being damaged at temperatures below 0° C (32° F). A fully charged battery maintains its charge for about 50 days at temperatures lower than 4° C (40° F). If temperatures will be above 4° C (40° F), check the electrolyte level in the battery and charge every 30 days.

9. Check the tire pressure; refer to Tire Pressure Service,

page 25.

10.During long-term storage, either drain gasoline from the

fuel tank (step 11) or add a fuel stabilizer/conditioner additive to a full tank of gasoline (step A).

11. Drain gasoline from the fuel tank. After fuel is drained,

start the engine and let it idle until all gasoline is consumed and the engine stops. This eliminates gum-like buildup in the fuel system, which causes hard starting. Try to start the engine two more times to assure that no gasoline is in the fuel system.

A. Add the correct amount of a fuel

stabilizer/conditioner to a full tank of gasoline.

Note: Stabilizer/conditioners normally preserve gasoline for six to eight months.

12.Remove the spark plug(s) and check its condition; refer

to Spark Plug, page 22. With the spark plug(s) removed from the engine, pour two tablespoons of engine oil into the spark plug hole. Now use the starter to crank the engine and distribute the oil inside the cylinder. Install the spark plug(s). Do not install the wire on the spark plug(s).

13.Check and tighten all bolts, nuts, and screws. Repair or

replace any part that is worn or damaged.

14.Paint all scratched or bare metal surfaces. Paint is

available from your Authorized Service Dealer.

15.Store the machine in a clean, dry garage or storage area.

Remove the key from the ignition switch and keep it in a memorable place. Cover the machine to protect it and keep it clean.

Troubleshooting

Problem Possible Causes Corrective Action

The starter does not rotate.

1. The power take off (PTO)

2. The traction control pedal is not

3. The electrical connections are

4. A fuse is blown. 4. Replace the fuse.

5. The battery is dead. 5. Charge the battery.

6. A solenoid or switch is

switch is engaged.

in neutral.

corroded or loose.

malfunctioning.

1. Move the PTO switch to DISENGAGED.

2. Move the traction control pedal to the neutral position

3. Check the electrical connections for good contact.

6. Contact an Authorized Service Dealer.

Problem Corrective ActionPossible Causes

The engine will not start, starts hard, or fails to keep running.

The engine loses power.

1. The operator is not seated. 1. Sit on the seat.

2. The parking brake is off. 2. Move the parking brake to ON.

3. The fuel tank is empty. 3. Fill the fuel tank with gasoline.

4. The choke is not on. 4. Move the choke lever to ON.

5. The air cleaner is dirty. 5. Clean or replace the air cleaner element.

6. The spark plug wire(s) is loose

or disconnected.

7. The spark plug(s) is pitted,

fouled, or the gap is incorrect.

8. There is dirt in the fuel filter. 8. Replace the fuel filter.

9. Dirt, water, or stale fuel is in the

fuel system.

1. The engine load is excessive. 1. Reduce your ground speed.

2. The air cleaner is dirty. 2. Clean the air cleaner element.

3. The oil level in the crankcase is

low.

4. The cooling fins and air

passages under the engine blower housing are plugged.

6. Install the wire(s) on the spark plug(s).

7. Install a new, correctly-gapped spark plug(s).

9. Contact an Authorized Service Dealer.

3. Add oil to the crankcase.

4. Remove the obstruction from the cooling fins and air passages.

The engine overheats.

There is abnormal vibration.

The machine does not drive.

5. A spark plug(s) is pitted, fouled, or the gap is incorrect.

6. The vent hole in the fuel cap is plugged.

7. There is dirt in the fuel filter. 7. Replace the fuel filter.

8. Dirt, water, or stale fuel is in the fuel system.

1. The engine load is excessive. 1. Reduce your ground speed.

2. The oil level in the crankcase is low.

3. The cooling fins and air passages under the engine blower housing are plugged.

1. The engine mounting bolts are loose.

2. There is a loose engine pulley, idler pulley, or blade pulley.

3. The engine pulley is damaged. 3. Contact an Authorized Service

1. The traction belt is worn, loose, or broken.

5. Install a new, correctly-gapped spark plug(s).

6. Clean or replace the fuel cap.

8. Contact an Authorized Service Dealer.

2. Add oil to the crankcase.

3. Remove the obstruction from the cooling fins and air passages.

1. Tighten the engine mounting bolts.

2. Tighten the appropriate pulley.

Dealer.

1. Adjust the belt tension or replace the belt.

2. The traction belt is off of the pulley.

2. Contact an Authorized Service Dealer.

LCE

The Toro Total Coverage Guarantee

A Limited Warranty

Conditions and Products Covered

The Toro Company and its affiliate, Toro Warranty Company, pursuant to an agreement between them, jointly promise to repair the listed Toro Products if defective in materials or workmanship. The following time periods apply from the date of purchase:

Products

• All Products 1 year

• All Spindles 2 years parts and labor;

• Engines/Hydraulic Systems* on

the following:

Outfront and Mid-Mount Z’s ProLine Mid-Size Mowers Groundsmaster Backpack Blowers

• Deck Shells (36″–72″) on the following:

ProLine Mid-Size Mowers Mid-Mount Z’s

• Electric Clutch on 200 Series Mid-Mount Z’s

This warranty includes the cost of parts and labor, but you must pay transportation costs.

This warranty applies to:

• Outfront and Mid-Mount Z’s

• ProLine Mid-Size Mowers

• Groundsmaster Riding Mowers

• Turf Maintenance Equipment

• Debris Management Equipment

* Some engines used on Toro LCE Products are warranted by the

engine manufacturer.



Riding Mowers

Warranty Period

third year, parts only

2 years

Instructions for Obtaining Warranty Service

If you think that your T oro Product contains a defect in materials or workmanship, follow this procedure:

1. Contact any Toro Authorized or Master Service Dealer to arrange service at their dealership. To locate a dealer convenient to you, access our website at www .Toro.com. U.S. Customers may also call 800-348-2424.

2. Bring the product and your proof of purchase (sales receipt) to the Service Dealer.

If for any reason you are dissatisfied with the Service Dealer’s analysis or with the assistance provided, contact us at:

LCB Customer Service Department Toro Warranty Company 8111 Lyndale Avenue South Bloomington, MN 55420-1196 888-577-7466 (U.S. customers) 877-484-9255 (Canada customers)

You must maintain your Toro Product by following the maintenance procedures described in the operator’s manual. Such routine maintenance, whether performed by a dealer or by you, is at your expense.

There is no other express warranty except for special emission system coverage on some products. This express warranty does not cover the following:

• Cost of regular maintenance service or parts, such as filters, fuel, lubricants, tune-up parts, blade sharpening, brake and clutch adjustments.

• Any product or part which has been altered or misused or required replacement or repair due to normal wear, accidents, or lack of proper maintenance.

• Repairs necessary due to improper fuel, contaminants in the fuel system, or failure to properly prepare the fuel system prior to any period of non-use over three months.

• Pickup and delivery charges.

All repairs covered by this warranty must be performed by an Authorized T oro Service Dealer using Toro approved replacement parts.

Repair by an Authorized Toro Service Dealer is your sole remedy under this warranty.

Neither The Toro Company nor Toro Warranty Company is liable for indirect, incidental or consequential damages in connection with the use of the Toro Products covered by this warranty, including any cost or expense of providing substitute equipment or service during reasonable periods of malfunction or non-use pending completion of repairs under this warranty.

Some states do not allow exclusions of incidental or consequential damages, or limitations on how long an implied warranty lasts, so the above exclusions and limitations may not apply to you.

All implied warranties of merchantability (that the product is fit for ordinary use) and fitness for use (that the product is fit for a particular purpose) are limited to the duration of the express warranty.

This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

Owner Responsibilities

Items and Conditions Not Covered

General Conditions

Countries Other than the United States or Canada

Customers who have purchased Toro products exported from the United States or Canada should contact their Toro Distributor (Dealer) to obtain guarantee policies for your country, province, or state. If for any reason you are dissatisfied with your Distributor’s service or have difficulty obtaining guarantee information, contact the Toro importer. If all other remedies fail, you may contact us at Toro Warranty Company.

Part No. 374-0037 Rev. C

Toro 30612 Operator's Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
