Page 1
FORM NO. 3319-521
MODEL NO. 30504 - 70121 & UP
9 CU. FT. HOPPER KIT
Groundsmaster 223D, 225 &1000L with 52" & 62" Decks
SAFETY INSTRUCTIONS
BEFORE OPERATING
1. Read and understand the contents of this manual
before starting and operating the machine. Become
familiar with all controls and know how to stop quickly.
A free replacement manual is available by sending
complete Model and Serial Numbers to:
The Toro Company
8111 Lyndale Avenue South
Minneapolis, Minnesota 55420
2. Never allow children to operate the machine. Do not
allow adults to operate the machine without proper
instruction. Only trained operators, skilled in slope
operation and who have read this manual should
operate this machine.
3. Never operate machine when under the influence of
drugs or alcohol.
4. Remove all debris or other objects that might be
picked up and thrown by cutter blades. Keep all
bystanders away from the operating area.
5. Keep all shields and safety devices in place. If a
shield, safety device, or decal is defective or damaged,
repair or replace it before operation is commenced.
Also, tighten any loose nuts, bolts, and screws to
insure machine is in safe operating condition.
6. Do not wear loose-fitting clothing because it could
get caught in moving parts. Always wear long pants
and substantial shoes. Wearing safety glasses, safety
shoes, and a helmet is advisable and required by some
local ordinances and insurance regulations.
7. Be sure interlock switches are adjusted correctly so
engine cannot be started unless traction pedal is
released-neutral position-and PTO switch is in
DISENGAGED position.
8. Fill fuel tank before starting the engine. Avoid
spilling any fuel. Since fuel is flammable, handle it
carefully.
A. Use an approved fuel container.
B. Do not fill fuel tank when engine is hot or
running.
C. Do not smoke while handling fuel.
D. Fill fuel tank outdoors and up to about one inch
(25 mm) from the top of the tank, not the filler neck.
E. Wipe up any spilled fuel.
The TORO Company - 1997
INSTALLATION
INSTRUCTIONS
WHILE OPERATING
9. Sit on the seat when starting the engine and
operating the machine.
10. Always make sure seat pivot retaining pin is
installed.
11. Before starting the engine:
A. Engage parking brake.
B. Make sure traction pedal is in neutral and PTO
is in DISENGAGE position.
C. After engine is started, release parking brake
and keep foot off traction pedal. Machine must not
move. If movement is evident, the neutral return
mechanism is adjusted incorrectly. Shut engine off
and adjust until machine does not move when
traction pedal is released.
12. Do not run the engine in a confined area without
adequate ventilation. Exhaust fumes are hazardous
and could possibly be deadly.
13. Maximum seating capacity is one person.
Therefore, never carry passengers.
14. Check carefully for overhead clearances before
driving under any objects.
15. The grass deflector or complete blower assembly
must always be installed on cutting unit.
16. Operator must be skilled and trained in how to drive
on hillsides. Failure to use caution on slopes or hills
may cause loss of control and vehicle to tip or roll
possibly resulting in personal injury or death.
17. Traverse slopes carefully. Do not start or stop
suddenly when traversing slopes or when traveling
uphill or downhill.
18. If engine stalls or machine loses headway and
cannot make it to the top of a slope, do not turn
machine around. Always back slowly straight down the
slope.
19. Using the machine demands the operator's
complete attention. To prevent loss of control:
A. Operate only in daylight or when there is good
artificial light.
B. Drive slowly.
C. Avoid sudden stops and starts.
D. Look behind machine before backing up.
E. Watch for holes or other hidden hazards.
TPS
Page 2
SAFETY INSTRUCTIONS
F. Do not drive close to a sand trap, ditch, creek,
or hazard.
G. Reduce speed when making sharp turns and
when turning on a hillside.
H. The cutting deck must be lowered when going
down slopes for steering control.
20. The grass deflector must always be installed and in
lowest position on the cutting unit when blower
assembly is removed. This product is designed to drive
objects into the ground where they lose energy quickly
in grassy areas. However. don't take an injury risk!!
When a person or pet appears unexpectedly in or near
the mowing area, STOP MOWING. Careless operation,
combined with terrain angles, ricochets, or improperly
positioned guards, can lead to thrown object injuries.
Do not resume mowing until area is cleared.
21. Never raise the cutting unit while the blades or
other parts are rotating.
22. If cutting blades strike a solid object or the machine
vibrates abnormally, disengage PTO, move throttle to
SLOW, set parking brake, and shut engine off. Remove
key from switch to prevent possibility of accidental
starting. Check cutting unit, blower assembly and
traction unit for damage and defective parts. Repair
any damage before restarting the engine and
operating the cutting unit. Assure cutting unit blades
are in good condition and blade bolts are torqued to
proper specifications (See Cutting Deck Operator's
Manual).
23. If the cutting unit discharge area or blower
assembly ever plugs, disengage PTO and shut engine
off before removing the obstruction.
24. To stop machine, remove foot from traction pedal
and use brakes. Gradually reversing the traction pedal
can provide additional braking.
25. Do not touch engine, muffler, or radiator while
engine is running or soon after it has stopped. These
areas could be hot enough to cause a burn.
26. Before getting off the seat:
A. Move traction pedal to neutral position and
remove foot from pedal.
B. Set the parking brake and disengage the
PTO.
C. Shut the engine off and remove key from
ignition switch. Wait for all movement to stop
before getting off the seat.
27. Never operate collection system with hopper
covers open.
MAINTENANCE
28. Remove key from ignition switch to prevent
accidental starting of the engine when servicing,
adjusting, or storing the machine.
29. Stay away from hopper and hopper linkage during
operation.
30. Do not walk under hopper or service machine
unless hopper is fully raised and empty, with hydraulic
lines disconnected at quick couplers or fully lowered.
31. Do not remove any hydraulic line unless hopper is
fully lowered or fully raised and empty.
32. If major repairs are ever needed or assistance is
desired, contact an Authorized TORO Distributor.
33. To reduce potential fire hazard, keep the engine
free of excessive grease, grass, leaves, and
accumulations of dirt.
34. Make sure machine is in safe operating condition
by keeping nuts, bolts, and screws tight. Check all
cutting unit blade mounting bolts frequently to assure
they are torqued to proper specifications (See Cutting
Deck Operator's Manual).
35. Make sure all hydraulic line connectors are tight,
and all hydraulic hoses and lines are in good condition
before applying pressure to the system.
36. Keep body and hands away from pin hole leaks or
nozzles that eject hydraulic fluid under high pressure.
Use paper or cardboard, not hands, to search for
leaks. Hydraulic fluid escaping under pressure can
have sufficient force to penetrate skin and do serious
damage. If fluid is ejected into the skin, it must be
surgically removed within a few hours by a doctor
familiar with this form of injury or gangrene may result.
37. Before disconnecting or performing any work on
the hydraulic system, all pressure in system must be
relieved by stopping engine and lowering implement to
the ground.
38. If the engine must be running to perform
maintenance or an adjustment, keep clear of PTO
shaft, cutting unit blades, and other moving parts.
39. At the time of manufacture, the machine conformed
to safety standards in effect for riding mowers. To
ensure optimum performance and continued safety
certification of the machine, use genuine TORO
replacement parts and accessories. Replacement
parts and accessories made by other manufacturers
may result in non-conformance with the safety
standards, and the warranty may be voided.
2
Page 3
SAFETY AND INSTRUCTION DECALS
CAUTION
KEEP HANDS OUT OF
DISCHARGE AREA
ON BOTH SIDES OF GRASS BAG HOOD
(Part No. 43-1100)
LOOSE PARTS CHART
Note: Use this chart as a checklist to assure all parts necessary for assembly have been received. Without these
parts, total setup cannot be completed. Some parts may have already been assembled at factory.
DESCRIPTION QTY. USE
Template (GM 220 only) 1
Capscrew 3/8-16 x 2" lg. 1
Capscrew 3/8-16 x 1-1/4" lg. 7 Install Mounting Brackets
Washer 3/8 8
Locknut 3/8-16 8
Lockwasher 3/8 2
Mounting Bracket (52" deck) 4
Mounting Bracket (62" deck) 4
Lower Support Tube Assembly 1
Capscrew 3/8-16 x 2-1/4" lg. 4 Mount Lower Support Tube Assembly
Locknut 3/8-16 4
Upper Support Tube Assembly 1
Capscrew 5/16-18 x 2-1/4" lg. 2 Mount Upper Support Tube Assembly
Locknut 5/16-18 2
Hood Assembly 1
Capscrew 5/16-18 x 3/4" lg. 2
Locknut 5/16-18 2
Hinge Pin 1
Hood Stop 2 Mount Hood
Spacer 2
Washer 5/16" I.D. x 1-1/4" O.D. 4
Capscrew 5/16-18 x 7/8" lg. 2
Locknut 5/16-18 2
Washer 5/16 2
Chute Extension 1 Install Chute Extension Between
Nut Plate 2 Chute and Hood
Button Head Screw 4
Cloth Bag 1 Install Cloth Bag
Installation Instructions 1
Parts Catalog 1
OPTIONAL EQUIPMENT
Cloth Bag (38"-13 cu. ft.) Part No. 43-0980
Retianer Cord (38" Bag) Part No. 36-7770
TPS
3
Page 4
SET-UP INSTRUCTIONS
INSTALL GRASS CATCHER BRACKETS
ON GROUNDSMASTER 220
IMPORTANT: Before drilling holes in frame, fuel
tank must be removed. Fuel tank removal not only
prevents possible damage when drilling, but also
eases the installation of the mounting brackets.

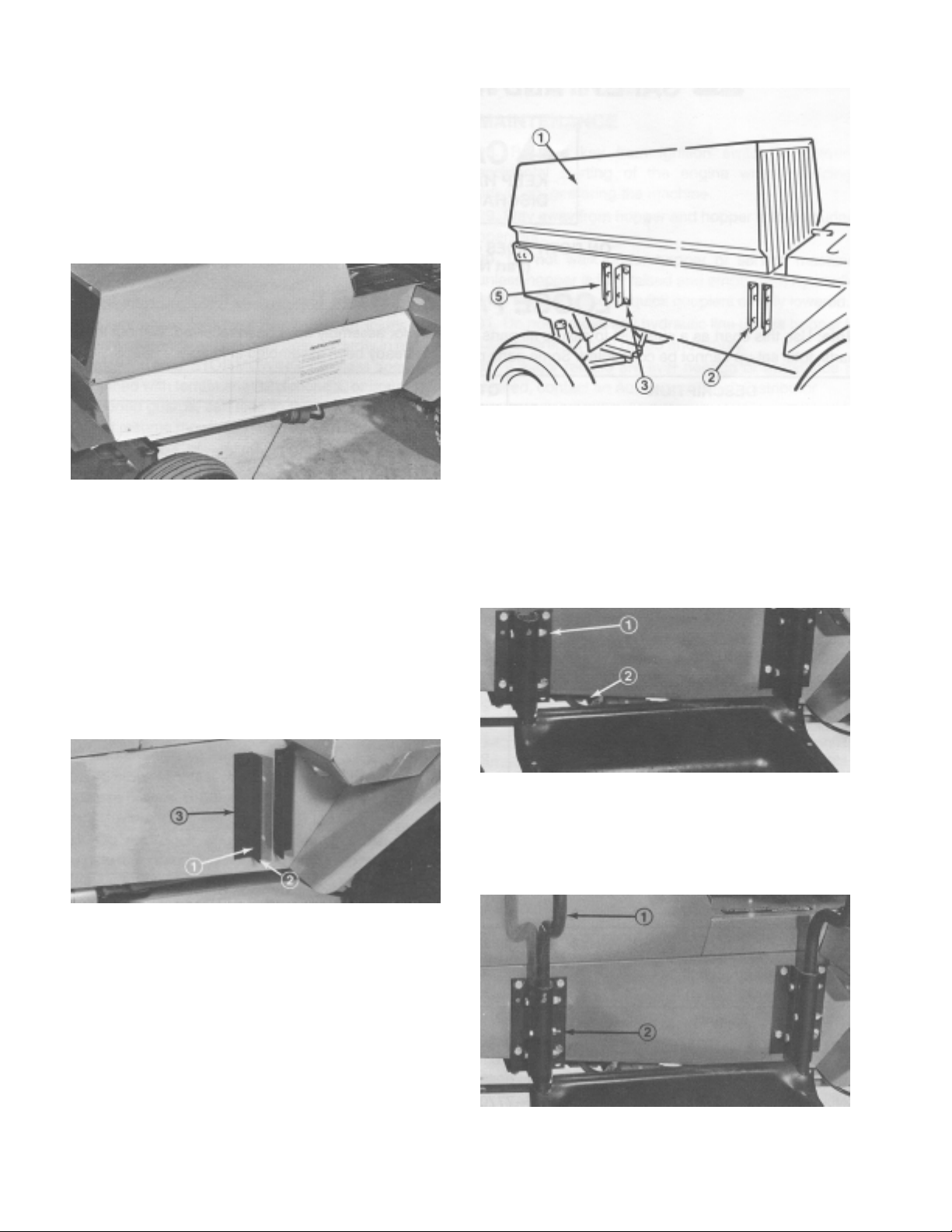

1. Cut out template and tape to right side of machine
(Fig. 1).
Figure 1
2. Mount and drill (8) 13/32" dia. holes at locations
shown on template.
3. Using appropriate brackets and mounting holes,
position brackets as shown in figure 2.
Note: Wide brackets are used for 62" decks and
narrow brackets, shown in figure 2, are for 52" decks.
4. Mount brackets to frame with (1) 3/8-16 x 2" lg.
capscrew, (7) 3/8-16 x 1-1/4" lg. capscrews, (8) 5/16
washers and (8) locknuts. Use 2" lg. capscrew to
secure bottom of rear bracket.
1. Groundsmaster 223D, 225 & 1000L
Figure 3
2. Mounting brackets
3. Capscrew, washer and locknut
Note: Wide brackets are used for 62" decks and
narrow brackets, shown in figure 2, are for 52" decks.
INSTALL GRASS CATCHER
1. Mount lower support tube assembly to brackets
with (4) 3/8-16 x 2-1/4" lg. capscrews and locknuts
(Fig. 4).
Figure 4
1. Capscrew and locknut
2. Lower support tube assembly

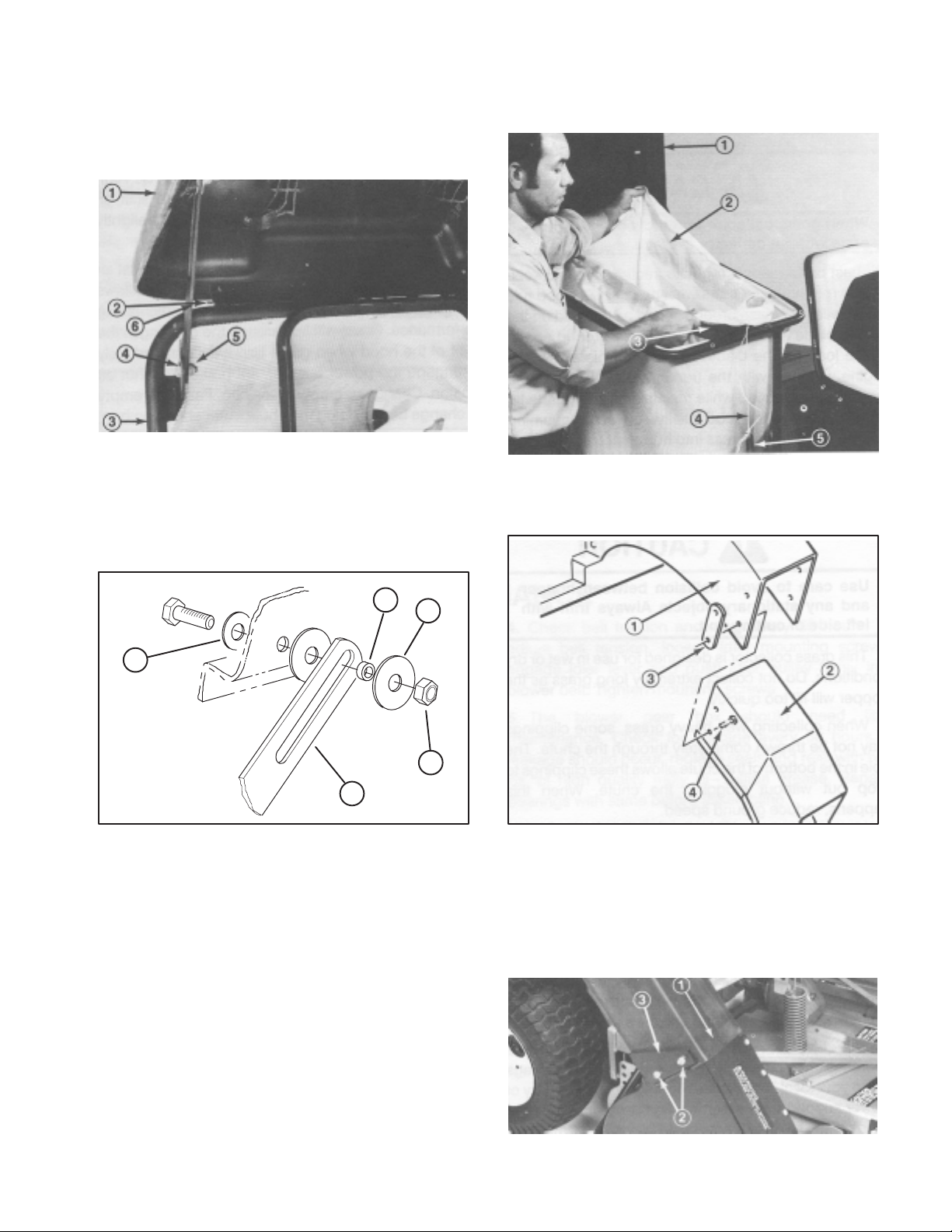

2. Insert legs of upper support tube assembly into
lower support tubes and secure with (2) 5/16-18 x
2-1/4" lg. capscrews and locknuts (Fig. 5).
1. Capscrew, flatwasher and locknut
Figure 2
2. Mounting bracket
3. Lockwasher (2 top holes, front bracket)
5. Reinstall fuel tank. Refer to operators manual for
instructions.
INSTALL GRASS CATCHER BRACKETS
ON GROUNDSMASTER 223D, 225 &
1000L
1. Position brackets over existing mounting holes as
shown in figure 3. Mount brackets using (1) 3/8-16 x
2" lg. capscrew, (7) 3/8-16 x 1-1/4" lg. capscrews, (8)
3/8 washers, (6) locknuts and (2) lockwashers.
4
Figure 5
1. Upper support tube assembly legs
2. 5/16-18 x 2-1/4" lg. capscrew and locknut
Page 5
SET-UP INSTRUCTIONS
3. Connect hood assembly to upper support tube
assembly with hinge pin (Fig. 6).
4. Connect hood stops to upper support tube
assembly with capscrews and locknuts.
Figure 6
1. Hood assembly
2. Hinge pin
3. Upper support tube assembly legs
4. Capscrew
5. Locknut
6. Hood stop
5. Mount hood stop, spacer and (2) washers to each
side of hood with a 5/16-18 x 7/8" lg. capscrew and
locknut (Fig. 7).
2. Slide chute over blower opening and onto mounting
studs (Fig. 9).
1. Hood
2. Bag
3. Inner frame of upper
support tube assembly
Figure 8
4. Bag drawstring
5. Metal clip
2
3
5
4
1
1. Hood stop
2. Spacer
3. Washer
Figure 7
4. Locknut
5. Washer
6. Open hood and position bag around inner frame of
upper support tube assembly (Fig. 8).
7. Pull bag drawstring cord tightly around frame to
hold bag and secure with metal slip.
(Groundsmaster 223D, 225 & 1000L only)
8. Install chute extension provided with kit. Attach
chute extension to grass catcher hood with (2) nut
plates, (4) button head screws, using existing
mounting holes (Fig. 9)
MOUNT BLOWER HOUSING CHUTE
Figure 9
1. Grass catcher hood
2. Chute extension
3. Nut plate
4. Button head screw
3. Lower hopper hood and align chute with snout.
Secure chute in position with locknuts and brackets.
Wide end of brackets to be positioned toward rear
(Fig. 10).
1. Set deck to desired height-of-cut setting.
1. Chute 2. Mounting studs 3. Mounting bracket
Figure 10
TPS
5
Page 6
OPERATING INSTRUCTIONS
OPERATING CHARACTERISTICS
(When used with a 52" or 62" Blower Kit)
CAUTION
When grass collector is removed, NEVER op
erate without deflector in place.
For best performance, regulate traction pedal to keep
engine rpm high and somewhat constant. A good rule
to follow is: decrease ground speed as the load on the
cutting blade increases; and increase ground speed
as the load on the blade decreases. This allows the
engine, working with the transmission, to sense the
proper ground speed while maintaining high blade tip
speed necessary for good quality-of-cut, vacuuming
action, and to throw grass into hopper If blower speed
drops too low, plugging may result. Refer to Cutting
Unit and Traction Unit Operator's Manual for operation
of each.
CAUTION
Use care to avoid collision between hopper
and any stationary objects Always trim with
left side of cutting unit.
5. The optional ten bushel grass bags should not be
used under extremely wet grass conditions as they
may be too heavy to remove easily.
6. Heavy duty lawn trash bags may be used with an
optional retainer cord (Toro part no. 36-7770). High
winds may cause bottom of empty bags to shift off
lower tray. If this happens, mow until bag is slightly
filled and re-center on tray.
7. The grass collector hood is designed to exhaust air
beside the grass bag rather than through it. This allows
the grass bag to fill completely without decreasing
performance. Grass will fall through the opening in the
front of the hood when grass bag is full. Immediately
disengage the power take off, set brake and shut off
ignition. Change or empty grass bag. Failure to empty
or change bag will plug the chute. After changing bag,
check that grass clippings have not fallen into chute.
8. Optional Hi-sail blades (Toro part no. 44-5480) will
give improved performance in wet cutting conditions.
9. While operating, check frequently for excessive
clippings left on turf or uncut grass. If those conditions
occur, the blower or cutting unit may be plugged. Stop
unit, disengage PTO, set brake and shut off ignition.
Check for obstructions in the chute, blower or cutting
unit. Clear any obstruction using a stick or similar tool.
Check blower belt tension. If slipping, readjust.
1. This grass collector is designed for use in wet or dry
conditions. Do not collect extremely long grass as the
hopper will fill too quickly.
2. When collecting wet, heavy grass, some clippings
may not be thrown completely through the chute. The
hole in the bottom of the chute allows these clippings to
drop out without plugging the chute. When this
happens, reduce ground speed.
DANGER
Never place hands or feet in chute, blower, or
cutting unit.
3. The bumper which protects the blower housing
doesn't extend far enough to eliminate the chance of
lower tray or hood striking a stationary object. Stay far
enough away from obstructions to avoid collisions.
Trim with left side of cutting unit only.
4. To improve productivity, Toro recommends
purchasing additional seven or ten bushel grass bags
from your local Toro dealer. Store empty bags in tray of
lower support tube assembly and drop off filled bags
and sealed bags to be collected later.
10. Cut grass often, especially when turf growth is
rapid. If shorter turf is desired, cut the grass again.
Overlap the swaths to produce an even cutting pattern.
IMPORTANT: When transporting unit, tie down
grass collector hood or back unit onto truck or
trailer to avoid wind throwing hood open and
damaging it.
11. To remove blower assembly, shut engine off,
disengage idler assembly, unlatch and open belt cover
and lift belt off spindle pulley. Close cover. Remove (2)
knobs securing blower to mounting brackets and
remove blower, belt and chute
12. Reverse procedure to reinstall blower assembly.
CAUTION
When blower is removed, NEVER operate with
out deflector in place.
MOUNT GRASS DEFLECTOR
1. Remove bumper from carrier frame. Reinstall two lift
arm/carrier frame connection capscrews. Torque to
70-80 ft-lb.
6
Page 7
OPERATING INSTRUCTIONS
2. Position grass deflector mounts on outside of pivot
brackets (included in kit) and secure parts together
with capscrews, locknuts and washers previously
removed (Fig. 11). Both locknuts must face each other.
Tighten locknuts until they are flush against deflector
pivots.
3. Slide grass deflector and pivot brackets onto
alignment bolts and secure to mounting brackets with
knobs and washers. Lift deflector and allow it to drop to
check spring tension.
Note: If blower assembly or grass deflector do not
easily slide on or off mounting brackets, loosen
alignment bolts slightly.
CAUTION
When grass collector is removed, NEVER op
erate without deflector in place.
MAINTENANCE
1. Keep unit clean, checking that engine is free of dirt
and chaff. Make sure all fasteners are tight. Check
deflectors, baffles and shields for wear and replace as
needed.
2. Check gearbox impeller for tightness every 50
hours. Torque impeller shaft bolt to 220-230 in-lbs.
3. Clean grass clippings from hood, chute, blower and
cutting unit after each use. Wash underside of cutting
unit daily with hose. An excessive buildup of clippings
will impair bagging performance.

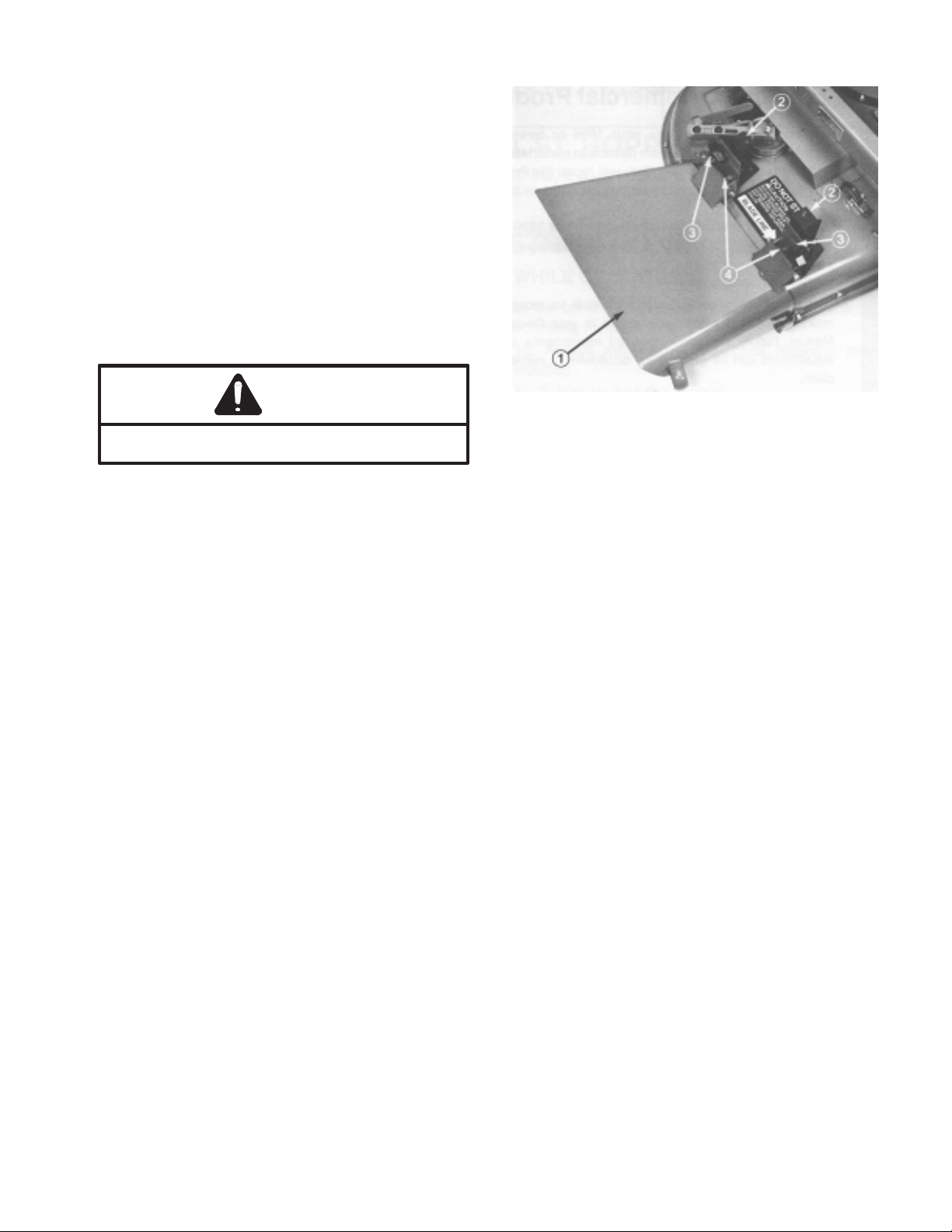

Figure 11
1. Grass deflector
2. Mounting brackets
4. Check belt tension and wear every 50 hours. To
adjust belt tension, loosen idler mounting screws,
engage idler lever and push idler pulley firmly into
blower belt. Tighten mounting screws
5. The blower gear box should need little
maintenance. Check for leakage every 50 hours. If
leakage should occur, replace seals and refill with two
oz. of high quality moly di-sulfide grease. Repack
bearings with same before assembling.
6. Refer to Cutting Unit and Traction Unit Operator's
Manuals for service requirements of each.
3. Knob and washer
4. Alignment bolts
TPS
7
Page 8
The Toro Commercial Products Two Year Limited Warranty
The Toro Company warrants your 1996 or newer Toro Commercial Product (Product") purchased after
January 1, 1997, to be free from defects in materials or workmanship for the period of time listed below. Where a
warrantable condition exists, Toro will repair the Product at no cost to you including diagnosis, labor, parts, and
transportation. This warranty begins on the date the Product is delivered to the original retail purchaser.
Warranty Duration: Two years or 1500 operational hours*, whichever occurs first.
*Product equipped with hour meter
Owner Responsibilities:
As the Product owner, you are responsible for required
maintenance and adjustments stated in your Owner's
Manual. Failure to perform required maintenance and
adjustments can be grounds for disallowing a warranty
claim.
Instructions for Obtaining Warranty Service:
You are responsible for notifying the Commercial Products
Distributor or Authorized Commercial Products Dealer from
whom you purchased the Product as soon as you believe a
warrantable condition exists.
If you need help locating a Commercial Products
Distributor or Authorized Dealer, or if you have questions
regarding your warranty rights or responsibilities, you may
contact us at:
Toro Commercial Products Service Department
8111 Lyndale Avenue South
Minneapolis, MN, 55420-1196
Telephone: (612) 888-8801
Facsimile: (612) 887-8258
E-Mail: Commercial.Service@Toro.Com
Maintenance Parts:
Parts scheduled for replacement as required maintenance
(Maintenance Parts"), are warranted for the period of time
up to the scheduled replacement time for that part.
Items/Conditions Not Covered:
Not all product failures or malfunctions that occur during
the warranty period are defects in materials or
workmanship. The items / conditions listed below are not
covered by this warranty:
Product failures which result from the use of non-Toro
replacement parts, or from installation and use of
add-on, modified, or unapproved accessories are not
covered.
Product failures which result from failure to perform
required maintenance and/or adjustments are not
covered.
Product failures which result from operating the Product
in an abusive, negligent or reckless manner are not
covered.
This warranty does not apply to parts subject to
consumption through use unless found to be defective.
Examples of parts which are consumed, or used up,
during normal Product operation include, but are not
limited to, blades, reels, bedknives, tines, spark plugs,
castor wheels, tires, filters, belts, etc.
This warranty does not apply to failures caused by
outside influence. Items considered to be outside
influence include, but are not limited to, weather, storage
practices, contamination, use of unapproved coolants,
lubricants, additives, or chemicals, etc.
This warranty does not apply to normal wear and tear"
items. Normal Wear and Tear" includes, but is not
limited to, damage to seats due to wear or abrasion,
worn painted surfaces, scratched decals or windows,
etc.
Other Legal Disclaimers:
The above remedy of product defects through repair by an
authorized distributor or dealer is the purchaser's sole
remedy for any defect. This warranty gives you specific
legal rights, and you may also have other rights which vary
from state to state.
Except for the Emissions warranty referenced below, if
applicable, there is no other express warranty. All
implied warranties of merchantability and fitness for
use are limited to the duration of the express warranty.
Some states do not allow limitations on how long an implied
warranty lasts, so the above limitation may not apply to you.
The Toro Company is not liable for indirect, incidental
or consequential damages in connection with the use of
the Product, including any cost or expense of providing
substitute Product or service during periods of
malfunction or non-use.
Some states do not allow the exclusion of incidental or
consequential damages, so the above exclusion may not
apply to you.
Note to California residents: The Emissions Control
System on your Product may be covered by a separate
warranty meeting requirements established by the U.S.
Environmental Protection Agency (EPA), or the California
Air Resources Board (CARB). The hour limitations set forth
above do not apply to the Emissions Control System
Warranty. Refer to the California Emission Control Warranty
Statement printed in your Owner's Manual or contained in
the engine manufacturer's documentation for details.
8
Loading...
