Toro 30449, 30447, 30608, 30606 Specifications

Groundsmaster® 4100-D & 4110-D

A powerful 10.5 foot rotary mower that delivers 58 hp of muscle and productivity in an agile machine.

Groundsmaster® 4100-D

Model 30608

2015 Toro Commercial Equipment Guide 15-003-T Rev. 2/15

23

Groundsmaster

Model 30644

®

4110-D

ENGINE

AIR CLEANER

RADIATOR

FUEL CAPACITY

TRACTION DRIVE

HYDRAULICS/COOLING

DIAGNOSTICS

GROUND SPEED

TIRES

MAIN FRAME

BRAKES

SEAT

STEERING

INTSTRUMENTATION

CONTROLS

ELECTRICAL

INTERLOCKS

GROUND CLEARANCE

OVERALL

DIMENSIONS

WEIGHT

SAFETY CAB (4110)

SAFETY

WARRANTY

ACCESSORIES

WIDTH OF CUT
MOWING RATE

CONSTRUCTION

DECK DRIVE

HEIGHT-OF-CUT

SPINDLES

BLADES

CASTER WHEELS

GROUND FOLLOWING

WING PROTECTION

MULCHING KIT

SKIDS

Groundsmaster® 4100-D/4110-D Specifications

*

GROUNDSMASTER 4100-D, MODEL 30608 GROUNDSMASTER 4110-D, MODEL 30644, MODEL 30606

Yanmar® 4-cylinder, liquid-cooled, turbo-charged diesel. 127 cu. in. (2.1 liter) displacement. Engine rated at 55 hp (41 kW) net and 125 ft.-lbs. (169 Nm) torque at
2,000 rpm. 8 quart (7.6 liter) oil capacity. EPA Tier IV Final Compliant.

Dry, replaceable primary and safety elements.

Rear-mount, cross-flow, 7-row, 5 fins per inch, 9 quart (8.5 liter) capacity.

21 gallons (79.5 liters) diesel fuel. Biodiesel-Ready for use up to B-20(20% biodiesel and 80% petroleum blend)

Parallel hydrostatic, closed loop system with full-time 4WD. Forward/reverse in low (mow) and high (transport) range with full-time, automatic traction assist (forward
only) optional on Groundsmaster 4100-D models. Variable displacement piston pump with electronic servo control powers dual speed displacement piston motor drive
into double reduction planetary in front, and mechanical axle in rear. SmartPowerTM feature controls traction speed to maintain optimal cutting blade speed.

8.75 gallon (33.1 liter) capacity with 10 micron remote spin-on filter. 9 row, single pass cooler, 6.3 fins per inch, that tilts out for cleaning. Variable speed radiator
cooling fan with automatic (based on coolant and oil temps) and manual reversing capabilities.

Diagnostic pressure test ports: forward and reverse traction, left, center and right decks, reverse 4WD, lift, steering, charge and deck counterbalance circuits.

Transport: 0-16.2 mph (0-26.1 km/h) forward, 0-8.1 mph (0-13 km/h) reverse. Mow: 0-8.3 mph (0-13.4 km/h) forward, 0-4 mph (0-6.4 km/h) reverse.

Front: 26 x 12-12, 6-ply tubeless Multi-Trac. Rear: 20 x 10-10, 6-ply tubeless Multi-Trac.

All welded formed-steel frame with integral tie-down anchors.

Mechanically actuated, internal wet disc brakes on input to each planetary drive. Individual foot-operated steering brake control of left and right wheel. Lock pedals
together and latch to engage parking brake.

4-way adjustable, right armrest travels with seat and suspension.

Power steering with dedicated power source. Steering wheel tilts to desired operator position. Uncut circle: 0" diameter.

InfoCenter™:Onboard LCD display shows gauges, alerts/faults, service reminders, electrical system diagnostics. Indicates fuel level, coolant temp, intake
temperature, low oil pressure, alternator, engine hours, engine rpm, hydraulic oil temperature, voltage.

Tilt steering, ignition switch, throttle switch, foot-operated traction pedal, lockable individual brake pedals, parking brake lock, mow/transport speed selector switch,
3-two position switches for individual deck lift/lower, counterbalance adjustment, tow valves, cup holder, toolbox, radio holder, fan switch and 12-volt power outlet.

12-volt, 690 cold cranking amps battery, 80 amp alternator. Overload protection with automotive type fuses.

Prevents engine from starting unless traction pedal is in neutral and deck is disengaged. If operator leaves seat while moving or deck is engaged, traction and /
or deck stops, info center alarms and gives message. Mowing only permitted in low range. Traction not allowed if parking brake engaged and pedal moved out of
neutral, info center alarms and gives message. Deck transport latches.

6.5" (16.5 cm)

85.3" (216.7 cm) w/ROPS up 144" (366 cm) 127" (323 cm) 71" (180 cm) 55.5" (140 cm)

93.3” (237 cm) w/ cab w/decks down w/decks down @ 2" (5 cm) HOC

4237 lbs. (1922 kg) w/ full fluids (GM4100-D). 4890 lbs. (2218 kg) w/ full fluids (GM4110-D).

MODEL 30644: ROPS certified cab with heat, AC and the following standard features: climate system pressurized cab, heavy-duty pantograph front windshield wiper
and washer, front windshield has 38” of visibility, interior mirror, fold away exterior side mirrors, molded front fenders, right and left doors and rear window have
tinted (50%) glass, front and rear windows open, quick release window latches act as emergency exit, rubber sound isolator cab mounts and upholstered interior
panels and headliner, textured neoprene floor mat, interior dome light.

MODEL 30606: Factory installed, ROPS certified, climate controls (AC & heating), opening rear window, front wiper/washer, interior mirror, exterior side mirrors.
Complies with American National Standards Institute (ANSI B71.4-2012) and applicable ISO EN 5395 (CE) standards (machine directive 89/392, 91/368, 93/44, 84/538,

89/336) requirements; Optional lights. Meets ANSI/ASAE 5279.12 (Lighting and Marking of Agricultural Equipment on Highways). Foldable ROPS, ISO 21299 certified.

Two-year limited warranty. Refer to operator’s manual for further details.

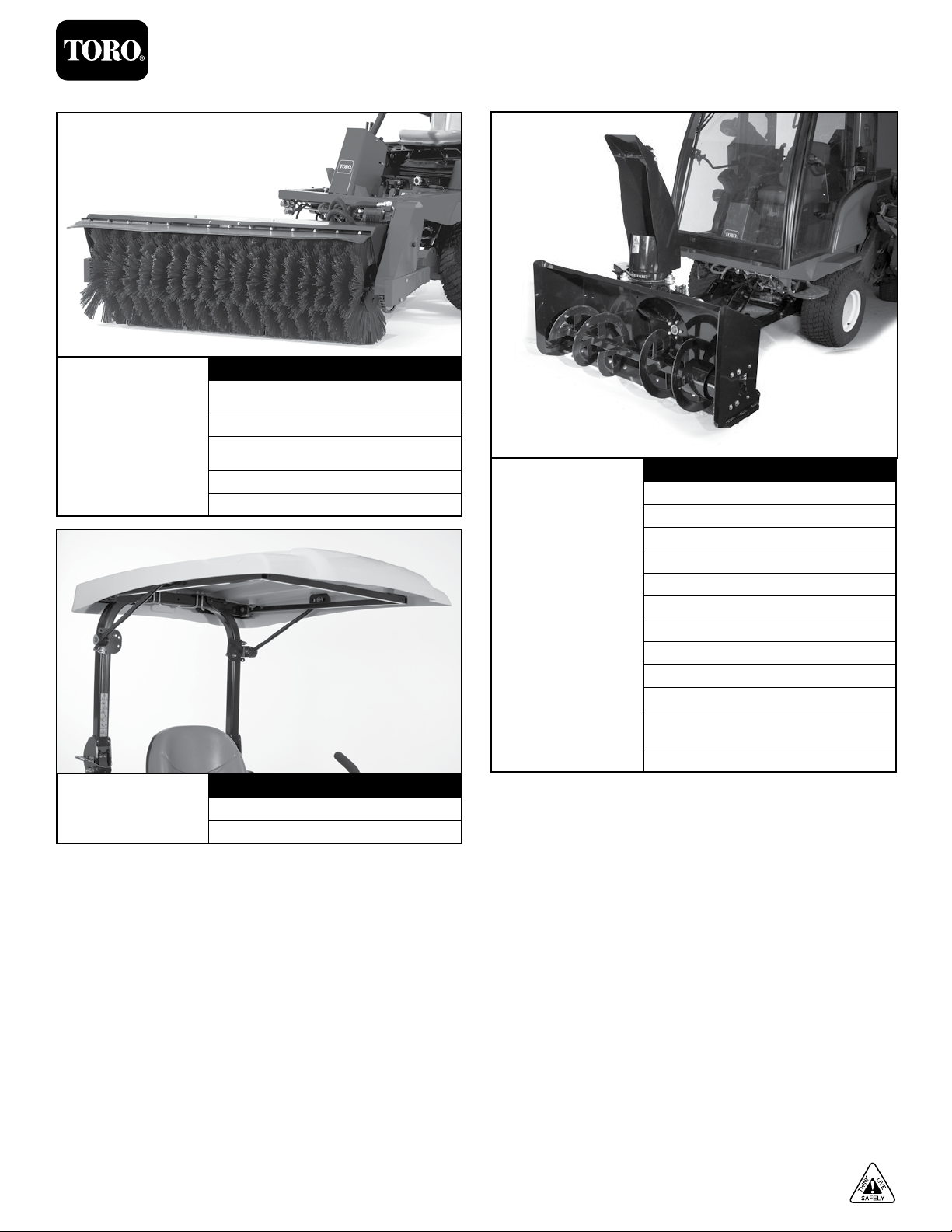

Work light, Road lights consisting of dual taillights, dual headlights, slow moving vehicle sign, turn signal, flasher and lights; Sunshade Beacon

Height Length Width Transport Width Wheelbase

CUTTING DECK

Overall: 124" (315 cm), Center deck section: 54" (137.1 cm), Two 37" (93 cm) width of cut wings. 89" (226 cm) width of cut with one wing up.

Mows up to 10.3 acres/hr (4.2 hectares/hr) at 8.3 mph (13.4 km/hr). Assumes no overlap or stops.

Welded .100" (25 mm) high-strength steel with steel 7 and 10-gauge channel and plate reinforcements.

Direct mounted hydraulic motor into spindle. Remaining spindle(s) driven by individual B section kevlar belt. Quick-release belt covers.

1"-5" (25-127 mm) in .5" (13 mm) increments.

1.25" (3.17 cm) diameter spindle shafts, 9" (22.9 cm) diameter conical ductile iron housing, and 2 greaseable tapered roller bearings.

19" (48.3 cm) long, 2.5" (6.4 cm) wide, .25" (.64 cm) thick.

8 x 3.50-4, 4-ply, smooth, pneumatic, sealed precision ball bearings.

6" anti-scalp cups on each blade, adjustable skids, 3 anti-scalp rollers on front deck and 1 on each wing.

Impact absorption device on each wing deck.

Model 30419.

Reversible polymetric.

* Specifications and design subject to change without notice. Products depicted in this literature are for demonstration purposes only.

Actual products offered for sale may vary in use, design, required attachments and safety features. See distributor for details on all warranties.

2015 Toro Commercial Equipment Guide 15-003-T Rev. 2/15

24

The Groundsmaster 4100-D & 4110-D are manufactured
in Tomah, WI ISO 9002 Certified Plant.
