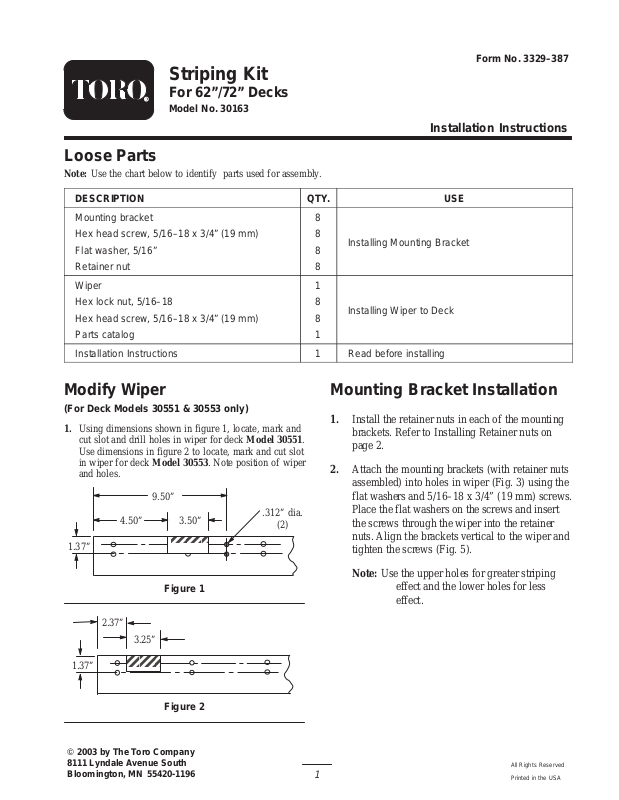

Toro 30163 Installation Instructions
Striping Kit
For 62”/72” Decks
Model No. 30163
Installation Instructions
Loose Parts
Note: Use the chart below to identify parts used for assembly.
DESCRIPTION QTY. USE
Form No. 3329–387
Mounting bracket
Hex head screw, 5/16–18 x 3/4” (19 mm)
Flat washer, 5/16”
Retainer nut
Wiper
Hex lock nut, 5/16–18
Hex head screw, 5/16–18 x 3/4” (19 mm)
Parts catalog
Installation Instructions 1 Read before installing
Modify Wiper
(For Deck Models 30551 & 30553 only)
8
8
8
8
1
8
8
1
Installing Mounting Bracket
Installing Wiper to Deck
Mounting Bracket Installation
1. Install the retainer nuts in each of the mounting
1. Using dimensions shown in figure 1, locate, mark and
cut slot and drill holes in wiper for deck Model 30551.
Use dimensions in figure 2 to locate, mark and cut slot
in wiper for deck Model 30553. Note position of wiper
and holes.
brackets. Refer to Installing Retainer nuts on
page 2.
2. Attach the mounting brackets (with retainer nuts
assembled) into holes in wiper (Fig. 3) using the
9.50”
4.50” 3.50”
.312” dia.
(2)
flat washers and 5/16–18 x 3/4” (19 mm) screws.
Place the flat washers on the screws and insert
the screws through the wiper into the retainer
nuts. Align the brackets vertical to the wiper and
1.37”
tighten the screws (Fig. 5).
Figure 1
2.37”
3.25”
1.37”
Figure 2
2003 by The Toro Company
8111 Lyndale Avenue South
Bloomington, MN 55420-1196
Note: Use the upper holes for greater striping
effect and the lower holes for less
effect.
All Rights Reserved
1
Printed in the USA
3
6
7
1
4
5
2
M-4478
Figure 3
1. 5/16–18 x 3/4” (19 mm)
screw
2. Flat washer
3. 5/16–1/8 x 3/4” (19 mm)
screw
4. 5/16–18 lock nut
5. Mounting Bracket (With
Retainer Nut)
6. Upper Holes
7. Lower Holes
Installation of Wiper to Deck
1. Center the wiper, with the mounting brackets
assembled, against the rear of the deck.
Note: Note starting from one end will eliminate
any slack in wiper and follow the deck.
5. Secure in place with the 5/16–18 x 3/4” (19 mm)
screws and 5/16–18 lock nuts. Install the screws
in the deck with the heads on the inside and nuts
to the outside as shown in Fig. 5.
2
3
1. 5/16–18 x 3/4” (19 mm)
screw
2. 5/16–18 lock nut
1
Figure 5
3. Wiper with Mounting
Brackets Installed
4. Deck
4
M-4481
2. Position the lower leg of each mounting bracket
under and up tight against the bottom lip of the
rear deck wall (Fig. 4).
3. Clamp one end of wiper to deck in the correct
location.
2
1
5
4
3
M-4469
Figure 4
1. Retainer Nut Installed
2. Mounting bracket
3. Lower Leg
4. Deck Wall
5. Wiper
4. Starting from one end, use the mounting
brackets as a template to drill 11/32 inch
diameter holes in the deck (Fig. 5).
Installing Retainer Nuts
1. Install one retaining leg into the the square
opening of mounting brackets (Fig. 6).
2. Push a screw driver into the other leg and insert
retaining nut into square hole (Fig. 6).
Note: Note which side retainer nut is installed on
in figure 4.
1
M-4234
Figure 6
1. Retainer Nut
2
