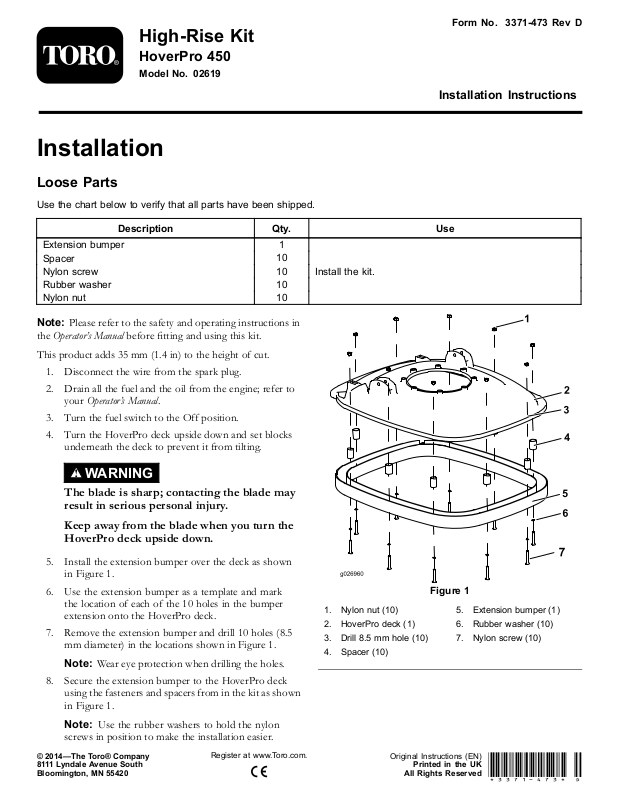

Toro 2619 Installation Instructions

High-RiseKit

HoverPro450

ModelNo.02619

Installation

LooseParts

Usethechartbelowtoverifythatallpartshavebeenshipped.

FormNo.3371-473RevD

InstallationInstructions

Description

Extensionbumper1
Spacer
Nylonscrew10
Rubberwasher10
Nylonnut10

Qty.

Note:Pleaserefertothesafetyandoperatinginstructionsin

theOperator’ sManualbeforettingandusingthiskit.

Thisproductadds35mm(1.4in)totheheightofcut.

1.Disconnectthewirefromthesparkplug.

2.Drainallthefuelandtheoilfromtheengine;referto
yourOperator’sManual.

3.TurnthefuelswitchtotheOffposition.

4.TurntheHoverProdeckupsidedownandsetblocks
underneaththedecktopreventitfromtilting.

WARNING

Thebladeissharp;contactingtheblademay
resultinseriouspersonalinjury.

Use

10

Installthekit.

Keepawayfromthebladewhenyouturnthe
HoverProdeckupsidedown.

5.Installtheextensionbumperoverthedeckasshown
inFigure1.

6.Usetheextensionbumperasatemplateandmark
thelocationofeachofthe10holesinthebumper
extensionontotheHoverProdeck.

7.Removetheextensionbumperanddrill10holes(8.5
mmdiameter)inthelocationsshowninFigure1.

Note:Weareyeprotectionwhendrillingtheholes.

8.SecuretheextensionbumpertotheHoverProdeck
usingthefastenersandspacersfrominthekitasshown
inFigure1.

Note:Usetherubberwasherstoholdthenylon
screwsinpositiontomaketheinstallationeasier.

©2014—TheToro®Company
8111LyndaleAvenueSouth
Bloomington,MN55420

Registeratwww.T oro.com.

Figure1

1.Nylonnut(10)5.Extensionbumper(1)

2.HoverProdeck(1)6.Rubberwasher(10)

3.Drill8.5mmhole(10)7.Nylonscrew(10)

4.Spacer(10)

OriginalInstructions(EN)

PrintedintheUK

AllRightsReserved

*3371-473*D
