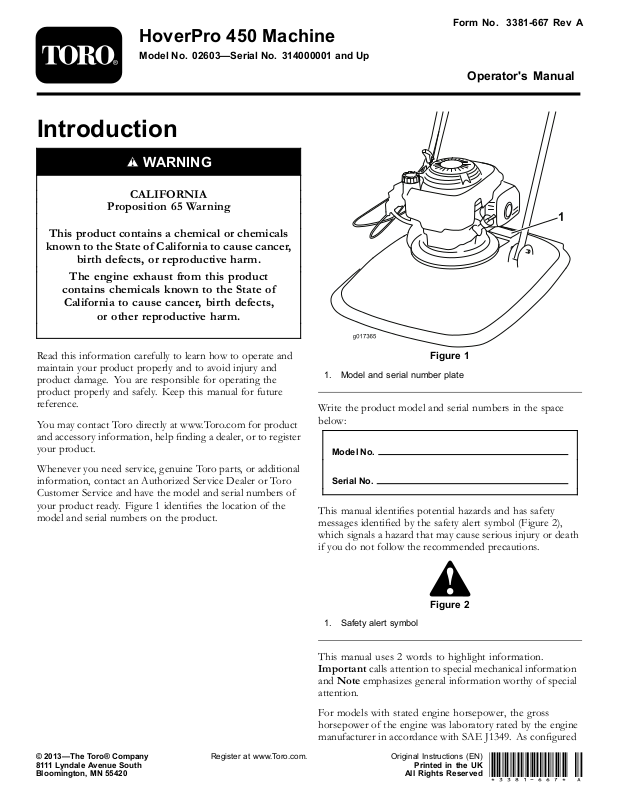

Page 1

HoverPro450Machine

g017365

ModelNo.02603—SerialNo.314000001andUp

Introduction

WARNING

CALIFORNIA

Proposition65Warning

Thisproductcontainsachemicalorchemicals

knowntotheStateofCaliforniatocausecancer,

birthdefects,orreproductiveharm.

Theengineexhaustfromthisproduct

containschemicalsknowntotheStateof

Californiatocausecancer,birthdefects,

orotherreproductiveharm.

FormNo.3381-667RevA

Operator'sManual

Readthisinformationcarefullytolearnhowtooperateand maintainyourproductproperlyandtoavoidinjuryand productdamage.Youareresponsibleforoperatingthe productproperlyandsafely.Keepthismanualforfuture reference.

YoumaycontactTorodirectlyatwww .Toro.comforproduct andaccessoryinformation,helpndingadealer,ortoregister yourproduct.

Wheneveryouneedservice,genuineToroparts,oradditional information,contactanAuthorizedServiceDealerorToro CustomerServiceandhavethemodelandserialnumbersof yourproductready.

Figure1identiesthelocationofthe

modelandserialnumbersontheproduct.

Figure1

1.Modelandserialnumberplate

Writetheproductmodelandserialnumbersinthespace below:

ModelNo.

SerialNo.

Thismanualidentiespotentialhazardsandhassafety messagesidentiedbythesafetyalertsymbol(Figure2), whichsignalsahazardthatmaycauseseriousinjuryordeath ifyoudonotfollowtherecommendedprecautions.

Figure2

1.Safetyalertsymbol

Registeratwww.T oro.com.

Thismanualuses2wordstohighlightinformation. Importantcallsattentiontospecialmechanicalinformation andNoteemphasizesgeneralinformationworthyofspecial attention.

Formodelswithstatedenginehorsepower,thegross horsepoweroftheenginewaslaboratoryratedbytheengine manufacturerinaccordancewithSAEJ1349.Ascongured

OriginalInstructions(EN)

PrintedintheUK

AllRightsReserved

*3381-667*A

Page 2

tomeetsafety,emission,andoperatingrequirements,the actualenginehorsepoweronthisclassmachinewillbe signicantlylower.

Contents

Introduction..................................................................1

GeneralOperation..................................................2

SlopeOperation......................................................2

Children.................................................................3

Service...................................................................3

SoundPressure.......................................................4

SoundPower..........................................................4

Vibration................................................................4

SafetyandInstructionalDecals.................................5

Setup............................................................................6

1AssemblingtheHandle..........................................6

2FillingtheEnginewithOil......................................7

3ReplacingtheEnglishDecal(forChineseunits

only)..................................................................8

ProductOverview..........................................................8

Operation.....................................................................9

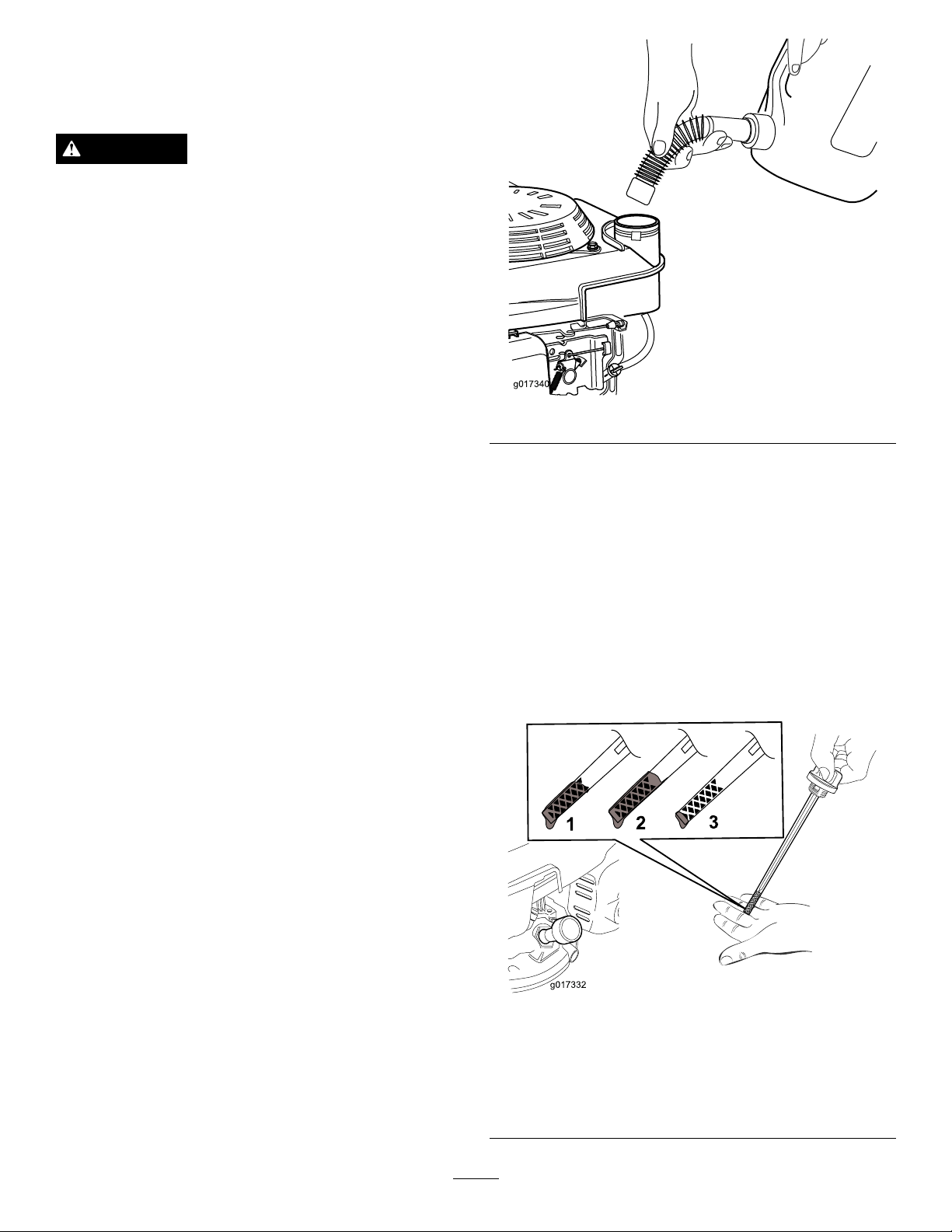

FillingtheFuelTank................................................9

CheckingtheEngineOilLevel..................................9

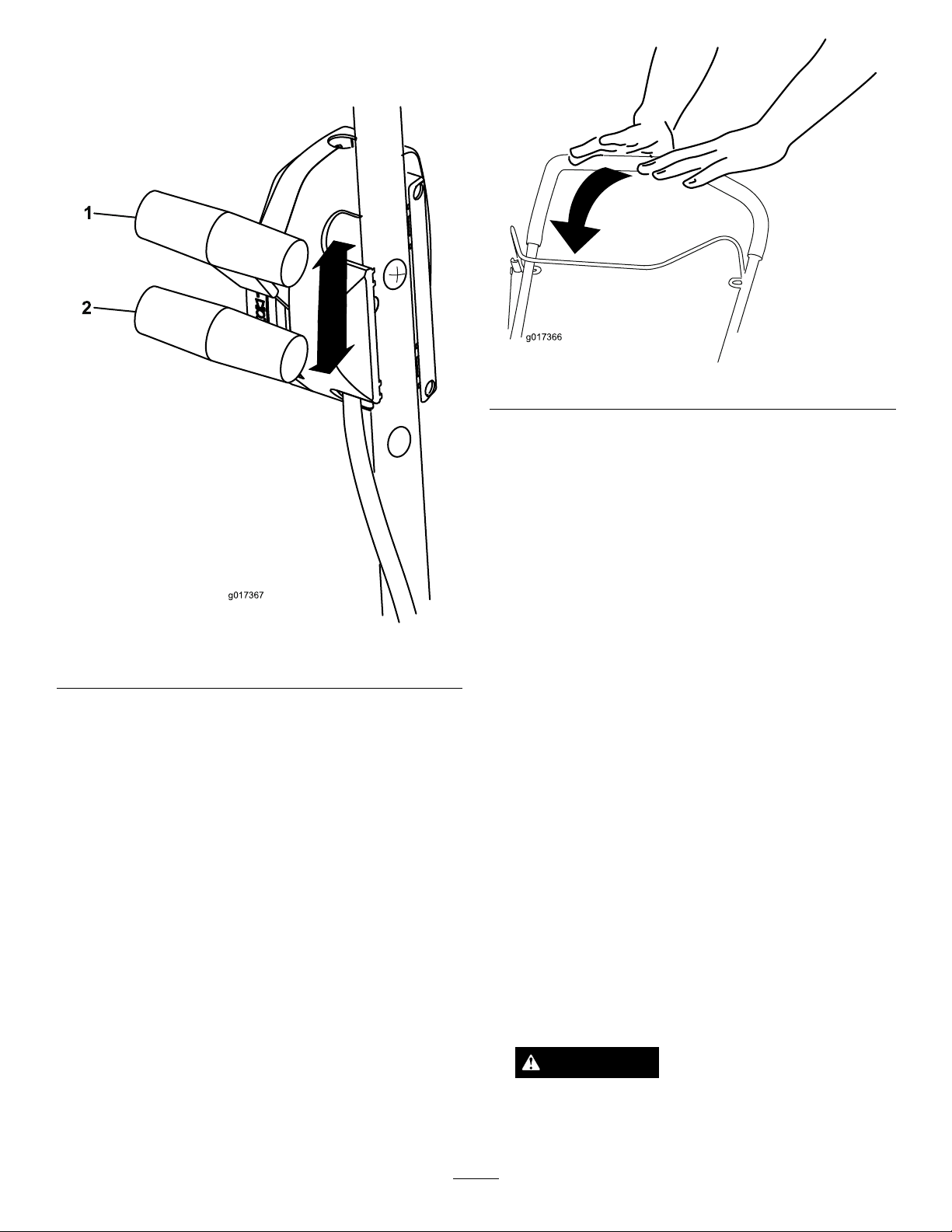

AdjustingtheCuttingHeight....................................10

StartingtheEngine.................................................11

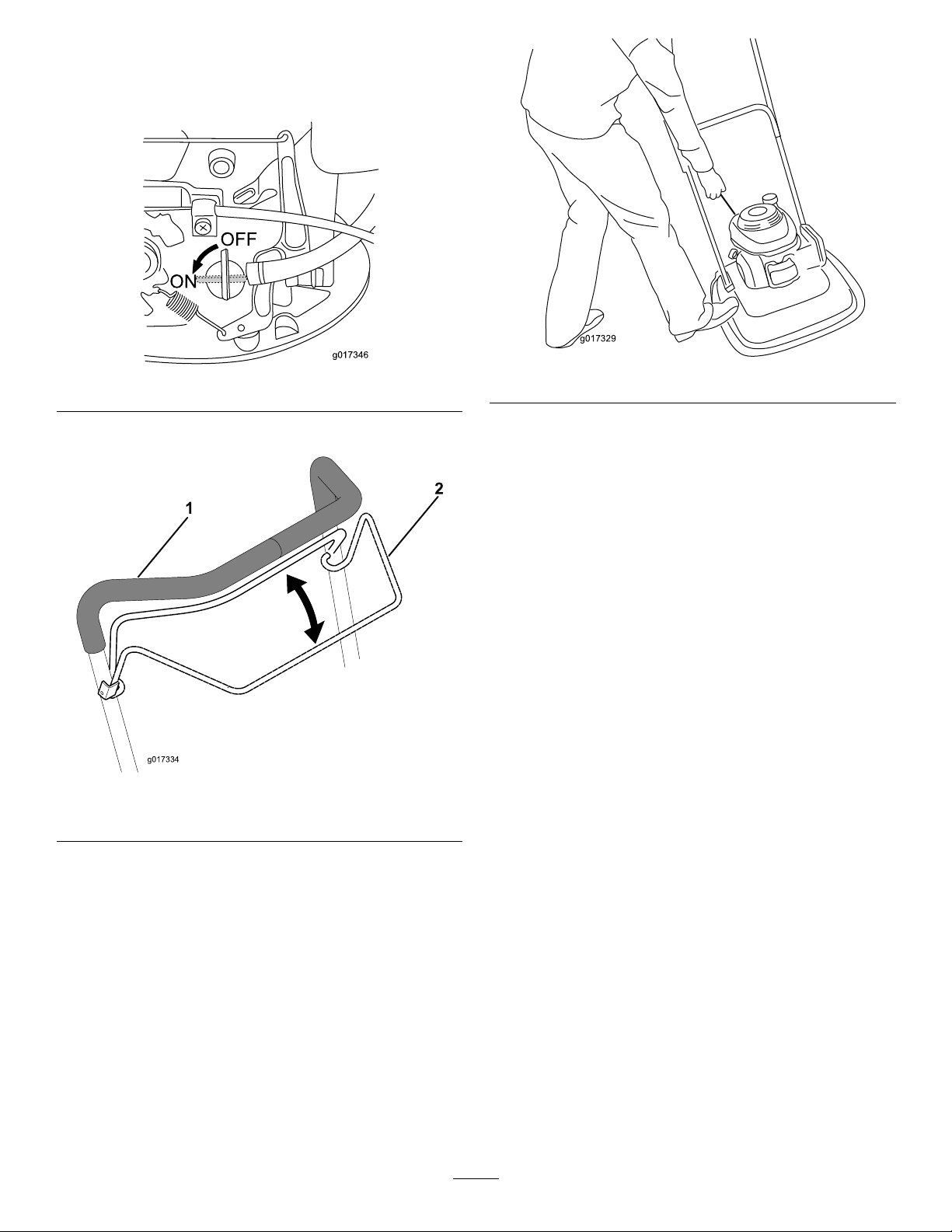

AdjustingtheChoke...............................................12

StoppingtheEngine...............................................12

OperatingTips......................................................12

Maintenance.................................................................13

RecommendedMaintenanceSchedule(s)......................13

PreparingforMaintenance.......................................14

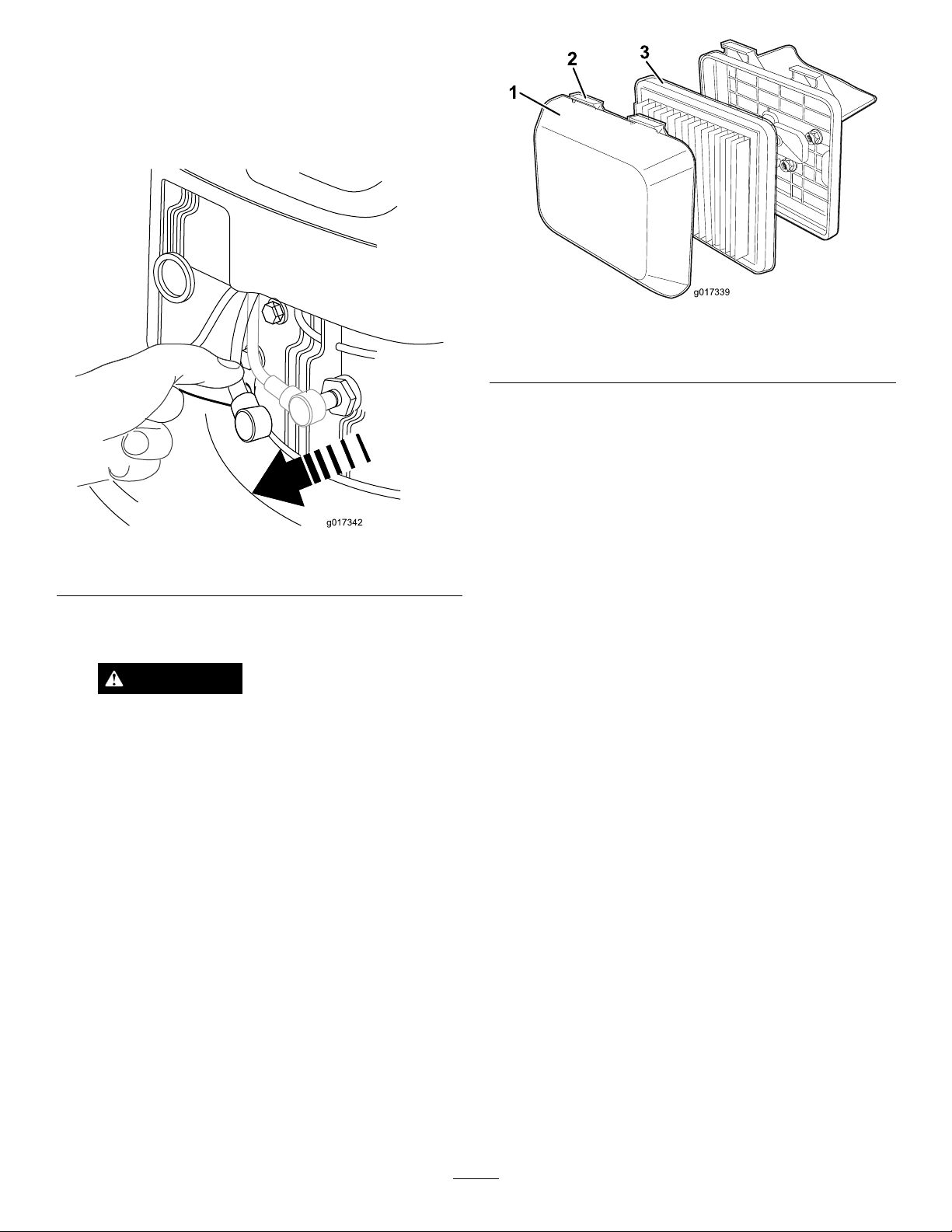

ReplacingtheAirCleaner........................................14

ChangingtheEngineOil.........................................14

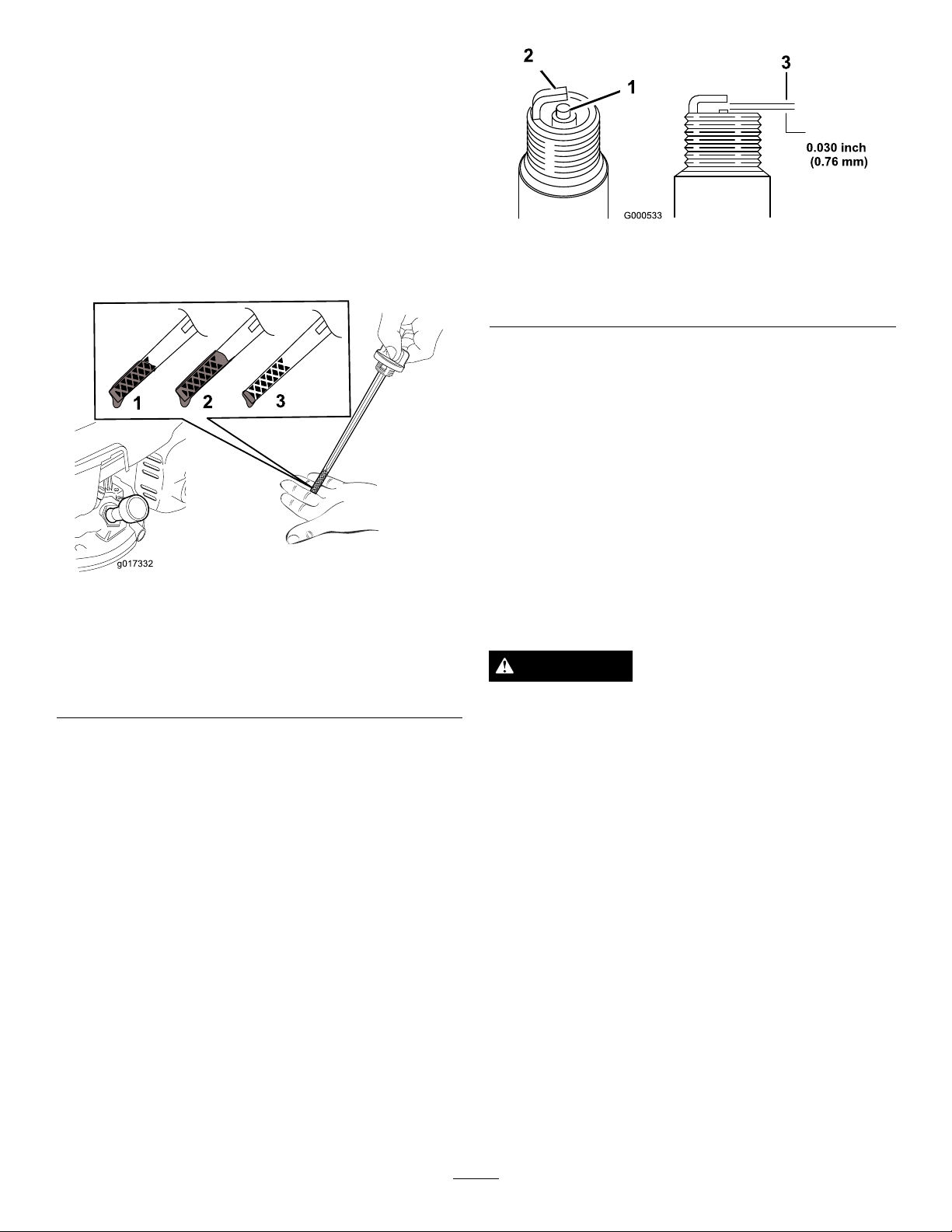

ServicingtheSparkPlug..........................................15

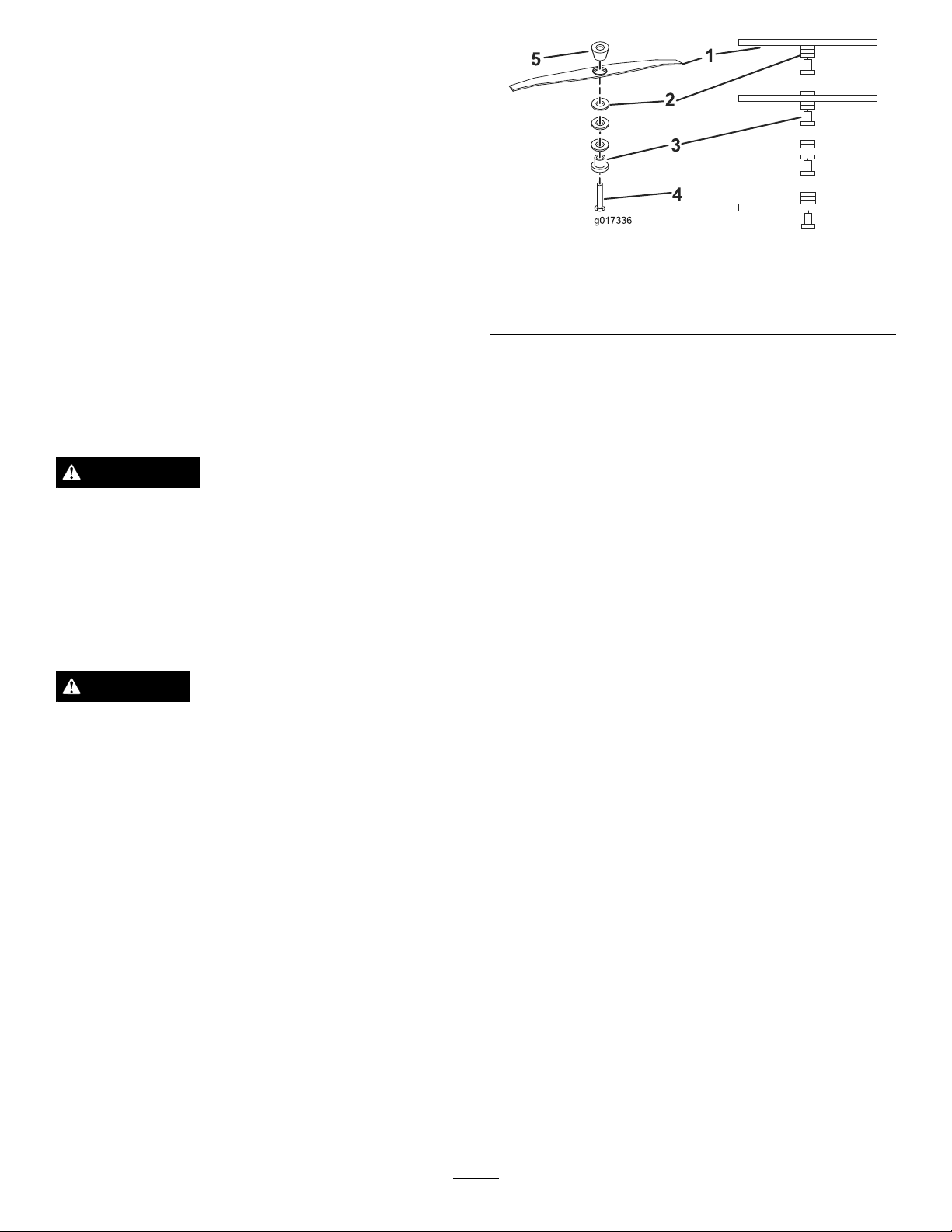

ReplacingtheCutterbar...........................................15

CleaningtheMachine..............................................16

Storage........................................................................16

PreparingtheMachineforStorage............................16

Troubleshooting...........................................................17

Safety

ThefollowingsafetysectionisadaptedfromANSI B71.4–2012.

Thiscuttingmachinecanamputatehandsandfeetand throwobjects.Failuretoobservethefollowingsafety instructionscouldresultinseriousinjuryordeath.

GeneralOperation

•Read,understand,andfollowallinstructionsonthe

machineandinthemanual(s)beforestarting.

•Donotputhandsorfeetnearorunderthemachine.

•Onlyallowresponsibleadults,whoarefamiliarwiththe

instructions,tooperatethismachine.

•Keepinmindthattheoperatororuserisresponsiblefor

accidentsorhazardsoccurringtootherpeopleortheir property.

•Cleartheareaofobjectssuchasrocks,wire,toys,etc.,

whichcouldbethrownbythebladeorcuttingline.Stay behindthehandlewhentheengineisrunning.

•Besuretheareaisclearofbystandersbeforeoperating.

Stopmachineifanyoneentersthearea.

•Donotoperatemachinebarefootedorwhilewearing

sandals.Alwayswearsubstantialfootwearandlongpants.

•Donotpullmachinebackwardunlessabsolutely

necessary.Alwayslookdownandbehindbeforeand whilemovingbackward.

•Neverdirectdischargedmaterialtowardanyone.Avoid

dischargingmaterialagainstawallorobstruction. Materialmayricochetbacktowardtheoperator.

•Stoptheengineofthemachinewhencrossingsurfaces

otherthangrass,andwhentransportingthemachineto andfromtheareatobecut.

•Stoptheblade(s)ifthemachinehastobetiltedfor

transportationwhencrossingsurfacesotherthangrass, andwhentransportingthemachinetoandfromthearea tobemowed.

•Donotoperatemachinewithoutthesafetyprotective

devicesinplaceandworking.

•Neverleavearunningmachineunattended.

•Stoptheengine,waituntilthebladecomestoacomplete

stop,anddisconnectthesparkplugwirebeforecleaning oruncloggingthemachine.

•Operatemachineonlyindaylightorgoodarticiallight.

•Donotoperatemachinewhileundertheinuenceof

alcoholordrugs.

•Neveroperatemachineinwetgrass.Alwaysbesureof

yourfooting;walk;neverrun.

•Ifthemachineshouldstarttovibrateabnormally,stop

theengineandcheckforthecauseimmediately.Vibration isgenerallyawarningoftrouble.

•Alwaysweareyeprotectionwhenoperatingmachine.

•Seemanufacturer'sinstructionsforproperoperationand

installationofaccessories.Onlyuseaccessoriesapproved bythemanufacturer.

SlopeOperation

Slopesareamajorfactorrelatedtoslipandfallaccidents, whichcanresultinsevereinjury.Operationonallslopes requireextracaution.Ifyoufeeluneasyonaslope,donot mowit.

•Mowacrossthefaceofslopes;neverupanddown.

Exerciseextremecautionwhenchangingdirectionon slopes.

Page 3

•Watchforholes,ruts,bumps,rocks,orotherhidden

objects.Uneventerraincouldcauseaslipandfall accident.Tallgrasscanhideobstacles.

•Donotmowonwetgrassorexcessivelysteepslopes.

Poorfootingcouldcauseaslipandfallaccident.

•Donotmowneardrop-offs,ditches,orembankments.

Youcouldloseyourfootingorbalance.

•WhenusingtheHoverPro,alwayskeepbothhandson

thehandlebar.

•Whencuttingsteepslopesfromthetopoftheslopeanda

longerreachisneeded,nevertietheHoverProtoarope, usetheextendedhandlebarkitoption.

Children

Tragicaccidentscanoccuriftheoperatorisnotalerttothe presenceofchildren.Childrenareoftenattractedtothe machineandthemowingactivity .Neverassumethatchildren willremainwhereyoulastsawthem.

•Keepchildrenoutofthemowingareaandunderthe

watchfulcareofaresponsibleadultotherthanthe operator.

•Bealertandturnmachineoffifachildentersthearea.

•Neverallowchildrentooperatethemachine.

•Useextracarewhenapproachingblindcorners,shrubs,

trees,orotherobjectsthatmayblockyourviewofachild.

Service

SafeHandlingofGasoline

Toavoidpersonalinjuryorpropertydamage,use extremecareinhandlinggasoline.Gasolineisextremely ammableandthevaporsareexplosive.

•Extinguishallcigarettes,cigars,pipes,andothersources

ofignition.

•Useonlyanapprovedgasolinecontainer.

•Neverremovegascaporaddfuelwiththeengine

running.Allowenginetocoolbeforerefueling.

•Neverrefuelthemachineindoors.

•Neverstorethemachineorfuelcontainerwherethereis

anopename,spark,orpilotlightsuchasonawater heateroronotherappliances.

•Neverllcontainersinsideavehicleoronatruckor

trailerbedwithaplasticliner.Alwaysplacecontainerson thegroundawayfromyourvehiclebeforelling.

•Removegas-poweredequipmentfromthetruckortrailer

andrefuelitontheground.Ifthisisnotpossible,then refuelsuchequipmentwithaportablecontainer,rather thanfromagasolinedispensernozzle.

•Keepthenozzleincontactwiththerimofthefueltank

orcontaineropeningatalltimesuntilfuelingiscomplete. Donotuseanozzlelock-opendevice.

•Iffuelisspilledonclothing,changeclothingimmediately .

•Neveroverllfueltank.Replacegascapandtighten

securely.

WARNING

Exhaustcontainscarbonmonoxide,anodorless, deadlypoisonthatcankillyou.

Donotruntheengineindoorsorinanenclosed area.

GeneralService

•Neveroperatemachineinaclosedarea.

•Keepallnutsandboltstighttobesuretheequipmentis

insafeworkingcondition.

•Neverremoveortamperwithsafetydevices.Checktheir

properoperationregularly.Neverdoanythingtointerfere withtheintendedfunctionofasafetydeviceortoreduce theprotectionprovidedbyasafetydevice.

•Keepmachinefreeofgrass,leaves,orotherdebris

build-up.Cleanupoilorfuelspillageandremoveany fuel-soakeddebris.Allowmachinetocoolbeforestoring.

•Ifyoustrikeaforeignobject,stopandinspectthe

machine.Repair,ifnecessary,beforestarting.

•Nevermakeanyadjustmentsorrepairswiththeengine

running.Disconnectthesparkplugwireandground againstenginetopreventunintendedstarting.

•Machinebladesaresharp.Wrapthebladeorweargloves,

anduseextracautionwhenservicingthem.

•Donotchangetheenginegovernorsettingoroverspeed

theengine.

•Maintainorreplacesafetyandinstructionlabels,as

necessary.

•Keepinmindthattheoperatororuserisresponsiblefor

accidentsorhazardsoccurringtootherpeopleortheir property.

•Ifgasolineisspilled,donotattempttostarttheengine

butmovethemachineawayfromtheareaofspillageand avoidcreatinganysourceofignitionuntilthegasoline vaporhasdissipated.

•Replacefaultysilencers.

•Beforeusing,alwaysvisuallyinspecttoseethattheblades,

bladeboltsandcutterassemblyarenotwornordamaged. Replacewornordamagedbladesandboltsinsetsto preservebalance.

•Neverpickuporcarryamachinewhiletheengineis

running.

•Stoptheengineanddisconnectthesparkplugwire,make

surethatallmovingpartshavecometoacompletestop:

–Beforeclearingblockages.

–Beforechecking,cleaning,orworkingonthemachine.

Page 4

–Afterstrikingaforeignobject.Inspectthemachine

fordamageandmakerepairsbeforerestartingand operatingthelawnmower.

–Ifthemachinestartstovibrateabnormally.

–Wheneveryouleavethemachine.

–Beforerefueling.

•Theengineisequippedwithashut-offvalve.Turnthe

fueloffattheconclusionofmowing.

•Allowtheenginetocoolbeforestoringinanyenclosure.

•Replacewornordamagedpartsforsafety.

•Ifthefueltankhastobedrained,thisshouldbedone

outdoors.

•Localregulationsmayrestricttheageoftheoperator.

•Alwayswearearprotection.

•Donottiltthemachinewhenstartingtheengine,except

ifthemachinehastobetiltedforstarting.Inthiscasedo nottiltitmorethanabsolutelynecessaryandliftonlythe partwhichisawayfromtheoperator.

•Examinethemachineregularlyandreplacewornor

damagedpartsforsafety.

SoundPressure

Thismachinehasasoundpressurelevelattheoperator’s earof91dBA,whichincludesanUncertaintyValue(K)of 2dBA.Thesoundpressurelevelwasdeterminedaccording totheproceduresoutlinedinEN836.

SoundPower

Thismachinehasaguaranteedsoundpowerlevelof100 dBA,whichincludesanUncertaintyValue(K)of2dBA. Thesoundpowerlevelwasdeterminedaccordingtothe proceduresoutlinedinISO11094.

Vibration

Measuredvibrationlevelforthelefthand=6m/s2.

Measuredvibrationlevelfortherighthand=7m/s2.

UncertaintyValue(K)=3m/s2.

Themeasuredvaluesweredeterminedaccordingtothe proceduresoutlinedinEN836.

Page 5

SafetyandInstructionalDecals

g017409

g017410

g017414

Important:Safetyandinstructiondecalsarelocatednearareasofpotentialdanger.Replacedamageddecals.

111-5393

1.Warning—Receivetrainingontheproduct;readthe

Operator’sManual.

2.Cutting/dismembermenthazardofhandorfoot,mowerblade; disconnectthewirefromthesparkplugbeforeworkingonthe machine;nevertmetalcuttingparts.

3.Warning—weareyeandhearingprotection.

94-8072

1.Warning—cutting/dismembermenthazardofhandorfoot, cuttingmechanism.

4.Thrownobjecthazard;keepbystandersawayfromthe machine.

5.Warning—donottouchhotsurfaces;keepguardsinplace; Stayawayfrommovingparts;keepguardsinplace.

H295159

1.Enginestop

H295124

1.Instructionfororientationofthemachineforservicingthe cuttingmechanismanddrainingoil.

1.Choke

2.Enginesymbol

3.Run

Page 6

Setup

g017333

g017328

AssemblingtheHandle

NoPartsRequired

Procedure

1.Slide2bushesintotheframe(Figure3).

Figure4

1.Upperhandle4.Ubolt

2.Handwheel5.Lowerhandle

3.Washer

5.FittheUboltthroughtheupperandlowerhandleand secureitwithawasherandahandwheel(Figure4).

Figure3

1.Lowerhandle4.Frame

2.Bushes5.Bolt

3.Nut6.Washers

2.Placethelowerhandlebetweenthebushesandsecure itwith1handlebarbolt,2washers,and1nut(Figure3).

Note:Placethelowerhandlebetweenthebusheswith thekickstopassemblyontherighthandside.

3.Repeatfortheoppositeside.

4.Aligntheholesontheupperhandlewiththelower handle(

Figure4).

Page 7

6.Attachthethrottleassemblytotheoutsideofthe

g017332

g017338

handlebarandsecureitwithanutandapanscrew (Figure5).

Figure6

Figure5

FillingtheEnginewithOil

NoPartsRequired

Procedure

Important:Yourmachinedoesnotcomewithoilin

theengine.Beforestartingtheengine,lltheengine withoil.

1.Theoillevelisatits maximum.

2.Theoillevelistoo high—removeoilfrom thecrankcase.

3.Slowlypouroilintotheoilllhole,wait3minutes, andchecktheoillevelonthedipstickbywipingthe dipstickcleanandtheninserting,butnotscrewingin, theoilllcapintothehole(Figure7).

3.Theoillevelistoo low—addoiltothe crankcase.

Figure7

Max.ll:0.59l(20oz.),type:SAE30orSAE10W-30 detergentoilwithanAPIserviceclassicationofSF ,SG,SH, SJ,SL,orhigher.

1.Movethemachinetoalevelsurface.

2.Removethedipstick(Figure6).

Note:Filltheenginecrankcasewithoiluntilthe dipstickindicatesthattheengineoilleveliscorrect asshownin oil,removetheexcessoilasdirectedinChangingthe EngineOil.

4.Installthedipstickandhandtightenitsecurely .

Important:

operating hour s

toChangingtheEngineOil.

Figure6.Ifyouoverlltheenginewith

Change the engine oil after the r st 5

;changeityearlythereafter.Refer

Page 8

g019200

g019230

g017341

g017335

ReplacingtheEnglishDecal (forChineseunitsonly)

NoPartsRequired

Procedure

ThisdecalreplacestheoriginaldecalonyourHoverProunit.

PlacetheChineselanguagedecalsothatitcompletelycovers theoriginalEnglishlanguagedecal(Figure8).

ProductOverview

Figure9

1.Fuelcap6.Handlebarsecuringknob

2.Enginestart7.Exhaustguard

3.Throttlecontrol8.Enginecover

4.Enginestophandle9.Dipstick

1.Chinesedecal

Figure8

2.Englishdecal

5.Handlebar

Figure10

1.Sparkplug

2.Exhaustguard7.Fingerguard

3.Exhaust8.Aircleaner

4.Dipstick

5.Startergrip

6.Fuelcap

9.Carburetor

Page 9

Operation

g017340

g017332

FillingtheFuelTank

DANGER

Gasolineisextremelyammableandexplosive.A reorexplosionfromgasolinecanburnyouand others.

•Topreventastaticchargefromignitingthe gasoline,placethecontainerand/ormachine directlyonthegroundbeforelling,notina vehicleoronanobject.

•Fillthetankoutdoorswhentheengineiscold. Wipeupspills.

•Donothandlegasolinewhensmokingoraround anopenameorsparks.

•Storegasolineinanapprovedfuelcontainer,out ofthereachofchildren.

Figure11

RecommendedFuel:

•Forbestresults,useonlyclean,fresh(lessthan30days

old),unleadedgasolinewithanoctaneratingof87or higher((R+M)/2ratingmethod).

•Ethanol:Gasolinewithupto10%ethanol(gasohol)

or15%MTBE(methyltertiarybutylether)byvolume isacceptable.EthanolandMTBEarenotthesame. Gasolinewith15%ethanol(E15)byvolumeisnot approvedforuse.Neverusegasolinethatcontainsmore than10%ethanolbyvolume,suchasE15(contains15% ethanol),E20(contains20%ethanol),orE85(contains 85%ethanol).Usingunapprovedgasolinemaycause performanceproblemsand/orenginedamagewhichmay notbecoveredunderwarranty.

•Donotusegasolinecontainingmethanol.

•Donotstorefueleitherinthefueltankorfuelcontainers

overthewinterunlessafuelstabilizerisused.

•Donotaddoiltogasoline.

CheckingtheEngineOilLevel

ServiceInterval:Beforeeachuseordaily

1.Movethemachinetoalevelsurface.

2.Removethedipstickandwipeitwithacleancloth.

3.Insert,butdonotscrewin,thedipstickintotheoil llhole.

4.Removethedipstickandcheckit.

5.Todeterminetheproperoillevelonthedipstick,refer toFigure12).

Figure12

1.Theoillevelisatits

maximum.

2.Theoillevelistoo high—removeoilfrom thecrankcase.

3.Theoillevelistoo low—addoiltothe crankcase.

Page 10

6.Iftheoillevelislow,slowlypouroilintotheoilll hole,wait3minutes,andchecktheoillevelonthe dipstickbywipingthedipstickcleanandtheninserting, butnotscrewingin,theoilllcapintothehole.

Note:Max.ll:0.59l(20oz.)SAE10W-30detergent oilwithanAPIserviceclassicationofSF,SG,SH, SJ,SL,orhigher.

Note:Filltheenginecrankcasewithoiluntilthe dipstickindicatesthattheengineoilleveliscorrectas showninFigure12.Ifyouoverlltheenginewith oil,removetheexcessoilasdirectedinChangingthe EngineOil.

7.Installthedipstickandhandtightenitsecurely .

1.Cutterbar

2.Spacers

3.Bladeretainer

Figure13

4.Bolt

5.Largespacer

Important:

operating hour s

toChangingtheEngineOil.

Change the engine oil after the r st 5

;changeityearlythereafter.Refer

AdjustingtheCuttingHeight

WARNING

Adjustingthecuttingheightmaybringyouinto contactwiththemovingblade,causingserious injury.

•Stoptheengineandwaitforallmovingparts tostop.

•Weargloveswhilehandlingthecutterbar.

CAUTION

Iftheenginehasbeenrunning,themuferwillbe hotandcanseverelyburnyou.Keepawayfromthe hotmufer.

Note:Thelargespacermustbepositioneddirectly belowtheimpelleratalltimes.

Adjustthecuttingheightasdesired.

1.Turnthefuelswitchtotheoffposition.

2.Disconnectthewirefromthesparkplug.

3.Tiltthemachineonitsleftside.

4.Wearingprotectivegloves,removethecutterbar.

5.Repositionthespacerstothedesiredheight,then reinstallthecutterbar(Figure13).

Page 11

StartingtheEngine

OFF

g017346

g017334

g017329

1.Placethethrottlecontroltothechokeposition,ensure thatthefuelswitchisinthe‘On’position.

Figure14

2.Holdtheenginestophandleagainstthehandle.

Figure15

1.Handle2.Enginestophandle

Figure16

4.Pulltherecoilstarthandle.

Note:Ifthemachinedoesnotstartafterseveralattempts, contactanAuthorizedServiceDealer.

3.Placeyourfootonthedeckandtiltthemachine towardsyou(Figure16).

Page 12

AdjustingtheChoke

g017367

g017366

Usethethrottleassemblytoadjustthechoke(Figure17).

Figure18

OperatingTips

GeneralMowingTips

•Cleartheareaofsticks,stones,wire,branches,andother

debristhatthebladecouldhit.

•Avoidstrikingsolidobjectswiththeblade.Never

deliberatelymowoveranyobject.

Figure17

1.Chokeon2.Chokeoff

StoppingtheEngine

ServiceInterval:Beforeeachuseordaily

Tostoptheengine,releasethebladecontrolbar(Figure18).

Important:Whenyoureleasetheenginestophandle, boththeengineandbladeshouldstopwithin3seconds. Iftheydonotstopproperly,stopusingyourmachine immediatelyandcontactanAuthorizedServiceDealer.

•Ifthemachinestrikesanobjectorstartstovibrate,

immediatelystoptheengine,disconnectthewirefrom thesparkplug,andexaminethemachinefordamage.

•Forbestperformance,installanewbladebeforethe

cuttingseasonbegins.

•ReplacethebladewhennecessarywithaToro

replacementblade.

CuttingGrass

•Cutonlyaboutathirdofthegrassbladeatatime.Donot

cutbelowthe51mm(2inch)settingunlessthegrassis sparseoritislatefallwhengrassgrowthbeginstoslow down.RefertoAdjustingtheCuttingHeight.

•Mowinggrassover15cm(6inches)inlengthisnot

recommended..Ifthegrassistoolong,themachinemay plugandcausetheenginetostall.

•Mowonlydrygrassorleaves.W etgrassandleavestend

toclumpontheyardandcancausethemachinetoplug ortheenginetostall.

WARNING

Wetgrassorleavescancauseseriousinjuryif youslipandcontacttheblade.Mowonlyindry conditions.

Page 13

•Alternatethemowingdirection.Thishelpsdispersethe

clippingsoverthelawnforevenfertilization.

•Ifthenishedlawnappearanceisunsatisfactory,tryone

ormoreofthefollowing:

–Overlapcuttingswathsinsteadofcuttingafullswath

witheachpass.

CuttingLeaves

–Replacetheblade/lineorhavethebladesharpened.

–Walkataslowerpacewhilemowing.

–Raisethecuttingheightonyourmachine.

–Cutthegrassmorefrequently.

•Aftercuttingthelawn,ensurethathalfofthelawnshows

throughthecutleafcover.Youmayneedtomakemore thanonepassovertheleaves.

•Slowdownyourmowingspeedifthemachinedoesnot

cuttheleavesnelyenough.

Maintenance

Note:Determinetheleftandrightsidesofthemachinefromthenormaloperatingposition.

RecommendedMaintenanceSchedule(s)

MaintenanceService

Interval

Aftertherst5hours

Beforeeachuseordaily

Every100hours

Beforestorage

MaintenanceProcedure

•Changetheengineoil.

•Checktheengineoillevel.

•Ensurethattheenginestopswithin3secondsafterreleasingthebladecontrolbar.

•Cleangrassclippingsanddirtfromunderthemachine.

•Checkthesparkplugandreplaceitifnecessary.

•Emptythefueltankbeforerepairsasdirectedandbeforeannualstorage.

•Cleanthecoolingsystem;removegrassclippings,debris,ordirtfromtheengine aircoolingnsandstarter.Cleanthesystemmorefrequentlyindirtyorhigh-chaff conditions.

•Replacetheairlter;replaceitmorefrequentlyindustyoperatingconditions.

Yearly

•Changetheengineoil.

•Replacethebladeorhaveitsharpened(morefrequentlyiftheedgedullsquickly).

Page 14

PreparingforMaintenance

g017342

g017339

1.Stoptheengineandwaitforallmovingpartstostop.

2.Disconnectthesparkplugwirefromthesparkplug (Figure19)beforeperforminganymaintenance procedure.

Figure20

Figure19

1.Sparkplugwire

3.Afterperformingthemaintenanceprocedure(s), connectthesparkplugwiretothesparkplug.

WARNING

Tippingthemachinemaycausethefuelto leak.Gasolineisammable,explosiveand cancausepersonalinjury.

Runtheenginedryorremovethegasoline withahandpump;neversiphon.

1.Cover

2.Latchtabs

2.Openthecover.

3.Removethelter(

4.Inspectthelter,andreplaceitifitisdamagedor excessivelydirty.

5.Inspectthepaperairlter.

A.Ifthelterisdamagedoriswetwithoilorfuel,

replaceit.

B.Ifthelterisdirty ,tapitonahardsurfaceseveral

timesorblowcompressedairlessthan207kPa (30psi)throughthesideofthelterthatfaces theengine.

Note:Donotbrushthedirtoffthelter; brushingforcesdirtintothebers.

6.Removedirtfromtheaircleanerbodyandcoverusing amoistrag.Donotwipedirtintotheairduct.

7.Insertthelterintotheaircleaner.

8.Installthecover.

3.Filter

Figure20).

ChangingtheEngineOil

Important:Alwaystipthemachineontoitsside

withthedipstickdown.

ReplacingtheAirCleaner

ServiceInterval:Yearly

1.Pressdownonthelatchtabsontopoftheaircleaner cover(Figure20).

ServiceInterval:Aftertherst5hours

Yearly

1.Ensurethatthefueltankcontainslittleornofuelso thatfueldoesnotleakoutwhenyoutipthemachine ontoitsside.

2.Runtheengineafewminutesbeforechangingtheoil towarmit.

Note:Warmoilowsbetterandcarriesmore contaminants.

3.Disconnectthewirefromthesparkplug.Referto PreparingforMaintenance.

4.Removethedipstick.

5.Tipthemachineontoitsside,withthedipstickdown, todraintheusedoiloutthroughtheoillltube.

Page 15

6.Returnthemachinetotheoperatingposition.

g017332

7.Slowlypouroilintotheoilllhole,wait3minutes, andchecktheoillevelonthedipstickbywipingthe dipstickcleanandtheninserting,butnotscrewingin, theoilllcapintothehole.

Note:Max.ll:0.59l(20oz.),type:SAE30orSAE 10W-30detergentoilwithanAPIserviceclassication ofSF,SG,SH,SJ,SL,orhigher.

Note:Filltheenginecrankcasewithoiluntilthe dipstickindicatesthattheengineoilleveliscorrectas shownin(Figure21).Ifyouoverlltheenginewithoil, removetheexcessoilasdirectedin5.

Figure21

1.Theoillevelisatits maximum.

2.Theoillevelistoo high—removeoilfrom thecrankcase.

3.Theoillevelistoo low—addoiltothe crankcase.

8.Installthedipstickandhandtightenitsecurely .

9.Disposeoftheusedoilproperlyatalocalrecycling center.

ServicingtheSparkPlug

ServiceInterval:Every100hours

Checkthesparkplugafterevery100operatinghours.Usean ChampionRN9YCsparkplugorequivalent.

1.Stoptheengineandwaitforallmovingpartstostop.

2.Disconnectthewirefromthesparkplug.

3.Cleanaroundthesparkplug.

4.Removethesparkplugfromthecylinderhead.

Important:Replaceacracked,fouled,ordirty sparkplug.Donotcleantheelectrodesbecause gritenteringthecylindercandamagetheengine.

5.Setthegapontheplugto0.76mm(0.030inch)(

22).

Figure22

1.Centerelectrodeinsulator

2.Sideelectrode

3.Airgap(nottoscale)

6.Installthesparkplugandthegasketseal.

7.Torquetheplugto20N-m(15ft-lb).

8.Connectthewiretothesparkplug.

ReplacingtheCutterbar

ServiceInterval:Yearly

Important:

blade pr oper l y

areuncomfortableperformingthisprocedure,contact anAuthorizedServiceDealer.

Examinethebladewheneveryourunoutofgasoline.Ifthe bladeisdamagedorcracked,replaceitimmediately.Ifthe bladeedgeisdullornicked,haveitsharpenedorreplaceit.

WARNING

Thebladeissharp;contactingthebladecanresult inseriouspersonalinjury.

•Disconnectthewirefromthesparkplug .

•Weargloveswhenservicingtheblade.

1.Disconnectthesparkplugwirefromthesparkplug. RefertoPreparingforMaintenance.

2.Tipthemachineontoitsside,withtheairlterup.

3.Useablockofwoodtoholdthebladesteady .

4.Removetheblade(turnthebladebolt counterclockwise),savingallthemounting hardware.

5.Installthenewblade(turnthebladeboltclockwise) andallmountinghardware.

Important:Positionthecurvedendsoftheblade topointtowardthemachinehousing.

6.Useatorquewrenchtotightenthebladeboltto 25N-m(18ft-lb).

Important:Abolttorquedto25N-m(18ft-lb)is

Figure

verytight.Whileholdingthebladewithablock ofwood,putyourweightbehindtheratchetor

Y ou will need a torque wr ench to install the

.Ifyoudonothaveatorquewrenchor

Page 16

wrenchandtightentheboltsecurely.Thisboltis verydifculttoovertighten.

CleaningtheMachine

Storage

Storethemachineinacool,clean,dryplace.

ServiceInterval:Beforeeachuseordaily

WARNING

Themachinemaydislodgematerialfromunderthe machinehousing.

•Weareyeprotection.

•Stayintheoperatingposition(behindthe handle).

•Donotallowbystandersinthearea.

1.Tipthemachineonitsside.

2.Useabrushorcompressedairtoremovegrassand debrisfromtheexhaustguard,thetopcowl,andthe surroundingdeckareas.

PreparingtheMachinefor Storage

WARNING

Gasolinevaporscanexplode.

•Donotstoregasolinemorethan30days.

•Donotstorethemachineinanenclosurenear anopename.

•Allowtheenginetocoolbeforestoringit.

1.Onthelastrefuelingoftheyear,addfuelstabilizerto thefuelasdirectedbytheenginemanufacturer.

2.Runthemachineuntiltheenginestopsfromrunning outoffuel.

3.Primetheengineandstartitagain.

4.Allowtheenginetorununtilitstops.Whenyoucan nolongerstarttheengine,itissufcientlydry.

5.Disconnectthewirefromthesparkplug.

6.Removethesparkplug,add30ml(1oz.)ofoilthrough thesparkplughole,andpullthestarterropeslowly severaltimestodistributeoilthroughoutthecylinder topreventcylindercorrosionduringtheoff-season.

7.Installthesparkplugandtightenitwithatorque wrenchto20N-m(15ft-lb).

8.Tightenallnuts,bolts,andscrews.

Page 17

Troubleshooting

Problem

Theenginedoesnotstart

Theenginestartshardorlosespower

PossibleCauseCorrectiveAction

1.Thewireisnotconnectedtothespark plug.

2.Thefuelcapventholeisplugged.2.Cleanthefuelcapventholeorreplace

3.Thesparkplugispitted,fouled,orthe gapisincorrect.

4.Thefueltankisemptyorthefuel systemcontainsstalefuel.

1.Thefuelcapventholeisplugged.1.Cleanthefuelcapventholeorreplace

2.Theairlterelementisdirtyandis restrictingtheairow.

3.Theundersideofthemachinehousing containsclippingsanddebris.

4.Thesparkplugispitted,fouled,orthe gapisincorrect.

5.Theengineoillevelistoolow,toohigh, orexcessivelydirty .

6.Thefueltankcontainsstalefuel.6.Drainandllthefueltankwithfresh

1.Connectthewiretothesparkplug.

thefuelcap.

3.Checkthesparkplugandadjustthe gapifnecessary .Replacethespark plugifitispitted,fouled,orcracked.

4.Drainand/orllthefueltankwith freshgasoline.Iftheproblempersists, contactanAuthorizedServiceDealer.

thefuelcap.

2.Cleantheairlterpre-cleanerand/or replacethepaperairlter.

3.Cleanunderthemachinehousing.

4.Checkthesparkplugandadjustthe gapifnecessary .Replacethespark plugifitispitted,fouled,orcracked.

5.Checktheengineoil.Changetheoilif itisdirty;addordraintheoiltoadjust theoilleveltotheFullmarkonthe dipstick.

gasoline.

Theenginerunsrough

Themachineorenginevibrates excessively

Thereisanunevencuttingpattern

1.Thewireisnotconnectedtothespark plug.

2.Thesparkplugispitted,fouled,orthe gapisincorrect.

3.Theairlterelementisdirtyandis restrictingtheairow.

1.Theundersideofthemachinehousing containsclippingsanddebris.

2.Theenginemountingboltsareloose.2.Tightentheenginemountingbolts.

3.Theblademountingboltloose.3.Tightentheblademountingbolt.

4.Thebladeisbentorisoutofbalance.4.Balancetheblade.Ifthebladeisbent,

1.Y ouaremowinginthesamepattern repeatedly.

2.Theundersideofthemachinehousing containsclippingsanddebris.

3.Thebladeisdull.

1.Connectthewiretothesparkplug.

2.Checkthesparkplugandadjustthe gapifnecessary .Replacethespark plugifitispitted,fouled,orcracked.

3.Cleantheairlterpre-cleanerand/or replacethepaperairlter.

1.Cleanunderthemachinehousing.

replaceit.

1.Changethemowingpattern.

2.Cleanunderthemachinehousing.

3.Sharpenandbalancetheblade.

Page 18

Notes:

Page 19

InternationalDistributorList

Distributor:

AgrolancKft BalamaPrimaEngineeringEquip.HongKong85221552163 B-RayCorporation CascoSalesCompany CeresS.A.CostaRica CSSCTurfEquipment(pvt)Ltd.SriLanka CyrilJohnston&Co. CyrilJohnston&Co.RepublicofIreland EquiverMexico525553995444ParklandProductsLtd.NewZealand6433493760 FemcoS.A.Guatemala ForGarderOU G.Y .K.CompanyLtd. GeomechanikiofAthensGreece GolfinternationalTurizm GuandongGoldenStarChina HakoGroundandGardenSweden HakoGroundandGarden HayterLimited(U.K.) HydroturfInt.CoDubai HydroturfEgyptLLC IrrimacPortugal351212388260ToroEuropeNVBelgium3214562960 IrrigationProductsInt'lPvtLtd.India00914424494387ValtechMorocco212537663636 JeanHeybroekb.v .Netherlands31306394611VictusEmakPoland48618238369

Country:

Hungary3627539640

Korea82325512076 PuertoRico7877888383

NorthernIreland442890813121

Estonia3723846060 Japan81726325861

Turkey902163365993Riversa

Norway4722907760 UnitedKingdom441279723444 UnitedArabEmirates97143479479T-MarktLogisticsLtd.Hungary3626525500 Egypt2025194308ToroAustraliaAustralia61395807355

PhoneNumber:Distributor:

5062391138 94112746100

442890813121

5024423277

30109350054

862087651338 4635100000

MaquiverS.A.Colombia MaruyamaMfg.Co.Inc. Mountelda.s.CzechRepublic Mountelda.s.Slovakia MunditolS.A. NormaGarden OslingerTurfEquipmentSA OyHakoGroundandGardenAb

Perfetto PratoverdeSRL. Prochaska&Cie RTCohen2004Ltd.

LelyTurfcare SolvertS.A.S. SpyprosStavrinidesLimitedCyprus SurgeSystemsIndiaLimited

Country:

Japan81332522285

Argentina541148219999 Russia74954116120 Ecuador59342396970 Finland35898700733

Poland48618208416 Italy390499128128 Austria4312785100 Israel97298617979 Spain Denmark4566109200 France33130817700

India911292299901

PhoneNumber:

5712364079

420255704220 420255704220

34952837500

35722434131

EuropeanPrivacyNotice

TheInformationT oroCollects ToroWarrantyCompany(T oro)respectsyourprivacy.Inordertoprocessyourwarrantyclaimandcontactyouintheeventofaproductrecall,weaskyou tosharecertainpersonalinformationwithus,eitherdirectlyorthroughyourlocalT orocompanyordealer.

TheTorowarrantysystemishostedonserverslocatedwithintheUnitedStateswhereprivacylawmaynotprovidethesameprotectionasapplies inyourcountry.

BYSHARINGYOURPERSONALINFORMA TIONWITHUS,YOUARECONSENTINGTOTHEPROCESSINGOFYOURPERSONALINFORMATION ASDESCRIBEDINTHISPRIVACYNOTICE.

TheW ayToroUsesInformation Toromayuseyourpersonalinformationtoprocesswarrantyclaims,tocontactyouintheeventofaproductrecallandforanyotherpurposewhichwetell youabout.T oromayshareyourinformationwithT oro'safliates,dealersorotherbusinesspartnersinconnectionwithanyoftheseactivities.Wewillnot sellyourpersonalinformationtoanyothercompany .Wereservetherighttodisclosepersonalinformationinordertocomplywithapplicablelawsand withrequestsbytheappropriateauthorities,tooperateoursystemsproperlyorforourownprotectionorthatofotherusers.

RetentionofyourPersonalInformation Wewillkeepyourpersonalinformationaslongasweneeditforthepurposesforwhichitwasoriginallycollectedorforotherlegitimatepurposes (suchasregulatorycompliance),orasrequiredbyapplicablelaw.

Toro'sCommitmenttoSecurityofY ourPersonalInformation Wetakereasonableprecautionsinordertoprotectthesecurityofyourpersonalinformation.Wealsotakestepstomaintaintheaccuracyandcurrent statusofpersonalinformation.

AccessandCorrectionofyourPersonalInformation Ifyouwouldliketorevieworcorrectyourpersonalinformation,[email protected].

AustralianConsumerLaw

AustraliancustomerswillnddetailsrelatingtotheAustralianConsumerLaweitherinsidetheboxoratyourlocalT oroDealer.

374-0269RevH

Page 20

TheToroTotalCoverageGuarantee

ALimitedWarranty

ConditionsandProductsCovered

TheT oroCompanyanditsafliate,T oroWarrantyCompany ,pursuant toanagreementbetweenthem,jointlywarrantyourToroCommercial product(“Product”)tobefreefromdefectsinmaterialsorworkmanship fortwoyearsor1500operationalhours*,whicheveroccursrst.This warrantyisapplicabletoallproductswiththeexceptionofAerators (refertoseparatewarrantystatementsfortheseproducts).Wherea warrantableconditionexists,wewillrepairtheProductatnocosttoyou includingdiagnostics,labor,parts,andtransportation.Thiswarranty beginsonthedatetheProductisdeliveredtotheoriginalretailpurchaser. *Productequippedwithanhourmeter.

InstructionsforObtainingWarrantyService

YouareresponsiblefornotifyingtheCommercialProductsDistributoror AuthorizedCommercialProductsDealerfromwhomyoupurchasedthe Productassoonasyoubelieveawarrantableconditionexists.Ifyouneed helplocatingaCommercialProductsDistributororAuthorizedDealer ,or ifyouhavequestionsregardingyourwarrantyrightsorresponsibilities, youmaycontactusat:

ToroCommercialProductsServiceDepartment ToroWarrantyCompany

811 1LyndaleAvenueSouth Bloomington,MN55420-1196

952–888–8801or800–952–2740 E-mail:[email protected]

OwnerResponsibilities

AstheProductowner,youareresponsibleforrequiredmaintenance andadjustmentsstatedinyourOperator'sManual.Failuretoperform requiredmaintenanceandadjustmentscanbegroundsfordisallowinga warrantyclaim.

ItemsandConditionsNotCovered

Notallproductfailuresormalfunctionsthatoccurduringthewarranty periodaredefectsinmaterialsorworkmanship.Thiswarrantydoesnot coverthefollowing:

•Productfailureswhichresultfromtheuseofnon-T ororeplacement

parts,orfrominstallationanduseofadd-on,ormodiednon-T oro brandedaccessoriesandproducts.Aseparatewarrantymaybe providedbythemanufactureroftheseitems.

•Productfailureswhichresultfromfailuretoperformrecommended

maintenanceand/oradjustments.Failuretoproperlymaintainyour ToroproductpertheRecommendedMaintenancelistedinthe Operator’sManualcanresultinclaimsforwarrantybeingdenied.

•ProductfailureswhichresultfromoperatingtheProductinan

abusive,negligent,orrecklessmanner.

•Partssubjecttoconsumptionthroughuseunlessfoundtobe

defective.Examplesofpartswhichareconsumed,orusedup, duringnormalProductoperationinclude,butarenotlimitedto,brake padsandlinings,clutchlinings,blades,reels,rollersandbearings (sealedorgreasable),bedknives,sparkplugs,castorwheelsand bearings,tires,lters,belts,andcertainsprayercomponentssuchas diaphragms,nozzles,andcheckvalves,etc.

•Failurescausedbyoutsideinuence.Conditionsconsideredtobe

outsideinuenceinclude,butarenotlimitedto,weather ,storage practices,contamination,useofunapprovedfuels,coolants, lubricants,additives,fertilizers,water,orchemicals,etc.

•Failureorperformanceissuesduetotheuseoffuels(e.g.gasoline,

diesel,orbiodiesel)thatdonotconformtotheirrespectiveindustry standards.

•Normalnoise,vibration,wearandtear,anddeterioration.

•Normal“wearandtear”includes,butisnotlimitedto,damageto

seatsduetowearorabrasion,wornpaintedsurfaces,scratched decalsorwindows,etc.

Parts

Partsscheduledforreplacementasrequiredmaintenancearewarranted fortheperiodoftimeuptothescheduledreplacementtimeforthatpart. Partsreplacedunderthiswarrantyarecoveredforthedurationofthe originalproductwarrantyandbecomethepropertyofT oro.T orowill makethenaldecisionwhethertorepairanyexistingpartorassemblyor replaceit.T oromayuseremanufacturedpartsforwarrantyrepairs.

DeepCycleandLithium-IonBatteryWarranty:

DeepcycleandLithium-Ionbatterieshaveaspeciedtotalnumberof kilowatt-hourstheycandeliverduringtheirlifetime.Operating,recharging, andmaintenancetechniquescanextendorreducetotalbatterylife.Asthe batteriesinthisproductareconsumed,theamountofusefulworkbetween chargingintervalswillslowlydecreaseuntilthebatteryiscompletelyworn out.Replacementofwornoutbatteries,duetonormalconsumption, istheresponsibilityoftheproductowner.Batteryreplacementmaybe requiredduringthenormalproductwarrantyperiodatowner’sexpense. Note:(Lithium-Ionbatteryonly):ALithium-Ionbatteryhasapartonly proratedwarrantybeginningyear3throughyear5basedonthetime inserviceandkilowatthoursused.RefertotheOperator'sManualfor additionalinformation.

MaintenanceisatOwner’sExpense

Enginetune-up,lubrication,cleaningandpolishing,replacementoflters, coolant,andcompletingrecommendedmaintenancearesomeofthe normalservicesT oroproductsrequirethatareattheowner’sexpense.

GeneralConditions

RepairbyanAuthorizedT oroDistributororDealerisyoursoleremedy underthiswarranty.

NeitherTheToroCompanynorToroWarrantyCompanyisliablefor indirect,incidentalorconsequentialdamagesinconnectionwiththe useoftheT oroProductscoveredbythiswarranty,includingany costorexpenseofprovidingsubstituteequipmentorserviceduring reasonableperiodsofmalfunctionornon-usependingcompletion ofrepairsunderthiswarranty .ExceptfortheEmissionswarranty referencedbelow,ifapplicable,thereisnootherexpresswarranty . Allimpliedwarrantiesofmerchantabilityandtnessforuseare limitedtothedurationofthisexpresswarranty.

Somestatesdonotallowexclusionsofincidentalorconsequential damages,orlimitationsonhowlonganimpliedwarrantylasts,sothe aboveexclusionsandlimitationsmaynotapplytoyou.Thiswarranty givesyouspeciclegalrights,andyoumayalsohaveotherrightswhich varyfromstatetostate.

Noteregardingenginewarranty:

TheEmissionsControlSystemonyourProductmaybecoveredby aseparatewarrantymeetingrequirementsestablishedbytheU.S. EnvironmentalProtectionAgency(EPA)and/ortheCaliforniaAir ResourcesBoard(CARB).Thehourlimitationssetforthabovedonot applytotheEmissionsControlSystemWarranty .RefertotheEngine EmissionControlWarrantyStatementsuppliedwithyourproductor containedintheenginemanufacturer’sdocumentationfordetails

CountriesOtherthantheUnitedStatesorCanada

CustomerswhohavepurchasedT oroproductsexportedfromtheUnitedStatesorCanadashouldcontacttheirT oroDistributor(Dealer)toobtain guaranteepoliciesforyourcountry,province,orstate.IfforanyreasonyouaredissatisedwithyourDistributor'sserviceorhavedifcultyobtaining guaranteeinformation,contacttheT oroimporter.

374-0253RevB
