Page 1
WorkLightKit
RT1200Trencher
ModelNo.25464
ModelNo.25464E
ThisproductcontainsachemicalorchemicalsknowntotheStateofCaliforniato
causecancer,birthdefects,orreproductiveharm.
LooseParts
Usethechartbelowtoverifythatallpartshavebeenshipped.
FormNo.3378-114RevA
InstallationInstructions
WARNING
CALIFORNIA
Proposition65Warning
Description
Wiringharness1Routethewiringharness.
Worklight4Installtheworklights.
Qty.
RoutingtheWiringHarness
1.Connectthe4-pinconnectorofthewiringharnessto
the4-socketconnectorofthemachineharnessunder
thedashboard(Figure1).
1.Steering-consolepanel
2.Magnetictie-mountwraps4.Kick-platepanel
Figure1
1.4-pinconnector2.4-socketconnector
2.Movetheharnessdownandtotheleftfromunderthe
dashboard.
4.RoutetheharnessalongtheinsideoftheROPS-post
Use
Figure2
3.Wiringharness
tube,andsecuretheharnesswiththemagnetic
tie-mountwraps(Figure3).
3.Routetheharnessalongthekick-platepanelandthe
steering-consolepanel,andsecuretheharnesswiththe
magnetictie-mountwraps(Figure2).
©2014—TheToro®Company
8111LyndaleAvenueSouth
Bloomington,MN55420
Registeratwww.T oro.com.
OriginalInstructions(EN)
PrintedintheUSA
AllRightsReserved
*3378-114*A
Page 2
1.ROPS-posttube
2.Magnetictie-mountwraps
Figure3
3.Wiringharness
1.FrontROPSlight-cover
plate
Figure5
2.2-socketconnectors
5.Routethetwo2-socketconnectorsonthewiring
harnessthroughthefrontROPS-plateholes(
Note:Ensurethattheharnessisroutedontheinside
ofthefrontROPSplate.
Figure4
1.ROPSplate
2.ROPS-plateholes
3.Wiringharness
6.Routethetwo2-socketconnectorsonthewiring
harnessthroughtheopeningsinthefrontROPS
light-coverplate(Figure5).
Note:Toremovethecoverplates,refertoInstalling
theWorkLights.
Figure4).
7.RoutethewiringharnessalongtheinsideoftheROPS
post-tube,andsecuretheharnesswiththemagnetic
tie-mountwraps(Figure6).
Figure6
1.Wiringharness
2.Magnetictie-mountwraps
3.OpeningintherearROPS
plate
4.RearROPSplate
5.ROPSpost-tube
8.Routethetwo2-socketconnectorsonthewiring
harnessthroughtheopeningintherearROPSplate
(Figure6).
9.Routethetwo2-socketconnectorsonthewiring
harnessthroughtheopeningsintherearROPS
light-coverplate(Figure7).
Note:Toremovethecoverplates,refertoInstalling
theWorkLights.
2
Page 3
Figure7
3.Removethe4hex-headscrewsandthe2coverplates
fromtherearROPSlight-coverplate(Figure10).
Note:Discardthe4hex-headscrewsandthe2cover
plates.
1.RearROPSlight-cover
plate
2.2-socketconnectors
InstallingtheWorkLights
1.Removethe4hex-headscrewsandthe2coverplates
fromthefrontROPSlight-coverplate(Figure8).
Note:Discardthe4hex-headscrewsandthe2cover
plates.
Figure8
1.Hex-headscrew
2.Connectthe2-pinconnectorintothe2-socket
connector,andinstallthe2frontworklightsintothe
frontROPSlight-coverplate(Figure9).
2.Coverplate
Figure10
1.Coverplate
2.Hex-headscrew
4.Connectthe2-pinconnectorintothe2-socket
connector,andinstallthe2rearworklightsintothe
rearROPSlight-coverplate(Figure11).
Figure11
1.RearROPSlight-cover
plate
2.2-socketconnectors
3.Worklights
Figure9
1.Worklights3.2-socketconnectors
2.FrontROPSlight-cover
plate
3
Page 4

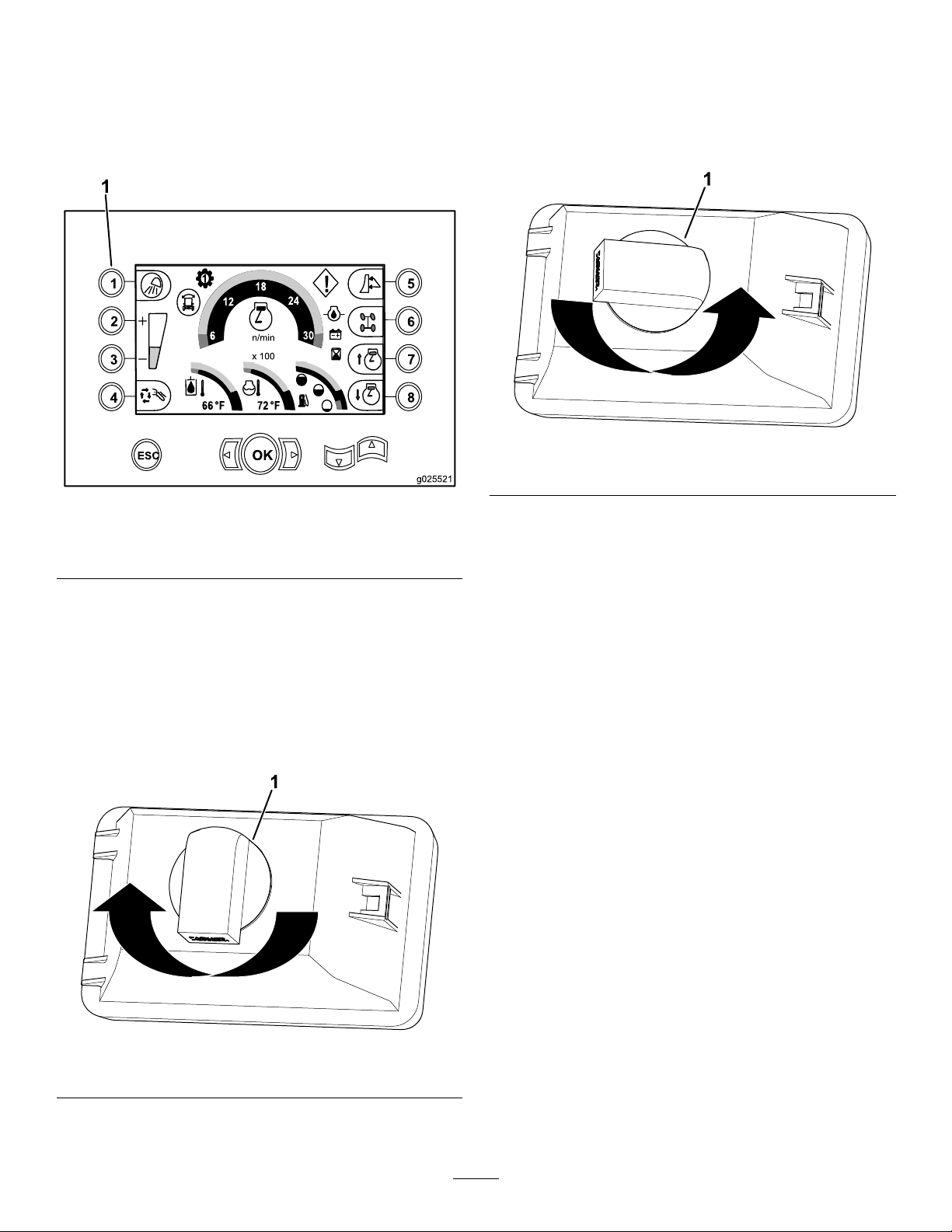

Operation
OperatingtheWorkLights
Pressbuttonnumber1onthemaindisplayscreentoturnthe
worklightsonoroff(Figure12).
2.Insertthenewlight-bulbassemblyatthehorizontal
position,andturntheknobclockwise1/4turnbackto
theoriginal,verticalposition(Figure14).
Important:Donottouchthelightbulbduring
assembly,asthiswillshortenthelifeofthelight
bulb.
Figure14
1.Light-bulbassembly
Figure12
WorkLightsShownintheOnPositionontheScreen
1.Buttonnumber1
Maintenance
ReplacingaWorkLightBulb
1.Turntheknobontherearofworklight
counterclockwise1/4turn,andpullthelight-bulb
assemblyout(Figure13).
1.Light-bulbassembly
Figure13
4
