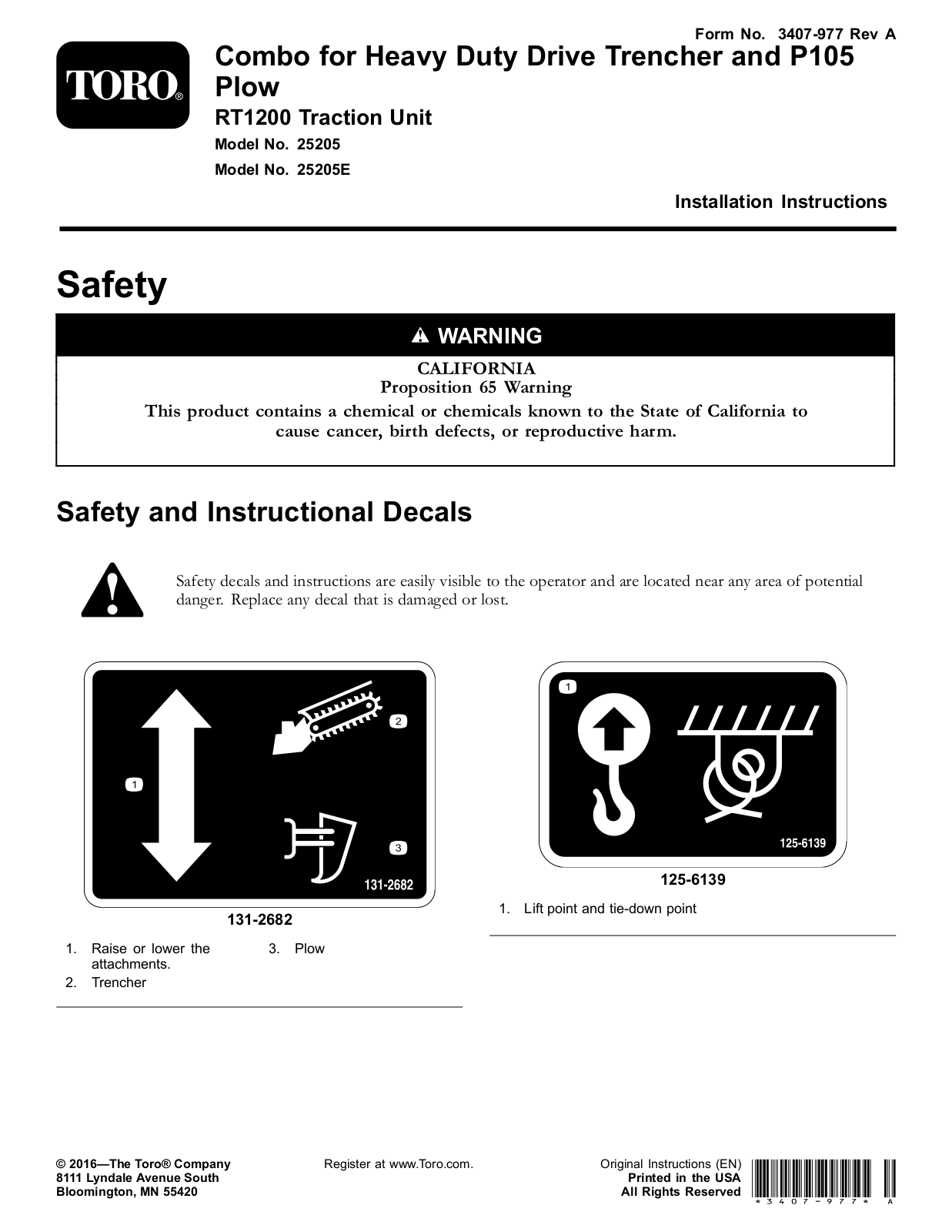

Toro 25205E, 25205 Installation Instructions

FormNo.3407-977RevA

ComboforHeavyDutyDriveTrencherandP105
Plow

RT1200TractionUnit

ModelNo.25205

ModelNo.25205E

InstallationInstructions

Safety

WARNING

CALIFORNIA

Proposition65Warning

ThisproductcontainsachemicalorchemicalsknowntotheStateofCaliforniato

causecancer,birthdefects,orreproductiveharm.

SafetyandInstructionalDecals

Safetydecalsandinstructionsareeasilyvisibletotheoperatorandarelocatednearanyareaofpotential
danger.Replaceanydecalthatisdamagedorlost.

131-2682

1.Raiseorlowerthe
attachments.

2.Trencher

3.Plow

125-6139

1.Liftpointandtie-downpoint

©2016—TheT oro®Company
8111LyndaleAvenueSouth
Bloomington,MN55420

Registeratwww.T oro.com.

OriginalInstructions(EN)

PrintedintheUSA

AllRightsReserved

*3407-977*A

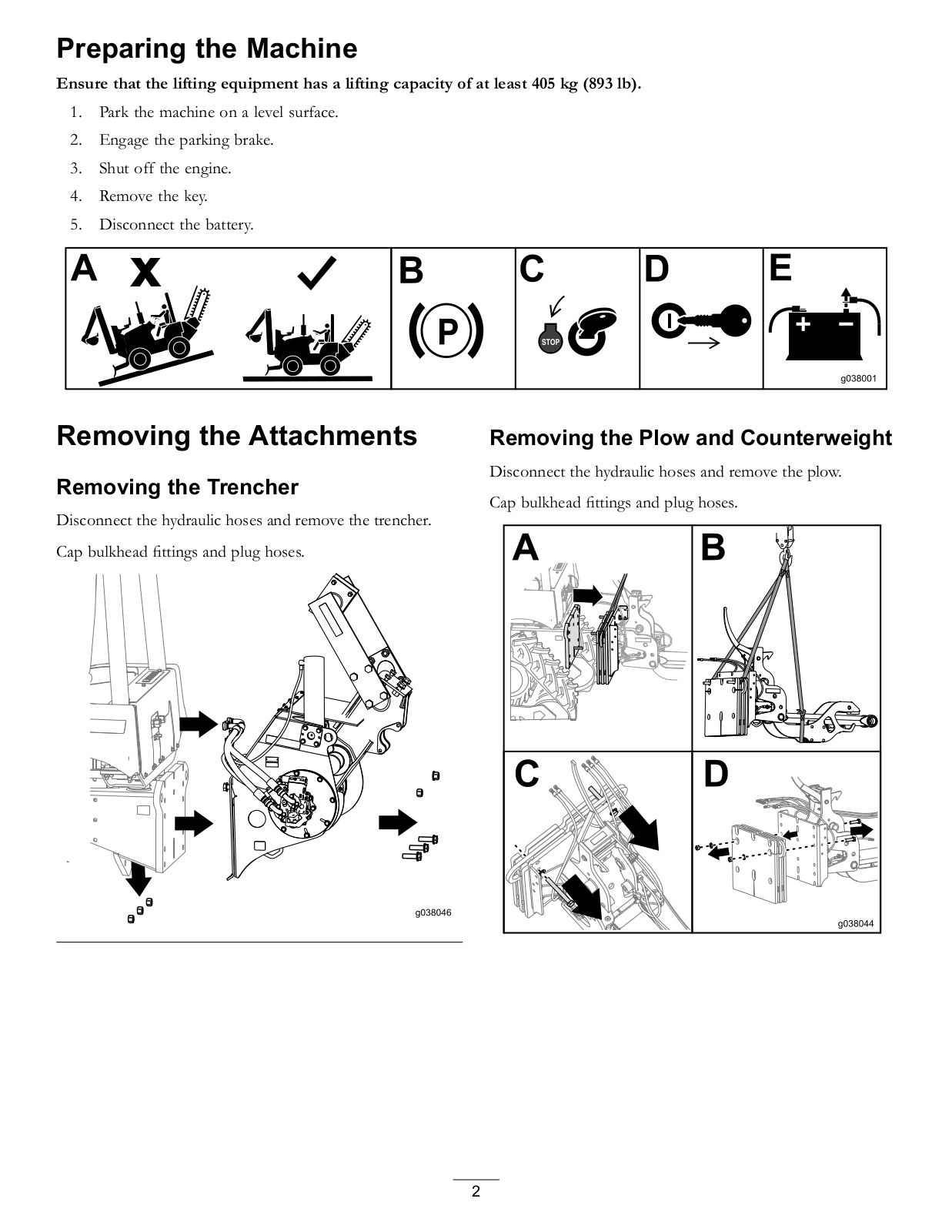

PreparingtheMachine

Ensurethattheliftingequipmenthasaliftingcapacityofatleast405kg(893lb).

1.Parkthemachineonalevelsurface.

2.Engagetheparkingbrake.

3.Shutofftheengine.

4.Removethekey.

5.Disconnectthebattery.

RemovingtheAttachments

RemovingtheTrencher

Disconnectthehydraulichosesandremovethetrencher.

Capbulkheadttingsandplughoses.

RemovingthePlowandCounterweight

Disconnectthehydraulichosesandremovetheplow .

Capbulkheadttingsandplughoses.

2

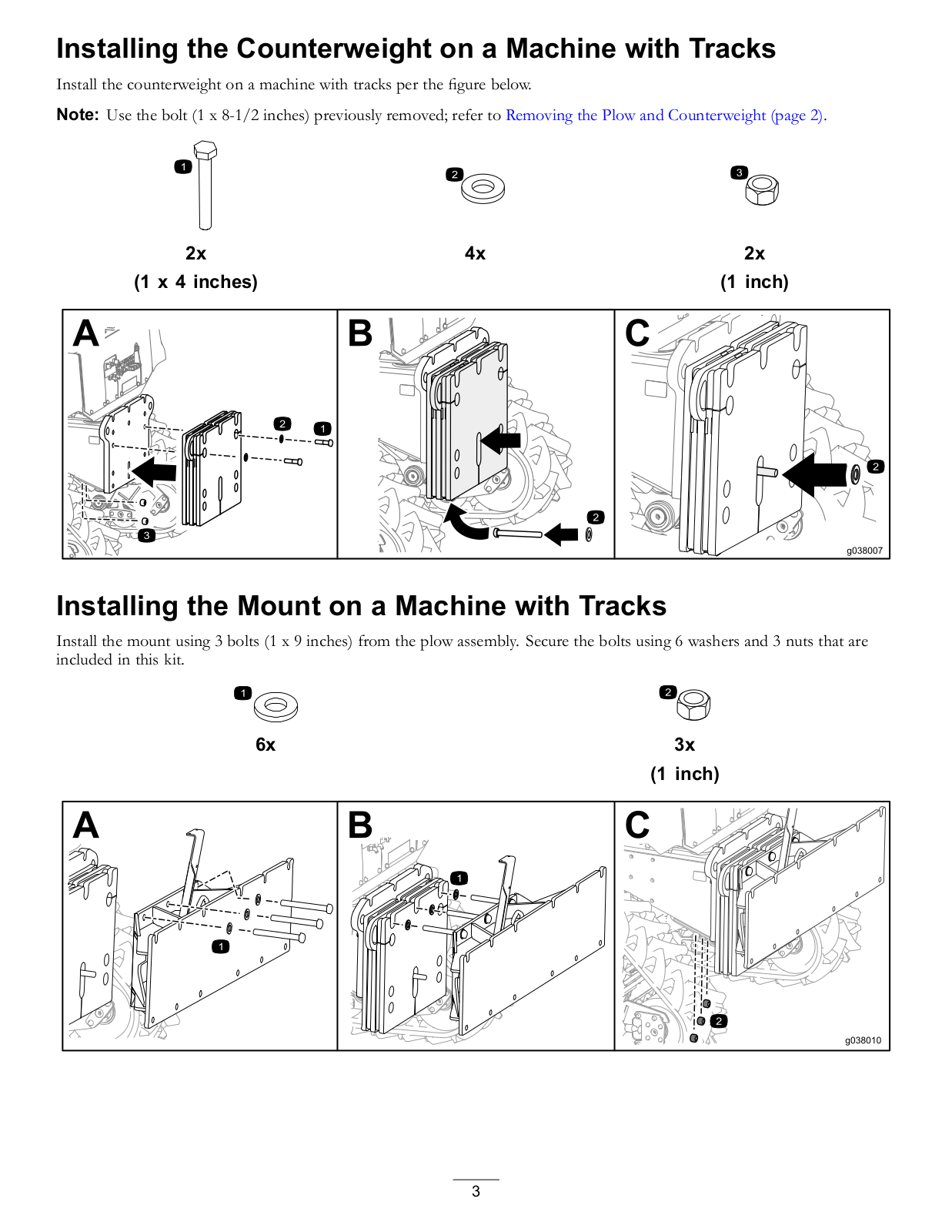

InstallingtheCounterweightonaMachinewithTracks

Installthecounterweightonamachinewithtracksperthegurebelow .

Note:Usethebolt(1x8-1/2inches)previouslyremoved;refertoRemovingthePlowandCounterweight(page2).

2x4x2x

(1x4inches)(1inch)

InstallingtheMountonaMachinewithTracks

Installthemountusing3bolts(1x9inches)fromtheplowassembly .Securetheboltsusing6washersand3nutsthatare
includedinthiskit.

6x3x

(1inch)

3

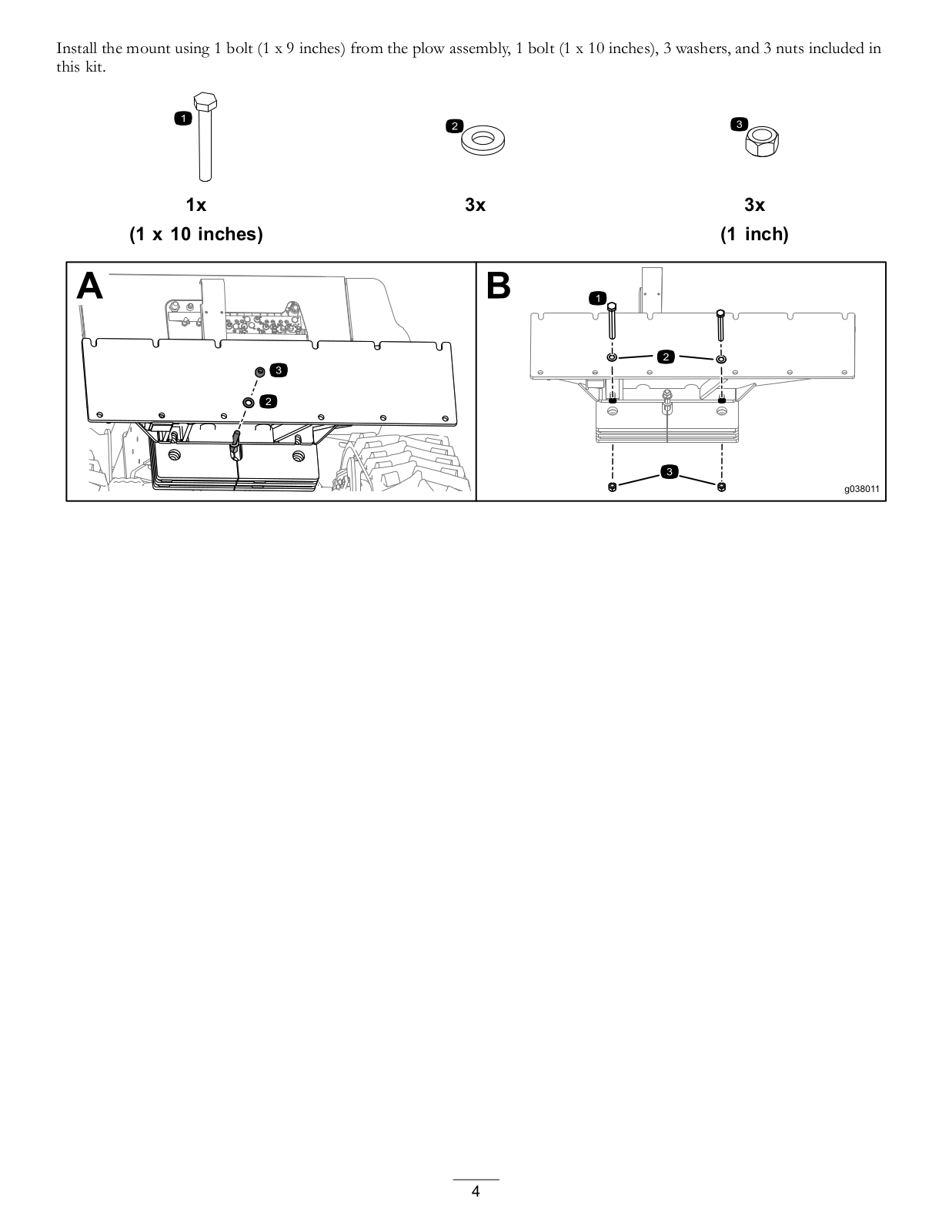

Installthemountusing1bolt(1x9inches)fromtheplowassembly,1bolt(1x10inches),3washers,and3nutsincludedin
thiskit.

1x3x3x

(1x10inches)(1inch)

4

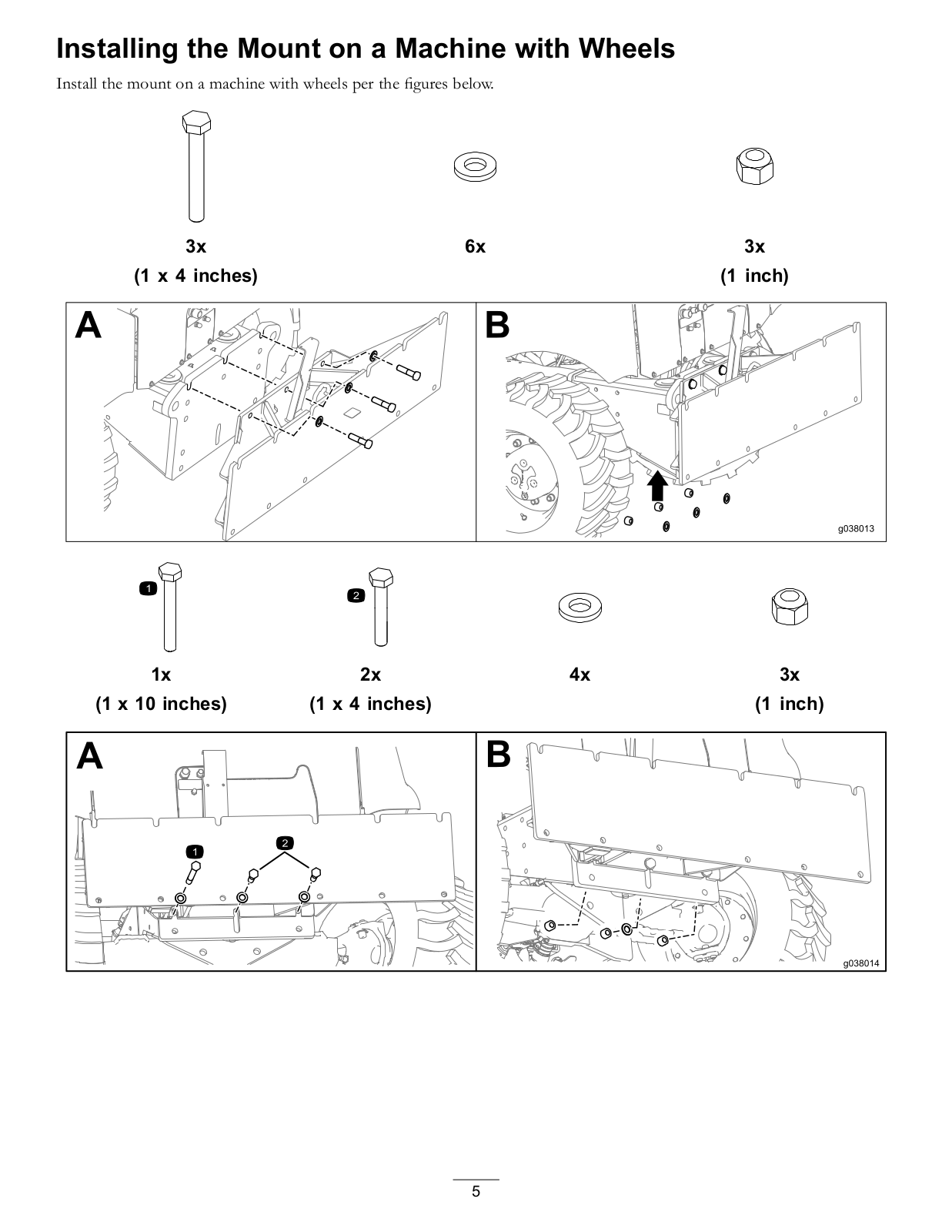

InstallingtheMountonaMachinewithWheels

Installthemountonamachinewithwheelspertheguresbelow .

3x6x3x

(1x4inches)(1inch)

1x2x4x3x

(1x10inches)(1x4inches)(1inch)

5

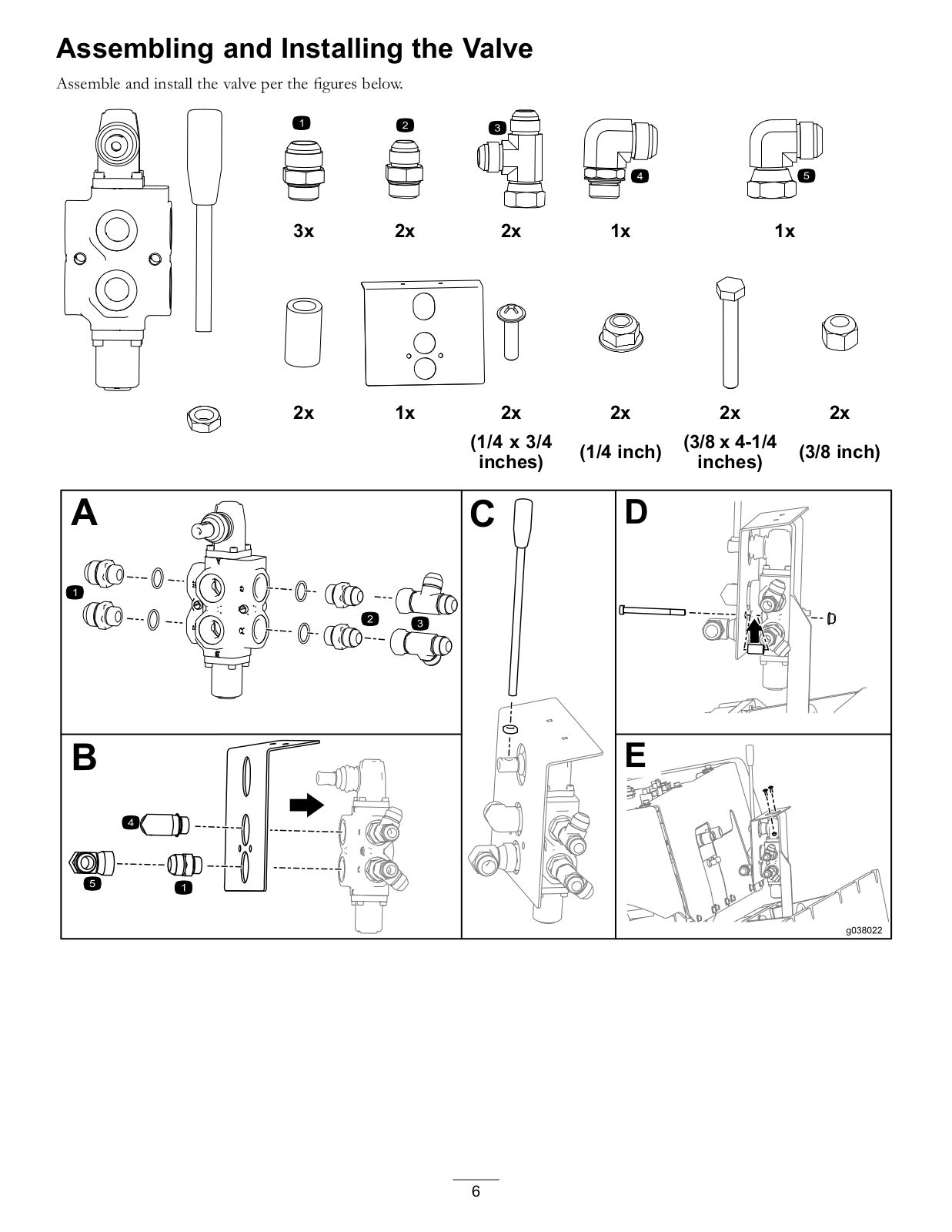

AssemblingandInstallingtheValve

Assembleandinstallthevalvepertheguresbelow .

3x2x2x1x1x

2x1x2x2x2x2x

(1/4x3/4

inches)

(1/4inch)

(3/8x4-1/4

inches)

(3/8inch)

6

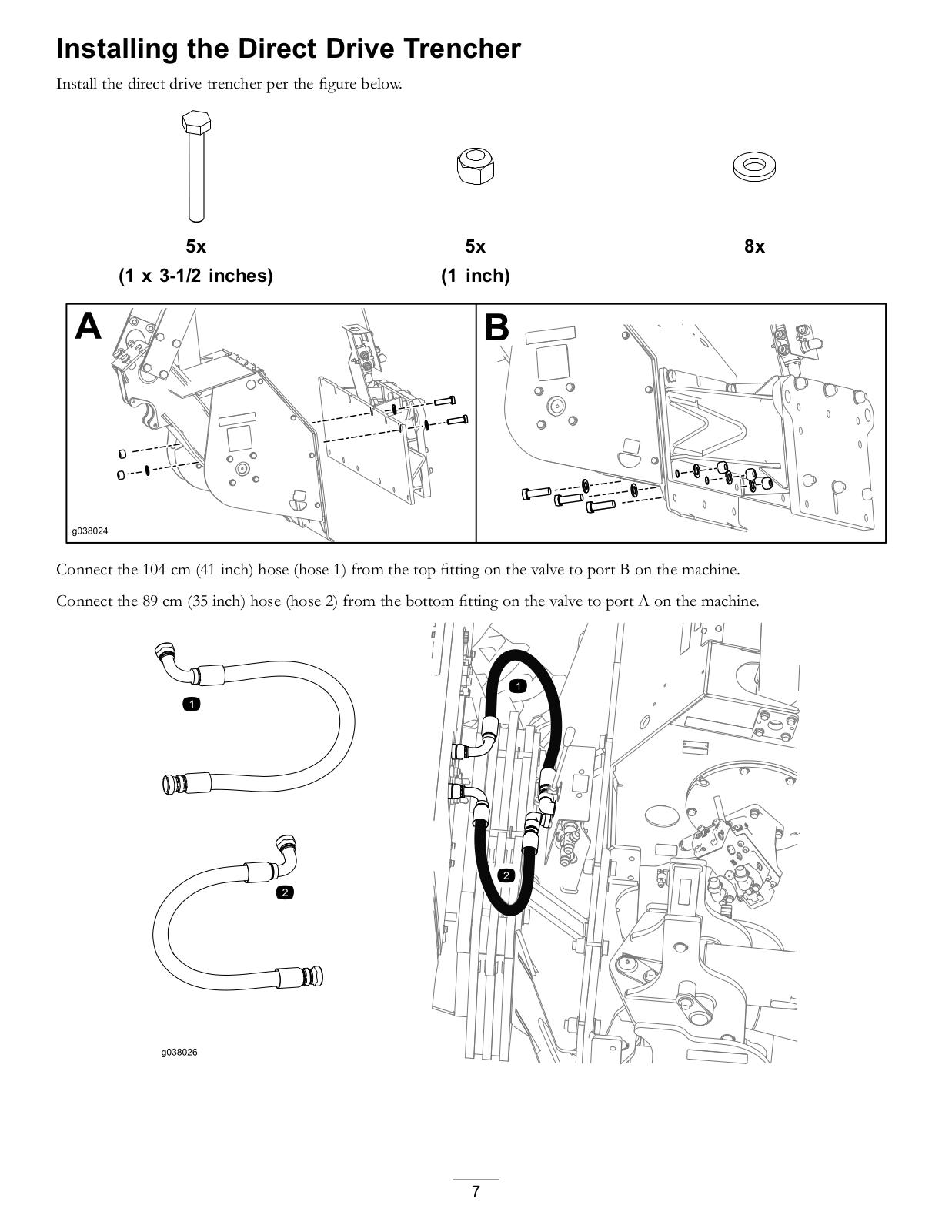

InstallingtheDirectDriveTrencher

Installthedirectdrivetrencherperthegurebelow .

5x5x

(1x3-1/2inches)(1inch)

Connectthe104cm(41inch)hose(hose1)fromthetopttingonthevalvetoportBonthemachine.

Connectthe89cm(35inch)hose(hose2)fromthebottomttingonthevalvetoportAonthemachine.

8x

7

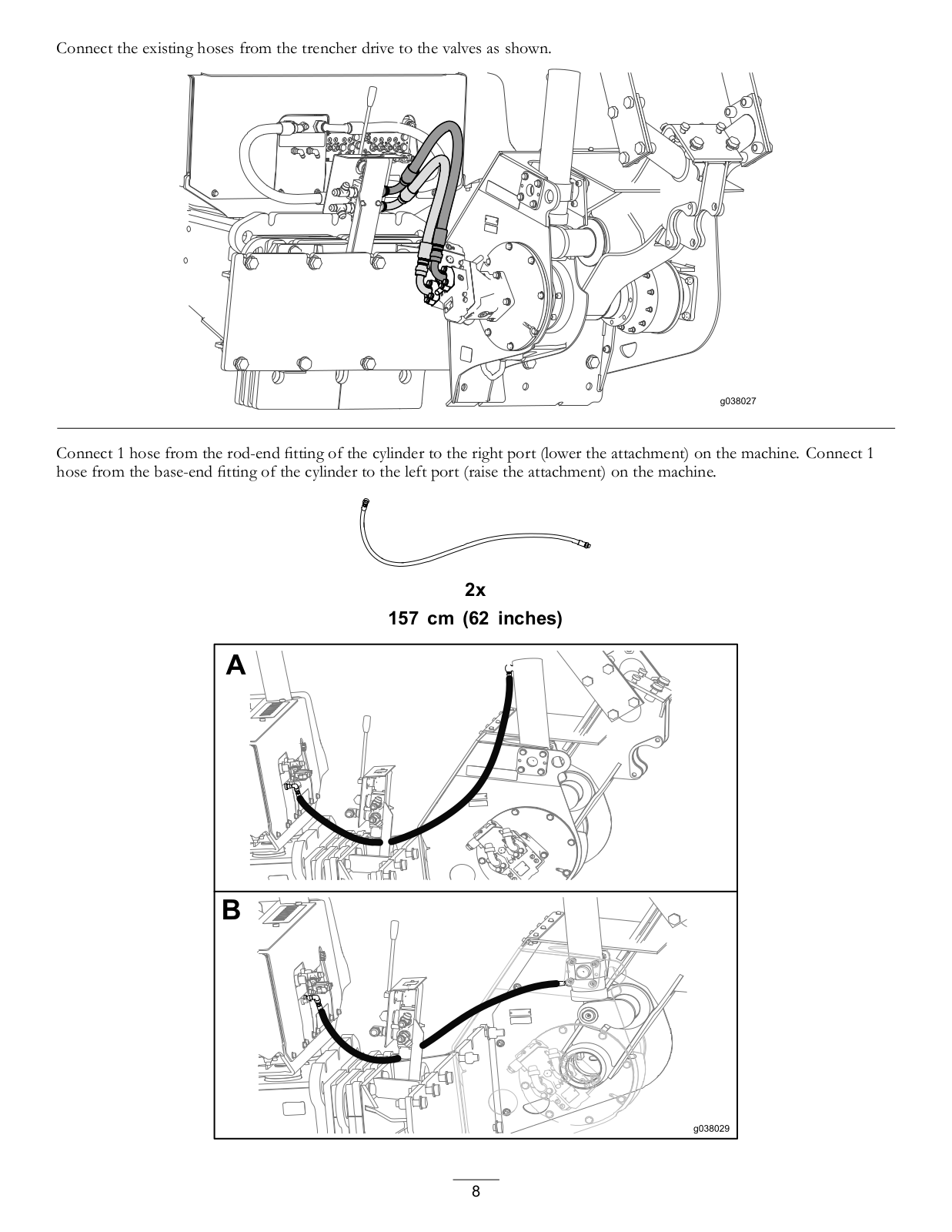

Connecttheexistinghosesfromthetrencherdrivetothevalvesasshown.

Connect1hosefromtherod-endttingofthecylindertotherightport(lowertheattachment)onthemachine.Connect1
hosefromthebase-endttingofthecylindertotheleftport(raisetheattachment)onthemachine.

157cm(62inches)

2x

8

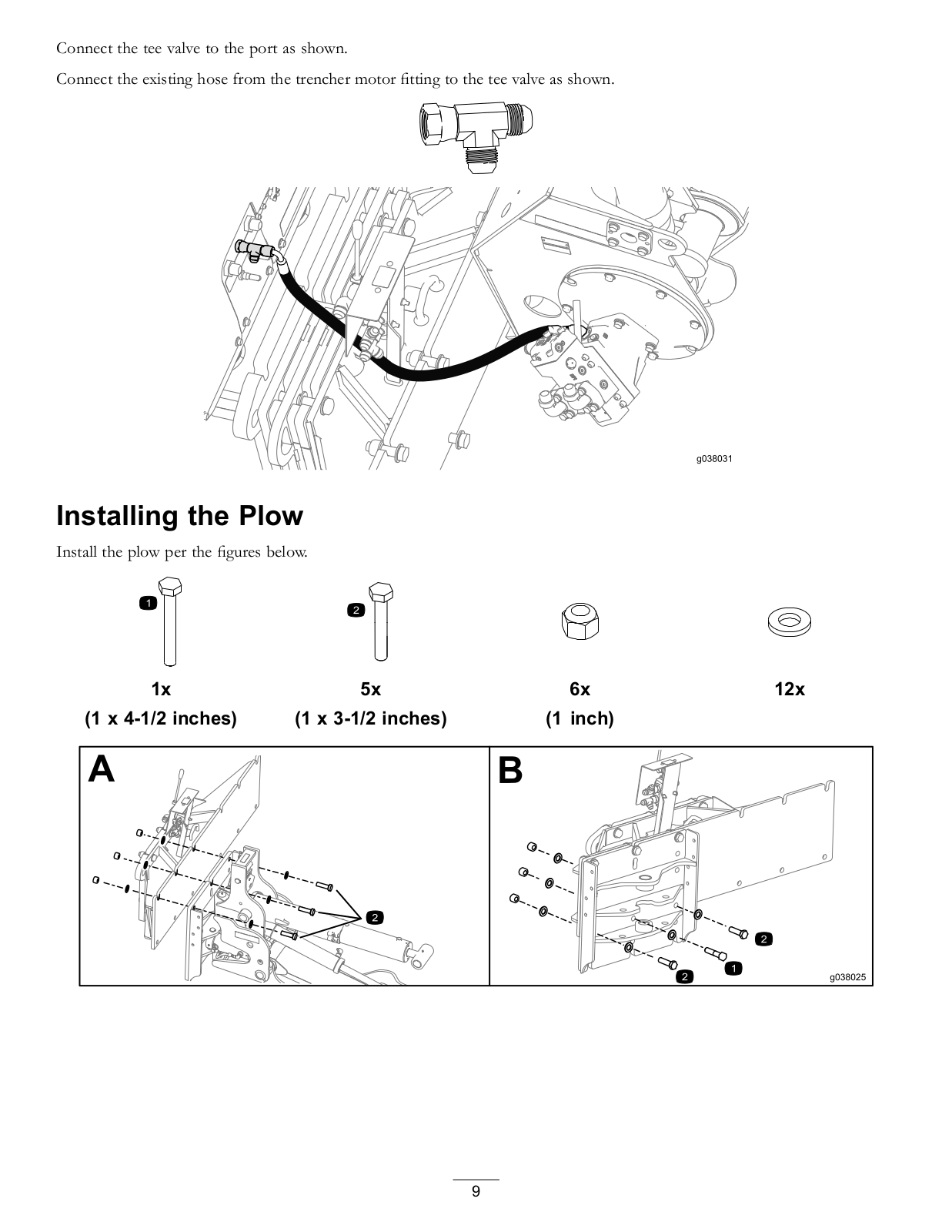

Connecttheteevalvetotheportasshown.

Connecttheexistinghosefromthetrenchermotorttingtotheteevalveasshown.

InstallingthePlow

Installtheplowpertheguresbelow .

1x

(1x4-1/2inches)(1x3-1/2inches)(1inch)

5x

6x12x

9

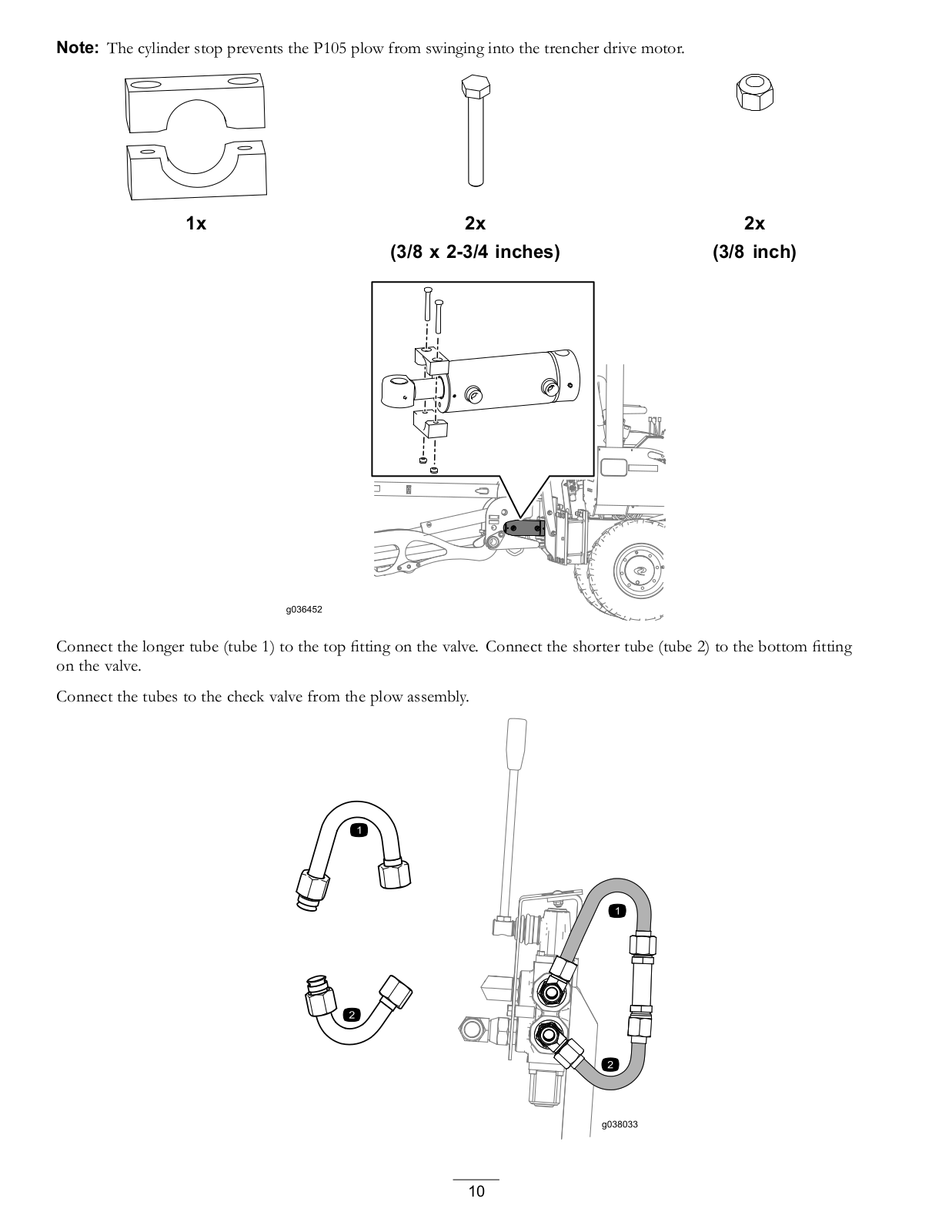

Note:ThecylinderstoppreventstheP105plowfromswingingintothetrencherdrivemotor.

1x2x2x

(3/8x2-3/4inches)(3/8inch)

Connectthelongertube(tube1)tothetopttingonthevalve.Connecttheshortertube(tube2)tothebottomtting
onthevalve.

Connectthetubestothecheckvalvefromtheplowassembly .

10

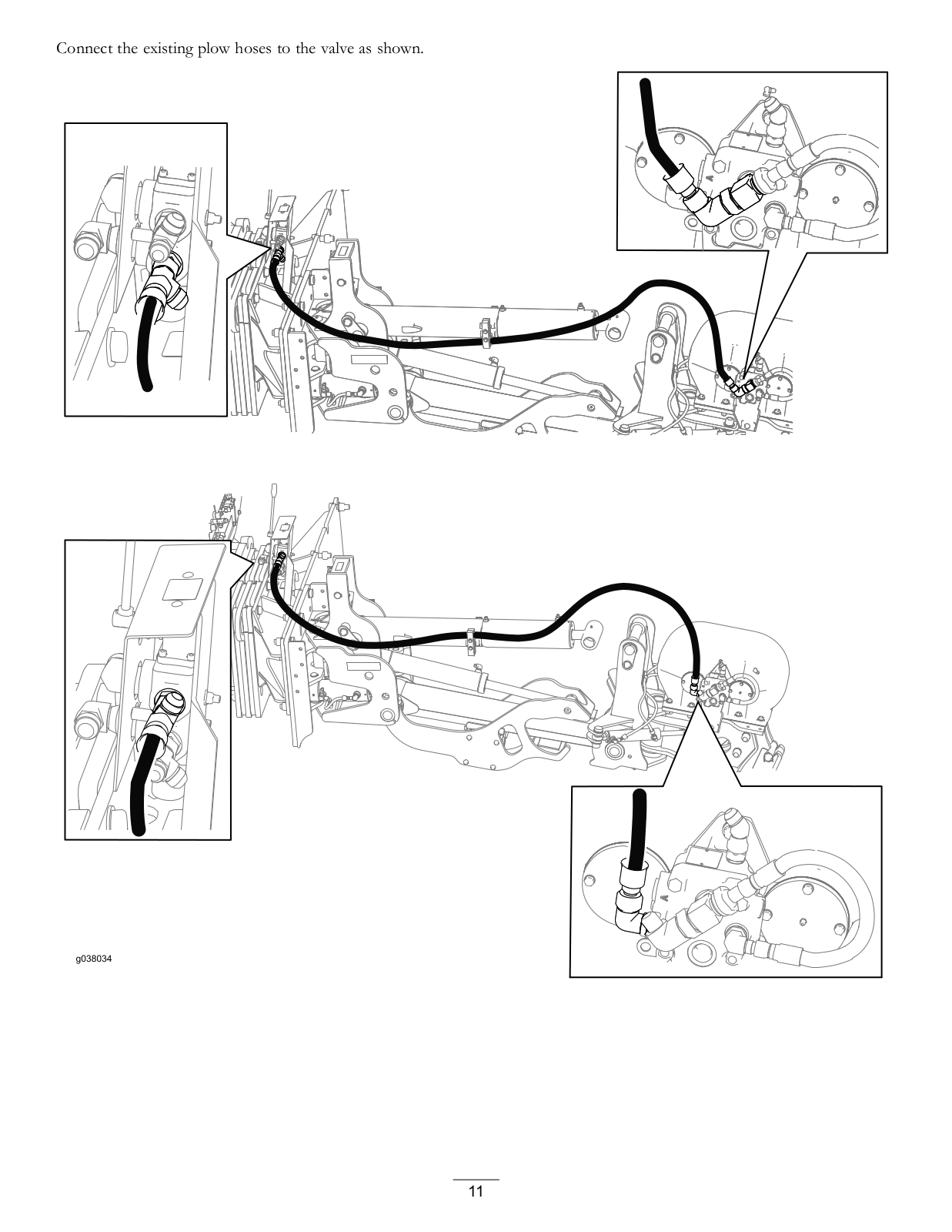

Connecttheexistingplowhosestothevalveasshown.

11

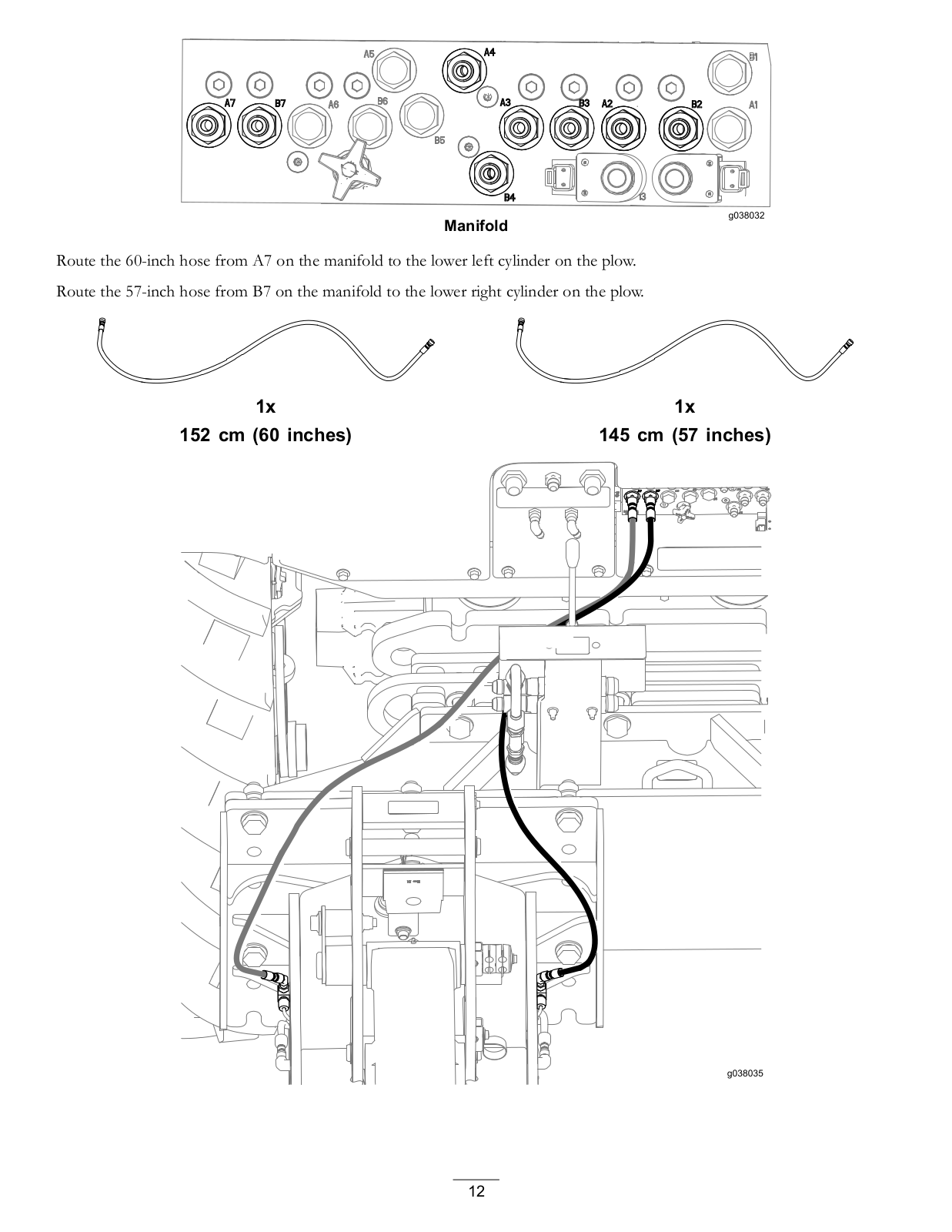

Manifold

Routethe60-inchhosefromA7onthemanifoldtothelowerleftcylinderontheplow.

Routethe57-inchhosefromB7onthemanifoldtothelowerrightcylinderontheplow.

1x1x

152cm(60inches)145cm(57inches)

12

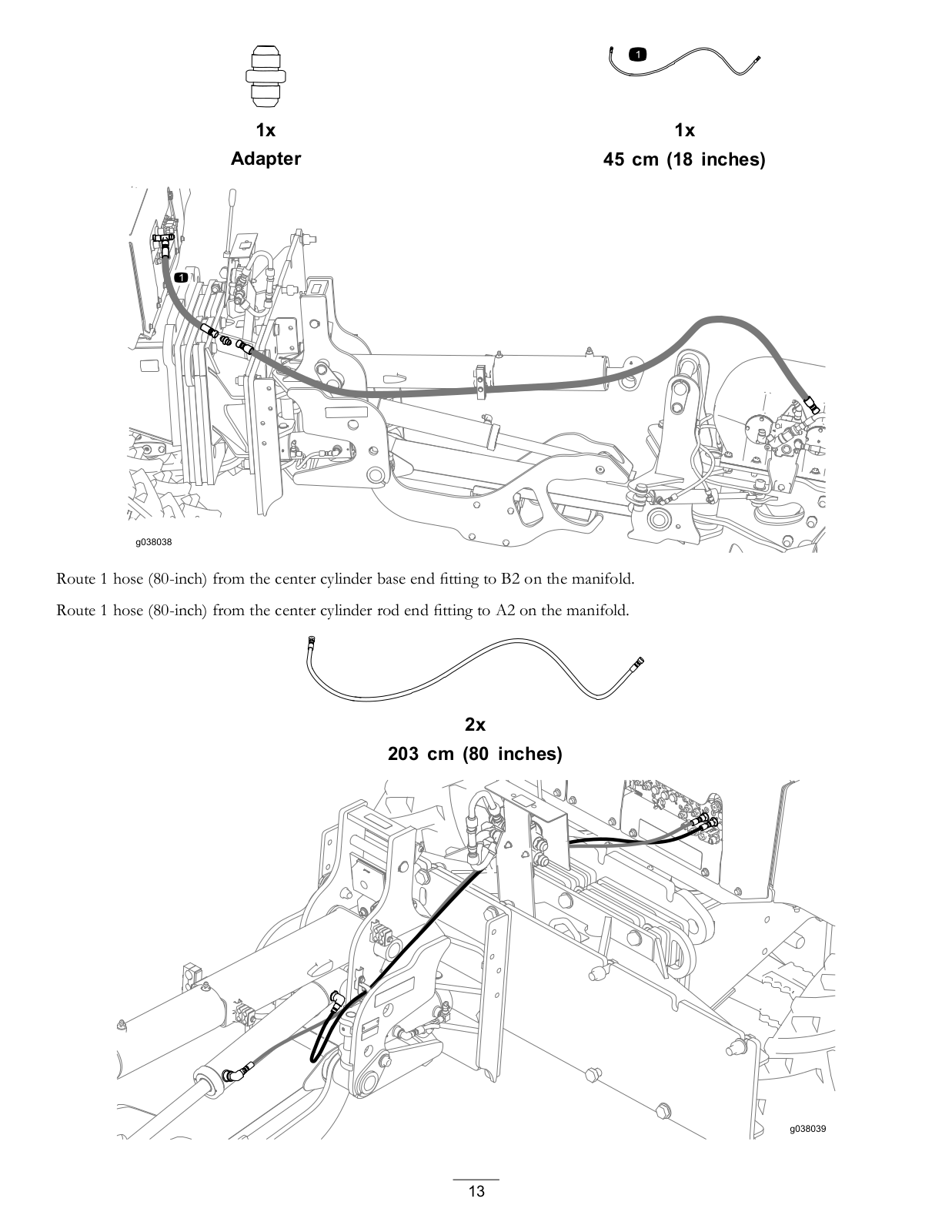

1x1x

Adapter

Route1hose(80-inch)fromthecentercylinderbaseendttingtoB2onthemanifold.

Route1hose(80-inch)fromthecentercylinderrodendttingtoA2onthemanifold.

45cm(18inches)

203cm(80inches)

2x

13

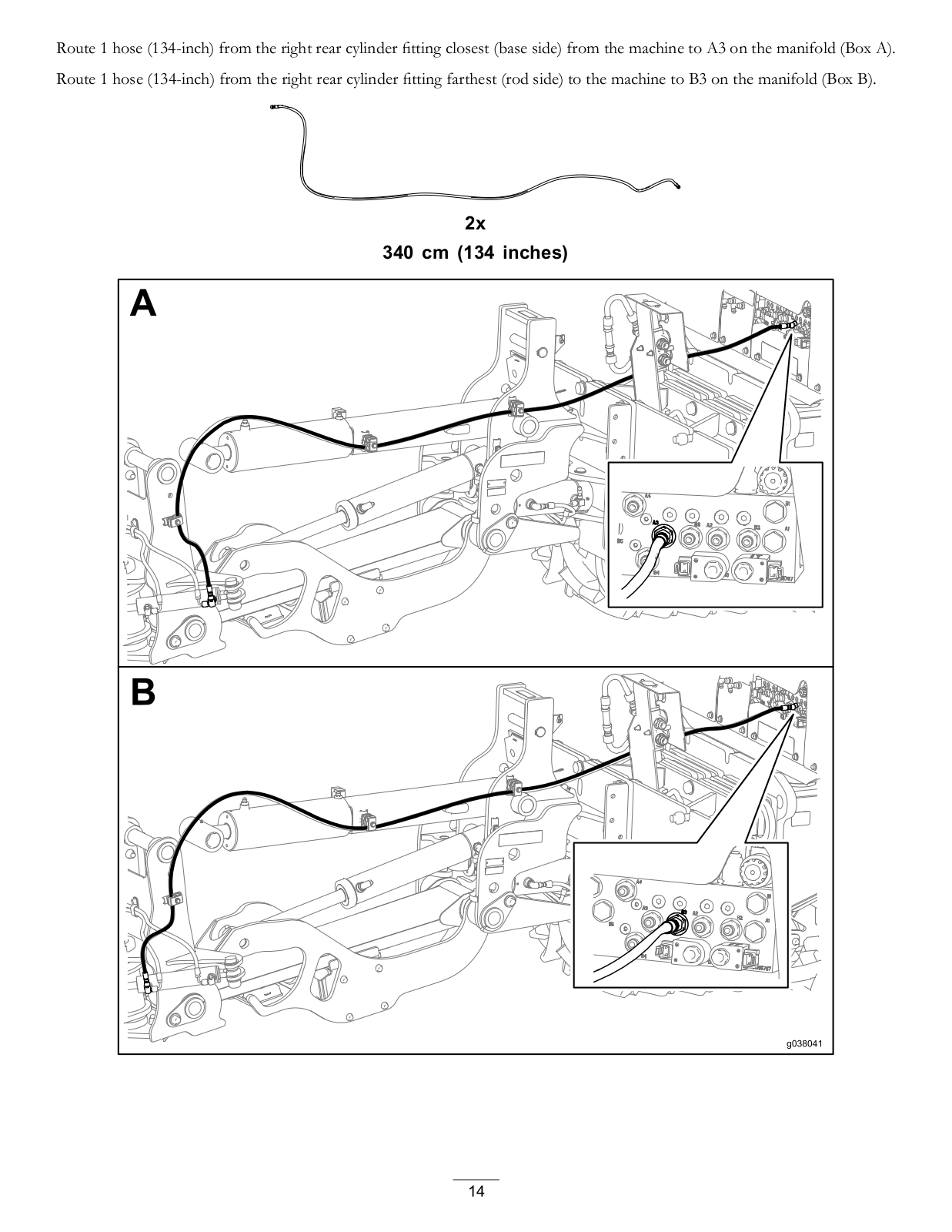

Route1hose(134-inch)fromtherightrearcylinderttingclosest(baseside)fromthemachinetoA3onthemanifold(BoxA).

Route1hose(134-inch)fromtherightrearcylinderttingfarthest(rodside)tothemachinetoB3onthemanifold(BoxB).

2x

340cm(134inches)

14

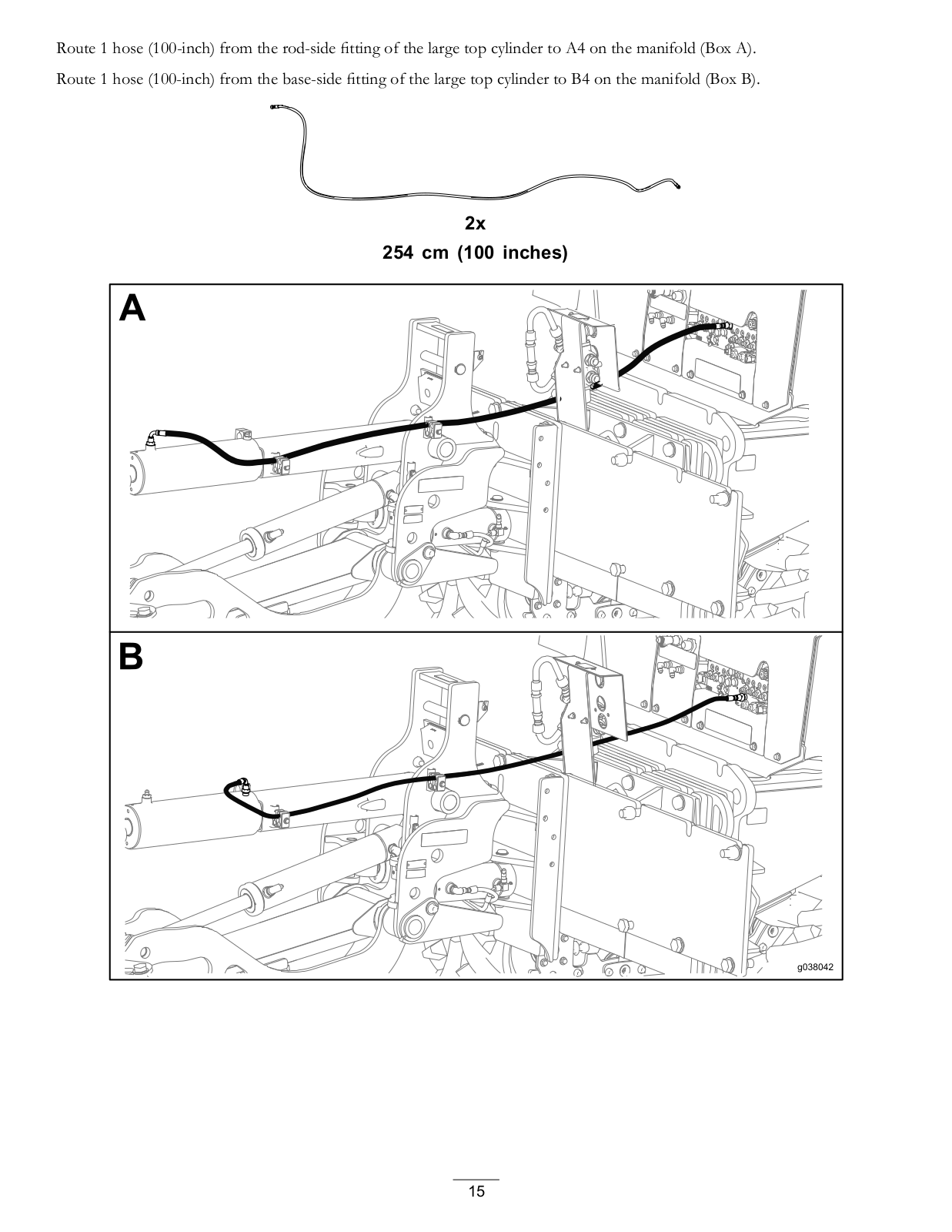

Route1hose(100-inch)fromtherod-sidettingofthelargetopcylindertoA4onthemanifold(BoxA).

Route1hose(100-inch)fromthebase-sidettingofthelargetopcylindertoB4onthemanifold(BoxB).

2x

254cm(100inches)

15

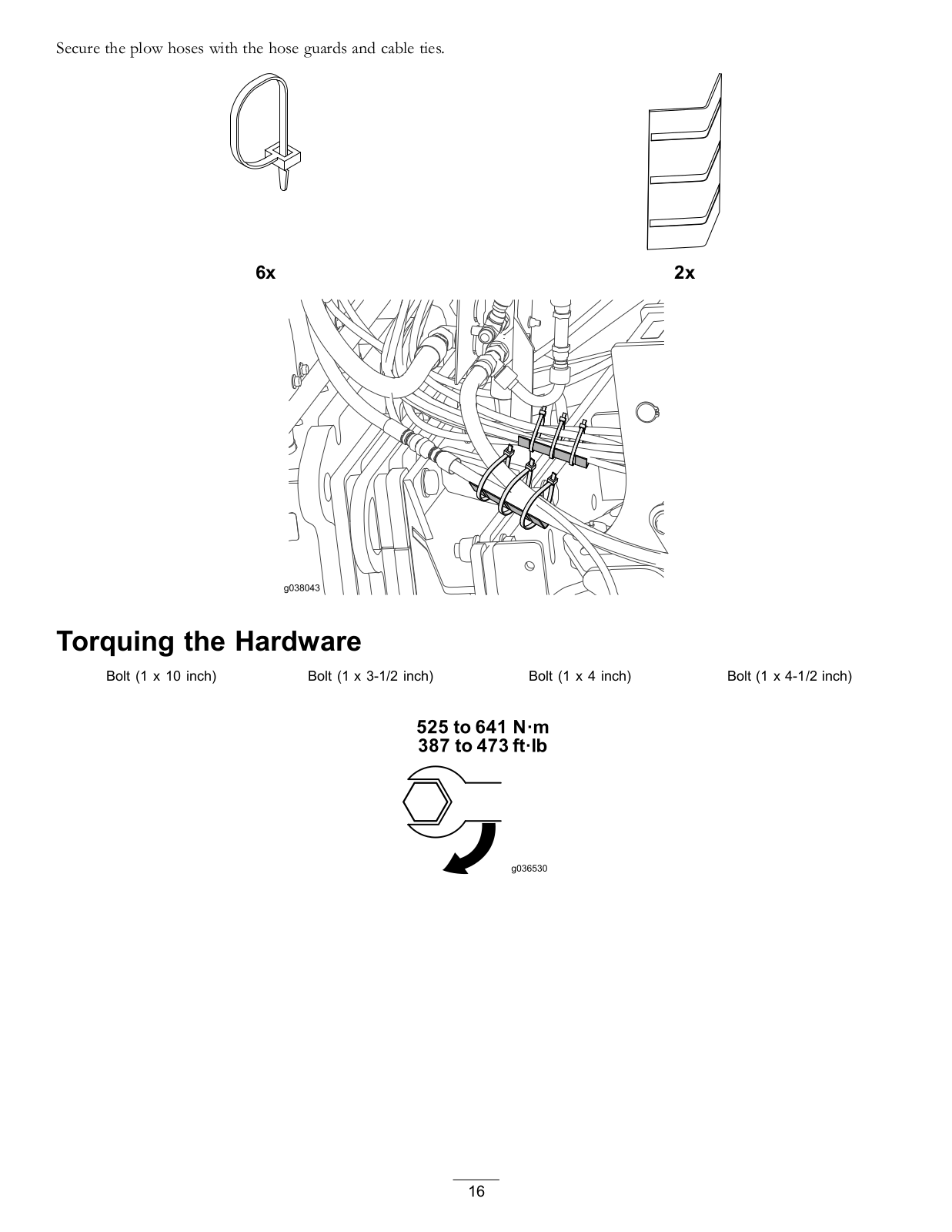

Securetheplowhoseswiththehoseguardsandcableties.

6x2x

TorquingtheHardware

Bolt(1x10inch)Bolt(1x3-1/2inch)Bolt(1x4inch)Bolt(1x4-1/2inch)

16
