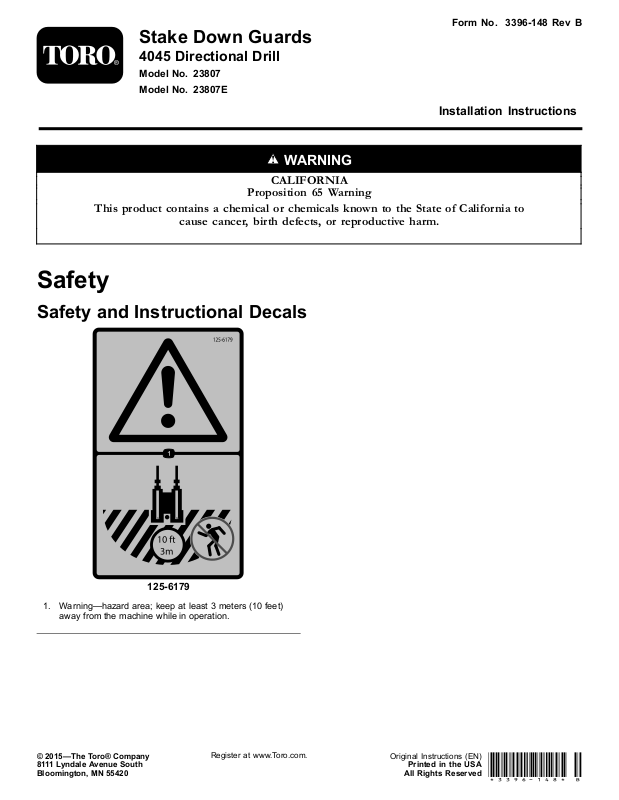

Toro 23807, 23807E Installation Instructions

StakeDownGuards

4045DirectionalDrill

ModelNo.23807

ModelNo.23807E

ThisproductcontainsachemicalorchemicalsknowntotheStateofCaliforniato

causecancer,birthdefects,orreproductiveharm.

Safety

SafetyandInstructionalDecals

FormNo.3396-148RevB

InstallationInstructions

WARNING

CALIFORNIA

Proposition65Warning

125-6179

1.Warning—hazardarea;keepatleast3meters(10feet)
awayfromthemachinewhileinoperation.

©2015—TheToro®Company
8111LyndaleAvenueSouth
Bloomington,MN55420

Registeratwww.T oro.com.

OriginalInstructions(EN)

PrintedintheUSA

AllRightsReserved

*3396-148*B

1

PreparingtheMachineand InstallingtheLeftGuard

Partsneededforthisprocedure:

1Proximity-sensorcap

1

Guardcover

1

Guard-supportbracket

6U-nut

6

Bolt(M8-11/4x35mm)

1

Leftguard

1

Bolt(M12-13/4x120mm)

1

Locknut(M12)

1

Bolt(M8-11/4x30mm)

1

Locknut(M8)

Procedure

8.Looselyinstalltheassemblytotheframeusing5bolts
(M8-11/4x35mm)asshowninFigure2.

Figure2

1.Bolts(M8-11/4x35mm)

9.Usingtheguard-supportbracketasaguide,markthe
locationofwheretodrillaholeintotheframe(Figure

2).

1.Disconnecttheproximitysensorthatisconnectedto
thedooronthecage.

2.Gatherupthewiringharnesswiththesensorandusea
cabletietosecuretheharnesstothemachine.

3.Connecttheproximitysensorcaptotheendofthe
wiringharnessconnection.

4.Removethedoor,cageassembly ,andleftguard(Figure

1).

Figure1

Figure3

Guard-supportbracketshownwithoutguardcoverfor

illustrativepurposesonly

5.Place3U-nutsontheguard-supportbracket(Figure3).

6.Installtheguard-supportbracketontotheguardcover
(Figure2).

7.Place3U-nutsontheguardcover.

1.Drillholehere

2.U-nut

10.Removetheguardassemblyanddrilltheholeintothe
frame.

2

3.Guard-supportbracket
