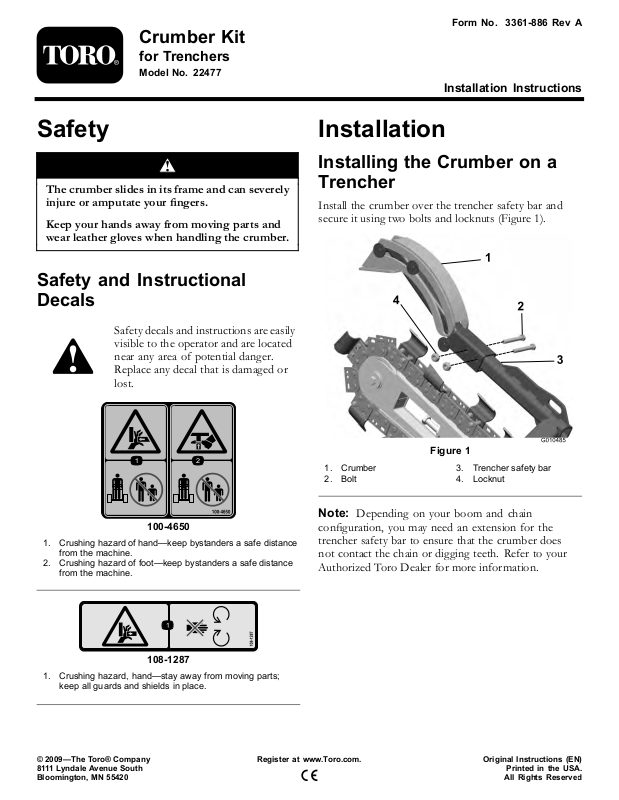

Toro 22477 Installation Instructions
CrumberKit
G010485
1
2
3
4
forTrenchers
ModelNo.22477
FormNo.3361-886RevA
InstallationInstructions
Safety
Thecrumberslidesinitsframeandcanseverely
injureoramputateyourngers.
Keepyourhandsawayfrommovingpartsand
wearleathergloveswhenhandlingthecrumber.
SafetyandInstructional
Decals
Safetydecalsandinstructionsareeasily
visibletotheoperatorandarelocated
nearanyareaofpotentialdanger.
Replaceanydecalthatisdamagedor
lost.
Installation
InstallingtheCrumberona
Trencher
Installthecrumberoverthetrenchersafetybarand
secureitusingtwoboltsandlocknuts(Figure1).
100-4650
1.Crushinghazardofhand—keepbystandersasafedistance
fromthemachine.
2.Crushinghazardoffoot—keepbystandersasafedistance
fromthemachine.
1.Crushinghazard,hand—stayawayfrommovingparts;
keepallguardsandshieldsinplace.
108-1287
Figure1
1.Crumber3.Trenchersafetybar
2.Bolt4.Locknut
Note:Dependingonyourboomandchain
conguration,youmayneedanextensionforthe
trenchersafetybartoensurethatthecrumberdoes
notcontactthechainordiggingteeth.Refertoyour
AuthorizedToroDealerformoreinformation.
©2009—TheToro®Company
8111LyndaleAvenueSouth
Bloomington,MN55420
Registeratwww.Toro.com.
OriginalInstructions(EN)
PrintedintheUSA.
AllRightsReserved
Operation
1
2
3
4
G010486
1
2
3
4
TransportingtheCrumber
Beforetransportingthetrencherwiththecrumber
attached,completethefollowingprocedure:
1.Removethelynchpinandclevispinstoredinthe
crumberbar.
2.Slidethecrumberbackasfaraspossible(Figure2)
3.Installtheclevispinthroughthecrumberslideand
bar,securingitwiththelynchpin(Figure2)
1.Locknut
2.Crumberslide
Figure3
3.Scraper
4.Bolt
Figure2
1.Clevispin
2.Crumberslide4.Storetheclevisandlynch
3.Lynchpin
pinherewhennotinuse.
ChangingtheScraper
Thescraper(Figure3)installedonthecrumbermust
correspondtothewidthofthetrencherchain.To
replacethescraperthatisonthecrumber,removethe
twoboltsandnutssecuringthescraper,theninstallthe
newscraperinitsplace.
Note:Thescrapersareslightlynarrowerthanthe
chainswithwhichtheyshouldbepaired.Forexample,
the6inchscraperisactually5-1/2incheswidebutis
intendedtobeusedwiththe6inchtrencherchain.
