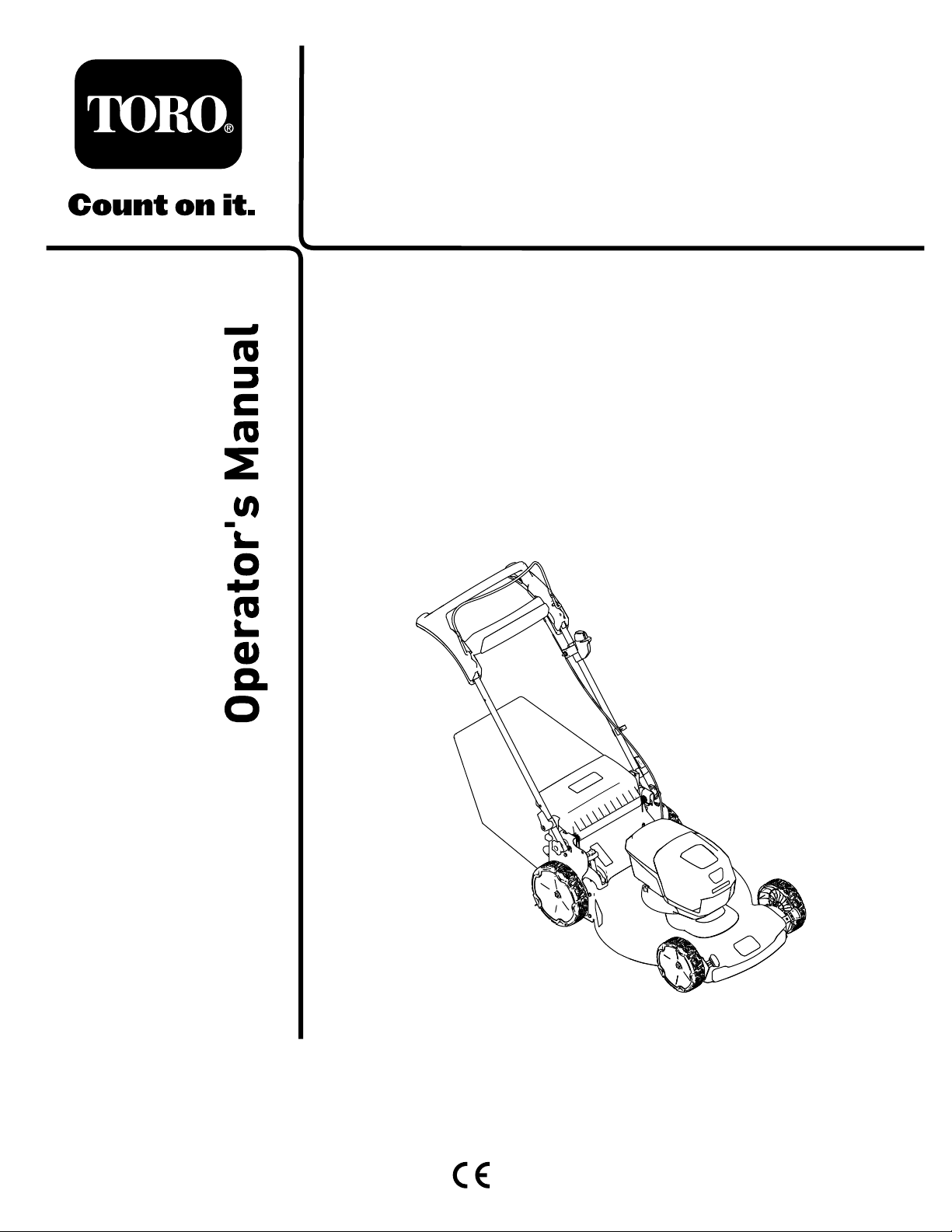

Toro 21864 Operator's Manual

FormNo.3442-559RevA

Flex-ForcePowerSystem
MAX55cmRecycler

®

Mower

ModelNo.21864—SerialNo.400000000andUp
ModelNo.21864T—SerialNo.400000000andUp

™

60V

Lawn

Registeratwww.T oro.com.
OriginalInstructions(EN)

*3442-559*

ThisproductcomplieswithallrelevantEuropean
directives;fordetails,pleaseseetheseparateproduct
specicDeclarationofConformity(DOC)sheet.

Introduction

Thisrotary-blade,walk-behindlawnmowerisintended
tobeusedbyresidentialhomeowners.Itisdesigned
primarilyforcuttinggrassonwell-maintainedlawns
onresidentialproperties.Itisnotdesignedforcutting
brushorforagriculturaluses.Itisdesignedtouse
lithium-ionbatterypackModels81860(providedwith
Model21864)orModel81875;itcanalsousebattery
packModel81825orModel81860.Thesebattery
packsaredesignedtobechargedonlybybattery
chargerModels81802(providedwithModel21864)
orModel81805.Usingtheseproductsforpurposes
otherthantheirintendedusecouldprovedangerous
toyouandbystanders.

Model21864Tdoesnotincludeabatteryora
charger.

Readthisinformationcarefullytolearnhowtooperate
andmaintainyourproductproperlyandtoavoid
injuryandproductdamage.Youareresponsiblefor
operatingtheproductproperlyandsafely .

Visitwww.Toro.comformoreinformation,including
safetytips,trainingmaterials,accessoryinformation,
helpndingadealer,ortoregisteryourproduct.

Wheneveryouneedservice,genuinethe
manufacturerparts,oradditionalinformation,contact
anAuthorizedServiceDealerorthemanufacturer
CustomerServiceandhavethemodelandserial
numbersofyourproductready.Figure1identies
thelocationofthemodelandserialnumbersonthe
product.Writethenumbersinthespaceprovided.

Important:Withyourmobiledevice,youcan

scantheQRcodeontheserialnumberdecal(if
equipped)toaccesswarranty,parts,andother
productinformation.

Figure1

1.Modelandserialnumberlocation

Safety

IMPORTANTSAFETY
INSTRUCTIONS

WARNING—Whenusinganelectricmachine,always
readandfollowbasicsafetywarningsandinstructions
toreducetheriskofre,electricshock,orinjury,
includingthefollowing:

I.Training

1.Theoperatorofthemachineisresponsiblefor
anyaccidentsorhazardsoccurringtoothersor
theirproperty.

2.Donotallowchildrentouseorplaywiththe
machine,batterypack,orthebatterycharger;
localregulationsmayrestricttheageofthe
operator.

3.Donotallowpeoplewithreducedphysical,
sensory,ormentalcapabilitiesorwithout
experienceandknowledgetousethemachine,
batterypack,orbatterychargerunlessthey
receiveinstructionorsupervisiononusingit
safelyandunderstandthehazardsinvolved
whileusingit.

4.Beforeusingthemachine,batterypack,and
batterycharger,readalltheinstructionsand
cautionarymarkingsontheseproducts.

5.Becomefamiliarwiththecontrolsandproper
useofthemachine,batterypack,andbattery
charger.

II.Preparation

1.Keepbystanders,especiallychildren,andpets
outoftheoperatingarea.

2.Donotoperatethemachinewithoutallguards
andsafetydevices,suchasdeectorsandgrass
catchers,inplaceandfunctioningproperlyon
themachine.

3.Inspecttheareawhereyouwillusethemachine
andremoveallobjectsthatcouldinterferewith
theoperationofthemachineorthatthemachine
couldthrow.

4.Beforeusingthemachine,ensurethattheblade,
bladebolt,andbladeassemblyarenotwornor
damaged.Replaceanydamagedorunreadable
labels.

g275230

5.UseonlythebatterypackspeciedbyT oro.
Usingotheraccessoriesandattachmentsmay
increasetheriskofinjuryandre.

6.Pluggingthebatterychargerintoanoutletthat
isnot100to240Vcancauseareorelectric
shock.Donotplugthebatterychargerintoan
outletotherthan100to240V .Foradifferent

©2020—TheToro®Company
8111LyndaleAvenueSouth
Bloomington,MN55420

Contactusatwww.Toro.com.

2

PrintedinChina

AllRightsReserved

styleofconnection,useanattachmentplug
adapterofthepropercongurationforthepower
outletifneeded.

7.Donotuseadamagedormodiedbattery
packorbatterycharger,whichmayexhibit
unpredictablebehaviorthatresultsinre,
explosion,orriskofinjury .

8.Ifthesupplycordtothebatterychargeris
damaged,contactanAuthorizedServiceDealer
toreplaceit.

9.Donotusenon-rechargeablebatteries.

10.Chargethebatterypackwithonlythebattery
chargerspeciedbyT oro.Achargersuitablefor
1typeofbatterypackmaycreateariskofre
whenusedwithanotherbatterypack.

11.Chargethebatterypackinawell-ventilatedarea
only.

12.Donotexposeabatterypackorbatterycharger
toreortotemperatureshigherthan68°C
(154°F).

13.Followallcharginginstructionsanddo
notchargethebatterypackoutsideofthe
temperaturerangespeciedintheinstructions.
Otherwise,youmaydamagethebatterypack
andincreasetheriskofre.

14.Dressproperly—Wearappropriateclothing,
includingeyeprotection;longpants;substantial,
slip-resistantfootwear(notbarefootorwearing
sandals);andhearingprotection.Tiebacklong
hairanddonotwearloosejewelrythatcanget
caughtinmovingparts.Wearadustmaskin
dustyoperatingconditions.Useofrubbergloves
isrecommended.

III.Operation

1.Contactwiththemovingbladewillcauseserious
injury.Keepyourhandsorfeetawayfromthe
cuttingareaandallmovingpartsofthemachine.
Keepclearofanydischargeopening.

2.Usingthismachineforpurposesotheranits
intendedusecouldprovedangeroustoyouand
bystanders.

3.Disengagetheself-propeldrive(ifequipped)
beforestartingthemachine.

4.Preventunintentionalstarting—Ensurethatthe
electric-startbuttonisremovedfromtheignition
beforeconnectingthebatterypackandhandling
themachine.

5.Useyourfullattentionwhileoperatingthe
machine.Donotengageinanyactivitythat
causesdistractions;otherwise,injuryorproperty
damagemayoccur.

6.Stopthemachine,removetheelectric-start
button,removethebatterypackfromthe

machine,andwaitforallmovementtostop
beforeadjusting,servicing,cleaning,orstoring
themachine.

7.Removethebatterypackandelectric-start
buttonfromthemachinewheneveryouleaveit
unattendedorbeforechangingaccessories.

8.Donotforcethemachine—Allowthemachineto
dothejobbetterandsaferattherateforwhichit
wasdesigned.

9.Stayalert—Watchwhatyouaredoinganduse
commonsensewhenoperatingthemachine.
Donotusethemachinewhileill,tired,orunder
theinuenceofalcoholordrugs.

10.Operatethemachineonlyingoodvisibilityand
appropriateweatherconditions.Donotoperate
themachinewhenthereistheriskoflightning.

11.Useextremecautionwhenreversingorpulling
themachinetowardyou.

12.Keepproperfootingandbalanceatalltimes,
especiallyonslopes.Mowacrosstheface
ofslopes,neverupanddown.Useextreme
cautionwhenchangingdirectionsonslopes.Do
notmowexceedinglysteepslopes.Walk,never
runwiththemachine.

13.Donotdirectthedischargematerialtoward
anyone.Avoiddischargingmaterialagainsta
wallorobstruction;materialmayricochettoward
you.Stoptheblade(s)whencrossinggravel
surfaces.

14.Watchforholes,ruts,bumps,rocks,orother
hiddenobjects.Uneventerraincouldcauseyou
toloseyourbalanceorfooting.

15.Wetgrassorleavescancauseseriousinjuryif
youslipandcontacttheblade.Avoidmowingin
wetconditionsorwhenitisraining.

16.Ifthemachinestrikesanobjectorstartsto
vibrate,immediatelyshutoffthemachine,
removetheelectric-startbutton,removethe
batterypack,andwaitforallmovementtostop
beforeexaminingthemachinefordamage.
Makeallnecessaryrepairsbeforeresuming
operation.

17.Stopthemachineandremovetheelectric-start
buttonbeforeloadingthemachineforhauling.

18.Underabusiveconditions,thebatterypackmay
ejectliquid;avoidcontact.Ifyouaccidently
comeintocontactwiththeliquid,ushwith
water.Iftheliquidcontactsyoureyes,seek
medicalhelp.Liquidejectedfromthebattery
packmaycauseirritationorburns.

IV.MaintenanceandStorage

1.Stopthemachine,removetheelectric-start
button,removethebatterypackfromthe

3

machine,andwaitforallmovementtostop
beforeadjusting,servicing,cleaning,orstoring
themachine.

2.Donotattempttorepairthemachineexceptas
indicatedintheinstructions.HaveanAuthorized
ServiceDealerperformserviceonthemachine
usingidenticalreplacementparts.

3.Wearglovesandeyeprotectionwhenservicing
themachine.

4.Sharpenadullbladeonbothsidestomaintain
balance.Cleanthebladeandensurethatitis
balanced.

5.Replacethebladeifitisbent,worn,orcracked.
Anunbalancedbladecausesvibration,which
coulddamagethemotororcausepersonal
injury.

6.Whenservicingtheblade,beawarethatthe
bladecanstillmoveeventhoughthepower
sourceisoff.

7.Checkthegrasscollectionbagfrequentlyfor
deteriorationorwear,andreplaceawornbag
withaT oro[replacement]bag.

8.Forbestperformance,useonlygenuineT oro
replacementpartsandaccessories.Other
replacementpartsandaccessoriescouldbe
dangerous,andsuchusecouldvoidtheproduct
warranty.

9.Maintainthemachine—Keepcuttingedges
sharpandcleanforthebestandsafest
performance.Keephandlesdry,clean,andfree
fromoilandgrease.Keepguardsinplaceandin
workingorder.Keepbladessharp.Useidentical
replacementbladesonly.

10.Checkthemachinefordamagedparts—Ifthere
aredamagedguardsorotherparts,determine
whetherthemachinewilloperateproperly .
Checkformisalignedandbindingmovingparts,
brokenparts,mounting,andanyothercondition
thatmayaffectitsoperation.Unlessindicated
intheinstructions,haveanAuthorizedService
Dealerrepairorreplaceadamagedguardor
part.

11.Whenthebatterypackisnotinuse,keepit
awayfrommetalobjectssuchaspaperclips,
coins,keys,nails,andscrewsthatcanmakea
connectionfrom1terminaltoanother.Shorting
thebatteryterminalsmaycauseburnsorare.

12.Checkthebladeandmotormountingbolts
frequentlyfortightness.

13.Whenyouarenotusingthemachine,storeit
indoorsinadry,secureplaceoutofthereach
ofchildren.

14.CAUTION—Amistreatedbatterypackmay
presentariskofreorchemicalburn.Donot

disassemblethebatterypack.Donotheatthe
batterypackabove68°C(154°F)orincinerate
it.ReplacethebatterypackwithagenuineToro
batterypackonly;usinganothertypeofbattery
packmaycauseareorexplosion.Keep
batterypacksoutofthereachofchildrenand
intheoriginalpackaginguntilyouarereadyto
usethem.

15.Donotdisposeofthebatteryinare.The
cellmayexplode.Checkwithlocalcodesfor
possiblespecialdisposalinstructions.

SAVETHESE
INSTRUCTIONS

4

SafetyandInstructionalDecals

Safetydecalsandinstructionsareeasilyvisibletotheoperatorandarelocatednearanyarea
ofpotentialdanger.Replaceanydecalthatisdamagedormissing.

Model81860

decal137-9489

137-9489

1.ReadtheOperator’s
Manual.

2.Recycle5.Donotexposetorain.

3.Containslithiumions;do
notdiscard.

4.Keepawayfromopen
ames.

137-9495

1.ReadtheOperator’sManual.

2.Donotdiscard.4.Doubleinsulated

3.Forindooruse.

decal137-9495

137-9496

1.Thebatterypackischarging.3.Thebatterypackisoverorundertheappropriatetemperature
range.

2.Thebatterypackisfullycharged.4.Batterypackchargingfault

5

decal137-9496

decal140-1324

140-1324

1.ReadtheOperator’s

Manual.

2.Tostartthemachine,

squeezethebartothe
handleandpressthe
button.

1.Warning—readthe

Operator’sManual.

2.Cutting/dismemberment

hazardofthehand,mower
blade—stayawayfrom
movingparts;keepall
guardsandshieldsin
place.

3.Cutting/dismemberment

hazardofthehand,mower
blade—removethekey
andreadtheOperator’s
Manualbeforeperforming
maintenance.

140-1328

3.Toshutoffthemachine,
releasethebar.

4.Thrownobject
hazard—keepbystanders
away;shutofftheengine
andwaitforallmoving
partstostopbefore
leavingthemachine;pick
updebrisbeforemowing.

5.Cutting/dismemberment
hazardofthefoot,mower
blade—donotmowup
ordownslopes;only
mowacrossslopes;look
behindyouwhenmowing
inreverse.

decal139-6557

139-6557

decal140-1328

1.Recyclingmode2.Baggingmode

decal137-9461

137-9461

1.Batterychargestatus

decal134-4691

134-4691

1.Autospeed2.Maxspeed

112-8760

1.Thrownobjecthazard—keepbystandersaway .

2.Cutting/dismembermenthazardofhandorfoot,mower
blade—stayawayfrommovingparts.

decal112-8760

6

Setup

Note:Thebatterypackisnotfullychargedwhenit

ispurchased.Beforeusingthemachinefortherst
time,refertoChargingtheBatteryPack(page17).

1

MountingtheBattery
Charger(Optional)

NoPartsRequired

Procedure

Ifdesired,mountthebatterychargersecurelyona
wallusingthewall-mountkeyholesonthebackof
thecharger.

Mountitindoors(suchasagarageorotherdryplace),
nearapoweroutlet,andoutofthereachofchildren.

RefertoFigure2forassistanceinmountingthe
charger.

Slidethechargerovertheappropriatelypositioned
hardwaretosecurethechargerinplace(hardware
notincluded).

Figure2

g247359

7

2

UnfoldingtheHandle

NoPartsRequired

Procedure

WARNING

Unfoldingthehandleimproperlycandamagethecables,causinganunsafeoperating
condition.

•Donotdamagethecable(s)whenfoldingorunfoldingthehandle.

•Ensurethatthecable(s)areroutedtotheoutsideofthehandle.

•Ifacableisdamaged,contactanAuthorizedServiceDealer.

Note:Ensurethatthecablesareroutedontheoutsideofthehandleandarenotpinched(DofFigure3).

Figure3

8

g335466

3

AssemblingtheGrassBag

NoPartsRequired

Procedure

g334351

Figure4

9
