Toro 21774 Operator's Manual

55cmRecycler

ModelNo.21774—SerialNo.400000000andUp

®

Introduction

Thisrotary-blade,walk-behindlawnmowerisintended
tobeusedbyresidentialhomeowners.Itisdesigned
primarilyforcuttinggrassonwell-maintainedlawnson
residentialproperties.Usingthisproductforpurposes
otherthanitsintendedusecouldprovedangerousto
youandbystanders.

Readthisinformationcarefullytolearnhowtooperate
andmaintainyourproductproperlyandtoavoid
injuryandproductdamage.Youareresponsiblefor
operatingtheproductproperlyandsafely.

Visitwww.T oro.comformoreinformation,including
safetytips,trainingmaterials,accessoryinformation,
helpndingadealer,ortoregisteryourproduct.

Wheneveryouneedservice,genuineToroparts,or
additionalinformation,contactanAuthorizedService
DealerorToroCustomerServiceandhavethemodel
andserialnumbersofyourproductready .Figure1
identiesthelocationofthemodelandserialnumbers
ontheproduct.Writethenumbersinthespace
provided.

Important:Withyourmobiledevice,youcan

scantheQRcodeontheserialnumberdecal(if
equipped)toaccesswarranty,parts,andother
productinformation.

LawnMowerwithSmartStow

Thismanualuses2wordstohighlightinformation.
Importantcallsattentiontospecialmechanical
informationandNoteemphasizesgeneralinformation
worthyofspecialattention.

ThisproductcomplieswithallrelevantEuropean
directives;fordetails,pleaseseetheseparateproduct
specicDeclarationofConformity(DOC)sheet.

GrossorNetTorque:Thegrossornettorque
ofthisenginewaslaboratoryratedbytheengine
manufacturerinaccordancewiththeSocietyof
AutomotiveEngineers(SAE)J1940orJ2723.As
conguredtomeetsafety,emission,andoperating
requirements,theactualenginetorqueonthisclass
ofmowerwillbesignicantlylower.Pleasereferto
theenginemanufacturer’sinformationincludedwith
themachine.

Donottamperwithordisablesafetydevicesonthe
machine,andchecktheirproperoperationregularly.
Donotattempttoadjustortamperwiththeengine
speedcontrol;doingsomaycreateanunsafe
operatingcondition,resultinginpersonalinjury.

FormNo.3442-514RevB

®

Operator'sManual

g000502

Figure2

Safety-alertsymbol

Figure1

1.Modelandserialnumberlocation

ModelNo.

SerialNo.

Thismanualidentiespotentialhazardsandhas
safetymessagesidentiedbythesafety-alertsymbol
(Figure2),whichsignalsahazardthatmaycause
seriousinjuryordeathifyoudonotfollowthe
recommendedprecautions.

©2021—TheT oro®Company
8111LyndaleAvenueSouth
Bloomington,MN55420

Registeratwww.Toro.com.

Contents

g306581

Introduction...............................................................1

Safety.......................................................................2

GeneralSafety...................................................2

SafetyandInstructionalDecals..........................3

Setup........................................................................5

1UnfoldingtheHandle.......................................5

2InstallingtheBlade-ControlBar........................6

3InstallingtheRecoil-StarterRopeinthe

RopeGuide.....................................................6

4AddingOiltotheEngine...................................7

5AssemblingtheGrassBag...............................7

ProductOverview.....................................................9

Specications....................................................9

Attachments/Accessories...................................9

Operation................................................................10

BeforeOperation.................................................10

OriginalInstructions(EN)

PrintedinMexico

AllRightsReserved

*3442-514*

BeforeOperationSafety...................................10

FillingtheFuelTank..........................................10

CheckingtheEngine-OilLevel...........................11

AdjustingtheHandleHeight..............................11

AdjustingtheCuttingHeight.............................12

DuringOperation.................................................13

DuringOperationSafety...................................13

StartingtheEngine...........................................13

UsingtheSelf-PropelDrive...............................14

ShuttingOfftheEngine.....................................14

RecyclingtheClippings....................................14

BaggingtheClippings.......................................15

OperatingtheBag-on-DemandLever...............16

OperatingTips.................................................16

AfterOperation....................................................17

AfterOperationSafety......................................17

CleaningUndertheMachine............................17

FoldingtheHandle...........................................17

StoringtheMachineintheVertical-Stow

Position.........................................................18

Maintenance...........................................................20

RecommendedMaintenanceSchedule(s)...........20

MaintenanceSafety..........................................20

PreparingforMaintenance...............................20

ServicingtheAirFilter.......................................21

ChangingtheEngineOil...................................21

ReplacingtheBlade..........................................22

AdjustingtheSelf-PropelDrive.........................23

Storage...................................................................23

StorageSafety..................................................23

PreparingtheMachineforStorage...................23

RemovingtheMachinefromStorage................23

Safety

Thismachinehasbeendesignedinaccordancewith
ENISO5395.

GeneralSafety

Thisproductiscapableofamputatinghandsand
feetandofthrowingobjects.Alwaysfollowallsafety
instructionstoavoidseriouspersonalinjuryordeath.

•Read,understand,andfollowtheinstructions

andwarningsinthisOperator’sManualandon
themachineandattachmentsbeforestartingthe
engine.

•Donotputyourhandsorfeetnearmovingpartsor

underthemachine.Keepclearofanydischarge
opening.

•Donotoperatethemachinewithoutallguards

andothersafetyprotectivedevicesinplaceand
functioningproperlyonthemachine.

•Keepbystandersandchildrenoutoftheoperating

area.Donotallowchildrentooperatethemachine.
Allowonlypeoplewhoareresponsible,trained,
familiarwiththeinstructions,andphysically
capabletooperatethemachine.

•Stopthemachine,shutofftheengine,andwaitfor

allmovingpartstostopbeforeservicing,fueling,
oruncloggingthemachine.

Improperlyusingormaintainingthismachinecan
resultininjury.T oreducethepotentialforinjury,
complywiththesesafetyinstructionsandalways
payattentiontothesafety-alertsymbol
meansCaution,Warning,orDanger—personalsafety
instruction.Failuretocomplywiththeseinstructions
mayresultinpersonalinjuryordeath.

,which

2

SafetyandInstructionalDecals

Safetydecalsandinstructionsareeasilyvisibletotheoperatorandarelocatednearanyarea
ofpotentialdanger.Replaceanydecalthatisdamagedormissing.

Manufacturer'sMark

1.Thismarkindicatesthatthebladeisidentiedasapart
fromtheoriginalmachinemanufacturer .

decaloemmarkt

112-8760

1.Thrownobjecthazard—keepbystandersaway.

2.Cutting/dismembermenthazardofhandorfoot,mower
blade—stayawayfrommovingparts.

decal112-8760

decal125-5026

125-5026

1.Recyclingmode2.Baggingmode

decal131-4514b

131-4514

1.Warning—readtheOperator'sManual.

2.Cutting/dismembermenthazardofhand,mower
blade—stayawayfrommovingparts;keepallguardsand
shieldsinplace.

3.Cutting/dismembermenthazardofhand,mower
blade—disconnectthespark-plugwirebeforeperforming
maintenance.

4.Thrownobjecthazard—keepbystandersaway;shutoffthe
enginebeforeleavingtheoperatingposition;pickupany
debrisbeforemowing.

5.Cutting/dismembermenthazardoffoot,mowerblade—do
notoperateupanddownslopes;operatesidetosideon
slopes;lookbehindyouwhenmovinginreverse.

3

133-8198

1.Warning—readtheOperator'sManual;addfueluptothe
indicatedlevel,thentipthemachineontotherearwheels
forstorage.

decal133-8198

4

Setup

Important:Removeanddiscardtheprotectiveplasticsheetthatcoverstheengineandanyother

plasticorwrappingonthemachine.

1

UnfoldingtheHandle

NoPartsRequired

Procedure

Note:Ensurethatthecablesareroutedontheoutsideofthehandleandarenotpinched(DofFigure3).

Figure3

5

g334364

2

InstallingtheBlade-ControlBar

NoPartsRequired

Procedure

g344378

Figure4

3

InstallingtheRecoil-StarterRopeintheRopeGuide

NoPartsRequired

Procedure

Important:Tostarttheenginesafelyandeasilywheneveryouusethemachine,installtherecoil-starter

ropeintheropeguide.

Figure5

g334093

6

4

AddingOiltotheEngine

NoPartsRequired

Procedure

Important:Iftheoillevelintheengineistoolowortoohighandyouruntheengine,youmaydamage

theengine.

Figure6

g222533

7

5

AssemblingtheGrassBag

NoPartsRequired

Procedure

g334351

Figure7

8

ProductOverview

certicationofthemachine,useonlygenuineToro
replacementpartsandaccessories.Replacement
partsandaccessoriesmadebyothermanufacturers
couldbedangerous,andsuchusecouldvoidthe
productwarranty.

Toensureoptimumperformanceandcontinuedsafety

Figure8

1.Handle

2.Blade-controlbar

3.Adjustmentforthe
self-propeldrive

4.Reardeector11.Handlelock(2)

5.Fuel-tankcap

6.Aircleaner13.Recoil-starthandle

7.Cutting-heightlever(4)

8.Sparkplug

9.Oilll/dipstick

10.Bag-on-demandlever

12.Grassbag

Specications

ModelWeightLengthWidthHeight

37kg151cm59cm109cm

21774

Attachments/Accessories

(81.5lb)(59

inches)

inches)

g352600

(23

(43

inches)

AselectionofToroapprovedattachmentsand
accessoriesisavailableforusewiththemachine
toenhanceandexpanditscapabilities.Contact
yourAuthorizedServiceDealerorauthorizedT oro
distributororgotowww.T oro.comforalistofall
approvedattachmentsandaccessories.

9

Operation

Note:Determinetheleftandrightsidesofthe

machinefromthenormaloperatingposition.

–Avoidprolongedbreathingofvapors.

–Keepyourhandsandfaceawayfromthe

nozzleandthefuel-tankopening.

–Keepfuelawayfromyoureyesandskin.

BeforeOperation

BeforeOperationSafety

GeneralSafety

•Alwaysshutoffthemachine,waitforallmoving

partstostop,andallowthemachinetocoolbefore
adjusting,servicing,cleaning,orstoringit.

•Becomefamiliarwiththesafeoperationofthe

equipment,operatorcontrols,andsafetysigns.

•Checkthatallguardsandsafetydevices,suchas

deectorsand/orgrasscatcher,areinplaceand
functioningproperly.

•Alwaysinspectthemachinetoensurethatthe

bladesandbladeboltsarenotwornordamaged.

•Inspecttheareawhereyouwillusethemachine,

andremoveallobjectsthatcouldinterferewith
theoperationofthemachineorthatthemachine
couldthrow.

•Contactwiththemovingbladewillcauseserious

injury.Donotputyourngersunderthehousing.

FillingtheFuelTank

TypeUnleadedgasoline

Minimumoctanerating

Ethanol

MethanolNone

MTBE(methyltertiarybutyl
ether)

OilDonotaddtothefuel

Useonlyclean,fresh(nomorethan30daysold),fuel
fromareputablesource.

Important:T oreducestartingproblems,addfuel

stabilizer/conditionertofreshfuelasdirectedby
thefuel-stabilizer/conditionermanufacturer.

Refertoyourengineowner’smanualforadditional
information.

FillthefueltankasshowninFigure9.

87(US)or91(research
octane;outsidetheUS)

Nomorethan10%byvolume

Lessthan15%byvolume

FuelSafety

•Fuelisextremelyammableandhighlyexplosive.

Areorexplosionfromfuelcanburnyouand
othersandcandamageproperty.

–Topreventastaticchargefromignitingthefuel,

placethecontainerand/ormachinedirectlyon
thegroundbeforelling,notinavehicleoron
anobject.

–Fillthefueltankoutdoors,inanopenarea,

whentheengineiscold.Wipeupanyfuelthat
spills.

–Donothandlefuelwhensmokingoraroundan

openameorsparks.

–Donotremovethefuelcaporaddfueltothe

tankwhiletheengineisrunningorhot.

–Ifyouspillfuel,donotattempttostartthe

engine.Avoidcreatingasourceofignitionuntil
thefuelvaporshavedissipated.

–Storefuelinanapprovedcontainerandkeep

itoutofthereachofchildren.

•Fuelisharmfulorfatalifswallowed.Long-term

exposuretovaporscancauseseriousinjuryand
illness.

g230458

Figure9

10

CheckingtheEngine-OilLevel

ServiceInterval:Beforeeachuseordaily

Important:Iftheoillevelinthecrankcaseistoolowortoohighandyouruntheengine,youmay

damagetheengine.

Figure10

g222533

AdjustingtheHandleHeight

Youmayraiseorlowerthehandletoapositioncomfortableforyou.

Rotatethehandlelock,movethehandleto1of2positions,andlockthehandleintoposition(Figure11).

Figure11

g334366

11

AdjustingtheCuttingHeight

DANGER

Adjustingthecutting-heightleverscouldbringyourhandsintocontactwithamovingblade
andresultinseriousinjury.

•Shutofftheengineandwaitforallmovingpartstostopbeforeadjustingthecuttingheight.

•Donotputyourngersunderthehousingwhenadjustingthecuttingheight.

CAUTION

Iftheenginehasbeenrunning,themuferwillbehotandcanburnyou.

Keepawayfromthehotmufer.

Adjustthecuttingheightasdesired.Setallwheelstothesamecuttingheight(Figure12).

Figure12

g254131

12

DuringOperation

DuringOperationSafety

GeneralSafety

•Wearappropriateclothing,includingeye

protection;longpants;substantial,slip-resistant
footwear;andhearingprotection.Tiebacklong
hairanddonotwearlooseclothingorloose
jewelry.

•Useyourfullattentionwhileoperatingthe

machine.Donotengageinanyactivitythat
causesdistractions;otherwise,injuryorproperty
damagemayoccur.

•Donotoperatethemachinewhileill,tired,or

undertheinuenceofalcoholordrugs.

•Thebladeissharp;contactingthebladecanresult

inseriouspersonalinjury.Shutofftheengineand
waitforallmovingpartstostopbeforeleavingthe
operatingposition.

allmovingpartstostop,anddisconnectthewire
fromthesparkplugbeforeexaminingthemachine
fordamage.Makeallnecessaryrepairsbefore
resumingoperation.

•Beforeleavingtheoperatingposition,shutoffthe

engineandwaitforallmovingpartstostop.

•Iftheenginehasbeenrunning,itwillbehotand

canseverelyburnyou.Keepawayfromthehot
engine.

•Operatetheengineonlyinwell-ventilatedareas.

Exhaustgasescontaincarbonmonoxide,whichis
anodorless,deadlypoison.

•Checkthegrasscatchercomponentsandthe

dischargechutefrequentlyforanywearor
deteriorationandreplacethemwithgenuineT oro
partswhennecessary.

SlopeSafety

•Mowacrossthefaceofslopes;neverupand

down.Useextremecautionwhenchanging
directiononslopes.

•Whenyoureleasetheblade-controlbar,the

engineshouldshutoffandthebladeshouldstop
within3seconds.Ifnot,stopusingyourmachine
immediatelyandcontactanAuthorizedService
Dealer.

•Keepbystandersoutoftheoperatingarea.Keep

smallchildrenoutoftheoperatingareaandunder
thewatchfulcareofaresponsibleadultwhois
notoperatingthemachine.Stopthemachineif
anyoneentersthearea.

•Alwayslookdownandbehindyoubeforemoving

themachineinreverse.

•Operatethemachineonlyingoodvisibilityand

appropriateweatherconditions.Donotoperate
themachinewhenthereistheriskoflightning.

•Wetgrassorleavescancauseseriousinjuryif

youslipandcontacttheblade.Avoidmowingin
wetconditions.

•Useextremecarewhenapproachingblind

corners,shrubs,trees,orotherobjectsthatmay
blockyourview.

•Donotdirectthedischargematerialtoward

anyone.Avoiddischargingmaterialagainstawall
orobstruction;materialmayricochettowardyou.
Stoptheblade(s)whencrossinggravelsurfaces.

•Watchforholes,ruts,bumps,rocks,orother

hiddenobjects.Uneventerraincouldcauseyou
toloseyourbalanceorfooting.

•Donotmowonexcessivelysteepslopes.Poor

footingcouldcauseaslip-and-fallaccident.

•Mowwithcautionneardrop-offs,ditches,or

embankments.

StartingtheEngine

1.Holdtheblade-controlbaragainstthehandle
(AofFigure13).

2.Pulltherecoil-starthandlelightlyuntilyoufeel
resistance,thenpullitsharply,andallowitto
returntotheropeguideonthehandleslowly(B
ofFigure13).

g334135

Figure13

Note:Ifthemachinedoesnotstartafterseveral

attempts,contactanAuthorizedServiceDealer.

•Ifthemachinestrikesanobjectorstartsto

vibrate,immediatelyshutofftheengine,waitfor

13

UsingtheSelf-PropelDrive

Tooperatetheself-propeldrive,simplywalkwithyour
handsontheupperhandleandyourelbowsatyour
sides,andthemachinewillautomaticallykeeppace
withyou(Figure14).

Figure14

Note:Ifthemachinedoesnotfreelyrollbackward

afterself-propelling,stopwalking,holdyourhands
inplace,andallowthemachinetorollacoupleof
centimeters(inches)forwardtodisengagethewheel
drive.Y oucanalsotryreachingjustundertheupper
handletothemetalhandleandpushingthemachine
forwardacoupleofcentimeters(inches).Ifthe
machinestilldoesnotrollbackwardeasily,contactan
AuthorizedServiceDealer.

g334136

ShuttingOfftheEngine

ServiceInterval:Beforeeachuseordaily—Ensure

thattheengineshutsoffwithin
3secondsafterreleasingthe
blade-controlbar.

Toshutofftheengine,releasetheblade-controlbar.

Important:Whenyoureleasetheblade-control

bar,boththeengineandbladeshouldstopwithin
3seconds.Iftheydonotstopproperly ,stop
usingyourmachineimmediatelyandcontactan
AuthorizedServiceDealer.

RecyclingtheClippings

Yourmachinecomesfromthefactoryreadytorecycle
thegrassandleafclippingsbackintothelawn.

Ifthegrassbagisonthemachineandthe
bag-on-demandleverisinthebaggingposition,move
thelevertotherecyclingposition;refertoOperating

theBag-on-DemandLever(page16).

14

BaggingtheClippings

Usethegrassbagwhenyouwanttocollectgrassandleafclippingsfromthelawn.

Ifthebag-on-demandleverisintherecyclingposition,moveittothebaggingposition;refertoOperatingthe

Bag-on-DemandLever(page16).

InstallingtheGrassBag

1.Raiseandholdupthereardeector(AofFigure15).

2.Installthegrassbag,ensuringthatthepinsonthebagrestintheslotsonthehandlebracket(Bof

Figure15).

3.Lowerthereardeector.

Figure15

g334207

RemovingtheGrassBag

Toremovethebag,reversethestepsinInstallingtheGrassBag(page15).

15

Operatingthe
Bag-on-DemandLever

Thebag-on-demandfeatureallowsyoutoeither
collectorrecyclegrassandleafclippingswhilethe
grassbagisattachedtothemachine.

•Tobagthegrassandleafclippings,pressthe

buttononthebag-on-demandleverandmovethe
leverforwarduntilthebuttonontheleverpopsup
(Figure16).

Figure16

OperatingTips

GeneralMowingTips

•Inspecttheareawhereyouwillusethemachine

andremoveallobjectsthatthemachinecould
throw.

•Avoidstrikingsolidobjectswiththeblade.Never

deliberatelymowoveranyobject.

•Ifthemachinestrikesanobjectorstartstovibrate,

immediatelyshutofftheengine,waitforallmoving
partstostop,disconnectthewirefromthespark
plug,andexaminethemachinefordamage.

•Forbestperformance,installanewToroblade

beforethecuttingseasonbeginsorwhen
necessary.

CuttingGrass

•Cutonlyaboutathirdofthegrassbladeatatime.

Donotcutbelow51mm(2inches)unlessthe

g334148

grassissparseoritislatefallwhengrassgrowth
beginstoslowdown.

1.Bag-on-demandlever(inthebaggingposition)

•Torecyclethegrassandleafclippings,press

thebuttonontheleverandmovethelever
rearwarduntilthebuttonontheleverpopsup.

Important:Forproperoperation,shutoff

theengine,waitforallmovingpartstostop,
andthenremoveanygrassclippingsand
debrisfromthebag-on-demanddoorandthe
surroundingopening(Figure17)beforeyou
movethebag-on-demandleverfrom1position
toanother.

Figure17

1.Cleanhere

•Whencuttinggrassover15cm(6inches)tall,

mowatthehighestcuttingheightsettingandwalk
slower;thenmowagainatalowersettingforthe
bestlawnappearance.Ifthegrassistoolong,the
machinemayplugandcausetheenginetostall.

•Wetgrassandleavestendtoclumpontheyard

andcancausethemachinetoplugortheengine
tostall.Avoidmowinginwetconditions.

•Beawareofapotentialrehazardinverydry

conditions,followalllocalrewarnings,andkeep
themachinefreeofdrygrassandleafdebris.

•Alternatethemowingdirection.Thishelps

dispersetheclippingsoverthelawnforeven
fertilization.

•Ifthenishedlawnappearanceisunsatisfactory,

try1ormoreofthefollowing:

–Replacethebladeorhaveitsharpened.

–Walkataslowerpacewhilemowing.

–Raisethecuttingheightonyourmachine.

g234643

–Cutthegrassmorefrequently.

–Overlapcuttingswathsinsteadofcuttingafull

swathwitheachpass.

CuttingLeaves

•Aftercuttingthelawn,ensurethathalfofthelawn

showsthroughthecutleafcover.Youmayneed
tomakemorethanasinglepassovertheleaves.

16

•Iftherearemorethan13cm(5inches)ofleaves

onthelawn,mowatahighercuttingheightand
thenagainatthedesiredcuttingheight.

•Slowdownyourmowingspeedifthemachine

doesnotcuttheleavesnelyenough.

AfterOperation

CleaningUnderthe
Machine

ServiceInterval:Aftereachuse

Forbestresults,cleanunderthemachineshortlyafter
youhavecompletedmowing.

CleaningUndertheMachineinthe

AfterOperationSafety

GeneralSafety

•Alwaysshutoffthemachine,waitforallmoving

partstostop,andallowthemachinetocoolbefore
adjusting,servicing,cleaning,orstoringit.

•Cleangrassanddebrisfromthemachinetohelp

preventres.Cleanupoilorfuelspills.

•Neverstorethemachineorfuelcontainerwhere

thereisanopename,spark,orpilotlight,such
asonawaterheateroronotherappliances.

HaulingSafety

•Usecarewhenloadingorunloadingthemachine.

•Securethemachinefromrolling.

OperatingPosition

1.Lowerthemachinetoitslowestcutting-height
setting.

2.Movethemachineontoapavedlevelsurface.

3.Withtheenginerunningandthebladeengaged,
sprayastreamofwaterinfrontoftheright,rear
wheel(Figure18).

Note:Thewaterwillsplashintothepathofthe

blade,cleaningouttheclippings.

g002600

Figure18

4.Whennomoreclippingscomeout,stopthe
waterandmovethemachinetoadryarea.

5.Starttheengineandrunitforafewminutesto
drytheundersideofthemachinetopreventit
fromrusting.

6.Shutofftheengine,removetheelectric-start
button(ifequipped),andallowthemachineto
coolbeforestoringitinanenclosedarea.

CleaningundertheMachineinthe
Vertical-stowPosition

1.Setthemachineinthevertical-stowposition;
refertoStoringtheMachineintheVertical-Stow

Position(page18).

2.Washouttheclippingsfromunderthemachine.

FoldingtheHandle

WARNING

Foldingorunfoldingthehandleimproperlycandamagethecables,causinganunsafe
operatingcondition.

•Donotdamagethecableswhenfoldingorunfoldingthehandle.

•Ifacableisdamaged,contactanAuthorizedServiceDealer.

17

1.Holdthehandlewhiledisengagingthehandlelockstoavoidpinchingyourhands.

2.Disengagethehandlelocksuntilyoucanmovetheupperhandlefreely(AofFigure19)

3.Foldthehandleforwardtothefullyforwardposition(BofFigure19).

Important:Routethecablestotheoutsideofthehandlelocksasyoufoldthehandle.

Figure19

4.Tounfoldthehandle,referto1UnfoldingtheHandle(page5).

g334367

StoringtheMachineinthe
Vertical-StowPosition

Duringthemowingseasonorintheoff-season,you
canstoreyourmachineintheverticalpositionto
minimizestoragespace.

DANGER

Fuelisextremelyammableandexplosive.A
reorexplosionfromfuelcanburnyouand
others.

•Storingthemachineintheverticalposition
whenthereistoomuchfuelinthefueltank
maycausefueltoleakfromthefueltank.
Fuelisextremelyammableandexplosive.
Areorexplosionfromfuelcanburnyou
andothers.

•Storethemachineintheverticalposition
onlywhentheleveloffuelinthefueltank
isnohigherthanwhatisrecommendedin
thisOperator’sManual.

WARNING

Foldingorunfoldingthehandleimproperly
candamagethecables,causinganunsafe
operatingcondition.

•Donotdamagethecableswhenfoldingor
unfoldingthehandle.

•Ifacableisdamaged,contactan
AuthorizedServiceDealer.

1.Ensurethattheleveloffuelinthefueltankisno
higherthanwhatisrecommendedbytheengine
manufacturer;refertotheenginemanufacturer’s
decalontheengine(Figure20).

Note:Ifthereistheleveloffuelinthefuel

tankistoohigh,drainthefuelfromthefueltank
intoanapprovedfuelcontaineruntilitisator
belowthelevelrecommendedbytheengine
manufacturer.

•Donotstorethemachineinaposition
thatisbeyondthevertical(90°)position;
otherwise,fuelmayescapefromthefuel
tank.

•Donottransportthemachineinthe
vertical-stowposition.

•Donotattempttostartthemachineinthe
vertical-stowposition.

•Donotattempttostoreanymachinewith
fuelandoilinthevertical-stowposition
thatisnotdesignedforthatpurpose.

decal133-8198

Figure20

2.Ensurethatthecutting-heightsettingonthe
machineis92mm(3-5/8inches)orlower.If
itisnot,lowerit;refertoAdjustingtheHandle

Height(page11).

3.Disengagethehandlelocks(Figure21).

18

Figure21

g186012

1.Handlelockdisengaged
positions

2.Handlelockengaged
position

4.Foldthehandlefullyforward(Figure21).

Important:Routethecablestotheoutside

ofthehandleknobsasyoufoldthehandle.

5.Engagethehandlelocks.

6.Liftthefrontofthemachinebythehandleand
moveitintoastoragespace(Figure22).

Figure22

g186013

19

Maintenance

RecommendedMaintenanceSchedule(s)

MaintenanceService

Interval

Beforeeachuseordaily

Aftereachuse

Every25hours

Yearly

Yearlyorbeforestorage

MaintenanceProcedure

•Checktheengine-oillevelandaddoilasneeded.

•Ensurethattheengineshutsoffwithin3secondsafterreleasingtheblade-control
bar.

•Cleangrassclippingsanddirtfromunderthemachine.

•Servicetheairlter;serviceitmorefrequentlyindustyoperatingconditions.

•Replacetheairlter;replaceitmorefrequentlyindustyoperatingconditions.

•Changetheengineoil(ifdesired).

•Replacethebladeorhaveitsharpened(morefrequentlyiftheedgedullsquickly).

•Cleantheenginebyremovingdirtanddebrisfromitstopandsides;cleanitmore
frequentlyindustyoperatingconditions.

•Emptythefueltankbeforerepairsasdirectedandbeforeyearlystorage.

Important:Refertoyourenginemanualforadditionalmaintenanceprocedures.

MaintenanceSafety

•Alwaysshutoffthemachine,waitforallmoving

partstostop,andallowthemachinetocoolbefore
adjusting,servicing,cleaning,orstoringit.

•Disconnectthespark-plugwirefromthesparkplug

beforeperforminganymaintenanceprocedure.

•Wearglovesandeyeprotectionwhenservicing

themachine.

•Thebladeissharp;contactingthebladecanresult

inseriouspersonalinjury .Weargloveswhen
servicingtheblade.Donotrepairoralterthe
blade(s).

•Nevertamperwithsafetydevices.Checktheir

properoperationregularly .

•Tippingthemachinemaycausethefueltoleak.

Fuelisammableandexplosive,andcancause
personalinjury.Runtheenginedryorremovethe
fuelwithahandpump;neversiphonthefuel.

1.Spark-plugwire

•Toensureoptimumperformanceofthemachine,

useonlygenuineTororeplacementpartsand
accessories.Replacementpartsandaccessories
madebyothermanufacturerscouldbedangerous,
andsuchusecouldvoidtheproductwarranty.

3.Afterperformingthemaintenanceprocedure(s),

PreparingforMaintenance

1.Shutofftheengineandwaitforallmovingparts
tostop.

2.Disconnectthespark-plugwirefromthespark
plug(Figure23).

g027455

Figure23

connectthespark-plugwiretothesparkplug.

Important:Beforetippingthemachineto

changetheoilorreplacetheblade,allowthe
fueltanktorundrythroughnormalusage.If
youmusttipthemachinepriortorunning
outoffuel,useahandfuelpumptoremove
thefuel.Alwaystipthemachineontoits
side,withthedipstickdown.

20

ServicingtheAirFilter

ServiceInterval:Every25hours

Yearly

1.Unclipthetopoftheair-ltercover(Figure24).

*Thereisresidualoilinthecrankcaseafteryoudrain
theoil.Donotpourtheentirecapacityofoilintothe
crankcase.Fillthecrankcasewithoilasdirectedin
thefollowingsteps.

1.Movethemachinetoalevelsurface.

2.RefertoPreparingforMaintenance(page20).

3.Removethedipstickbyrotatingthecap
counterclockwiseandpullingitout(Figure25).

Figure24

1.Clip3.Airlter

2.Air-ltercover

2.Removetheairlter(Figure24).

3.Inspecttheairlter.

Note:Iftheairlterisexcessivelydirty ,replace

itwithanewlter.Otherwise,gentlytaptheair
lteronahardsurfacetoloosendebris.

4.Installtheairlter.

5.Usethecliptoinstalltheair-ltercover.

ChangingtheEngineOil

ServiceInterval:Y early

Changingtheengineoilisnotrequired,butif
youwanttochangetheoil,usethefollowing
procedure.

Note:Runtheengineafewminutesbeforechanging

theoiltowarmit.Warmoilowsbetterandcarries
morecontaminants.

g334162

Figure25

1.Full3.Low

2.High

g201460

4.Tipthemachineontoitsside(sothattheair
lterisup)todraintheusedoilfromtheoil-ll
tube(Figure26).

g027457

Figure26

EngineOilSpecications

Engineoilcapacity

OilviscositySAE30orSAE10W-30

APIserviceclassicationSJorhigher

0.44L(15oz)*

detergentoil

5.Afterdrainingtheusedoil,returnthemachineto
theoperatingposition.

6.Carefullypourabout3/4oftheenginecapacity
ofoilintotheoil-lltube.

7.Wait3minutesfortheoiltosettleintheengine.

21

8.Wipethedipstickcleanwithacleancloth.

9.Insertthedipstickintotheoil-lltube,screwitin,
thenremovethedipstick.

10.Readtheoillevelonthedipstick(Figure25).

•Iftheoillevelonthedipstickistoolow,

carefullypourasmallamountofoilintothe
oil-lltube,wait3minutes,andrepeatsteps

8through10untiltheoillevelonthedipstick

iscorrect.

•Iftheoillevelonthedipstickistoohigh,

draintheexcessoiluntiltheoillevelonthe
dipstickiscorrect.

Important:Iftheoillevelintheengineistoo

lowortoohighandyouruntheengine,you
maydamagetheengine.

11.Installthedipstickintotheoil-lltubesecurely.

12.Recycletheusedoilproperly.

ReplacingtheBlade

ServiceInterval:Y early

Important:Youwillneedatorquewrenchto

installthebladeproperly.Ifyoudonothavea

torquewrenchorareuncomfortableperforming
thisprocedure,contactanAuthorizedService
Dealer.

Examinethebladewheneveryourunoutoffuel.Ifthe
bladeisdamagedorcracked,replaceitimmediately.
Ifthebladeedgeisdullornicked,haveitsharpened
andbalanced,orreplaceit.

WARNING

Thebladeissharp;contactingthebladecan
resultinseriouspersonalinjury.

g231389

Figure27

4.Removetheblade,savingallmountinghardware
(Figure27).

5.Installthenewbladeandallmountinghardware
(Figure28).

Weargloveswhenservicingtheblade.

1.RefertoPreparingforMaintenance(page20).

2.Tipthemachineontoitssidewiththeairlterup.

3.Useablockofwoodtoholdthebladesteady
(Figure27).

g231390

Figure28

Important:Positionthecurvedendsofthe

bladetopointtowardthemachinehousing.

6.Useatorquewrenchtotightenthebladebolt
to82N∙m(60ft-lb).

22

AdjustingtheSelf-Propel

Storage

Drive

ForSelf-Propel-DriveModelsOnly

Wheneveryouinstallanewself-propelcableorif
theself-propeldriveisoutofadjustment,adjustthe
self-propeldrive.

1.Turntheadjustmentnutcounterclockwiseto
loosenthecableadjustments(Figure29).

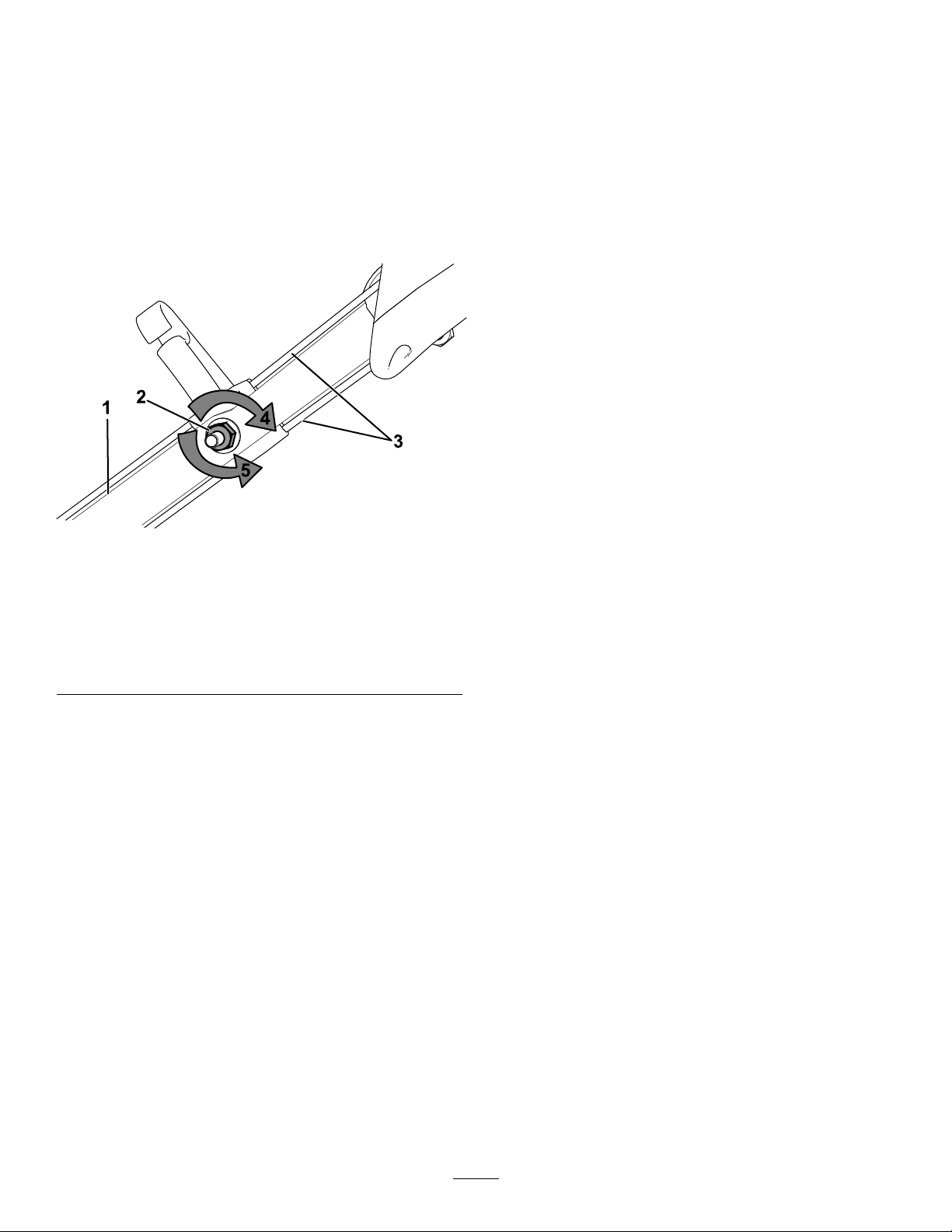

Figure29

1.Handle(leftside)

2.Adjustmentnut5.Turnthenut

3.Self-propel-drivecables

4.Turnthenutclockwiseto
tightentheadjustment.

counterclockwiseto
loosentheadjustment.

Storethemachineinacool,clean,dryplace.

StorageSafety

Alwaysshutoffthemachine,waitforallmoving
partstostop,andallowthemachinetocoolbefore
adjusting,servicing,cleaning,orstoringit.

PreparingtheMachinefor
Storage

1.Onthelastrefuelingoftheyear,addfuel
stabilizer(suchasToroPremiumFuel
Treatment)tothefuelasdirectedonthelabel.

2.Disposeofanyunusedfuelproperly .Recycle
itaccordingtolocalcodesoruseitinyour
automobile.

Important:Oldfuelinthefueltankisthe

leadingcauseofhardstarting.Donotstore
thefuelwithoutfuelstabilizermorethan

g338544

30days,anddonotstorestabilizedfuel
beyondthedurationrecommendedbythe
fuel-stabilizermanufacturer.

3.Runthemachineuntiltheengineshutsofffrom
runningoutoffuel.

4.Starttheengineagainandallowittorununtil
itshutsoff.Whenyoucannolongerstartthe
engine,itissufcientlydry.

2.Adjustthetensiononthecables(Figure29)by
pullingthembackorpushingthemforwardand
holdingthatposition.

Note:Pushthecablestowardtheengineto

increasethetraction;pullthecablesawayfrom
theenginetodecreasethetraction.

3.Turntheadjustmentnutclockwisetotightenthe
cableadjustments.

Note:Tightenthenutrmlywithasocketor

wrench.

5.Disconnectthewirefromthesparkplugand
connectthewiretotheretainingpost(if
equipped).

6.Removethesparkplug,add30ml(1oz)of
engineoilthroughthespark-plughole,andpull
thestarterropeslowlyseveraltimestodistribute
oilthroughoutthecylindertopreventcylinder
corrosionduringtheoff-season.

7.Looselyinstallthesparkplug.

8.Tightenallnuts,bolts,andscrews.

RemovingtheMachine
fromStorage

1.Checkandtightenallfasteners.

2.Removethesparkplugandspintheengine
rapidlybypullingtherecoil-starthandletoblow
theexcessoilfromthecylinder.

3.Installthesparkplugandtightenitwithatorque
wrenchto20N∙m(15ft-lb).

23

4.Performanymaintenanceprocedures;referto

Maintenance(page20).

5.Checktheengine-oillevel;refertoCheckingthe

Engine-OilLevel(page11).

6.Fillthefueltankwithfreshfuel;refertoFilling

theFuelT ank(page10).

7.Connectthewiretothesparkplug.

24

Notes:

Notes:

EEA/UKPrivacyNotice

Toro’sUseofY ourPersonalInformation

TheToroCompany(“Toro”)respectsyourprivacy.Whenyoupurchaseourproducts,wemaycollectcertainpersonalinformationaboutyou,eitherdirectly
fromyouorthroughyourlocalT orocompanyordealer .Torousesthisinformationtofullcontractualobligations-suchastoregisteryourwarranty,
processyourwarrantyclaimortocontactyouintheeventofaproductrecall-andforlegitimatebusinesspurposes-suchastogaugecustomer
satisfaction,improveourproductsorprovideyouwithproductinformationwhichmaybeofinterest.T oromayshareyourinformationwithoursubsidiaries,
afliates,dealersorotherbusinesspartnersinconnectiontheseactivities.Wemayalsodisclosepersonalinformationwhenrequiredbylaworin
connectionwiththesale,purchaseormergerofabusiness.Wewillneversellyourpersonalinformationtoanyothercompanyformarketingpurposes.

RetentionofyourPersonalInformation

Torowillkeepyourpersonalinformationaslongasitisrelevantfortheabovepurposesandinaccordancewithlegalrequirements.Formoreinformation
[e-mail].

Toro’sCommitmenttoSecurity

YourpersonalinformationmaybeprocessedintheUSoranothercountrywhichmayhavelessstrictdataprotectionlawsthanyourcountryofresidence.
Wheneverwetransferyourinformationoutsideofyourcountryofresidence,wewilltakelegallyrequiredstepstoensurethatappropriatesafeguardsare
inplacetoprotectyourinformationandtomakesureitistreatedsecurely.

AccessandCorrection

Youmayhavetherighttocorrectorreviewyourpersonaldata,orobjecttoorrestricttheprocessingofyourdata.T odoso,pleasecontactusbyemail
[e-mail]ewayinwhichT orohashandledyourinformation,weencourageyoutoraisethisdirectlywithus.
PleasenotethatEuropeanresidentshavetherighttocomplaintoyourDataProtectionAuthority.

374-0282RevC
