Page 1

Form No. 3329-694

53 cm Super Recycler



Walk Power Lawn Mower

Model No. 20781—Serial No. 230000001 and Up

Operator ’s Manual

Original Instructions (GB)

Page 2

This spark ignition system complies with Canadian ICES-002.

Ce système d’allumage par étincelle de véhicule est conforme à la norme NMB-002 du Canada.

Page

General Information 22. . . . . . . . . . . . . . . . . . . . . . .

Removing From Storage 22. . . . . . . . . . . . . . . . . . .

Accessories 22. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Troubleshooting 23. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Contents

Introduction 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Safety 3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

General Lawn Mower Safety 3. . . . . . . . . . . . . . . .

Sound Pressure Level 5. . . . . . . . . . . . . . . . . . . . . .

Sound Power Level 5. . . . . . . . . . . . . . . . . . . . . . .

Vibration Level 5. . . . . . . . . . . . . . . . . . . . . . . . . . .

Safety and Instruction Decals 6. . . . . . . . . . . . . . . .

Setup 6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installing the Handle 6. . . . . . . . . . . . . . . . . . . . . .

Installing the Starter Rope 7. . . . . . . . . . . . . . . . . .

Installing the Discharge Tunnel Plug 7. . . . . . . . . .

Before Starting 8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Filling the Crankcase with Oil 8. . . . . . . . . . . . . . .

Filling the Fuel Tank with Gasoline 8. . . . . . . . . . .

Reviewing the Maintenance Schedule 9. . . . . . . . .

Operation 9. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Controls 9. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Starting the Engine 9. . . . . . . . . . . . . . . . . . . . . . . .

Stopping the Engine 10. . . . . . . . . . . . . . . . . . . . . . .

Using the Self-propel Drive 10. . . . . . . . . . . . . . . . .

Adjusting the Cutting Height 10. . . . . . . . . . . . . . . .

Using the Grass Bag 11. . . . . . . . . . . . . . . . . . . . . . .

Operating Tips 12. . . . . . . . . . . . . . . . . . . . . . . . . . .

Maintenance 14. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Recommended Maintenance Schedule 14. . . . . . . . .

Checking the Engine Oil Level 15. . . . . . . . . . . . . .

Cleaning the Underside of the

Lawn Mower Housing 15. . . . . . . . . . . . . . . . . . . .

Cleaning the Discharge Tunnel and Plug 16. . . . . . .

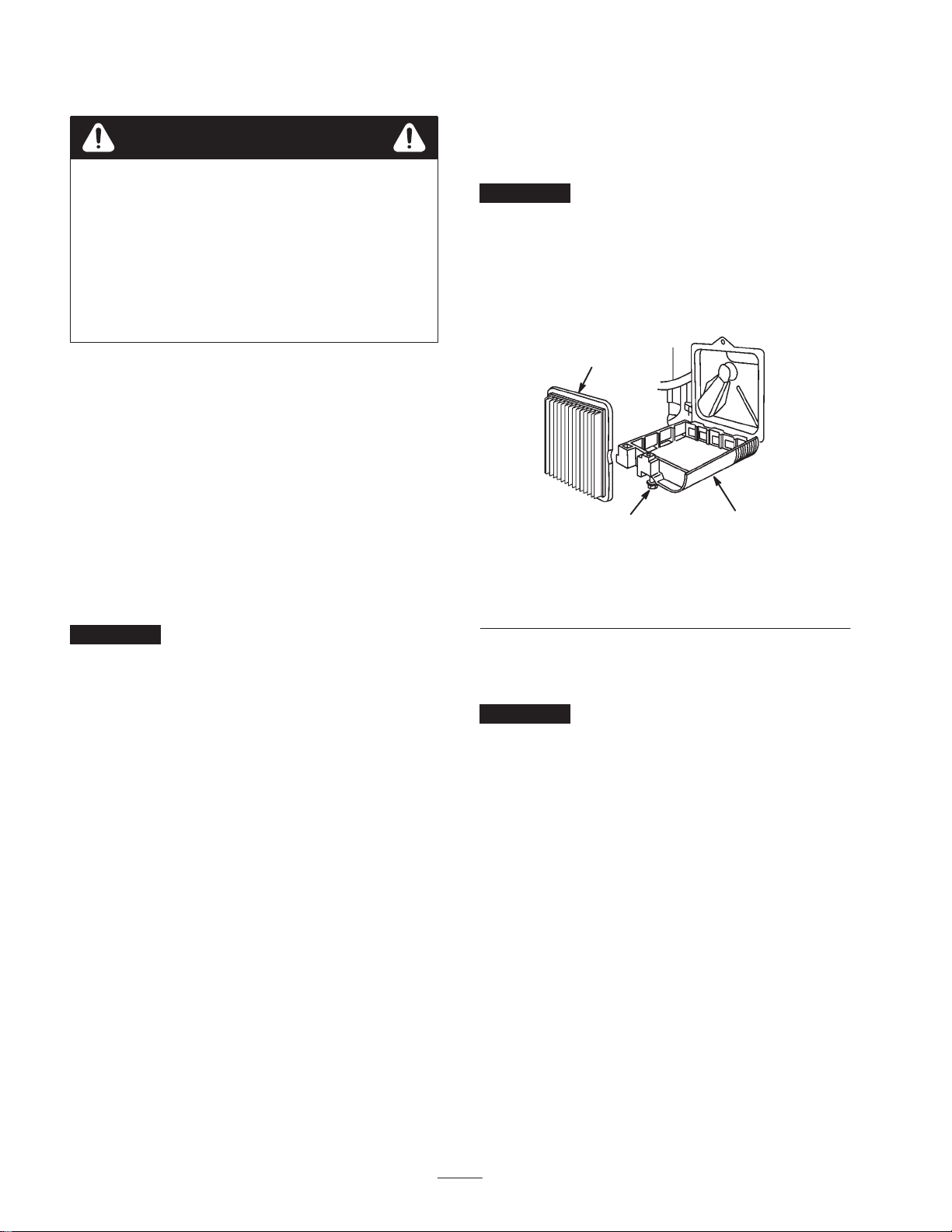

Replacing the Air Filter 16. . . . . . . . . . . . . . . . . . . .

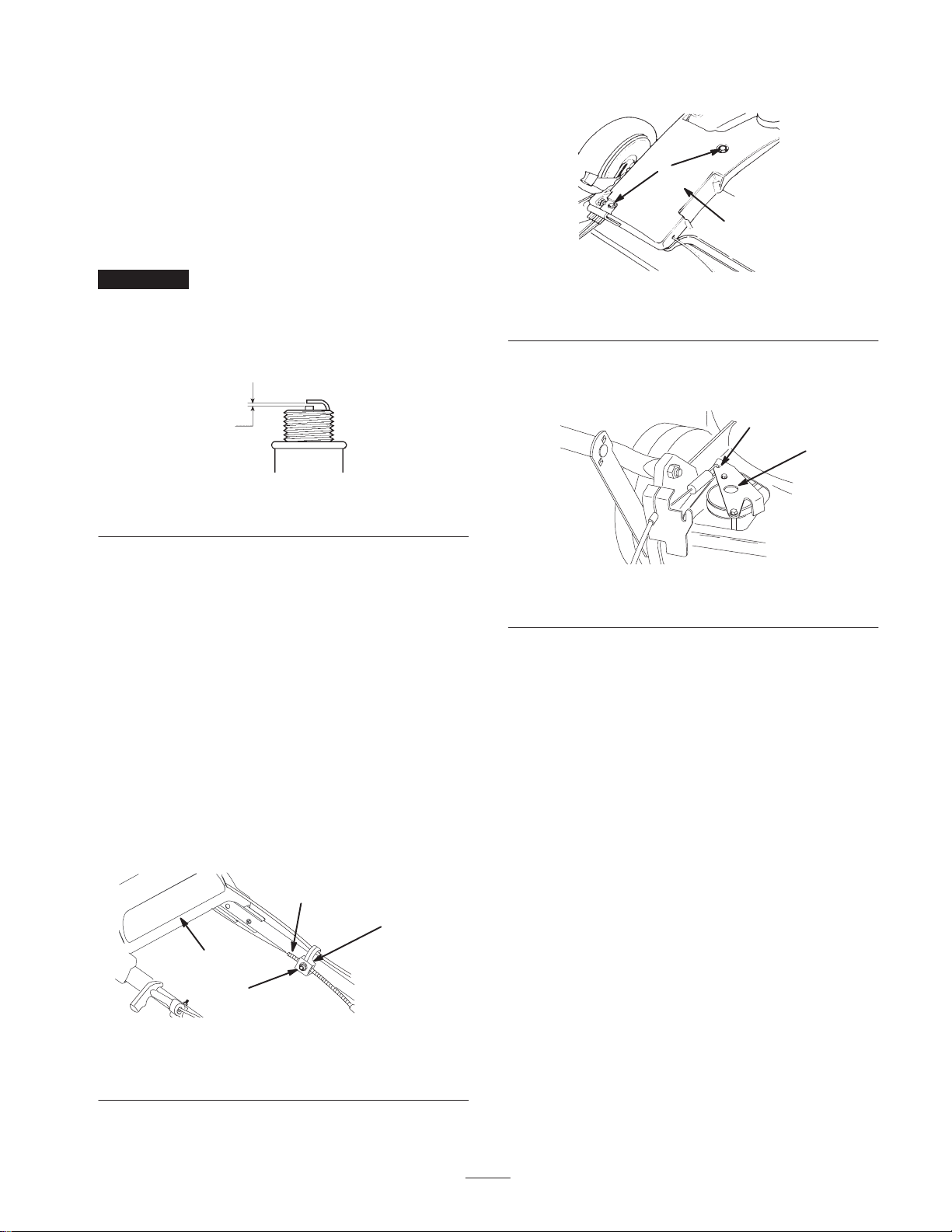

Servicing the Spark Plug 17. . . . . . . . . . . . . . . . . . .

Adjusting the Self-propel Drive Cable 17. . . . . . . . .

Lubricating the Wheels 18. . . . . . . . . . . . . . . . . . . . .

Changing the Engine Oil 18. . . . . . . . . . . . . . . . . . .

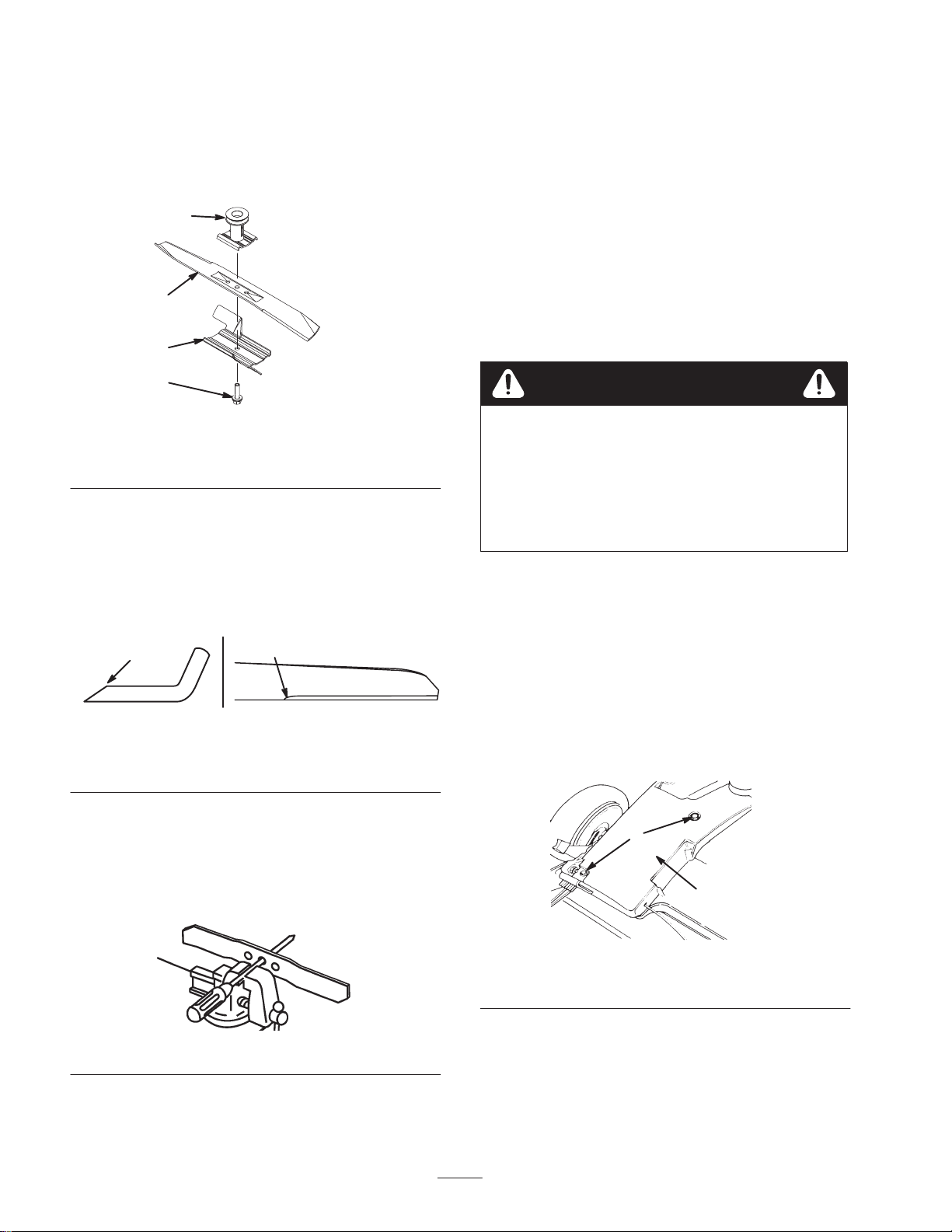

Maintaining the Blade 19. . . . . . . . . . . . . . . . . . . . .

Cleaning Under the Belt Cover 20. . . . . . . . . . . . . .

Cleaning the Cooling System 21. . . . . . . . . . . . . . . .

Emptying the Fuel Tank 21. . . . . . . . . . . . . . . . . . . .

Storage 21. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Preparing the Fuel System 21. . . . . . . . . . . . . . . . . .

Preparing the Engine 21. . . . . . . . . . . . . . . . . . . . . .

Introduction

Page

Read this manual carefully to learn how to operate and maintain your product properly. The information in this manual can help you and others avoid injury and product damage. Although Toro designs and produces safe products, you are responsible for operating the product properly and safely.

Whenever you need service, genuine Toro parts, or additional information, contact an Authorized Service Dealer or Toro Customer Service and have the model and serial numbers of your product ready. Figure 1 illustrates the location of the model and serial numbers on the product.

2302

Figure 1

1. Location of the model and serial numbers

Write the product model and serial numbers in the space below:

Model No.

Serial No.

This manual identifies potential hazards and has special safety messages that help you and others avoid personal injury and even death. Danger, Warning, and Caution are signal words used to identify the level of hazard. However, regardless of the hazard, be extremely careful.

Danger signals an extreme hazard that will cause serious injury or death if you do not follow the recommended precautions.

Warning signals a hazard that may cause serious injury or death if you do not follow the recommended precautions.

 2003 by The Toro Company 8111 Lyndale Avenue South Bloomington, MN 55420-1196

Printed in the USA

Page 3

Caution signals a hazard that may cause minor or moderate injury if you do not follow the recommended precautions.

• Never allow adults unfamiliar with these instructions to

operate the lawn mower.

This manual uses 2 other words to highlight information.

Important calls attention to special mechanical

information and Note: emphasizes general information worthy of special attention.

Safety

Toro designed and tested this lawn mower to offer reasonably safe service; however, failure to comply with

the following instructions may result in personal injury.

Warning

Engine exhaust contains carbon monoxide, an odorless, deadly poison that can kill you.

Do not run the engine indoors or in an enclosed area.

To ensure maximum safety, best performance, and to gain knowledge of the product, it is essential that you and any other operator of the lawn mower read and understand the contents of this manual before operating the lawn mower.

This is the safety alert symbol. It is used to alert you

to potential personal injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death.

Improperly using or maintaining this lawn mower can result in injury. To reduce the potential for injury, comply with these safety instructions.

General Lawn Mower Safety

The following instructions have been adapted from the ANSI/OPEI standard B71.1—1998 and ISO standard 5395:1990(E). Information or terminology specific to Toro lawn mowers is enclosed in parenthesis.

This lawn mower is capable of amputating hands and feet and of throwing objects. Failure to observe the following safety instructions could result in serious injury or death.

Training

• Read this operator’s manual carefully. Be thoroughly

familiar with the controls and the proper use of the lawn mower before starting it.

• Never allow children to operate the lawn mower. Local

regulations may restrict the age of the operator.

• Never mow while people (especially children) or pets

are nearby. Stop the lawn mower if anyone enters the area.

• Tragic accidents can occur if the operator is not alert to

the presence of children. Children are often attracted to the lawn mower and the mowing activity. Never assume that children will remain where you last saw them.

• Keep children out of the mowing area and under the

watchful care of a responsible adult.

• Be alert and turn the lawn mower off if children enter

the area.

• Use extra care when approaching blind corners, shrubs,

trees, or other objects that may obscure vision.

• Keep in mind that the operator or user is responsible for

accidents or hazards occurring to other people or their property.

• See the manufacturer’s instructions for proper operation

and installation of accessories. Use only the accessories that are approved by the manufacturer.

Preparation

• Thoroughly inspect the area where you will use the

lawn mower, and remove all stones, sticks, wires, bones, and other foreign objects.

• While mowing, always wear substantial footwear and

long trousers.

• Do not operate the lawn mower when barefoot or

wearing open sandals.

• Always wear safety goggles or safety glasses with side

shields when operating the lawn mower.

• Warning: Gasoline is highly flammable. Take the

following precautions: – Store fuel in containers specifically designed for this

purpose.

– Refuel outdoors only and do not smoke while

refuelling.

– Add fuel before starting the engine. Never remove

the cap of the fuel tank or add gasoline while the engine is running or when the engine is hot.

– If gasoline is spilled, do not attempt to start the

engine. Move the lawn mower away from the area of spillage to avoid creating any source of ignition

until the gasoline vapors have dissipated. – Replace all fuel tank and container caps securely. – If you must drain the fuel from the fuel tank, do it

outdoors.

Page 4

• Replace faulty mufflers.

• Stop the engine and disconnect the spark-plug wire:

• Before using, always visually inspect the blades, blade

bolts, and cutter assembly for wear or damage. Replace worn or damaged blades and bolts in sets to preserve balance.

• On multibladed lawn mowers, use care as rotating one

blade can cause the other blades to rotate.

Operation

• Do not operate the engine in a confined space where

dangerous carbon monoxide fumes can collect.

• Mow only in daylight or in good artificial light.

• Always be sure of your footing on slopes.

• Walk; never run.

• Keep a firm hold on the handle.

• For wheeled rotary lawn mowers, mow across the face

of slopes, never up and down.

• Exercise extreme caution when changing the direction

on slopes.

• Do not mow excessively steep slopes.

• Use extreme caution when reversing or pulling the lawn

mower toward you.

• Before and while moving backward, look behind and

down for small children.

• Stop the blade(s) if you must tilt the lawn mower for

transportation when crossing surfaces other than grass and when transporting the lawn mower to and from the area to be mowed.

• Never operate the lawn mower with damaged or

missing guards or shields, or without safety devices (such as deflectors and grass catchers) in place.

• Do not change the speed settings on the engine.

• Disengage all blade and drive clutches before starting

the engine.

• Start the engine carefully according to instructions and

with feet well away from the blade(s).

• Do not tilt the lawn mower when starting the engine,

unless you must tilt the lawn mower to start it. In this case, do not tilt it more than absolutely necessary and lift only the part which is away from the operator.

• Do not start the engine when standing in front of the

discharge chute.

• Do not put your hands or feet near or under rotating

parts. Keep clear of the discharge opening at all times.

• Never pick up or carry a lawn mower while the engine

is running.

– before clearing blockages or unclogging the chute; – before checking, cleaning, or working on the lawn

mower;

– after striking a foreign object. Inspect the lawn

mower for damage and make repairs before starting and operating the lawn mower; and

– if the lawn mower starts to vibrate abnormally

(check it immediately).

• Stop the engine:

– whenever you leave the lawn mower; and – before refuelling.

• Reduce the throttle setting during engine run-out and, if

the engine has a shutoff valve, turn the fuel off after mowing.

• Stop the blade(s) when crossing gravel drives, walks, or

roads.

• Shut the engine off and wait until the blade comes to a

complete stop before removing the grass catcher.

• Do not operate the lawn mower while under the

influence of alcohol or drugs.

• If the lawn mower should start to vibrate abnormally,

stop the engine and check immediately for the cause. Vibration is generally a warning of trouble.

Slopes are a major factor related to slip and fall accidents which can result in a severe injury. If you feel uneasy on a slope, do not mow it.

• Watch for holes, ruts, or bumps. Tall grass can hide

obstacles.

• Do not mow near drop-offs, ditches, or embankments.

You could lose your footing or balance.

• Do not mow on wet grass. Reduced footing could cause

slipping.

Maintenance and Storage

• Keep all nuts, bolts (especially blade attachment bolts),

and screws tight to ensure that the lawn mower is in safe working condition.

• Never store the lawn mower with gasoline in the tank

inside a building where fumes may reach an open flame or spark.

• Allow the engine to cool before storing the lawn mower

in any enclosure.

• To reduce the fire hazard, keep the engine, muffler,

battery compartment, and gasoline storage area free of grass, leaves, or excessive grease.

Page 5

• Check the grass catcher frequently for wear or

deterioration.

• Replace worn or damaged parts.

• Use extra care when handling gasoline; gasoline vapors

are explosive.

• Never tamper with safety devices. Check their proper

operation regularly.

• Keep the lawn mower free of grass, leaves, or other

debris buildup. Clean up any oil or fuel that spills.

• Stop and inspect the lawn mower if you strike an object.

Repair the lawn mower, if necessary, before starting the engine.

• Never attempt to make wheel height adjustments while

the engine is running.

• Grass catcher components are subject to wear, damage,

and deterioration, which could expose moving parts or allow objects to be thrown. Frequently check the components and replace them with the manufacturer’s recommended parts when necessary.

• Lawn mower blades are sharp and can cut. Wrap the

blade(s) or wear gloves, and use extra caution when servicing them.

• Do not change the speed settings on the engine.

• If you must drain the fuel from the fuel tank, do it

outdoors.

• To ensure the best performance and safety, purchase

only genuine Toro replacement parts and accessories.

• Maintain or replace safety and instruction decals when

necessary.

Sound Pressure Level

This lawn mower has an equivalent continuous A-weighted sound pressure at the operator ear of 84 dB(A), based on measurements of identical machines per Machine Safety Directive 98/37/EC procedures.

Sound Power Level

This lawn mower has a sound power level of 97 Lwa, based on measurements of identical machines per Noise Directive 2000/14/EC and amendments.

Vibration Level

This lawn mower has a maximum hand-arm vibration level of 6.6 m/s, based on measurement of identical machines per Machine Safety Directive 98/37/EC procedures.

Page 6

Safety and Instruction Decals

Safety decals and instructions are easily visible to the operator and are located near any area of potential danger. Replace any decal that is damaged or lost.

1. Warning—read the

Operator’s Manual.

2. Thrown object hazard—keep bystanders a safe distance from the machine.

3. Thrown object hazard, mower—keep the deflector in place.

Setup

93-6655

4. Cutting/dismemberment hazard of hand or foot, mower blade—stay away from moving parts.

5. Warning—stop the engine before leaving the machine.

Note: Determine the left and right sides of the machine from the normal operating position.

Installing the Handle

Warning

Folding or unfolding the handle improperly can pinch, stretch, or damage one or more of the cables. Any pinched, stretched, or damaged cable may cause an operational failure that results in an unsafe operating condition.

• Do not pinch, stretch, or damage the cables.

• Handle the cables with care when folding or

unfolding the handle.

• Do not use the lawn mower if one or more of the

cables are pinched, stretched, or damaged. Contact your Authorized Service Dealer.

1. Lay the upper handle on the ground behind the lawn

mower with the handle label facing up and the control cables routed between the handle mounting brackets.

2. Remove the 4 handle bolts (2 bolts have a flat cap and 2

have a contoured cap to fit the handle) and knobs from the lower handle (Fig. 2).

m-4272

Figure 2

1. Knob (2)

2. Lower handle

3. Flat-handle bolt (2)

4. Support bracket

3. Swing the lower handle back and the support brackets

up, aligning the brackets with the holes in the lower handle (Fig. 2).

4. Secure the lower handle to the support brackets with the

2 flat-handle bolts and 2 knobs, using the height adjustment holes on the brackets that best fit your height (Fig. 2).

Note: You can adjust the handle height by installing each handle bolt and knob through one of the other holes in each support bracket.

Page 7

5. Slide the upper handle section ends over the lower

handle so the sections nest together (Fig. 3).

Installing the Discharge Tunnel Plug

m-4204

Figure 3

1. Knobs

2. Contoured-handle bolt (2)

3. Upper handle

4. Lower handle

5. Cables

6. Ensure that the cables are routed below and behind the

lower handle as illustrated in Figure 3.

7. Secure the upper handle to the lower handle using 2

contoured-handle bolts and 2 knobs (Fig. 3).

Installing the Starter Rope

Pull the starter rope through the rope guide on the handle (Fig. 4).

1. Stop the engine and wait for all moving parts to stop.

2. Open the discharge door by moving it rearward (Fig. 5).

1914

Figure 5

1. Discharge door handle 2. Discharge tunnel plug

3. Hold the discharge door handle to prevent the

spring-loaded door from closing while you insert the discharge tunnel plug.

4. Rotate the plug clockwise slightly while inserting it

(Fig. 5). Note: Ensure that the arrow on the plug decal points

upward.

Figure 4

1. Rope guide 2. Starter rope

5. Push the plug all the way in until the spring clip on the

bottom of the plug clicks into place (Fig. 6).

210

1915

Figure 6

1. Spring clip

6. Release the discharge door handle to lock the top of the

plug.

Page 8

Before Starting

Filling the Crankcase with Oil

The crankcase can hold 20 ounces (0.59 liters) of oil. Use only high-quality, SAE 30 weight detergent oil that has the American Petroleum Institute (API) service classification SF, SG, SH, or SJ.

Before each use, ensure that the oil level is between the Add and the Full marks on the dipstick (Fig. 7).

7. If the oil level reading is below the Add mark on the dipstick, slowly pour only enough oil into the filler hole to raise the oil level to the Full mark on the dipstick.

Important Do not overfill the crankcase with oil and

run the engine; engine damage will result. Drain the excess oil until the oil level on the dipstick reads Full.

8. Insert the dipstick into the filler neck and rotate the cap clockwise until it is tight.

Filling the Fuel Tank with Gasoline

For best results, use clean, fresh, lead-free gasoline with an octane rating of 87 or higher. To ensure freshness, purchase only the quantity of gasoline that you expect to use in 30 days. Unleaded gasoline burns cleaner, extends engine life, and promotes good starting. You may use leaded gasoline if unleaded gasoline is not available.

Important Do not add oil to the gasoline. Important Do not use methanol, gasoline containing

methanol, gasohol containing more than 10% ethanol, premium gasoline, or white gas. Using these fuels can damage the engine’s fuel system.

Figure 7

1. Dipstick

2. Add mark

3. Full mark

To add oil:

1. Move the lawn mower to a level surface.

2. Clean around the dipstick (Fig. 7).

3. Remove the dipstick by rotating the cap

counterclockwise and pulling it out.

4. Wipe the dipstick clean with a clean cloth.

5. Fully insert the dipstick into the filler neck, then remove

it.

Note: To ensure an accurate oil level reading, you must fully install the dipstick.

6. Read the oil level on the dipstick (Fig. 7).

4. Fuel tank cap

5. Spark-plug wire

1626

Important Do not use gasoline that is more than 30

days old.

Danger

In certain conditions, gasoline is extremely flammable and highly explosive. A fire or explosion from gasoline can burn you and others and can damage property.

• Fill the fuel tank outdoors, in an open area, and

when the engine is cold. Wipe up any gasoline that spills.

• Do not fill the fuel tank completely full. Add

gasoline to the fuel tank until the level is 1/4 to 1/2 in. (6 to 13 mm) below the bottom of the filler neck. This empty space in the tank allows the gasoline to expand.

• Never smoke when handling gasoline, and stay

away from an open flame or where a spark may ignite the gasoline fumes.

• Store gasoline in an approved fuel container and

keep it out of the reach of children.

• Never buy more than a 30-day supply of

gasoline.

Page 9

Danger

Operation

When fueling, under certain circumstances, a static charge can develop, igniting the gasoline. A fire or explosion from gasoline can burn you and others and damage property.

• Always place gasoline containers on the ground

and away from your vehicle before filling.

• Do not fill gasoline containers inside a vehicle or

on a truck or trailer bed because interior carpets or plastic truck bed liners may insulate the container and slow the loss of any static charge.

• When practical, remove gasoline-powered

equipment from the truck or trailer and refuel the equipment with its wheels on the round.

• If this is not possible, then refuel such

equipment on a truck or trailer from a portable container, not from a gasoline dispenser nozzle.

• If you must use a gasoline dispenser nozzle, keep

the nozzle in contact with the rim of the fuel tank or container opening at all times until fueling is complete.

Use a fuel stabilizer/conditioner regularly during operation and storage. A stabilizer/conditioner cleans the engine during operation and prevents gum-like varnish deposits from forming in the engine during periods of storage.

Note: Determine the left and right sides of the machine from the normal operating position.

Each time before you mow, ensure that the self-propel drive (self-propel model only) and the blade control bail operate properly. When you release the blade control bail, the engine and the self-propel drive should stop. If they do not, contact an Authorized Service Dealer.

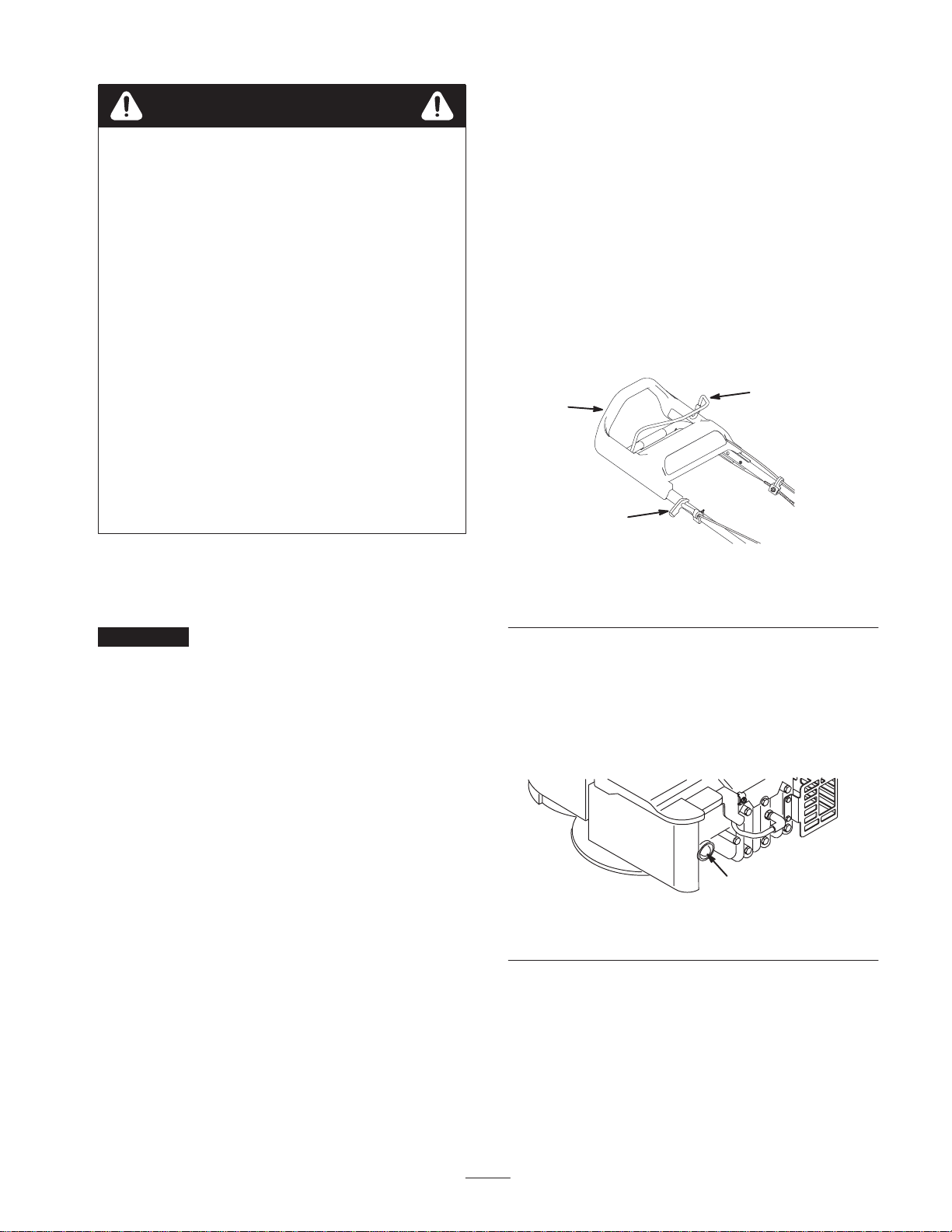

Controls

The starter handle and the blade control bail are on the upper handle as shown in Figure 8.

Figure 8

1. Blade control bail

2. Upper handle

m-4207

3. Starter handle

Important Do not use fuel additives other than a fuel

stabilizer/conditioner. Do not use fuel stabilizers with an alcohol base such as ethanol, methanol, or isopropanol.

1. Clean around the fuel tank cap (Fig. 7).

2. Remove the cap from the tank.

3. Fill the fuel tank with unleaded gasoline to within 1/4 to 1/2 in. (6 to 13 mm) from the top of the tank. Do not fill into the filler neck.

4. Install the fuel tank cap and wipe up any spilled

gasoline.

Reviewing the Maintenance Schedule

Review the Recommended Maintenance Schedule on page 14. You may need to perform one or more additional procedures before or soon after you begin operating the lawn mower.

Starting the Engine

1. Connect the wire to the spark plug (Fig. 7).

2. Push in the primer 3 times, waiting one second between

each push (Fig. 9).

13441

Figure 9

1. Primer

Note: If the temperature is 55F (13C) or below, push in the primer 5 times, waiting one second between each push.

Note: Do not use the primer to start a warm engine after a brief shutdown. However, cool weather may require you to prime the engine again.

Page 10

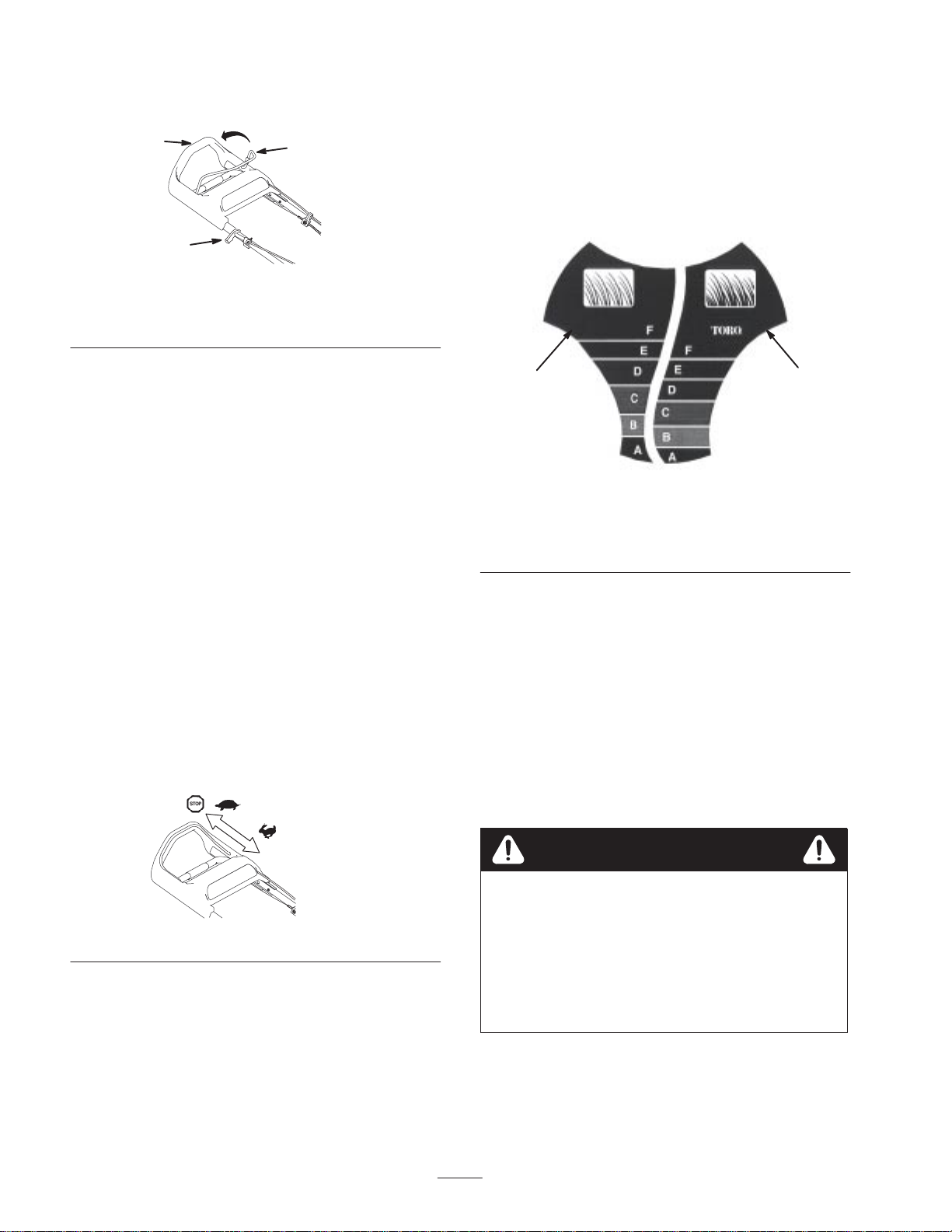

3. Hold the blade control bail against the upper handle

(Fig. 10).

Adjusting the Cutting Height

The SmartWheel has 2 cutting scales: Sparse/Normal and Lush—to ensure the best cutting height setting in any mowing condition (Fig. 12). Use the Sparse/Normal scale during the warm summer season for the majority of your mowing. The Lush scale is for thick, moist, and succulent grass that grows most often in the spring.

Figure 10

1. Blade control bail

2. Upper handle

4. Pull the starter handle lightly until you feel resistance,

then pull it sharply (Fig. 10). Allow the rope return to the handle slowly.

Note: Allow the engine to warm up for at least one minute; longer in cooler temperatures.

Note: If the engine fails to start after 3 attempts, repeat steps 2 through 4.

3. Starter handle

m-4207

Stopping the Engine

Release the blade control bail. Both the engine and the blade should stop. If they do not stop properly, contact your Authorized Service Dealer.

Using the Self-propel Drive

To operate the self-propel drive, simply walk forward with your hands on the upper handle and your elbows at your sides, and the lawn mower will automatically keep pace with you. The faster you walk, the farther the handle will slide and the faster the lawn mower will propel (Fig. 11).

Figure 12

1. Sparse/normal grass cutting scale

Toro recommends the following:

• Cut the grass at the D, E, or F settings or keep the grass between 2 to 3 inches (5.1 to 7.6 cm) high.

• Do not cut below the D setting unless the grass is sparse or it is late fall when grass growth begins to slow down. When you cut long grass, use a higher cutting height setting and walk slower; then cut the grass again at a normal setting. Mowing the grass when it is too long can plug the lawn mower and cause the engine to stall.

Note: The SmartWheel calculates the proper setting to ensure that you cut no more than a third of the grass blade.

2. Lush grass cutting scale

m-4206

Figure 11

To slow down the drive, simply slow your walking speed; to stop the drive, stop walking (Fig. 11).

Note: If, when backing up after self-propelling, the lawn mower does not roll backward freely, nudge the lawn mower forward about an inch without engaging the self-propel drive, then pull the lawn mower backward.

Danger

Adjusting the cutting height levers could bring your hands into contact with a moving blade and result in serious injury.

• Stop the engine and wait for all movement to

stop before adjusting the cutting height.

• Do not put fingers under the housing when

adjusting the cutting height.

1. Stop the engine and wait for all moving parts to stop.

2. Move the lawn mower into the grass; stop moving the

lawn mower when the SmartWheel design on one of the rear wheels is upright (Fig. 12).

Page 11

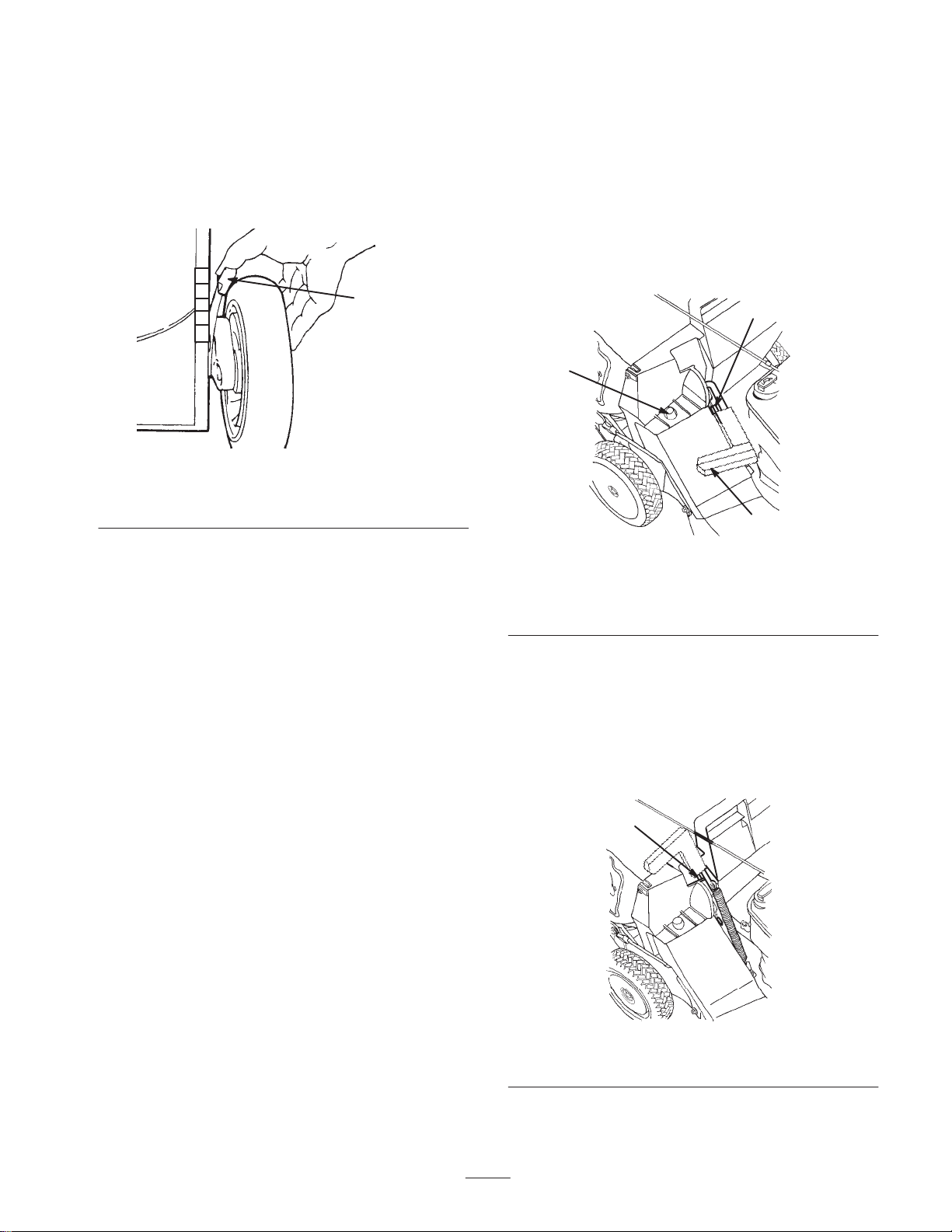

3. Use the SmartWheel design to compare the tips of the

grass blades to the letters on the wheel. The letter on the SmartWheel that matches the tips of the grass blades is the proper cutting height.

4. Squeeze the cutting height lever toward the wheel and

move it to the corresponding letter on the lawn mower housing (Fig. 13).

A B

D EC

A = 1 in. (25 mm) B = 1-1/2 in. (38 mm) C = 2 in. (51 mm) D = 2-1/2 in. (64 mm) E = 3 in. (76 mm)

788

Figure 13

1. Cutting height lever

Note: For easier adjustment, lift up the housing so that the wheel is off the ground. Do not put your fingers under

the housing when you lift up the lawn mower.

5. Ensure that the pin on the cutting height lever engages

the slot in the housing.

Using the Grass Bag

Occasionally, you may want to use the grass bag for bagging lush grass or collecting leaves.

Installing the Grass Bag

1. Stop the engine and wait for all moving parts to stop.

2. Ensure that the discharge door handle is fully forward

and that the pin is contacting the catch (Fig. 14).

1. Bag frame on retaining post

2. Pin contacting catch

Figure 14

3. Handle fully forward and discharge door closed

1912

6. Adjust all the wheels to the same letter setting. Note: You can adjust the front wheels to 1/2 inch (1.3 cm).

Move the cutting height lever past the A setting and release the pin into the slot in the housing.

3. Slide the hole in the bag frame onto the retaining post

on the housing (Fig. 14).

4. Set the rear of the grass bag frame onto the lower

handle.

5. Pull the discharge door handle forward and then move it

rearward until the pin locks in the bag notch (Fig. 15).

1913

Figure 15

1. Pin locked in bag notch

Note: The discharge door in the lawn mower housing is now open.

Page 12

Mowing with the Grass Bag

Operating Tips

Warning

A worn grass bag could allow small stones and other similar debris to be thrown in the operator’s or bystander’s direction and result in serious personal injury or death to the operator or bystanders.

Check the grass bag frequently. If it is damaged, install a new Toro replacement bag.

Cut the grass until the bag is full.

Important Do not overfill the bag.

Removing the Grass Bag

1. Stop the engine and wait for all moving parts to stop.

2. Raise the discharge door handle and move it forward

until the locking pin contacts the catch (Fig. 14).

3. Grasp the handle at the front and the rear of the bag and

lift the bag off the lawn mower.

4. Gradually tip the bag forward to empty the clippings.

• Review the safety instructions and read this manual

carefully before operating the lawn mower.

• Clear the area of sticks, stones, wire, branches, and

other debris that the blade could hit and throw.

• Keep everyone, especially children and pets, away from

the area of operation.

• Avoid striking trees, walls, curbs, or other solid objects.

Never deliberately mow over any object.

• If the lawn mower strikes an object or starts to vibrate,

immediately stop the engine, disconnect the wire from the spark plug, and examine the lawn mower for damage.

• Maintain a sharp blade throughout the cutting season.

Periodically file down nicks on the blade.

• Replace the blade when necessary with an original Toro

replacement blade.

• Mow only dry grass or leaves. Wet grass and leaves

tend to clump on the yard and can cause the lawn mower to plug or the engine to stall.

Warning

5. To install the bag, refer to steps 3 through 5 of Installing

the Grass Bag earlier in this section.

Danger

If the discharge door does not close completely, the lawn mower could throw objects, causing serious personal injury or death.

If you cannot close the discharge door because the grass clippings clog the discharge area, stop the engine, wait for all moving parts to stop, and gently move the discharge door handle back and forth until you can close the discharge door completely. If you still cannot close the discharge door, remove the obstruction with a stick, not your hand.

Wet grass or leaves can cause serious injury if you slip and contact the blade.

Mow only in dry conditions.

• Clean the underside of the lawn mower deck after each

mowing. See Cleaning the Underside of the Lawn Mower Housing on page 15.

• Keep the engine in good running condition.

• Set the engine speed to the fastest position for the best

cutting results.

Warning

Operating a lawn mower with its engine running at a speed greater than the factory setting can cause the lawn mower to throw a part of the blade or engine into the operator’s or bystander’s area and result in serious personal injury or death.

• Do not change the engine speed setting.

• If you suspect the engine speed is faster than

normal, contact an Authorized Service Dealer.

• Clean the air filter frequently. Recycling stirs up more

clippings and dust which clogs the air filter and reduces engine performance.

Page 13

Cutting Grass

• Grass grows at different rates at different times of the

year. In the summer heat, it is best to cut grass at the C, D, or E cutting height settings. Cut only about a third of the grass blade at a time. Do not cut below the 2-inch (51 mm) setting unless the grass is sparse or it is late fall when grass growth begins to slow down.

• When cutting grass over 6 inches (15 cm) tall, first

mow at the highest cutting height setting and walk slower; then mow again at a lower setting for the best lawn appearance. If the grass is too long and the leaves clump on top of the lawn, the lawn mower may plug and cause the engine to stall.

• Alternate the mowing direction. This helps disperse the

clippings over the lawn for even fertilization.

If the finished lawn appearance is unsatisfactory, try one or more of the following:

• Sharpen the blade.

• Walk at a slower pace while mowing.

• Raise the cutting height on your lawn mower.

• Cut the grass more frequently.

• Overlap cutting swaths instead of cutting a full swath

with each pass.

• Set the cutting height on the front wheels one notch

lower than the rear wheels. For example, set the front wheels at the C setting and the rear wheels at the D setting.

Cutting Leaves

• After cutting the lawn, ensure that half of the lawn

shows through the cut leaf cover. You may need to make more than one pass over the leaves.

• For light leaf coverage, set all the wheels at the same

cutting height setting.

• If there are more than 5 inches (12.7 cm) of leaves on

the lawn, set the front cutting height one or 2 notches higher than the rear cutting height. This makes it easier to feed the leaves under the lawn mower deck.

• Slow down your mowing speed if the lawn mower does

not cut the leaves finely enough.

• If you mow over oak leaves, you can add lime to the

grass in the spring to reduce the acidity of the oak leaves.

Page 14

Maintenance

Note: Determine the left and right sides of the machine from the normal operating position.

Recommended Maintenance Schedule

Maintenance Service

Interval

Each Use

5 Hours

25 Hours

50 Hours

Maintenance Procedure

• Check the engine oil level. Refer to Checking the Engine Oil Level on page 15.

• Check the stopping time of the blade brake. The blade must stop within

3 seconds of releasing the bail; if it does not, contact an Authorized Service Dealer for repair.

• Remove grass clippings and dirt from under the housing. Refer to Cleaning the Underside of the Lawn Mower Housing on page 15.

• Clean the discharge tunnel and plug. Refer to Cleaning the Discharge Tunnel and Plug on page 16.

• Check the blade and the engine mounting fasteners. Tighten them if they are loose.

• Replace the air filter; replace it more frequently in dusty or dirty operating conditions. Refer to Replacing the Air Filter on page 16.

• Inspect the spark plug and replace it if necessary. Refer to Servicing the Spark Plug on page 17.

• Adjust the self-propel drive cable and grease the rear axle fittings. Refer to Adjusting the Self-propel Drive Cable on page 17 and to Lubricating the Wheels on page 18.

• Change the engine oil.

• Sharpen or replace the blade; maintain it more frequently if the edge dulls quickly

in rough or in sandy conditions. Refer to Maintaining the Blade on page 19.

• Check for leaks in the fuel system and/or a deteriorating fuel hose. Replace parts if necessary.

• Remove grass clippings and debris from under the belt cover. Refer to Cleaning under the Belt Cover on page 20.

1,2

Refer to Changing the Engine Oil on page 18.

100 Hours • Clean the cooling system. Refer to Cleaning the Cooling System on page 21.

Storage

Change the engine oil after the first 5 operating hours.

Change the engine oil after every 25 operating hours in dusty conditions or in high temperatures.

Important Refer to your engine operator’s manual for additional maintenance procedures.

• Empty the fuel tank before repairs as directed or before storage. Refer to Emptying the Fuel Tank on page 21.

Caution

If you leave the wire on the spark plug, someone could accidently start the engine and seriously injure you or other bystanders.

Disconnect the wire from the spark plug before you do any maintenance. Set the wire aside so that it does not accidentally contact the spark plug.

Page 15

Checking the Engine Oil Level

Before you use the lawn mower, ensure that the oil level is between the Add and the Full marks as shown on the dipstick (Fig. 7). If the oil level is below the Add mark, add oil. Refer to Filling the Crankcase with Oil on page 8.

Cleaning the Underside of the Lawn Mower Housing

Keep the underside of the lawn mower housing clean. Be especially careful to keep the kickers free of debris (Fig. 16).

4. Attach the coupling to the lawn mower washout fitting

(Fig. 17).

m-3044

Figure 17

1. Washout fitting 2. Hose

5. Turn the water on high.

6. Start the engine.

7. Let the lawn mower run for 2 minutes.

8. Stop the engine and wait for all moving parts to stop.

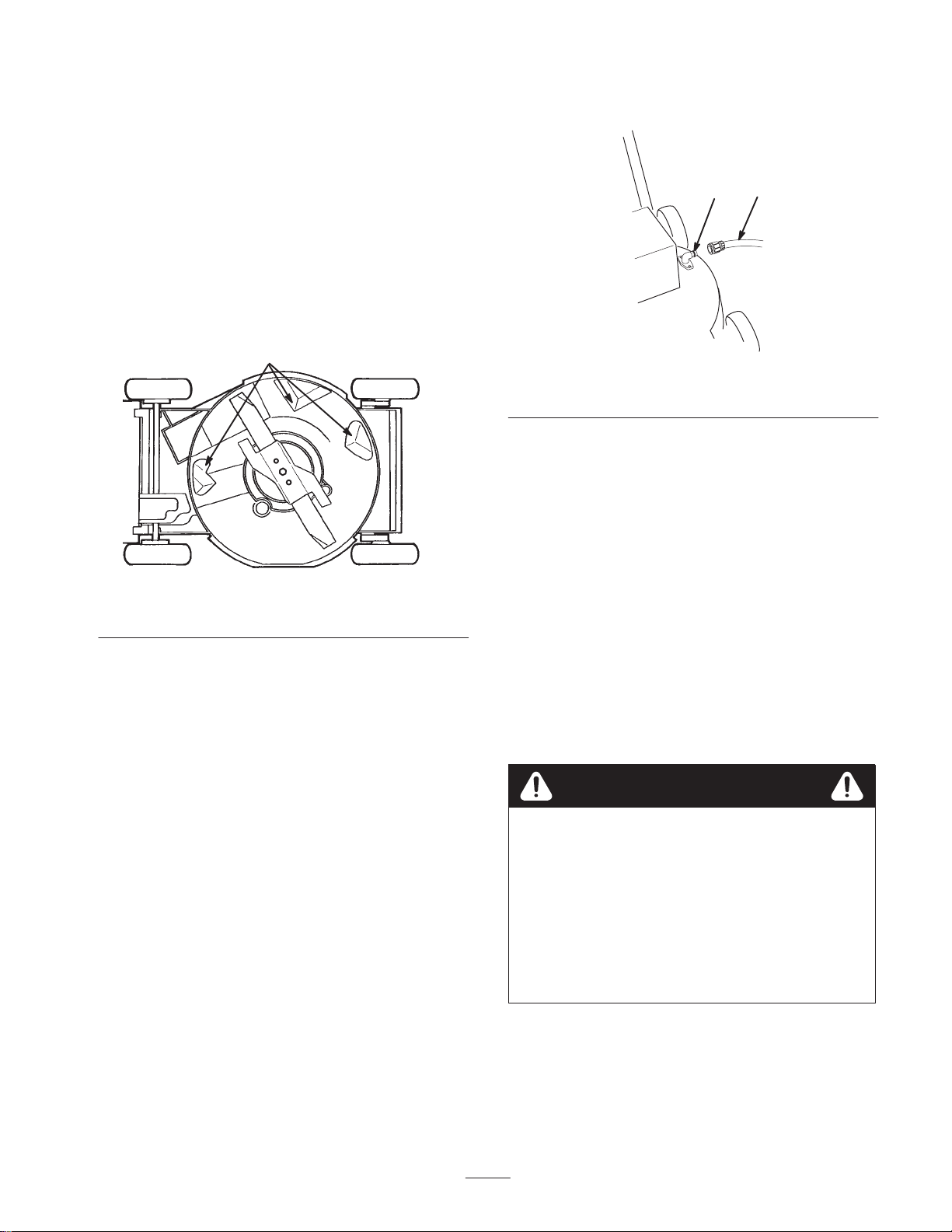

979

Figure 16

1. Kicker plates

Washing Method

1. Move the lawn mower onto a flat paved surface near a

water hose.

2. Remove the grass bag.

3. Attach a quick-disconnect coupling (sold separately) to

the end of the water hose.

9. Turn the water off.

10.Remove the coupling from the washout fitting.

11. Move the lawn mower to a dry area, and let the engine

run for one minute to dry out the lawn mower and its components.

12.Stop the engine and wait for all moving parts to stop. If the underside of the lawn mower deck has excessive

grass buildup, wait 30 minutes and repeat steps 3 through 12 above.

Warning

A broken or missing washout fitting could expose you and others to thrown objects or to the blade, causing injury or death.

• Replace a broken or missing washout fitting

immediately before using the lawn mower again.

• Plug any hole(s) in the lawn mower with bolts

and locknuts.

• Never put your hands or feet under the lawn

mower or through openings in the lawn mower.

Page 16

Scraping Method

Replacing the Air Filter

Warning

Tipping the lawn mower may cause the fuel to leak from the carburetor or the fuel tank. Gasoline is extremely flammable, highly explosive and under certain conditions can cause personal injury or property damage.

Avoid fuel spills by running the engine dry or removing gasoline with a hand pump; never siphon.

If washing does not remove all the debris from under the deck, tip the lawn mower and scrape it clean.

1. Remove the grass bag.

2. Disconnect the wire from the spark plug (Fig. 7).

3. Drain the gasoline from the fuel tank. Refer to steps 3

and 4 of Emptying the Fuel Tank on page 21.

4. If the grass bag is on the lawn mower, close the door in

the lawn mower housing and remove the grass bag.

5. Tip the lawn mower onto its left side (Fig. 16).

6. Remove the dirt and grass clippings with a hardwood or

plastic scraper. Avoid burrs and sharp edges.

Replace the air filter after every 25 operating hours; replace it more frequently when you operate the lawn mower in dusty or dirty conditions.

Important Do not operate the engine without the air

filter element; extreme engine damage will occur.

1. Stop the engine and wait for all moving parts to stop.

2. Disconnect the wire from the spark plug (Fig. 7).

3. Loosen the screw that secures the air filter cover to the

engine (Fig. 18).

1003

1. Air filter

2. Screw

Figure 18

3. Cover

Important Move the blade as little as possible to avoid

future starting problems.

7. Turn the lawn mower upright.

8. Connect the wire to the spark plug.

Cleaning the Discharge Tunnel and Plug

To ensure the best performance, clean the discharge tunnel and plug after each use. When the grass is thick and lush, clippings may collect on and around the plug, making it difficult to remove the plug.

Always ensure that the discharge tunnel door locks closed when you release the handle. If debris prevents the discharge door from locking closed, clean the inside of the discharge tunnel and the door thoroughly.

4. Tilt the air filter cover down and clean it thoroughly.

5. Remove and discard the old paper air filter (Fig. 18).

Important Do not try to clean a paper air filter.

6. Insert a new air filter.

7. Install the air filter cover.

8. Connect the wire to the spark plug.

Page 17

Servicing the Spark Plug

Check the spark plug after every 25 operating hours. Use a

Champion RJ19LM spark plug or equivalent.

1. Stop the engine and wait for all moving parts to stop.

2. Disconnect the wire from the spark plug (Fig. 7).

4. Remove the belt cover (Fig. 21).

3. Clean around the spark plug and remove it from the

cylinder head.

Important Replace a cracked, fouled, or dirty spark

plug. Do not clean the electrodes because grit entering the cylinder could damage the engine.

4. Set the gap on the new plug to 0.030 in. (0.76 mm)

(Fig. 19).

986

Figure 19

1. 0.030 in. (0.76 mm)

5. Install the spark plug and the gasket seal.

6. Torque the spark plug to 15 ft-lb (20 Nm).

7. Connect the wire to the spark plug.

Adjusting the Self-propel Drive

281

Figure 21

1. Belt cover 2. Bolts

5. Push the drive bracket down until it contacts the lawn

mower, then hold it in place (Fig. 22).

m-4273

Figure 22

1. Drive bracket 2. Push here

6. Pull the cable jacket down (toward the lawn mower) to

remove all the slack in the cable (Fig. 20).

Cable

Whenever you change the handle height, install a new self-propel cable, or the traction drive belt slips, adjust the self-propel drive cable.

1. Stop the engine and wait for all moving parts to stop.

2. Pull the upper handle back as far as possible.

3. Loosen the cable support nut (Fig. 20).

m-4205

1. Cable jacket

2. Cable support

Figure 20

3. Nut

4. Upper handle

7. While holding the cable jacket down, release the drive

bracket and tighten the nut on the cable support (Fig. 20).

8. Install the belt cover.

Page 18

Lubricating the Wheels

After every 25 operating hours or at the end of the season, lubricate the front and the rear wheels.

1. Apply 2 or 3 drops of light oil on the inside of the front

wheels and on the outside of all the wheel bolts.

2. Spin the wheels to distribute the oil into the bushings.

3. Wipe up any excess oil.

4. Move the rear wheel cutting height levers to the C

setting.

5. Wipe the grease fittings with a clean rag (Fig. 23).

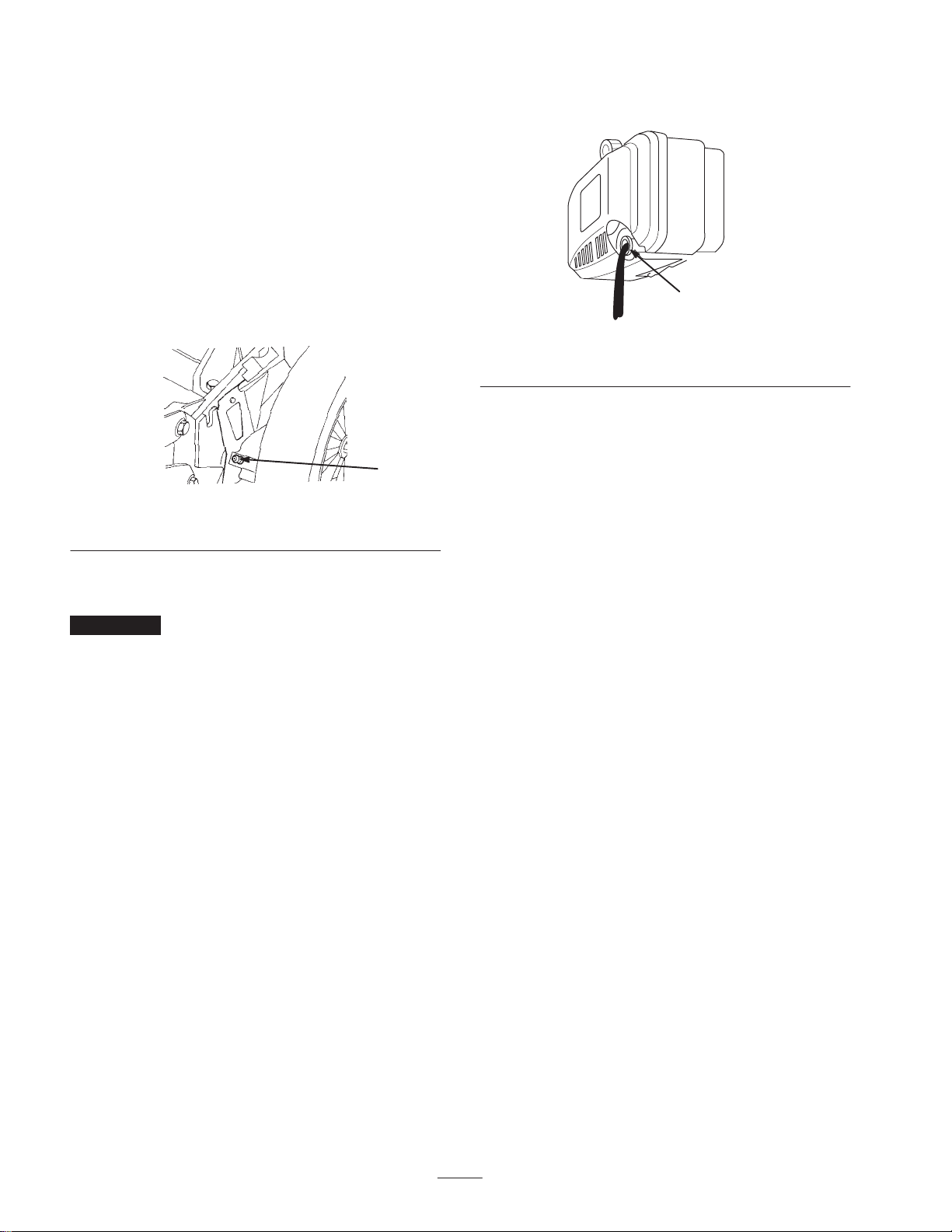

276

Figure 23

1. Grease fitting

6. Tip the lawn mower onto its left side, allowing the oil

to drain into the drain pan (Fig. 24).

Figure 24

1. Oil fill tube

7. Turn the lawn mower upright.

8. Fill the crankcase with fresh oil to the Full mark on the

dipstick. Refer to Filling the Crankcase with Oil on page 8.

9. Install the dipstick.

10.Wipe up any spilled oil.

m-1782

6. Install a grease gun onto each fitting and gently apply 2

or 3 pumps of #2 multi-purpose lithium base grease.

Important Applying grease using excess pressure may

damage the seals.

Changing the Engine Oil

Change the oil after the first 5 operating hours and then after every 50 hours or every season. Run the engine just before changing the oil to warm the oil. Warm oil flows better and carries more contaminants.

Note: Change the oil after every 25 hours when operating under a heavy load or in high temperatures.

1. Remove the grass bag.

2. Disconnect the wire from the spark plug (Fig. 7).

3. If the grass bag is on the lawn mower, close the door in

the lawn mower housing and remove the bag.

4. Drain the gasoline from the fuel tank; refer to steps 3

and 4 of Emptying the Fuel Tank on page 21.

5. Remove the dipstick from oil fill tube and place a drain pan next to the left side of the lawn mower.

11. Connect the wire to the spark plug.

12.Recycle the used oil according to local codes.

Page 19

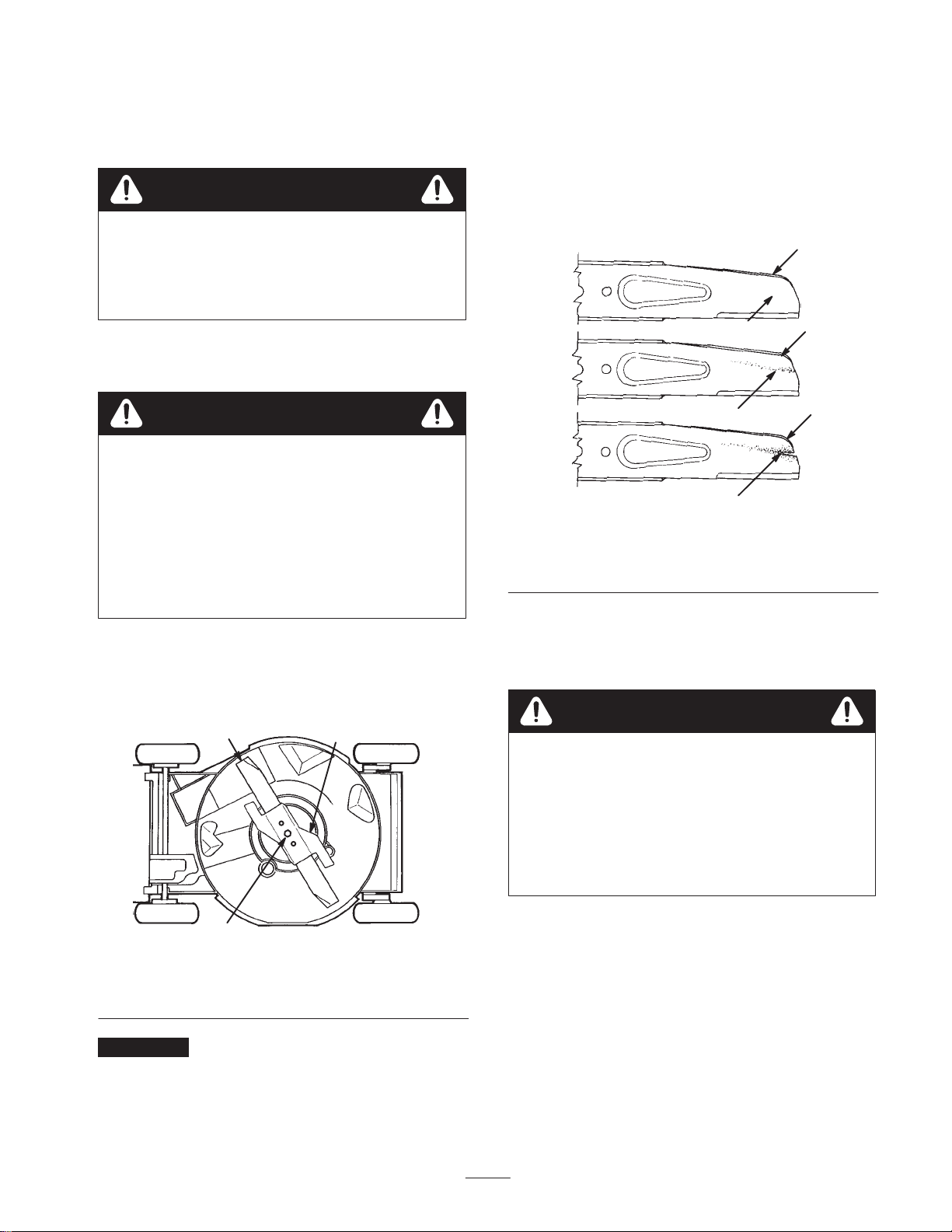

Maintaining the Blade

A straight, sharp blade provides the best cutting performance. Regularly inspect and sharpen the blade.

Warning

The blade is sharp; contacting the blade can result in serious personal injury.

Inspecting the Blade

Carefully examine the blade for sharpness and wear, especially where the flat and the curved parts meet (Fig. 26A). Because sand and abrasive material can wear away the metal that connects the flat and curved parts of the blade, check the blade before using the lawn mower. If you notice a slot or wear (Figs. 26B and 26C), replace the blade; refer to Removing the Blade on page 20.

Wear gloves or wrap the sharp edges of the blade with a rag.

1. Stop the engine and wait for all moving parts to stop.

2. Disconnect the wire from the spark plug (Fig. 7).

Warning

Avoid fuel spills by running the engine dry or removing gasoline with a hand pump; never siphon.

3. Drain the gasoline from the fuel tank; refer to steps 3

and 4 of Emptying the Fuel Tank on page 21.

4. Tip the lawn mower on its left side (air filter up)

(Fig. 25).

270

Figure 26

1. Sail

2. Flat part of blade

3. Wear

4. Slot formed

Note: For the best performance, install a new blade before the cutting season begins. During the year, file down any small nicks to maintain the cutting edge.

Danger

A worn or damaged blade can break, and a piece of the blade could be thrown into the operator’s or bystander’s area, resulting in serious personal injury or death.

973

Figure 25

1. Blade

2. Accelerator

3. Blade bolt

Important Move the blade as little as possible to avoid

future staring problems.

• Inspect the blade periodically for wear or

damage.

• Replace a worn or damaged blade.

Page 20

Removing the Blade

1. Grasp the end of the blade using a rag or a thickly padded glove.

2. Remove the blade bolt, the accelerator, and the blade (Fig. 27).

Note: You can also check the balance using a commercially manufactured, blade balancer.

2. If either end of the blade rotates downward, file that end

(not the cutting edge or the end near the cutting edge). The blade is properly balanced when neither end drops.

m-6342

Figure 27

1. Blade bolt

2. Accelerator

3. Blade

4. Blade driver

Sharpening the Blade

File the top side of the blade to maintain its original cutting angle (Fig. 28A) and inner cutting edge radius (Fig. 28B). The blade will remain balanced if you remove the same amount of material from both cutting edges.

Installing the Blade

1. Install a sharp, balanced Toro blade, the accelerator, and

the blade bolt (Fig. 27). Note: The sail part of the blade must point upward

(toward the top of the housing).

2. Torque the blade bolt to 60 ft-lb (82 Nm).

Warning

Operating the lawn mower without the accelerator in place can cause the blade to flex, bend, or break, resulting in serious injury or death to the operator or bystanders.

Do not operate the lawn mower without the accelerator.

3. Return the lawn mower to its upright position.

4. Connect the wire to the spark plug.

Cleaning Under the Belt Cover

153

m4783

Figure 28

1. Sharpen at this angle only 2. Maintain the original

radius here

Balancing the Blade

1. Check the balance of the blade by placing the center hole of the blade over a nail or screwdriver shank clamped horizontally in a vise (Fig. 29).

1007

Figure 29

Keep the area under the belt cover free of debris.

1. Stop the engine and wait for all moving parts to stop.

2. Remove the bolts that secure the belt cover to the lawn

mower housing (Fig. 30).

281

Figure 30

1. Belt cover 2. Bolts

3. Lift off the cover and brush out all the debris from the

belt area.

4. Install the belt cover.

Page 21

Cleaning the Cooling System

After every 100 operating hours or every season, clean the dirt and the chaff from the cylinder, the cylinder head fins, and around the carburetor and the linkage. Remove debris from the air intake slots on the recoil housing. This will ensure proper cooling and the best engine performance.

Emptying the Fuel Tank

Empty the fuel tank when mowing the last time before storing the lawn mower.

1. Run the lawn mower until the engine stops from

running out of fuel.

2. Prime the engine and start it again.

3. Allow the engine to run until it stops. When you can no

longer start the engine, it is sufficiently dry.

1. Stop the engine and wait for it to cool.

Important Drain gasoline from a cold engine only.

2. Disconnect the wire from the spark plug (Fig. 7).

3. Remove the cap from the fuel tank (Fig. 7).

4. Use a hand pump to pump the gasoline into a clean

approved gasoline container.

5. Connect the wire to the spark plug.

6. Run the engine until it stops.

7. Start the engine again to ensure that all the gasoline is

out of the carburetor.

Storage

To prepare the lawn mower for off-season storage, perform the recommended maintenance procedures. Refer to Maintenance on page 14.

Store the lawn mower in a cool, clean, dry place. Cover the lawn mower to keep it clean and protected.

Preparing the Engine

1. While the engine is still warm, change the oil in the

crankcase. Refer to Changing the Engine Oil on page 18.

2. Remove the spark plug (Fig. 7).

3. Using an oil can, add about one tablespoon of oil

through the spark plug hole.

4. Slowly rotate the engine several times using the starter

rope to distribute the oil.

5. Install the spark plug but do not connect the wire to the

spark plug.

Preparing the Fuel System

Warning

Gasoline can vaporize if you store it over long periods of time and explode if it comes into contact with an open flame.

• Do not store gasoline over long periods of time.

• Do not store the lawn mower with gasoline in

the fuel tank or the carburetor in an enclosure with an open flame. (For example, a furnace or a water heater pilot light.)

• Allow the engine to cool before storing it in any

enclosure.

Page 22

General Information

1. Clean the lawn mower housing. Refer to Cleaning the Underside of the Lawn Mower Housing on page 15.

2. Clean any dirt and chaff from the cylinder, cylinder head fins, and blower housing.

3. Remove grass clippings, dirt, and grime from the external parts of the engine, the shrouding, and the top of the lawn mower housing.

4. Check the condition of the blade. Refer to Maintaining the Blade on page 19.

5. Service the air filter; refer to Replacing the Air Filter on page 16.

6. Lubricate the self-propel drive; refer to Lubricating the Wheels on page 18.

7. Tighten all nuts, bolts, and screws.

8. Touch up all rusted or chipped paint surfaces with paint

available from an Authorized Service Dealer.

Removing From Storage

8. Check the engine oil level. Refer to Checking the

Engine Oil Level on page 15.

9. Connect the wire to the spark plug.

Accessories

You may purchase the following accessories from an Authorized Toro Dealer:

• Dethacher kit

• Side discharge kit

• Spark arrestor

Warning

• Do not pinch, stretch, or damage the cables.

• Handle the cables with care when folding or

unfolding the handle.

• Do not use the lawn mower if one or more of the

cables are pinched, stretched, or damaged. Contact your Authorized Service Dealer.

1. Carefully unfold the upper handle until it nests with the

lower handle, then tighten the knobs.

2. Check and tighten all fasteners.

3. Remove the spark plug (Fig. 7) and spin the engine

rapidly using the starter to blow the excess oil from the cylinder.

4. Clean the spark plug or replace it if it is cracked, broken, or if the electrodes are worn.

5. Install the spark plug and torque it to 15 ft-lb (20 Nm).

6. Perform the recommended maintenance procedures;

refer to Maintenance on page 14.

7. Fill the fuel tank with fresh, clean gasoline.

Page 23

Troubleshooting

Toro designed and built your lawn mower for trouble-free operation. Check the following components and items carefully, and refer to Maintenance on page 14 for more information. If a problem continues, contact an Authorized Service Dealer.

Problem Possible Causes Corrective Action

Engine does not start 1. The fuel tank is empty or the

fuel system contains stale fuel.

2. The primer has not been pushed in.

3. The wire is not connected to the spark plug.

4. The spark plug is pitted, fouled, or the gap is incorrect.

Engine starts hard or loses power 1. The fuel tank contains stale

fuel.

2. The fuel cap vent hole is plugged.

3. The air filter element is dirty and is restricting the air flow.

4. The underside of the lawn mower deck contains clippings and debris.

5. The spark plug is pitted, fouled, or the gap is incorrect.

6. The engine oil level is low or the oil is dirty.

1. Drain and/or fill the fuel tank with fresh gasoline. If the problem persists, contact an Authorized Service Dealer.

2. Push the primer in 3 times.

3. Connect the wire to the spark plug.

4. Check the spark plug and adjust the gap if necessary. Replace the spark plug if it is pitted, fouled, or cracked.

1. Drain and fill the fuel tank with fresh gasoline.

2. Clean the fuel cap vent hole or replace the fuel cap.

3. Clean the air filter pre-cleaner and/or replace the paper air filter.

4. Clean the underside of the lawn mower deck.

5. Check the spark plug and adjust the gap if necessary. Replace the spark plug if it is pitted, fouled, or cracked.

6. Check the engine oil. Change the oil if it is dirty or add oil if it is low.

Engine runs rough 1. The wire is not connected to

the spark plug.

2. The spark plug is pitted, fouled, or the gap is incorrect.

3. The air filter element is dirty and is restricting the air flow.

1. Connect the wire to the spark plug.

2. Check the spark plug and adjust the gap if necessary. Replace the spark plug if it is pitted, fouled, or cracked.

3. Clean the air filter pre-cleaner and/or replace the paper air filter.

Page 24

Problem Corrective ActionPossible Causes

Lawn mower or engine vibrates excessively

Uneven cutting pattern 1. All 4 wheels are not at the

Discharge chute plugs 1. The cutting height is too low.

1. The blade is bent or is out of balance.

2. The blade bolt is loose.

3. The underside of the lawn mower deck contains clippings and debris.

4. The engine mounting bolts are loose.

same height.

2. The blade is dull.

3. You are mowing in the same pattern repeatedly.

4. The underside of the lawn mower deck contains clippings and debris.

2. You are mowing too fast.

3. The grass is wet.

4. The underside of the lawn mower deck contains clippings and debris.

1. Balance the blade. If the blade is bent, replace it.

2. Tighten the blade bolt.

3. Clean the underside of the lawn mower deck.

4. Tighten the engine mounting bolts.

1. Place all 4 wheels at the same height.

2. Sharpen and balance the blade.

3. Change the mowing pattern.

4. Clean the underside of the lawn mower deck.

1. Raise the cutting height.

2. Slow down.

3. Allow the grass to dry before mowing.

4. Clean the underside of the lawn mower deck.

Lawn mower does not self-propel 1. The self-propel drive cable is

out of adjustment or is damaged.

2. There is debris under the belt cover.

1. Adjust the self-propel drive cable. Replace the cable if necessary.

2. Clean the debris from under the belt cover.
