Toro 20708 Parts Catalogue

Download

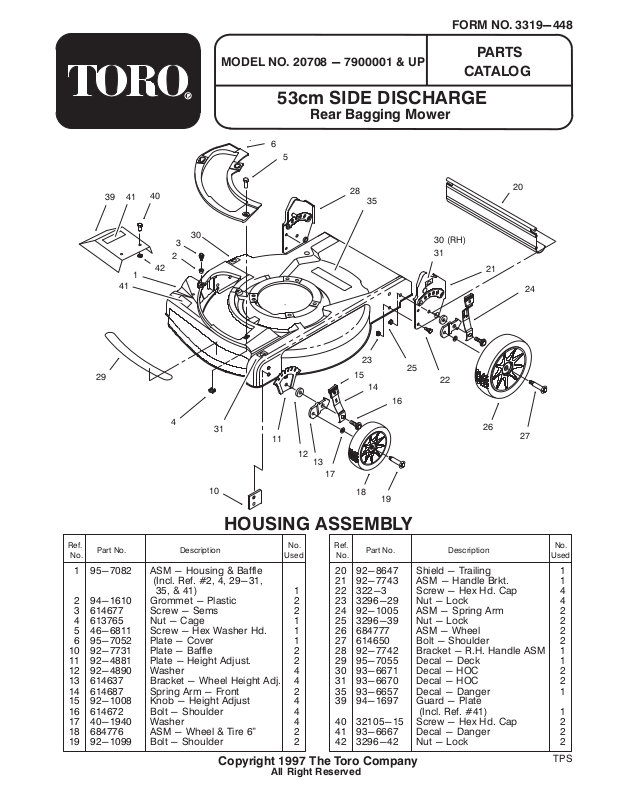

Page 1
FORM NO. 3319-448
39
41
41
MODEL NO. 20708 - 7900001 & UP
CATALOG
53cm SIDE DISCHARGE
Rear Bagging Mower
6
5
PARTS
40
30
3
2
42
1
28
35
30 31
20
21
24
29
4
31
11
10
HOUSING ASSEMBLY
Ref.
No.
DescriptionPart No.
1 95-7082 ASM - Housing & Baffle
(Incl. Ref. #2, 4, 29-31,
35, & 41) 1 2 94-1610 Grommet - Plastic 2 3 614677 Screw - Sems 2 4 613765 Nut - Cage 1 5 46-6811 Screw - Hex Washer Hd. 1 6 95-7052 Plate - Cover 1
10 92-7731 Plate - Baffle 2 11 92-4881 Plate - Height Adjust. 2 12 92-4890 Washer 4 13 614637 Bracket - Wheel Height Adj. 4 14 614687 Spring Arm - Front 2 15 92-1008 Knob - Height Adjust 4 16 614672 Bolt - Shoulder 4 17 40-1940 Washer 4 18 684776 ASM - Wheel & Tire 6" 2 19 92-1099 Bolt - Shoulder 2
Copyright 1997 The Toro Company
No.
Used
All Right Reserved
12
23
15
14
13
17
18
Ref.
No.
25
22
16
26
19
DescriptionPart No.
20 92-8647 Shield - Trailing 1 21 92-7743 ASM - Handle Brkt. 1 22 322-3 Screw - Hex Hd. Cap 4 23 3296-29 Nut - Lock 4 24 92-1005 ASM - Spring Arm 2 25 3296-39 Nut - Lock 2 26 684777 ASM - Wheel 2 27 614650 Bolt - Shoulder 2 28 92-7742 Bracket - R.H. Handle ASM 1 29 95-7055 Decal - Deck 1 30 93-6671 Decal - HOC 2 31 93-6670 Decal - HOC 2 35 93-6657 Decal - Danger 1 39 94-1697 Guard - Plate
(Incl. Ref. #41) 1 40 32105-15 Screw - Hex Hd. Cap 2 41 93-6667 Decal - Danger 2 42 3296-42 Nut - Lock 2
27
No.
Used
TPS
Page 2
3319-448
10
12
11
3
1
4
2
8
7
5
17
13
15
16

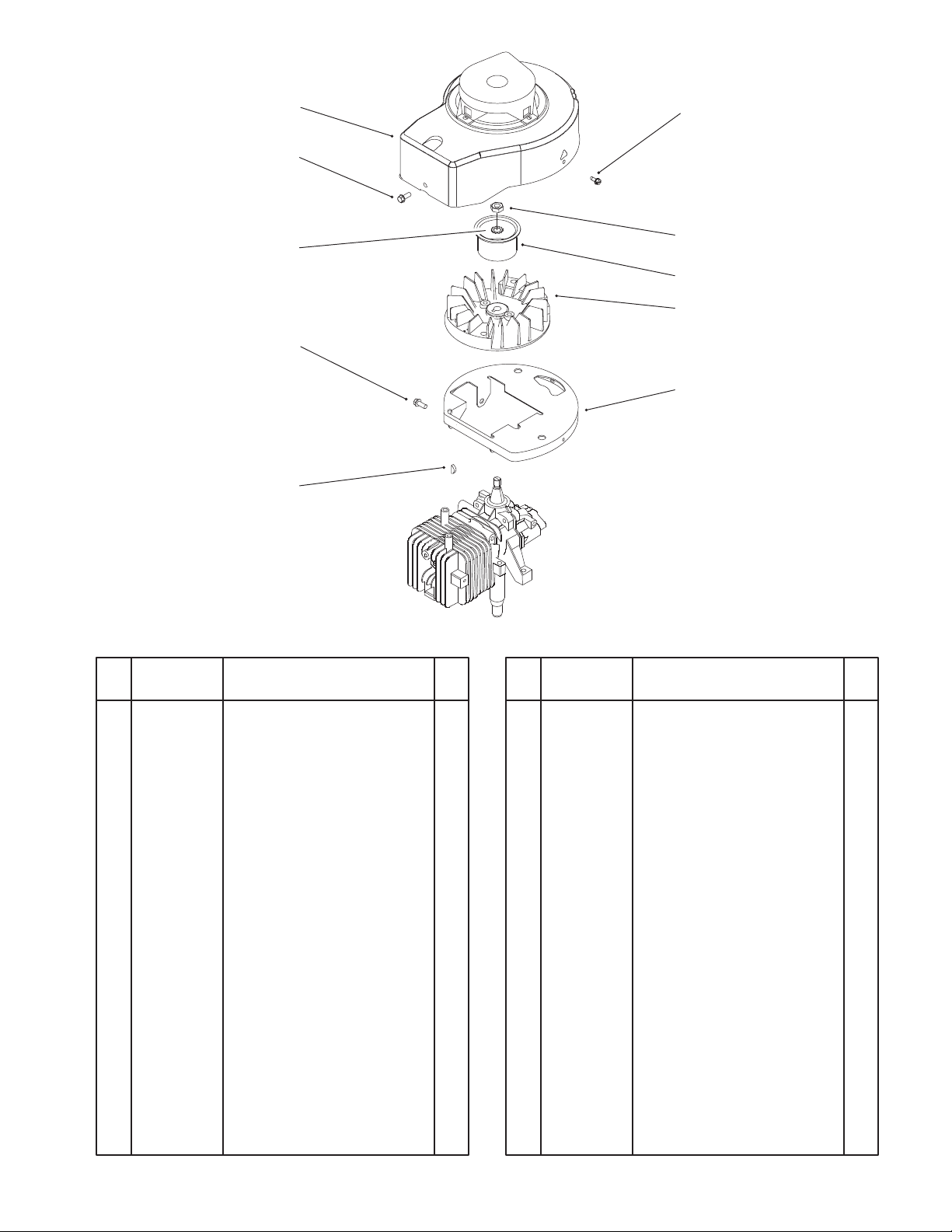

ENGINE ASSEMBLY
Ref.
No.
DescriptionPart No.
1 ASM - Engine 1 2 92-6380 ASM - Tank & Shroud 1 3 93-4302 Screw - Sems 3 4 93-3660 ASM - Fuel/Oil Cap 1 5 612782 Line - Gas 1 7 44-2750 Body - Primer 1 8 66-7460 Bulb - Primer 1
10 95-7058 Decal - Shroud Top 1
No.
Used
14
Ref.
No.
DescriptionPart No.
No.
Used
11 92-1701 Rope - Stop 1 12 93-4306 Spring - Compression 1 13 95-1726 Screw - Engine Mount 3 14 677525 ASM - Plate & Collar 1 15 612543 Blade - 53cm 1 16 603164 Nut - Blade 1 17 93-7152 Plate - Engine 1
2
Page 3
6
3319-448
12 13
5
8
9
24
7
9
11
4
3
2
1
14
10
22
HANDLE ASSEMBLY
Ref.
No.
1 95-1713 Handle - Upper 1 2 614643 Handle - Lower 1 3 614697 Screw - Handle 2 4 614243 Knob 2 5 93-4184 Bail - Flywheel Brake 1 6 92-5412 Stop - Pivot 1 7 93-7383 Guide - Rope 1 8 321-50 Screw - Hex Hd. Cap 1 9 3296-73 Nut - Lock 2
DescriptionPart No.
No.
Used
15
Ref.
No.
DescriptionPart No.
No.
Used
10 95-7069 Cable - Throttle 1 11 92-7738 Cable - Flywheel Brake 1 12 612824 Clip - Rope Insert 1 13 612825 Handle - Starter 1 14 321-48 Screw - Hex Hd. Cap 1 15 3290-378 Tie - Cable 2 22 93-3653 Handle - Guard 2 24 92-8632 Washer 1
3
Page 4
3319-448
8
7
6
5
4
3
2
1
9
HANDLE ASSEMBLY
Ref.
No.
1 95-7081 Chute & Support Ass'y
2 614589 Nut - Cap 1 3 614591 Chute Support 1 4 684727 Adapter Assembly 1
DescriptionPart No.
(Incl. Ref. #2, 3, &9) 1
No.
Used
Ref.
No.
DescriptionPart No.
5 614700 Tie Strap 1 6 95-7050 Bag Assembly 1 7 613462 Hanger Clamp 2 8 613455 Wide Hanger 1 9 95-7089 Decal - Danger 1
No.
Used
4
Page 5
3319-448
8
7
9
7
6
1
2
3
4
5
ENGINE ASSEMBLY
Ref.
No.
1 614699 Screw 3 2 130743 Nut 1 3 614640 Hub - Starter 1 4 684743 Flywheel 1 5 93-1216 Base - Shroud 1
DescriptionPart No.
No.
Used
C-2128A
Ref.
No.
DescriptionPart No.
6 607199 Key 1 7 614702 Screw 4 8 93-4304 Shroud Assembly 1 9 316959 Washer - Lock 1
No.
Used
5
Page 6
3319-448
3
2
6
4
5
9
10

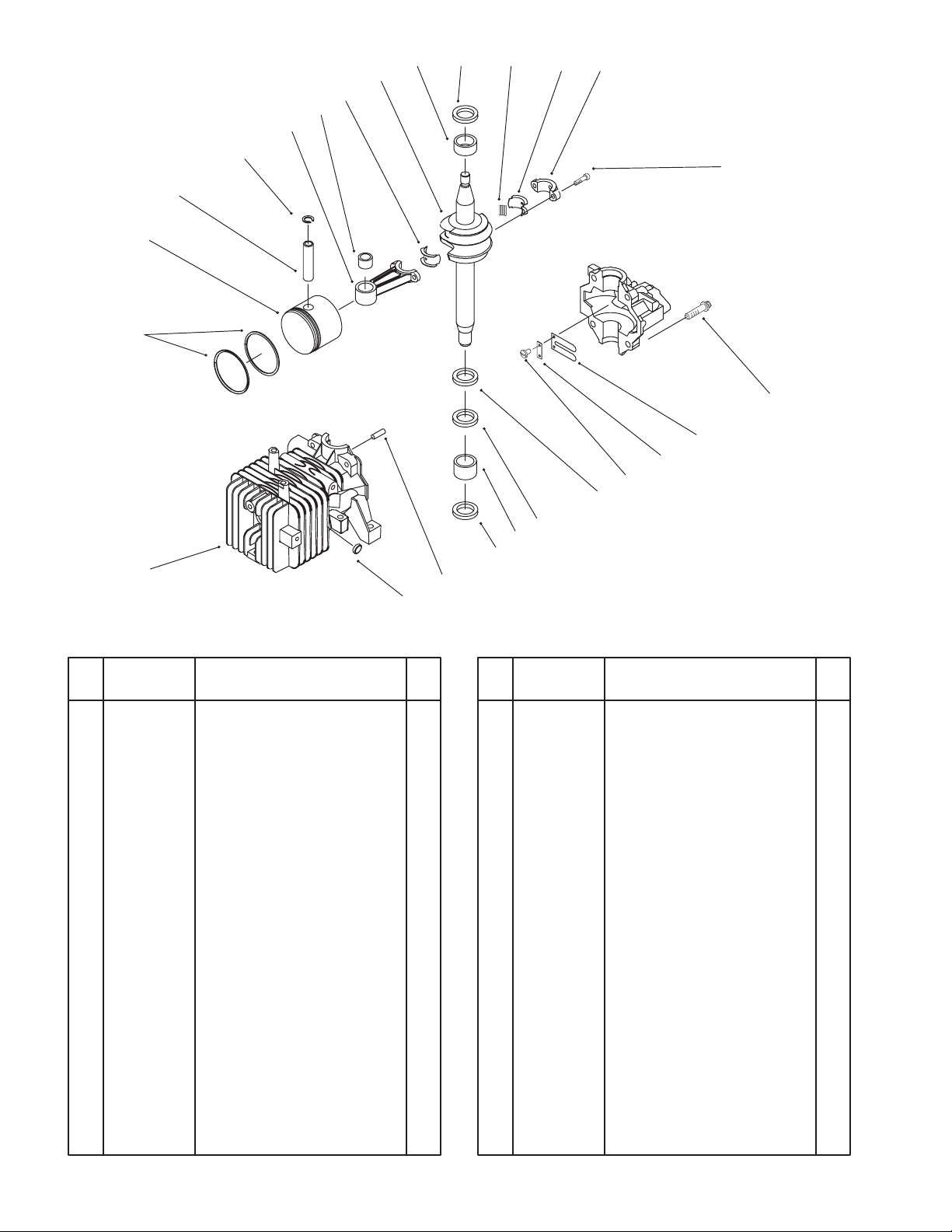

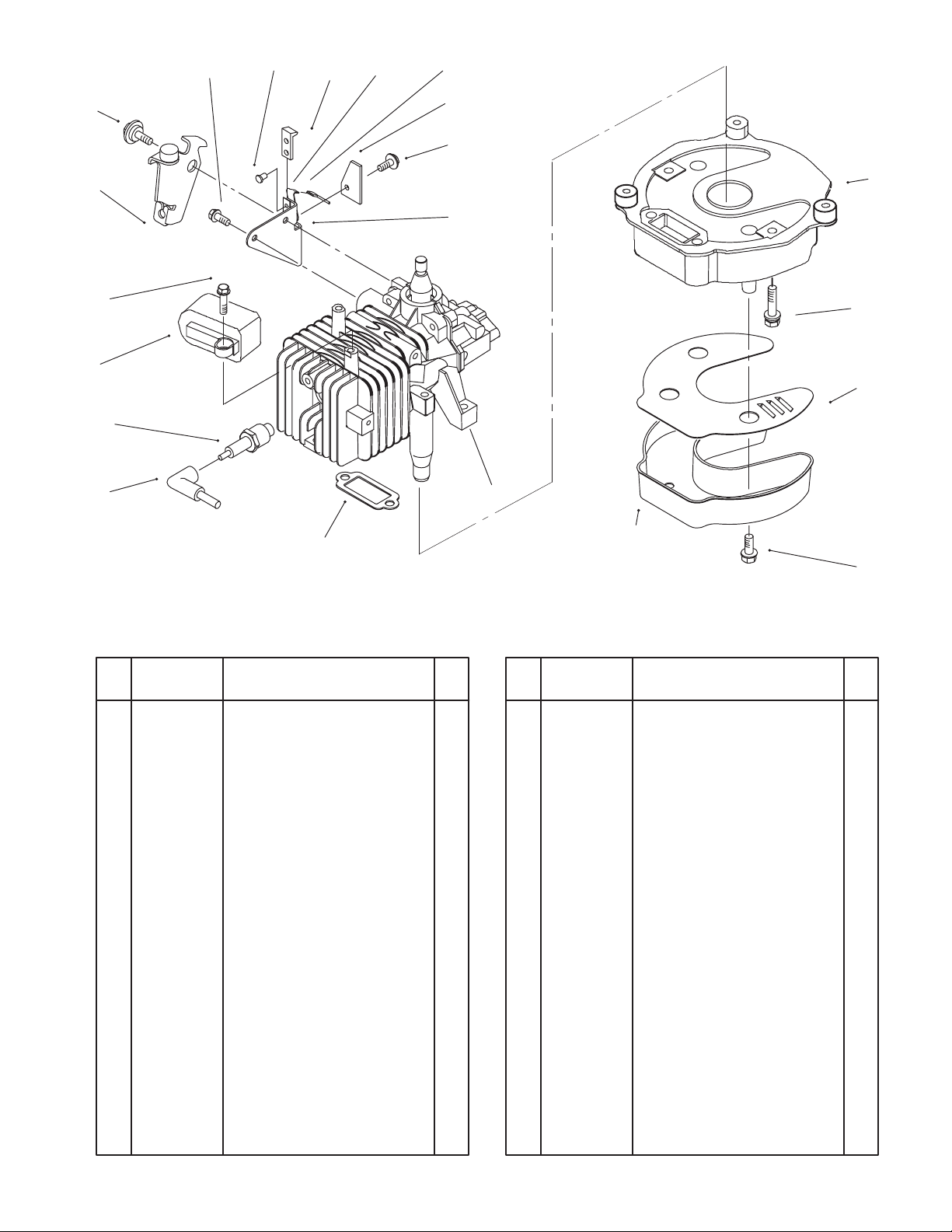

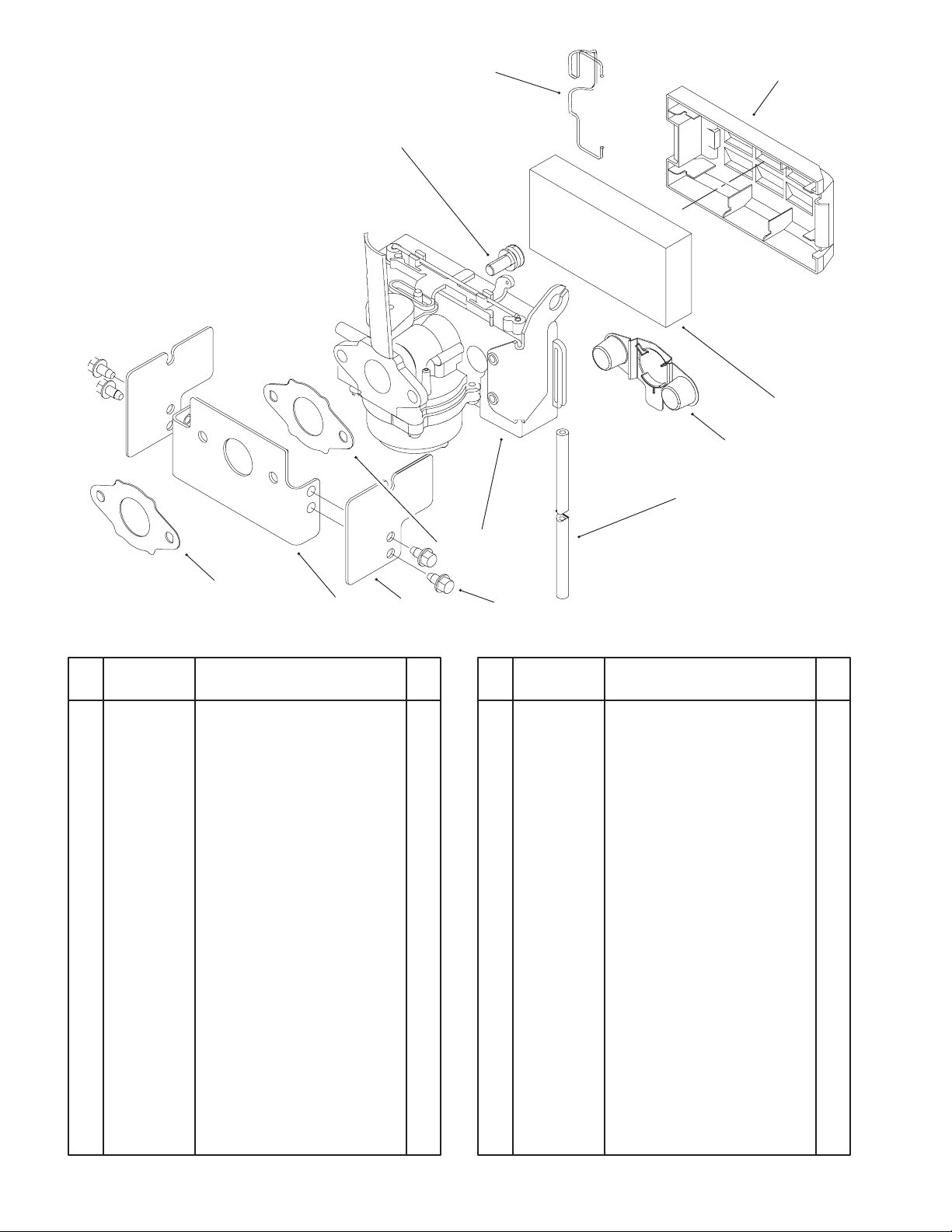

ENGINE ASSEMBLY (Continued)
Ref.
No.
2 609482 Screw 2 3 610383 Retainer - Filter 1 4 93-1231 Cover - Air Cleaner 1 5 609493 Element - Filter Air 1 6 93-4320 Shield - Fuel 1 7 44-3174 Hose - Primer 1
DescriptionPart No.
11
No.
Used
7
8
9
12
Ref.
No.
DescriptionPart No.
8 93-4331 Carburetor Assembly
(Incl. Ref. #9) 1
9 612574 Gasket - Carburetor 2 10 93-4315 Shield - Carburetor (Intl.) 1 11 93-4316 Shield - Governor V (Intl.) 2 12 613269 Screw 4
C-2129B
No.
Used
6
Page 7
10
11
3319-448
12 13 14
9
8
6
5
4
3
2
15
16
18
17
19
20
1
22
21
ENGINE ASSEMBLY (Continued)
Ref.
No.
DescriptionPart No.
1 94-5737 Short Block
(Incl. Ref. #2, Ref. #9 pg. 8) 1 2 93-1233 Gasket - Exhaust 1 3 CD Ignition 1 * 681678 Cover & Terminal 1 4 614009 Plug - Spark 1 5 684049 CD Ignition
(Incl. Ref. #3) 1 6 613208 Screw - Hex. Washer Hd. 2 8 93-4312 Brake Plate Assembly 1 9 92-9698 Screw - Shoulder 1
10 614702 Screw 1 11 3290-459 Rivet - Plastic 2
No.
Used
C-1296A
Ref.
No.
DescriptionPart No.
No.
Used
12 92-2925 Strap - Insulation 1 13 60-9010 Strap - Ground 1 14 92-1156 Wire - Brake Switch Lead 1 15 53-4690 Stop - Ground Strap 1 16 12-5450 Screw - Thread Forming 1 17 Mounting Plate
(Incl. Ref. #11-13) 1 18 614654 Plate - Muffler 1 19 607601 Screw 4 20 93-4343 Baffle 1 21 609471 Screw 3 22 614674 Cover - Muffler 1
*Not Illustrated
7
Page 8
3319-448
10
9
8
7
6
5
4
3
1
11 12 8 6
13
14
16
17
18
2
15
ENGINE ASSEMBLY (Continued)
Ref.
No.
1 681737 Set - Ring 1 2 252-76 Bearing - Thrust 1 3 92-4925 Piston & Connecting Rod
4 606608 Pin - Wrist 1 5 303712 Ring - Retaining 2 6 92-4921 Connecting Rod Assembly
7 92-4927 Bearing 1 8 677982 Liner - Split (Set of 2) 1 9 94-5713 Crankshaft 1
DescriptionPart No.
(Incl. Ref. #1-2, 4-8, 12, & 13) 1
(Incl. Ref. #6-8, 12, & 13) 1
21
No.
Used
20
22
19
11
C-2489A
Ref.
No.
DescriptionPart No.
No.
Used
10 681830 Bearing - Upper Main 1 11 611396 Seal - Oil 2 12 609754 Bearing - Needle 1 13 611393 Screw - Hex. Hd. 2 14 614636 Screw - Torx. Washer Hd. 4 16 602588 Reed - Carburetor 1 17 602587 Reed - Backup Plate 1 18 612872 Screw 2 19 681831 Bearing - Needle 1 20 609629 Dowel 1 21 609123 Plug - Core 4 22 252-80 Washer - Thrust 1
8
Page 9
2
1
3319-448
3
4
5
6
9

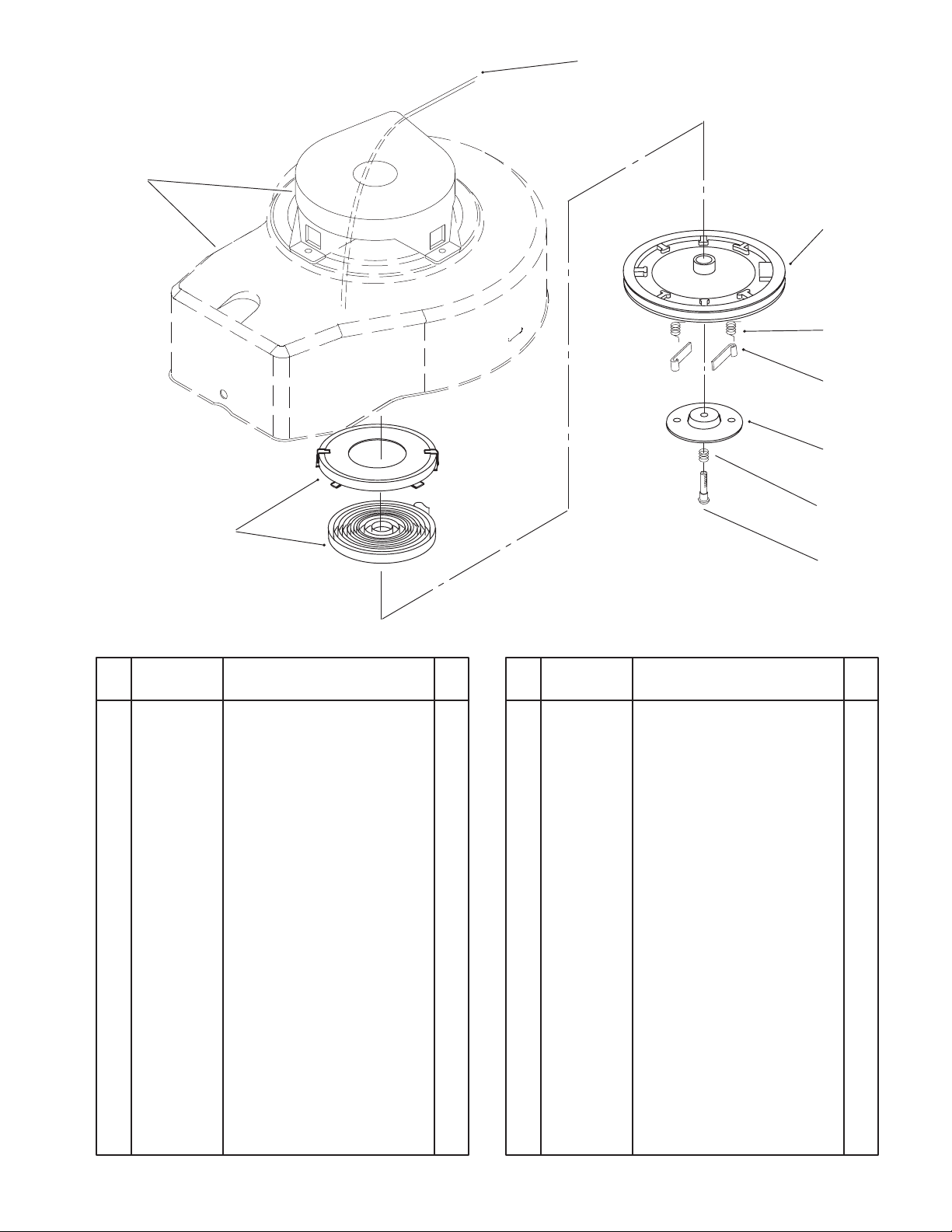

RECOIL STARTER ASSEMBLY
Ref.
No.
DescriptionPart No.
1 93-4304 Shroud Assembly 1 2 93-4305 Rope -Starter 1 3 92-4929 Pulley Assembly 1 4 92-4930 Spring - Dog 2
5 92-4931 Dog 2
6 92-9692 Retainer 1
No.
Used
7
8
Ref.
No.
DescriptionPart No.
7 92-4933 Screw 1 8 92-4934 Spring 1 9 92-4935 Spring Keeper Assembly 1
* 93-1236 Recoil Assembly
(Incl. Ref. #2-9) 1
C-1309
No.
Used
* Not Illustrated
9
Page 10
3319-448
2
3
7
1
8
6 9
10
21
17
18
19
13
14
15
16
20
22
12
4
5
C-2130C

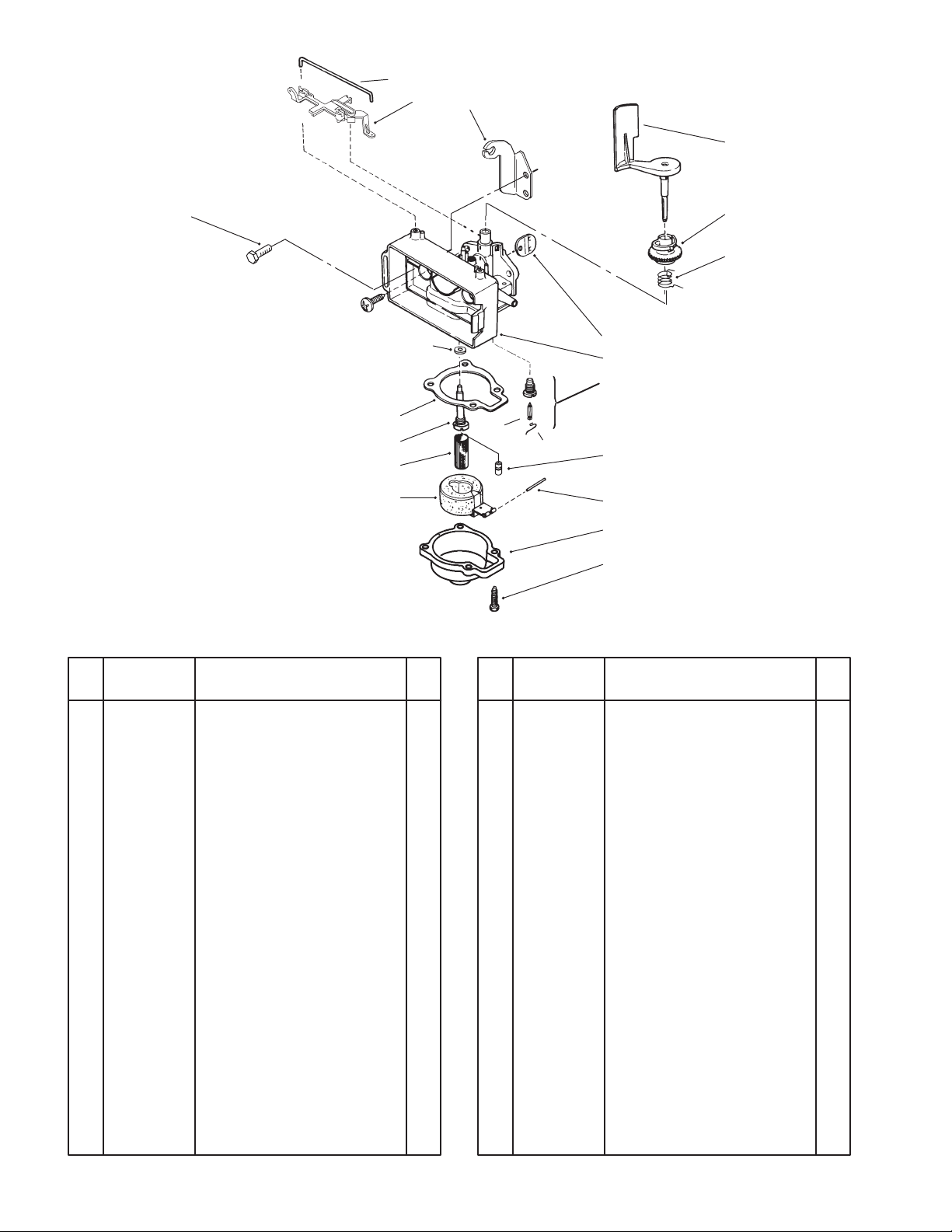

CARBURETOR ASSEMBLY
Ref.
No.
DescriptionPart No.
No.
Used
1 92-6376 Air Vane & Shaft 1 2 610165 Retainer - Speed Control 1 3 93-1225 Lever - Speed Adjust 1 4 610834 Collar - Air Vane 1 5 92-4944 Spring - Governor 1 6 92-6373 Disc - Throttle 1 7 92-4949 Bracket - Throttle Control 1 8 613269 Screw 2 9 93-4324 Carburetor Body 1
10 92-9697 Kit - Float Valve, Body
& Seat (Incl. Ref. #12 & 22) 1
12 603145 Spring 1
Ref.
No.
DescriptionPart No.
No.
Used
13 602850 Gasket 1 14 92-6371 Nozzle 1 15 611071 Filter - Fuel 1 16 678113 Float & Arm Assembly 1 17 92-6389 Pin 1 18 92-9691 Float Chamber 1 19 608850 Screw 4 20 612383 Washer 1 21 92-6370 Main Jet 1 22 678278 Valve - Float 1
* 92-6385 Jet - High Altitude 1 * 93-4331 Carburetor Assembly 1
*Not Illustrated
10
Page 11
TORO PART NUMBER INDEX
Pg.
Ref.
No.
No.
CD Ignition 7 3 1 130743 Nut 5 2 1 303712 Ring - Retaining 8 5 2 316959 Washer - Lock 5 9 1 602587 Reed - Backup Plate 8 17 1 602588 Reed - Carburetor 8 16 1 602850 Gasket 10 13 1 603145 Spring 10 12 1 603164 Nut - Blade 2 16 1 606608 Pin - Wrist 8 4 1 607199 Key 5 6 1 607601 Screw 7 19 4 608850 Screw 10 19 4 609123 Plug - Core 8 21 4 609471 Screw 7 21 3 609482 Screw 6 2 2 609493 Element - Filter Air 6 5 1 609629 Dowel 8 20 1 609754 Bearing - Needle 8 12 1 610165 Retainer - Speed Control 10 2 1 610383 Retainer - Filter 6 3 1 610834 Collar - Air Vane 10 4 1 611071 Filter - Fuel 10 15 1 611393 Screw - Hex. Hd. 8 13 2 611396 Seal - Oil 8 11 2 612383 Washer 10 20 1 612543 Blade - 53cm 2 15 1 612574 Gasket - Carburetor 6 9 2 612782 Line - Gas 2 5 1 612824 Clip - Rope Insert 3 12 1 612825 Handle - Starter 3 13 1 612872 Screw 8 18 2 613208 Screw - Hex. Washer Hd. 7 6 2 613269 Screw 10 8 2 613269 Screw 6 12 4 613455 Wide Hanger 4 8 1 613462 Hanger Clamp 4 7 2 613765 Nut - Cage 1 4 1 614009 Plug - Spark 7 4 1 614243 Knob 3 4 2 614589 Nut - Cap 4 2 1 614591 Chute Support 4 3 1 614636 Screw - Torx. Washer Hd. 8 14 4 614637 Bracket - Wheel Height Adj. 1 13 4 614640 Hub - Starter 5 3 1 614643 Handle - Lower 3 2 1 614650 Bolt - Shoulder 1 27 2 614654 Plate - Muffler 7 18 1 614672 Bolt - Shoulder 1 16 4 614674 Cover - Muffler 7 22 1 614677 Screw - Sems 1 3 2 614687 Spring Arm - Front 1 14 2 614697 Screw - Handle 3 3 2 614699 Screw 5 1 3 614700 Tie Strap 4 5 1 614702 Screw 5 7 4 614702 Screw 7 10 1 677525 ASM - Plate & Collar 2 14 1 677982 Liner - Split (Set of 2) 8 8 1 678113 Float & Arm Assembly 10 16 1 678278 Valve - Float 10 22 1 681678 Cover & Terminal 7 * 1 681737 Set - Ring 8 1 1 681830 Bearing - Upper Main 8 10 1
3319-448
Pg.
Ref.
No.
No.Part No. Description Qty. Part No. Description Qty.
681831 Bearing - Needle 8 19 1 684049 CD Ignition 7 5 1 684727 Adapter Assembly 4 4 1 684743 Flywheel 5 4 1 684776 ASM - Wheel & Tire 6 1 18 2 684777 ASM - Wheel 1 26 2 12-5450 Screw - Thread Forming 7 16 1 40-1940 Washer 1 17 4 44-2750 Body - Primer 2 7 1 44-3174 Hose - Primer 6 7 1 46-6811 Screw - Hex Washer Hd. 1 5 1 53-4690 Stop - Ground Strap 7 15 1 60-9010 Strap - Ground 7 13 1 66-7460 Bulb - Primer 2 8 1 92-1005 ASM - Spring Arm 1 24 2 92-1008 Knob - Height Adjust 1 15 4 92-1099 Bolt - Shoulder 1 19 2 92-1156 Wire - Brake Switch Lead 7 14 1 92-1701 Rope - Stop 2 11 1 92-2925 Strap - Insulation 7 12 1 92-4881 Plate - Height Adjust. 1 11 2 92-4890 Washer 1 12 4 92-4921 Connecting Rod Assembly 8 6 1 92-4925 Piston & Connecting Rod 8 3 1 92-4927 Bearing 8 7 1 92-4929 Pulley Assembly 9 3 1 92-4930 Spring - Dog 9 4 2 92-4931 Dog 9 5 2 92-4933 Screw 9 7 1 92-4934 Spring 9 8 1 92-4935 Spring Keeper Assembly 9 9 1 92-4944 Spring - Governor 10 5 1 92-4949 Bracket - Throttle Control 10 7 1 92-5412 Stop - Pivot 3 6 1 92-6370 Main Jet 10 21 1 92-6371 Nozzle 10 14 1 92-6373 Disc - Throttle 10 6 1 92-6376 Air Vane & Shaft 10 1 1 92-6380 ASM - Tank & Shroud 2 2 1 92-6385 Jet - High Altitude 10 * 1 92-6389 Pin 10 17 1 92-7731 Plate - Baffle 1 10 2 92-7738 Cable - Flywheel Brake 3 11 1 92-7742 Bracket - R.H. Handle ASM 1 28 1 92-7743 ASM - Handle Brkt. 1 21 1 92-8632 Washer 3 24 1 92-8647 Shield - Trailing 1 20 1 92-9691 Float Chamber 10 18 1 92-9692 Retainer 9 6 1 92-9697 Kit - Float Valve, Body 10 10 1 92-9698 Screw - Shoulder 7 9 1 93-1216 Base - Shroud 5 5 1 93-1225 Lever - Speed Adjust 10 3 1 93-1231 Cover - Air Cleaner 6 4 1 93-1233 Gasket - Exhaust 7 2 1 93-1236 Recoil Assembly 9 * 1 93-3653 Handle - Guard 3 22 2 93-3660 ASM - Fuel/Oil Cap 2 4 1 93-4184 Bail - Flywheel Brake 3 5 1 93-4302 Screw - Sems 2 3 3 93-4304 Shroud Assembly 9 1 1 93-4304 Shroud Assembly 5 8 1 93-4305 Rope -Starter 9 2 1 93-4306 Spring - Compression 2 12 1
*Not Illustrated
11
Page 12
3319-448
TORO PART NUMBER INDEX (Cont.)
Pg.
Ref.
No.
No.
93-4312 Brake Plate Assembly 7 8 1 93-4315 Shield - Carburetor (Intl.) 6 10 1 93-4316 Shield - Governor V (Intl.) 6 11 2 93-4320 Shield - Fuel 6 6 1 93-4324 Carburetor Body 10 9 1 93-4331 Carburetor Assembly 10 * 1 93-4331 Carburetor Assembly 6 8 1 93-4343 Baffle 7 20 1 93-6657 Decal - Danger 1 35 1 93-6667 Decal - Danger 1 41 2 93-6670 Decal - HOC 1 31 2 93-6671 Decal - HOC 1 30 2 93-7152 Plate - Engine 2 17 1 93-7383 Guide - Rope 3 7 1 94-1610 Grommet - Plastic 1 2 2 94-1697 Guard - Plate 1 39 1 94-5713 Crankshaft 8 9 1 94-5737 Short Block 7 1 1 95-1713 Handle - Upper 3 1 1 95-1726 Screw - Engine Mount 2 13 3
Pg.
Ref.
No.
No.Part No. Description Qty. Part No. Description Qty.
95-7050 Bag Assembly 4 6 1 95-7052 Plate - Cover 1 6 1 95-7055 Decal - Deck 1 29 1 95-7058 Decal - Shroud Top 2 10 1 95-7069 Cable - Throttle 3 10 1 95-7081 Chute & Support Ass'y 4 1 1 95-7082 ASM - Housing & Baffle 1 1 1 95-7089 Decal - Danger 4 9 1 252-76 Bearing - Thrust 8 2 1 252-80 Washer - Thrust 8 22 1 321-48 Screw - Hex Hd. Cap 3 14 1 321-50 Screw - Hex Hd. Cap 3 8 1 322-3 Screw - Hex Hd. Cap 1 22 4 3290-378 Tie - Cable 3 15 2 3290-459 Rivet - Plastic 7 11 2 3296-29 Nut - Lock 1 23 4 3296-39 Nut - Lock 1 25 2 3296-42 Nut - Lock 1 42 2 3296-73 Nut - Lock 3 9 2 32105-15 Screw - Hex Hd. Cap 1 40 2
*Not Illustrated
12
