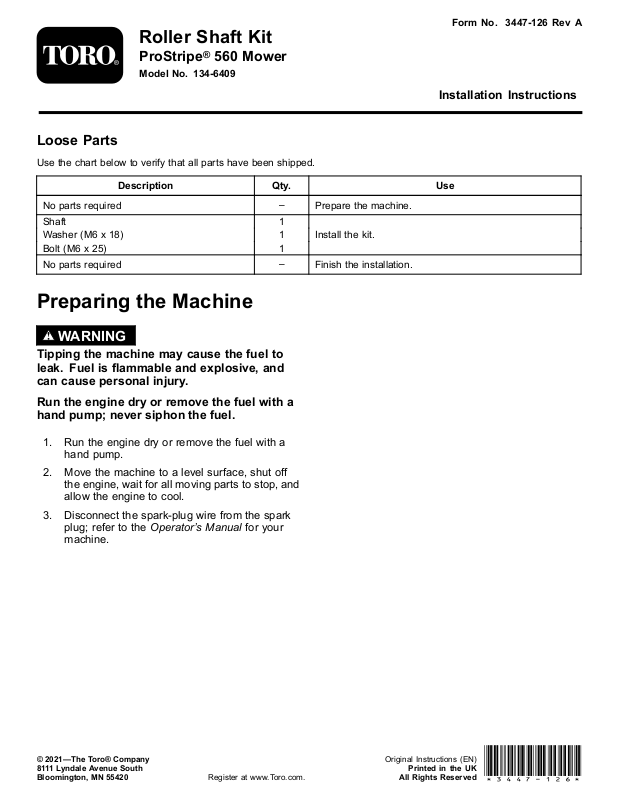

Toro 134-6409 Installation Instructions

RollerShaftKit

ProStripe

ModelNo.134-6409

LooseParts

Usethechartbelowtoverifythatallpartshavebeenshipped.

®

560Mower

FormNo.3447-126RevA

InstallationInstructions

Description

Nopartsrequired

Shaft
Washer(M6x18)
Bolt(M6x25)

Nopartsrequired

PreparingtheMachine

WARNING

Tippingthemachinemaycausethefuelto
leak.Fuelisammableandexplosive,and
cancausepersonalinjury.

Runtheenginedryorremovethefuelwitha
handpump;neversiphonthefuel.

1.Runtheenginedryorremovethefuelwitha
handpump.

2.Movethemachinetoalevelsurface,shutoff
theengine,waitforallmovingpartstostop,and
allowtheenginetocool.

Qty.

Use

–

1
1
1

–

Preparethemachine.

Installthekit.

Finishtheinstallation.

3.Disconnectthespark-plugwirefromthespark
plug;refertotheOperator’sManualforyour
machine.

©2021—TheT oro®Company
8111LyndaleAvenueSouth
Bloomington,MN55420

Registeratwww.T oro.com.

OriginalInstructions(EN)

PrintedintheUK

AllRightsReserved

*3447-126*

InstallingtheKit

1.Ifthegrassbagisonthemachine,removetheit.

2.Removethechaincoverfromthemachinebyremovingthe2chain-coverbolts(Figure1).

Note:Retainthechaincoverand2chain-coverboltsforlaterinstallation.

3.Removeandretaintheexistingcirclip,thrustwasher,sprocket,andchainfromthegearboxpost(Figure1).

Figure1

1.Gearboxpost5.Circlip

2.Chain6.Chaincover

3.Sprocket7.Chain-coverbolts(2)

4.Thrustwasher

g349697

4.Removetherollerandallcorrespondingpartsfromthemachine.

Note:Retainallcorrespondingpartsexcepttheshaft,washer(M6x18),andbolt(M6x25).

5.FillthecamdrivecavitywithgreasethathassuperiorwaterresistancesuchasFuchsRenolitCZ2
greaseorsimilar.

Important:Donotusestandardgreaseasthismayallowmoisturetoreducelubricantefciency.

6.Replacetheshaft,washer(M6x18),andbolt(M6x25)asshowninFigure2.

Note:Applythread-lockingcompoundontheboltandtorqueitto1 1N·m(8ft-lb).

2

Figure2

1.Shaft(Qty.1)3.Bolt(M6x25)(Qty.1)

2.Washer(M6x18)(Qty .1)

7.Whenshimmingtherearroller,tightenonlytoremoveendoat.Donottightentothepointwherethe
rollerlocksuportherollerhastoomuchresistancewhenrotating.

g356632

3

FinishingtheInstallation

1.Installthepreviouslyremovedchain,sprocket
(10T),thrustwasher(20mm),andcircliponto
thegearboxpostasshowninFigure3.

2.Securethepreviouslyremovedchaincoveronto
themachinewiththe2correspondingbolts
(Figure3).

Figure3

g349697

1.Gearboxpost5.Circlip

2.Chain6.Chaincover

3.Sprocket7.Chain-coverbolts(2)

4.Thrustwasher

4

Parts

g356633

Ref.

PartNumber

1134-52531

2111-76791

3ZBHIF025U1

Qty.

Description

Rollershaft

Washer(M6x18)

Bolt(M6x25)

5
