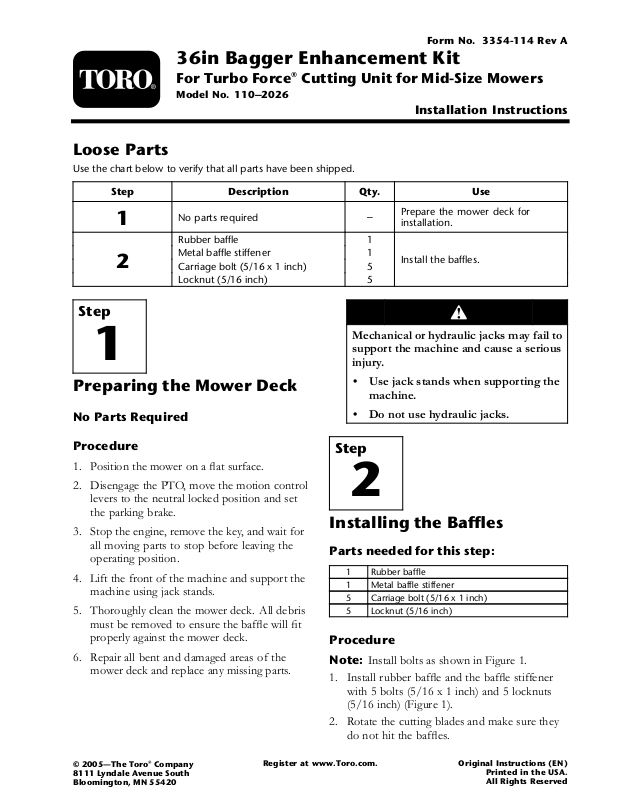

Toro 110-2026 Installation Instructions
36in Bagger Enhancement Kit
For Turbo Force® Cutting Unit for Mid-Size Mowers
Model No. 110–2026
Loose Parts
Use the chart below to verify that all parts have been shipped.
Form No. 3354-114 Rev A
Installation Instructions
Step
1
2
No parts required
Rubber bafe
Metal bafe stiffener
Carriage bolt (5/16 x 1 inch)
Locknut (5/16 inch)
Description
Step
1
Preparing the Mower Deck
No Parts Required
Procedure
1. P osition the mo w er on a flat surface .
Qty.
–
1
1
5
5
Mechanical or h y draulic jacks may f ail to
suppor t the machine and cause a serious
injur y .
• Use jack stands when suppor ting the
machine.
• Do not use h y draulic jacks.
Prepare the mower deck for
installation.
Install the bafes.
Use
Step
2. Diseng ag e the PTO , mo v e the motion control
lev ers to the neutral loc k ed position and set
the parking brak e .
3. Stop the engine , remo v e the k ey , and w ait for
all mo ving par ts to stop before lea ving the
operating position.
4. Lift the front of the mac hine and suppor t the
mac hine using jac k stands .
5. T horoughly clean the mo w er dec k. All debris
m ust be remo v ed to ensure the baffle will fit
properly ag ainst the mo w er dec k.
6. R e pair all bent and damag ed areas of the
mo w er dec k and re place any missing par ts .
© 2005—The Toro® Company
8111 Lyndale Avenue South
Bloomington, MN 55420
Register at www.Toro.com. Original Instructions (EN)
2
Installing the Bafes
Parts needed for this step:
1
Rubber bafe
1
Metal bafe stiffener
5
Carriage bolt (5/16 x 1 inch)
5
Locknut (5/16 inch)
Procedure
Note: Install bolts as sho wn in Figure 1 .
1. Install r ubber baffle and the baffle stiffener
with 5 bolts (5/16 x 1 inc h) and 5 loc kn uts
(5/16 inc h) ( Figure 1 ).
2. R otate the cutting blades and mak e sure they
do not hit the baffles .
Printed in the USA.
All Rights Reserved
Figure 1
1. Mower deck 4. Bafe stiffener
2. Locknut (5/16 inch) 5. Carriage bolt (5/16 x 1
3. Rubber bafe
inch)
