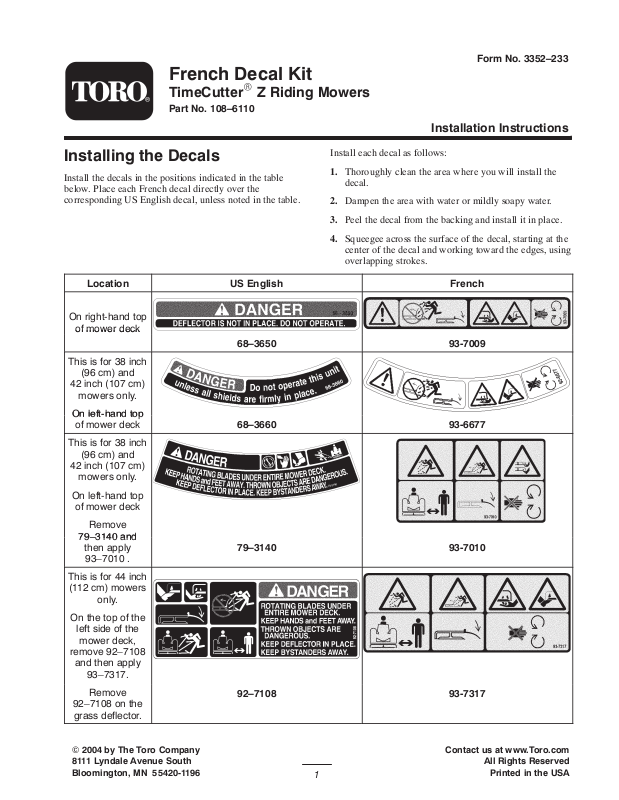

Toro 108-6110 Installation Instructions
French Decal Kit
of mower deck
On left-hand top
3140 and
TimeCutterR Z Riding Mowers
Part No. 108–6110
Form No. 3352–233
Installation Instructions
Installing the Decals
Install the decals in the positions indicated in the table
below. Place each French decal directly over the
corresponding US English decal, unless noted in the table.
Location US English French
On right-hand top
of mower deck
68–3650 93-7009
This is for 38 inch
(96 cm) and
42 inch (107 cm)
mowers only.
-
of mower deck
This is for 38 inch
(96 cm) and
42 inch (107 cm)
mowers only.
68–3660 93-6677
Install each decal as follows:
1. Thoroughly clean the area where you will install the
decal.
2. Dampen the area with water or mildly soapy water.
3. Peel the decal from the backing and install it in place.
4. Squeegee across the surface of the decal, starting at the
center of the decal and working toward the edges, using
overlapping strokes.
This is for 44 inch
(112 cm) mowers
On the top of the
remove 92–7108
On left-hand top
of mower deck
Remove
–79–
then apply
93–7010 .
only.
left side of the
mower deck,
and then apply
93–7317.
Remove
92–7108 on the
grass deflector.
W 2004 by The Toro Company
8111 Lyndale Avenue South
Bloomington, MN 55420-1196
79–3140 93-7010
92–7108 93-7317
Contact us at www.Toro.com
1
All Rights Reserved
Printed in the USA
Location FrenchUS English
of mower deck
deflect
For 38 inch
(96 cm) and
42 inch (107 cm)
mowers, remove
93–1122 and
then apply
93–7316.
Do this on the
grass deflector
and rear
right-hand top
.
93-1122 93-7316
For serial
numbers
240009999 and
below:
On 44 inch
(112 cm)
mowers, remove
93–1122 and
then apply
93–7316.
Do this on the
or.
For serial
Numbers
250000001 and
above:
On 44 inch
(112 cm)
mowers, remove
93–1122 and
then apply
93–7316.
Do this on the
mower deck.
On top of the
frame behind the
engine
93-1122 93-7316
93-1122 93-7316
106-7026 106-7043
2
Location FrenchUS English
On
Under seat base
106–8716 106–8717
console
107–2483 (US English)
107–2514 (French)
3
