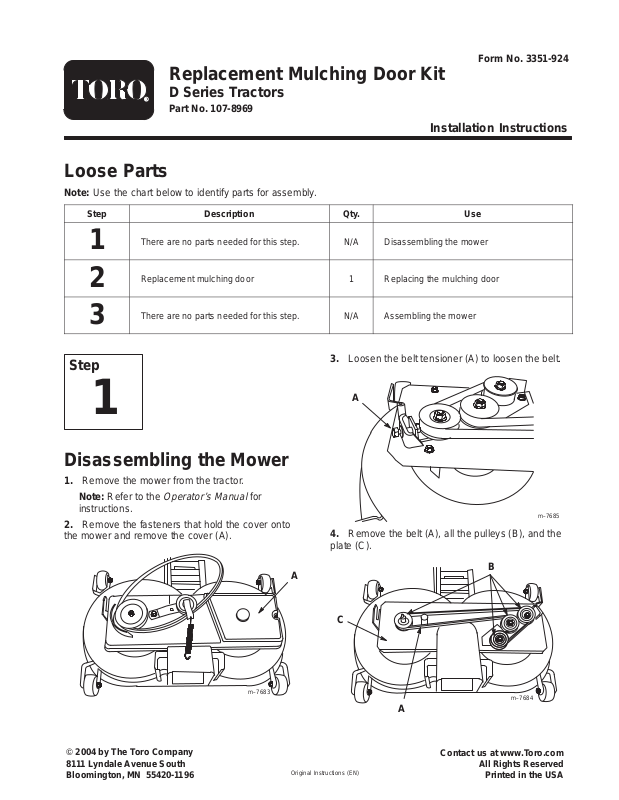

Toro 107-8969 Installation Instructions

Replacement Mulching Door Kit

D Series Tractors

Part No. 107-8969

Loose Parts

Note: Use the chart below to identify parts for assembly.

Step Description Qty. Use

Form No. 3351-924

Installation Instructions

1 2 3

There are no parts needed for this step. N/A Disassembling the mower

Replacement mulching door 1 Replacing the mulching door

There are no parts needed for this step. N/A Assembling the mower

Step

Disassembling the Mower

1. Remove the mower from the tractor. Note: Refer to the

instructions.

2. Remove the fasteners that hold the cover onto

the mower and remove the cover (A).

Operator’s Manual

for

3. Loosen the belt tensioner (A) to loosen the belt.

m–7685

4. Remove the belt (A), all the pulleys (B), and the plate (C).

 2004 by The Toro Company 8111 Lyndale Avenue South Bloomington, MN 55420-1196

m–7683

Original Instructions (EN)

m–7684

Printed in the USA

Step

Replacing the Mulching Door

1. Remove the pin (A) that holds the rods together

and remove the pivot rod (B).

2. Remove the mulching door.

m–7686

5. File or grind out the metal plate (A) in each of the 2 slots so that they are fully open to make room for the new mulching door.

m–7688

6. Insert the new mulching door.

7. Install the rubber gasket and guide with the the

4 nuts, washers, and bolts that you previously removed.

8. Install the pivot rod.

9. Install the pin to hold the 2 rods together.

3. Remove the 4 nuts, washers, and bolts (A) that

hold the rubber gasket to the mower.

4. Remove the rubber gasket (A) and the guide (B).

m–7688

Step

Assembling the Mower

1. Install the plate, pulleys, and belt onto the mower. Important: Position the blades at 90° to each other.

Refer to the

2. Adjust the belt tension. Note: Refer to the

instructions.

3. Install the cover onto the mower with the

fasteners that you previously removed.

4. Install the mower onto the tractor. Note: Refer to the

instructions.

Operator’s Manual

for instructions.
