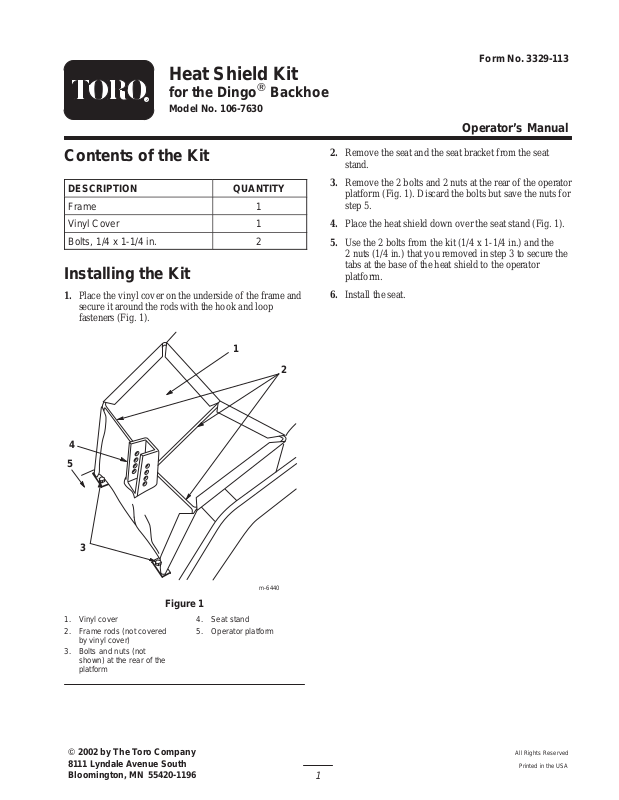

Toro 106-7630 Installation Instructions

Heat Shield Kit

for the Dingo Backhoe

Model No. 106-7630

Form No. 3329-113

Operator’s Manual

Contents of the Kit

DESCRIPTION QUANTITY

Frame 1 Vinyl Cover 1 Bolts, 1/4 x 1-1/4 in. 2

Installing the Kit

1. Place the vinyl cover on the underside of the frame and

secure it around the rods with the hook and loop fasteners (Fig. 1).

2. Remove the seat and the seat bracket from the seat

stand.

3. Remove the 2 bolts and 2 nuts at the rear of the operator

platform (Fig. 1). Discard the bolts but save the nuts for step 5.

4. Place the heat shield down over the seat stand (Fig. 1).

5. Use the 2 bolts from the kit (1/4 x 1-1/4 in.) and the

2 nuts (1/4 in.) that you removed in step 3 to secure the tabs at the base of the heat shield to the operator platform.

6. Install the seat.

Figure 1

1. Vinyl cover

2. Frame rods (not covered by vinyl cover)

3. Bolts and nuts (not shown) at the rear of the platform

 2002 by The Toro Company 8111 Lyndale Avenue South Bloomington, MN 55420-1196

m-6440

4. Seat stand

5. Operator platform

Printed in the USA
