Toro 106-7140 Installation Instructions

Heat Shield Kit

200 Z Master DFS Bagger

Part No. 106–7140

Form No. 3329–193

Installation Instructions

1. Insert the heat shield onto the (2) bagger mounting

screws (Fig. 1).

2. Using the heat shield as a template, locate and mark the

2 hole locations in bagger cross tube.

3. Remove the heat shield from mounting screws and drill

two 7/32 inch dia. holes in the bagger cross tube.

4

5

4. Install the heat shield onto mounting screws and secure

with the 2 jam nuts.

5. Secure the bottom of the shield to the cross tube with 2

self tapping screws.

1. Heat shield

2. Jam nut (2)

2

3

1

6

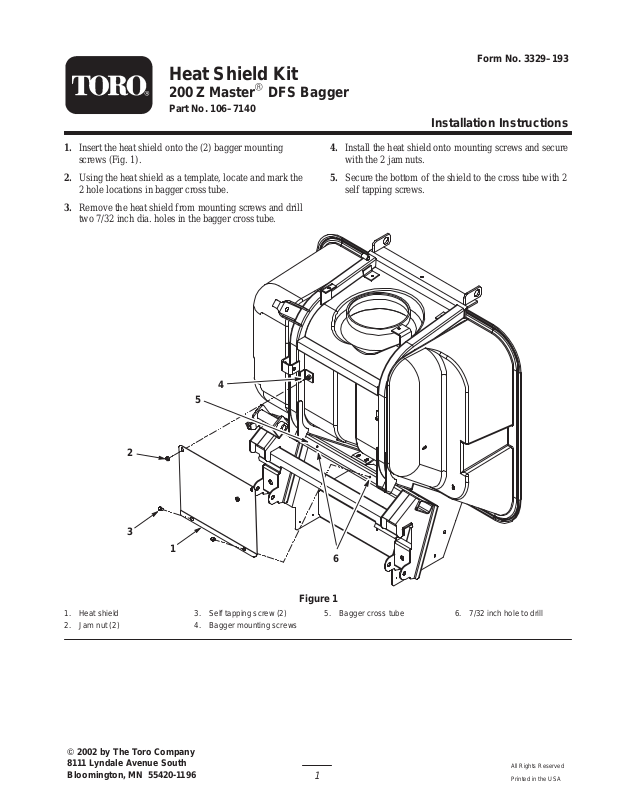

Figure 1

3. Self tapping screw (2)

4. Bagger mounting screws

5. Bagger cross tube 6. 7/32 inch hole to drill
