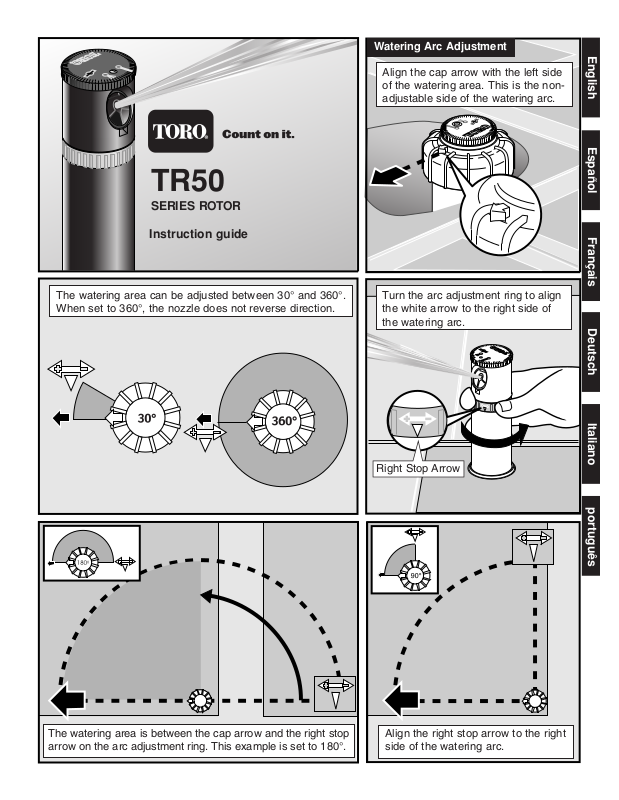

Align the cap arrow with the left side
of the watering area. This is the non­adjustable side of the watering arc.

Turn the arc adjustment ring to align
the white arrow to the right side of
the watering arc.

The watering area can be adjusted between 30° and 360°.
When set to 360°, the nozzle does not reverse direction.

Watering Arc Adjustment

The watering area is between the cap arrow and the right stop
arrow on the arc adjustment ring. This example is set to 180°.

Align the right stop arrow to the right
side of the watering arc.

Right Stop Arrow

TR50

SERIES ROTOR

Instruction guide

© 200$ The Toro Company, Irrigation Division • An ISO 9000-certified Company • www.toro.com Form Number 373-0308 Rev. B

102-1303

102-2802

The TR50 sprinkler comes with
eight additional nozzle sizes from
1 to 9 GPM (4.5 to 41 LPM). To
change the nozzle, use the blade
end of the sprinkler tool or a
screwdriver to turn the nozzle
screw out until it clears the nozzle.
Pry the nozzle out at the bottom
and install the new nozzle. Return
the nozzle screw to its previous
position.

Turn the nozzle screw in to diffuse and
shorten the spray radius.

To eliminate check valve
function, install the check
valve disk in position B.

Remove and
flush screen
as needed.

Changing Nozzle

Adjusting Spray

Cleaning Screen

Check Valve

To maintain left
stop, align riser
with body as
shown when
reassembling.
