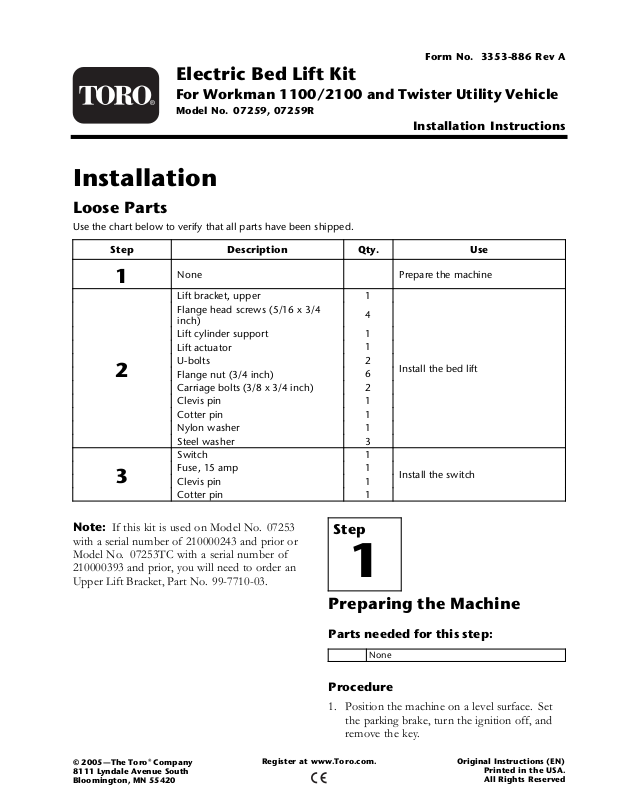

Toro 07259R, 7259 Installation Instructions
Electric Bed Lift Kit
For Workman 1100/2100 and Twister Utility Vehicle
Model No. 07259, 07259R
Installation
Loose Parts
Use the c
hart below to verify that all parts have been shipped.
Form No. 3353-886 Rev A
Installation Instructions
Step
1
2
3
None
Lift bracket, upper
Flange
inch)
Lift cy
Lift ac tuator
U-bolts
Flange nut (3/4 inch)
Carria
Clevis pin
Cotter pin
Nylon washer
Steel
Switch
Fuse, 15 amp 1
Clevi
Cotte
Description
head screws (5/16 x 3/4
linder support
ge bolts (3/8 x 3/4 inch)
washer
spin
rpin
Note: If this kit is used on Model No. 07253
with a serial number of 210000243 and prior or
Model No. 07253TC with a serial number of
210000393 and prior, you will need to order an
Upper Lift Bracket, Part No. 99-7710-03.
Qty.
Step
1
Use
Prepare the machine
1
4
1
1
2
6
2
1
1
1
3
1
1
1
Install the bed lift
Install the switch
© 2005—The Toro® Company
8111 Lyndale Avenue South
Bloomington, MN 55420
Preparing the Machine
Parts needed for this step:
Procedure
1. Position the machine on a level surface. Set
the parking brake, turn the ignition off, and
remove the key.
Register at www.Toro.com.
None
Original Instructions (EN)
Printed in the USA.
All Rights Reserved
If you leave the
switch, someo
theengineand
other bystand
key in t he ignition
ne could accidently start
seriously injure you or
ers.
Remove the key from the ignition switch
before you do any maintenance.
2. Raise the bed. Rotate the latch rod upward and
raise the box with the other hand.
3. Raise the box to its full height; then lower it
slightly to engage the prop rod (Figure 1).
Araisedboxcouldfallandinjurepersons
that are working beneath it.
Remove the 2 flange head screws securing each
side of the latch rod bracket to the front of the
rear frame ( Figure 2).
2
1
4
3
G001319
• Always use the prop rod to hold the
box up before working under the box.
• Remove any load material from the
box before raising it.
1
G001318
Figure 1
1. Prop rod
4. Disconnect the battery cables from the batter y.
5. Remove the rubber strap securing the battery
to the battery base. Lift the battery out of the
battery base.
For machines with Serial numbers 259999999 and
lower:
Figure 2
1. Latch rod b
2. Latch hook
racket
3. Latch rod
4. Spring
For machines with Serial numbers 260000001 and
up:
Remove the 2 flange head screws securing each
side of the latch rod bracket to the underside and
front face of the box (Figure 3). Retain all parts
for future use.
1
2
4
G001320
Figure 3
1. Latch rod bracket 3. Flange head screw, inside
2. Latch rod 4. Flange head screw,
3
front face of box
underside of box
2
Step
2
3. Loosely mount the lift cylinder support to
the right end of the rear axle with 2 U-bolts
and 4 flange nuts (3/4 inch) while aligning the
mounting holes with the holes in the battery
tray (Figure 5).
Installing th
eBedLift
Parts needed for this step:
1
Lift bracket, upper
4
Flange head screws (5/16 x 3/4 inch)
1
Lift cylinder support
1
Lift actuator
2
U-bolts
6
Flange nut (3/4 inch)
2
Carriage bolts (3/8 x 3/4 inch)
1
Clevis pin
1
Cotter pin
1
Nylon washer
3
Steel washer
Procedure
1. Remove the screws from the braces on the
underside of the box in the positions shown
in (Figure 4).
2. Mount the upper lift bracket to the underside
of the box with 6 flange head screws (5/16
x 3/4 inch) from loose parts and removed
previously. Position the bracket as shown in
Figure 4.
G001322
5
3
2
6
Figure
1. Lift cy
2. Right end of the axle 5. Carriage bolt, 3/8 x 3/4
3. Rear frame battery tray 6. Flange nut, 3/4 inch
linder support
5
4. U-bolt
inch
4
1
1
3
G001321
2
Figure 4
1. Bed 3. Flange head screw, 5/16 x
3/4 inch
2. Upper lift bracket
4. Secure the lift cylinder support to the rear
frame with 2 carriage bolts (3/8 x 3/4 inch)
and 2 flange nuts (3/4 inch). Tighten the 4
flange nuts on the U-bolts equally to make sure
the bracket is aligned to the axle. Tighten the
two nuts securing the rear of the bracket to the
rear frame (Figure 5).
5. Mount the bottom end of the lift actuator to
the lift cylinder support with a clevis pin and
3
