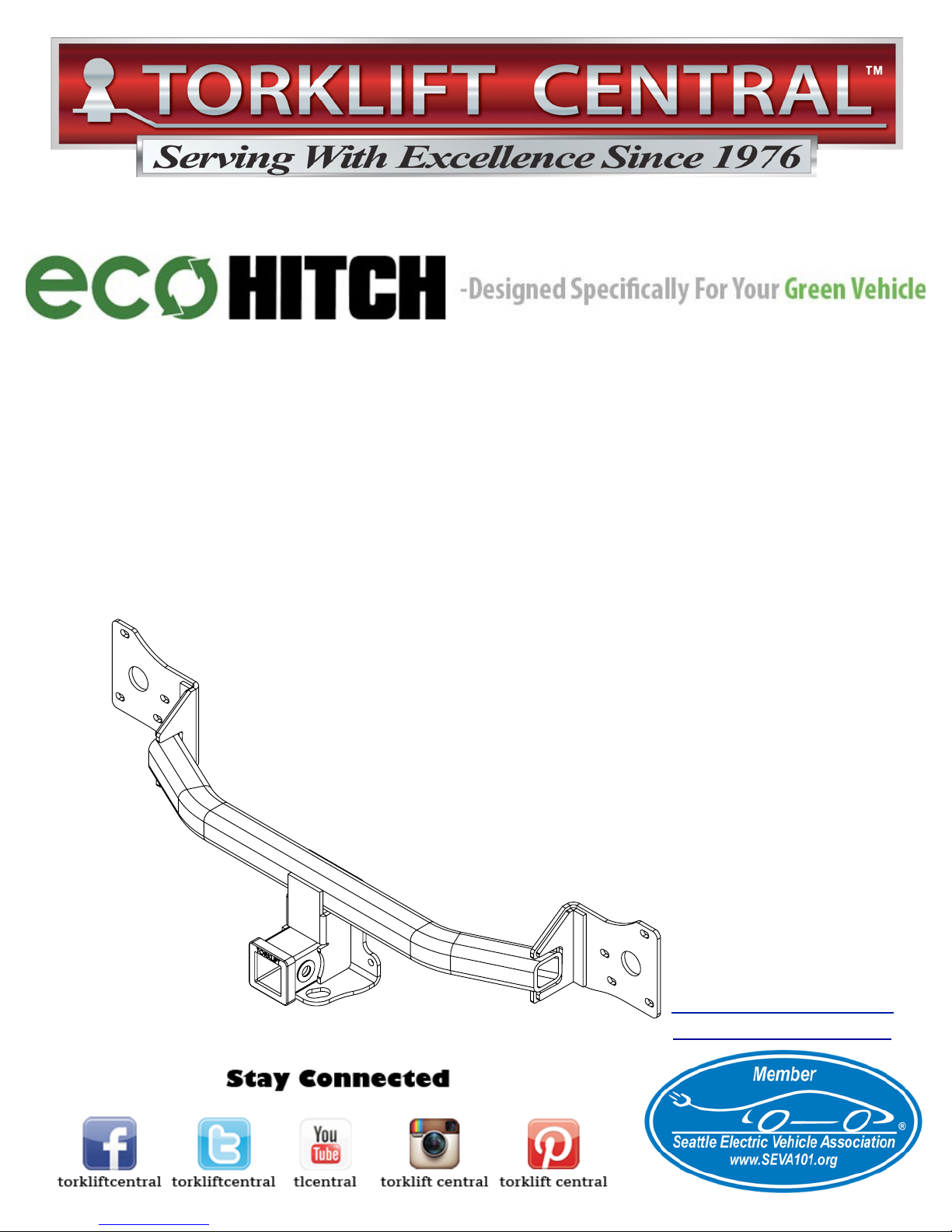

Installation Instructions
Application Fits
2009-2014 Honda Fit
X7286 & X7287
Torklift Central
315 Central Ave N
Kent, WA 98032
253-854-1832
www.torkliftcentral.com
support@tlcentral.com
Gross Tongue Weight (TW) 200 LBS
Gross Towing Weight (GTW) 2,000 LBS
2” & 1.25” EcoHitch Stealth
090915
THICKNESS
LENGTH
1/4"
D
C
4
3
2
1
Bolt Kit Weight: 336g +/- Hardware Included
QTY Fastener QTY Fastener
6 5/16” Flat Washer 3 M8-1.25 Hex Nut
9 5/16” Lock Washer 6 M8-1.25 x 40mm Hex Cap Bolt
4 3/8” Flat Washer 1 Nut Plate
4 3/8” Lock Washer 1 Stiffener Bracket
2 3/8”-16 Hex Nut Grade 5 1 18” Trim Lok Strip
4 3/8”-16 x 1” Hex Cap Bolt
Step 1. Raise rear of vehicle off of ground and place on ramps or suitable jack stands.
Step 2. Open the rear hatch and remove the light assembly covers on the driver and
passenger sides.
READ THESE INSTRUCTIONS THOROUGHLY AND ACCOUNT FOR
ALL HARDWARE LISTED BEFORE BEGINNING INSTALLATION!

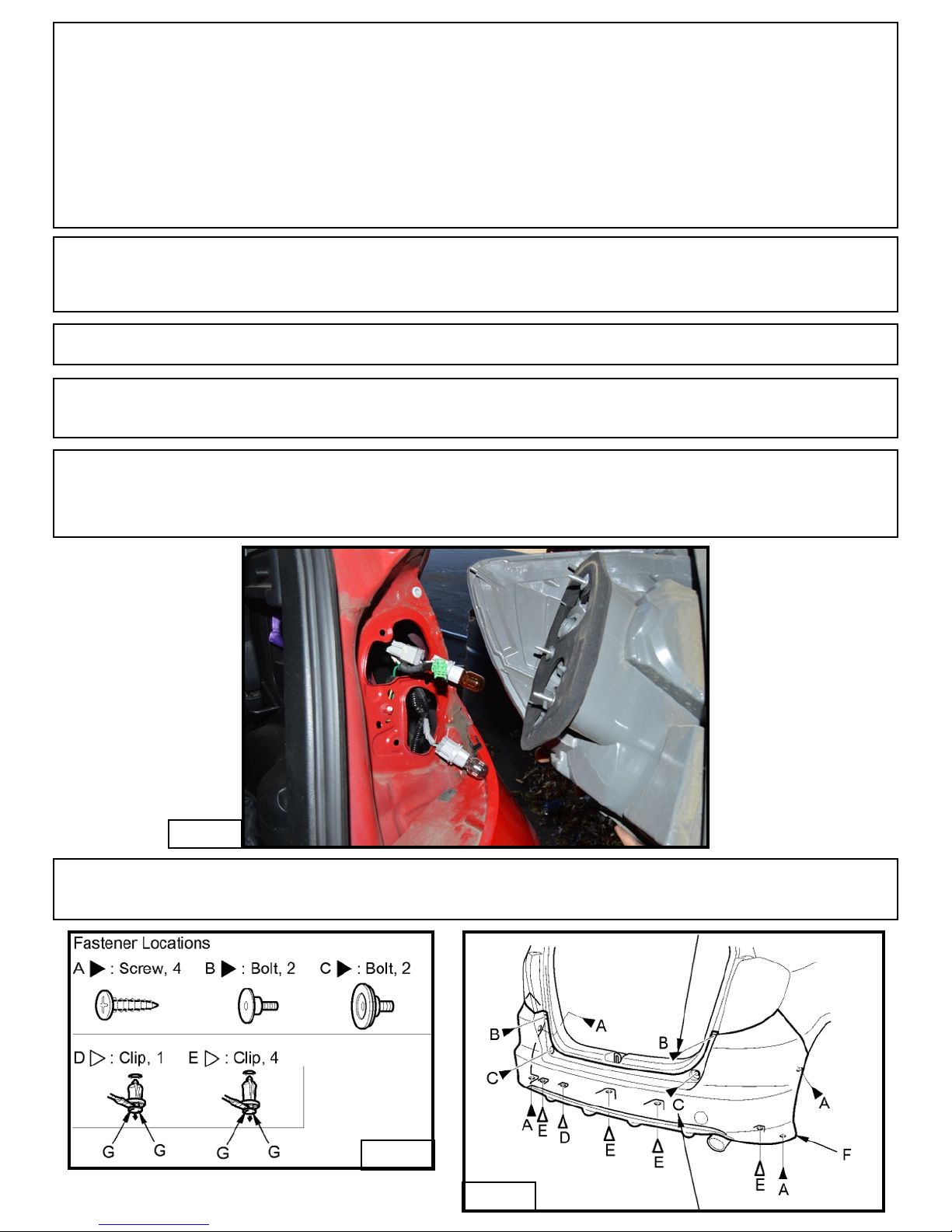

Step 3. Disconnect the wiring harness and gently pull the light bulbs out of the light
assembly housing. Remove the (3) hex cap nuts and slide the light assembly housing
rearward. Repeat on opposite side. See Figure [1].
Fig. 1
Step 4. Remove all screws, bolts, and clips shown in Figure [3] to release the bumper
fascia. Use Figure [2] for reference.
Fig. 2
Fig. 3

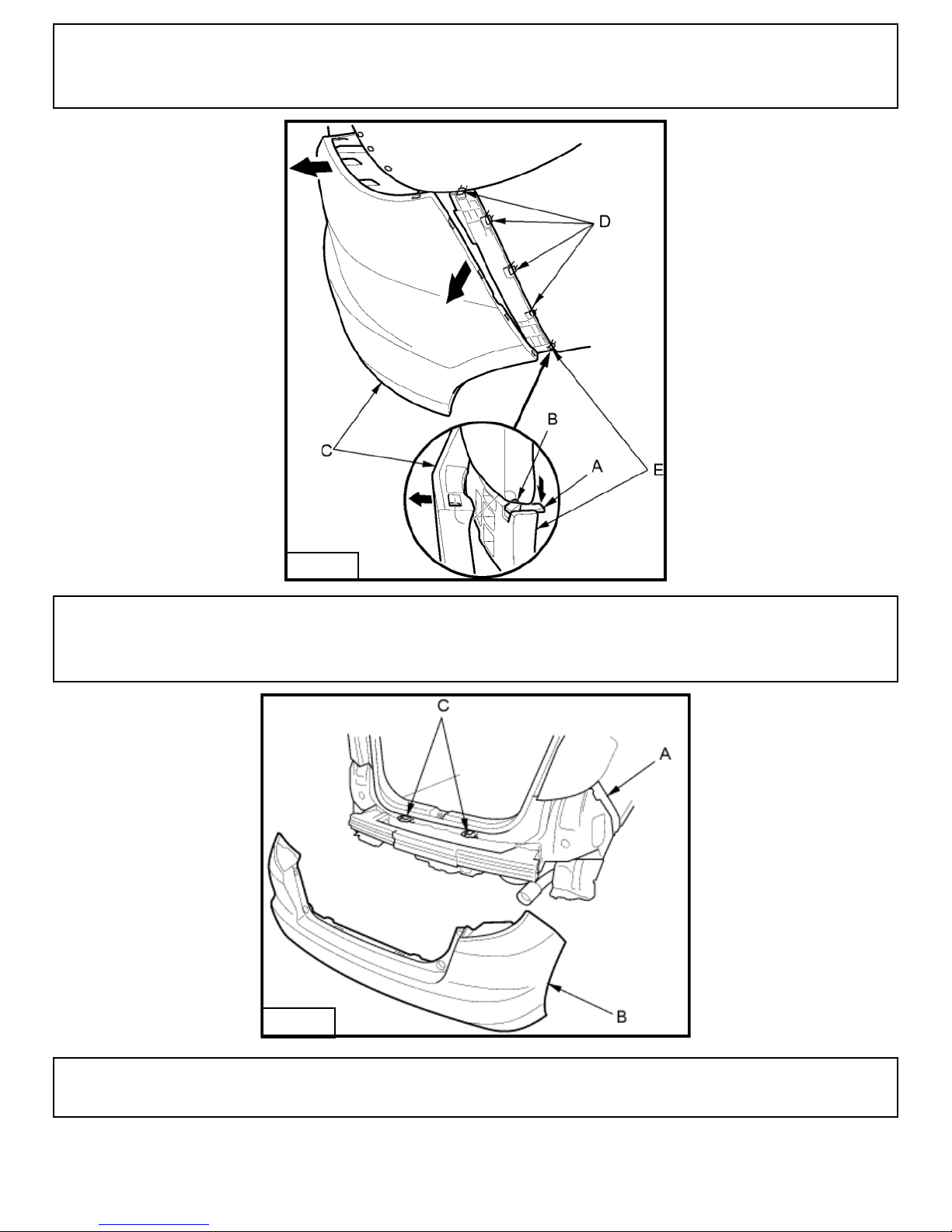

Step 5. Push the tab (A) to release the bottom hook (B), then pull on the rear bumper
(C) at the wheel arch areas to release it from the hooks (D) on the side spacers (E).
See Figure [4].
Fig. 4
Step 6. With the help of an assistant, hold the wheel arch portions away from the side
spacer (A), and pull the rear bumper (B) to release the bumper from the hooks (C) on
the body. See Figure [5].
Fig. 5
Step 7. Remove the impact bar by removing the (6) hex cap bolts, then lift and remove
the impact bar. Discard factory bolts.

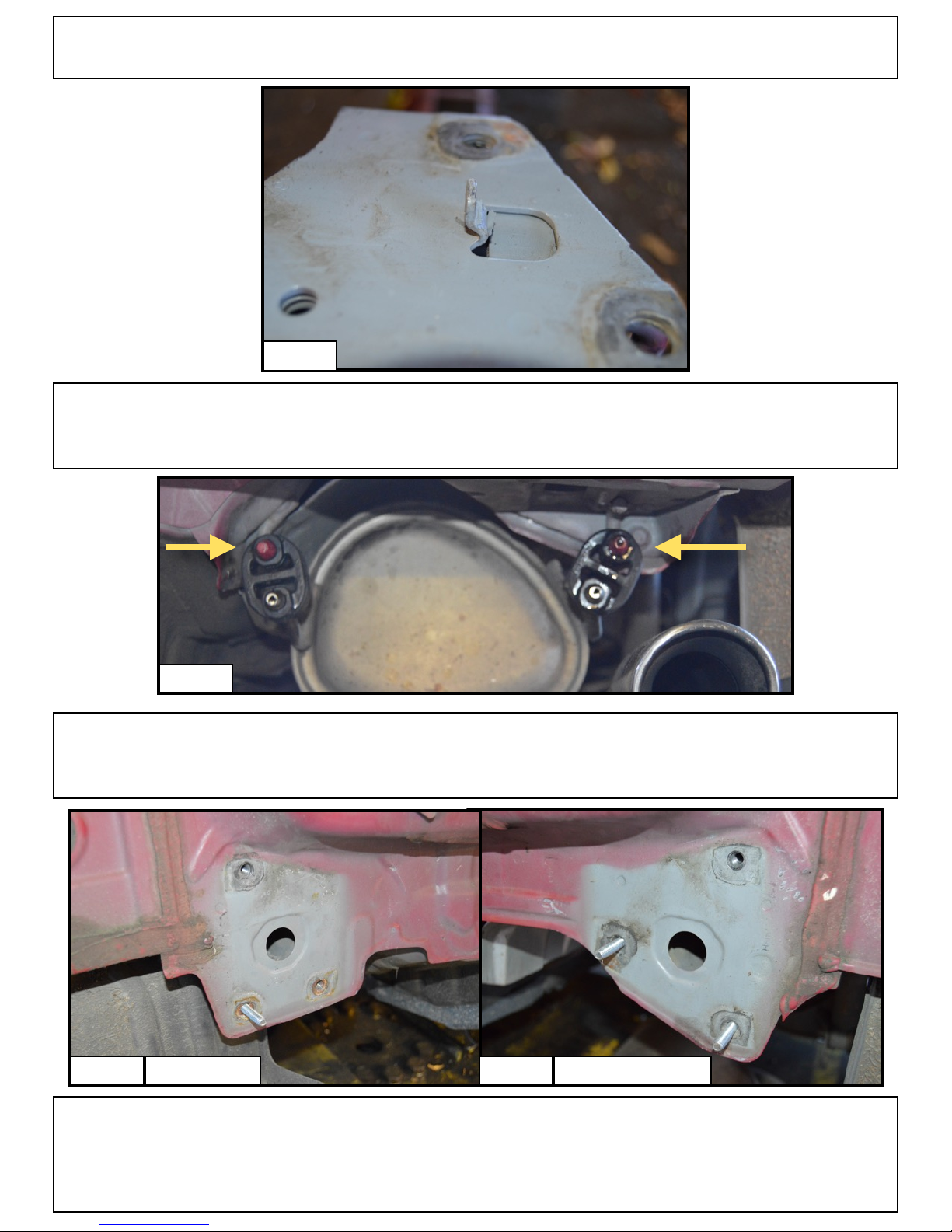

Step 8. Bend the small metal tabs of the impact bar upward toward the center of the
bar before reinstallation. See Figure [6].
Fig. 6
Step 9. Lower exhaust by lubricating the rubber exhaust bungs with a lubricant such as
WD-40 and slide off. Support the exhaust with a stand or other prop to avoid damage.
See Figure [7].
Fig. 7
Step 10. Thread (1) M8x1.25x40mm bolt and (1) 5/16” lock washer through the weld
nuts towards the rear of the vehicle. Repeat on remaining weld nut locations shown in
Figure [8] & [9].
Fig. 8
Fig. 9
Step 11. Place the hitch onto the newly installed stud bolts. Once hitch is in position,
place impact bar with the now bent tabs back into position over the hitch and secure
stud bolts with (1) 5/16” flat washer, (1) 5/16” lock washer, and (1) M8x1.25 hex nut.
Hand tighten, do not torque at this time!
Driver Side
Passenger Side
!
Pg. 5
Step 12. Thread (1) M8x1.25x40mm, (1) 5/16” lock washer, and (1) 5/16” flat washer
into the top left and bottom right holes in driver side of the impact bar. Repeat for the
top right hole on the passenger side of the impact bar. Figure [8] & [9] shows locations
of the holes without the impact bar, use for reference only. Once all hardware is
installed and secured, torque hardware to 20 ft-lbs.

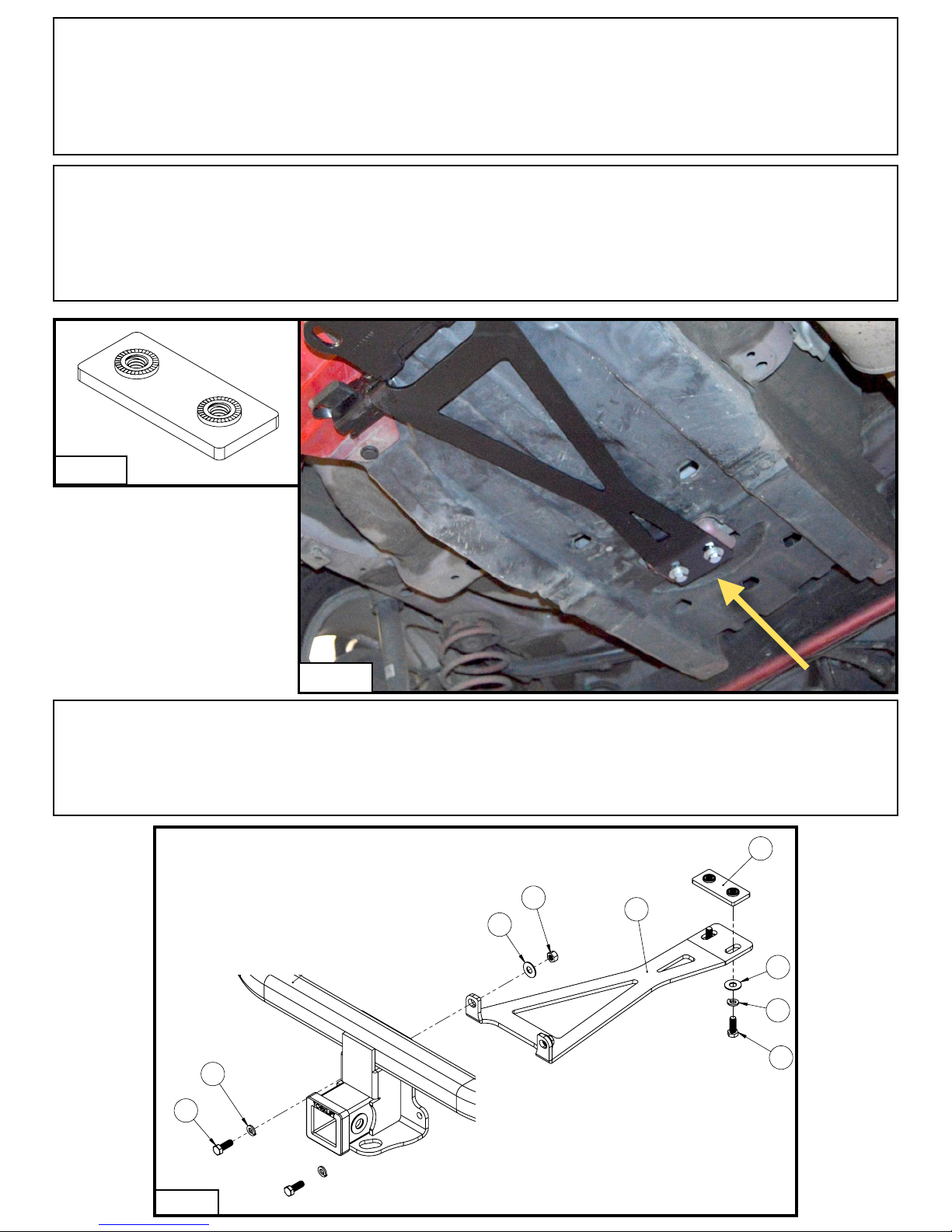

Step 13. Install the Nut Plate by sliding it into the opening of the vehicle underbody,
located directly forward of the hitch receiver. Once installed, raise the Stiffener Bracket
into position as shown in Figure [11] & [12]. Secure the Stiffener Bracket to the Nut
Plate using (1) 3/8”x1” bolt, (1) 3/8” lock washer, and (1) 3/8” flat washer on both holes.
Hand tighten only at this time.
Step 14. Secure the Stiffener Bracket to the EcoHitch by placing (1) 3/8”x1” bolt and
(1) 3/8” lock washer, through the holes located on the face of the chain plate. On the
back side of the Stiffener Bracket, secure the 3/8” bolts with (1) 3/8” flat washer and (1)
3/8” nut. See Figure [13]. Torque all 3/8” hardware to 20 ft-lbs.
D
C
3
2
1
Fig. 10
Fig. 11
1
10
8
9
11
2
9
8
10
4
6
3
6
7
D
C
B
7
6
5
4
3
2
1
PINHOLE CENTER TO 1st
OBSTRUCTION
PINHOLE CENTER TO BUMPER END
GROUND CLEARNACE
PINHOLE CENTER TO RECEIVER FACE
BOX DIMENSION
INSTALL TIME
-
-
-
-
-
-
RECEIVER TYPE
2000/200
MAKE
YEAR
2009-14
WEIGHT RATING
2.00" - STEALTH
MODEL
FIT
HONDA
Fig. 12
!

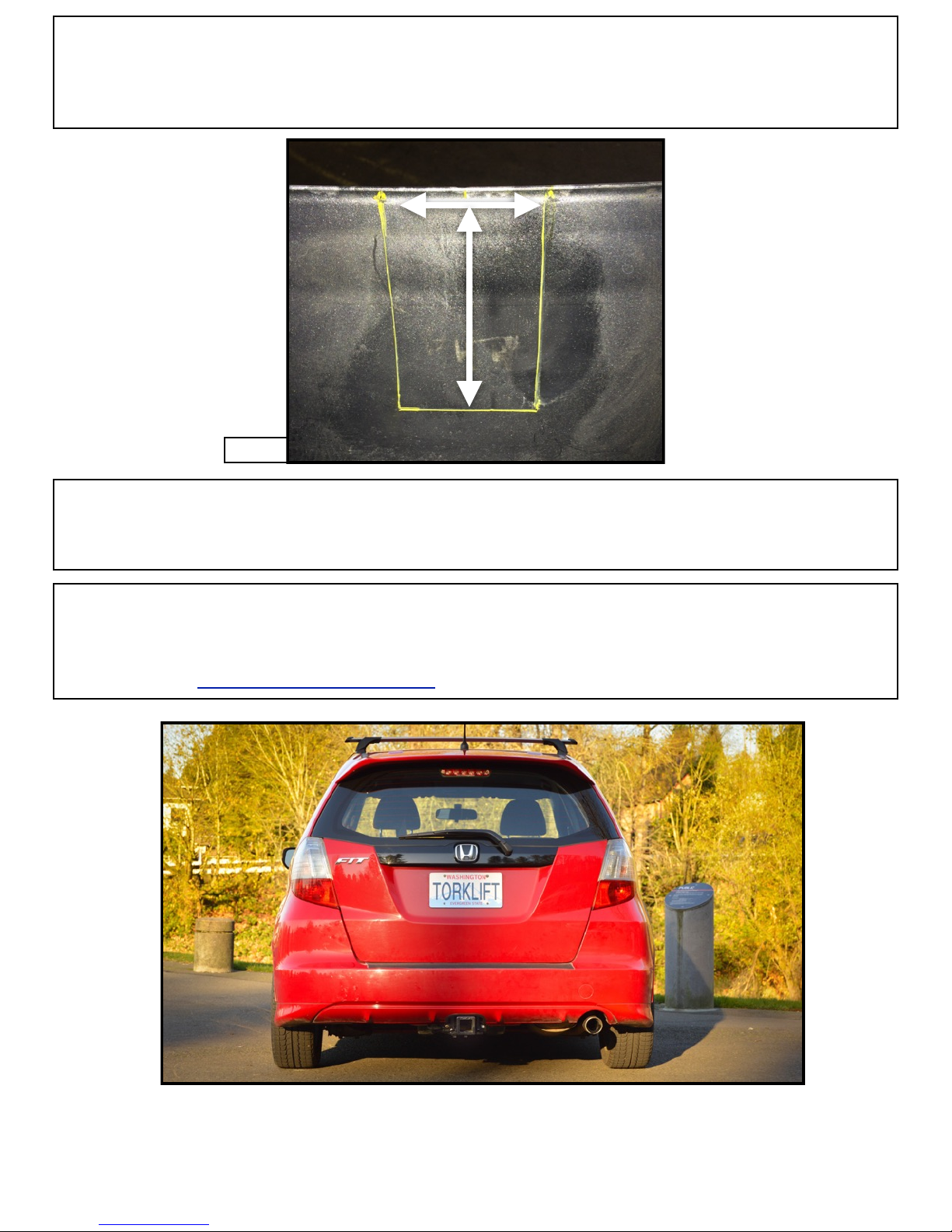

Step 15. Find the center of the bumper fascia and mark a 6”x5” section for trimming.
Using an air saw or utility knife, trim your marked portion of the bumper fascia then
apply the provided Trim Lok. Use a pair of wire cutters to trim the excess Trim Lok.
See Figure [13] for reference only.
Step 16. Reinstall the exhaust system by re-lubricating the rubber exhaust bungs and
then reinstall the bumper fascia by following these instructions in reverse starting at
Step 6.
Congratulations on the completed installation of the Honda Fit Stealth EcoHitch!
It is designed with a lifetime warranty for a lifetime of enjoyment. If you have any
questions or suggestions please contact our tech support at
support@tlcentral.com or by phone at (253)-854-1832.
Pg. 6
Fig. 13
6”
5”
WARRANTY/DISCLAIMER INFORMATION
Torklift Central requires proof of purchase for warranty claim registration, with pictures of any defective
product before issuing a replacement. Torklift will not accept claims on any product without proof of
purchase, which can be faxed, scanned, emailed or mailed to the information provided below. Torklift
Central warrants its hitches, custom hitch receivers and accessories (excluding electrical wire harnesses
which carry a warranty from their specified manufacturer) from date of purchase against defects in
material and workmanship under normal use and service for the ownership life of the original consumer
purchaser. Torklift Central will replace free of charge any part that proves defective in material or
workmanship when presented to Torklift Central, transportation charges prepaid by purchaser, at the
address below. This warranty is limited to defective parts replacement only. Labor charges and/or
damage incurred in installation or replacement, as well as incidental and consequential damages
connected therewith are excluded. This warranty does not include normal wear and tear or the finish and
paint. Rusting, cracking or peeling of the finish is also excluded. Some states do not allow the exclusion or
limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to
you. Any damage to Torklift Central products as a result of misuse, abuse, neglect, accident, improper
installation or any use violative of instructions furnished by Torklift Central will void the warranty. This
warranty gives you specific legal rights and you may also have rights, which vary from state to state. With
warranty service, you may be able to go to a small claims court, a state court or a federal district court.
Although Torklift Central trailer hitches are both tested and rated for towing within the specific capacity
label found on each trailer hitch. Torklift Central assumes no liability for vehicle manufacturers warranty
due to the use of a Torklift Central trailer hitch being used for towing behind any vehicle or using the
trailer hitch in a manner that it was not designed for. Although this specific trailer hitch has a load rating,
which includes trailer tongue weight, and a trailer weight carrying capacity, Torklift Central is not
responsible for the voiding of any warranty on any vehicle due to factory towing limitations. All vehicle
warranties are the sole property and responsibility of the owner of the vehicle that the Torklift Central
trailer hitch is installed upon. Torklift Central does not endorse towing behind any vehicle if the vehicles
manufacturer states that towing is not recommended. Check your vehicle’s owner’s manual for the proper
tow rating of your vehicle.
ADDRESS: 315 Central Ave N. Kent, WA 98032
*WARNING* Your vehicle may have a lower tow rating than this trailer hitch. If your vehicle’s tow
rating is less than the rated towing capacity on your Torklift Central trailer hitch, your trailer hitch capacity
is limited to your vehicle’s factory rated towing capacity.
FOR EXAMPLE: the label on your Torklift Central trailer hitch states it's capacity is rated for 500
pounds tongue weight and 5,000 pounds towing weight. However your vehicle's factory rated towing
capacity is limited to only 350 pounds tongue weight and 3,500 pounds towing weight. In this example
your maximum towing capacity of your Torklift Central trailer hitch is limited to 350 pounds tongue
weight and 3,500 pounds towing weight as stated by your vehicle’s maximum factory tow rating.
*DANGER*Never exceed your vehicle's manufacturer's recommended towing capacity which may be
a lower rating than this trailer hitch
Unsure of your tow rating? Download our towing app from the app store to find your vehicles tow rating.
www.torkliftcentral.com/app.php
