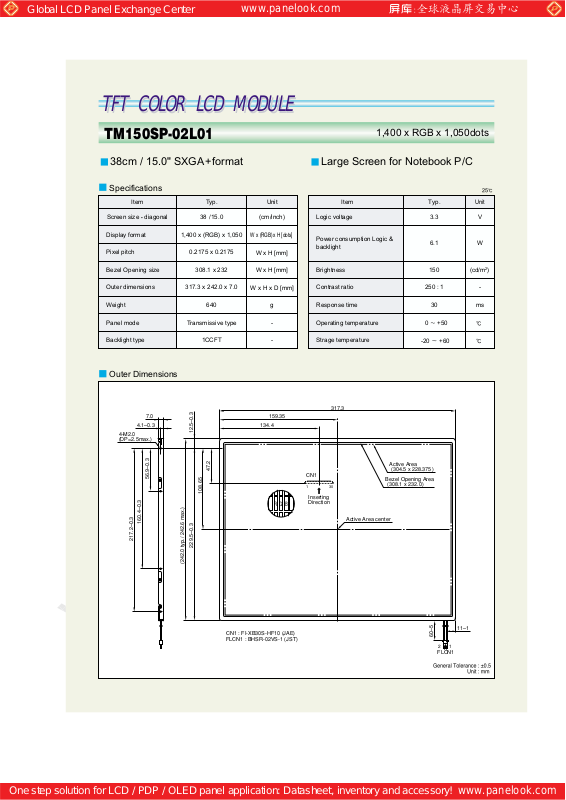

TFT COLOR LCD MODULE

TFT COLOR LCD MODULE

TM150SP-02L01

1,400 x RGB x 1,050dots

38cm / 15.0" SXGA+ format Large Screen for Notebook P/C

Specifications

Item Typ. Unit

diagonalScreen size

Display format

Pixel pitch

Bezel Opening size

Outer dimensions

Weight

Panel mode

Backlight type

38 / 15.0 (cm/inch)

1,400 x (RGB) x 1,050

0.2175 x 0.2175

308.1 x 232

317.3 x 242.0 x 7.0

640 g

Transmissive type -

1CCFT -

W x (RGB)x H [dots]

W x H x D [mm]

W x H [mm]

W x H [mm]

Item

Logic voltage

Power consumption Logic &
backlight

Brightness

Contrast ratio

Response time

Operating temperature

Strage temperature

Typ.

3.3

6.1

150

250 : 1

30

+500

+60-20

Unit

V

W

(cd/m

-

ms

2

)

Outer Dimensions

7.0

4.1–0.3

4-M2.0
(DP=2.5max.)

56.9–0.3

160.4–0.3

217.2–0.3

47.2

108.65

229.5–0.3 12.5–0.3

(242.0 typ./ 242.6 max.)

134.4

159.35

GRB

317.3

CN1

130

Inserting
Direction

Active Area center

Active Area

(304.5 x 228.375

Bezel Opening Area

(308.1 x 232.0

)

)

CN1 : FI-XB30S-HF10 (JAE)
FLCN1 : BHSR-02VS-1 (JST)

60–5

FLCN1

12

11–1
