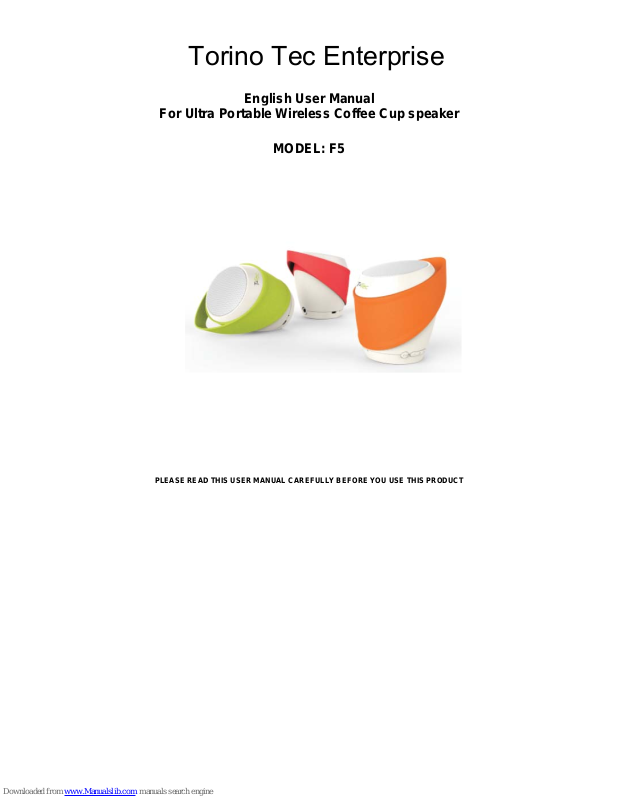

Page 1
Torino Tec Enterprise
English User Manual
For Ultra Portable Wireless Coffee Cup speaker
MODEL: F5
PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOU USE THIS PRODUCT
Page 2
Thank you for choosing our portable Bluetooth speaker. In order to maintain the
designed performance for this unit, please read this manual carefully before using
and make sure to operate it as instructed.
IMPORTANT SAFETY INSTRUCTION
z Read all of these safety and operating instructions before the unit is operated.
z Do not block any ventilation openings. Install in accordance with the
manufacturer’s instructions.
z Do not expose the unit to water or excessive moisture.
z Do not throw or trample the unit.
z Do not use the unit near any heat source such as stove, radiators or any
apparatus that can produce heat.
z To turn off the unit before cleaning. Clean by only using a soft anti-static dry
cloth.
z Do not disassemble the unit; there are no user serviceable parts inside.
FEATURES
• CSR Bluetooth 4.0, high speed Bluetooth version, to carry the best sound
performance.
• High efficiency Neo 1.5” full range driver design.
• Optimum acoustic box design with enhanced bass technology for
surround sound with deep bass.
• Works for iPhone, Android phone and any Bluetooth-enabled devices.
Bluetooth 2.1 or above
• 5W output produces powerful great sound.
• Internal rechargeable Lithium battery 900mAh, up to 6 - hour operating
lifetime at single fully charge
• Connectivity:
Audio Connections: 3.5mm Line in
Bluetooth profiles: A2DP, AVRCP
Bluetooth range: Line of sight, 33 FT(10M) .
Page 3
PANEL DESCRIPTION
1. Press once for Play/Pause (NOTE: Holding button down too long will
disconnect the Bluetooth connection)
2. Press to reduce volume
3. Press to increase volume
4. Slide button for power on/power off
5. AUX-in
6. Micro USB charging port
7. Charging indication LED
8. Mode indication LED
Page 4
Light Indication:
z Charging LED: Charging-- Solid red;
Fully charged-- LED off.
z Mode LED：
Bluetooth mode: Pairing-- blue fast flashing;
Paired and connected--blue slow flashing.
AUX-in mode: Solid red.
Charging the Coffee cup F5 speaker before using:
Connect the speaker to a 5V USB charger by using the USB cable (included)
or connect to a PC/laptop. The battery can be fully charged in approximately
4 hours
.
SUPPLIED ACCESSORIES
1. Micro USB-USB cable 1
2. 3.5 mm audio cable 1
3. Manual 1
TROUBLE SHOOTING
Problem Possible cause Suggested solution
No sound
Battery fully discharged Charge the battery
Audio input cable loose
Check connections and insert
fully into slots/jacks
Weak sound Low battery Recharge the battery
Sound is
distorted
Low battery Recharge the battery
Page 5
SPECIFICATIONS
Output Power 5W x1
Driver 1.5” @ 4Ohm x1, Neo full range speaker
System Frequency 80Hz-18KHz
S/N Ratio ≥ 75dB
Sensitivity ≥85dB
Distortion, THD ≤ 1%
Recharge Voltage USB DC5V
Dimensions
φ2.9x3.03X3.43 inch (φ74x77x87mm)
Without Ring
Weight 6.4 OZ (180g) With Ring
FCC WARNING
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
NOTE 1: Any changes or modifications to this unit not expressly approved by the
party responsible for compliance could void the user's authority to operate the
equipment.
Page 6
TORINO TEC ENTERPRISE LIMITED WARRANTY
POLICY
Limited Warranty – 1 year from original date of purchase
Torino Tec Enterprise warrants the Coffee Cup F5 speaker against defects in
materials and workmanship for a period of one (1) year from the date of original
purchase. If a defect arises and a valid claim is received within the Warranty
Period, Torino Tec Enterprise will, at its option, repair the Coffee Cup F5 or
exchange it for a functionally equivalent new unit. This warranty does not apply to
damage caused by accident, abuse, misuse, or modification of the product. To
return the product, pack it carefully and remember to print or type your name and
address clearly along with instruction for repair. Insurance, handling and
transportation charges to our service center shall be borne by person desiring
service.
Service Address for USA:
Torino Tec Enterprise
6735 Conroy Rd, Suite 330
Orlando, FL 32835
www.torinotecenterprise.com
