XC6229 Series
300mA Ultra Small High Speed LDO Regulator, Built-in Inrush Current Protection
GENERAL DESCRIPTION
The XC6229 series is a high speed LDO regulator that features high accurate, low noise, high ripple rejection, low dropout and low power consumption. Housed in the ultra-small LGA-4B01 (0.75 x 0.75, h=0.3mm MAX.) package, the XC6229 is ideal for space-saving design. The XC6229 consists of a voltage reference, an error amplifier, a driver transistor, a current limiter, a phase compensation circuit, a thermal shutdown circuit and an inrush current protection circuit.
The CE function enables the circuit to be in stand-by mode by inputting low level signal. In the stand-by mode, the series enables the electric charge at the output capacitor C quickly returns to the V
The output voltage is selectable in 0.05V increments within the range of 1.2V to 4.0V which fixed by laser trimming technologies. The over current protection circuit and the thermal shutdown circuit are built-in. These two protection circuits will operate when the output current reaches current limit level or the junction temperature reaches temperature limit level.
PPLICATIONS
●Mobile devices
●Wireless communications
●Modules
●Mobile phones
■
TYPICAL APPLICATION CIRCUIT
SS level. The output stabilization capacitor CL is also compatible with low ESR ceramic capacitors.
L to be discharged via the internal switch, and as a result the VOUT pin
FEATURES
Maximum Output Current : 300mA Input Voltage Range : 1.6～5.5V Output Voltages : 2.0～4.0V （Accuracy ±1%）
1.2～1.95V （Accuracy ±20mV）
0.05V increments Dropout Voltage : Low Power Consumption : 100μA Stand-by Current : 0.1μA High Ripple Rejection : 80dB＠f=1kHz Protection Circuits : Current Limit (400mA) Short Circuit Protection Over Heat Protection Inrush Current Protection Low ESR Capacitors : CIN =1.0μF, CL=1.0μF CE Function : Active High C Operating Ambient Temperature Small Package : Environmentally Friendly
80mV＠I
L
: -40℃〜+85℃
LGA-4B01 (0.75mm×0.75mm×h 0.3MAX.)
: EU RoHS Compliant, Pb Free
=150mA (V
OUT
High Speed Discharge
■TYPICAL PERFORMANCE CHARACTERISTICS
ETR0362-002a
=3.0V)
OUT
Load Transient Response
XC6229x251
tr = tf = 0.5μs, Ta = 25℃, I
= 3.5V, CIN = 1μF (ceramic), CL = 1μF (ceramic)
V
2.60
2.55
[V]
2.50
OUT
2.45
2.40
2.35
2.30
Output Voltage: V
2.25
2.20
Output Voltage
Output Current
Time [20μs/div]
= 1⇔150mA
OUT
400 350 300 250 200 150 100 50 0
Output Current Iout[mA]
1/26

XC6229 Series

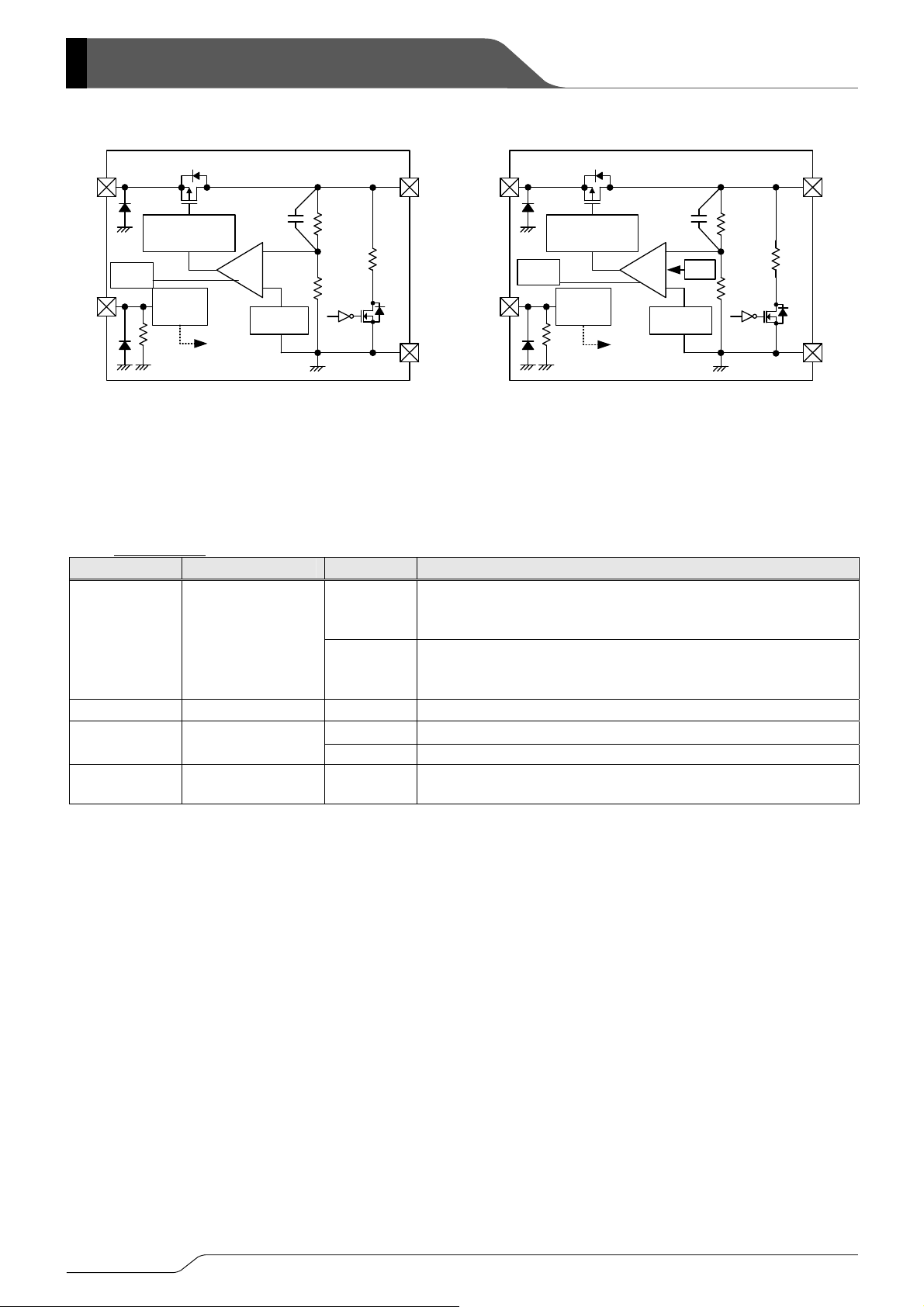

■BLOCK DIAGRAMS
V
CE
IN
Error
Amp
CFB
+
-
Voltage
Reference
CurrentLimit CurrentLimit
TSD
ON/OFF
Control
each
circuit
R1
Rdischg
R2
CE
V
OUT
V
SS
XC6229series Type D
* Diodes inside the circuits are ESD protection diodes and parasitic diodes.
■PRODUCT CLASSIFICATION
●Ordering Information
XC6229①②③④⑤⑥-⑦
DESIGNATOR
①
②③
④
⑤⑥-⑦
(*1)
(*1)
ITEM SYMBOL DESCRIPTION
CE Active High
Type of Regulator
D
H
Without Inrush Current Protection With CE Pull-down, With C CE Active High With Inrush Current Protection With CE Pull-down, With CL discharge
Output Voltage
Output Voltage
(
2nd decimal place)
Package
(Order Unit)
12～40 ex.) 2.80V → ②=2, ③=8, ④=please see down below.
1
B
±1％, In case of 2nd decimal place 0 (ex.2.80V → ④=1) ±1％, In case of 2nd decimal place 5 (ex.2.85V → ④=B)
1R-G LGA-4B01 (5,000 /Reel)
V
CE
IN
TSD
ON/OFF
Control
each
circuit
Error
Amp
CFB
+
-
Voltage
Reference
Non
Rush
R1
Rdischg
R2
CE
XC6229series Type H
discharge
L
V
OUT
V
SS
(*1)
The “-G” suffix indicates that the products are Halogen and Antimony free as well as being fully RoHS compliant.
2/26
■PIN CONFIGURATION
■PIN ASSIGNMENT
PIN NUMBER
LGA-4B01
3 VIN
2 V
1 VSS
4 CE
PIN NAME
Output
OUT
FUNCTIONS
Power Input
Ground
ON/OFF Control
XC6229
Series
■PIN FUNCTION ASSIGNMENT
CE LOGIC CONDITION
H Operation ON
L Operation OFF(Stand-by)
OPEN *
* For D and H types, CE pin voltage is fixed as L level because of internal pull-down resister.
■ABSOLUTE MAXIMUM RATINGS
PAR AMETER SYMBOL RATINGS UNITS
Input Voltage VIN
Output Current I Output Voltage V
CE Input Voltage VCE
Power Dissipation LGA-4B01 Pd
Operating Temperature Range Topr
Storage Temperature Range Tstg
(*1) I
(*2) This is a reference data taken by using the test board.
≦Pd/（V
OUT
IN-VOUT
）
500
OUT
OUT
IC OPERATION
-0.3～VSS+7.0
V
SS
V
SS
V
SS
(*1)
mA
-0.3～VIN+0.3
-0.3～VSS+7.0
150
600 (PCB mounted)
(*2)
-40～+85 ℃
-55～+125 ℃
V
V V
mW
3/26
XC6229 Series
■ELECTRICAL CHARACTERISTICS
●XC6229 Series, Type D／H
PAR AMET ER SYMBOL CONDITIONS MIN. TYP. MAX. UNITS CIRCUITS
Output Voltage V
Maximum Output Current I
Load Regulation
Dropout Voltage
Supply Current
Stand-by Current
Line Regulation
(ΔV
Input Voltage
Output Voltage
Temperature
Characteristics
Ripple Rejection Rate
(ΔTopr
Current Limit
Short Current
CE High Level Voltage
CE Low Level Voltage
CE High Level Current I
CE Low Level Current
I
CL Discharge Resistance R
V
≧2.0V, VCE=VIN, I
OUT(T)
(*1)
OUT(E)
V
CE=VIN
V
OUTMAX
VCE=VIN, 0.1mA≦I
ΔV
OUT
(*4)
V
Vdif
V
I
SS
V
I
STB
ΔV
/
OUT
)
IN・VOUT
- 1.6 - 5.5 V
V
IN
ΔV
/
OUT
・
V
)
OUT
PSRR
V
I
LIM
V
I
SHORT
- 1.0 - 5.5 V
V
CEH
- 0 - 0.3 V
V
CEL
V
CEH
V
CEL
V
DCHG
V
IN
CE=VIN
V
OUT(T)
V
V
V
IN
I
OUT
=｛V
OUT(T)
I
OUT
=5.5V, V
IN
＜2.0V,
V
OUT(T)
, I
=10mA
OUT
CE=VIN
, I
OUT
CE=VIN
CE=VSS
+0.5V≦VIN≦5.5Ｖ
, I
CE=VIN
OUT
CE=VIN、IOUT
-40℃≦Ta ≦85℃
V
＜2.5V
OUT(T)
=3.0VDC+0.5Vp-pAC
V
CE=VOUT(T)
=30mA, f=1kHz
≧2.5V
V
OUT(T)
+1.0｝VDC+0.5Vp-p
VCE=V
OUT(T)
=30mA, f=1kHz
CE=VIN
CE=VIN, VOUT=VSS
=5.5V 3.0 5.5 9.0 μA
CE=VIN
CE=VSS
=2.0V, VCE=VSS - 300 - Ω
OUT
OUT
=10mA
(*3)
V
V
OUT(T)
OUT(T)
300 - - mA
≦300mA - 25 45 mV
OUT
=300mA - E-1 mV
- 100 220 μA
- 0.01 0.4 μA
=50mA
=10mA
+1.0V
AC
+1.0V
310 400 - mA
- 50 - mA
-0.1 - 0.1 μA
(*2)
×0.99
V
(*2)
-20mV
- 0.01 0.1 %/V
- ±100 -
- 80 - dB
V
OUT(T)
OUT(T)
(*2)
V
OUT(T)
(*2)
V
OUT(T)
×1.01
+20mV
(*2)
(*2)
ppm/℃
Inrush Current (H Type) Irush VIN=5.5V, VCE=0→5.5V - 150 - mA
Thermal Shutdown
Detect Temperature
Thermal Shutdown
Release Temperature
Thermal Shutdown
Hysteresis Width
NOTE:
Unless otherwise stated regarding input voltage conditions, V （*1）V
: Effective output voltage
OUT(E)
T
TSD
T
TSR
- T
TSR
T
TSD
(i.e. the output voltage when “V
（*2）V
: Nominal output voltage
OUT(T)
（*3）The standard output voltage is specified in V （*4）Vdif＝V
IN1－VOUT1
V
=The input voltage when V
IN1
V
=A voltage equal to 98% of the output voltage whenever an amply stabilized V
OUT1
(V
≧1.6V)
IN1
appears as input voltage is gradually decreased.
OUT1
Junction Temperature
Junction Temperature
Junction Temperature
IN=VOUT(T)
+1.0V” is provided at the VIN pin while maintaining a certain I
OUT(T)
±20mV where V
OUT（T
）
＋1.0V.
＜2.0V.
OUT（T
）
- 150 - ℃
- 120 - ℃
- 30 - ℃
+1.0V is input for every I
OUT(T)
OUT
value.)
OUT
.
Ta=25℃
V
①
V
①
①
①
②
②
①
①
①
③
①
①
④
④
④
④
①
⑤
①
4/26
■OUTPUT VOLTAGE CHART
●Voltage Chart 1
XC6229
Series
NOMINAL
OUTPUT
VOLTAGE
(V)
V
OUT(T)
1.20 1.1800 1.2200
1.25 1.2300 1.2700
1.30 1.2800 1.3200
1.35 1.3300 1.3700
1.40 1.3800 1.4200
1.45 1.4300 1.4700
1.50 1.4800 1.5200
1.55 1.5300 1.5700
1.60 1.5800 1.6200
1.65 1.6300 1.6700
1.70 1.6800 1.7200
1.75 1.7300 1.7700
1.80 1.7800 1.8200
1.85 1.8300 1.8700
1.90 1.8800 1.9200
1.95 1.9300 1.9700
2.00 1.9800 2.0200
2.05 2.0295 2.0705
2.10 2.0790 2.1210
2.15 2.1285 2.1715
2.20 2.1780 2.2220
2.25 2.2275 2.2725
2.30 2.2770 2.3230
2.35 2.3265 2.3735
2.40 2.3760 2.4240
2.45 2.4255 2.4745
2.50 2.4750 2.5250
2.55 2.5245 2.5755
2.60 2.5740 2.6260
2.65 2.6235 2.6765
2.70 2.6730 2.7270
2.75 2.7225 2.7775
2.80 2.7720 2.8280
2.85 2.8215 2.8785
2.90 2.8710 2.9290
2.95 2.9205 2.9795
OUTPUT VOLTAGE
(V)
V
OUT(E)
MIN. MAX. TYP.
DROPOUT VOLTAGE
(mV)
E-1
Vdif
MAX.
470 625
420 575
380 505
350 455
320 440
260 380
230 340
190 300
5/26
XC6229 Series
■OUTPUT VOLTAGE CHART (Continued)
●Voltage Chart 2
NOMINAL
OUTPUT
VOLTAGE
(V)
V
OUT(T)
OUTPUT VOLTAGE
(V)
V
OUT(E)
MIN. MAX.
DROPOUT VOLTAGE
(mV)
E-1
Vdif
TYP.
MAX.
3.00 2.9700 3.0300
3.05 3.0195 3.0805
3.10 3.0690 3.1310
3.15 3.1185 3.1815
3.20 3.1680 3.2320
3.25 3.2175 3.2825
3.30 3.2670 3.3330
3.35 3.3165 3.3835
3.40 3.3660 3.4340
3.45 3.4155 3.4845
3.50 3.4650 3.5350
160 260
3.55 3.5145 3.5855
3.60 3.5640 3.6360
3.65 3.6135 3.6865
3.70 3.6630 3.7370
3.75 3.7125 3.7875
3.80 3.7620 3.8380
3.85 3.8115 3.8885
3.90 3.8610 3.9390
3.95 3.9105 3.9895
4.00 3.9600 4.0400
6/26
XC6229
■OPERATIONAL EXPLANATION
XC6229 Series, Type D
The voltage divided by resistors R1 & R2 is compared with the internal reference voltage by the error amplifier. The P-channel
MOSFET which is connected to the V
and stabilized by a system of negative feedback. The current limit circuit and short circuit protection operate in relation to the level of output current and heat dissipation. Further, the IC’s internal circuitry can be shutdown via the CE pin signal.
<Low ESR Capacitor>
The XC6229 series needs an output capacitor C
(V
) and the ground pin (V
OUT
please connect an input capacitor (C
<Current Limiter, Short-Circuit Protection>
The XC6229 has current limiter and droop shape of fold-back circuit. When the load current reaches the current limit, the droop current
limiter circuit operates and the output voltage drops. When the output voltage dropped, the fold-back circuit operates and the output current goes to decrease. The output current finally falls at the level of 50mA when the output pin is short-circuited.
<CE Pin>
The IC's internal circuitry can be shutdown via the signal from the CE pin. In shutdown mode, the XC6229 series enables the electric
charge at the output capacitor (C
pin quickly returns to the V
<Thermal Shutdown>
When the junction temperature of the built-in driver transistor reaches the temperature limit, the thermal shutdown circuit operates and the
driver transistor will be set to OFF. The IC resumes its operation when the thermal shutdown function is released and the IC’s operation is automatically restored because the junction temperature drops to the level of the thermal shutdown release voltage.
) as close as possible. Please use the output capacitor (CL) is 1.0μF or larger. For a stable power input,
SS
level. The XC6229 series has a pull-down resistor at the CE pin inside, so that the CE pin input current flows.
SS
pin is then driven by the subsequent output signal. The output voltage at the V
OUT
for phase compensation. Please place an output capacitor (CL) at the output pin
L
) of 1.0μF between the VIN pin and the VSS pin.
IN
) to be discharged via the internal switch located between the V
L
<Inrush Current Protection>
The inrush current protection circuit is built in the XC6229 type H.
When the IC starts to operate, the protection circuit limits the inrush current from input pin (V
XC6229 Series, Type H
and VSS pins, and as a result the V
OUT
) to output pin (V
IN
OUT)
pin is controlled
OUT
to charge CL capacitor.
Series
OUT
7/26
XC6229 Series
■NOTES ON USE
1． For temporary, transitional voltage drop or voltage rising phenomenon, the IC is liable to malfunction should the ratings be
exceeded.
2． Where wiring impedance is high, operations may become unstable due to the noise and/or phase lag depending on output
current. Please strengthen V
3． The input capacitor C
4. The type H is controlled with constant current start-up. Start-up sequence control is requested to draw a load current after the output voltage is raised up to around the internally fixed nominal output voltage.
5. Torex places an importance on improving our products and its reliability.
However, by any possibility, we would request user fail-safe design and post-aging treatment on system or equipment.
and the output capacitor CL should be placed to the as close as possible with a shorter wiring.
IN
and VSS wiring in particular.
IN
8/26
■TEST CIRCUITS
●Circuit ①
●Circuit ②
XC6229
Series
●Circuit ③
9/26
XC6229 Series
■TEST CIRCUITS (Continued)
●Circuit ④
●Circuit ⑤
10/26
■TYPICAL PERFORMANCE CHARACTERISTICS
(1) Output Voltage vs. Output Current
XC6229
Series
XC6229x121
= 1.0μF (ceramic)
C
IN
1.4
1.2
[V]
OUT
1.0
0.8
Ta=-40℃
Ta=-40℃ Ta=25℃
Ta=25℃
Ta=85℃
85℃
0.6
0.4
Output Voltage: V
0.2
0.0 0 100 200 300 400 500
Output Current: I
OUT
[mA]
XC6229x181
C
= 1.0μF (ceramic)
OUT
IN
[mA]
2.0
1.8
1.6
[V]
1.4
OUT
1.2
1.0
Ta=-40℃ Ta=25℃ Ta=85℃
0.8
0.6
0.4
Output Voltage: V
0.2
0.0 0 100 200 300 400 500
Output Current: I
V
= 2.2V
IN
VIN = 2.8V
XC6229x121
C
= 1.0μF (ceramic)
IN
1.4
1.2
[V]
OUT
1.0
0.8
0.6
VIN=1.6V VIN=2.2V VIN=2.7V VIN=5.5V
0.4
Output Voltage: V
0.2
0.0 0 100 200 300 400 500
Output Current: I
OUT
[mA]
XC6229x181
= 1.0μF (ceramic)
C
IN
2.0
1.8
1.6
[V]
1.4
OUT
1.2
1.0
0.8
0.6
0.4
Output Voltage: V
0.2
0.0 0 100 200 300 400 500
VIN=1.9V VIN=2.3V VIN=2.8V VIN=3.3V VIN=5.5V
Output Current: I
OUT
[mA]
Ta = 25℃
Ta = 25℃
XC6229x251
CIN = 1.0μF (ceramic)
3.0
2.5
[V]
OUT
2.0
1.5
1.0
0.5
Output Voltage: V
0.0 0 100 200 300 400 500
Ta=-40℃
Ta=25℃
Ta=85℃
Output Current: I
OUT
[mA]
VIN = 3.5V
3.0
2.5
[V]
OUT
2.0
1.5
1.0
0.5
Output Voltage: V
0.0 0 100 200 300 400 500
XC6229x251
VIN=2.6V VIN=3.0V VIN=3.5V VIN=4.0V VIN=5.5V
Output Current: I
= 1.0μF (ceramic)
C
IN
[mA]
OUT
Ta = 25℃
11/26
XC6229 Series
■TYPICAL PERFORMANCE CHARACTERISTICS (Continued)
(1) Output Voltage vs. Output Current (Continued)
XC6229x401
4.5
4.0
[V]
3.5
OUT
3.0
2.5
2.0
Ta=-40℃ Ta=25℃ Ta=85℃
1.5
1.0
Output Voltage: V
0.5
0.0 0 100 200 300 400 500
Output Current: I
(2) Output Voltage vs. Input Voltage
XC6229x121
C
= 1μF (ceramic), CL = 1μF (ceramic)
1.4
[V]
1.2
OUT
1.0
0.8
0.6
Output Voltage: V
0.4
0.5 1.0 1.5 2.0 2.5
IN
Input Voltage: V
VIN = 5.0V
CIN = 1.0μF (ceramic)
[mA]
OUT
Ta = 25℃
IOUT=1mA
IOUT=10mA
IOUT=30mA
IOUT=50mA
[V]
IN
XC6229x401
C
IN
4.5
4.0
3.5
[V]
OUT
3.0
2.5
2.0
1.5
1.0
Output Voltage: V
0.5
VIN=4.1V
VIN=4.1V VIN=4.5V
25℃
VIN=5.0V
VIN=5.0V
VIN=5.5V
25℃
0.0 0 100 200 300 400 500
Output Current: I
OUT
XC6229x121
CIN = 1μF (ceramic), CL = 1μF (ceramic)
1.212
1.208
[V]
OUT
1.204
1.200
1.196
1.192
Output Voltage: V
1.188
2.0 2.5 3.0 3.5 4.0 4.5 5.0 5.5 Input Voltage: V
IOUT=1mA
IOUT=10mA
IOUT=30mA
IOUT=50mA
[V]
IN
Ta = 25℃
= 1.0μF (ceramic)
[mA]
Ta = 25℃
12/26
XC6229x181
C
= 1μF (ceramic), CL = 1μF (ceramic)
IN
2.0
[V]
1.8
OUT
1.6
1.4
1.2
Output Voltage: V
1.0
0.5 1.0 1.5 2.0 2.5 Input Voltage: V
[V]
IN
IOUT=1mA
IOUT=10mA
IOUT=30mA
IOUT=50mA
Ta = 25℃
XC6229x181
CIN = 1μF (ceramic), CL = 1μF (ceramic)
1.820
1.815
[V]
1.810
OUT
1.805
1.800
1.795
1.790
1.785
Output Voltage: V
1.780
2.0 2.5 3.0 3.5 4.0 4.5 5.0 5.5 Input Voltage: V
IOUT=1mA IOUT=10mA IOUT=30mA IOUT=50mA
[V]
IN
Ta = 25℃
■TYPICAL PERFORMANCE CHARACTERISTICS (Continued)
(2) Output Voltage vs. Input Voltage (Continued)
XC6229
Series
XC6229x251
= 1μF (ceramic), CL = 1μF (ceramic)
C
IN
2.7
[V]
2.5
OUT
2.3
2.1
1.9
Output Voltage: V
IOUT=1mA
IOUT=10mA
IOUT=30mA
IOUT=50mA
1.7
1.5 2.0 2.5 3.0 3.5 Input Voltage: V
[V]
IN
XC6229x401
C
= 1μF (ceramic), CL = 1μF (ceramic)
IN
4.2
4.0
[V]
OUT
3.8
3.6
3.4
Output Voltage: V
3.2
3.0 3.5 4.0 4.5 5.0 Input Voltage: V
IOUT=1mA
IOUT=10mA
IOUT=30mA
IOUT=50mA
[V]
IN
Ta = 25℃
Ta = 25℃
XC6229x251
C
= 1μF (ceramic), CL = 1μF (ceramic)
IN
2.530
2.520
[V]
OUT
2.510
2.500
2.490
2.480
Output Voltage: V
2.470
3.0 3.5 4.0 4.5 5.0 5.5 Input Voltage: V
XC6229x401
CIN = 1μF (ceramic), CL = 1μF (ceramic)
4.040
4.030
[V]
4.020
OUT
4.010
4.000
3.990
3.980
Output Voltage: V
3.970
3.960
4.5 4.7 4.9 5.1 5.3 5.5 Input Voltage: V
IOUT=1mA IOUT=10mA IOUT=30mA IOUT=50mA
[V]
IN
IOUT=1mA
IOUT=10mA
IOUT=30mA
IOUT=50mA
[V]
IN
Ta = 25℃
Ta = 25℃
(3) Dropout Voltage vs. Output Current
XC6229ｘ121
CIN = 1μF (ceramic), CL = 1μF (ceramic)
0.5
0.4
0.3
0.2
0.1
Dropout Voltage: Vdif [V]
0.0 0 50 100 150 200 250 300
Output Current: I
OUT
Ta = -40℃
Ta = 25℃
Ta = 85℃
[mA]
Ta = 25℃
XC6229ｘ181
C
= 1μF (ceramic), CL = 1μF (ceramic)
IN
0.5
0.4
0.3
0.2
0.1
Dropout Voltage: Vdif [V]
0.0 0 50 100 150 200 250 300
Ta = -40℃
Ta = 25℃
Ta = 85℃
Output Current: I
OUT
[mA]
Ta = 25℃
13/26
XC6229 Series
■TYPICAL PERFORMANCE CHARACTERISTICS (Continued)
(3) Dropout Voltage vs. Output Current (Continued)
XC6229x251
CIN = 1μF (ceramic), CL = 1μF (ceramic)
0.5
0.4
0.3
Ta = -40℃
Ta = 25℃
Ta = 85℃
0.2
0.1
Dropout Voltage: Vdif [V]
0.0 0 50 100 150 200 250 300
Output Current: I
(4) Supply Current vs. Input Voltage
XC6229x121
160 140 120
[μA]
SS
100
80 60 40 20
Supply Current: I
0
00.511.522.533.544.555.5
Input Voltage: V
OUT
IN
[V]
[mA]
Ta = -40℃
Ta = 25℃
Ta = 85℃
Ta = 25℃
XC6229x401
= 1μF (ceramic), CL = 1μF (ceramic)
C
IN
0.5
0.4
0.3
Ta = -40℃
Ta = 25℃
Ta = 85℃
0.2
0.1
Dropout Voltage: Vdif [V]
0.0 0 50 100 150 200 250 300
Output Current: I
OUT
XC6229x181
160 140 120
[μA]
SS
100
80 60 40 20
Supply Current: I
0
0 0.5 1 1.5 2 2.5 3 3.5 4 4.5 5 5.5
Input Voltage: V
IN
Ta = 25℃
[mA]
Ta = -40℃
Ta = 25℃
Ta = 85℃
[V]
[μA]
SS
Supply Current: I
14/26
XC6229x251
160 140 120 100
80 60 40 20
0
0 0.5 1 1.5 2 2.5 3 3.5 4 4.5 5 5.5
Input Voltage: V
IN
[V]
Ta = -40℃
Ta = 25℃
Ta = 85℃
XC6229x401
300
250
[μA]
200
SS
150
100
50
Supply Current: I
0
00.511.522.533.544.555.5
Ta = -40℃
Ta = 25℃
Ta = 85℃
Input Voltage: V
IN
[V]
■TYPICAL PERFORMANCE CHARACTERISTICS (Continued)
(5) Output Voltage vs. Ambient Temperature
XC6229
Series
XC6229x121
= 1μF (ceramic), CL = 1μF (ceramic)
C
IN
1.22
[V]
1.21
OUT
1.20
1.19
Output Voltage: V
1.18
-50 -25 0 25 50 75 100 Ambient Temperature: Ta [℃]
XC6229x251
= 1μF (ceramic), CL = 1μF (ceramic)
C
IN
2.56
[V]
2.54
OUT
2.52
2.50
2.48
2.46
Output Voltage: V
2.44
-50 -25 0 25 50 75 100 Ambient Temperature: Ta [℃]
V
IN
IOUT= 1mA IOUT=10mA IOUT=30mA IOUT=50mA
VIN = 3.5V
IOUT= 1mA
IOUT=10mA
IOUT=30mA
IOUT=100mA
= 2.2V
XC6229x181
= 1μF (ceramic), CL = 1μF (ceramic)
C
IN
[V]
OUT
1.84
1.83
1.82
1.81
IOUT= 1mA
IOUT=10mA
IOUT=30mA
IOUT=100mA
1.80
1.79
1.78
1.77
Output Voltage: V
1.76
-50 -25 0 25 50 75 100 Ambient Temperature: Ta [℃]
XC6229x401
= 1μF (ceramic), CL = 1μF (ceramic)
C
IN
4.08
4.06
[V]
4.04
OUT
4.02
4.00
3.98
3.96
3.94
Output Voltage: V
3.92
-50 -25 0 25 50 75 100 Ambient Temperature: Ta [℃]
V
IN
V
= 5.0V
IN
IOUT= 1mA IOUT=10mA IOUT=30mA IOUT=100mA
= 2.8V
(6) Rising Response Time
6.0
3.0
[V]
IN
0.0
-3.0
-6.0
-9.0
Input Voltage: V
-12.0
XC6229x121
tr = 5μs, Ta = 25℃,V
C
= 0.1μF (ceramic), CL = 1μF (ceramic)
IN
Input Voltage
Output Voltage
Time [50μs/div]
IOUT=0.1mA
IOUT=30mA
IOUT=100mA
= 0→2.2V
IN
2.4
2
1.6
1.2
0.8
0.4
0
XC6229x181
tr = 5μs, Ta = 25℃,VIN = 0→2.8V
C
= 0.1μF (ceramic), CL = 1μF (ceramic)
6.0
[V]
OUT
3.0
[V]
IN
0.0
-3.0
-6.0
Input Voltage: V
Output Voltage: V
-9.0
-12.0
IN
Input Voltage
Output Voltage
IOUT=0.1mA
IOUT=30mA
IOUT=100mA
3
2.5
2
1.5
1
0.5
0
[V]
OUT
Output Voltage: V
Time [50μs/div]
15/26
XC6229 Series
■TYPICAL PERFORMANCE CHARACTERISTICS (Continued)
(6) Rising Response Time (Continued)
C
IN
6.0
3.0
[V]
IN
0.0
Input Voltage
-3.0
-6.0
-9.0
Input Voltage: V
Output Voltage
-12.0
(7) Input Transient Response
tr = tf = 5μs, Ta = 25℃, VIN = 2.2V⇔3.2V
C
= 0.1μF (ceramic), CL = 1.0μF (ceramic)
IN
5.0
4.0
[V]
IN
3.0
2.0
1.0
0.0
Input Voltage: V
-1.0
Output Voltage
XC6229x251
tr = 5μs, Ta = 25℃,VIN = 0→3.5V
= 0.1μF (ceramic), CL = 1μF (ceramic)
IOUT=0.1mA
IOUT=30mA
IOUT=100mA
Time [50μs/div]
XC6229x121
Input Voltage
IOUT=0.1mA IOUT=30mA IOUT=100mA
Time [100μs/div]
6.0
5.0
4.0
3.0
2.0
1.0
0.0
1.24
1.23
1.22
1.21
1.2
1.19
1.18
[V]
Output Voltage: V
OUT
[V]
Output Voltage: V
OUT
[V]
IN
Input Voltage: V
6.0
3.0
0.0
-3.0
-6.0
-9.0
-12.0
[V]
IN
Input Voltage: V
-1.0
5.0
4.0
3.0
2.0
1.0
0.0
XC6229x401
tr = 5μs, Ta = 25℃,V
C
= 0.1μF (ceramic), CL = 1μF (ceramic)
IN
Input Voltage
Output Voltage
IOUT=0.1mA
IOUT=30mA
IOUT=100mA
Time [50μs/div]
XC6229x181
tr = tf = 5μs, Ta = 25℃, V
C
= 0.1μF (ceramic), CL = 1.0μF (ceramic)
IN
Input Voltage
Output Voltage
Time [100μs/div]
IN
= 0→5.0V
IN
= 2.8V⇔3.8V
IOUT=0.1mA IOUT=30mA IOUT=100mA
6.0
5.0
4.0
3.0
2.0
1.0
0.0
1.85
1.84
1.83
1.82
1.81
1.8
1.79
[V]
OUT
Output Voltage: V
[V]
OUT
Output Voltage: V
16/26
XC6229x251
tr = tf = 5μs, Ta = 25℃, V
= 0.1μF (ceramic), CL = 1.0μF (ceramic)
C
IN
6.0
5.0
[V]
IN
4.0
Input Voltage
3.0
2.0
1.0
Input Voltage: V
Output Voltage
0.0 Time [100μs/div]
= 3.5V⇔4.5V
IN
IOUT=0.1mA IOUT=30mA IOUT=100mA
2.54
2.53
2.52
2.51
2.5
2.49
2.48
[V]
OUT
Output Voltage: V
6.0
5.0
[V]
IN
4.0
3.0
2.0
1.0
Input Voltage: V
0.0
XC6229x401
tr = tf = 5μs, Ta = 25℃, V
= 0.1μF (ceramic), CL = 1.0μF (ceramic)
C
IN
Input Voltage
Output Voltage
Time [100μs/div]
= 4.5V⇔5.5V
IN
IOUT=10mA IOUT=30mA IOUT=100mA
4.04
4.03
4.02
4.01
4
3.99
3.98
[V]
OUT
Output Voltage: V
■TYPICAL PERFORMANCE CHARACTERISTICS (Continued)
(8) Load Transient Response (tr=tf=0.5μs)
XC6229
Series
[V]
OUT
Output Voltage: V
[V]
OUT
Output Voltage: V
1.30
1.25
1.20
1.15
1.10
1.05
1.00
0.95
0.90
1.90
1.85
1.80
1.75
1.70
1.65
1.60
1.55
1.50
XC6229x121
tr = tf = 0.5μs, Ta = 25℃, I
V
= 2.2V, CIN = 1μF (ceramic), CL = 1μF (ceramic)
IN
= 1⇔150mA
OUT
Output Voltage
Output Current
Time [20μs/div]
XC6229x181
tr = tf = 0.5μs, Ta = 25℃, I
V
= 2.8V, CIN = 1μF (ceramic), CL = 1μF (ceramic)
IN
= 1⇔150mA
OUT
Output Voltage
Output Current
Time [20μs/div]
400 350 300 250 200 150 100 50 0
400 350 300 250 200 150 100 50 0
XC6229x121
tr = tf = 0.5μs, Ta = 25℃, I
V
= 2.2V, CIN = 1μF (ceramic), CL = 1μF (ceramic)
IN
1.22
1.21
[V]
1.20
OUT
1.19
Output Voltage
1.18
1.17
1.16
Output Voltage: V
Output Current Iout[mA]
1.15
1.14
Output Current
= 50⇔100mA
OUT
400 350 300 250 200 150 100 50 0
Output Current Iout[mA]
Time [20μs/div]
XC6229x181
tr = tf = 0.5μs, Ta = 25℃, I
V
= 2.8V, CIN = 1μF (ceramic), CL = 1μF (ceramic)
IN
1.82
1.81
[V]
1.80
OUT
1.79
Output Voltage
1.78
1.77
1.76
Output Current Iout[mA]
Output Voltage: V
1.75
Output Current
1.74
= 50⇔100mA
OUT
400 350 300 250 200 150 100 50 0
Output Current Iout[mA]
Time [20μs/div]
XC6229x251
tr = tf = 0.5μs, Ta = 25℃, I
= 3.5V, CIN = 1μF (ceramic), CL = 1μF (ceramic)
= 50⇔100mA
OUT
Output Voltage
Output Current
Time [20μs/div]
400
350
300
250
200
150
100
50
0
Output Current Iout[mA]
[V]
Output Voltage: V
OUT
2.60
2.55
2.50
2.45
2.40
2.35
2.30
2.25
2.20
XC6229x251
tr = tf = 0.5μs, Ta = 25℃, I
= 3.5V, CIN = 1μF (ceramic), CL = 1μF (ceramic)
V
IN
= 1⇔150mA
OUT
Output Voltage
Output Current
Time [20μs/div]
400 350 300 250 200 150 100 50 0
V
2.52
IN
2.51
[V]
2.50
OUT
2.49
2.48
2.47
2.46
Output Current Iout[mA]
Output Voltage: V
2.45
2.44
17/26
XC6229 Series
■TYPICAL PERFORMANCE CHARACTERISTICS (Continued)
(8) Load Transient Response (tr=tf=0.5μs) (Continued)
XC6229x401
tr = tf = 0.5μs, Ta = 25℃, I
V
= 5.0V, CIN = 1μF (ceramic), CL = 1μF (ceramic)
IN
4.10
4.05
[V]
4.00
OUT
3.95
Output Voltage
3.90
3.85
Output Voltage: V
3.80
3.75
Output Current
3.70 Time [20μs/div]
(8) Load Transient Response (tr=tf=5μs) (Continued)
XC6229x121
tr = tf = 5μs, Ta = 25℃, I
= 2.2V, CIN = 1μF (ceramic), CL = 1μF (ceramic)
V
IN
1.22
1.21
[V]
1.20
OUT
1.19
Output Voltage
1.18
1.17
Output Voltage: V
1.16
1.15
Output Current
1.14
Time [50μs/div]
= 1⇔150mA
OUT
= 1⇔150mA
OUT
400 350 300 250 200 150 100 50 0
400 350 300 250 200 150 100 50 0
XC6229x401
tr = tf = 0.5μs, Ta = 25℃, I
V
= 5.0V, CIN = 1μF (ceramic), CL = 1μF (ceramic)
IN
4.02
4.01
[V]
4.00
OUT
3.99
Output Voltage
3.98
3.97
3.96
Output Current Iout[mA]
Output Voltage: V
3.95
3.94
Output Current
Time [20μs/div]
XC6229x121
tr = tf = 5μs, Ta = 25℃, I
= 2.2V, CIN = 1μF (ceramic), CL = 1μF (ceramic)
V
1.22
IN
1.21
[V]
1.20
OUT
1.19
Output Voltage
1.18
1.17
1.16
Output Current Iout[mA]
Output Voltage: V
1.15
Output Current
1.14 Time [50μs/div]
=50⇔100mA
OUT
= 50⇔100mA
OUT
500 450 400 350 300 250 200 150 100 50 0
400
350
300
250
200
150
100
50
0
Output Current Iout[mA]
Output Current Iout[mA]
18/26
[V]
Output Voltage: V
OUT
1.82
1.81
1.80
1.79
1.78
1.77
1.76
1.75
1.74
XC6229x181
tr = tf = 5μs, Ta = 25℃, I
= 2.8V, CIN = 1μF (ceramic), CL = 1μF (ceramic)
V
IN
= 1⇔150mA
OUT
Output Voltage
Output Current
Time [50μs/div]
400 350 300 250 200 150 100 50 0
XC6229x181
tr = tf = 5μs, Ta = 25℃, I
= 2.8V, CIN = 1μF (ceramic), CL = 1μF (ceramic)
V
1.82
IN
1.81
[V]
1.80
OUT
1.79
Output Voltage
1.78
1.77
1.76
Output Current Iout[mA]
Output Voltage: V
1.75
Output Current
1.74
= 50⇔100mA
OUT
400
350
300
250
200
150
100
50
0
Output Current Iout[mA]
Time [50μs/div]
■TYPICAL PERFORMANCE CHARACTERISTICS (Continued)
(8) Load Transient Response (tr=tf=5μs) (Continued)
XC6229
Series
XC6229x251
tr = tf = 5μs, Ta = 25℃, I
V
= 3.5V, CIN = 1μF (ceramic), CL = 1μF (ceramic)
IN
2.52
2.51
[V]
2.50
OUT
2.49
Output Voltage
2.48
2.47 Output Current
Output Voltage: V
2.46
2.45
2.44
Time [50μs/div]
XC6229x401
tr = tf = 5μs, Ta = 25℃, I
V
= 5.0V, CIN = 1μF (ceramic), CL = 1μF (ceramic)
4.02
4.01
[V]
4.00
OUT
3.99
3.98
3.97
3.96
Output Voltage: V
3.95
3.94
(9) CE Rising Response Time (Type D)
IN
Output Voltage
Output Current
Time [50μs/div]
= 1⇔150mA
OUT
= 1⇔150mA
OUT
400 350 300 250 200 150 100 50 0
400 350 300 250 200 150 100 50 0
XC6229x251
tr = tf = 5μs, Ta = 25℃, I
V
= 3.5V, CIN = 1μF (ceramic), CL = 1μF (ceramic)
IN
2.52
2.51
[V]
2.50
OUT
2.49
Output Voltage
2.48
2.47
2.46
Output Voltage: V
Output Current Iout[mA]
2.45
Output Current
2.44 Time [50μs/div]
= 50⇔100mA
OUT
400 350 300 250 200 150 100 50 0
Output Current Iout[mA]
XC6229x401
tr = tf = 5μs, Ta = 25℃, I
V
= 5.0V, CIN = 1μF (ceramic), CL = 1μF (ceramic)
IN
4.02
4.01
[V]
4.00
OUT
3.99
Output Voltage
3.98
3.97
3.96
Output Current Iout[mA]
Output Voltage: V
3.95
Output Current
3.94
Time [50μs/div]
= 50⇔100mA
OUT
400 350 300 250 200 150 100 50 0
Output Current Iout[mA]
XC6229x181
V
IN
V
= 0→VIN, C
CE
CE Input Voltage
Output Voltage
Time [20μs/div]
= 2.8V, tr = 5μs, Ta = 25℃
= CL = 1.0μF (ceramic)
IN
IOUT=0mA IOUT=30mA IOUT=100mA
3.0
2.5
2.0
1.5
1.0
0.5
0.0
[V]
OUT
Output Voltage: V
[V]
CE
Input Voltage: V
3.0
2.0
1.0
0.0
-1.0
-2.0
-3.0
XC6229x121
VIN = 2.2V, tr = 5μs, Ta = 25℃
V
= 0→VIN, CIN = CL = 1.0μF (ceramic)
CE
CE Input Voltage
Output Voltage
Time [20μs/div]
IOUT=0mA
IOUT=30mA
IOUT=100mA
3.0
2.5
2.0
1.5
1.0
0.5
0.0
[V]
Output Voltage: V
OUT
[V]
Input Voltage: V
CE
3.0
2.0
1.0
0.0
-1.0
-2.0
-3.0
19/26
XC6229 Series
■TYPICAL PERFORMANCE CHARACTERISTICS (Continued)
(9) CE Rising Response Time (Type D) (Continued)
XC6229x251
VIN = 3.5V, tr = 5μs, Ta = 25℃
V
= 0→VIN, CIN = CL = 1.0μF (ceramic)
6.0
4.0
[V]
CE
2.0
0.0
-2.0
-4.0
Input Voltage: V
-6.0
(9) CE Rising Response Time (Type H) (Continued)
3.0
2.0
[V]
CE
1.0
0.0
-1.0
-2.0
Input Voltage: V
-3.0
CE
CE Input Voltage
Output Voltage
Time [20μs/div]
XC6229x121
VIN = 2.2V, tr = 5μs, Ta = 25℃
V
= 0→VIN, CIN = CL = 1.0μF (ceramic)
CE
CE Input Voltage
Output Voltage
Time [20μs/div]
IOUT=0mA
IOUT=30mA
IOUT=100mA
IOUT=0mA IOUT=30mA IOUT=100mA
6.0
5.0
4.0
3.0
2.0
1.0
0.0
3
2.5
2
1.5
1
0.5
0
[V]
OUT
Output Voltage: V
[V]
OUT
Output Voltage: V
[V]
Input Voltage: V
CE
[V]
CE
Input Voltage: V
6.0
4.0
2.0
0.0
-2.0
-4.0
-6.0
-1.0
-2.0
-3.0
3.0
2.0
1.0
0.0
XC6229x401
V
V
= 0→VIN, CIN = CL = 1.0μF (ceramic)
CE
CE Input Voltage
Output Voltage
Time [20μs/div]
XC6229x181
V
V
= 0→VIN, C
CE
CE Input Voltage
Output Voltage
Time [50μs/div]
= 5.0V, tr = 5μs, Ta = 25℃
IN
IOUT=0mA
IOUT=30mA
IOUT=100mA
= 2.8V, tr = 5μs, Ta = 25℃
IN
= CL = 1.0μF (ceramic)
IN
IOUT=0mA IOUT=30mA IOUT=100mA
6.0
5.0
4.0
3.0
2.0
1.0
0.0
3
2.5
2
1.5
1
0.5
0
[V]
OUT
Output Voltage: V
[V]
OUT
Output Voltage: V
[V]
Input Voltage: V
20/26
CE
6.0
4.0
2.0
0.0
-2.0
-4.0
-6.0
XC6229x251
V
V
= 0→VIN, CIN = CL = 1.0μF (ceramic)
CE
CE Input Voltage
Output Voltage
Time [50μs/div]
= 3.5V, tr = 5μs, Ta = 25℃
IN
IOUT=0mA
IOUT=30mA
IOUT=100mA
6.0
5.0
4.0
3.0
2.0
1.0
0.0
[V]
OUT
Output Voltage: V
[V]
Input Voltage: V
CE
6.0
4.0
2.0
0.0
-2.0
-4.0
-6.0
XC6229x401
V
V
= 0→VIN, CIN = CL = 1.0μF (ceramic)
CE
CE Input Voltage
Output Voltage
Time [50μs/div]
= 5.0V, tr = 5μs, Ta = 25℃
IN
IOUT=0mA IOUT=30mA IOUT=100mA
6.0
5.0
4.0
3.0
2.0
1.0
0.0
[V]
OUT
Output Voltage: V
■TYPICAL PERFORMANCE CHARACTERISTICS (Continued)
(10) Inrush Current Response Time (Type H)
XC6229
Series
[V]
Input Voltage: V
[V]
Input Voltage: V
CE
CE
4.0
3.0
2.0
1.0
0.0
-1.0
-2.0
-3.0
-4.0
6.0
5.0
4.0
3.0
2.0
1.0
0.0
-1.0
-2.0
XC6229x121
V
= 0→VIN, CIN = CL = 1.0μF (ceramic)
CE
CE Input Voltage
Rush Current
Time [20μs/div]
XC6229x251
V
= 0→VIN, CIN = CL = 1.0μF (ceramic)
CE
CE Input Voltage
Rush Current
Time [50μs/div]
VIN = 2.2V, tr = 5μs, Ta = 25℃
Output Voltage
V
= 3.5V, tr = 5μs, Ta = 25℃
IN
Output Voltage
400 350 300 250 200 150 100 50 0
400 350 300 250 200 150 100 50 0
[mA]
RUSH
Rush Curren: I
[mA]
RUSH
Rush Curren: I
[V]
Input Voltage: V
[V]
CE
Input Voltage: V
CE
4.0
3.0
2.0
1.0
0.0
-1.0
-2.0
-3.0
-4.0
6.0
5.0
4.0
3.0
2.0
1.0
0.0
-1.0
-2.0
XC6229x181
V
CE
CE Input Voltage
Rush Current
Time [50μs/div]
XC6229x401
V
= 0→VIN, CIN = CL = 1.0μF (ceramic)
CE
CE Input Voltage
Rush Current
Time [50μs/div]
= 2.8V, tr = 5μs, Ta = 25℃
V
IN
= 0→VIN, C
= CL = 1.0μF (ceramic)
IN
Output Voltage
= 5.0V, tr = 5μs, Ta = 25℃
V
IN
Output Voltage
400 350 300 250 200 150 100 50 0
400 350 300 250 200 150 100 50 0
[mA]
RUSH
Rush Curren: I
[mA]
RUSH
Rush Curren: I
21/26
XC6229 Series
■TYPICAL PERFORMANCE CHARACTERISTICS (Continued)
(11) Ripple Rejection Rate
XC6229x121
Ta = 25℃, V
C
= 0.1μF (ceramic), CL = 1μF (ceramic)
IN
100
80
60
40
20
Ripple Rejection : RR [dB]
IOUT=0.1mA
IOUT=1mA
IOUT=30mA
0
0.01 0.1 1 10 100 Ripple Frequency: f [kHz]
= 3.0VDC+0.5Vp-pAC
IN
XC6229x251
Ta = 25℃, VIN = 3.5VDC+0.5Vp-pAC
C
= 0.1μF (ceramic), CL = 1μF (ceramic)
IN
100
80
60
XC6229x181
Ta = 25℃, V
C
= 0.1μF (ceramic), CL = 1μF (ceramic)
IN
100
80
60
40
20
Ripple Rejection : RR [dB]
IOUT=0.1mA
IOUT=1mA
IOUT=30mA
0
0.01 0.1 1 10 100 Ripple Frequency: f [kHz]
= 3.0VDC+0.5Vp-pAC
IN
XC6229x331
= 4.3VDC+0.5Vp-pAC
IN
100
80
60
Ta = 25℃, V
C
= 0.1μF (ceramic), CL = 1μF (ceramic)
IN
40
20
Ripple Rejection : RR [dB]
IOUT=0.1mA
IOUT=1mA
IOUT=30mA
0
0.01 0.1 1 10 100 Ripple Frequency: f [kHz]
40
IOUT=0.1mA
20
Ripple Rejection : RR [dB]
0
IOUT=1mA
IOUT=30mA
0.01 0.1 1 10 100 Ripple Frequency: f [kHz]
22/26
■PACKAGING INFORMATION
LGA-4B01
（unit：mm）
XC6229
Series
●LGA-4B01 Reference Pattern Layout
0.420.180.42
●LGA-4B01 Reference Metal Mask Design
0.320.280.32
23/26
A
p
(
)
XC6229 Series
■PACKAGING INFORMATION (Continued)
● LGA-4B01 Power Dissipation
Power dissipation data for the LGA-4B01 is shown in this page. The value of power dissipation varies with the mount board conditions. Please use this data as one of reference data taken in the described condition.
1. Measurement Condition (Reference data)
Condition : Mount on a board
mbient : Natural convection Soldering : Lead (Pb) free Board : 40 x 40 mm (1600mm2 in one side)
Material : Glass Epoxy (FR-4) Thickness : 1.6 mm Through-hole : 4 x 0.4 Diameter
2. Power Dissipation vs. Ambient temperature
Board Mount (Tj max = 125℃)
Ambient Temperature（℃） Power Dissipation Pd（mW） Thermal Resistance (℃/W)
Copper (Cu) traces occupy 50% of the front and 50% of the back. The copper area is divided into four block, one block is 12.5% of total. Each terminal connects one copper block in the front and one in the back.
2.54
40.0
2.5
1.4
40.0
28.9
28.9
Evaluation Board (Unit: mm)
25 600
85 240
700
mW
600 500 400
ation Pd
300 200 100
許容損失Pd（mW）
Power Dissi
0
Pd-Ta特性グラフ
Pd vs. Ta
166.67
25 45 65 85 105 125
Ambient Temperature Ta (℃)
周囲温度Ta（℃）
24/26
(
)
1
2
■MARKING RULE
●LGA-4B01
① represents type of regulator and output voltage range.
②
③ represents production lot number.
0 (G, I, J, O, Q, W excepted) *No character inversion used.
MARK TYPE VOLTAGE RANGE PRODUCT SERIES
0
1
2
3
represents output voltage.
MARK
0 1.2 2.65 A 1.7 3.15 N 2.2 3.65
1 1.25 2.7 B 1.75 3.2 P 2.25 3.7
2 1.3 2.75 C 1.8 3.25 R 2.3 3.75
3 1.35 2.8 D 1.85 3.3 S 2.35 3.8
4 1.4 2.85 E 1.9 3.35 T 2.4 3.85
5 1.45 2.9 F 1.95 3.4 U 2.45 3.9
6 1.5 2.95 H 2.0 3.45 V 2.5 3.95
7 1.55 3.0 K 2.05 3.5 X 2.55 4.0
8 1.6 3.05 L 2.1 3.55 Y 2.6
9 1.65 3.1 M 2.15 3.6
～9，A～Z in order.
D
H
OUTPUT
VOLTAGE (V)
1.2～2.6 XC6229D1211*-G ～ XC6229D2611*-G
2.65～4.0 XC6229D26B1*-G ～ XC6229D4011*-G
1.2～2.6 XC6229H1211*-G ～ XC6229H2611*-G
2.65～4.0 XC6229H26B1*-G ～ XC6229H4011*-G
MARK
OUTPUT
VOLTAGE (V)
MARK
OUTPUT
VOLTAGE (V)
4
①
LGA-4B01
TOP VIEW
XC6229
Series
3
② ③
25/26
XC6229 Series
1. The products and product specifications contained herein are subject to change without
notice to improve performance characteristics. Consult us, or our representatives
before use, to confirm that the information in this datasheet is up to date.
2. We assume no responsibility for any infringement of patents, patent rights, or other
rights arising from the use of any information and circuitry in this datasheet.
3. Please ensure suitable shipping controls (including fail-safe designs and aging
protection) are in force for equipment employing products listed in this datasheet.
4. The products in this datasheet are not developed, designed, or approved for use with
such equipment whose failure of malfunction can be reasonably expected to directly
endanger the life of, or cause significant injury to, the user.
(e.g. Atomic energy; aerospace; transport; combustion and associated safety
equipment thereof.)
5. Please use the products listed in this datasheet within the specified ranges.
Should you wish to use the products under conditions exceeding the specifications,
please consult us or our representatives.
6. We assume no responsibility for damage or loss due to abnormal use.
7. All rights reserved. No part of this datasheet may be copied or reproduced without the
prior permission of TOREX SEMICONDUCTOR LTD.
26/26
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
