XC6219/XC6211 Series
ETR0307_008
High Speed LDO Regulators, Low ESR Cap. Compatible, ON/OFF Switch
■GENERAL DESCRIPTION
The XC6219/XC6211 series are highly accurate, low noise, CMOS LDO Voltage Regulators. Offering low output noise, high
ripple rejection ratio, low dropout and very fast turn-on times, the XC6219/6211 series is ideal for today’s cutting edge mobile
phone.
Internally the XC6219/6211 includes a reference voltage source, error amplifiers, driver transistors, current limiters and phase
compensators. The XC6219/6211’s current limiters' foldback circuit also operates as a short protect for the output current
limiter and. the output pin. The output voltage is set by laser trimming. Voltages are selectable in 50mV steps within a
range of 0.9V to 5.0V. The XC6219/6211 series is also fully compatible with low ESR ceramic capacitors, reducing cost and
improving output stability. This high level of output stability is maintained even during frequent load fluctuations, due to the
excellent transient response performance and high PSRR achieved across a broad range of frequencies.
The CE function allows the output of regulator to be turned off, resulting in greatly reduced power consumption.
■APPLICATIONS
●Mobile phones
Cordless phones, radio communication equipment
●
●Portable games
●Cameras, Video cameras
●Reference voltage sources
●Battery powered equipment
■TYPICAL APPLICATION CIRCUIT
●XC6219 series
1
2
3
C
IN
1μF
SOT-25 (SOT-23-5)
V
OUT
V
IN
V
SS
CE NC
5
CL
1μF
4
■FEATURES
Maximum Output Current
Dropout Voltage
Operating Voltage Range
Output Voltage Range
Highly Accuracy
Low Power Consumption
Standby Current
High Ripple Rejection
Operating Temperature Range
Low ESR Capacitor
Ultra Small Packages
Environmentally Friendly
■TYPICAL PERFORMANCE
CHARACTERISTICS
●Ripple Rejection Rate
XC6219/6211x302
: 150mA (VOUT<1.75V, A~D type)
: 240mA (V
: 300mA (V
: 200mV @ 100mA
: 2.0V ~ 6.0V
: 0.9V ~ 5.0V (0.05V steps)
: +
2% (VOUT>1.5V)
: +30mV (VOUT≦1.5V)
: +
1% (VOUT≧3.0V)
: 25μA (TYP.)
: Less than 0.1μA (TYP.)
: 65dB @10kHz
: -40℃ ~ 85℃
: Ceramic capacitor compatible
: SOT-25
: SOT-89-5 (for XC6219 only)
: USP-6B (for XC6219 only)
: EU RoHS Compliant, Pb Free
OUT>1.8V, A~D type)
OUT>1.3V, E~H type)
1/23
XC6219/XC6211 Series
■PIN CONFIGURATION
H=High Level
L=Low Level
[XC6219 Series]
VOUT
2 3
1
VIN
VSS
SOT-25 (SOT-23-5)
(TOP VIEW)
NC
4 5
CE
VOUT 5 VSS
1
2
VSS
NC
SOT-89-5
(TOP VIEW)
[XC6211 Series]
VIN
1
SOT-25 (SOT-23-5)
(TOP VIEW)
VOUT
45
2 3
VSS NCCE
■PIN ASSIGNMENT
PIN NUMBER
XC6211 XC6219
SOT-25 SOT-25 SOT-89-5 USP-6B
5 1 4 1 VIN Power Input
2 2 2 5 VSS Ground
1 3 3 6 CE ON / OFF Control
3 4 1 2, 4 NC No Connection
4 5 5 3 VOUT Output
■FUNCTION
SERIES CE OPERATIONAL STATE
A, B, E, F Series
C, D, G, H Series
H ON
L OFF
H OFF
L ON
VIN
4
2
CE
CE 6
VSS 5
3
NC 4
USP-6B
(BOTTOM VIEW)
1 VIN
2 NC
3 VOUT
* The dissipation pad for the USP-6B
package should be solder-plated in
recommended mount pattern and
metal masking so as to enhance
mounting strength and hear release.
If the pad needs to be connected to
other pins, it should be connected to
the V
SS pin.
PIN NAME FUNCTIONS
2/23
■PRODUCT CLASSIFICATION
●Selection Guide
The following options for the CE pin logic and internal pull-up/down are available:
High Active + no pull-down resistor built-in (standard)
High Active + 2.0MΩ pull-down resistor built-in <between CE-V
Low Active + no pull-up resistor built-in (semi-custom)
Low Active + 2.0MΩ pull-up resistor built-in <between V
Note: *With the pull-up resistor or pull-down resistor built-in types, the supply current during operation will increase
IN / 2.0MΩ (TYP.)
by V
●Ordering Information
XC6219 ①②③④⑤⑥-⑦
XC6211 ①②③④⑤⑥-⑦
(*1)
(Standard pin layout versions)
(*1)
(Different pin layout version in SOT-25)
SS> (semi-custom)
IN-CE> (semi-custom)
DESIGNATOR DESCRIPTION SYMBOL DESCRIPTION
A / E High Active, pull-down resistor built in (Semi-custom)
①
(*1)
CE Pin Logic
B / F High Active, no pull-down resistor built in (Standard)
C / G Low Active, pull-up resistor built in (Semi-custom)
D / H Low Active, no pull-up resistor built in (Semi-custom)
XC6219/XC6211
Series
②③
④
Output Voltage
Output Voltage Accuracy
09～50
1 / 2
1 (*2)
A
B
(*2)
e.g. ②=3, ③=0, → 3.0V
0.1V increments, ±2% accuracy
③=2, ③=8, ④=2 → 2.80V, ±2%
e.g.
0.1V increments, ±1% accuracy
②=3, ③=0, ④=1 → 3.00V, ±1%
e.g.
0.05V increments, ±2% accuracy
e.g. ②=2, ③=8, ④=A → 2.85V, ±2%
0.05V increments, ±1% accuracy
e.g. ②=3, ③=0, ④=B → 3.05V, ±1%
MR SOT-25 (SOT-23-5)
MR-G SOT-25 (SOT-23-5)
⑤⑥-⑦
Packages
Taping Type
(*2)
PR SOT-89-5 (for XC6219 only)
PR-G SOT-89-5 (for XC6219 only)
DR USP-6B (for XC6219 only)
DR-G USP-6B (for XC6219 only)
NOTE：
*1：Maximum output current of XC6219/6211 E to H series is 300mA.
*2：Output voltage of the ±1% accuracy product is 3.0V or more.
(*1)
The “-G” suffix indicates that the products are Halogen and Antimony free as well as being fully RoHS compliant.
(*2)
The device orientation is fixed in its embossed tape pocket. For reverse orientation, please contact your local Torex sales office or
representative. (Standard orientation: ⑤R-⑦, Reverse orientation: ⑤L-⑦)
3/23
XC6219/XC6211 Series

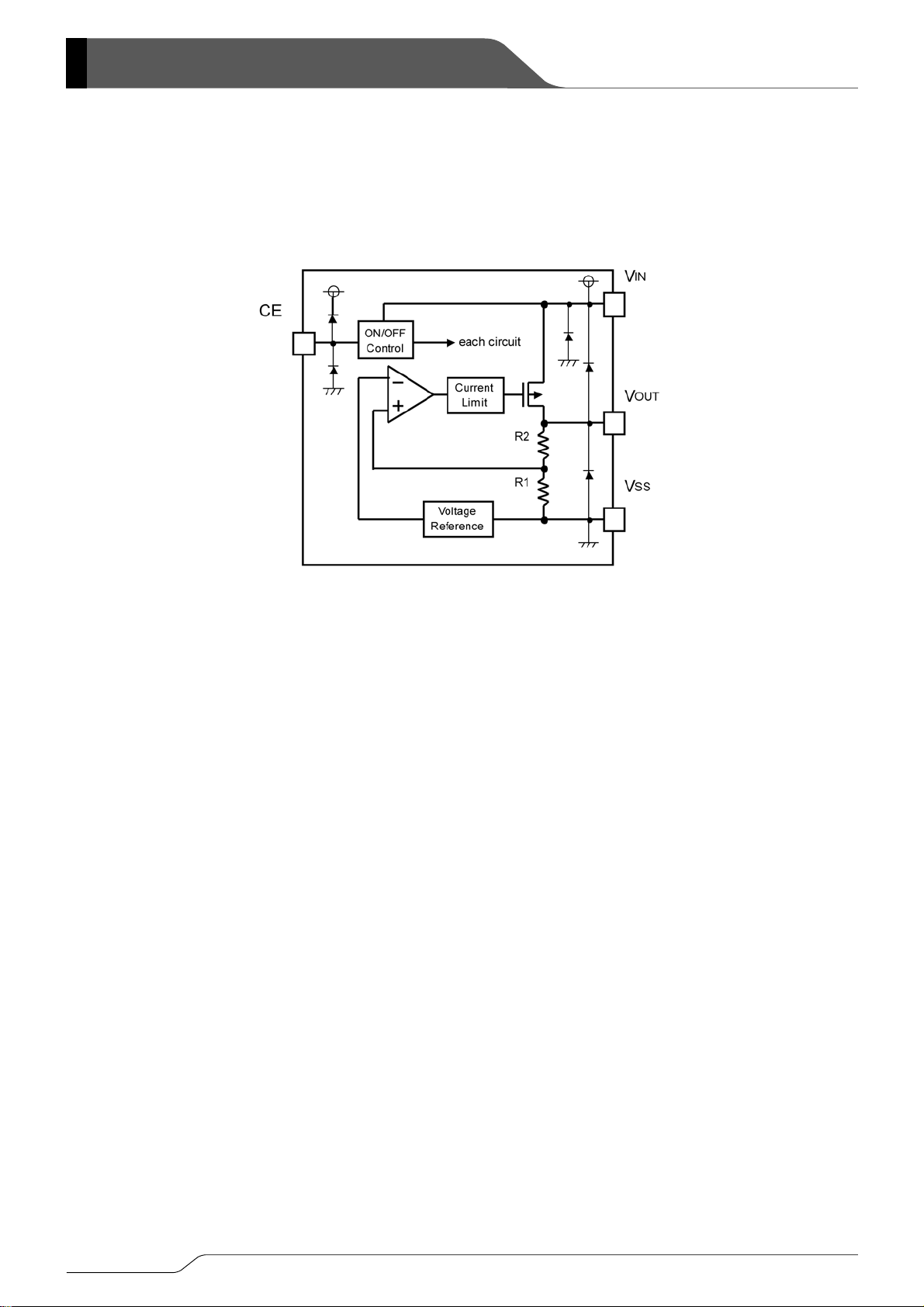

■BLOCK DIAGRAM
■ABSOLUTE MAXIMUM RATINGS
PAR AMET ER SYMBOL RATINGS UNITS
Input Voltage VIN 7.0 V
Output Current IOUT 500 mA
Output Voltage VOUT VSS - 0.3 ~ VIN + 0.3 V
CE Pin Voltage VCE VSS - 0.3 ~ VIN + 0.3 V
SOT-25 250
Power Dissipation
Operating Temperature Range Topr - 40 ~ + 85
Storage Temperature Range Tstg - 55 ~ + 125
SOT-89 500
USP-6B
Pd
Ta =2 5℃
mW
100
℃
℃
4/23
■ELECTRICAL CHARACTERISTICS
●XC6219/6211 series
XC6219/XC6211
PAR AMET ER SYMBOL CONDITIONS MIN. TYP. MAX. UNITS CIRCUIT
Output Voltage
V
OUT(E)
IOUT=30mA (*1, 2, 8) x 0.98 x 1.02
1% accuracy=V
OUT(T)>3.0V x 0.99
V
OUT(T)
x 1.01
Maximum Output Current IOUTMAX Input conditions (E-1) E-2 - - mA
Load Regulation UVOUT
Dropout Voltage
Vdif1 IOUT=30mA (*3, 4, 5) E-3 mV
Vdif2 I
OUT≦100mA
1mA≦I
OUT=100mA (*3, 4, 5) E-4 mV
- 15 50 mV
Supply Current IDD VCE=VIN - 25 50
Stand-by Current Istby VCE=VSS - 0.01 0.10
Line Regulation
UVOUT
UVIN・VOUT
V
OUT(T) +1.0V≦VIN≦7.0V
IOUT=30mA
- 0.01 0.20 %/V
Input Voltage VIN 2.0 - 6.0 V
Output Voltage
Temperature Characteristics
Ripple Rejection Rate PSRR
Current Limiter Ilim
UVOUT
UTopr・V
OUT=30mA
I
OUT
-40℃≦Topr≦85℃
IOUT=50mA,
f=10kHz
OUT(E)>1.8V 70
V
- 100 -
- 65 -
XC6219/6211A~D type (*7) - 300 XC6219/6211 E~H type (*7) 380
Short Circuit Current Ishort - 50 - mA
CE ‘High’ Level Voltage VCEH 1.60 - VIN V
CE ‘Low’ Level Voltage VCEL - - 0.25 V
CE ‘High’ Level Current ICEH
CE ‘Low’ Level Current ICEL VCE=VSS
NOTE: * 1: VOUT(T) = Specified output voltage
* 2: V
OUT(E) = Effective output voltage
(I.e. the output voltage when "V
* 3: Vdif={V
* 4: V
OUT1=A voltage equal to 98% of the output voltage whenever an amply stabilized IOUT {VOUT(T)+1.0V} is input.
* 5: V
IN1=The Input Voltage when VOUT1 appears as Input Voltage is gradually decreased.
* 6: Unless otherwise stated, V
* 7: Input conditions of current limit when 0.9V<
* 8: The rated value when V
IN1
(*5)
-VOUT1
(*4)
}
OUT(T)+1.0V" is provided at the VIN pin while maintaining a certain IOUT value.)
IN=VOUT(T)+1.0V.
OUT(T)<1.5V is VOUT(T)+30mV
V
CE=VIN
VOUT(T)<1.75V is VIN=VOUT(T)+2.0V
XC6219/11A, E
XC6219/11B, C, D, F, G, H
XC6219/11D, G
XC6219/11A, B, C, E, F, H
-0.10 -
-5.0
-0.10
- 0.10
5.0
0.10
Series
Ta =2 5℃
V
①
①
①
①
μA ②
μA ②
①
-
ppm/℃ ①
dB
mA
④
①
①
①
②
μA ②
μA ②
5/23
XC6219/XC6211 Series
■ELECTRICAL CHARACTERISTICS (Continued)
●Maximum Output Current, Input Voltage Chart
XC6219/6211A~D series
SYMBOL E-1 E-2
CONDITION, RATINGS
SETTING VOLTAGE (V)
INPUT VOLTAGE (V)
VIN IOUTMAX (MIN.)
VOUT(T)<1.75V VOUT(T)+2.0V 150
VOUT(T)>1.8V VOUT(T)+1.0V 240
XC6219/6211E~H series
SYMBOL E-1 E-2
CONDITION, RATINGS
SETTING VOLTAGE (V)
INPUT VOLTAGE (V)
VIN IOUTMAX (MIN.)
0.90 ~ 1.05 2.5 260
1.10 ~ 1.15 2.6 270
1.20 ~ 1.25 2.7 290
1.30 ~ 1.35 2.8
1.40 ~ 1.45 2.9
1.50 ~ 1.95 3.0
2.00 ~ 6.00 VOUT(T)+1.0V
●Dropout Voltage Chart
SYMBOL
PARAMETER
E-3 E-4
Vdif1 Vdif2
MIN. TYP. MAX. MIN. TYP. MAX.
OUTPUT VOLTAGE
0.9 1100 1100 1110 1100 1150 1200
1.50 500 500 510 500 550 600
1.80 ~ 1.85 200 200 210 200 300 400
1.90 ~ 1.95 100 120 150 100 280 380
2.00 ~ 2.05 - 80 120 - 240 350
2.10 ~ 2.25 - 80 120 - 240 330
2.30 ~ 2.45 - 80 120 - 240 310
2.50 ~ 2.75 - 70 100 - 220 290
2.80 ~ 2.95 - 70 100 - 220 270
3.00 ~ 3.05 - 60 90 - 200 270
3.10 ~ 3.95 - 60 90 - 200 250
4.00 ~ 4.95 - 60 80 - 180 230
5.00 - 50 70 - 160 210
* The input voltage 2.0V (MIN.) is needed to operate the IC series.
When the output voltage is less than 2.0V, 2.0V-V
OUT(T) of dropout voltage is needed at minimum.
MAX. OUTPUT
CURRENT (mA)
MAX. OUTPUT
CURRENT (mA)
300
6/23
V
■TEST CIRCUITS
Circuit ①
XC6219/XC6211
Series
Circuit ②
Circuit ③
V
CIN=1.0μF
(ceramic)
A
VIN VOUT
CE
VSS
CL=1.0μ F
(cerami c)
A
V
RL
V
VIN VOUT
A
CE
VSS
OPEN
Circuit ④
IN={VO UT+1}V
+0.5V
p-pAC
DC
CIN=1.0µF
(ceramic)
V
VIN VOUT
CE
VSS
VIN VOUT
CE
VSS
CL=1.0µF
(ceramic)
CL=1.0µF
(cerami c)
F.F.T
IOUT=10mA
IOUT=50mA
V
7/23
XC6219/XC6211 Series
■OPERATIONAL EXPLANATION
<Output Voltage Control>
The voltage divided by resistors R1 & R2 is compared with the internal reference voltage by the error amplifier. The
P-channel MOSFET, which is connected to the VOUT pin, is then driven by the subsequent output signal. The output
voltage at the V
protect circuit operate in relation to the level of output current. Further, the IC's internal circuitry can be shutdown via the
CE pin's signal
<Low ESR Capacitors>
With the XC6219/6211 series, a stable output voltage is achievable even if used with low ESR capacitors as a phase
compensation circuit is built-in. In order to ensure the effectiveness of the phase compensation, we suggest that an output
capacitor (C
with a capacitance value of at least 1.0μF. Also, please connect an input capacitor (C
and the VSS pin in order to ensure a stable power input.
Stable phase compensation may not be ensured if the capacitor runs out capacitance when depending on bias and
temperature. In case the capacitor depends on the bias and temperature, please make sure the capacitor can ensure the
actual capacitance.
<Current Limiter, Short-Circuit Protection>
The XC6219/6211 series includes a combination of a fixed current limiter circuit & a foldback circuit, which aid the
operations of the current limiter and circuit protection. When the load current reaches the current limit level, the fixed
current limiter circuit operates and output voltage drops. As a result of this drop in output voltage, the foldback circuit
operates, output voltage drops further and output current decreases. When the output pin is shorted, a current of about
50mA flows.
<CE Pin>
The IC's internal circuitry can be shutdown via the signal from the CE pin with the XC6219/6211 series. In shutdown mode,
output at the V
selectable (please refer to the selection guide). Note that as the standard XC6219/6211B type's regulator 1 and 2 are both
' High Active/No Pull-Down', operations will become unstable with the CE pin open. Although the CE pin is equal to an
inverter input with CMOS hysteresis, with either the pull-up or pull-down options, the CE pin input current will increase
when the IC is in operation. We suggest that you use this IC with either a VIN voltage or a VSS voltage input at the CE pin. If
this IC is used with the correct specifications for the CE pin, the operational logic is fixed and the IC will operate normally.
However, supply current may increase as a result of through current in the IC's internal circuitry.
■NOTES ON USE
OUT pin is controlled and stabilized by a system of negative feedback. The current limit circuit and short
L) is connected as close as possible to the output pin (VOUT) and the VSS pin. Please use an output capacitor
IN) of 1.0μF between the VIN pin
OUT pin will be pulled down to the VSS level via R1 & R2. The operational logic of the IC's CE pin is
1.
Please use this IC within the stated absolute maximum ratings. The IC is liable to malfunction should the ratings be exceeded.
2. Where wiring impedance is high, operations may become unstable due to noise and/or phase lag depending on output
current. Please keep the resistance low between V
IN and VSS wiring in particular.
3. Please wire the input capacitor (CIN) and the output capacitor (CL) as close to the IC as possible.
8/23
X
X
X
■TYPICAL PERFORMANCE CHARACTERISTICS

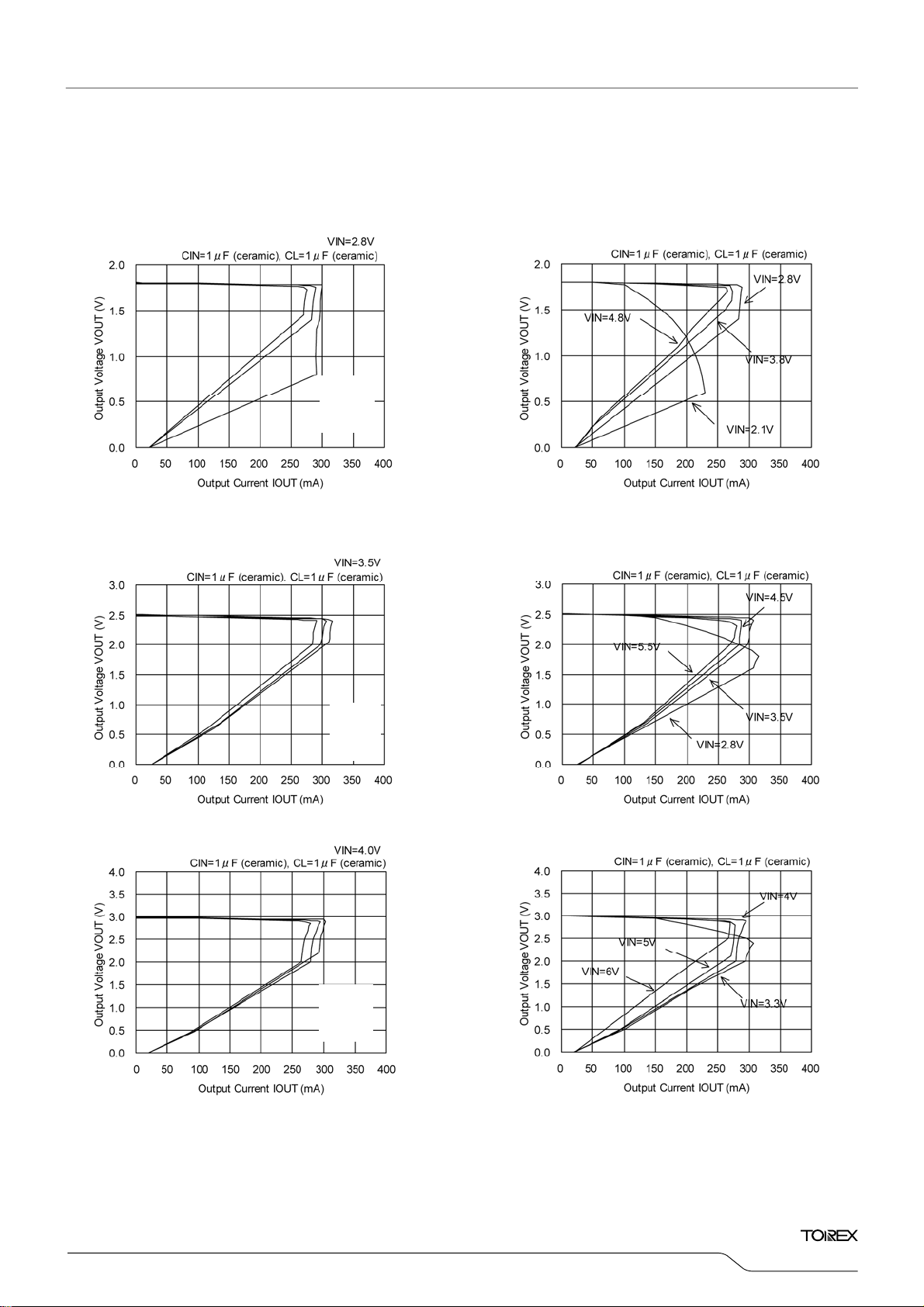

(1) Output Voltage vs. Output Current
XC6219/11x182
Top r =8 5℃
25℃
-40℃
XC6219/XC6211
Series
C6219/11x182
XC6219/11x252
XC6219/11x302
C6219/11x252
Top r =8 5℃
25℃
-40℃
C6219/11x302
Top r =8 5℃
25℃
-40℃
9/23
XC6219/XC6211 Series
■TYPICAL PERFORMANCE CHARACTERISTICS (Continued)

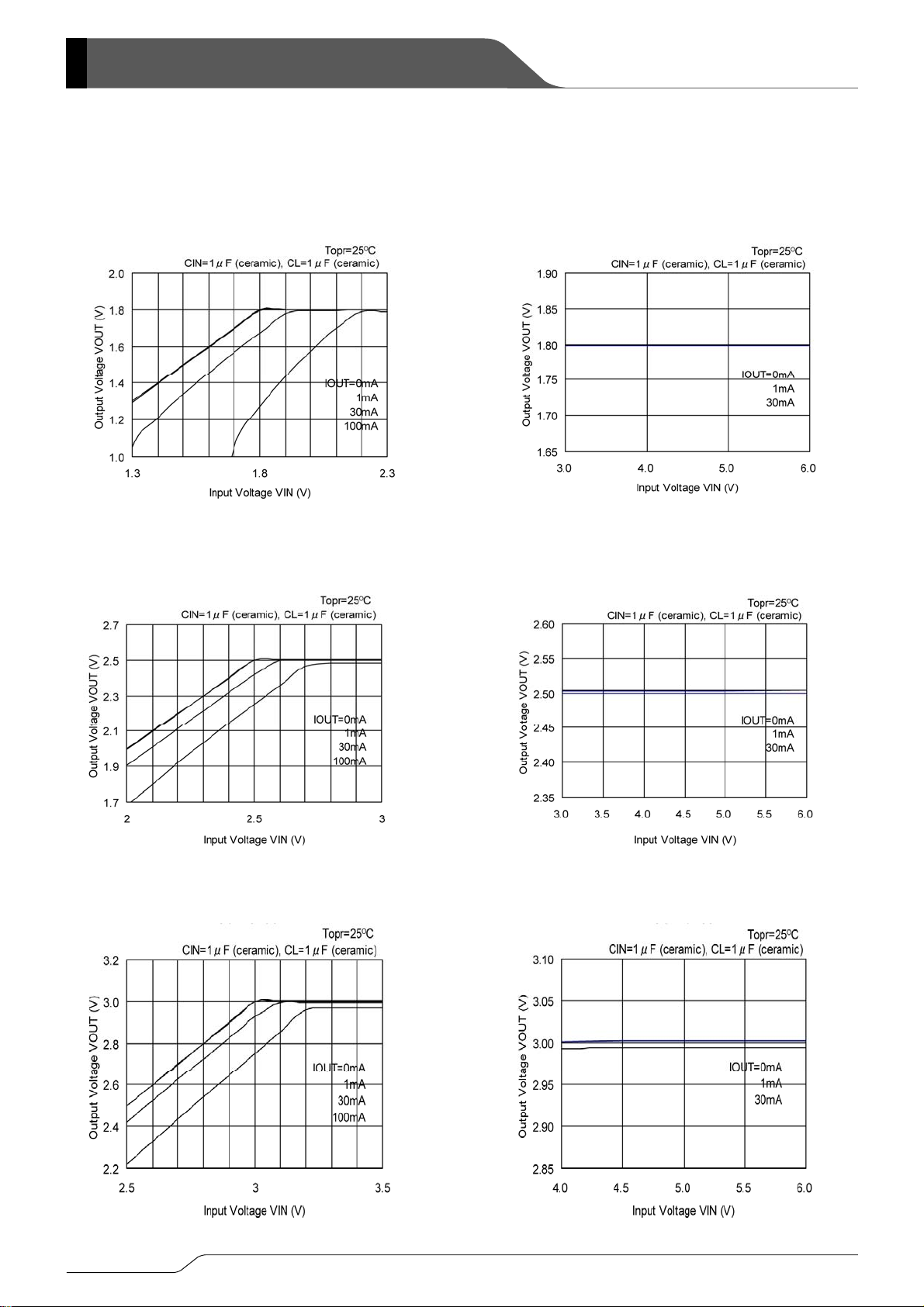

(2) Output Voltage vs. Input Voltage
10/23
XC6219/11x182
XC6219/11x252
XC6219/11x302
XC6219/11x182
XC6219/11x252
XC6219/11x302
■TYPICAL PERFORMANCE CHARACTERISTICS (Continued)
(3) Dropout Voltage vs. Output Current
XC6219/11x182
XC6219/11x252
XC6219/XC6211
Series
XC6219/11x302
(4) Supply Current vs. Input Voltage
XC6219/11x182
XC6219/11x252
Top r =8 5℃
25℃
-40℃
Top r =8 5℃
25℃
-40℃
11/23
X
XC6219/XC6211 Series
■TYPICAL PERFORMANCE CHARACTERISTICS (Continued)
(4) Supply Current vs. Input Voltage (Continued)
XC6219/11x302
Top r =8 5℃
25℃
-40℃
(5) Output Voltage vs. Ambient Temperature
XC6219/11x182
XC6219/11x302
C6219/11x252
12/23
X
■TYPICAL PERFORMANCE CHARACTERISTICS (Continued)

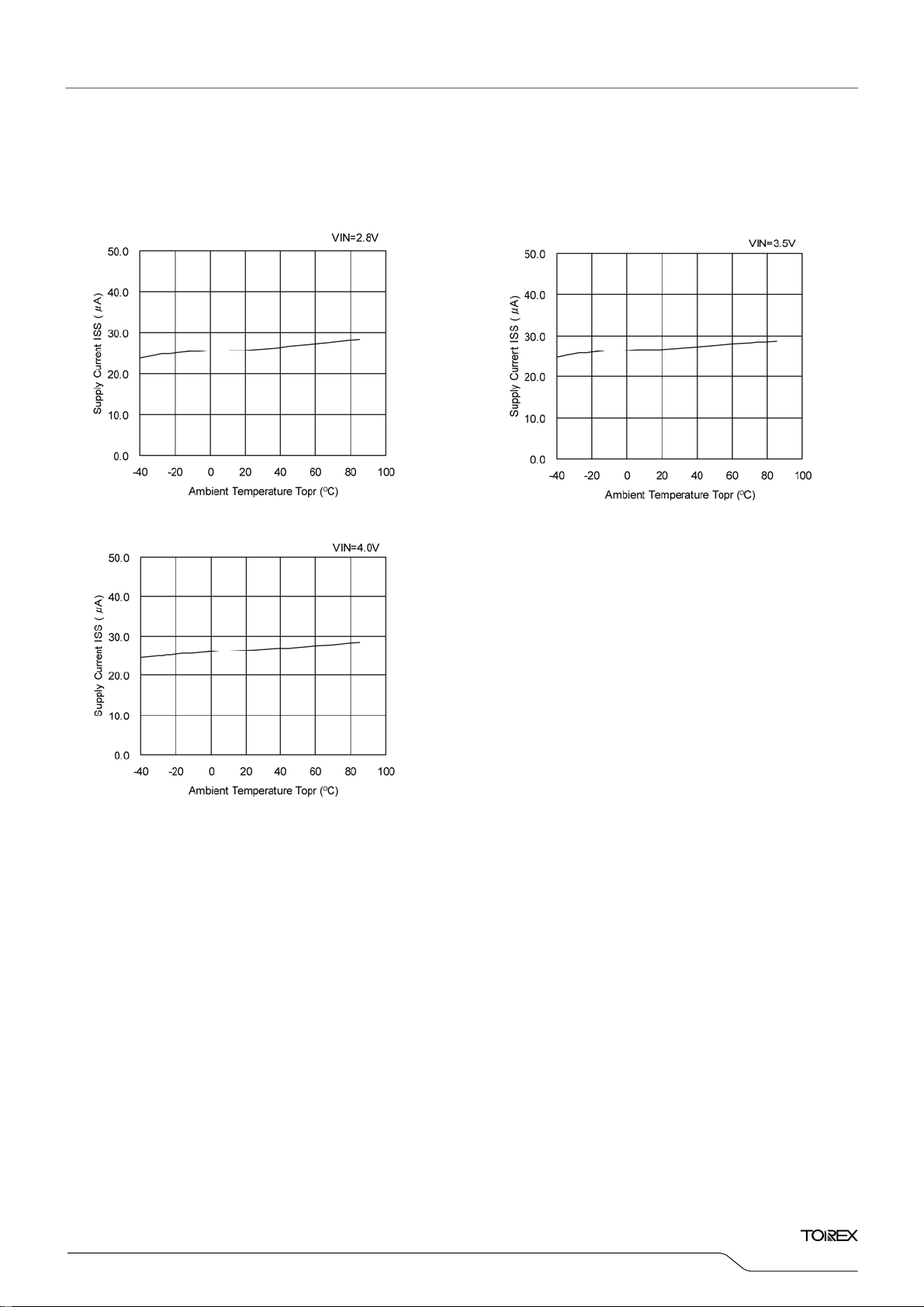

(6) Supply Current vs. Ambient Temperature
XC6219/XC6211
Series
XC6219/11x182
XC6219/11x302
C6219/11x252
13/23
X
X
X
X
X
XC6219/XC6211 Series
■TYPICAL PERFORMANCE CHARACTERISTICS (Continued)
(7) Input Transient Response
XC6219/11x182
XC6219/11x182
C6219/11x182
C6219/11x252
C6219/11x252
14/23
XC6219/11x252
XC6219/11x252
C6219/11x252
C6219/11x252
X
X
X
■TYPICAL PERFORMANCE CHARACTERISTICS (Continued)
(7) Input Transient Response (Continued)
XC6219/XC6211
Series
XC6219/11x302
XC6219/11x302
C6219/11x302
C6219/11x302
(8) Load Transient Response
XC6219/11x182
C6219/11x182
15/23
(
XC6219/XC6211 Series
■TYPICAL PERFORMANCE CHARACTERISTICS (Continued)
(8) Load Transient Response (Continued)
XC6219/11x182
CL=1μF (ceramic), CL=1uF (ceramic)
VIN=2.8V, trr=tf=5use
XC6219/11x252
CL=1μF (ceramic), CL=1uF (ceramic)
VIN=3.5V, trr=tf=5use
XC6219/11x252
CL=1μF (ceramic), CL=1uF (ceramic)
XC6219/11x252
CL=1μF (ceramic), CL=1uF (ceramic)
VIN=3.5V, trr=tf=5use
VIN=3.5V, trr=tf=5use
XC6219/11x302
CL=1μF (ceramic), CL=1uF (ceramic)
VIN=4.0V, trr=tf=5use
XC6219/11x302
CL=1μF
ceramic), CL=1uF (ceramic)
VIN=4.0V, trr=tf=5use
16/23
XC6219/11x302
XC6219/11x252
XC6219/11x302
■TYPICAL PERFORMANCE CHARACTERISTICS (Continued)
(8) Load Transient Response (Continued)
(9) Ripple Rejection Rate
CL=1μF (ceramic), CL=1uF (ceramic)
XC6219/11x182
VIN=2.8V, DC+1Vp-pAC
IOUT=50mA, CL=1uF (ceramic)
VIN=2.8V, DC+1Vp-pAC
IOUT=50mA, CL=1uF (ceramic)
VIN=4.0V, trr=tf=5use
VIN=2.8V, DC+1Vp-pAC
IOUT=50mA, CL=1uF (ceramic)
XC6219/XC6211
Series
17/23
T
XC6219/XC6211 Series
■PACKAGING INFORMATION
●SOT-25
●USP-6B
●SO
-89-5
18/23
XC6219/XC6211
■PACKAGING INFORMATION (Continued)
●USP-6B Reference Pattern Layout ●USP-6B Reference Metal Mask Design
Series
19/23
XC6219/XC6211 Series
■MARKING RULE
[XC6219 Series]
●SOT-25, SOT-89-5
54
① ② ③ ④
123
SOT-25
(TOP VIEW)
524
②①
123
SOT-89-5
(TOP VIEW)
④③
① represents product series
② represents type of regulator
VOUT 100mV INCREMENTS VOUT 50mV INCREMENTS
VOUT:0.1~3.0V VOUT:3.1~6.0V VOUT:0.15~3.05V VOUT:3.15~6.05V
V A E L
X B F M
Y C H N
Z D K P
③ represents output voltage
MARK OUTPUT VOLTAGE (V) MARK OUTPUT VOLTAGE (V)
0 - 3.1 - 3.15 F 1.6 4.6 1.65 4.65
1 - 3.2 - 3.25 H 1.7 4.7 1.75 4.75
2 - 3.3 - 3.35 K 1.8 4.8 1.85 4.85
3 - 3.4 - 3.45 L 1.9 4.9 1.95 4.95
4 - 3.5 - 3.55 M 2.0 5.0 2.05 5 - 3.6 - 3.65 N 2.1 - 2.15 6 - 3.7 - 3.75 P 2.2 - 2.25 7 - 3.8 - 3.85 R 2.3 - 2.35 8 0.9 3.9 0.95 3.95 S 2.4 - 2.45 -
9 1.0 4.0 1.05 4.05 T 2.5 - 2.55 A 1.1 4.1 1.15 4.15 U 2.6 - 2.65 B 1.2 4.2 1.25 4.25 V 2.7 - 2.75 C 1.3 4.3 1.35 4.35 X 2.8 - 2.85 D 1.4 4.4 1.45 4.45 Y 2.9 - 2.95 E 1.5 4.5 1.55 4.55 Z 3.0 - 3.05 -
④ represents production lot number
0 to 9, A to Z reverse character of 0 to 9, A to Z repeated (G, I, J, O, Q, W excluded)
MARK PRODUCT SERIES
L XC6219xxxxxx
MARK
PRODUCT SERIES
XC6219Axxxxx
XC6219Bxxxxx
XC6219Cxxxxx
XC6219Dxxxxx
20/23
■MARKING RULE (Continued)
●USP-6B
①② represents product series
① ②
1 9 XC6219xxxxDx
③ represents type of regulator
MARK TYPE PRODUCT SERIES
USP-6B
(TOP VIEW)
A High Active, pull-down resistor built-in (semi-custom) XC6219AxxxMx
B High Active, no pull-down resistor built-in (semi-custom) XC6219BxxxMx
C Low Active, pull-up resistor built-in (semi-custom) XC6219CxxxMx
D Low Active, no pull-up resistor built-in (semi-custom) XC6219DxxxMx
④ represents product series
MARK VOLTAGE (V) PRODUCT SERIES
3 3.X XC6219x3xxDx
5 5.X XC6219x5xxDx
⑤ represents output voltage
MARK VOLTAGE PRODUCT SERIES SYMBOL VOLTAGE PRODUCT SERIES
0 X.0 XC6219xx0xDx A X.05 XC6219xx0ADx
1 X.1 XC6219xx1xDx B X.15 XC6219xx1ADx
2 X.2 XC6219xx2xDx C X.25 XC6219xx2ADx
3 X.3 XC6219xx3xDx D X.35 XC6219xx3ADx
4 X.4 XC6219xx4xDx E X.45 XC6219xx4ADx
5 X.5 XC6219xx5xDx F X.55 XC6219xx5ADx
6 X.6 XC6219xx6xDx H X.65 XC6219xx6ADx
7 X.7 XC6219xx7xDx K X.75 XC6219xx7ADx
8 X.8 XC6219xx8xDx L X.85 XC6219xx8ADx
9 X.9 XC6219xx9xDx M X.95 XC6219xx9ADx
⑥ represents production lot number
0 to 9, A to Z repeated (
* No character inversion used.
MARK
G, I, J, O, Q, W
XC6219/XC6211
Series
PRODUCT SERIES
excluded)
21/23
XC6219/XC6211 Series
■MARKING RULE (Continued)

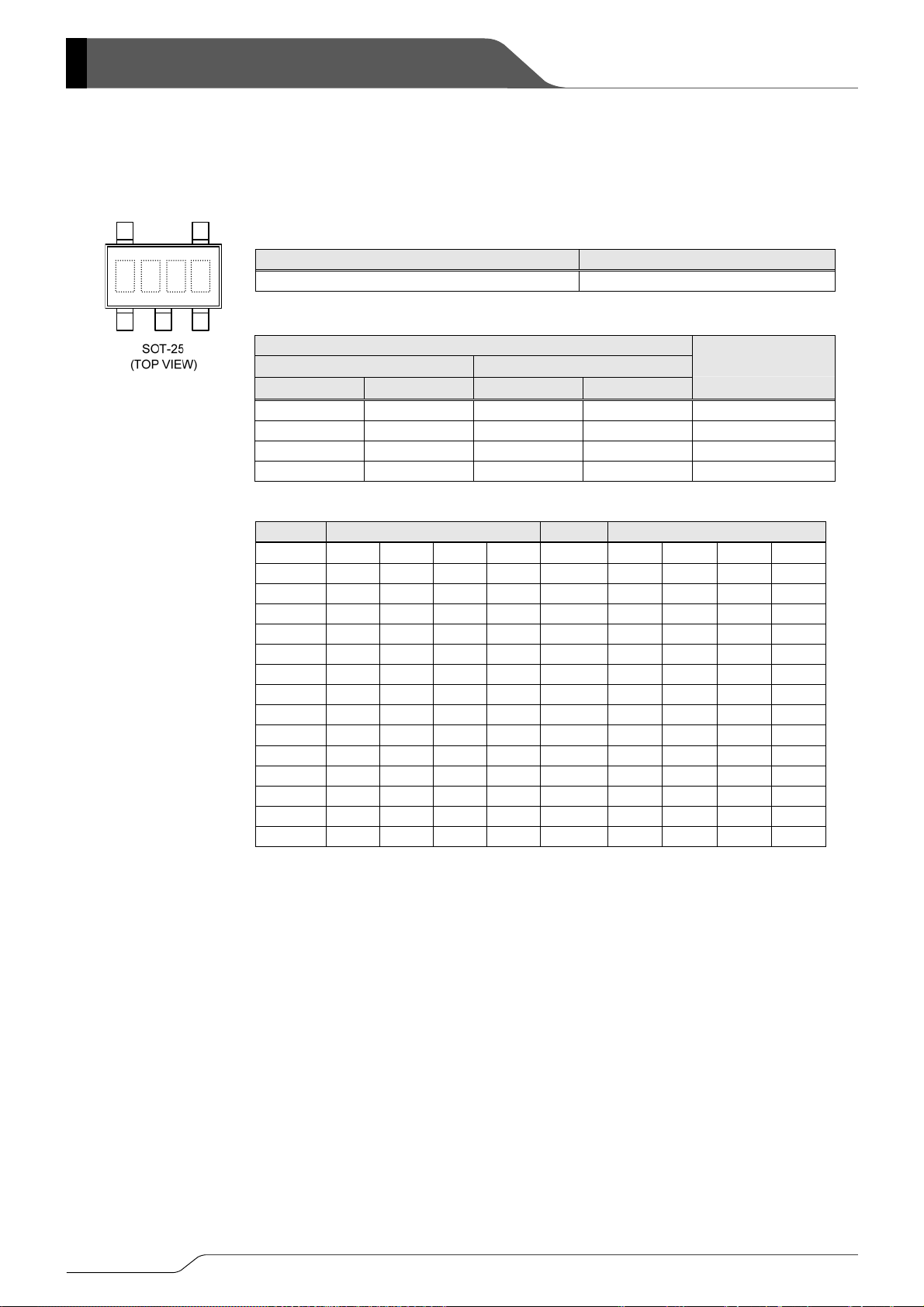

[XC6211 Series]
●SOT-25
54
① ② ③ ④
123
① represents product series
② represents type of regulator
VOUT 100mV INCREMENTS VOUT 50mV INCREMENTS
VOUT:0.1~3.0V VOUT:3.1~6.0V VOUT:0.15~3.05V VOUT:3.15~6.05V
V A E L XC6211AxxxMx
X B F M XC6211BxxxMx
Y C H N XC6211CxxxMx
Z D K P XC6211DxxxMx
③ represents output voltage
MARK OUTPUT VOLTAGE (V) MARK OUTPUT VOLTAGE (V)
0 - 3.1 - 3.15 F 1.6 4.6 1.65 4.65
1 - 3.2 - 3.25 H 1.7 4.7 1.75 4.75
2 - 3.3 - 3.35 K 1.8 4.8 1.85 4.85
3 - 3.4 - 3.45 L 1.9 4.9 1.95 4.95
4 - 3.5 - 3.55 M 2.0 5.0 2.05 5.05
5 - 3.6 - 3.65 N 2.1 5.1 2.15 5.15
6 - 3.7 - 3.75 P 2.2 5.2 2.25 5.25
7 - 3.8 - 3.85 R 2.3 5.3 2.35 5.35
8 - 3.9 - 3.95 S 2.4 5.4 2.45 5.45
9 - 4.0 - 4.05 T 2.5 5.5 2.55 5.55
A - 4.1 - 4.15 U 2.6 5.6 2.65 5.65
B - 4.2 - 4.25 V 2.7 5.7 2.75 5.75
C - 4.3 - 4.35 X 2.8 5.8 2.85 5.85
D - 4.4 - 4.45 Y 2.9 5.9 2.95 5.95
E - 4.5 - 4.55 Z 3.0 6.0 3.05 6.05
④ represents production lot number
0 to 9, A to Z reverse character of 0 to 9, A to Z repeated (G, I, J, O, Q, W excluded)
MARK PRODUCT SERIES
A XC6211xxxxMx
MARK
PRODUCT SERIES
22/23
1. The products and product specifications contained herein are subject to change without
XC6219/XC6211
Series
notice to improve performance characteristics. Consult us, or our representatives
before use, to confirm that the information in this datasheet is up to date.
2. We assume no responsibility for any infringement of patents, patent rights, or other
rights arising from the use of any information and circuitry in this datasheet.
3. Please ensure suitable shipping controls (including fail-safe designs and aging
protection) are in force for equipment employing products listed in this datasheet.
4. The products in this datasheet are not developed, designed, or approved for use with
such equipment whose failure of malfunction can be reasonably expected to directly
endanger the life of, or cause significant injury to, the user.
(e.g. Atomic energy; aerospace; transport; combustion and associated safety
equipment thereof.)
5. Please use the products listed in this datasheet within the specified ranges.
Should you wish to use the products under conditions exceeding the specifications,
please consult us or our representatives.
6. We assume no responsibility for damage or loss due to abnormal use.
7. All rights reserved. No part of this datasheet may be copied or reproduced without the
prior permission of TOREX SEMICONDUCTOR LTD.
23/23
Loading...
